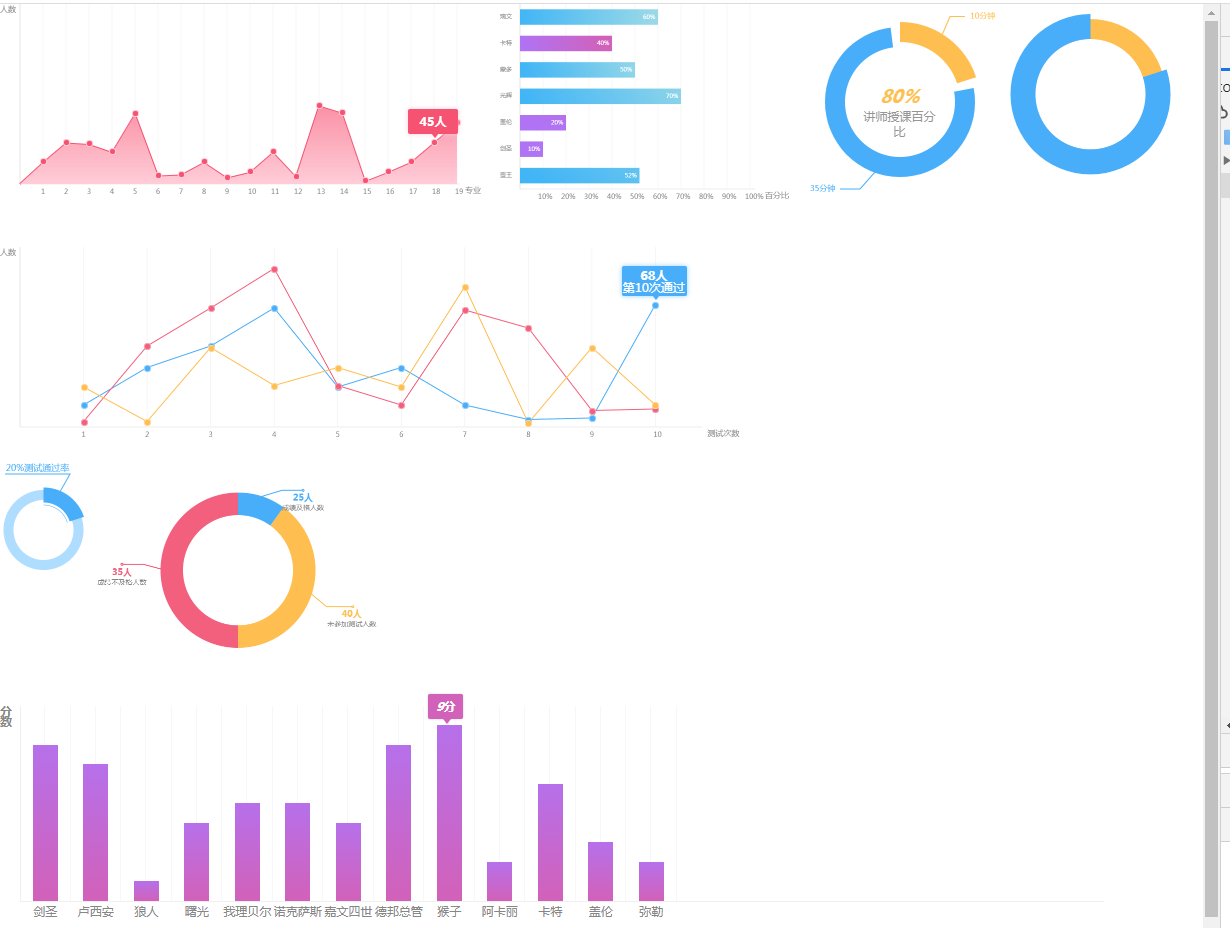

最终效果图:
代码：
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title></title>
<script type="text/javascript" src="https://code.jquery.com/jquery-3.1.1.min.js"></script>
<style type="text/css">
*{
margin:0;
padding:0;
}
.home-canavs-dotted{
width:10px;
height:10px;
-webkit-border-radius: 100%;
-moz-border-radius: 100%;
border-radius: 100%;
position: absolute;
cursor:pointer;
border:2px solid #fff;
}
.course-test-gradual .canvas-alert,.course-test-gradual-broken .canvas-alert1,.course-test-gradual-broken .canvas-alert2,.course-test-gradual-broken .canvas-alert3{
position:absolute;
width:100px;
height:50px;
-webkit-border-radius: 4px;
-moz-border-radius: 4px;
border-radius: 4px;
display:none;
z-index:1;
}
.course-test-gradual .canvas-alert h6,.course-test-gradual-broken .canvas-alert1 h6,.course-test-gradual-broken .canvas-alert2 h6,.course-test-gradual-broken .canvas-alert3 h6{
line-height:50px;
font-size:18px;
text-align:center;
color:#fff;
font-weight:bold;
}
.course-test-gradual .canvas-alert span,.course-test-gradual-broken .canvas-alert1 span,.course-test-gradual-broken .canvas-alert2 span,.course-test-gradual-broken .canvas-alert3 span{
position:absolute;
left:45px;
bottom:-8px;
border-left:8px solid transparent;
border-right:8px solid transparent;
}
.course-teacher-time-cir{
float: left;
position: relative;
}
.course-cir2-alert{
position: absolute;
width:150px;
height:80px;
top:160px;
left:50%;
margin-left:-75px;
}
.course-cir2-alert h5{
line-height:50px;
font-size:36px;
text-align:center;
}
.course-cir2-alert p{
line-height:30px;
font-size:18px;
color:#959595;
text-align:center;
}
.home-canavs-dotted{
width:10px;
height:10px;
-webkit-border-radius: 100%;
-moz-border-radius: 100%;
border-radius: 100%;
position: absolute;
cursor:pointer;
border:2px solid #fff;
}
.home-test-line{
position: relative;
}
.canvas-alert1,.canvas-alert2{
position:absolute;
width:130px;
height:60px;
-webkit-border-radius: 4px;
-moz-border-radius: 4px;
border-radius: 4px;
display:none;
z-index:1;
}
.canvas-alert1 h6,.canvas-alert2 h6{
font-size:16px;
color:#fff;
font-weight:bold;
text-align:center;
height:36px;
line-height:36px;
font-weight:bold;
}
.canvas-alert1 p,.canvas-alert2 p{
font-size:12px;
color:#FFF;
text-align:center;
height:14px;
line-height:14px;
}
.canvas-alert1 span,.canvas-alert2 span{
position:absolute;
left:60px;
bottom:-8px;
/*border-top:10px solid #fff;*/
border-left:8px solid transparent;
border-right:8px solid transparent;
}
/*------ 最后一个柱状图样式 -----*/
ul,li{
list-style: none;
}
.teacher-evaluate-time{
height:480px;
position:relative;
}
.teacher-canvas1,.teacher-canvas2{
width:90%;
height:390px;
margin-left:40px;
border-bottom:2px solid #efefef;
border-left:2px solid #efefef;
position:absolute;
z-index:1;
}
.teacher-canvas1-left-text{
width:38px;
height:20px;
position:absolute;
left:0;
top:0;
line-height:20px;
color:#868686;
}
.teacher-canvas-main-ul{
position:absolute;
left:40px;
top:0;
height:390px;
z-index:0;
}
.teacher-canvas-main-ul li{
border-right:2px solid #f7f7f7;
height:100%;
float:left;
margin-left:-2px;
}
.teacher-canvas-bottom-ul{
height:42px;
position:absolute;
left:40px;
top:390px;
}
.teacher-canvas-bottom-ul li{
line-height:40px;
text-align:center;
float:left;
font-size:14px;
color:#868686;
overflow:hidden;
text-overflow:ellipsis;
white-space:nowrap;
}
.teacher-canvas1-column{
position:absolute;
bottom:0;
z-index:1;
cursor:pointer;
}
.teacher-alert-top{
position:absolute;
width:70px;
height:50px;
-webkit-border-radius: 4px;
-moz-border-radius: 4px;
border-radius: 4px;
-webkit-box-shadow: 0 0 4px #ccc;
-moz-box-shadow: 0 0 4px #ccc;
box-shadow: 0 0 4px #ccc;
z-index:1;
display:none;
}
.teacher-alert-top h6{
line-height:50px;
text-align:center;
font-size:16px;
font-weight:bold;
color:#fff;
}
.teacher-alert-top span{
position:absolute;
/*border-top:10px solid #000;*/
border-left:8px solid transparent;
border-right:8px solid transparent;
left:50%;
margin-left:-5px;
top:50px;
}
/*------ 最后一个柱状图样式 end -----*/
</style>
</head>
<body>
<div class="course-test-gradual">
<div class="course-test-gradual-broken" style="float:left;">
<!--折线图 1 -->
<canvas id="course-test-canvas" height="480" width="1000"></canvas>
<div class="canvas-alert">
<h6></h6>
<span></span>
</div>
</div>
<!-- 横柱状图 2 -->
<div class="course-teacher-keyword-column" style="float:left;">
<canvas id="course-canvas2" width="600" height="440"></canvas>
</div>
<!-- 圈图 3 -->
<div class="course-teacher-time-cir" style="float:left;">
<canvas id="course-canvas4" width="398" height="380"></canvas>
<div class="course-cir2-alert">
<h5><i></i></h5>
<p>讲师授课百分比</p>
</div>
</div>
<!-- 多条折线 4 -->
<div class="home-test-line home-test-line-test" style="float:left;width: 100%;">
<canvas id="course-canvas6" height="420"></canvas>
<div class="canvas-alert1">
<h6></h6>
<p></p>
<span></span>
</div>
</div>
<!-- 圆图 5 -->
<div class="home-test-cir1" style="float:left;">
<canvas id="course-canvas8" height="280" width="176"></canvas>
</div>
<!-- 圆图 6 -->
<div class="course-test-grade-left" style="float:left;">
<canvas id="course-test-canvas1" width="600" height="485"></canvas>
</div>
<!-- 圆图 7 -->
<div class="teacher-evaluate-cirimg">
<canvas id="teacher-canvas3" width="366" height="385"></canvas>
</div>
<!-- jq画的的柱状图 8 -->
<div class="teacher-evaluate-time" style="float:left;width: 100%;">
<div class="teacher-canvas-main2">
<h5 class="teacher-canvas1-left-text">分数</h5>
<div class="teacher-canvas2">
<!--<div class="teacher-canvas1-column"></div>-->
</div>
<ul class="teacher-canvas-main-ul"></ul>
<ul class="teacher-canvas-bottom-ul"></ul>
<div class="teacher-alert-top">
<h6><i>0</i>分</h6>
<span></span>
</div>
</div>
</div>
</div>
<script type="text/javascript">
var workStage = [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19] //底部阶段
var majordatas = [{
"testdata":[23,45,43,34,77,8,09,23,6,12,34,7,86,78,2,12,23,45,67],//每次数据
"color": "#f65272",
"title": "测试未及格专业分布情况",
"bordercolor":"#ffcdd8"
}]
//折线图开始（1）
var homegradualFun = function(ctx,imgWidth,imgHeight,leftText,bottomText,bottomData,listDatas,heightNum,parentDIV){
/*
* imgWidth //线图内宽 1120px
* imgHeight //线图内高px
* bottomData 底部分段的数据
* leftText 左上文字
* bottomText 右下文字
* heightNum 垂直方向的最高分段
* listDatas 折线的数据
* parentDIV 父元素div的class
*/
ctx.font = "16px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.fillText(leftText,0,16);//左上文字-结束
ctx.font = "16px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.fillText(bottomText,imgWidth+10,imgHeight+18);//左上文字-结束
ctx.beginPath()
ctx.moveTo(40,0)
ctx.lineTo(40,imgHeight)
ctx.strokeStyle="#ddd";
ctx.stroke();
ctx.moveTo(40,imgHeight)
ctx.lineTo(imgWidth,imgHeight)
ctx.strokeStyle="#ddd";
ctx.stroke(); //大边框结束
var lineWidth = Math.floor(imgWidth/(bottomData.length+1)) //每阶段的间距 (边界线的坐标)
for(var i=1;i<bottomData.length+1;i++){
ctx.beginPath();
ctx.moveTo(lineWidth*i+40,0)
ctx.lineTo(lineWidth*i+40,imgHeight)
ctx.strokeStyle="#eee";
ctx.stroke();
} //画出每个阶段的竖线-结束
for(var j=0;j<bottomData.length;j++){
ctx.font = "14px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.fillText(bottomData[j],lineWidth*j+36+lineWidth,imgHeight+20);//画出下面的阶段名称-结束
}
var testColumn = heightNum; //垂直方向以最高200为标准
var columnOne = imgHeight/testColumn //垂直方向一个单位的高度
for(var i=0;i<listDatas.length;i++){
ctx.beginPath();
ctx.strokeStyle=listDatas[i].color;
ctx.moveTo(40,imgHeight)
for(var j=0;j<listDatas[i].testdata.length;j++){
ctx.lineWidth = 4;
ctx.lineTo(lineWidth*(j+1)+40,Math.floor((testColumn-listDatas[i].testdata[j])*columnOne))
ctx.lineTo(lineWidth*(j+2)+40,Math.floor((testColumn-listDatas[i].testdata[j+1])*columnOne))
// ctx.stroke(); //折线-结束
var canavsDotted = $('<div class="home-canavs-dotted" data_color="'+listDatas[i].color+'" data_column="'+(j+1)+'" data_tit="'+listDatas[i].title+'" data_row="'+listDatas[i].testdata[j]+'" data_shadow="'+listDatas[i].bordercolor+'" data_rowx="'+(lineWidth*(j+1)+34)+'" data_columny="'+(Math.floor((testColumn-listDatas[i].testdata[j])*columnOne)-6)+'"><div>')
canavsDotted.css({'background':listDatas[i].color,'border':'2px solid'+listDatas[i].bordercolor,'border-color':listDatas[i].bordercolor,'left':lineWidth*(j+1)+34,'top':Math.floor((testColumn-listDatas[i].testdata[j])*columnOne)-10})
$(parentDIV).append(canavsDotted)
}
ctx.stroke();
ctx.lineTo(lineWidth*(listDatas[i].testdata.length)+40,Math.floor((testColumn-listDatas[i].testdata[listDatas[i].testdata.length-1])*columnOne))
ctx.lineTo(lineWidth*(listDatas[i].testdata.length)+40,imgHeight)
ctx.lineTo(40,imgHeight)
var testLg = ctx.createLinearGradient(0,40,0,imgHeight);
testLg.addColorStop(0,listDatas[i].color);
testLg.addColorStop(1,listDatas[i].bordercolor)
ctx.fillStyle = testLg; //渐变区域-结束
ctx.fill()
}
}
$('.course-test-gradual-broken').on('click','div.home-canavs-dotted',function(){ //点击折线上的小点
var dottedColor=$(this).attr('data_color')
var dottedColumn=$(this).attr('data_column')
var dottedRow=$(this).attr('data_row')
var dottedX=$(this).attr('data_rowx')
var dottedY=$(this).attr('data_columny')
var dottedTit=$(this).attr('data_tit')
var dottedShadow=$(this).attr('data_shadow')
$('.canvas-alert').css({'background':dottedColor,'box-shadow':'0 0 10px'+dottedShadow,'left':dottedX-46,'top':dottedY-63}).show();
$('.canvas-alert h6').text(dottedRow + "人");
$('.canvas-alert span').css({'border-top-width':'10px','border-top-style':'solid','border-top-color':dottedColor})
})
var testCir = document.getElementById("course-test-canvas")
var testCtx = testCir.getContext("2d");
$('#course-test-canvas').attr('width',$('.course-test-gradual-broken').width())
var canvasCenterWidth = $('.course-test-gradual-broken').width()-80
homegradualFun(testCtx,canvasCenterWidth,360,'人数','专业',workStage,majordatas,200,'.course-test-gradual-broken') //作业折线
// 横柱状图（2） --------------------------
var antistop = [
{'word':'瑞文',"wordRate":'0.6'},
{'word':'卡特',"wordRate":'0.4'},
{'word':'蒙多',"wordRate":'0.5'},
{'word':'光辉',"wordRate":'0.7'},
{'word':'盖伦',"wordRate":'0.2'},
{'word':'剑圣',"wordRate":'0.1'},
{'word':'蛮王',"wordRate":'0.52'}
]
var antistopRate = ["10%","20%","30%","40%","50%","60%","70%","80%","90%","100%"]
var courseWordFun = function(ctx,bottomText,imgWidth,imgHeight,bottomData,heightNum){
/*
* imgWidth //线图内宽 1120px
* imgHeight //线图内高px
* bottomData 底部分段的数据
* bottomText 右下文字
* heightNum 垂直方向数组
*/
ctx.font = "16px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.fillText(bottomText,imgWidth+20,imgHeight+18);//右下文字-结束
ctx.beginPath()
ctx.moveTo(40,0)
ctx.lineTo(40,imgHeight)
ctx.strokeStyle="#ddd";
ctx.stroke();
ctx.moveTo(40,imgHeight)
ctx.lineTo(imgWidth,imgHeight)
ctx.strokeStyle="#ddd";
ctx.stroke(); //大边框结束
var lineWidth = Math.floor(imgWidth/(bottomData.length+1)) //每阶段的间距 (边界线的坐标)
for(var i=1;i<bottomData.length+1;i++){
ctx.beginPath();
ctx.moveTo(lineWidth*i+40,0)
ctx.lineTo(lineWidth*i+40,imgHeight)
ctx.strokeStyle="#eee";
ctx.stroke();
} //画出每个阶段的竖线-结束
for(var j=0;j<bottomData.length;j++){
ctx.font = "14px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.textAlige = 'center'
ctx.fillText(bottomData[j],lineWidth*j+30+lineWidth,imgHeight+20);//画出下面的阶段名称-结束
}
var testColumn = heightNum.length;
var columnOne = imgHeight/testColumn //垂直方向一个单位的高度
for(var i=0;i<heightNum.length;i++){
var lineColorStart = "#b073f4";
var lineColorEnd = "#d261b9";
ctx.font = "12px 微软雅黑";
ctx.fillStyle = "#848484";
ctx.textBaseline = 'middle';
ctx.fillText(heightNum[i].word,0,Math.floor(columnOne*(2/4)+columnOne*i)) //左边排列-结束
if(heightNum[i].wordRate >= 0.5){
lineColorStart = "#41b5f6";
lineColorEnd = "#99d9e7"
}
ctx.beginPath();
var lg = ctx.createLinearGradient(40,columnOne*(1/5)+columnOne*i,Math.floor(imgWidth*heightNum[i].wordRate),Math.floor(columnOne*(3/5)));
lg.addColorStop(0,lineColorStart);
lg.addColorStop(1,lineColorEnd)
ctx.fillStyle = lg; //渐变-结束
ctx.fillRect(40,columnOne*(1/5)+columnOne*i,Math.floor(lineWidth*antistopRate.length*heightNum[i].wordRate),Math.floor(columnOne*(3/5)));
ctx.closePath(); //水平条-结束
ctx.font = "12px 微软雅黑";
ctx.fillStyle = "#fff";
ctx.textBaseline = 'middle';
ctx.fillText(heightNum[i].wordRate*100+'%',lineWidth*antistopRate.length*heightNum[i].wordRate+10,columnOne*(2/4)+columnOne*i)
}
}
var courseCir2 = document.getElementById("course-canvas2");
var courseCtx2 = courseCir2.getContext("2d");
courseWordFun(courseCtx2,'百分比',510,370,antistopRate,antistop) // 讲师发言横向柱状图
// 圈图 (3) ----------------------------
var arcFun = function(ctx,arcCloor1,arcCloor2,ratio,ratio2,homeAirX,homeAirY,arcText1,arcText2){
/*arcCloor1 底层浅色圆颜色 #
* arcCloor2 比例圆、线、文字、内圆框 颜色
* ratio 数据所占比例 0.1
* homeAirX 圆心水平坐标 87
* homeAirY 圆心垂直坐标 140
* arcText 顶部解释文字
*/
var RightData = ratio // 数据所占比例
var homeCtx3Data1 = (-90 + ratio*360)*Math.PI/180; //按比例算出结束角度
var homeCtx3Data = (-90 + ratio*360 + 0.02*360)*Math.PI/180;
var homeCtx3Data2 = (-90 + (ratio+0.02)*360 + ratio2*360)*Math.PI/180;
ctx.beginPath();
ctx.moveTo(homeAirX,homeAirY);
ctx.fillStyle=arcCloor2;
ctx.arc(homeAirX,homeAirY,160,Math.PI*(3/2),homeCtx3Data1);
ctx.fill();//外层比例区域(实体)
ctx.beginPath();
ctx.fillStyle="#fff";
ctx.arc(homeAirX,homeAirY,120,0,Math.PI*2);
ctx.fill();//圆心空白区域
ctx.beginPath();
ctx.moveTo(homeAirX,homeAirY);
ctx.fillStyle="#fff";
ctx.arc(homeAirX,homeAirY,150,(-90 + (ratio)*360)*Math.PI/180,homeCtx3Data)
ctx.fill(); //白色边框区域
ctx.beginPath();
ctx.moveTo(homeAirX,homeAirY);
ctx.fillStyle=arcCloor1;
ctx.arc(homeAirX,homeAirY,150,(-90 + (ratio+0.02)*360)*Math.PI/180,homeCtx3Data2)
ctx.fill(); //内层
ctx.beginPath();
ctx.fillStyle="#fff";
ctx.arc(homeAirX,homeAirY,110,0,Math.PI*2);
ctx.fill();//圆心空白区域
ctx.beginPath()
ctx.moveTo(285,60)
ctx.lineTo(300,25)
ctx.lineTo(330,25)
ctx.lineWidth = 2
ctx.strokeStyle=arcCloor2;
ctx.stroke(); //折线-结束
ctx.font = "16px 微软雅黑";
ctx.fillStyle =arcCloor2;
ctx.textBaseline = 'middle';
ctx.fillText(arcText1,340,25); //上部文字结束
ctx.beginPath()
ctx.moveTo(150,336)
ctx.lineTo(120,370)
ctx.lineTo(80,370)
ctx.lineWidth = 2
ctx.strokeStyle=arcCloor1;
ctx.stroke(); //折线-结束
ctx.font = "16px 微软雅黑";
ctx.fillStyle =arcCloor1;
ctx.textBaseline = 'middle';
ctx.fillText(arcText2,20,370); //上部文字结束
$('.course-cir2-alert h5').css({'color':arcCloor2})
$('.course-cir2-alert h5 i').text((ratio2+0.04)*100+'%')
}
var courseCir4 = document.getElementById("course-canvas4")
var courseCtx4 = courseCir4.getContext('2d')
arcFun(courseCtx4,'#48aef9','#ffbe50',0.2,0.76,200,196,'10分钟','35分钟')
// 多条折线（4）
//测试完成情况 数据
var testStage = [1,2,3,4,5,6,7,8,9,10] //底部阶段
var testdatas = [{
"testdata":[12,33,45,66,22,33,12,4,5,68],
"color": "#48aef9",
"title": "通过",
"bordercolor":"#95d0fc"
},{
"testdata":[3,45,66,88,23,12,65,55,9,10],
"color": "#f3607d",
"title": "未通过",
"bordercolor":"#f7a3b3"
},{
"testdata":[22,3,44,23,33,22,78,2,44,12],
"color": "#ffbe50",
"title": "未参加",
"bordercolor":"#ffd89a"
}];
var homeLineFun = function(ctx,imgWidth,imgHeight,leftText,bottomText,bottomData,listDatas,heightNum,parentDIV){
/*
* imgWidth //线图内宽 1120px
* imgHeight //线图内高px
* bottomData 底部分段的数据
* leftText 左上文字
* bottomText 右下文字
* heightNum 垂直方向的最高分段
* listDatas 折线的数据
* parentDIV 父元素div的class
*/
ctx.font = "16px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.fillText(leftText,0,16);//左上文字-结束
ctx.font = "16px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.fillText(bottomText,imgWidth+10,imgHeight+18);//左上文字-结束
ctx.beginPath()
ctx.moveTo(40,0)
ctx.lineTo(40,imgHeight)
ctx.strokeStyle="#ddd";
ctx.stroke();
ctx.moveTo(40,imgHeight)
ctx.lineTo(imgWidth,imgHeight)
ctx.strokeStyle="#ddd";
ctx.stroke(); //大边框结束
var lineWidth = Math.floor(imgWidth/(bottomData.length+1)) //每阶段的间距 (边界线的坐标)
for(var i=1;i<bottomData.length+1;i++){
ctx.beginPath();
ctx.moveTo(lineWidth*i+40,0)
ctx.lineTo(lineWidth*i+40,imgHeight)
ctx.strokeStyle="#eee";
ctx.stroke();
} //画出每个阶段的竖线-结束
for(var j=0;j<bottomData.length;j++){
ctx.font = "14px 微软雅黑";
ctx.fillStyle ="#848484";
ctx.fillText(bottomData[j],lineWidth*j+36+lineWidth,imgHeight+20);//画出下面的阶段名称-结束
}
var testColumn = heightNum; //垂直方向以最高200为标准
var columnOne = imgHeight/testColumn //垂直方向一个单位的高度
for(var i=0;i<listDatas.length;i++){
for(var j=0;j<listDatas[i].testdata.length;j++){
ctx.beginPath();
ctx.lineWidth = 2;
ctx.strokeStyle=listDatas[i].color;
ctx.moveTo(lineWidth*(j+1)+40,Math.floor((testColumn-listDatas[i].testdata[j])*columnOne))
ctx.lineTo(lineWidth*(j+2)+40,Math.floor((testColumn-listDatas[i].testdata[j+1])*columnOne))
ctx.stroke(); //折线-结束
var canavsDotted = $('<div class="home-canavs-dotted" data_color="'+listDatas[i].color+'" data_column="'+(j+1)+'" data_tit="'+listDatas[i].title+'" data_row="'+listDatas[i].testdata[j]+'" data_shadow="'+listDatas[i].bordercolor+'" data_rowx="'+(lineWidth*(j+1)+38)+'" data_columny="'+(Math.floor((testColumn-listDatas[i].testdata[j])*columnOne))+'"><div>')
canavsDotted.css({'background':listDatas[i].color,'border':'2px solid'+listDatas[i].bordercolor,'border-color':listDatas[i].bordercolor,'left':lineWidth*(j+1)+34,'top':Math.floor((testColumn-listDatas[i].testdata[j])*columnOne)-6})
$(parentDIV).append(canavsDotted)
}
}
}
var courseCir6 = document.getElementById("course-canvas6")
var courseCtx6 = courseCir6.getContext("2d");
$('#course-canvas6').attr('width',$('.home-test-line').width());
var canvasCenterWidth2 = $('.home-test-line').width()-100
homeLineFun(courseCtx6,canvasCenterWidth2,360,'人数','测试次数',testStage,testdatas,100,'.home-test-line-test') //测试折线
// 点击折点
$('.home-test-line-test').on('click','div.home-canavs-dotted',function(){
var dottedColor=$(this).attr('data_color')
var dottedColumn=$(this).attr('data_column')
var dottedRow=$(this).attr('data_row')
var dottedX=$(this).attr('data_rowx')
var dottedY=$(this).attr('data_columny')
var dottedTit=$(this).attr('data_tit')
var dottedShadow=$(this).attr('data_shadow')
$('.canvas-alert1').css({'background':dottedColor,'box-shadow':'0 0 10px'+dottedShadow,'left':dottedX-65,'top':dottedY-78}).show();
$('.canvas-alert1 h6').text(dottedRow + "人");
$('.canvas-alert1 p').text("第"+dottedColumn+"次"+dottedTit);
$('.canvas-alert1 span').css({'border-top-width':'10px','border-top-style':'solid','border-top-color':dottedColor})
})
// 圆图比例图（5）
var passRate = 0.2;
var rightArcFun = function(ctx,arcCloor1,arcCloor2,ratio,homeAirX,homeAirY,arcText){
/*arcCloor1 底层浅色圆颜色 #
* arcCloor2 比例圆、线、文字、内圆框 颜色
* ratio 数据所占比例 0.8
* homeAirX 圆心水平坐标 87
* homeAirY 圆心垂直坐标 140
* arcText 顶部解释文字
*/
var RightData = ratio // 数据所占比例
// var homeCtx3Data = (-90 + RightData*360)*Math.PI/180; //按比例算出结束角度
var homeCtx3Data = ((Math.abs(1.5+RightData*2))*Math.PI)
ctx.beginPath();
ctx.fillStyle=arcCloor1;
ctx.arc(homeAirX,homeAirY,80,0,Math.PI*2)
ctx.fill(); //原先圆
ctx.beginPath();
ctx.fillStyle="#fff";
ctx.arc(homeAirX,homeAirY,60,0,Math.PI*2);
ctx.fill();//圆心空白区域
ctx.beginPath();
ctx.moveTo(homeAirX,homeAirY);
ctx.fillStyle=arcCloor2;
ctx.arc(homeAirX,homeAirY,85,Math.PI*(3/2),homeCtx3Data);
ctx.fill();//所占比例区域(实体)
ctx.beginPath();
ctx.fillStyle="#fff";
ctx.arc(homeAirX,homeAirY,55,0,Math.PI*2);
ctx.fill();//圆心空白区域
ctx.beginPath();
ctx.strokeStyle=arcCloor2;
ctx.arc(homeAirX,homeAirY,50,Math.PI*(3/2),homeCtx3Data);
ctx.stroke();//所占比例区域(虚线)
ctx.beginPath()
ctx.moveTo(118,67)
ctx.lineTo(140,28)
ctx.lineTo(10,28)
ctx.lineWidth = 2
ctx.strokeStyle=arcCloor2;
ctx.stroke(); //折线-结束
ctx.font = "18px 微软雅黑";
ctx.fillStyle =arcCloor2;
ctx.textAlign = 'center';
ctx.fillText(RightData*100+'%'+arcText,75,22); //顶部文字结束
$('.home-cir2-alert h5').css({'color':arcCloor2})
}
var courseCir8 = document.getElementById("course-canvas8");
var courseCtx8 = courseCir8.getContext("2d");//home页右边第一个
rightArcFun(courseCtx8,'#afddff','#48aef9',passRate,87,140,'测试通过率')
// 圆图 （6）
var testTopData = [{ //每部分圆的数据
"value": 0.1,
"color": "#48aef9",
"title": "已完成",
"explain": "成绩及格人数",
"peoplenum":"25"
},{
"value": 0.4,
"color": "#ffbe50",
"title": "进行中",
"explain": "未参加测试人数",
"peoplenum":"40"
},{
"value": 0.5,
"color": "#F3607E",
"title": "未开始",
"explain": "成绩不及格人数",
"peoplenum":"35"
}];
var courseArc = function(ctx,x0,y0,radius,data){
/* x0 圆心水平坐标
* y0 圆心垂直坐标
* radius 半径
* data 每一部分的数据
*/
var tempAngle = -90;
for(var i=0;i<data.length;i++){
// 开始绘制新状态的扇形
ctx.beginPath();
ctx.moveTo(x0,y0);
ctx.fillStyle = data[i].color;
var angle = data[i].value*360;
var startAngle = tempAngle*Math.PI/180;
var endAngle = (tempAngle + angle)*Math.PI/180;
ctx.arc(x0, y0, radius, startAngle, endAngle);
tempAngle+=angle;
ctx.fill();
}
if(data[0].value>0){
ctx.beginPath();
var lineY = radius*Math.sin((90-data[0].value/2*360)*2*Math.PI/360) //对边垂直
var lineX = radius*Math.cos((90-data[0].value/2*360)*2*Math.PI/360) //临边水平
ctx.strokeStyle = data[0].color;
ctx.lineWidth = 2;
ctx.moveTo(x0+lineX,y0-lineY);
ctx.lineTo(x0+lineX+40,y0-lineY-12);
ctx.lineTo(x0+lineX+80,y0-lineY-12);
ctx.stroke();
ctx.beginPath();
ctx.arc(x0+lineX+82,y0-lineY-12,2,0,Math.PI*2)
ctx.stroke();
ctx.fillStyle=data[0].color;
ctx.font = "bold 18px 微软雅黑";
ctx.textBaseline = 'middle';
ctx.textAlign = 'center';
ctx.fillText(data[0].peoplenum+'人',x0+lineX+82,y0-lineY+4)
ctx.font = "14px 微软雅黑";
ctx.fillStyle = "#848484";
ctx.textBaseline = 'middle';
ctx.fillText(data[0].explain,x0+lineX+82,y0-lineY+24,130)
}//右边第一个
if(data[1].value>0){
ctx.beginPath();
var lineX = radius*Math.sin((180-data[0].value*360-data[1].value/2*360)*2*Math.PI/360) //对边垂直
var lineY = radius*Math.cos((180-data[0].value*360-data[1].value/2*360)*2*Math.PI/360) //临边水平
if(data[0].value>=0.4){
ctx.strokeStyle=data[1].color;
ctx.moveTo(x0+lineX,y0+lineY)
ctx.lineTo(x0+lineX-30,y0+lineY+25);
ctx.lineTo(x0+lineX-80,y0+lineY+25);
ctx.stroke();
ctx.beginPath();
ctx.arc(x0+lineX-82,y0+lineY+25,2,0,Math.PI*2)
ctx.stroke();
ctx.beginPath()
ctx.fillStyle=data[1].color
ctx.font = "bold 18px 微软雅黑";
ctx.textBaseline = 'middle';
ctx.textAlign="center";
ctx.fillText(data[1].peoplenum+'人',x0+lineX-82,y0+lineY+40)
ctx.fill();
ctx.font = "14px 微软雅黑";
ctx.fillStyle = "#848484";
ctx.textBaseline = 'middle';
ctx.fillText(data[1].explain,x0+lineX-82,y0+lineY+60,130)
}else{
ctx.strokeStyle=data[1].color;
ctx.moveTo(x0+lineX,y0+lineY)
ctx.lineTo(x0+lineX+30,y0+lineY+25);
ctx.lineTo(x0+lineX+80,y0+lineY+25);
ctx.stroke();
ctx.beginPath();
ctx.arc(x0+lineX+82,y0+lineY+25,2,0,Math.PI*2)
ctx.stroke();
ctx.beginPath();
ctx.fillStyle=data[1].color
ctx.font = "bold 18px 微软雅黑";
ctx.textBaseline = 'middle';
ctx.textAlign="center";
ctx.fillText(data[1].peoplenum+'人',x0+lineX+80,y0+lineY+40)
ctx.fill();
ctx.font = "14px 微软雅黑";
ctx.fillStyle = "#848484";
ctx.textBaseline = 'middle';
ctx.fillText(data[1].explain,x0+lineX+80,y0+lineY+60,130)
//中间第二个
}
}
if(data[2].value>0){
ctx.beginPath();
var lineX = radius*Math.sin((360-data[0].value*360-data[1].value*360-data[2].value/2*360)*2*Math.PI/360) //对边垂直
var lineY = radius*Math.cos((360-data[0].value*360-data[1].value*360-data[2].value/2*360)*2*Math.PI/360) //临边水平
ctx.strokeStyle=data[2].color;
ctx.moveTo(x0-lineX+10,y0-lineY)
ctx.lineTo(x0-lineX-35,y0-lineY-12);
ctx.lineTo(x0-lineX-75,y0-lineY-12);
ctx.stroke();
ctx.beginPath();
ctx.arc(x0-lineX-77,y0-lineY-12,2,0,Math.PI*2)
ctx.stroke();
ctx.beginPath();
ctx.fillStyle=data[2].color;
ctx.font = "bold 18px 微软雅黑";
ctx.textBaseline = 'middle';
ctx.TextAlign = 'center';
ctx.fillText(data[2].peoplenum+'人',x0-lineX-77,y0-lineY+5,70)
ctx.fill(); //左边第三个
ctx.font = "14px 微软雅黑";
ctx.fillStyle = "#848484";
ctx.TextAlign = 'center';
ctx.textBaseline = 'middle';
ctx.fillText(data[2].explain,x0-lineX-77,y0-lineY+25,130)
ctx.beginPath(); //圆心空白区域
ctx.fillStyle="#fff";
ctx.arc(x0,y0,110,0,Math.PI*2,true);
ctx.closePath();
ctx.fill();
}
}
var testCir1 = document.getElementById("course-test-canvas1");
var testCtx1 = testCir1.getContext('2d');
courseArc(testCtx1,300,220,155,testTopData) //测试及格率图-结束
// 圆图 （7）
var CourseSpecialize = [
{'course':'语文',"value":'0.8','color':'#48aef9'},
]
var teacherCourseFun = function(ctx,x0,y0,radius1,radius2,courseRate,centerClass){
/*
* radius1 内圆半径
* radius2 外圆半径
* courseRate 课程信息
*/
ctx.beginPath();
ctx.moveTo(x0,y0);
ctx.fillStyle ="#ffbe50";
ctx.arc(x0, y0, radius1, 0,Math.PI*2);
ctx.fill(); //底色圆结束
ctx.beginPath();
ctx.moveTo(x0,y0);
ctx.fillStyle = courseRate[0].color;
ctx.arc(x0, y0, radius2, Math.PI*3/2,(1+(0.5-courseRate[0].value*2))*Math.PI,true);
ctx.fill(); //比例圆-结束
ctx.beginPath(); //圆心空白区域
ctx.fillStyle="#fff";
ctx.arc(x0,y0,radius1-40,0,Math.PI*2,true);
ctx.closePath();
ctx.fill(); //圆-结束
$(centerClass+' h6').css({'color':courseRate[0].color}).text(courseRate[0].course)
$(centerClass+' p i').text(courseRate[0].value*10)
}
var teacherCir3 = document.getElementById("teacher-canvas3");
var teacherCtx3 = teacherCir3.getContext("2d");
teacherCourseFun(teacherCtx3,183,180,150,160,CourseSpecialize,'.teacher-course-specialize')
// 柱状图 8
var coursedata = ['剑圣','卢西安','狼人','曙光','我理贝尔','诺克萨斯','嘉文四世','德邦总管','猴子','阿卡丽','卡特','盖伦','弥勒']
var courseDatas = [{ //课程分数
"persondata":[8,7,1,4,5,5,4,8,9,2,6,3,2],
"startcolor": "#b670ea",
"title": "课程评分",
"endcolor":"#d261b9"
}];
var teachercolumnFun = function(parentsClass,parentClass,bottomData,data){
/*
* parentsClass 最外层元素class名
* parentClass 父元素class名
* bottomData 底部文字列表
* data 数据
*
*/
var lineWidth = Math.floor(($(parentClass).width()-40)/bottomData.length);//每一条宽度
$(parentsClass+' .teacher-canvas-bottom-ul').width($(parentClass).width()-40)
for(var i=0;i<bottomData.length;i++){
$(parentsClass+' '+'.teacher-canvas-main-ul').append('<li style="width:'+lineWidth/2+'px"></li><li style="width:'+lineWidth/2+'px"></li>') //画出竖线
$(parentsClass+' '+'.teacher-canvas-bottom-ul').append('<li style="width:'+lineWidth+'px">'+bottomData[i]+'</li>')
}
for(var i=0;i<data[0].persondata.length;i++){
var left = lineWidth*i-2+lineWidth/2
var columnDiv = $('<div data_color="'+data[0].endcolor+'" data_left="'+left+'" data_value="'+data[0].persondata[i]+'" class="teacher-canvas1-column" style="background:'+data[0].startcolor+'"></div>');
columnDiv.css({'width':lineWidth/2+'px','height':data[0].persondata[i]*10+'%','left':lineWidth/4+lineWidth*i-2+'px','background':'-webkit-linear-gradient('+data[0].startcolor+','+data[0].endcolor+')','background':'-o-linear-gradient('+data[0].startcolor+','+data[0].endcolor+')','background':'-moz-linear-gradient('+data[0].startcolor+','+data[0].endcolor+')','background': 'linear-gradient('+data[0].startcolor+','+data[0].endcolor+')'})
$(parentsClass+' '+parentClass).append(columnDiv)
}
}
$('.teacher-canvas-main2 .teacher-canvas2').on('click','div.teacher-canvas1-column',function(){
var teacherGrade = $(this).attr('data_value');
var alertLeft = $(this).attr('data_left');
var alertTop = $('.teacher-canvas2').height()*(10-teacherGrade)/10-63;
var alertColor = $(this).attr('data_color')
$('.teacher-canvas-main2 .teacher-alert-top').show().css({'top':alertTop,'background':alertColor,'left':alertLeft+'px'})
$('.teacher-canvas-main2 .teacher-alert-top h6 i').text(teacherGrade)
$('.teacher-canvas-main2 .teacher-alert-top span').css({'border-top':'10px solid '+alertColor})
})
teachercolumnFun('.teacher-canvas-main2','.teacher-canvas2',coursedata,courseDatas)
</script>
</body>
</html>
创建html直接复制就可以查看了，css代码有些没用，使用时自己看着删除
建议：画饼图设置指示的导出线条时，使用三角函数可获取到扇面的中心点
