Vue2.6x + Composition-Api + Typescript的仿真时钟

clock

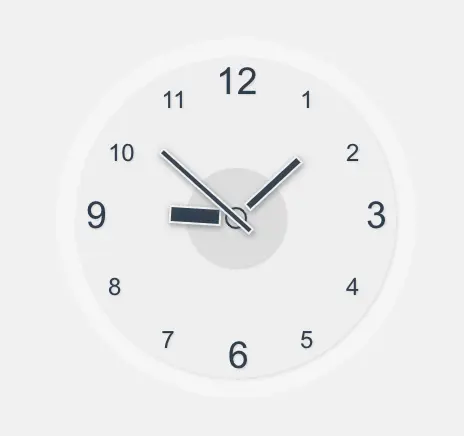

Vue2.6x+Composition-Api+Typescript 的仿真时钟

源码

在线预览

模板 template

<template>
  <main class="canvas-clock">
    <canvas ref="canvasBgRef" />
    <canvas ref="canvasHourRef" />
    <canvas ref="canvasMinuteRef" />
    <canvas ref="canvasSecondRef" />
  </main>
</template>

绘制逻辑

其实绘制简单，初始状态都是0就可以了，难点就是在时间与角度的转换，也就是在 00:00:00 的基础上，以圆心的原点进行旋转

流程

• 画背景 drawCircle
• 画数字 drawNumber
• 画指针 drawHand

<script lang="ts">
import {
  defineComponent,
  onMounted,
  ref,
  onUnmounted,
  reactive
} from "@vue/composition-api";

const themeConfig = {
  text: "#2c3e50",
  bg: "#f6f6f6",
  hangBg: "#2c3e50",
  handStrokeStyle: "#eee"
};

// 仿真时钟
export default defineComponent({
  name: "Clock",
  setup() {
    const bigFont = "14pt Arial";
    const smallFont = "9pt Arial";
    const color = reactive(themeConfig);
    const canvasWidth = ref(0);
    const canvasBgRef = ref<HTMLCanvasElement>(null);
    const canvasHourRef = ref<HTMLCanvasElement>(null);
    const canvasMinuteRef = ref<HTMLCanvasElement>(null);
    const canvasSecondRef = ref<HTMLCanvasElement>(null);
    const timer = ref(0);

    onMounted(() => {
      drawInit();
      timer.value = setInterval(drawInit, 1000);
    });

    onUnmounted(() => {
      clearInterval(timer.value);
    });

    const drawInit = () => {
      canvasWidth.value = canvasBgRef.value!.clientWidth;
      const wh = window.innerWidth > 200 ? 200 : window.innerWidth;
      const pixelRatio = window.devicePixelRatio;

      const canvasList = [
        canvasBgRef,
        canvasHourRef,
        canvasMinuteRef,
        canvasSecondRef
      ];
      canvasList.forEach(canvas => {
        canvas.value!.height = wh * pixelRatio;
        canvas.value!.width = wh * pixelRatio;

        const canvasCtx: CanvasRenderingContext2D = canvas.value!.getContext(
          "2d"
        )!;
        canvasCtx.clearRect(0, 0, canvasWidth.value, canvasWidth.value);
        canvasCtx.scale(pixelRatio, pixelRatio);
      });

      const canvasBgCtx: CanvasRenderingContext2D = canvasBgRef.value!.getContext(
        "2d"
      )!;

      drawCircle(canvasBgCtx);
      drawNumber(canvasBgCtx);
      drawHand();
    };

    // 画圆
    const drawCircle = (canvasBgCtx: CanvasRenderingContext2D) => {
      // ...
    };

    // 画数字
    const drawNumber = (canvasBgCtx: CanvasRenderingContext2D) => {
      // ...
    };

    // 画指针
    const drawHand = () => {
      // ...
    };

    // 时/分/秒的角度转换
    const getAngle = (rate: number) => (rate / 60) * 360 * (Math.PI / 180);

    // 阴影
    const addShadow = (ctx: CanvasRenderingContext2D) => {
      ctx.shadowBlur = 6;
      ctx.shadowColor = "rgba(100,100,100,0.6)";
      ctx.shadowOffsetX = 1;
      ctx.shadowOffsetY = 2;
    };

    // 指针绘制样式逻辑
    const drawHandler = (
      ctx: CanvasRenderingContext2D,
      angle: number,
      ctxDrawSelf: () => void
    ) => {
      // ...
    };

    // 获取时间
    // const [hour, munite, second] = getTime();
    const getTime = () => {
      const time = new Date()
        .toTimeString()
        .split(" ")[0]
        .split(":");
      return time.map(i => Number(i));
    };

    return {
      canvasBgRef,
      canvasHourRef,
      canvasMinuteRef,
      canvasSecondRef
    };
  }
});
</script>

画背景

// 画圆
const drawCircle = (canvasBgCtx: CanvasRenderingContext2D) => {
  const cWidth = canvasWidth.value;
  // radius: 半径
  const drawArc = (radius: number) =>
    canvasBgCtx.arc(cWidth / 2, cWidth / 2, radius < 0 ? 0 : radius, 0, 4 * Math.PI);

  // 外圈1
  canvasBgCtx.fillStyle = color.bg;
  canvasBgCtx.beginPath();
  drawArc(cWidth / 2 - 10);
  canvasBgCtx.fill('nonzero');
  canvasBgCtx.shadowBlur = 4;
  canvasBgCtx.shadowColor = 'rgba(100,100,100,0.2)';
  canvasBgCtx.shadowOffsetX = 1;
  canvasBgCtx.shadowOffsetY = 1;
  canvasBgCtx.closePath();

  // 外圈2
  canvasBgCtx.fillStyle = '#eee';
  canvasBgCtx.beginPath();
  drawArc(cWidth / 2 - 20);
  canvasBgCtx.fill('nonzero');
  canvasBgCtx.shadowBlur = 2;
  canvasBgCtx.closePath();

  // 内圈1
  canvasBgCtx.fillStyle = '#ddd';
  canvasBgCtx.beginPath();
  drawArc(25);
  canvasBgCtx.fill('nonzero');
  canvasBgCtx.closePath();

  // 内圈2
  canvasBgCtx.beginPath();
  drawArc(5);
  canvasBgCtx.strokeStyle = color.hangBg;
  canvasBgCtx.stroke();
  canvasBgCtx.closePath();
};

画数字

// 画数字
const drawNumber = (canvasBgCtx: CanvasRenderingContext2D) => {
  const cWidth = canvasWidth.value;
  canvasBgCtx.fillStyle = color.text;
  canvasBgCtx.font = bigFont;
  canvasBgCtx.fillText('12', cWidth / 2 - 10, 38);

  canvasBgCtx.font = smallFont;
  canvasBgCtx.fillText('1', cWidth - 68, cWidth / 5 + 5);
  canvasBgCtx.fillText('2', cWidth - 45, cWidth / 3 + 5);

  canvasBgCtx.font = bigFont;
  canvasBgCtx.fillText('3', cWidth - 35, cWidth / 2 + 5);

  canvasBgCtx.font = smallFont;
  canvasBgCtx.fillText('4', cWidth - 45, (cWidth * 2) / 3 + 5);
  canvasBgCtx.fillText('5', cWidth - 68, (cWidth * 4) / 5 + 5);

  canvasBgCtx.font = bigFont;
  canvasBgCtx.fillText('6', cWidth / 2 - 4, cWidth - 25);

  canvasBgCtx.font = smallFont;
  canvasBgCtx.fillText('7', cWidth / 3 - 4, (cWidth * 4) / 5 + 5);
  canvasBgCtx.fillText('8', cWidth / 5 - 4, (cWidth * 2) / 3 + 5);

  canvasBgCtx.font = bigFont;
  canvasBgCtx.fillText('9', 25, cWidth / 2 + 5);

  canvasBgCtx.font = smallFont;
  canvasBgCtx.fillText('10', cWidth / 5 - 4, cWidth / 3 + 5);
  canvasBgCtx.fillText('11', cWidth / 3 - 4, cWidth / 5 + 5);
};

画指针

以圆心为原点进行旋转

其实就是旋转前，translate 传入圆心的坐标向右下方移动，旋转后在移回来

ctx.translate(cWidth / 2, cWidth / 2);
ctx.rotate(angle);
ctx.translate(-cWidth / 2, -cWidth / 2);

时间与角度的转换

时分秒都按照 60 进行转换

时针

角度1度 转化为 弧度1度：Math.PI / 180

时针有 12 个大刻度，细分的话其实有 60 个小刻度，所以要 小时*5；

然后一个大刻度等于一小时等于60分钟，所以 分钟 * (5 / 60) 得到小角度

小时的刻度 + 分钟的小刻度 = 总的刻度

总的刻度 / 60 * 360 = 总的角度，然后转化为弧度，使用 rotate 方法旋转

const cWidth = canvasWidth.value;
const [hour, minute, second] = getTime();

// 时针
const canvasHourCtx = canvasHourRef.value!.getContext('2d')!;
const hourPoint = { x: cWidth / 2 - 4, y: cWidth / 2 - 8 };
addShadow(canvasHourCtx);
drawHandler(canvasHourCtx, getAngle(hour * 5 + minute * (5 / 60)), () => {
  canvasHourCtx.moveTo(hourPoint.x, hourPoint.y);
  canvasHourCtx.lineTo(hourPoint.x, hourPoint.y - 25);
  canvasHourCtx.lineTo(hourPoint.x + 8, hourPoint.y - 25);
  canvasHourCtx.lineTo(hourPoint.x + 8, hourPoint.y);
  canvasHourCtx.lineTo(hourPoint.x, hourPoint.y);
});

// 时/分/秒的角度转换
const getAngle = (rate: number) => (rate / 60) * 360 * (Math.PI / 180);

分针

分针的角度比较简单，分钟 + 秒钟 / 60 = 总的刻度

const cWidth = canvasWidth.value;
const [hour, minute, second] = getTime();

// 分针
const canvasMinuteCtx = canvasMinuteRef.value!.getContext('2d')!;
const munitePoint = { x: cWidth / 2 - 2, y: cWidth / 2 - 8 };
addShadow(canvasMinuteCtx);
drawHandler(canvasMinuteCtx, getAngle(minute + second / 60), () => {
  canvasMinuteCtx.moveTo(munitePoint.x, munitePoint.y);
  canvasMinuteCtx.lineTo(munitePoint.x, munitePoint.y - 35);
  canvasMinuteCtx.lineTo(munitePoint.x + 4, munitePoint.y - 35);
  canvasMinuteCtx.lineTo(munitePoint.x + 4, munitePoint.y);
  canvasMinuteCtx.lineTo(munitePoint.x, munitePoint.y);
});

秒针

秒针的角度最简单，秒钟 就等于 刻度

const cWidth = canvasWidth.value;
const [hour, minute, second] = getTime();

// 秒针
const canvasSecondCtx = canvasSecondRef.value!.getContext('2d')!;
const secondPoint = { x: cWidth / 2 - 1.5, y: cWidth / 2 + 10 };
addShadow(canvasSecondCtx);
drawHandler(canvasSecondCtx, getAngle(second), () => {
  canvasSecondCtx.moveTo(secondPoint.x, secondPoint.y);
  canvasSecondCtx.lineTo(secondPoint.x, secondPoint.y - 60);
  canvasSecondCtx.lineTo(secondPoint.x + 3, secondPoint.y - 60);
  canvasSecondCtx.lineTo(secondPoint.x + 3, secondPoint.y);
  canvasSecondCtx.lineTo(secondPoint.x, secondPoint.y);
});

具体逻辑

// 画指针
const drawHand = () => {
  const cWidth = canvasWidth.value;
  const [hour, minute, second] = getTime();
  // const hour = 11;
  // const minute = 36;
  // const second = 5;

  // 时针
  const canvasHourCtx = canvasHourRef.value!.getContext('2d')!;
  const hourPoint = { x: cWidth / 2 - 4, y: cWidth / 2 - 8 };
  addShadow(canvasHourCtx);
  drawHandler(canvasHourCtx, getAngle(hour * 5 + (5 * minute) / 60), () => {
    canvasHourCtx.moveTo(hourPoint.x, hourPoint.y);
    canvasHourCtx.lineTo(hourPoint.x, hourPoint.y - 25);
    canvasHourCtx.lineTo(hourPoint.x + 8, hourPoint.y - 25);
    canvasHourCtx.lineTo(hourPoint.x + 8, hourPoint.y);
    canvasHourCtx.lineTo(hourPoint.x, hourPoint.y);
  });

  // 分针
  const canvasMinuteCtx = canvasMinuteRef.value!.getContext('2d')!;
  const munitePoint = { x: cWidth / 2 - 2, y: cWidth / 2 - 8 };
  addShadow(canvasMinuteCtx);
  drawHandler(canvasMinuteCtx, getAngle(minute + second / 60), () => {
    canvasMinuteCtx.moveTo(munitePoint.x, munitePoint.y);
    canvasMinuteCtx.lineTo(munitePoint.x, munitePoint.y - 35);
    canvasMinuteCtx.lineTo(munitePoint.x + 4, munitePoint.y - 35);
    canvasMinuteCtx.lineTo(munitePoint.x + 4, munitePoint.y);
    canvasMinuteCtx.lineTo(munitePoint.x, munitePoint.y);
  });

  // 秒针
  const canvasSecondCtx = canvasSecondRef.value!.getContext('2d')!;
  const secondPoint = { x: cWidth / 2 - 1.5, y: cWidth / 2 + 10 };
  addShadow(canvasSecondCtx);
  drawHandler(canvasSecondCtx, getAngle(second), () => {
    canvasSecondCtx.moveTo(secondPoint.x, secondPoint.y);
    canvasSecondCtx.lineTo(secondPoint.x, secondPoint.y - 60);
    canvasSecondCtx.lineTo(secondPoint.x + 3, secondPoint.y - 60);
    canvasSecondCtx.lineTo(secondPoint.x + 3, secondPoint.y);
    canvasSecondCtx.lineTo(secondPoint.x, secondPoint.y);
  });
};

// 时/分/秒的角度转换
const getAngle = (rate: number) => (rate / 60) * 360 * (Math.PI / 180);

// 阴影
const addShadow = (ctx: CanvasRenderingContext2D) => {
  ctx.shadowBlur = 6;
  ctx.shadowColor = 'rgba(100,100,100,0.6)';
  ctx.shadowOffsetX = 1;
  ctx.shadowOffsetY = 2;
};

// 指针绘制样式逻辑
const drawHandler = (
  ctx: CanvasRenderingContext2D,
  angle: number,
  ctxDrawSelf: () => void,
) => {
  const cWidth = canvasWidth.value;
  ctx.clearRect(0, 0, cWidth, cWidth);
  ctx.beginPath();
  ctx.fillStyle = color.hangBg;
  ctx.translate(cWidth / 2, cWidth / 2);
  ctx.rotate(angle);
  ctx.translate(-cWidth / 2, -cWidth / 2);
  ctxDrawSelf();
  ctx.closePath();
  ctx.fill('nonzero');
  ctx.strokeStyle = color.handStrokeStyle;
  ctx.stroke();
};

// 获取时间
// const [hour, munite, second] = getTime();
const getTime = () => {
  const time = new Date()
    .toTimeString()
    .split(' ')[0]
    .split(':');
  return time.map(i => Number(i));
};
