HyperLedger Fabric（部署kafka共识网络）

TianRanDai
259 阅读15分钟

这里我使用vagrant创建9台centos虚拟机，搭建3个zookeeper、4个kafka、3个oerderer、2个组织（包含两个peer）网络，另外一台主机作为nfs-server使用，主机对应的fabric网络组件如下：

192.168.33.11: zookeeper0、kafka0、orderer0

192.168.33.12: zookeeper1、kafka1、orderer1

192.168.33.13:zookeeper2、kafka2、orderer2

192.168.33.14:kafka3

192.168.33.21:peer0-org1

192.168.33.22:peer1-org1

192.168.33.23:peer0-org2

192.168.33.24:peer1-org2

192.168.33.25:nfs-server

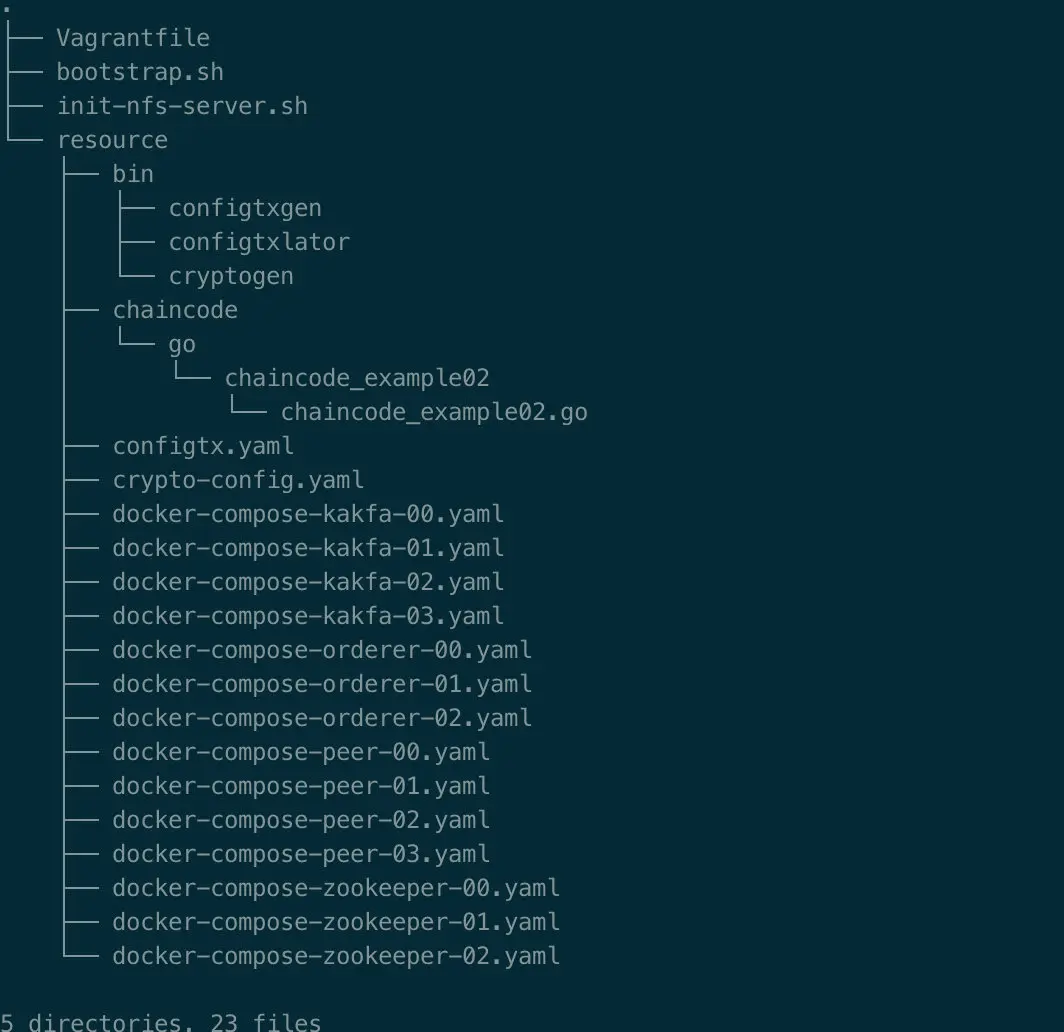

Vagrant虚拟机创建配置文件

nfs-server 初始化脚本 init-nfs-server.sh

#!/usr/bin/bash
sudo su
echo "nameserver 8.8.8.8" >> /etc/resolv.conf
sleep 3s
yum install -y nfs-utils rpcbind
chkconfig nfs on
chkconfig rpcbind on
service rpcbind start
service nfs start
mkdir /share

echo "/share 192.168.33.11(rw,no_root_squash,no_subtree_check)" >> /etc/exports
echo "/share 192.168.33.12(rw,no_root_squash,no_subtree_check)" >> /etc/exports
echo "/share 192.168.33.13(rw,no_root_squash,no_subtree_check)" >> /etc/exports
echo "/share 192.168.33.14(rw,no_root_squash,no_subtree_check)" >> /etc/exports
echo "/share 192.168.33.21(rw,no_root_squash,no_subtree_check)" >> /etc/exports
echo "/share 192.168.33.22(rw,no_root_squash,no_subtree_check)" >> /etc/exports
echo "/share 192.168.33.23(rw,no_root_squash,no_subtree_check)" >> /etc/exports
echo "/share 192.168.33.24(rw,no_root_squash,no_subtree_check)" >> /etc/exports
exportfs -a

fabric网络主机初始化脚本 bootstrap.sh

#!/usr/bin/bash
sudo su
echo "nameserver 8.8.8.8" >> /etc/resolv.conf
sleep 3s
yum install -y epel-release
yum install -y vim
yum install -y golang

yum remove docker docker-common docker-selinux docker-engine
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
yum makecache fast
yum -y install docker-ce
yum -y install docker-compose
service docker start

mkdir -p /etc/docker
echo {\"registry-mirrors\": [\"https://8w1wqmsz.mirror.aliyuncs.com\"]} > /etc/docker/daemon.json
service docker restart

yum -y install net-tools
yum install -y nfs-utils rpcbind
chkconfig nfs on
chkconfig rpcbind on
service rpcbind start
service nfs start
mkdir /opt/share
mount -t nfs 192.168.33.25:/share /opt/share
echo "192.168.33.25:/share /opt/share nfs rw,tcp,intr 0 1" >> /etc/fstab

###Vagrantfile文件

我当前vagrant 是2.26，不同版本的vagrant 配置文件会有不同

# -*- mode: ruby -*-
# vi: set ft=ruby :

# All Vagrant configuration is done below. The "2" in Vagrant.configure
# configures the configuration version (we support older styles for
# backwards compatibility). Please don't change it unless you know what
# you're doing.
Vagrant.configure("2") do |config|
  # The most common configuration options are documented and commented below.
  # For a complete reference, please see the online documentation at
  # https://docs.vagrantup.com.

  # Every Vagrant development environment requires a box. You can search for
  # boxes at https://vagrantcloud.com/search.
  config.vm.box = "centos/7"

  config.vm.define "nfsserver" do |nfsserver|
    nfsserver.vm.hostname = "nfsserver.example.com"
    nfsserver.vm.network "private_network", ip: "192.168.33.25"
    nfsserver.vm.provision "shell", path: "init-nfs-server.sh"
    nfsserver.vm.synced_folder "resource", "/share", create: true, owner: "root", group: "root", mount_options: ["dmode=755","fmode=644"], type: "rsync"
  end

  config.vm.define "group1" do |group1|
    group1.vm.hostname = "group1"
    group1.vm.network "private_network", ip: "192.168.33.11"
    group1.vm.provision "shell", path: "bootstrap.sh"
  end

  config.vm.define "group2" do |group2|
    group2.vm.hostname = "group2"
    group2.vm.network "private_network", ip: "192.168.33.12"
    group2.vm.provision "shell", path: "bootstrap.sh"
  end

  config.vm.define "group3" do |group3|
    group3.vm.hostname = "group3"
    group3.vm.network "private_network", ip: "192.168.33.13"
    group3.vm.provision "shell", path: "bootstrap.sh"
  end

  config.vm.define "group4" do |group4|
    group4.vm.hostname = "group4"
    group4.vm.network "private_network", ip: "192.168.33.14"
    group4.vm.provision "shell", path: "bootstrap.sh"
  end

  config.vm.define "peer0org1" do |peer0org1|
    peer0org1.vm.hostname = "peer0-org1.example.com"
    peer0org1.vm.network "private_network", ip: "192.168.33.21"
    peer0org1.vm.provision "shell", path: "bootstrap.sh"
  end

  config.vm.define "peer1org1" do |peer1org1|
    peer1org1.vm.hostname = "peer1-org1.example.com"
    peer1org1.vm.network "private_network", ip: "192.168.33.22"
    peer1org1.vm.provision "shell", path: "bootstrap.sh"
  end

  config.vm.define "peer0org2" do |peer0org2|
    peer0org2.vm.hostname = "peer0-org2.example.com"
    peer0org2.vm.network "private_network", ip: "192.168.33.23"
    peer0org2.vm.provision "shell", path: "bootstrap.sh"
  end

  config.vm.define "peer1org2" do |peer1org2|
    peer1org2.vm.hostname = "peer1-org2.example.com"
    peer1org2.vm.network "private_network", ip: "192.168.33.24"
    peer1org2.vm.provision "shell", path: "bootstrap.sh"
  end

  # Disable automatic box update checking. If you disable this, then
  # boxes will only be checked for updates when the user runs
  # `vagrant box outdated`. This is not recommended.
  # config.vm.box_check_update = false

  # Create a forwarded port mapping which allows access to a specific port
  # within the machine from a port on the host machine. In the example below,
  # accessing "localhost:8080" will access port 80 on the guest machine.
  # NOTE: This will enable public access to the opened port
  # config.vm.network "forwarded_port", guest: 80, host: 8080

  # Create a forwarded port mapping which allows access to a specific port
  # within the machine from a port on the host machine and only allow access
  # via 127.0.0.1 to disable public access
  # config.vm.network "forwarded_port", guest: 80, host: 8080, host_ip: "127.0.0.1"

  # Create a private network, which allows host-only access to the machine
  # using a specific IP.
  # config.vm.network "private_network", ip: "192.168.33.10"

  # Create a public network, which generally matched to bridged network.
  # Bridged networks make the machine appear as another physical device on
  # your network.
  # config.vm.network "public_network"

  # Share an additional folder to the guest VM. The first argument is
  # the path on the host to the actual folder. The second argument is
  # the path on the guest to mount the folder. And the optional third
  # argument is a set of non-required options.
  # config.vm.synced_folder "../data", "/vagrant_data"

  # Provider-specific configuration so you can fine-tune various
  # backing providers for Vagrant. These expose provider-specific options.
  # Example for VirtualBox:
  #
  # config.vm.provider "virtualbox" do |vb|
  #   # Display the VirtualBox GUI when booting the machine
  #   vb.gui = true
  #
  #   # Customize the amount of memory on the VM:
  #   vb.memory = "1024"
  # end
  #
  # View the documentation for the provider you are using for more
  # information on available options.

  # Enable provisioning with a shell script. Additional provisioners such as
  # Puppet, Chef, Ansible, Salt, and Docker are also available. Please see the
  # documentation for more information about their specific syntax and use.
  # config.vm.provision "shell", inline: <<-SHELL
  #   apt-get update
  #   apt-get install -y apache2
  # SHELL
end

##fabric网络配置文件

证书配置文件 crypto-config.yaml

# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

# ---------------------------------------------------------------------------
# "OrdererOrgs" - Definition of organizations managing orderer nodes
# ---------------------------------------------------------------------------
OrdererOrgs:
  # ---------------------------------------------------------------------------
  # Orderer
  # ---------------------------------------------------------------------------
  - Name: Orderer
    Domain: example.com
    CA:
        Country: US
        Province: California
        Locality: San Francisco
    # ---------------------------------------------------------------------------
    # "Specs" - See PeerOrgs below for complete description
    # ---------------------------------------------------------------------------
    Specs:
      - Hostname: orderer0
      - Hostname: orderer1
      - Hostname: orderer2
# ---------------------------------------------------------------------------
# "PeerOrgs" - Definition of organizations managing peer nodes
# ---------------------------------------------------------------------------
PeerOrgs:
  # ---------------------------------------------------------------------------
  # Org1
  # ---------------------------------------------------------------------------
  - Name: Org1
    Domain: org1.example.com
    EnableNodeOUs: true
    CA:
        Country: US
        Province: California
        Locality: San Francisco
    # ---------------------------------------------------------------------------
    # "Specs"
    # ---------------------------------------------------------------------------
    # Uncomment this section to enable the explicit definition of hosts in your
    # configuration.  Most users will want to use Template, below
    #
    # Specs is an array of Spec entries.  Each Spec entry consists of two fields:
    #   - Hostname:   (Required) The desired hostname, sans the domain.
    #   - CommonName: (Optional) Specifies the template or explicit override for
    #                 the CN.  By default, this is the template:
    #
    #                              "{{.Hostname}}.{{.Domain}}"
    #
    #                 which obtains its values from the Spec.Hostname and
    #                 Org.Domain, respectively.
    # ---------------------------------------------------------------------------
    # Specs:
    #   - Hostname: foo # implicitly "foo.org1.example.com"
    #     CommonName: foo27.org5.example.com # overrides Hostname-based FQDN set above
    #   - Hostname: bar
    #   - Hostname: baz
    # ---------------------------------------------------------------------------
    # "Template"
    # ---------------------------------------------------------------------------
    # Allows for the definition of 1 or more hosts that are created sequentially
    # from a template. By default, this looks like "peer%d" from 0 to Count-1.
    # You may override the number of nodes (Count), the starting index (Start)
    # or the template used to construct the name (Hostname).
    #
    # Note: Template and Specs are not mutually exclusive.  You may define both
    # sections and the aggregate nodes will be created for you.  Take care with
    # name collisions
    # ---------------------------------------------------------------------------
    Template:
      Count: 2
      # Start: 5
      # Hostname: {{.Prefix}}{{.Index}} # default
    # ---------------------------------------------------------------------------
    # "Users"
    # ---------------------------------------------------------------------------
    # Count: The number of user accounts _in addition_ to Admin
    # ---------------------------------------------------------------------------
    Users:
      Count: 1
  # ---------------------------------------------------------------------------
  # Org2: See "Org1" for full specification
  # ---------------------------------------------------------------------------
  - Name: Org2
    Domain: org2.example.com
    EnableNodeOUs: true
    CA:
        Country: US
        Province: California
        Locality: San Francisco
    Template:
      Count: 2
    Users:
      Count: 1

创世区块配置文件configtx.yaml

# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

---
################################################################################
#
#   Section: Organizations
#
#   - This section defines the different organizational identities which will
#   be referenced later in the configuration.
#
################################################################################
Organizations:

    # SampleOrg defines an MSP using the sampleconfig.  It should never be used
    # in production but may be used as a template for other definitions
    - &OrdererOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: OrdererOrg

        # ID to load the MSP definition as
        ID: OrdererMSP

        # MSPDir is the filesystem path which contains the MSP configuration
        MSPDir: crypto-config/ordererOrganizations/example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"

    - &Org1
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: Org1MSP

        # ID to load the MSP definition as
        ID: Org1MSP

        MSPDir: crypto-config/peerOrganizations/org1.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org1MSP.admin')"

        AnchorPeers:
            # AnchorPeers defines the location of peers which can be used
            # for cross org gossip communication.  Note, this value is only
            # encoded in the genesis block in the Application section context
            - Host: peer0.org1.example.com
              Port: 7051

    - &Org2
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: Org2MSP

        # ID to load the MSP definition as
        ID: Org2MSP

        MSPDir: crypto-config/peerOrganizations/org2.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org2MSP.admin')"

        AnchorPeers:
            # AnchorPeers defines the location of peers which can be used
            # for cross org gossip communication.  Note, this value is only
            # encoded in the genesis block in the Application section context
            - Host: peer0.org2.example.com
              Port: 7051

################################################################################
#
#   SECTION: Capabilities
#
#   - This section defines the capabilities of fabric network. This is a new
#   concept as of v1.1.0 and should not be utilized in mixed networks with
#   v1.0.x peers and orderers.  Capabilities define features which must be
#   present in a fabric binary for that binary to safely participate in the
#   fabric network.  For instance, if a new MSP type is added, newer binaries
#   might recognize and validate the signatures from this type, while older
#   binaries without this support would be unable to validate those
#   transactions.  This could lead to different versions of the fabric binaries
#   having different world states.  Instead, defining a capability for a channel
#   informs those binaries without this capability that they must cease
#   processing transactions until they have been upgraded.  For v1.0.x if any
#   capabilities are defined (including a map with all capabilities turned off)
#   then the v1.0.x peer will deliberately crash.
#
################################################################################
Capabilities:
    # Channel capabilities apply to both the orderers and the peers and must be
    # supported by both.  Set the value of the capability to true to require it.
    Global: &ChannelCapabilities
        # V1.1 for Global is a catchall flag for behavior which has been
        # determined to be desired for all orderers and peers running v1.0.x,
        # but the modification of which would cause incompatibilities.  Users
        # should leave this flag set to true.
        V1_1: true

    # Orderer capabilities apply only to the orderers, and may be safely
    # manipulated without concern for upgrading peers.  Set the value of the
    # capability to true to require it.
    Orderer: &OrdererCapabilities
        # V1.1 for Order is a catchall flag for behavior which has been
        # determined to be desired for all orderers running v1.0.x, but the
        # modification of which  would cause incompatibilities.  Users should
        # leave this flag set to true.
        V1_1: true

    # Application capabilities apply only to the peer network, and may be safely
    # manipulated without concern for upgrading orderers.  Set the value of the
    # capability to true to require it.
    Application: &ApplicationCapabilities
        # V1.1 for Application is a catchall flag for behavior which has been
        # determined to be desired for all peers running v1.0.x, but the
        # modification of which would cause incompatibilities.  Users should
        # leave this flag set to true.
        V1_2: true

################################################################################
#
#   SECTION: Application
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for application related parameters
#
################################################################################
Application: &ApplicationDefaults

    # Organizations is the list of orgs which are defined as participants on
    # the application side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Application policies, their canonical path is
    #   /Channel/Application/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"

    # Capabilities describes the application level capabilities, see the
    # dedicated Capabilities section elsewhere in this file for a full
    # description
    Capabilities:
        <<: *ApplicationCapabilities

################################################################################
#
#   SECTION: Orderer
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for orderer related parameters
#
################################################################################
Orderer: &OrdererDefaults

    # Orderer Type: The orderer implementation to start
    # Available types are "solo" and "kafka"
    OrdererType: kafka

    Addresses:
        - orderer0.example.com:7050
        - orderer1.example.com:7050
        - orderer2.example.com:7050

    # Batch Timeout: The amount of time to wait before creating a batch
    BatchTimeout: 2s

    # Batch Size: Controls the number of messages batched into a block
    BatchSize:

        # Max Message Count: The maximum number of messages to permit in a batch
        MaxMessageCount: 10

        # Absolute Max Bytes: The absolute maximum number of bytes allowed for
        # the serialized messages in a batch.
        AbsoluteMaxBytes: 98 MB

        # Preferred Max Bytes: The preferred maximum number of bytes allowed for
        # the serialized messages in a batch. A message larger than the preferred
        # max bytes will result in a batch larger than preferred max bytes.
        PreferredMaxBytes: 512 KB

    Kafka:
        # Brokers: A list of Kafka brokers to which the orderer connects. Edit
        # this list to identify the brokers of the ordering service.
        # NOTE: Use IP:port notation.
        Brokers:
            - kafka0:9092
            - kafka1:9092
            - kafka2:9092
            - kafka3:9092

    # Organizations is the list of orgs which are defined as participants on
    # the orderer side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Orderer policies, their canonical path is
    #   /Channel/Orderer/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        # BlockValidation specifies what signatures must be included in the block
        # from the orderer for the peer to validate it.
        BlockValidation:
            Type: ImplicitMeta
            Rule: "ANY Writers"

    # Capabilities describes the orderer level capabilities, see the
    # dedicated Capabilities section elsewhere in this file for a full
    # description
    Capabilities:
        <<: *OrdererCapabilities

################################################################################
#
#   CHANNEL
#
#   This section defines the values to encode into a config transaction or
#   genesis block for channel related parameters.
#
################################################################################
Channel: &ChannelDefaults
    # Policies defines the set of policies at this level of the config tree
    # For Channel policies, their canonical path is
    #   /Channel/<PolicyName>
    Policies:
        # Who may invoke the 'Deliver' API
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        # Who may invoke the 'Broadcast' API
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        # By default, who may modify elements at this config level
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"


    # Capabilities describes the channel level capabilities, see the
    # dedicated Capabilities section elsewhere in this file for a full
    # description
    Capabilities:
        <<: *ChannelCapabilities

################################################################################
#
#   Profile
#
#   - Different configuration profiles may be encoded here to be specified
#   as parameters to the configtxgen tool
#
################################################################################
Profiles:

    TwoOrgsOrdererGenesis:
        <<: *ChannelDefaults
        Orderer:
            <<: *OrdererDefaults
            Organizations:
                - *OrdererOrg
        Consortiums:
            SampleConsortium:
                Organizations:
                    - *Org1
                    - *Org2

    TwoOrgsChannel:
        Consortium: SampleConsortium
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *Org1
                - *Org2

zookeeper 配置

  1. Zookeeper0
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  zookeeper0:
    container_name: zookeeper0
    hostname: zookeeper0
    image: hyperledger/fabric-zookeeper
    restart: always
    environment:
      - ZOO_MY_ID=1
      - ZOO_SERVERS=server.1=zookeeper0:2888:3888 server.2=zookeeper1:2888:3888 server.3=zookeeper2:2888:3888
    ports:
      - 2181:2181
      - 2888:2888
      - 3888:3888
    extra_hosts:
      - "zookeeper0:192.168.33.11"
      - "zookeeper1:192.168.33.12"
      - "zookeeper2:192.168.33.13"
      - "kafka0:192.168.33.11"
      - "kafka1:192.168.33.12"
      - "kafka2:192.168.33.13"
      - "kafka3:192.168.33.14"
  1. Zookeeper1
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  zookeeper1:
    container_name: zookeeper1
    hostname: zookeeper1
    image: hyperledger/fabric-zookeeper
    restart: always
    environment:
      - ZOO_MY_ID=2
      - ZOO_SERVERS=server.1=zookeeper0:2888:3888 server.2=zookeeper1:2888:3888 server.3=zookeeper2:2888:3888
    ports:
      - 2181:2181
      - 2888:2888
      - 3888:3888
    extra_hosts:
      - "zookeeper0:192.168.33.11"
      - "zookeeper1:192.168.33.12"
      - "zookeeper2:192.168.33.13"
      - "kafka0:192.168.33.11"
      - "kafka1:192.168.33.12"
      - "kafka2:192.168.33.13"
      - "kafka3:192.168.33.14"
  1. Zookeeper2
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  zookeeper2:
    container_name: zookeeper2
    hostname: zookeeper2
    image: hyperledger/fabric-zookeeper
    restart: always
    environment:
      - ZOO_MY_ID=3
      - ZOO_SERVERS=server.1=zookeeper0:2888:3888 server.2=zookeeper1:2888:3888 server.3=zookeeper2:2888:3888
    ports:
      - 2181:2181
      - 2888:2888
      - 3888:3888
    extra_hosts:
      - "ookeeper0:192.168.33.11"
      - "zookeeper1:192.168.33.12"
      - "zookeeper2:192.168.33.13"
      - "kafka0:192.168.33.11"
      - "kafka1:192.168.33.12"
      - "kafka2:192.168.33.13"
      - "kafka3:192.168.33.14"

kafka配置

  1. kafka0
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  kafka0:
    container_name: kafka0
    hostname: kafka0
    image: hyperledger/fabric-kafka
    restart: always
    environment:
      - KAFKA_MESSAGE_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_REPLICA_FETCH_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
    environment:
      - KAFKA_BROKER_ID=1
      - KAFKA_MIN_INSYNC_REPLICAS=2
      - KAFKA_DEFAULT_REPLICATION_FACTOR=3
      - KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
    ports:
      - 9092:9092
    extra_hosts:
      - "zookeeper0:192.168.33.11"
      - "zookeeper1:192.168.33.12"
      - "zookeeper2:192.168.33.13"
      - "kafka0:192.168.33.11"
      - "kafka1:192.168.33.12"
      - "kafka2:192.168.33.13"
      - "kafka3:192.168.33.14"
  1. Kafka1
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  kafka1:
    container_name: kafka1
    hostname: kafka1
    image: hyperledger/fabric-kafka
    restart: always
    environment:
      - KAFKA_MESSAGE_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_REPLICA_FETCH_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
    environment:
      - KAFKA_BROKER_ID=2
      - KAFKA_MIN_INSYNC_REPLICAS=2
      - KAFKA_DEFAULT_REPLICATION_FACTOR=3
      - KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
    ports:
      - 9092:9092
    extra_hosts:
      - "zookeeper0:192.168.33.11"
      - "zookeeper1:192.168.33.12"
      - "zookeeper2:192.168.33.13"
      - "kafka0:192.168.33.11"
      - "kafka1:192.168.33.12"
      - "kafka2:192.168.33.13"
      - "kafka3:192.168.33.14"
  1. kafka2
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  kafka2:
    container_name: kafka2
    hostname: kafka2
    image: hyperledger/fabric-kafka
    restart: always
    environment:
      - KAFKA_MESSAGE_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_REPLICA_FETCH_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
    environment:
      - KAFKA_BROKER_ID=3
      - KAFKA_MIN_INSYNC_REPLICAS=2
      - KAFKA_DEFAULT_REPLICATION_FACTOR=3
      - KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
    ports:
      - 9092:9092
    extra_hosts:
      - "zookeeper0:192.168.33.11"
      - "zookeeper1:192.168.33.12"
      - "zookeeper2:192.168.33.13"
      - "kafka0:192.168.33.11"
      - "kafka1:192.168.33.12"
      - "kafka2:192.168.33.13"
      - "kafka3:192.168.33.14"
  1. kafka3
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  kafka3:
    container_name: kafka3
    hostname: kafka3
    image: hyperledger/fabric-kafka
    restart: always
    environment:
      - KAFKA_MESSAGE_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_REPLICA_FETCH_MAX_BYTES=103809024 # 99 * 1024 * 1024 B
      - KAFKA_UNCLEAN_LEADER_ELECTION_ENABLE=false
    environment:
      - KAFKA_BROKER_ID=4
      - KAFKA_MIN_INSYNC_REPLICAS=2
      - KAFKA_DEFAULT_REPLICATION_FACTOR=3
      - KAFKA_ZOOKEEPER_CONNECT=zookeeper0:2181,zookeeper1:2181,zookeeper2:2181
    ports:
      - 9092:9092
    extra_hosts:
      - "zookeeper0:192.168.33.11"
      - "zookeeper1:192.168.33.12"
      - "zookeeper2:192.168.33.13"
      - "kafka0:192.168.33.11"
      - "kafka1:192.168.33.12"
      - "kafka2:192.168.33.13"
      - "kafka3:192.168.33.14"

orderer配置

  1. orderer0
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  orderer0.example.com:
    container_name: orderer0.example.com
    image: hyperledger/fabric-orderer
    environment:
      - ORDERER_GENERAL_LOGLEVEL=debug
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_GENESISMETHOD=file
      - ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_KAFKA_RETRY_LONGINTERVAL=10s
      - ORDERER_KAFKA_RETRY_LONGTOTAL=100s
      - ORDERER_KAFKA_RETRY_SHORTINTERVAL=1s
      - ORDERER_KAFKA_RETRY_SHORTTOTAL=30s
      - ORDERER_KAFKA_VERBOSE=true
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
      - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp:/var/hyperledger/orderer/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
     - "kafka0:192.168.33.11"
     - "kafka1:192.168.33.12"
     - "kafka2:192.168.33.13"
     - "kafka3:192.168.33.14"
  1. orderer1
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  orderer1.example.com:
    container_name: orderer1.example.com
    image: hyperledger/fabric-orderer
    environment:
      - ORDERER_GENERAL_LOGLEVEL=debug
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_GENESISMETHOD=file
      - ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_KAFKA_RETRY_LONGINTERVAL=10s
      - ORDERER_KAFKA_RETRY_LONGTOTAL=100s
      - ORDERER_KAFKA_RETRY_SHORTINTERVAL=1s
      - ORDERER_KAFKA_RETRY_SHORTTOTAL=30s
      - ORDERER_KAFKA_VERBOSE=true
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
      - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp:/var/hyperledger/orderer/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
     - "kafka0:192.168.33.11"
     - "kafka1:192.168.33.12"
     - "kafka2:192.168.33.13"
     - "kafka3:192.168.33.14"
  1. orderer2
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

version: '2'

services:
  orderer2.example.com:
    container_name: orderer2.example.com
    image: hyperledger/fabric-orderer
    environment:
      - ORDERER_GENERAL_LOGLEVEL=debug
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_GENESISMETHOD=file
      - ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_KAFKA_RETRY_LONGINTERVAL=10s
      - ORDERER_KAFKA_RETRY_LONGTOTAL=100s
      - ORDERER_KAFKA_RETRY_SHORTINTERVAL=1s
      - ORDERER_KAFKA_RETRY_SHORTTOTAL=30s
      - ORDERER_KAFKA_VERBOSE=true
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
      - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/genesis.block
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp:/var/hyperledger/orderer/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
     - "kafka0:192.168.33.11"
     - "kafka1:192.168.33.12"
     - "kafka2:192.168.33.13"
     - "kafka3:192.168.33.14"

org1

  1. peer0
# All elements in this file should depend on the docker-compose-base.yaml
# Provided fabric peer node

version: '2'

services:
  peer0.org1.example.com:
    container_name: peer0.org1.example.com
    hostname: peer0.org1.example.com
    image: hyperledger/fabric-peer
    environment:
       - CORE_PEER_ID=peer0.org1.example.com
       - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
       - CORE_PEER_CHAINCODELISTENADDRESS=peer0.org1.example.com:7052
       - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
       - CORE_PEER_LOCALMSPID=Org1MSP
       - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
       - CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=share_default
       # the following setting starts chaincode containers on the same
       # bridge network as the peers
       # https://docs.docker.com/compose/networking/
       #- CORE_LOGGING_LEVEL=ERROR
       - CORE_LOGGING_LEVEL=DEBUG
       - CORE_PEER_GOSSIP_USELEADERELECTION=true
       - CORE_PEER_GOSSIP_ORGLEADER=false
       - CORE_PEER_PROFILE_ENABLED=true
       - CORE_PEER_TLS_ENABLED=true
       - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
       - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
       - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"

  cli:
    container_name: cli
    image: hyperledger/fabric-tools
    tty: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      # - CORE_LOGGING_LEVEL=ERROR
      - CORE_LOGGING_LEVEL=DEBUG
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric/kafkapeer/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"
      - "peer0.org1.example.com:192.168.33.21"
      - "peer1.org1.example.com:192.168.33.22"
      - "peer0.org2.example.com:192.168.33.23"
      - "peer1.org2.example.com:192.168.33.24"
  1. peer1
# All elements in this file should depend on the docker-compose-base.yaml
# Provided fabric peer node

version: '2'

services:
  peer1.org1.example.com:
    container_name: peer1.org1.example.com
    hostname: peer1.org1.example.com
    image: hyperledger/fabric-peer
    environment:
       - CORE_PEER_ID=peer1.org1.example.com
       - CORE_PEER_ADDRESS=peer1.org1.example.com:7051
       - CORE_PEER_CHAINCODELISTENADDRESS=peer1.org1.example.com:7052
       - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org1.example.com:7051
       - CORE_PEER_LOCALMSPID=Org1MSP
       - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
       - CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=share_default
       # the following setting starts chaincode containers on the same
       # bridge network as the peers
       # https://docs.docker.com/compose/networking/
       #- CORE_LOGGING_LEVEL=ERROR
       - CORE_LOGGING_LEVEL=DEBUG
       - CORE_PEER_GOSSIP_USELEADERELECTION=true
       - CORE_PEER_GOSSIP_ORGLEADER=false
       - CORE_PEER_PROFILE_ENABLED=true
       - CORE_PEER_TLS_ENABLED=true
       - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
       - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
       - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"

  cli:
    container_name: cli
    image: hyperledger/fabric-tools
    tty: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      # - CORE_LOGGING_LEVEL=ERROR
      - CORE_LOGGING_LEVEL=DEBUG
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer1.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric/kafkapeer/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"
      - "peer0.org1.example.com:192.168.33.21"
      - "peer1.org1.example.com:192.168.33.22"
      - "peer0.org2.example.com:192.168.33.23"
      - "peer1.org2.example.com:192.168.33.24"

org2

  1. peer0
# All elements in this file should depend on the docker-compose-base.yaml
# Provided fabric peer node

version: '2'

services:
  peer0.org2.example.com:
    container_name: peer0.org2.example.com
    hostname: peer0.org2.example.com
    image: hyperledger/fabric-peer
    environment:
       - CORE_PEER_ID=peer0.org2.example.com
       - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
       - CORE_PEER_CHAINCODELISTENADDRESS=peer0.org2.example.com:7052
       - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:7051
       - CORE_PEER_LOCALMSPID=Org2MSP
       - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
       - CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=share_default
       # the following setting starts chaincode containers on the same
       # bridge network as the peers
       # https://docs.docker.com/compose/networking/
       #- CORE_LOGGING_LEVEL=ERROR
       - CORE_LOGGING_LEVEL=DEBUG
       - CORE_PEER_GOSSIP_USELEADERELECTION=true
       - CORE_PEER_GOSSIP_ORGLEADER=false
       - CORE_PEER_PROFILE_ENABLED=true
       - CORE_PEER_TLS_ENABLED=true
       - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
       - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
       - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"

  cli:
    container_name: cli
    image: hyperledger/fabric-tools
    tty: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      # - CORE_LOGGING_LEVEL=ERROR
      - CORE_LOGGING_LEVEL=DEBUG
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric/kafkapeer/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"
      - "peer0.org1.example.com:192.168.33.21"
      - "peer1.org1.example.com:192.168.33.22"
      - "peer0.org2.example.com:192.168.33.23"
      - "peer1.org2.example.com:192.168.33.24"
  1. peer1
# All elements in this file should depend on the docker-compose-base.yaml
# Provided fabric peer node

version: '2'

services:
  peer1.org2.example.com:
    container_name: peer1.org2.example.com
    hostname: peer1.org2.example.com
    image: hyperledger/fabric-peer
    environment:
       - CORE_PEER_ID=peer1.org2.example.com
       - CORE_PEER_ADDRESS=peer1.org2.example.com:7051
       - CORE_PEER_CHAINCODELISTENADDRESS=peer1.org2.example.com:7052
       - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org2.example.com:7051
       - CORE_PEER_LOCALMSPID=Org2MSP
       - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
       - CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=share_default
       # the following setting starts chaincode containers on the same
       # bridge network as the peers
       # https://docs.docker.com/compose/networking/
       #- CORE_LOGGING_LEVEL=ERROR
       - CORE_LOGGING_LEVEL=DEBUG
       - CORE_PEER_GOSSIP_USELEADERELECTION=true
       - CORE_PEER_GOSSIP_ORGLEADER=false
       - CORE_PEER_PROFILE_ENABLED=true
       - CORE_PEER_TLS_ENABLED=true
       - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
       - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
       - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"

  cli:
    container_name: cli
    image: hyperledger/fabric-tools
    tty: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      # - CORE_LOGGING_LEVEL=ERROR
      - CORE_LOGGING_LEVEL=DEBUG
      - CORE_PEER_ID=cli
      - CORE_PEER_ADDRESS=peer1.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric/kafkapeer/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:192.168.33.11"
      - "orderer1.example.com:192.168.33.12"
      - "orderer2.example.com:192.168.33.13"
      - "peer0.org1.example.com:192.168.33.21"
      - "peer1.org1.example.com:192.168.33.22"
      - "peer0.org2.example.com:192.168.33.23"
      - "peer1.org2.example.com:192.168.33.24"

完整文件如图：

image-20200112164043335

启动虚拟机

###启动nfs-server

  1. 创建并进入虚拟机
# 启动虚拟机
vagrant up nfsserver
# 进入虚拟机
vagrant ssh nfsserver
  1. 生成msp证书文件
cd /share
./bin/cryptogen generate --config=./crypto-config.yaml
  1. 生成创世区块
mkdir channel-artifacts
./bin/configtxgen -profile TwoOrgsOrdererGenesis -outputBlock ./channel-artifacts/genesis.block
  1. 生成通道文件
./bin/configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/mychannel.tx -channelID mychannel

启动fabric网络的其他主机

vagrant up group1
vagrant up group2
vagrant up group3
vagrant up group4
vagrant up peer0org1
vagrant up peer1org1
vagrant up peer0org2
vagrant up peer1org2

启动fabric网络组件

###启动zookeeper

  1. 进入主机group1后

    sudo su
cd /opt/share
# 启动zk0
docker-compose -f docker-compose-zookeeper-00.yaml up -d

  2. 进入主机group2后

    sudo su
cd /opt/share
# 启动zk1
docker-compose -f docker-compose-zookeeper-01.yaml up -d

  3. 进入主机group3后

    sudo su
cd /opt/share
# 启动zk2
docker-compose -f docker-compose-zookeeper-02.yaml up -d

启动kafka

  1. 进入主机group1后

    sudo su
cd /opt/share
# 启动kafka0
docker-compose -f docker-compose-kakfa-00.yaml up -d

  2. 进入主机group2后

    sudo su
cd /opt/share
# 启动kafka1
docker-compose -f docker-compose-kakfa-01.yaml up -d

  3. 进入主机group3后

    sudo su
cd /opt/share
# 启动kafka2
docker-compose -f docker-compose-kakfa-02.yaml up -d

  4. 进入主机group4后

    sudo su
cd /opt/share
# 启动kafka3
docker-compose -f docker-compose-kakfa-03.yaml up -d

启动orderer

  1. 进入主机group1后

    sudo su
cd /opt/share
# 启动orderer0
docker-compose -f docker-compose-orderer-00.yaml up -d

  2. 进入主机group2后

    sudo su
cd /opt/share
# 启动orderer1
docker-compose -f docker-compose-orderer-01.yaml up -d

  3. 进入主机group3后

    sudo su
cd /opt/share
# 启动orderer2
docker-compose -f docker-compose-orderer-02.yaml up -d

###启动peer

  1. peer0org1

    sudo su
cd /opt/share
# 启动peer1
docker-compose -f docker-compose-peer-00.yaml up -d

    安装chaincode

    #进入cli容器
docker exec -it cli bash
#在容器中执行
# 配置证书环境变量
ORDERER_CA=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
# 创建通道
peer channel create -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/mychannel.tx --outputBlock ./channel-artifacts/mychannel.block --tls --cafile $ORDERER_CA
# peer 加入channel
peer channel join -b ./channel-artifacts/mychannel.block
# 安装chaincode
peer chaincode install -n mycc -p github.com/hyperledger/fabric/peer/chaincode/go/chaincode_example02 -v 1.0
# 初始化chaincodecom
peer chaincode instantiate -o orderer0.example.com:7050 --tls --cafile $ORDERER_CA -C mychannel -n mycc -v 1.0 -c '{"Args":["init","a","200","b","400"]}' -P "OR ('Org1MSP.peer','Org2MSP.peer')"
# 测试查询a 显示200
peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

  2. peer1org1

    sudo su
cd /opt/share
# 启动peer1
docker-compose -f docker-compose-peer-01.yaml up -d
#进入cli容器
docker exec -it cli bash
# 加入通道
peer channel join -b ./channel-artifacts/mychannel.block
# 安装chaincode
peer chaincode install -n mycc -p github.com/hyperledger/fabric/peer/chaincode/go/chaincode_example02 -v 1.0
# 这里可以直接进行调用了
# 测试查询a 显示200
peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

  3. peer0org2

    sudo su
cd /opt/share
# 启动peer1
docker-compose -f docker-compose-peer-02.yaml up -d
#进入cli容器
docker exec -it cli bash
# 加入通道
peer channel join -b ./channel-artifacts/mychannel.block
# 安装chaincode
peer chaincode install -n mycc -p github.com/hyperledger/fabric/peer/chaincode/go/chaincode_example02 -v 1.0
# 这里可以直接进行调用了
# 测试查 显示200
peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

  4. peer1org2

    sudo su
cd /opt/share
# 启动peer1
docker-compose -f docker-compose-peer-03.yaml up -d
#进入cli容器
docker exec -it cli bash
# 加入通道
peer channel join -b ./channel-artifacts/mychannel.block
# 安装chaincode
peer chaincode install -n mycc -p github.com/hyperledger/fabric/peer/chaincode/go/chaincode_example02 -v 1.0
# 这里可以直接进行调用了
# 测试查询a 显示200
peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'
avatar
文章
阅读
粉丝
