给自己的Web框架添加合适的安全框架是一件很重要的事，在这里，我选择了Shiro，因为它更加简单且通俗易懂，现在来看看怎么把它和SpringBoot整合到一块吧！
关于Shiro基本原理，可以看这个。
核心依赖
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-spring-boot-web-starter</artifactId>
<version>${your.version}</version>
</dependency>
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-ehcache</artifactId>
<version>${your.version}</version>
</dependency>
在这里还要添加数据库，mybatis，web等依赖
数据库创建
1.sys_user
CREATE TABLE `sys_user` (
`id` bigint NOT NULL AUTO_INCREMENT,
`username` varchar(25) DEFAULT NULL,
`password` varchar(255) DEFAULT NULL,
`salt` varchar(25) DEFAULT NULL,
`state` int DEFAULT '0',
PRIMARY KEY (`id`)
);
public class SysUser {
private Long id;
private String username;
private String nickname;
private String password;
private String salt;
private Integer state;
}

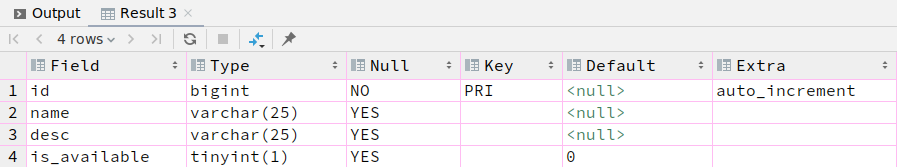

2.sys_role
CREATE TABLE `sys_role` (
`id` bigint NOT NULL AUTO_INCREMENT,
`name` varchar(25) DEFAULT NULL,
`desc` varchar(25) DEFAULT NULL,
`is_available` tinyint(1) DEFAULT '0',
PRIMARY KEY (`id`)
);
public class SysRole {
private Long id;
/**
* 角色名
*/
private String name;
private String desc;
private Boolean isAvailable = Boolean.FALSE;
}

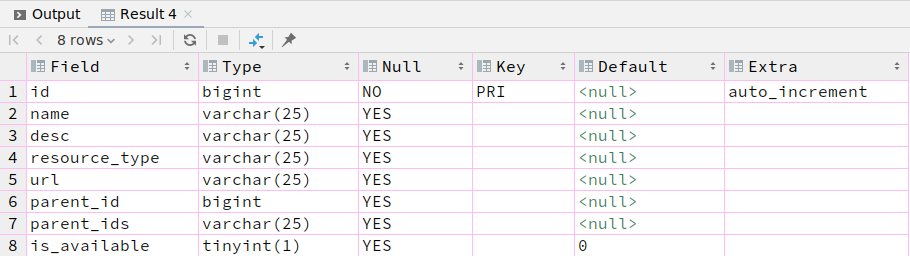

3.sys_permission
CREATE TABLE `sys_permission` (
`id` bigint NOT NULL AUTO_INCREMENT,
`name` varchar(25) DEFAULT NULL,
`desc` varchar(25) DEFAULT NULL,
`resource_type` varchar(25) DEFAULT NULL,
`url` varchar(25) DEFAULT NULL,
`parent_id` bigint DEFAULT NULL,
`parent_ids` varchar(25) DEFAULT NULL,
`is_available` tinyint(1) DEFAULT '0',
PRIMARY KEY (`id`)
);
public class SysPermission {
private Long id;
/**
* 许可名
*/
private String name;
/**
* 资源类型
*/
private String resourceType;
/**
* 资源url
*/
private String url;
/**
* 许可字符串
*/
private String desc;
/**
* 父编号
*/
private Long parentId;
private String parentIds;
private Boolean isAvailable = Boolean.FALSE;
}

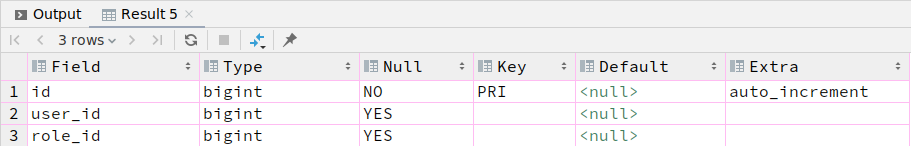

4.sys_user_roles
CREATE TABLE `sys_user_roles` (
`id` bigint NOT NULL AUTO_INCREMENT,
`user_id` bigint DEFAULT NULL,
`role_id` bigint DEFAULT NULL,
PRIMARY KEY (`id`)
);
public class SysUserRoles {
private Long id;
private Long userId;
private Long RoleId;
}

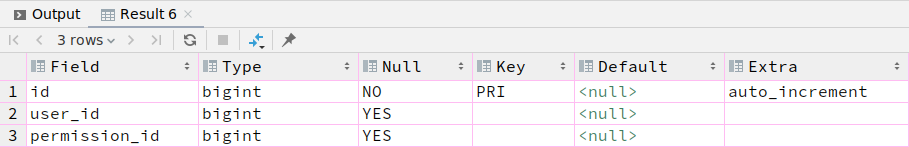

5.sys_user_permissions
CREATE TABLE `sys_user_permissions` (
`id` bigint NOT NULL AUTO_INCREMENT,
`user_id` bigint DEFAULT NULL,
`permission_id` bigint DEFAULT NULL,
PRIMARY KEY (`id`)
);
public class SysUserPermissions {
private Long id;
private Long userId;
private Long permissionId;
}

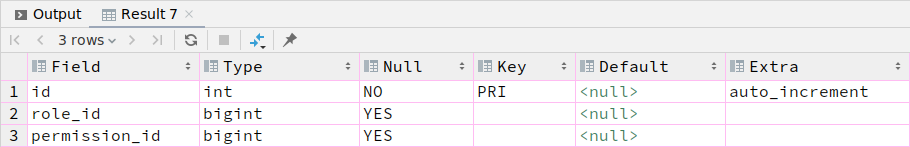

6.sys_role_permissions
CREATE TABLE `sys_role_permissions` (
`id` int NOT NULL AUTO_INCREMENT,
`role_id` bigint DEFAULT NULL,
`permission_id` bigint DEFAULT NULL,
PRIMARY KEY (`id`)
);
public class SysRolePermissions {
private Long id;
private Long roleId;
private Long permissionId;
}
注意哈！我是图简单，数据类型全用最简单的了，实际设计请根据需要设计！！！

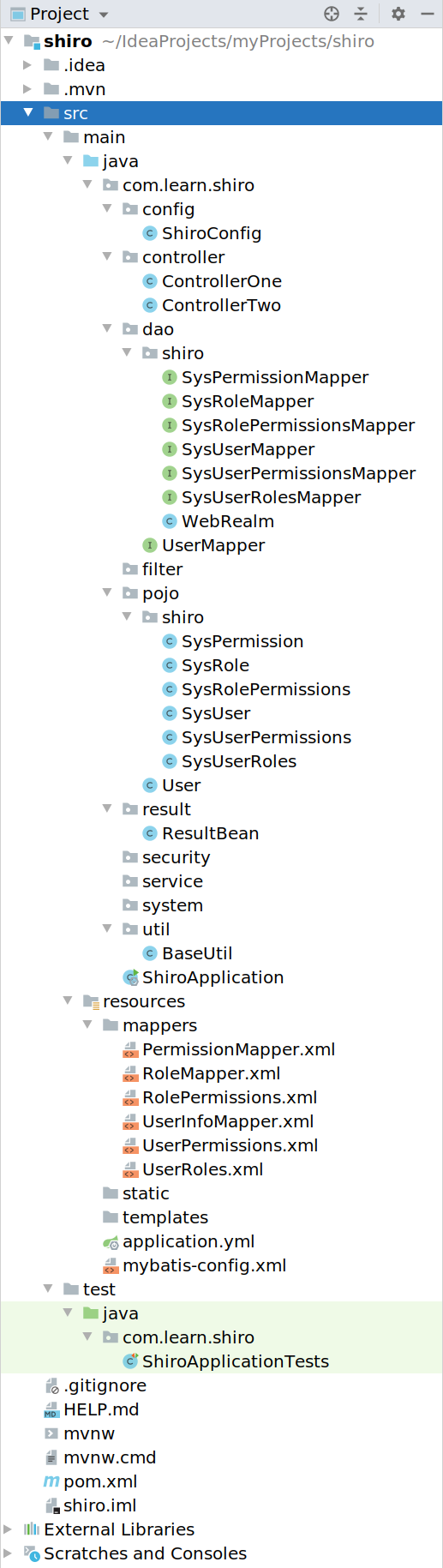

基本目录结构以及设计
ShiroConfig
此类提供shiro的基本配置，比如ShiroFilterChainDefinition：用来定义拦截路径，这不同于集成SpringMVC的样子，登录路径以及登录成功，未验证的路径是在配置文件里设置的。
package com.learn.shiro.config;
import com.learn.shiro.dao.shiro.WebRealm;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.cache.CacheManager;
import org.apache.shiro.cache.ehcache.EhCacheManager;
import org.apache.shiro.session.mgt.SessionManager;
import org.apache.shiro.spring.web.config.DefaultShiroFilterChainDefinition;
import org.apache.shiro.spring.web.config.ShiroFilterChainDefinition;
import org.apache.shiro.web.mgt.DefaultWebSecurityManager;
import org.apache.shiro.web.session.mgt.DefaultWebSessionManager;
import org.springframework.aop.framework.autoproxy.DefaultAdvisorAutoProxyCreator;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import javax.annotation.PostConstruct;
/**
* @author SuanCaiYv
* @time 2020/6/9 下午4:27
*/
@Configuration
public class ShiroConfig {
/**
* 注入域对象，用来完成验证和授权操作
*/
@Autowired
private WebRealm webRealm;
/**
* 进一步根据访问路径配置更详细的过滤器，add()的第二个参数代表了过滤器的名字
* 来看详细的解释
* anon: AnonymousFilter，允许不做验证直接访问，相当于不加过滤器
* authc: FormAuthenticationFilter，要求请求的用户必须是已验证的，否则强制重定向到设置好的登录界面
* authcBasic: BasicHttpAuthenticationFilter，要求org.apache.shiro.subject.Subject#isAuthenticated()返回真，否则要求登录
* authcBearer: BearerHttpAuthenticationFilter，和上面效果差不多，协议种类不同
* logout: LogoutFilter，对当前用户进行登出操作，并重定向到设定好的“重定向Url”
* noSessionCreation: NoSessionCreationFilter，禁用Session的创建，对于可能产生REST，SOAP等交互结果的操作很有用
* perms: PermissionsAuthorizationFilter，如果当前用户拥有map指定的值时，允许访问
* port: PortFilter把请求限定在某一指定端口，如果请求不在此端口发起请求，那么重定向到这个端口
* rest: HttpMethodPermissionFilter，把HTTP请求方法转换成一个行为值，并用这个值构建一个许可用来进行授权验证
* roles: RolesAuthorizationFilter，当当前用户持有map包含的值之一时，允许访问，如果持有的所有角色都没被包含，拒绝访问
* ssl: SslFilter，如果是SSL加密的，允许，否则拒绝
* user: UserFilter，如果是已知用户，允许访问，判别方法：principal是否被标记，或者说，任何已验证的，已被“记住”的均可访问
*/
@Bean
public ShiroFilterChainDefinition shiroFilterChainDefinition() {
DefaultShiroFilterChainDefinition shiroFilterChainDefinition = new DefaultShiroFilterChainDefinition();
shiroFilterChainDefinition.addPathDefinition("/doLogin", "anon");
shiroFilterChainDefinition.addPathDefinition("/**", "authc");
return shiroFilterChainDefinition;
}
/**
* 设置SecurityManager
*/
@PostConstruct
public void init() {
SecurityUtils.setSecurityManager(securityManager());
}
/**
* 关于SecurityUtils.getSubject()的个人理解，因为tomcat是多线程的，所以每次获取的Subject是怎么保证是当前与应用交互的Subject的呢？
* 答案就是ThreadLocal。这个类利用Map针对每个线程获取线程的独立于其他线程的域，怎么做到的呢？
* 这个Map的key不是不同的，而是全部是ThreadLocal类，但是有多个Map，每个线程都保存了一个Map，每个Map都有一个key为ThreadLocal的键值对。
* 这个和我们平时使用的Map有点不一样，平时想保存多个键值对，无非多个键对应多个值，这个是多个Map对应多个值，每个Map都有某一确定的值
* 想获取不同的值不是通过改变key的方式而是，通过改变Map的方式来实现，而Map绑定在线程上，遂直接获取当前线程的Map就好。
* 所以SecurityUtils.getSubject()是获取当前线程的Map的key为"ThreadContext_SUBJECT_KEY"的键值对的值来获取Subject的。
* @return NA
*/
@Bean
public DefaultWebSecurityManager securityManager() {
DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager();
securityManager.setSessionManager(sessionManager());
securityManager.setCacheManager(cacheManager());
securityManager.setRealm(webRealm);
return securityManager;
}
/**
* 设置会话管理器
*/
@Bean
public SessionManager sessionManager() {
DefaultWebSessionManager sessionManager = new DefaultWebSessionManager();
return sessionManager;
}
/**
* 设置缓存管理器
*/
@Bean
public CacheManager cacheManager() {
EhCacheManager ehCacheManager = new EhCacheManager();
return ehCacheManager;
}
/**
* 开启注解声明，不然会导致注解方法没法使用
*/
@Bean
@ConditionalOnMissingBean
public DefaultAdvisorAutoProxyCreator defaultAdvisorAutoProxyCreator() {
return new DefaultAdvisorAutoProxyCreator();
}
}
登录处理以及未验证处理Controller：
package com.learn.shiro.controller;
import com.learn.shiro.result.ResultBean;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.*;
import org.apache.shiro.subject.Subject;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**
* @author SuanCaiYv
* @time 2020/6/9 下午9:12
*/
@RestController
public class ControllerOne {
/**
* 实现真正的登录功能
*/

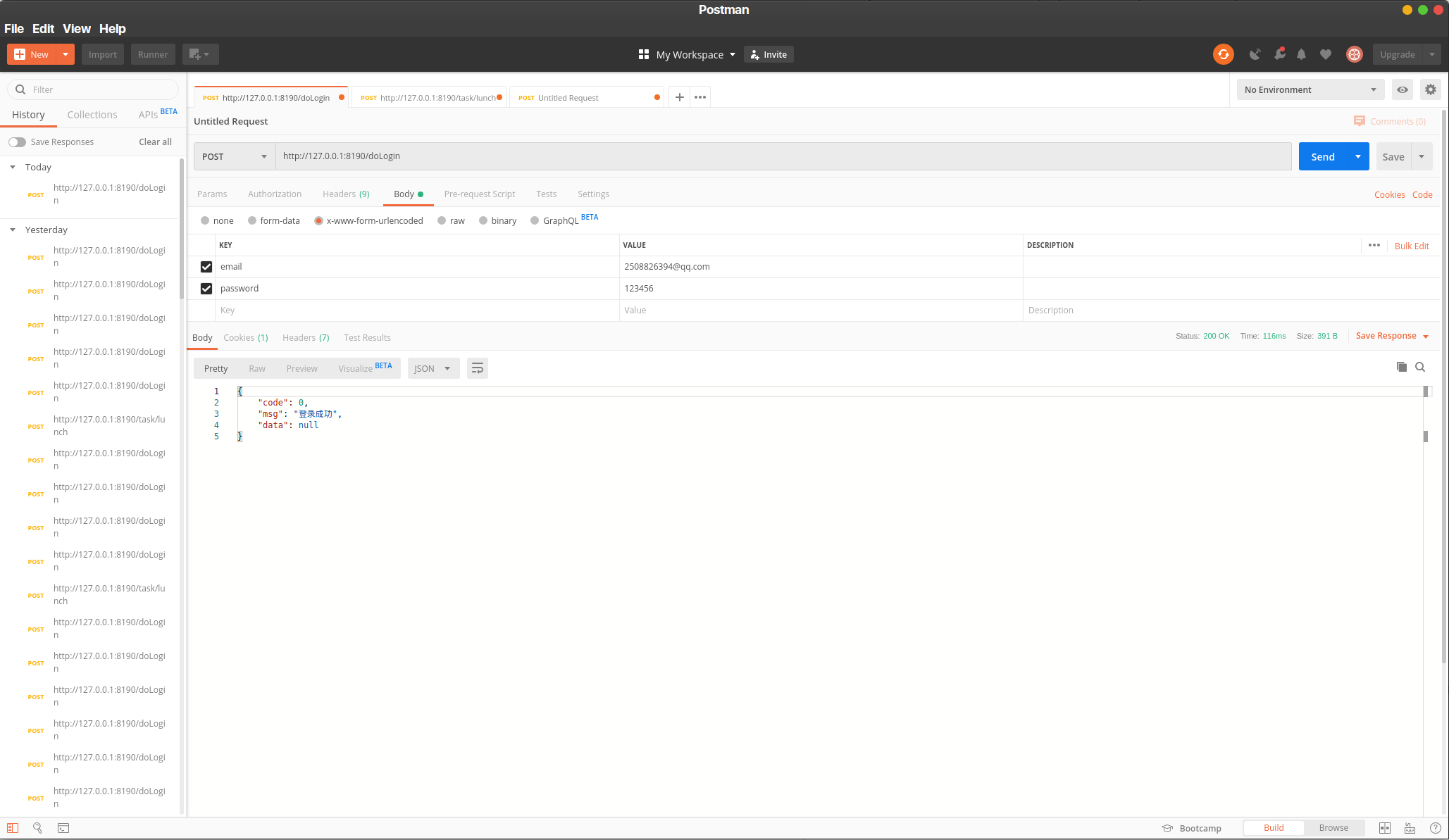

@RequestMapping("/doLogin")
public ResultBean<Void> doLogin(String email, String password) {
UsernamePasswordToken token = new UsernamePasswordToken();
token.setUsername(email);
token.setPassword(password.toCharArray());
Subject subject = SecurityUtils.getSubject();
ResultBean<Void> resultBean = new ResultBean<>();
// 如果已有用户登录
if (subject.isAuthenticated()) {
return resultBean;
}
try {
subject.login(token);
token.setRememberMe(true);
resultBean.setMsg("登录成功");
resultBean.setCode(ResultBean.ALL_PASSED);
} catch (IncorrectCredentialsException e) {
resultBean.setMsg("密码错误");
resultBean.setCode(ResultBean.INCORRECT_PASSWORD);
} catch (ExpiredCredentialsException e) {
resultBean.setMsg("密码过期");
resultBean.setCode(ResultBean.LOCKED_USER);
} catch (UnknownAccountException e) {
resultBean.setMsg("用户未注册");
resultBean.setCode(ResultBean.UNSIGNED_USER);
}
return resultBean;
}
/**
* 登出设置
*/

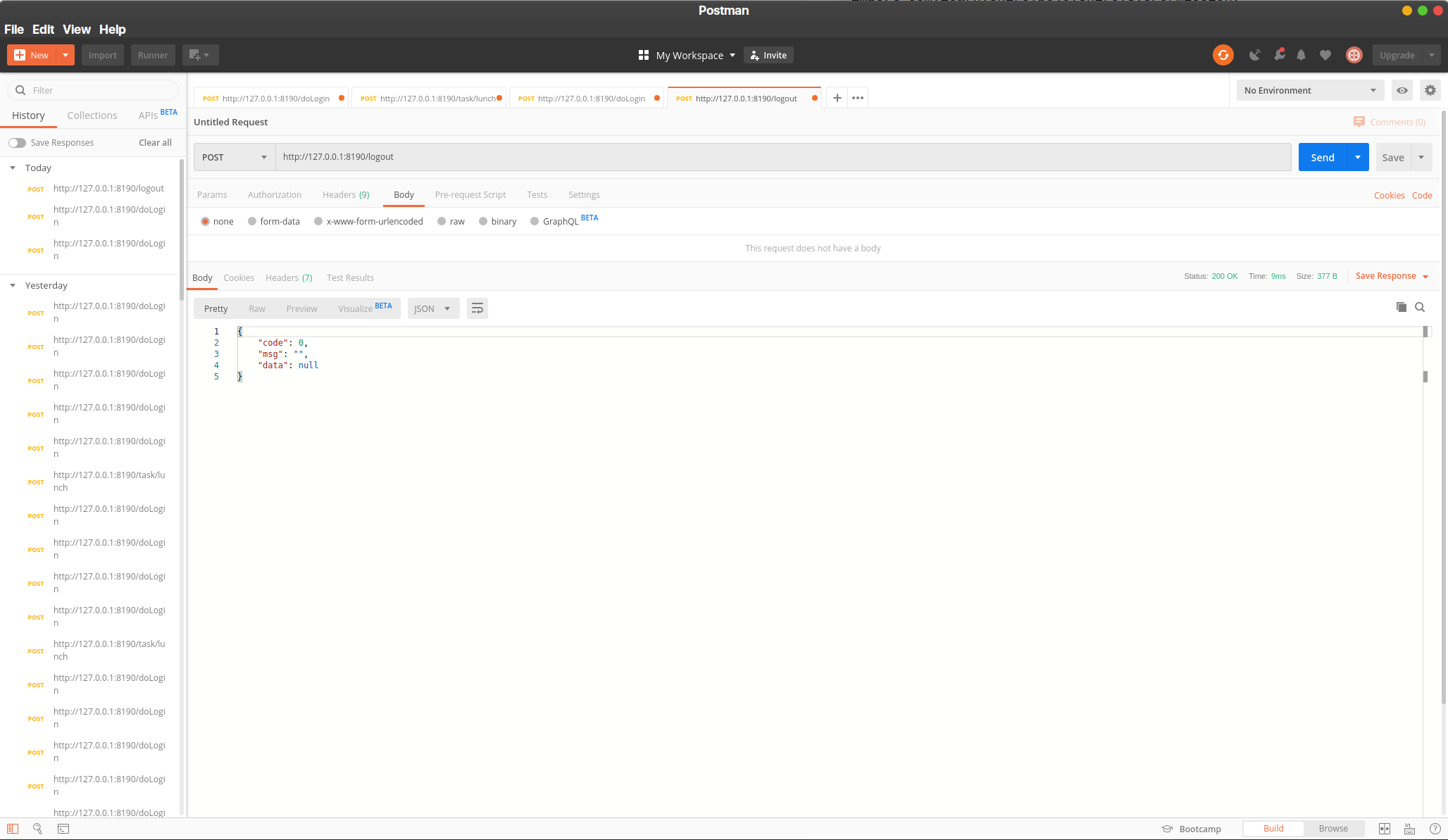

@RequestMapping("/logout")
public ResultBean<Void> logout() {
Subject subject = SecurityUtils.getSubject();
subject.logout();
return new ResultBean<>();
}
/**
* 设置未验证的映射路径
*/
@RequestMapping("/unauth")
public String error() {
return "unauth";
}
/**
* 设置未登录时的跳转路径
*/
@RequestMapping("/login")
public String login() {
return "please login!";
}
}
权限测试Controller：
package com.learn.shiro.controller;
import com.learn.shiro.result.ResultBean;
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authz.annotation.Logical;
import org.apache.shiro.authz.annotation.RequiresAuthentication;
import org.apache.shiro.authz.annotation.RequiresRoles;
import org.apache.shiro.authz.permission.WildcardPermission;
import org.apache.shiro.subject.Subject;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
/**
* @author SuanCaiYv
* @time 2020/6/10 下午8:43
*/
@RestController
public class ControllerTwo {
/**
* 要求操作者必须拥有角色身份，同时必须是已验证的，否则抛异常
*/
@RequiresAuthentication
@RequiresRoles(value = {"com", "adm", "hed"}, logical = Logical.OR)
@RequestMapping("/task/lunch")
public ResultBean<Void> f1() {
Subject subject = SecurityUtils.getSubject();
ResultBean<Void> resultBean = new ResultBean<>();
if (subject.isPermitted(new WildcardPermission("*:lun_tsk"))) {
resultBean.setCode(ResultBean.ALL_PASSED);
resultBean.setMsg("发布成功");
}
else {
resultBean.setCode(ResultBean.ACCESS_DENIED);
resultBean.setMsg("您貌似没有权限");
}
return resultBean;
}
}
验证与授权实现类：
package com.learn.shiro.dao.shiro;
import com.learn.shiro.pojo.shiro.SysUser;
import org.apache.shiro.authc.*;
import org.apache.shiro.authc.credential.HashedCredentialsMatcher;
import org.apache.shiro.authz.AuthorizationInfo;
import org.apache.shiro.authz.Permission;
import org.apache.shiro.authz.SimpleAuthorizationInfo;
import org.apache.shiro.authz.permission.WildcardPermission;
import org.apache.shiro.realm.AuthorizingRealm;
import org.apache.shiro.subject.PrincipalCollection;
import org.apache.shiro.util.ByteSource;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import java.util.HashSet;
import java.util.List;
import java.util.Set;
/**
* @author SuanCaiYv
* @time 2020/6/10 下午11:22
*/
@Component
public class WebRealm extends AuthorizingRealm {
private static final HashedCredentialsMatcher credentialsMatcher;
private final SysUserMapper sysUserMapper;
private final SysUserRolesMapper sysUserRolesMapper;
private final SysUserPermissionsMapper sysUserPermissionsMapper;
private final SysRoleMapper sysRoleMapper;
private final SysPermissionMapper sysPermissionMapper;
private final SysRolePermissionsMapper sysRolePermissionsMapper;
/**
* 这里的设置和你的加密方式一致
*/
static {
credentialsMatcher = new HashedCredentialsMatcher();
credentialsMatcher.setHashAlgorithmName("MD5");
credentialsMatcher.setHashIterations(1024);
credentialsMatcher.setStoredCredentialsHexEncoded(true);
}
/**
* 这里一定要设置setCredentialsMatcher()，不然会造成密码匹配失败
*/
public WebRealm(@Autowired SysUserMapper sysUserMapper, @Autowired SysUserRolesMapper sysUserRolesMapper,
@Autowired SysUserPermissionsMapper sysUserPermissionsMapper, @Autowired SysRoleMapper sysRoleMapper,
@Autowired SysPermissionMapper sysPermissionMapper, @Autowired SysRolePermissionsMapper sysRolePermissionsMapper) {
this.setCredentialsMatcher(credentialsMatcher);
this.sysUserMapper = sysUserMapper;
this.sysUserRolesMapper = sysUserRolesMapper;
this.sysUserPermissionsMapper = sysUserPermissionsMapper;
this.sysRoleMapper = sysRoleMapper;
this.sysPermissionMapper = sysPermissionMapper;
this.sysRolePermissionsMapper = sysRolePermissionsMapper;
}
/**
* 授权
*/
@Override
protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
String username = (String) principals.getPrimaryPrincipal();
SysUser sysUser = sysUserMapper.select(username);
List<Long> roleIds = sysUserRolesMapper.selectByUser(sysUser.getId());
List<Long> permissionIds = sysUserPermissionsMapper.selectByUser(sysUser.getId());
Set<String> roles = new HashSet<>();
Set<Permission> permissions = new HashSet<>();
// 获取用户权限
for (Long roleId : roleIds) {
roles.add(sysRoleMapper.selectById(roleId).getName());
for (Long permissionId : permissionIds) {
WildcardPermission permission = new WildcardPermission(sysRoleMapper.selectById(roleId).getName()+
":"+sysPermissionMapper.selectById(permissionId).getName());
permissions.add(permission);
}
}
SimpleAuthorizationInfo simpleAuthorizationInfo = new SimpleAuthorizationInfo();
// 添加权限的过程
simpleAuthorizationInfo.setRoles(roles);
simpleAuthorizationInfo.setObjectPermissions(permissions);
return simpleAuthorizationInfo;
}
/**
* 验证
*/
@Override
protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
String username = (String) token.getPrincipal();
SysUser sysUser = sysUserMapper.select(username);
if (sysUser == null) {
throw new UnknownAccountException("Unsigned User!");
}
// 验证用户身份
SimpleAuthenticationInfo simpleAuthenticationInfo = new SimpleAuthenticationInfo(token.getPrincipal(), sysUser.getPassword(), ByteSource.Util.bytes(sysUser.getSalt()), this.getName());
return simpleAuthenticationInfo;
}
}
配置文件：
server:
port: 8190
shiro:
sessionManager:
sessionIdCookieEnabled: true
sessionIdUrlRewritingEnabled: true
web:
enabled: true
successUrl: /index
loginUrl: /login
unauthorizedUrl: /unauth
spring:
datasource:
url: jdbc:mysql://127.0.0.1:3306/shiro_test
username: root
password: root
mybatis:
config-location: classpath:mybatis-config.xml
mapper-locations: classpath:mappers/*.xml
最后贴上添加用户数据的操作：
package com.learn.shiro;
import com.learn.shiro.dao.shiro.SysPermissionMapper;
import com.learn.shiro.dao.shiro.SysRoleMapper;
import com.learn.shiro.dao.shiro.SysUserMapper;
import com.learn.shiro.pojo.shiro.SysPermission;
import com.learn.shiro.pojo.shiro.SysUser;
import com.learn.shiro.util.BaseUtil;
import org.apache.shiro.crypto.hash.SimpleHash;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
@SpringBootTest
class ShiroApplicationTests {
@Autowired
private SysUserMapper sysUserMapper;
@Autowired
private SysRoleMapper sysRoleMapper;
@Autowired
private SysPermissionMapper sysPermissionMapper;
@Test
void contextLoads() {
SysUser sysUser = new SysUser();
sysUser.setUsername("2021601470@qq.com");
sysUser.setNickname("水煮鱼");
sysUser.setState(0);
String salt = BaseUtil.getSalt();
sysUser.setSalt(salt);
SimpleHash simpleHash = new SimpleHash("MD5", "123456", salt, 1024);
sysUser.setPassword(simpleHash.toHex());
sysUserMapper.insert(sysUser);
}
}
至此，一个使用Shiro的SpringBoot应用就设置完成了！
来看看运行结果吧！
完整代码地址：github.com/SuanCaiYv/s…
