1、前言

俗话说:工欲善其事,必先利其器。

我们在使用springBoot开发项目的,刚开始的时候,肯定会手动去创建Contollerentity

ServiceServiceImplMapper 甚至 xml文件,手动效率实在是慢。

这里介绍,如何去利用代码生成器,帮我们去自动生成各个模块代码;

)

MyBatis-Plus 的代码生成器,通过 AutoGenerator 可以快速生成 Entity、Mapper、Mapper XML、Service、Controller等各个模块的代码,极大的提升了开发效率。

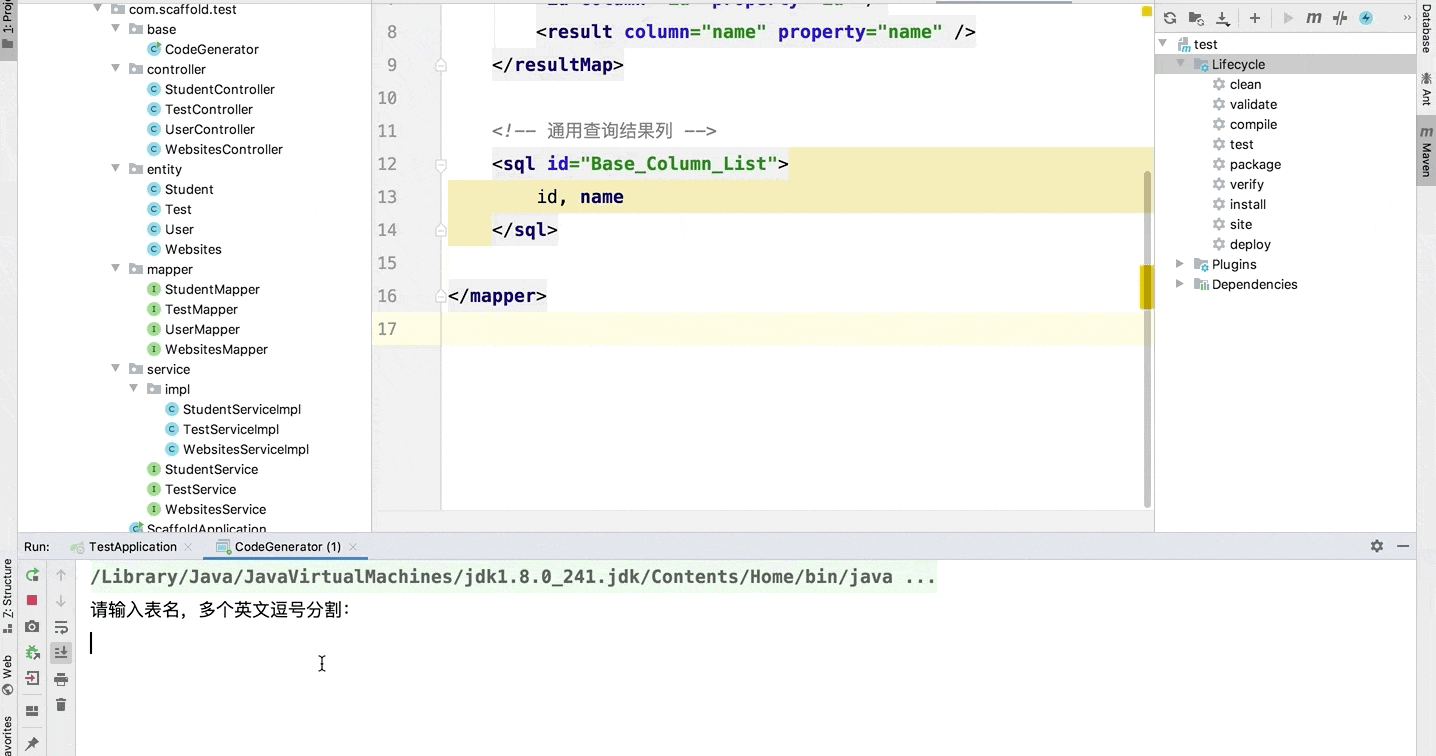

效果预览:

代码预览

package com.scaffold.test.base;

import com.baomidou.mybatisplus.core.exceptions.MybatisPlusException;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import com.baomidou.mybatisplus.generator.engine.FreemarkerTemplateEngine;
import com.baomidou.mybatisplus.generator.engine.VelocityTemplateEngine;

import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;

public class CodeGenerator {
    /**
     * <p>
     * 读取控制台内容
     * </p>
     */
    public static String scanner(String tip) {
        Scanner scanner = new Scanner(System.in);
        StringBuilder help = new StringBuilder();
        help.append("请输入" + tip + ":");
        System.out.println(help.toString());
        if (scanner.hasNext()) {
            String ipt = scanner.next();
            if (StringUtils.isNotEmpty(ipt)) {
                return ipt;
            }
        }
        throw new MybatisPlusException("请输入正确的" + tip + "!");
    }

    public static void main(String[] args) {
        // 代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir");
        gc.setOutputDir(projectPath + "/src/main/java");
        gc.setAuthor("alex wong");
        gc.setOpen(false);
        // 设置名字
        gc.setControllerName("%sController");
        gc.setServiceName("%sService");
        gc.setServiceImplName("%sServiceImpl");
        gc.setMapperName("%sMapper");
        // 设置 resultMap
        gc.setBaseResultMap(true);
        gc.setBaseColumnList(true);
//        gc.setFileOverride(true);
        // gc.setSwagger2(true); 实体属性 Swagger2 注解
        mpg.setGlobalConfig(gc);

        // 数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost:3306/test?useUnicode=true&useSSL=false&characterEncoding=utf8");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("admin");
        dsc.setPassword("你的mysql密码");
        mpg.setDataSource(dsc);

        // 自定义配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
                // to do nothing
            }
        };

        // 包配置
        PackageConfig pc = new PackageConfig();
        //  pc.setModuleName(scanner("模块名"));
        pc.setParent("com.scaffold.test");
        mpg.setPackageInfo(pc);

        // 如果模板引擎是 velocity
         String templatePath = "/templates/mapper.xml.vm";

        // 自定义输出配置
        List<FileOutConfig> focList = new ArrayList<>();
        // 自定义配置会被优先输出
        focList.add(new FileOutConfig(templatePath) {
            @Override
            public String outputFile(TableInfo tableInfo) {
                // 自定义输出文件名 , 如果你 Entity 设置了前后缀、此处注意 xml 的名称会跟着发生变化!!
                return projectPath + "/src/main/resources/mapper/" + pc.getModuleName()
                        + "/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
            }
        });
        cfg.setFileOutConfigList(focList);
        mpg.setCfg(cfg);

        // 配置模板
        TemplateConfig templateConfig = new TemplateConfig();

        templateConfig.setXml(null);
        mpg.setTemplate(templateConfig);

        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
        strategy.setEntityLombokModel(true);
        strategy.setRestControllerStyle(true);
        // 写于父类中的公共字段
//        strategy.setSuperEntityColumns("id");
        strategy.setInclude(scanner("表名,多个英文逗号分割").split(","));
        strategy.setControllerMappingHyphenStyle(true);
        strategy.setTablePrefix(pc.getModuleName() + "_");
        mpg.setStrategy(strategy);
        mpg.setTemplateEngine(new VelocityTemplateEngine());
        mpg.execute();,
    }
}

复制代码

2、安装依赖

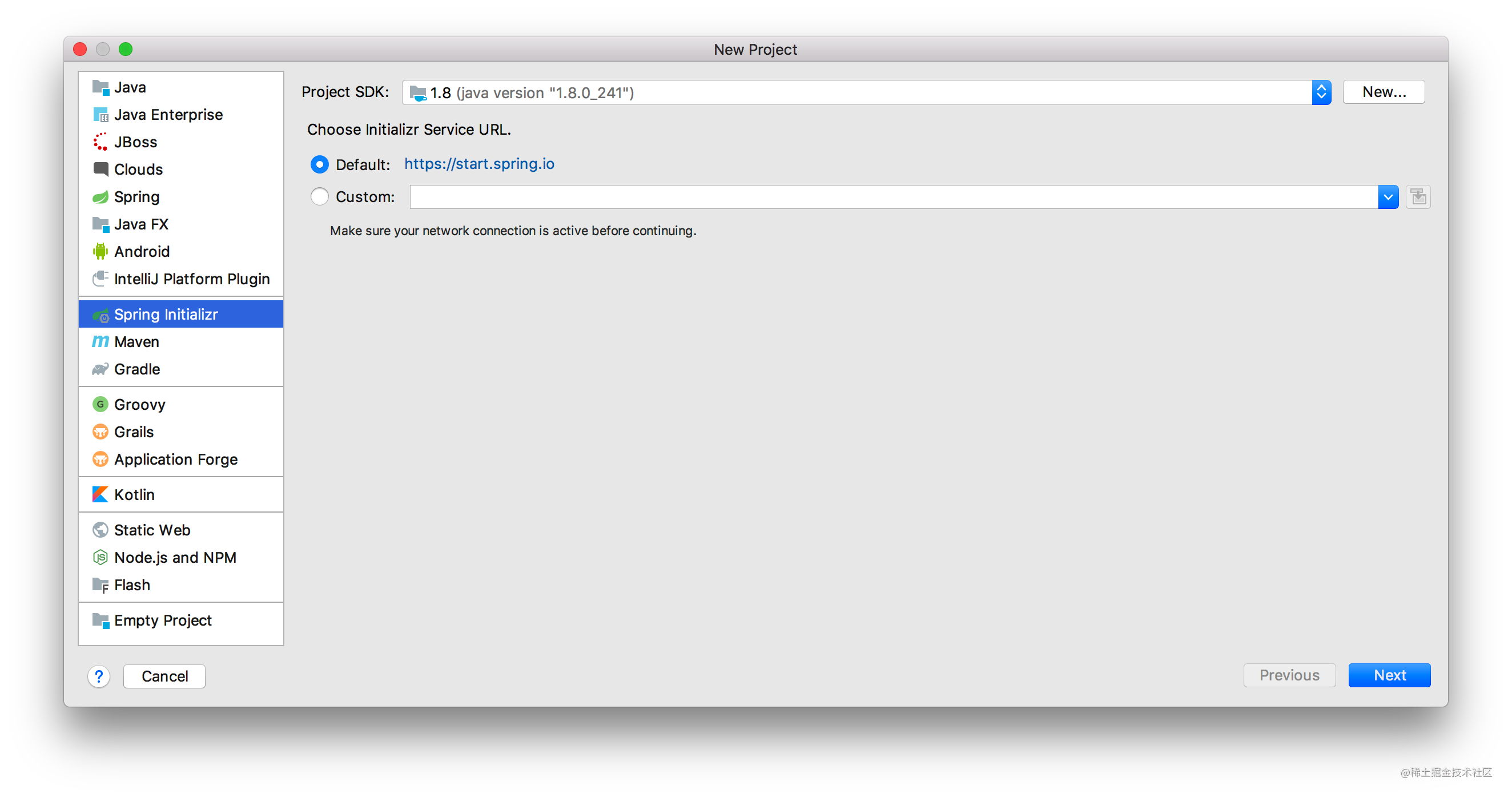

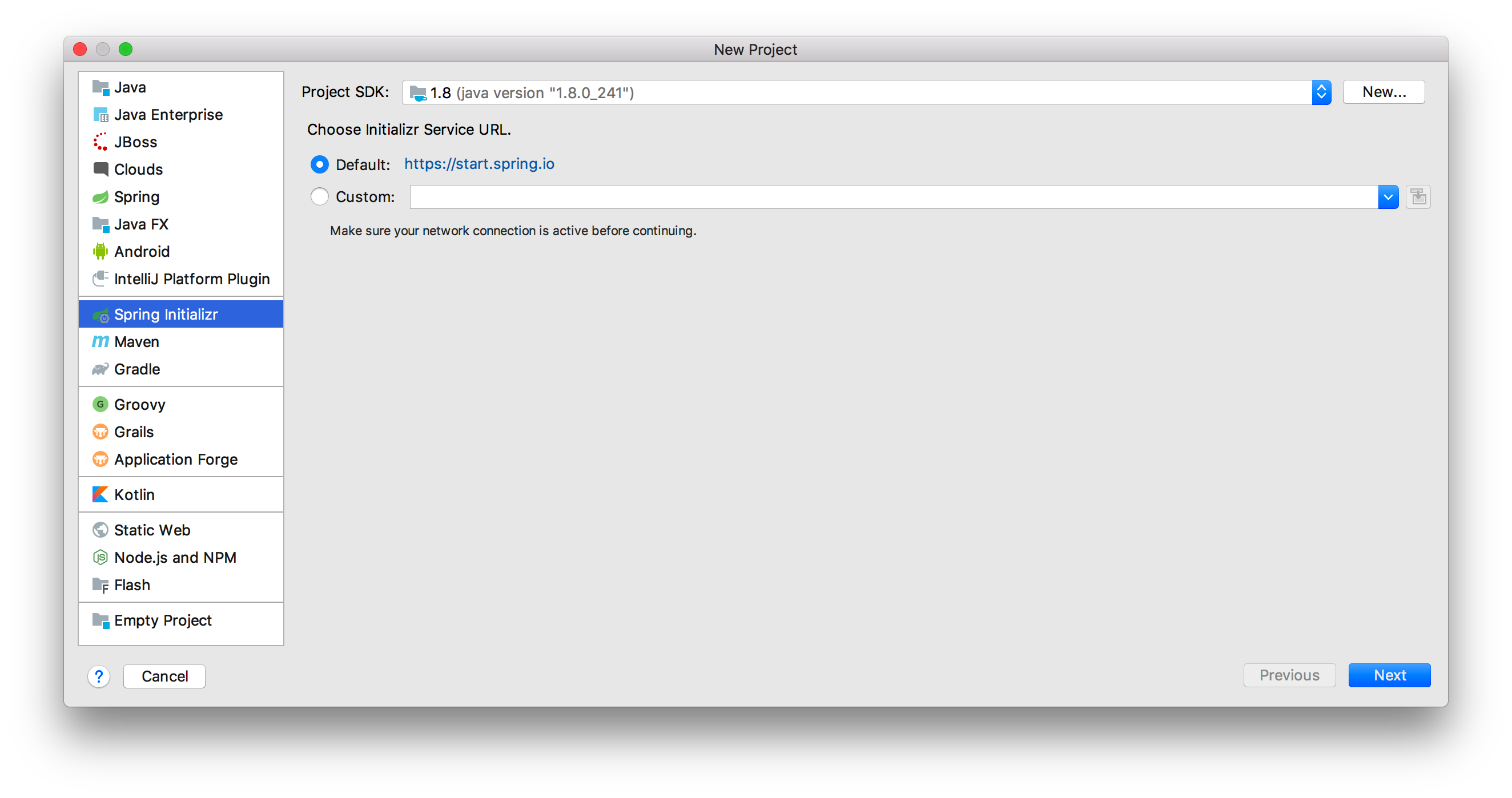

初始一个spring boot项目我就不再多说了,可以参考以下:

引入 spring-boot-starterspring-boot-starter-testmybatis-plus-boot-starterlombokmysql-connector 依赖:

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!-- lombok 简化代码-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!--    mybatis-plus启动器    -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.2</version>
        </dependency>

        <!--  mysql jdbc -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!--   生成器  -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.3.2</version>
        </dependency>

  			<!--   生成器默认版本依赖  -->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>2.0</version>
        </dependency>


    </dependencies>
复制代码

3、配置

application.yml 配置文件中添加mysql数据库的相关配置

server:
  port: 9002

spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/test
    username: admin
    password: ************

logging:
  level:
    root: warn
    com.scaffold.test.mapper: trace

复制代码

4、生成器代码

新建 com.scaffold.test.base.CodeGenerator 类

package com.scaffold.test.base;

import com.baomidou.mybatisplus.core.exceptions.MybatisPlusException;
import com.baomidou.mybatisplus.core.toolkit.StringPool;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import com.baomidou.mybatisplus.generator.AutoGenerator;
import com.baomidou.mybatisplus.generator.InjectionConfig;
import com.baomidou.mybatisplus.generator.config.*;
import com.baomidou.mybatisplus.generator.config.po.TableInfo;
import com.baomidou.mybatisplus.generator.config.rules.NamingStrategy;
import com.baomidou.mybatisplus.generator.engine.VelocityTemplateEngine;

import java.util.ArrayList;
import java.util.List;
import java.util.Scanner;

public class CodeGenerator {
    /**
     * <p>
     * 读取控制台内容
     * </p>
     */
    public static String scanner(String tip) {
        Scanner scanner = new Scanner(System.in);
        StringBuilder help = new StringBuilder();
        help.append("请输入" + tip + ":");
        System.out.println(help.toString());
        if (scanner.hasNext()) {
            String ipt = scanner.next();
            if (StringUtils.isNotEmpty(ipt)) {
                return ipt;
            }
        }
        throw new MybatisPlusException("请输入正确的" + tip + "!");
    }

    public static void main(String[] args) {
        // 代码生成器
        AutoGenerator mpg = new AutoGenerator();

        // 全局配置
        GlobalConfig gc = new GlobalConfig();
        String projectPath = System.getProperty("user.dir");
        gc.setOutputDir(projectPath + "/src/main/java");
        gc.setAuthor("alex wong");
        gc.setOpen(false);
        // 设置名字
        gc.setControllerName("%sController");
        gc.setServiceName("%sService");
        gc.setServiceImplName("%sServiceImpl");
        gc.setMapperName("%sMapper");
        // 设置 resultMap
        gc.setBaseResultMap(true);
        gc.setBaseColumnList(true);
//        gc.setFileOverride(true);
        // gc.setSwagger2(true); 实体属性 Swagger2 注解
        mpg.setGlobalConfig(gc);

        // 数据源配置
        DataSourceConfig dsc = new DataSourceConfig();
        dsc.setUrl("jdbc:mysql://localhost:3306/test?useUnicode=true&useSSL=false&characterEncoding=utf8");
        dsc.setDriverName("com.mysql.cj.jdbc.Driver");
        dsc.setUsername("admin");
        dsc.setPassword("**********");
        mpg.setDataSource(dsc);

        // 自定义配置
        InjectionConfig cfg = new InjectionConfig() {
            @Override
            public void initMap() {
                // to do nothing
            }
        };

        // 包配置
        PackageConfig pc = new PackageConfig();
        //  pc.setModuleName(scanner("模块名"));
        pc.setParent("com.scaffold.test");
        mpg.setPackageInfo(pc);

        // 如果模板引擎是 velocity
         String templatePath = "/templates/mapper.xml.vm";

        // 自定义输出配置
        List<FileOutConfig> focList = new ArrayList<>();
        // 自定义配置会被优先输出
        focList.add(new FileOutConfig(templatePath) {
            @Override
            public String outputFile(TableInfo tableInfo) {
                // 自定义输出文件名 , 如果你 Entity 设置了前后缀、此处注意 xml 的名称会跟着发生变化!!
                return projectPath + "/src/main/resources/mapper/" + pc.getModuleName()
                        + "/" + tableInfo.getEntityName() + "Mapper" + StringPool.DOT_XML;
            }
        });
        cfg.setFileOutConfigList(focList);
        mpg.setCfg(cfg);

        // 配置模板
        TemplateConfig templateConfig = new TemplateConfig();

        templateConfig.setXml(null);
        mpg.setTemplate(templateConfig);

        // 策略配置
        StrategyConfig strategy = new StrategyConfig();
        strategy.setNaming(NamingStrategy.underline_to_camel);
        strategy.setColumnNaming(NamingStrategy.underline_to_camel);
        strategy.setEntityLombokModel(true);
        strategy.setRestControllerStyle(true);
        // 写于父类中的公共字段
//        strategy.setSuperEntityColumns("id");
        strategy.setInclude(scanner("表名,多个英文逗号分割").split(","));
        strategy.setControllerMappingHyphenStyle(true);
        strategy.setTablePrefix(pc.getModuleName() + "_");
        mpg.setStrategy(strategy);
        mpg.setTemplateEngine(new VelocityTemplateEngine());
        mpg.execute();
    }
}

复制代码

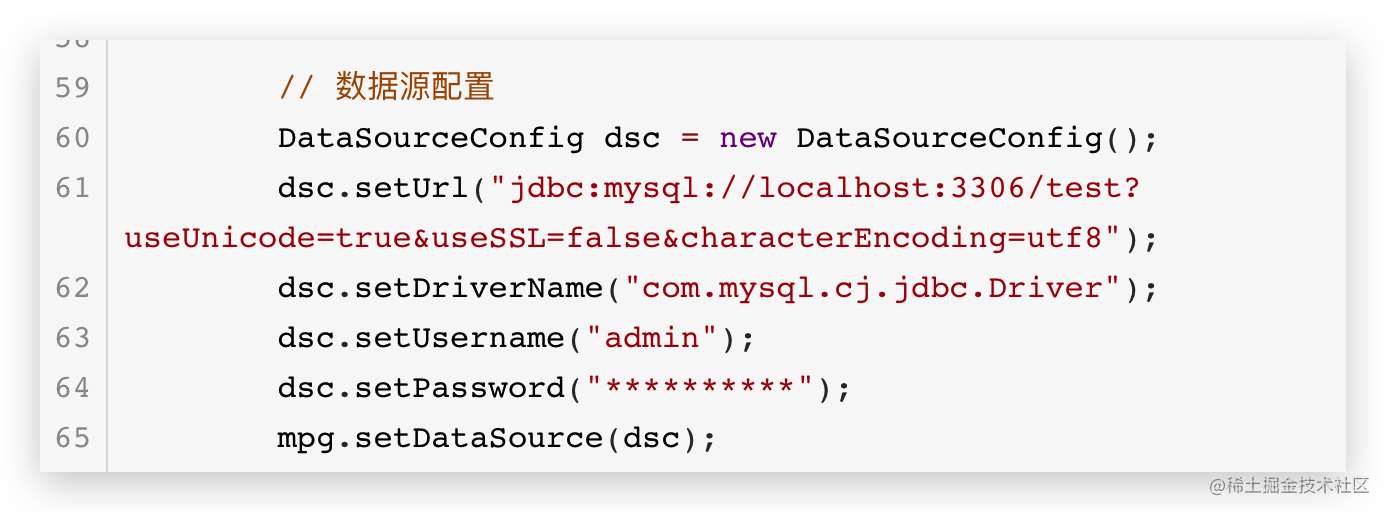

第一步:修改为你的数据源

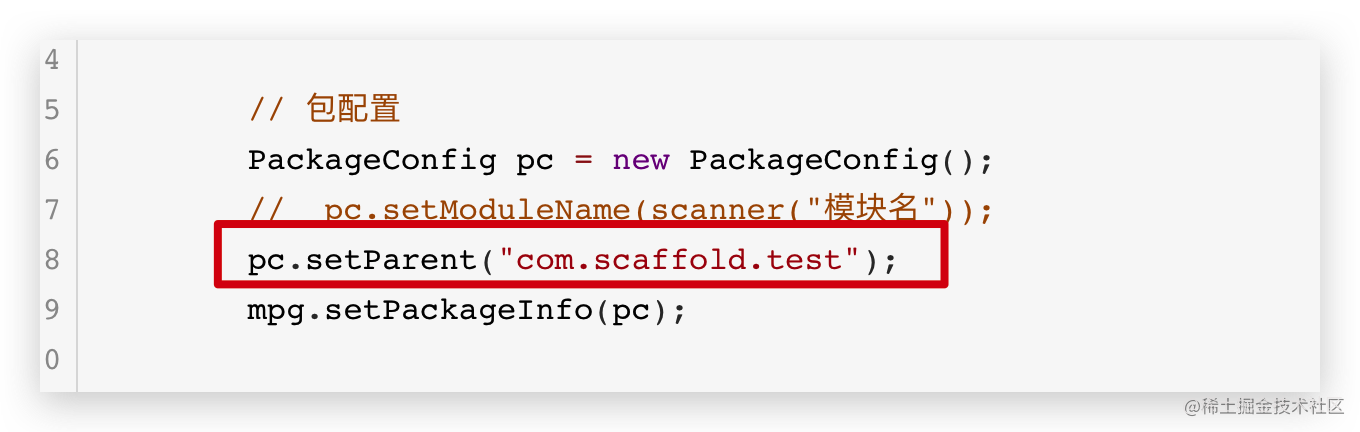

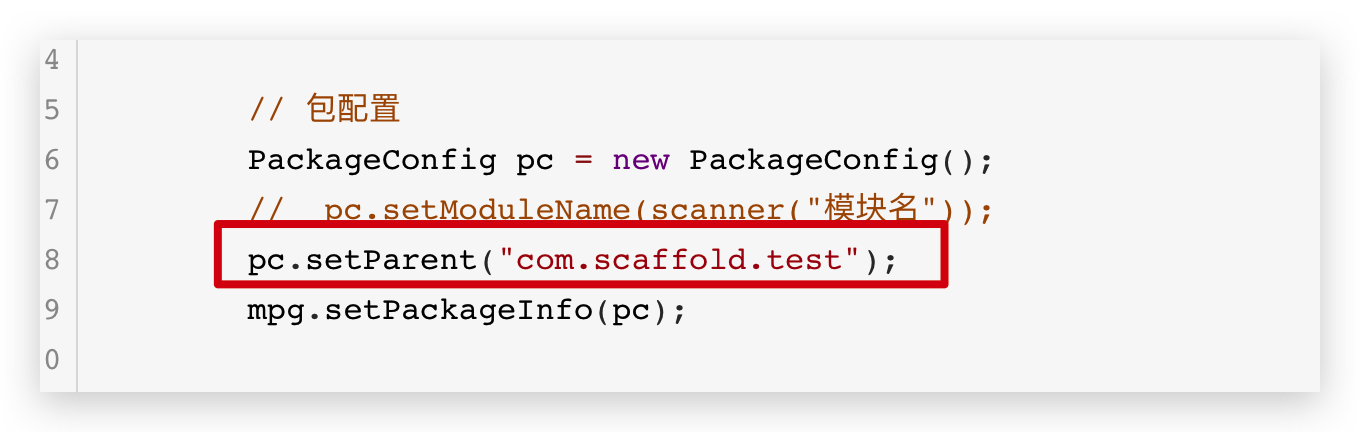

第二步:修改包

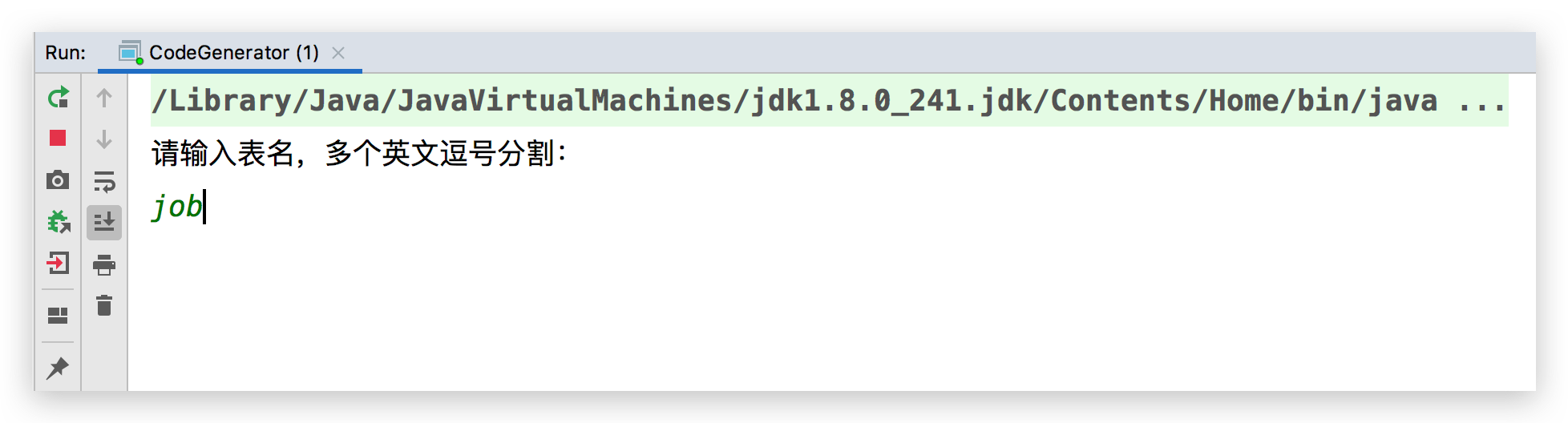

第三步:执行 main 方法

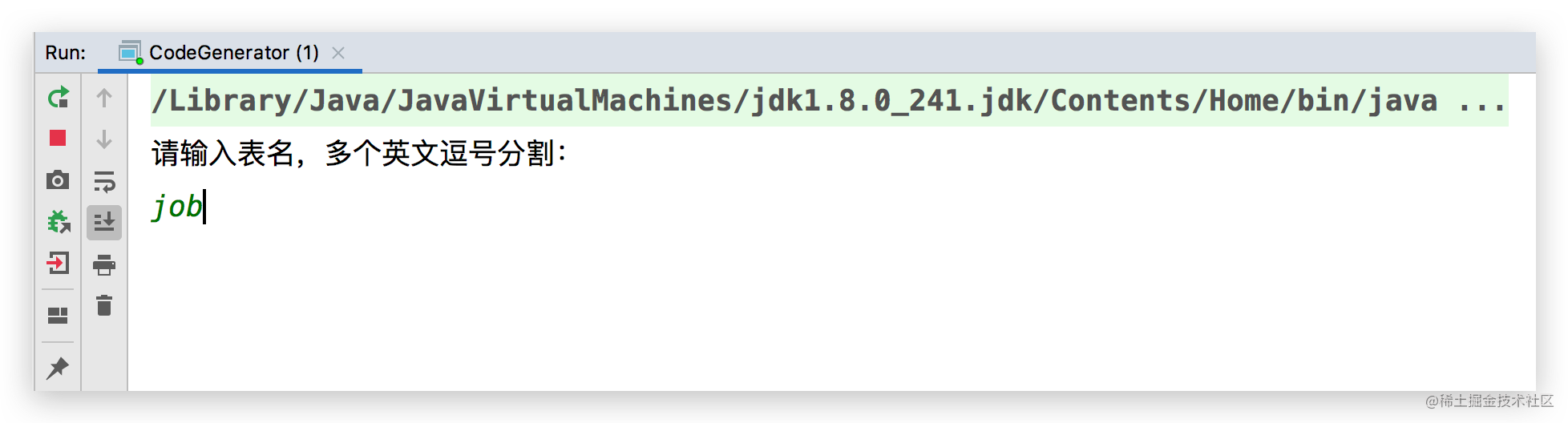

这里输入的表名,必须是你数据库真实存在的表,否则不生效;

5、代码展示

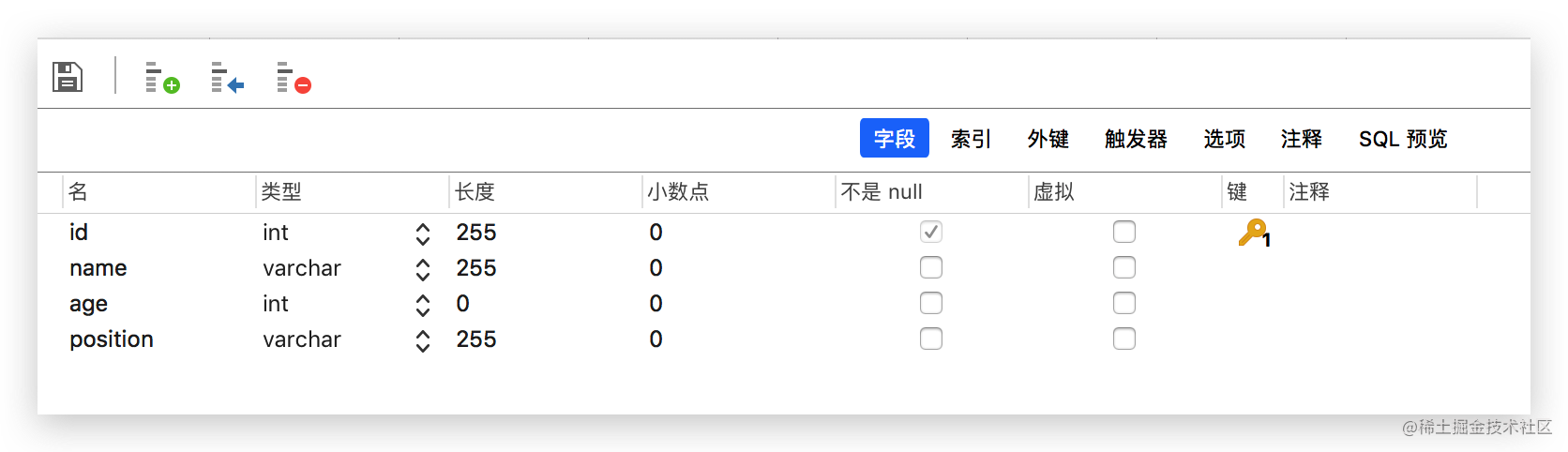

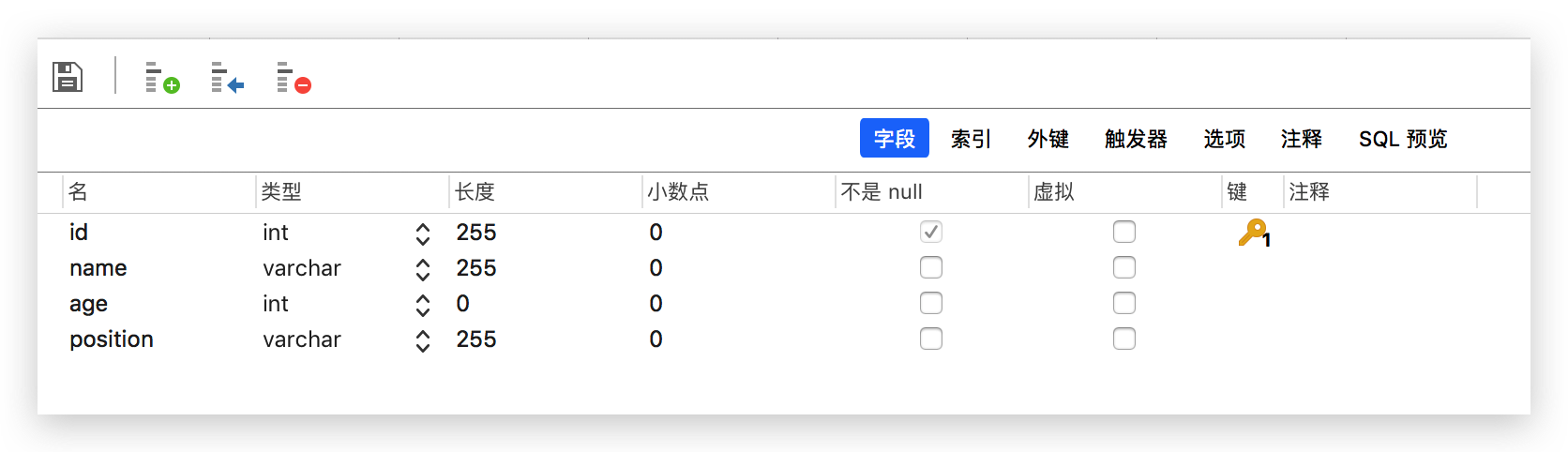

job表为例:

jobController

package com.scaffold.test.controller;


import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RestController;

/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
@RestController
@RequestMapping("/job")
public class JobController {

}


复制代码

job entity 实体类

package com.scaffold.test.entity;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import java.io.Serializable;
import lombok.Data;
import lombok.EqualsAndHashCode;

/**
 * <p>
 *
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
@Data
@EqualsAndHashCode(callSuper = false)
public class Job implements Serializable {

    private static final long serialVersionUID=1L;

      @TableId(value = "id", type = IdType.AUTO)
    private Integer id;

    private String name;

    private Integer age;

    private String position;


}

复制代码

Job mapper

package com.scaffold.test.mapper;

import com.scaffold.test.entity.Job;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;

/**
 * <p>
 *  Mapper 接口
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
public interface JobMapper extends BaseMapper<Job> {

}

复制代码

Job Service 服务类接口

package com.scaffold.test.service;

import com.scaffold.test.entity.Job;
import com.baomidou.mybatisplus.extension.service.IService;

/**
 * <p>
 *  服务类
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
public interface JobService extends IService<Job> {

}

复制代码

Job ServiceImpl 服务类的实现方法

package com.scaffold.test.service.impl;

import com.scaffold.test.entity.Job;
import com.scaffold.test.mapper.JobMapper;
import com.scaffold.test.service.JobService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.springframework.stereotype.Service;

/**
 * <p>
 *  服务实现类
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
@Service
public class JobServiceImpl extends ServiceImpl<JobMapper, Job> implements JobService {

}

复制代码

Mapper XML

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.scaffold.test.mapper.JobMapper">

    <!-- 通用查询映射结果 -->
    <resultMap id="BaseResultMap" type="com.scaffold.test.entity.Job">
        <id column="id" property="id" />
        <result column="name" property="name" />
        <result column="age" property="age" />
        <result column="position" property="position" />
    </resultMap>

    <!-- 通用查询结果列 -->
    <sql id="Base_Column_List">
        id, name, age, position
    </sql>

</mapper>

复制代码

6、代码测试

我们依然以 job 表为例,虽然单表操作执行,一般不用Mapper XML,可以使用Mybatis-plus的CRUD , 不过 我们接下来依然是用XML来做数据库操作。

6.1 添加工作

1、Mapper XML 增加sql语句 mapper/JobMapper.xml

<insert id="insertJob">
        insert into job
        (name, age, position)
        values
        (#{name}, #{age}, #{position})
    </insert>
复制代码

2、com.scaffold.test.mapper.JobMapper

package com.scaffold.test.mapper;

import com.scaffold.test.entity.Job;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import org.springframework.beans.factory.annotation.Autowired;

/**
 * <p>
 *  Mapper 接口
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
public interface JobMapper extends BaseMapper<Job> {

    public void insertJob(Job job);

}

复制代码

3、增加Service接口和实现方法

Service接口: com.scaffold.test.service.JobService

package com.scaffold.test.service;

import com.scaffold.test.entity.Job;
import com.baomidou.mybatisplus.extension.service.IService;

/**
 * <p>
 *  服务类
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
public interface JobService extends IService<Job> {

    public String addJob(Job job);

}

复制代码

JobServiceImpl接口实现方法:com.scaffold.test.service.impl.JobServiceImpl

package com.scaffold.test.service.impl;

import com.scaffold.test.entity.Job;
import com.scaffold.test.mapper.JobMapper;
import com.scaffold.test.service.JobService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

/**
 * <p>
 * 服务实现类
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
@Service
public class JobServiceImpl extends ServiceImpl<JobMapper, Job> implements JobService {

    @Autowired
    private JobMapper jobMapper;

    @Override
    public String addJob(Job job) {
        jobMapper.insertJob(job);
        return "添加成功";
    }
}

复制代码

JobController控制层:com.scaffold.test.controller.JobController

package com.scaffold.test.controller;


import com.scaffold.test.entity.Job;
import com.scaffold.test.service.JobService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RestController;

/**
 * <p>
 *  前端控制器
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
@RestController
@RequestMapping("/job")
public class JobController {

    @Autowired
    private JobService jobService;

    @PostMapping("/add")
    public String add(){
        Job job = new Job();
        job.setAge(20);
        job.setPosition("总经理");
        job.setName("汪汪");
        return jobService.addJob(job);
    }
}


复制代码

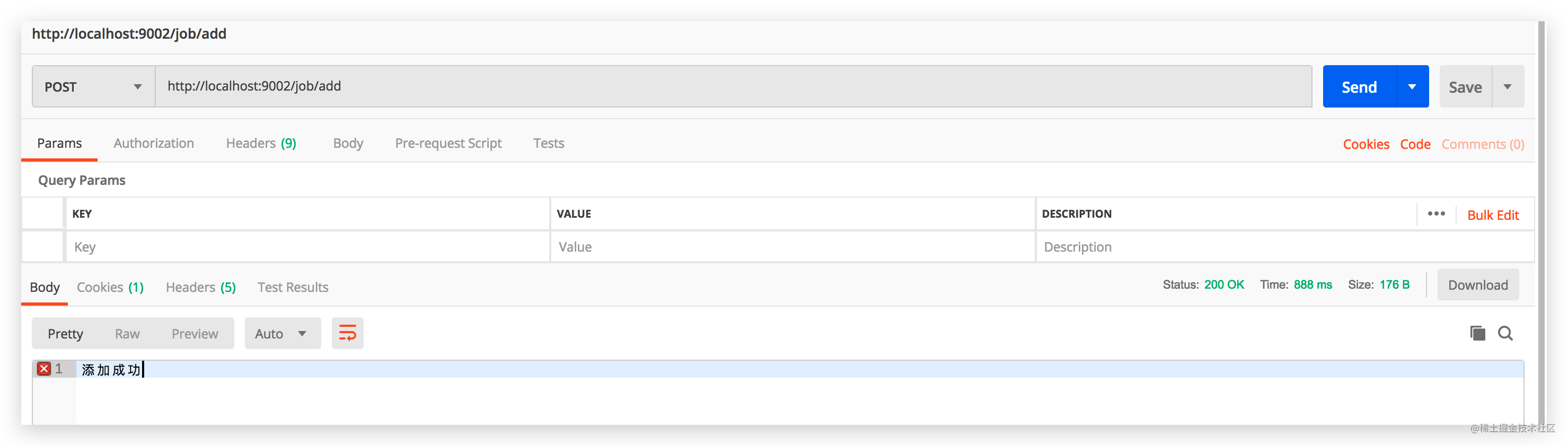

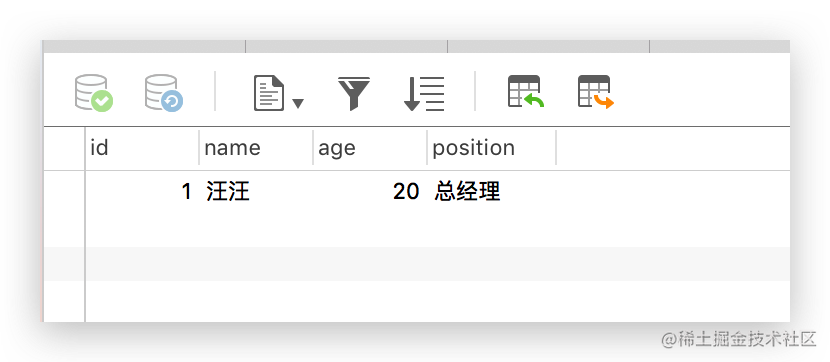

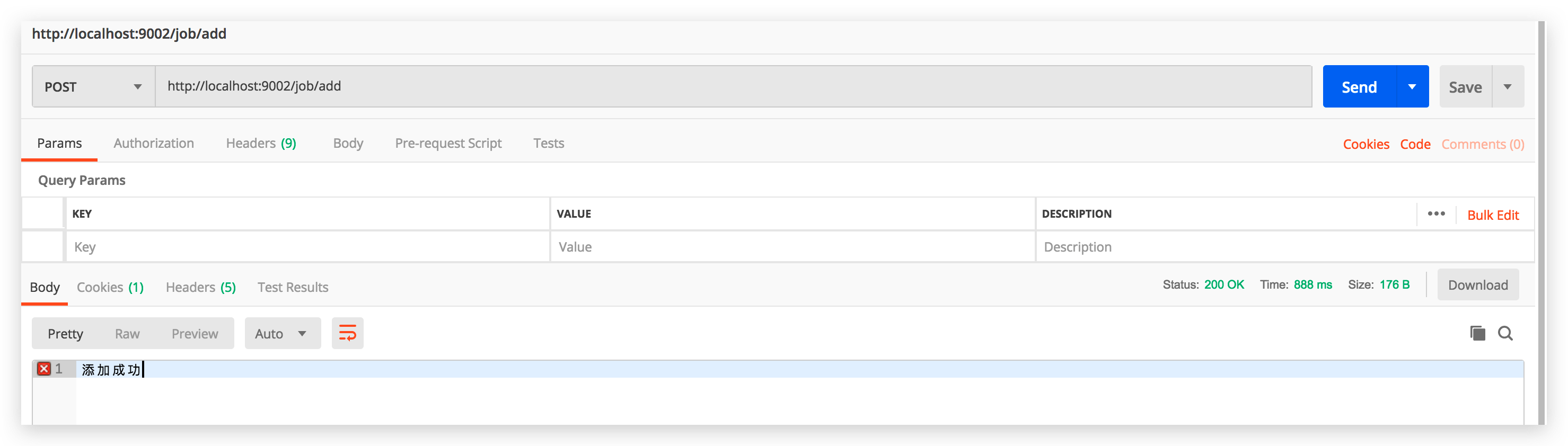

添加结果如下:

测试成功;

6.2 其余操作

其余增删改查操作不再赘述:

代码如下:

src/main/resources/mapper/JobMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.scaffold.test.mapper.JobMapper">

    <!-- 通用查询映射结果 -->
    <resultMap id="BaseResultMap" type="com.scaffold.test.entity.Job">
        <id column="id" property="id"/>
        <result column="name" property="name"/>
        <result column="age" property="age"/>
        <result column="position" property="position"/>
    </resultMap>

    <!-- 通用查询结果列 -->
    <sql id="Base_Column_List">
        id, name, age, position
    </sql>

    <insert id="insertJob">
        insert into job
        (name, age, position)
        values
        (#{name}, #{age}, #{position})
    </insert>

    <select id="selectAll" resultMap="BaseResultMap">
        select * from job
    </select>

    <update id="updateJob">
        update job set
        name = #{name},
        age = #{age},
        position = #{position}
    </update>

    <delete id="deleteJobById">
        delete from job
        where id = #{id}
    </delete>

</mapper>

复制代码

com.scaffold.test.mapper.JobMapper

package com.scaffold.test.mapper;

import com.scaffold.test.entity.Job;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;

import java.util.List;

/**
 * <p>
 *  Mapper 接口
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
public interface JobMapper extends BaseMapper<Job> {

    public void insertJob(Job job);

    public List<Job> selectAll();

    public void updateJob(Job job);

    public void deleteJobById(int id);

}

复制代码

com.scaffold.test.service.JobService

package com.scaffold.test.service;

import com.scaffold.test.entity.Job;
import com.baomidou.mybatisplus.extension.service.IService;

import java.util.List;

/**
 * <p>
 *  服务类
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
public interface JobService extends IService<Job> {

    public String addJob(Job job);

    public List<Job> findAll();

    public String updateJob(Job job);

    public String deleteJobById(int id);

}

复制代码

com.scaffold.test.service.impl.JobServiceImpl

package com.scaffold.test.service.impl;

import com.scaffold.test.entity.Job;
import com.scaffold.test.mapper.JobMapper;
import com.scaffold.test.service.JobService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * <p>
 * 服务实现类
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
@Service
public class JobServiceImpl extends ServiceImpl<JobMapper, Job> implements JobService {

    @Autowired
    private JobMapper jobMapper;

    @Override
    public String addJob(Job job) {
        jobMapper.insertJob(job);
        return "添加成功";
    }

    @Override
    public List<Job> findAll() {
        return jobMapper.selectAll();
    }

    @Override
    public String updateJob(Job job) {
        jobMapper.updateJob(job);
        return "更新成功";
    }

    @Override
    public String deleteJobById(int id) {
        jobMapper.deleteJobById(id);
        return "删除成功";
    }
}

复制代码

com.scaffold.test.controller.JobController

package com.scaffold.test.controller;


import com.scaffold.test.entity.Job;
import com.scaffold.test.service.JobService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * <p>
 * 前端控制器
 * </p>
 *
 * @author alex wong
 * @since 2020-06-14
 */
@RestController
@RequestMapping("/job")
public class JobController {

    @Autowired
    private JobService jobService;

    // 添加
    @PostMapping("/add")
    public String add() {
        Job job = new Job();
        job.setAge(20);
        job.setPosition("总经理");
        job.setName("汪汪");
        return jobService.addJob(job);
    }

    // 查询所有
    @GetMapping("/list")
    public List<Job> getList() {
        return jobService.findAll();
    }

    // 更新
    @PostMapping("/update")
    public String update() {
        Job job = new Job();
        job.setAge(20);
        // 汪汪被降职
        job.setPosition("总经理助理");
        job.setName("汪汪");
        return jobService.updateJob(job);
    }

    // 删除
    @PostMapping("/delete")
    public String delete(@RequestParam int id) {
        // 汪汪被删除
        return jobService.deleteJobById(id);
    }

}
复制代码
分类:
后端
标签:
