Spring Boot启动源码分析

pggsnap
1,246 阅读7分钟

1 SpringApplication

SpringApplication 的作用是启动 Spring 应用。一般会做几件事情：

  • 创建一个合适的 ApplicationContext；

  • 注册 CommandLinePropertySource，将程序启动时的命令行参数暴露出来，作为 Spring 的环境变量或者用于 bean 的初始化等；

  • 刷新 ApplicationContext，加载所有的单例 bean；

  • 在程序正式运行前执行 CommandLineRunner 接口；

/** SpringApplication.java **/
public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
    return new SpringApplication(primarySources).run(args);
}

public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
		this.resourceLoader = resourceLoader;  // 1.1
		Assert.notNull(primarySources, "PrimarySources must not be null");
		this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
		this.webApplicationType = WebApplicationType.deduceFromClasspath();  // 1.2
		setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));  // 1.3
		setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));  // 1.4
		this.mainApplicationClass = deduceMainApplicationClass();  // 1.5
}

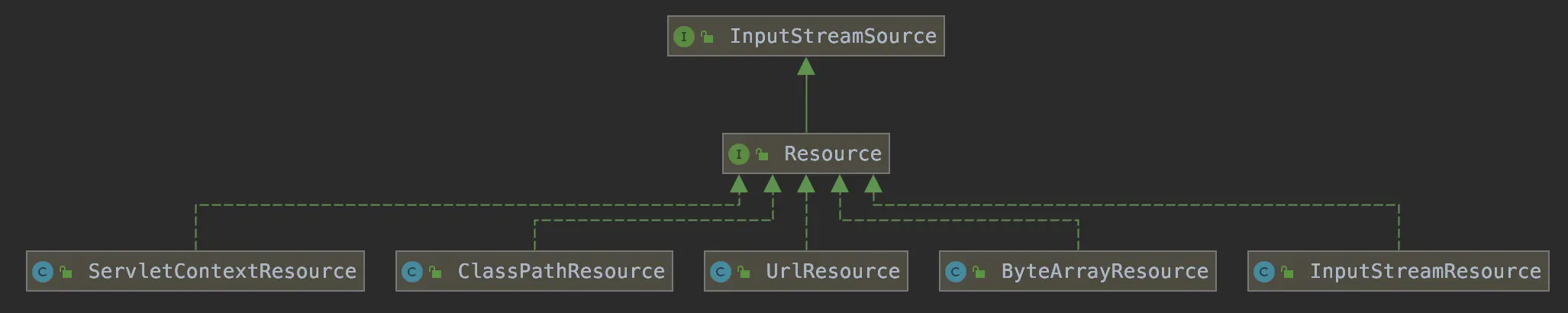

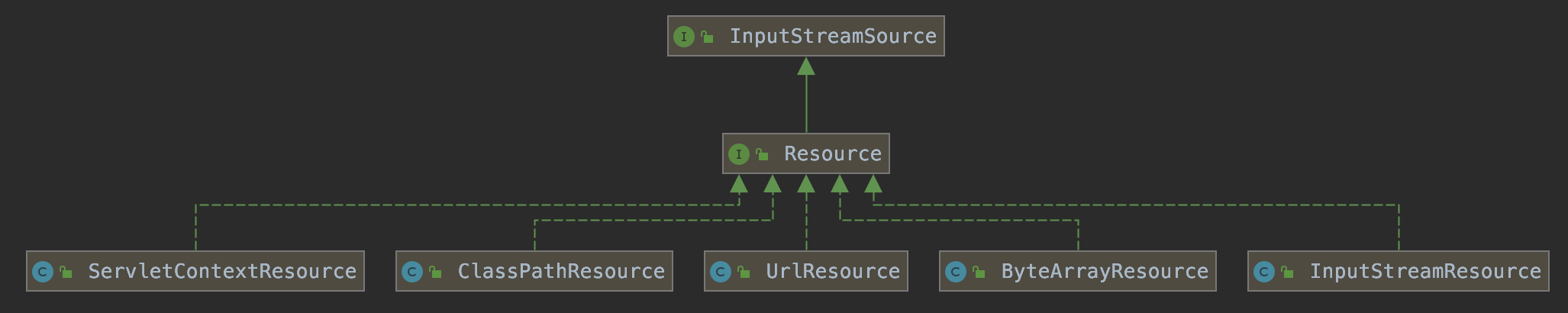

1.1 ResourceLoader

资源加载，比如从配置类中加载 classpath:，从文件中加载，从 url 加载等。此处为 null。

1.2 WebApplicationType

web 类型，有 3 种：NONE、SERVLET、REACTIVE。

static WebApplicationType deduceFromClasspath() {
		if (ClassUtils.isPresent(WEBFLUX_INDICATOR_CLASS, null) && !ClassUtils.isPresent(WEBMVC_INDICATOR_CLASS, null)
				&& !ClassUtils.isPresent(JERSEY_INDICATOR_CLASS, null)) {
			return WebApplicationType.REACTIVE;
		}
		for (String className : SERVLET_INDICATOR_CLASSES) {
			if (!ClassUtils.isPresent(className, null)) {
				return WebApplicationType.NONE;
			}
		}
		return WebApplicationType.SERVLET;
	}

如果依赖包中存在 org.springframework.web.reactive.DispatcherHandler 类并且不存在 org.springframework.web.servlet.DispatcherServlet，那么就是 REACTIVE 类型。

1.3 ApplicationContextInitializer

初始化 ApplicationContextInitializer 集合。从 jar 包中的 META-INF/spring.factories 文件中获取 org.springframework.context.ApplicationContextInitializer 的值，并通过反射创建实例。

private <T> Collection<T> getSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes, Object... args) {
		ClassLoader classLoader = getClassLoader();
		Set<String> names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));  // type = ApplicationContextInitializer.class
		List<T> instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
		AnnotationAwareOrderComparator.sort(instances);
		return instances;
	}

ApplicationContextInitializer 的主要作用就是在 ConfigurableApplicationContext 类型的 ApplicationContext 调用 refresh之前，允许我们对 ConfiurableApplicationContext 的实例做进一步的设置和处理。比如 ServerPortInfoApplicationContextInitializer：设置了一个回调函数，收到事件时将 local.server.port 设置到环境变量中。

public class ServerPortInfoApplicationContextInitializer implements
   	ApplicationContextInitializer<ConfigurableApplicationContext>, ApplicationListener<WebServerInitializedEvent> {

   @Override
   public void initialize(ConfigurableApplicationContext applicationContext) {
   	applicationContext.addApplicationListener(this);
   }

   @Override
   public void onApplicationEvent(WebServerInitializedEvent event) {
   	String propertyName = "local." + getName(event.getApplicationContext()) + ".port";
   	setPortProperty(event.getApplicationContext(), propertyName, event.getWebServer().getPort());
   }
}

1.4 ApplicationListener

初始化 ApplicationListener 集合。从 jar 包中的 META-INF/spring.factories 文件中获取 org.springframework.context.ApplicationListener 的值，并通过反射创建实例。

1.5 找到启动类

2 run(String... args)

/** SpringApplication.java **/
public ConfigurableApplicationContext run(String... args) {
		StopWatch stopWatch = new StopWatch();  // 2.1
		stopWatch.start();  // 2.1
		ConfigurableApplicationContext context = null;
		Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
		configureHeadlessProperty();
		SpringApplicationRunListeners listeners = getRunListeners(args);  // 2.2
		listeners.starting();  // 2.2
		try {
			ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
			ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);  // 2.3
			configureIgnoreBeanInfo(environment);
			Banner printedBanner = printBanner(environment);  // 2.4
			context = createApplicationContext();  // 2.5
			exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
					new Class[] { ConfigurableApplicationContext.class }, context);  // 2.6
			prepareContext(context, environment, listeners, applicationArguments, printedBanner);  // 2.7
			refreshContext(context);  // 2.8
			afterRefresh(context, applicationArguments);  // 2.9
			stopWatch.stop();  // 2.1
			if (this.logStartupInfo) {  // 2.1
				new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
			}
			listeners.started(context);  // 2.10 发布 `ApplicationStartedEvent` 事件
			callRunners(context, applicationArguments);  // 2.11
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, listeners);
			throw new IllegalStateException(ex);
		}

		try {
			listeners.running(context);  // 2.12 发布 `ApplicationReadyEvent` 事件
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, null);
			throw new IllegalStateException(ex);
		}
		return context;
	}

2.1 StopWatch

用于计时，这里是用来计算程序启动的时间，在日志中会找到类似这样的记录：

Started Application in 1.831 seconds (JVM running for 2.433)

2.2 SpringApplicationRunListener

从 jar 包中的 META-INF/spring.factories 文件中获取 org.springframework.boot.SpringApplicationRunListener 的值，并通过反射创建实例，根据入参 args 创建 ApplicationStartingEvent 事件，并通知给监听者。

看下 EventPublishingRunListener 的部分源码：

/** EventPublishingRunListener **/
public class EventPublishingRunListener implements SpringApplicationRunListener, Ordered {

	private final SpringApplication application;

	private final String[] args;

	private final SimpleApplicationEventMulticaster initialMulticaster;

	public EventPublishingRunListener(SpringApplication application, String[] args) {
		this.application = application;
		this.args = args;
		this.initialMulticaster = new SimpleApplicationEventMulticaster();
		for (ApplicationListener<?> listener : application.getListeners()) {  // 1
			this.initialMulticaster.addApplicationListener(listener);
		}
	}

	@Override
	public void starting() {
		this.initialMulticaster.multicastEvent(new ApplicationStartingEvent(this.application, this.args));  // 2
	}
}

/** SimpleApplicationEventMulticaster **/
public void multicastEvent(ApplicationEvent event) {
  multicastEvent(event, resolveDefaultEventType(event));
}

public void multicastEvent(final ApplicationEvent event, @Nullable ResolvableType eventType) {
  ResolvableType type = (eventType != null ? eventType :   resolveDefaultEventType(event));
  Executor executor = getTaskExecutor();
  for (ApplicationListener<?> listener : getApplicationListeners(event, type)) {  // 3
    if (executor != null) {
      executor.execute(() -> invokeListener(listener, event));  // 4
    }
    else {
      invokeListener(listener, event);
    }
  }
}

3、SimpleApplicationEventMulticaster 类获取了所有的 ApplicationListener，这样的话当获取到 event 时，就可以通知对应的监听者。

4、根据 type 类型，通知对应的监听者，并调用监听者的回调函数。

2.3 ConfigurableEnvironment

private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners, ApplicationArguments applicationArguments) {
    // Create and configure the environment
    ConfigurableEnvironment environment = getOrCreateEnvironment(); // 1
    configureEnvironment(environment, applicationArguments.getSourceArgs());
    ConfigurationPropertySources.attach(environment);  // 2
    listeners.environmentPrepared(environment);  // 3
    bindToSpringApplication(environment);
    if (!this.isCustomEnvironment) {
       environment = new EnvironmentConverter(getClassLoader()).convertEnvironmentIfNecessary(environment,
             deduceEnvironmentClass());
    }
    ConfigurationPropertySources.attach(environment);
    return environment;
}

public class StandardEnvironment extends AbstractEnvironment {

	public static final String SYSTEM_ENVIRONMENT_PROPERTY_SOURCE_NAME = "systemEnvironment";

	public static final String SYSTEM_PROPERTIES_PROPERTY_SOURCE_NAME = "systemProperties";

	@Override
	protected void customizePropertySources(MutablePropertySources propertySources) {  // 1
		propertySources.addLast(
				new PropertiesPropertySource(SYSTEM_PROPERTIES_PROPERTY_SOURCE_NAME, getSystemProperties()));
		propertySources.addLast(
				new SystemEnvironmentPropertySource(SYSTEM_ENVIRONMENT_PROPERTY_SOURCE_NAME, getSystemEnvironment()));
	}
}

public static void attach(Environment environment) {  // 2
		Assert.isInstanceOf(ConfigurableEnvironment.class, environment);
		MutablePropertySources sources = ((ConfigurableEnvironment) environment).getPropertySources();
		PropertySource<?> attached = sources.get(ATTACHED_PROPERTY_SOURCE_NAME);
		if (attached != null && attached.getSource() != sources) {
			sources.remove(ATTACHED_PROPERTY_SOURCE_NAME);
			attached = null;
		}
		if (attached == null) {
			sources.addFirst(new ConfigurationPropertySourcesPropertySource(ATTACHED_PROPERTY_SOURCE_NAME,
					new SpringConfigurationPropertySources(sources)));  // 2
		}
	}

1、创建 StandardEnvironment 对象，其中包括 MutablePropertySources propertySources 字段，用来保存 PropertySource列表。这里获取了 systemEnvironment 以及 systemProperties 变量。

2、这里获取了 configurationProperties 相关的变量，并且插入到了 MutablePropertySources 列表的最前面。

3、发布 ApplicationEnvironmentPreparedEvent 事件，通知监听器回调函数。比如 ConfigFileApplicationListener，会把配置文件中的变量加入到 applicationConfig。

注意：MutablePropertySources 列表里面元素的次序很重要，如果有多个 Source 存在同样的 key，会选择列表中第一个存在该 key 的 Source。比如 ``systemEnvironment的优先级比applicationConfig高，application.yml中配置了server.port=8080，而程序启动时java -jar xxx.jar --server.port=9090`；那么实际监听端口为 9090。

看下 PropertySourcesPropertyResolver 的源码：

protected <T> T getProperty(String key, Class<T> targetValueType, boolean resolveNestedPlaceholders) {
		if (this.propertySources != null) {
                        // 存在多个 PropertySource 时，依次遍历
			for (PropertySource<?> propertySource : this.propertySources) {
				Object value = propertySource.getProperty(key);
                                // 一旦找到该 key，直接返回
				if (value != null) {
					if (resolveNestedPlaceholders && value instanceof String) {
						value = resolveNestedPlaceholders((String) value);
					}
					logKeyFound(key, propertySource, value);
					return convertValueIfNecessary(value, targetValueType);
				}
			}
		}
		return null;
	}

更多信息，参考： 基于SpringBoot的Environment源码理解实现分散配置

2.4 Banner

可自定义，不展开。

2.5 ConfigurableApplicationContext

根据webApplicationType 类型创建 ConfigurableApplicationContext 实例。如果是 REACTIVE 类型，那么创建 AnnotationConfigReactiveWebServerApplicationContext实例。

protected ConfigurableApplicationContext createApplicationContext() {
		Class<?> contextClass = this.applicationContextClass;
		if (contextClass == null) {
			try {
				switch (this.webApplicationType) {
				case SERVLET:
					contextClass = Class.forName(DEFAULT_SERVLET_WEB_CONTEXT_CLASS);
					break;
				case REACTIVE:
					contextClass = Class.forName(DEFAULT_REACTIVE_WEB_CONTEXT_CLASS);
					break;
				default:
					contextClass = Class.forName(DEFAULT_CONTEXT_CLASS);
				}
			}
			catch (ClassNotFoundException ex) {
				throw new IllegalStateException(
						"Unable create a default ApplicationContext, please specify an ApplicationContextClass", ex);
			}
		}
		return (ConfigurableApplicationContext) BeanUtils.instantiateClass(contextClass);
	}

看下 AnnotationConfigReactiveWebServerApplicationContext构造函数，

public AnnotationConfigReactiveWebServerApplicationContext() {
		this.reader = new AnnotatedBeanDefinitionReader(this);
		this.scanner = new ClassPathBeanDefinitionScanner(this);
	}

其中 AnnotatedBeanDefinitionReader 和ClassPathBeanDefinitionScanner都是用来加载注册 bean。

2.6 SpringBootExceptionReporter

创建SpringBootExceptionReporter 实例，用来分析故障并提供诊断信息。查看 FailureAnalyzers 部分源码：

FailureAnalyzers(ConfigurableApplicationContext context) {
		this(context, null);  // 1
	}

	FailureAnalyzers(ConfigurableApplicationContext context, ClassLoader classLoader) {
		Assert.notNull(context, "Context must not be null");
		this.classLoader = (classLoader != null) ? classLoader : context.getClassLoader();
		this.analyzers = loadFailureAnalyzers(this.classLoader);  // 2
		prepareFailureAnalyzers(this.analyzers, context);
	}

	private List<FailureAnalyzer> loadFailureAnalyzers(ClassLoader classLoader) {
		List<String> analyzerNames = SpringFactoriesLoader.loadFactoryNames(FailureAnalyzer.class, classLoader);  // 3 从 `META-INF/spring.factories` 从获取 `FailureAnalyzer` 的实现类，`FailureAnalyzer` 可用来分析程序故障并提供诊断信息，比如`NoUniqueBeanDefinitionFailureAnalyzer`。
		List<FailureAnalyzer> analyzers = new ArrayList<>();
		for (String analyzerName : analyzerNames) {
			try {
				Constructor<?> constructor = ClassUtils.forName(analyzerName, classLoader).getDeclaredConstructor();
				ReflectionUtils.makeAccessible(constructor);
				analyzers.add((FailureAnalyzer) constructor.newInstance());  // 4 创建实例。
			}
			catch (Throwable ex) {
				logger.trace(LogMessage.format("Failed to load %s", analyzerName), ex);
			}
		}
		AnnotationAwareOrderComparator.sort(analyzers);
		return analyzers;
	}

2.7 prepareContext

private void prepareContext(ConfigurableApplicationContext context, ConfigurableEnvironment environment,
			SpringApplicationRunListeners listeners, ApplicationArguments applicationArguments, Banner printedBanner) {
		context.setEnvironment(environment);  // 1 设置环境变量
		postProcessApplicationContext(context);  // 2
		applyInitializers(context);  // 3
		listeners.contextPrepared(context);  // 4
		if (this.logStartupInfo) {
			logStartupInfo(context.getParent() == null);
			logStartupProfileInfo(context);
		}
		// Add boot specific singleton beans
		ConfigurableListableBeanFactory beanFactory = context.getBeanFactory();
		beanFactory.registerSingleton("springApplicationArguments", applicationArguments);
		if (printedBanner != null) {
			beanFactory.registerSingleton("springBootBanner", printedBanner);
		}
		if (beanFactory instanceof DefaultListableBeanFactory) {
			((DefaultListableBeanFactory) beanFactory)
					.setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
		}
    // 延迟实例化 bean
		if (this.lazyInitialization) {
			context.addBeanFactoryPostProcessor(new LazyInitializationBeanFactoryPostProcessor());
		}
		// Load the sources
		Set<Object> sources = getAllSources();  // 5
		Assert.notEmpty(sources, "Sources must not be empty");
		load(context, sources.toArray(new Object[0]));  // 5
		listeners.contextLoaded(context);  // 6
}

3、执行 1.3 实例的 initialize 方法。

4、发布 ApplicationContextInitializedEvent 事件，通知对应的 listener 处理。

5、加载 bean。过程如下： 获取资源（比如配置类、xml、url 等）；解析资源为 BeanDefinition；通过 BeanDefinitionRegistry 的 registerBeanDefinition(String beanName, BeanDefinition beanDefinition) 方法进行注册。ApplicationContext 中有个 Map<String, BeanDefinition> beanDefinitionMap，其中 key 为 beanName，value 为 BeanDefinition，所谓注册，就是在这个 map 中新增元素，后续可以根据 BeanDefinition 来创建 bean 实例。

private int load(Object source) {
		Assert.notNull(source, "Source must not be null");
		if (source instanceof Class<?>) {
			return load((Class<?>) source);
		}
		if (source instanceof Resource) {
			return load((Resource) source);
		}
		if (source instanceof Package) {
			return load((Package) source);
		}
		if (source instanceof CharSequence) {
			return load((CharSequence) source);
		}
		throw new IllegalArgumentException("Invalid source type " + source.getClass());
	}

6、发布ApplicationPreparedEvent事件，通知对应的 listener 处理。

2.8 refreshContext

public void refresh() throws BeansException, IllegalStateException {
		synchronized (this.startupShutdownMonitor) {
			// Prepare this context for refreshing.
			prepareRefresh();  // 1

			// Tell the subclass to refresh the internal bean factory.
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// Prepare the bean factory for use in this context.
                        // 设置 BeanExpressionResolver，ResourceEditorRegistrar 等
			prepareBeanFactory(beanFactory);  // 2

			try {
				// Allows post-processing of the bean factory in context subclasses.
                                // 允许 bean factory 实例化之后进行修改
				postProcessBeanFactory(beanFactory);  // 3

				// Invoke factory processors registered as beans in the context.
                                // 实例化并调用所有注册的 BeanFactoryPostProcessor Bean
				invokeBeanFactoryPostProcessors(beanFactory);  // 4

				// Register bean processors that intercept bean creation.
                                // 注册 BeanPostProcessor
				registerBeanPostProcessors(beanFactory);  // 5

				// Initialize message source for this context.
                                // MessageSource：用于信息的国际化
				initMessageSource();  // 6

				// Initialize event multicaster for this context.
                                // 初始化 ApplicationEventMulticaster，用于广播事件
				initApplicationEventMulticaster();  // 7

				// Initialize other special beans in specific context subclasses.
				onRefresh();  // 8

				// Check for listener beans and register them.
                                // 把 listeners 添加到 applicationEventMulticaster（见 step7），用于发布事件；
                                // 如果当前已有事件（earlyApplicationEvents != null），直接发布
				registerListeners();  // 9

				// Instantiate all remaining (non-lazy-init) singletons.
				finishBeanFactoryInitialization(beanFactory);  // 10

				// Last step: publish corresponding event.
				finishRefresh();  // 11
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
			}
		}
	}

1、prepareRefresh() ：设置当前 Context 为 active 状态，校验必需的环境变量，初始化 earlyApplicationListeners 和earlyApplicationEvents。

protected void prepareRefresh() {
		// Switch to active.
		this.startupDate = System.currentTimeMillis();
		this.closed.set(false);
		this.active.set(true);

		// Initialize any placeholder property sources in the context environment.
		initPropertySources();

		// 可以通过 ConfigurablePropertyResolver#setRequiredProperties 设置必需的环境变量；
		// 然后在此校验必需的变量是否存在
		getEnvironment().validateRequiredProperties();

		// Store pre-refresh ApplicationListeners...
		if (this.earlyApplicationListeners == null) {
			this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
		}
		else {
			// Reset local application listeners to pre-refresh state.
			this.applicationListeners.clear();
			this.applicationListeners.addAll(this.earlyApplicationListeners);
		}

		// Allow for the collection of early ApplicationEvents,
		// to be published once the multicaster is available...
		this.earlyApplicationEvents = new LinkedHashSet<>();
	}

8、onRefresh()：初始化一些特殊的 bean。以 ReactiveWebServerApplicationContext 为例，创建了 ReactiveWebServerFactory，WebServer 等对象。

protected void onRefresh() {
		super.onRefresh();
		try {
			createWebServer();
		}
		catch (Throwable ex) {
			throw new ApplicationContextException("Unable to start reactive web server", ex);
		}
	}

	private void createWebServer() {
		ServerManager serverManager = this.serverManager;
		if (serverManager == null) {
			String webServerFactoryBeanName = getWebServerFactoryBeanName();
			ReactiveWebServerFactory webServerFactory = getWebServerFactory(webServerFactoryBeanName);
			boolean lazyInit = getBeanFactory().getBeanDefinition(webServerFactoryBeanName).isLazyInit();
			this.serverManager = ServerManager.get(webServerFactory, lazyInit);
		}
		initPropertySources();
	}

2.11 ApplicationRunner & CommandLineRunner

执行 ApplicationRunner & CommandLineRunner 的 run() 方法。

private void callRunners(ApplicationContext context, ApplicationArguments args) {
		List<Object> runners = new ArrayList<>();
		runners.addAll(context.getBeansOfType(ApplicationRunner.class).values());
		runners.addAll(context.getBeansOfType(CommandLineRunner.class).values());
		AnnotationAwareOrderComparator.sort(runners);
		for (Object runner : new LinkedHashSet<>(runners)) {
			if (runner instanceof ApplicationRunner) {
				callRunner((ApplicationRunner) runner, args);
			}
			if (runner instanceof CommandLineRunner) {
				callRunner((CommandLineRunner) runner, args);
			}
		}
	}
avatar
文章
阅读
粉丝
