准备工作
我们先去vue官网看一下怎么使用: 使用文档
在学习这个之前我建议大家先看一下vue的render函数中的data属性是怎么回事儿，弄明白这个是搞明白下面原理的前提条件，render说明文档
通过举栗子来揭秘vue的指令原理
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>Document</title>
<script src="../../vue-dev/dist/vue.js"></script>
</head>
<body>
<div id="container">
<h3>Scroll down inside this section ↓</h3>
<p v-pin:[direction]="200">I am pinned onto the page at 200px to the left.</p>
</div>
<script>
new Vue({
el: '#container',
data: function () {
return {
direction: 'left'
}
},
directives: {
'pin': {
bind: function (el, binding, vnode) {
el.style.position = 'fixed'
var s = (binding.arg == 'left' ? 'left' : 'top')
el.style[s] = binding.value + 'px'
}
}
}
})
</script>
</body>
</html>

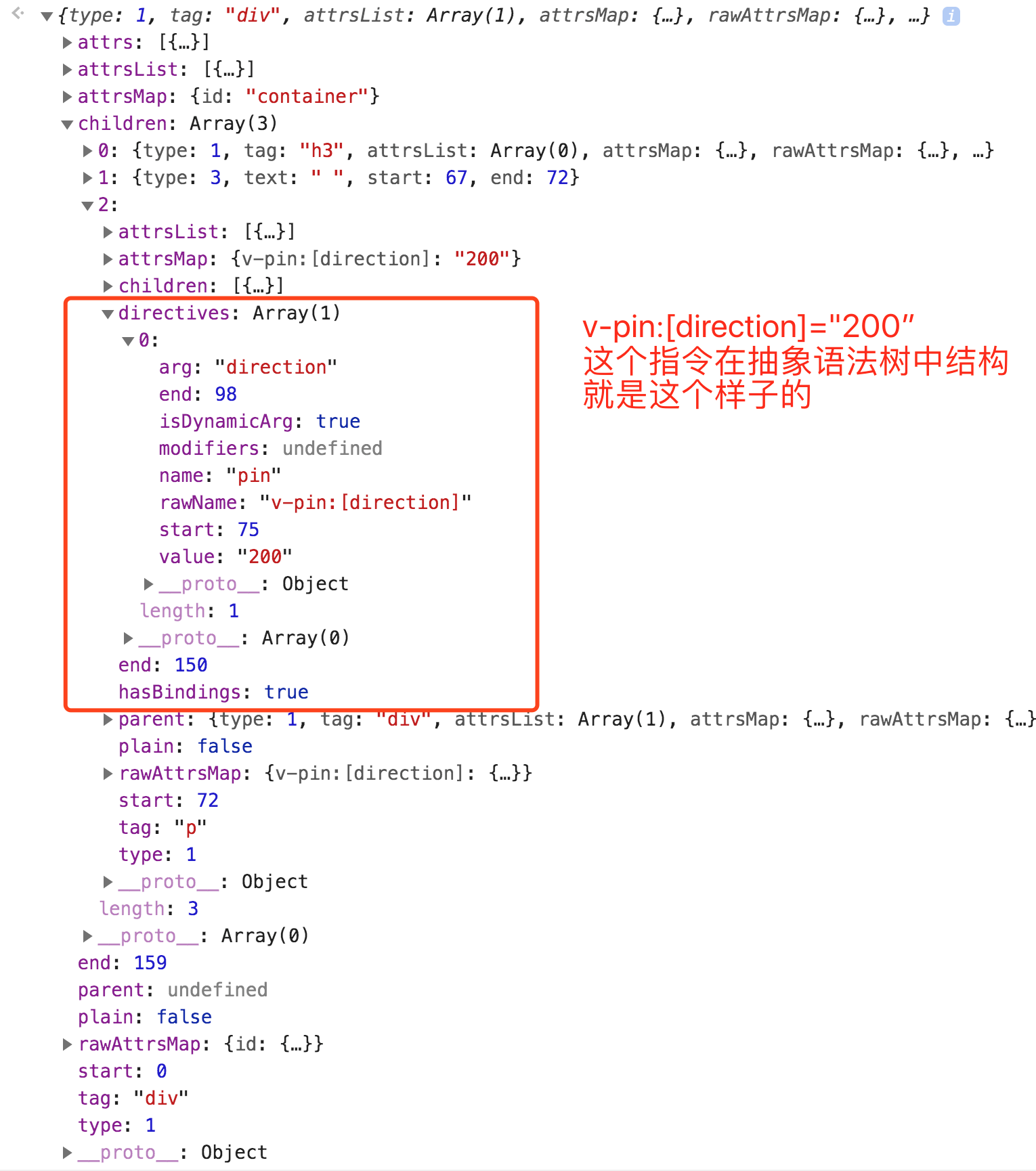

在element的抽象语法树中的结构如图：
render函数是一个样子的：
"with(this) {
return _c('div', {
attrs: {
"id": "container"
}
},
[_c('h3', [_v("Scroll down inside this section ↓")]), _v(" "), _c('p', {
directives: [{
name: "pin",
rawName: "v-pin:[direction]",
value: (200),
expression: "200",
arg: direction
}]
},
[_v("I am pinned onto the page at 200px to the left.")])])
}
"
例子总结：directives部分最终会放入到vnode的data中
directive执行的源码分析
src/core/vdom/modules/directives.js
/* @flow */
import { emptyNode } from 'core/vdom/patch'
import { resolveAsset, handleError } from 'core/util/index'
import { mergeVNodeHook } from 'core/vdom/helpers/index'
// 当组件创建的时候会调用create
// 但组件更新的时候会调用update
// 当组件卸载的时候会调用destroy
export default {
create: updateDirectives,
update: updateDirectives,
destroy: function unbindDirectives (vnode: VNodeWithData) {
updateDirectives(vnode, emptyNode)
}
}
function updateDirectives (oldVnode: VNodeWithData, vnode: VNodeWithData) {
if (oldVnode.data.directives || vnode.data.directives) {
_update(oldVnode, vnode)
}
}
function _update (oldVnode, vnode) {
const isCreate = oldVnode === emptyNode
const isDestroy = vnode === emptyNode
// 在新老Vnode上的指令，整合了我们定义的指令对象和模板中解析出的指令对象
// normalizeDirectives这个函数下面有说明，想看往下滑
const oldDirs = normalizeDirectives(oldVnode.data.directives, oldVnode.context)
const newDirs = normalizeDirectives(vnode.data.directives, vnode.context)
const dirsWithInsert = []
const dirsWithPostpatch = []
let key, oldDir, dir
for (key in newDirs) {
oldDir = oldDirs[key]
dir = newDirs[key]
// 如果指令在oldDirs上没有，那么就调用bind钩子函数进行初始化
if (!oldDir) {
// new directive, bind
callHook(dir, 'bind', vnode, oldVnode)
// 如果指令定义了inert，那么放到dirsWithInsert中，等该组件的dom节点都插入到dom中会批量执行dirsWithInsert中的钩子函数
if (dir.def && dir.def.inserted) {
dirsWithInsert.push(dir)
}
} else {
// existing directive, update
// 这种情况下要掉用update钩子函数
dir.oldValue = oldDir.value
dir.oldArg = oldDir.arg
callHook(dir, 'update', vnode, oldVnode)
// 如果指令中定义了componentUpdated,那么把放入到dirsWithPostpatch，等该组件的真实dom更新完批量执行dirsWithPostpatch中的钩子函数
if (dir.def && dir.def.componentUpdated) {
dirsWithPostpatch.push(dir)
}
}
}
if (dirsWithInsert.length) {
const callInsert = () => {
for (let i = 0; i < dirsWithInsert.length; i++) {
callHook(dirsWithInsert[i], 'inserted', vnode, oldVnode)
}
}
if (isCreate) {
mergeVNodeHook(vnode, 'insert', callInsert)
} else {
callInsert()
}
}
if (dirsWithPostpatch.length) {
mergeVNodeHook(vnode, 'postpatch', () => {
for (let i = 0; i < dirsWithPostpatch.length; i++) {
callHook(dirsWithPostpatch[i], 'componentUpdated', vnode, oldVnode)
}
})
}
if (!isCreate) {
for (key in oldDirs) {
if (!newDirs[key]) {
// no longer present, unbind
callHook(oldDirs[key], 'unbind', oldVnode, oldVnode, isDestroy)
}
}
}
}
const emptyModifiers = Object.create(null)
function normalizeDirectives (
dirs: ?Array<VNodeDirective>, // 当前组件使用指令的集合
vm: Component // 组件的实例
): { [key: string]: VNodeDirective } {
const res = Object.create(null)
if (!dirs) {
// $flow-disable-line
return res
}
let i, dir
for (i = 0; i < dirs.length; i++) {
dir = dirs[i]
if (!dir.modifiers) {
// $flow-disable-line
dir.modifiers = emptyModifiers
}
// 按指令的名字存储在res中
res[getRawDirName(dir)] = dir
// res[dirName].def 指的就是我们声明指令的对象内容
// resolveAsset函数实际也比较简单，就是从option中指定某个类型取出该类型下的某个key，下面贴出了源码
dir.def = resolveAsset(vm.$options, 'directives', dir.name, true)
}
// $flow-disable-line
return res
}
function getRawDirName (dir: VNodeDirective): string {
return dir.rawName || `${dir.name}.${Object.keys(dir.modifiers || {}).join('.')}`
}
function callHook (dir, hook, vnode, oldVnode, isDestroy) {
const fn = dir.def && dir.def[hook]
if (fn) {
try {
// 看vue官网，介绍钩子函数的参数，这里的dir实际就是指令在模板中解析后的指令对象，就是上面render函数中directives部分
fn(vnode.elm, dir, vnode, oldVnode, isDestroy)
} catch (e) {
handleError(e, vnode.context, `directive ${dir.name} ${hook} hook`)
}
}
}
src/core/util/options.js
export function resolveAsset (
options: Object,
type: string,
id: string,
warnMissing?: boolean
): any {
/* istanbul ignore if */
if (typeof id !== 'string') {
return
}
const assets = options[type]
// check local registration variations first
if (hasOwn(assets, id)) return assets[id]
const camelizedId = camelize(id)
if (hasOwn(assets, camelizedId)) return assets[camelizedId]
const PascalCaseId = capitalize(camelizedId)
if (hasOwn(assets, PascalCaseId)) return assets[PascalCaseId]
// fallback to prototype chain
const res = assets[id] || assets[camelizedId] || assets[PascalCaseId]
if (process.env.NODE_ENV !== 'production' && warnMissing && !res) {
warn(
'Failed to resolve ' + type.slice(0, -1) + ': ' + id,
options
)
}
return res
}
