前言
cesium 官网的api文档介绍地址cesium官网api，里面详细的介绍 cesium 各个类的介绍，还有就是在线例子：cesium 官网在线例子，这个也是学习 cesium 的好素材。
内容概览
1.cesium1.65api版本贴地贴模型标绘工具效果 2.源代码demo下载

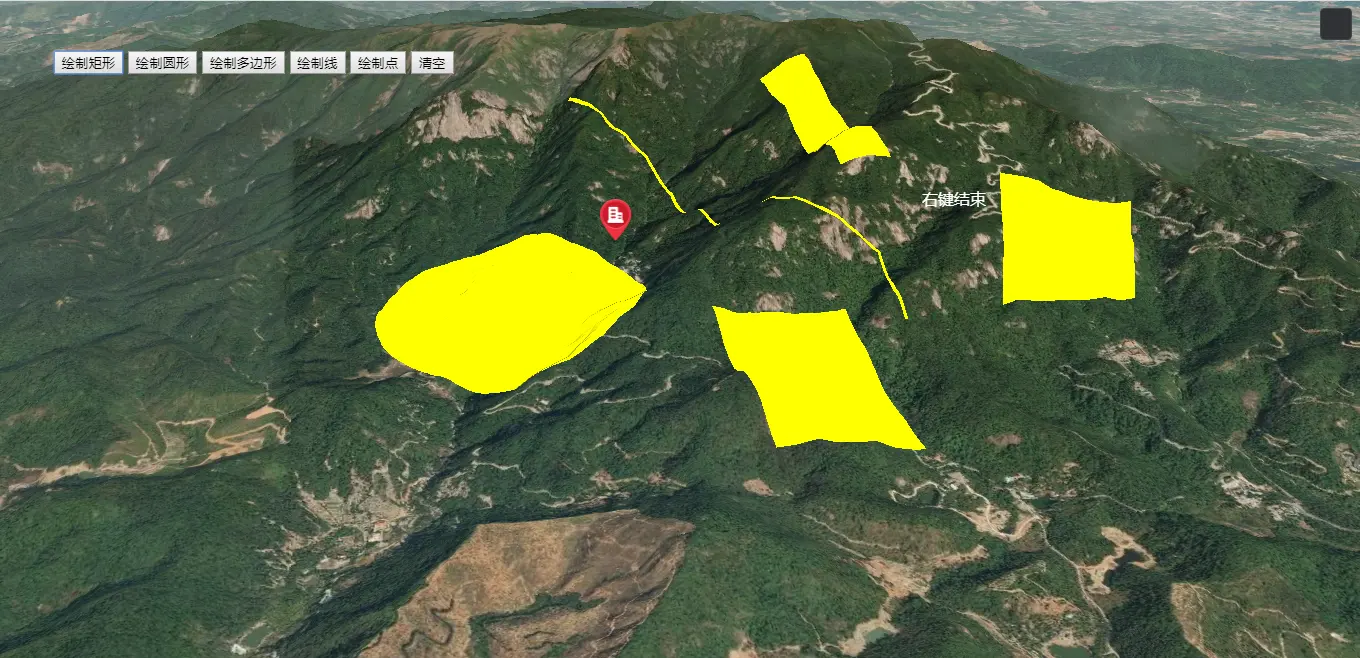

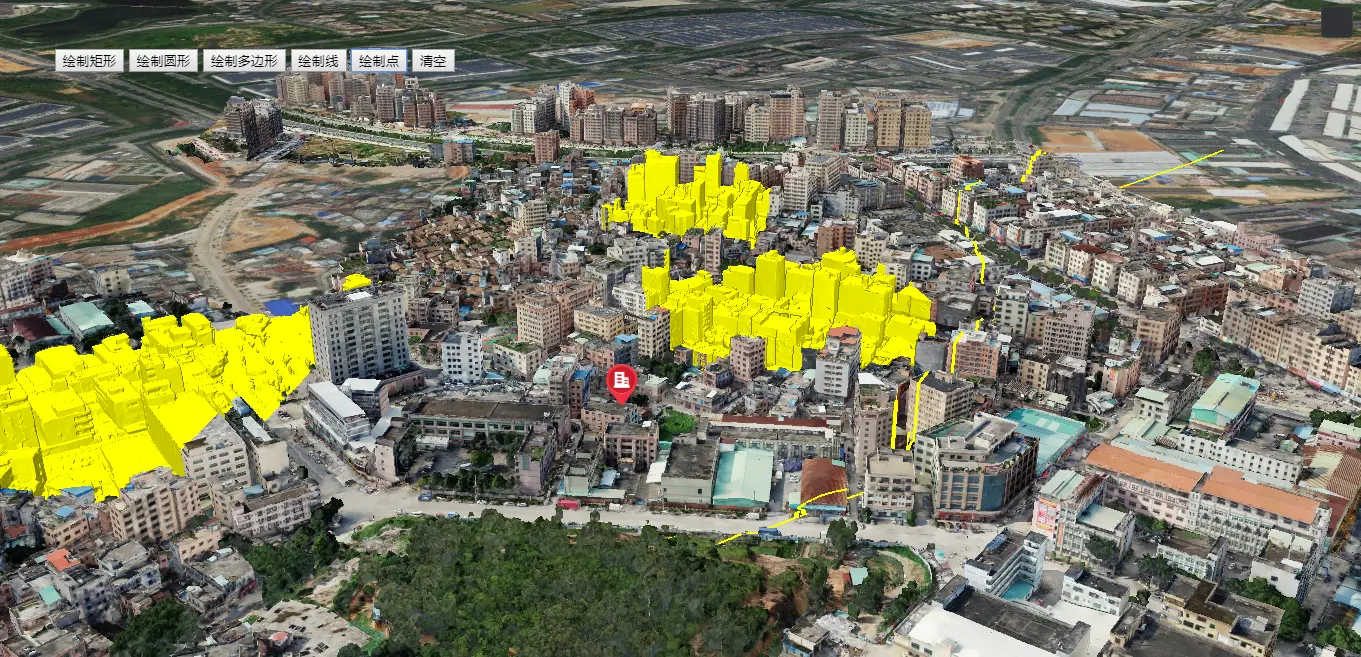

效果图如下：
实现思路：
-
鼠标左键Cesium.ScreenSpaceEventType.LEFT_CLICK
-
鼠标移动Cesium.ScreenSpaceEventType.MOUSE_MOVE
-
鼠标右键Cesium.ScreenSpaceEventType.RIGHT_CLICK 鼠标左键事件，获取点击地图的每个坐标点；鼠标移动事件，动态扑捉鼠标移动状态，下一个坐标点位置；鼠标右键意味着标绘结束状态。
-
定义封装DrawTool标绘工具：
var DrawTool = function (obj) {
if (!obj.viewer || !obj) {
console.warn("缺少必要参数！--viewer");
return;
}
this.viewer = obj.viewer;
this.hasEdit = obj.hasEdit;
this.toolArr = [];
this.handler = new Cesium.ScreenSpaceEventHandler(this.viewer.scene.canvas);
this.show = obj.drawEndShow;
}
DrawTool.prototype = {
startDraw: function (opt) {
var that = this;
// if (this.hasEdit) {
// this.bindEdit();
// }
if (opt.type == "polyline") {
var polyline = new CreatePolyline(this.viewer, opt.style);
polyline.start(function (evt) {
if (that.hasEdit) {
that.unbindEdit();
polyline.startModify(opt.modifySuccess);
that.lastSelectEntity = polyline;
}
if (opt.success) opt.success(evt);
if (that.show == false) polyline.setVisible(false);
});
this.toolArr.push(polyline);
}
if (opt.type == "polygon") {
var polygon = new CreatePolygon(this.viewer, opt.style);
polygon.start(function () {
if (that.hasEdit) {
that.unbindEdit();
polygon.startModify();
that.lastSelectEntity = polygon;
}
if (opt.success) opt.success(polygon);
if (that.show == false) polygon.setVisible(false);
});
this.toolArr.push(polygon);
}
if (opt.type == "billboard") {
var billboard = new CreateBillboard(this.viewer, opt.style);
billboard.start(function () {
if (that.hasEdit) {
that.unbindEdit();
billboard.startModify();
that.lastSelectEntity = billboard;
}
if (opt.success) opt.success(billboard);
if (that.show == false) billboard.setVisible(false);
});
this.toolArr.push(billboard);
}
if (opt.type == "circle") {
var circle = new CreateCircle(this.viewer, opt.style);
circle.start(function () {
if (that.hasEdit) {
that.unbindEdit();
circle.startModify();
that.lastSelectEntity = circle;
}
if (opt.success) opt.success(circle);
if (that.show == false) circle.setVisible(false);
});
this.toolArr.push(circle);
}
if (opt.type == "rectangle") {
var rectangle = new CreateRectangle(this.viewer, opt.style);
rectangle.start(function () {
if (that.hasEdit) {
that.unbindEdit();
rectangle.startModify();
that.lastSelectEntity = rectangle;
}
if (opt.success) opt.success(rectangle);
if (that.show == false) rectangle.setVisible(false);
});
this.toolArr.push(rectangle);
}
//重写材质
if (opt.type == "flowPolyline") {
var polyline = new CreatePolyline(this.viewer, opt.style);
polyline.start(function () {
if (that.hasEdit) {
that.unbindEdit();
polyline.startModify();
}
if (opt.success) opt.success(polyline);
});
this.toolArr.push(polyline);
}
},
createByPositions: function (opt) {
if (this.hasEdit) {
this.bindEdit();
}
if (!opt) opt = {};
if (opt.type == "polyline") {
var polyline = new CreatePolyline(this.viewer, opt.style);
polyline.createByPositions(opt.positions, opt.success);
this.toolArr.push(polyline);
}
if (opt.type == "polygon") {
var polygon = new CreatePolygon(this.viewer, opt.style);
polygon.createByPositions(opt.positions, opt.success);
this.toolArr.push(polygon);
}
if (opt.type == "billboard") {
var billboard = new CreateBillboard(this.viewer, opt.style);
billboard.createByPositions(opt.positions, function(){
if(opt.success) opt.success(billboard)
});
this.toolArr.push(billboard);
}
},
destroy: function () {
for (var i = 0; i < this.toolArr.length; i++) {
var obj = this.toolArr[i];
obj.destroy();
}
},
lastSelectEntity: null,
bindEdit: function () {
var that = this;
this.handler.setInputAction(function (evt) { //单机开始绘制
var pick = that.viewer.scene.pick(evt.position);
if (Cesium.defined(pick) && pick.id) {
for (var i = 0; i < that.toolArr.length; i++) {
if (pick.id.objId == that.toolArr[i].objId && (that.toolArr[i].state == 1||that.toolArr[i].state == 2)) {
if (that.lastSelectEntity) {
that.lastSelectEntity.endModify();
}
that.toolArr[i].startModify();
that.lastSelectEntity = that.toolArr[i];
break;
}
}
}
}, Cesium.ScreenSpaceEventType.LEFT_CLICK);
},
unbindEdit: function () {
for (var i = 0; i < this.toolArr.length; i++) {
this.toolArr[i].endModify();
}
}
}
-
封装定义标绘点、线、面、矩形js类,里面涉及到细节函数，自行看对应的源码demo：
-
DrawTool标绘工具初始化以及调用：
//绘制工具初始化
var drawTool = new DrawTool({
viewer: viewer,
hasEdit: true
});
//绘制矩形
$("#drawRectangle").click(function () {
if (!drawTool) return;
drawTool.startDraw({
type: "rectangle",
style: {
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND
},
success: function (evt) {}
});
});
//绘制线
$("#drawPolyline").click(function () {
if (!drawTool) return;
drawTool.startDraw({
type: "polyline",
style: {
material: Cesium.Color.YELLOW,
clampToGround: true
},
success: function (evt) {}
});
});
//绘制多边形
$("#drawPolygon").click(function () {
if (!drawTool) return;
drawTool.startDraw({
type: "polygon",
style: {
clampToGround: true,
material: Cesium.Color.YELLOW,
},
success: function (evt) {}
});
});
//绘制点
$("#drawBillboard").click(function () {
if (!drawTool) return;
drawTool.startDraw({
type: "billboard",
style: {
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND,
image:'http://localhost:8080/gismap/content/images/map3d/mark1.png'
},
success: function (evt) {}
});
});
//绘制圆
$("#drawCircle").click(function () {
if (!drawTool) return;
drawTool.startDraw({
type: "circle",
style: {
heightReference: Cesium.HeightReference.CLAMP_TO_GROUND
},
success: function (evt) {}
});
});
//清空图形
$("#clearAll").click(function () {
if (drawTool) {
drawTool.destroy();
}
});
完整源码demo在链接文章尾部提供： cesium1.65api版本贴地贴模型标绘工具效果(附源码下载)
