BFC介绍
一、BFC是什么?
BFC,全称 Block Formatting Context(块级格式上下文)。它是一个独立的渲染区域,只有块盒子(block-level box)参与。块级格式上下文规定了内部的块盒子是如何布局的,并且这个渲染区域与外部区域毫不相关。
个人理解:BFC就是为了形成一个完全独立的空间,空间内部子元素不会影响空间外元素的布局和结构
二、如何触发BFC?
- 根元素(HTML)
- 浮动元素(元素的 float 不是 none)
- 绝对定位元素(元素的 position 为 absolute 或 fixed)
- 行内块元素(元素的 display 为 inline-block)
- 表格单元格(元素的 display为 table-cell,HTML表格单元格默认为该值)
- 表格标题(元素的 display 为 table-caption,HTML表格标题默认为该值)
- overflow 值不为 visible 的块元素
- display 值为 flow-root 的元素
更多请看 MDN
三、BFC解决了哪些问题?
- 解决浮动元素父元素高度坍塌问题
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>BFC</title>
<style>
.father{
width: 500px;
padding: 30px;
background-color: bisque;
}
.childern{
height: 150px;
background-color: cadetblue;
}
</style>
</head>
<body>
<div class="father">
<div class="childern">childern1</div>
<div class="childern">childern2</div>
<div class="childern">childern3</div>
</div>
</body>
</html>
如图:
float:left,则会出现父布局高度坍塌的问题,如图
- 父元素设置float: left;或display: table-cell;或overflow: auto;或position 为 absolute 或 fixed等等,只要使用上面提到的属性,都可以触发BFC来解决父布局高度坍塌的问题
-
解决自适应布局的问题
- 以常见的两栏布局为例

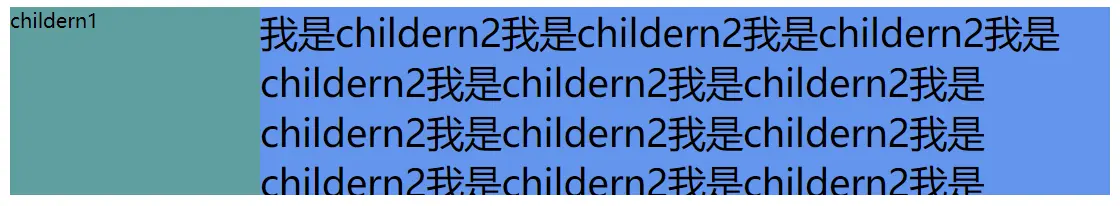

<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>BFC</title> <style> .father{ } .childern1{ height: 150px; width: 200px; background-color: cadetblue; float: left; } .childern2{ height: 150px; background-color: cornflowerblue; font-size: 30px; } </style> </head> <body> <div class="father"> <div class="childern1">childern1</div> <div class="childern2">我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2我是childern2</div> </div> </body> </html>效果如图:

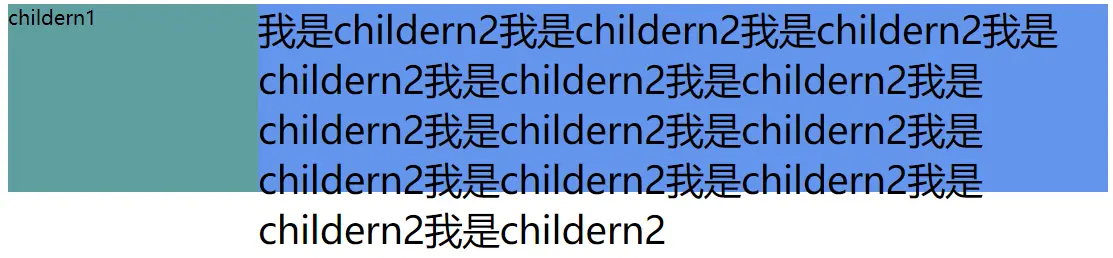

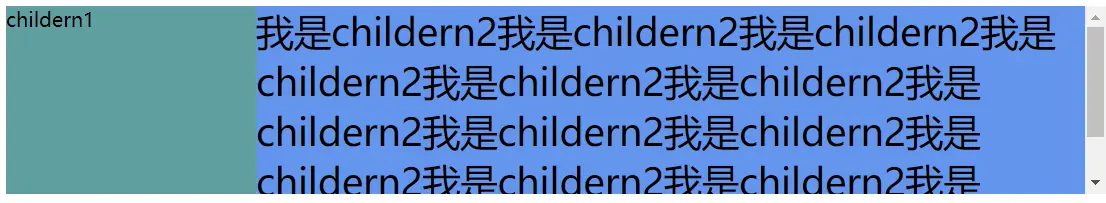

当childern2里的内容高度超过childern1的时候就会形成文字环绕的效果,如图: 这样的布局显然不是我们要的,所以我们可根据 第8条display: flow-root;设置children2,这样就没问题了。 当然也可以设置overflow: auto,但是布局会有滚动条,同理overflow: hidden,会隐藏我们的部分内容,会影响到我们布局本身,所以具体情况具体考虑,按照需求去取舍。 -
解决外边距垂直方向重合问题
- 兄弟元素之间外边距在垂直方向会取最大值而不是取两者之和,上代码

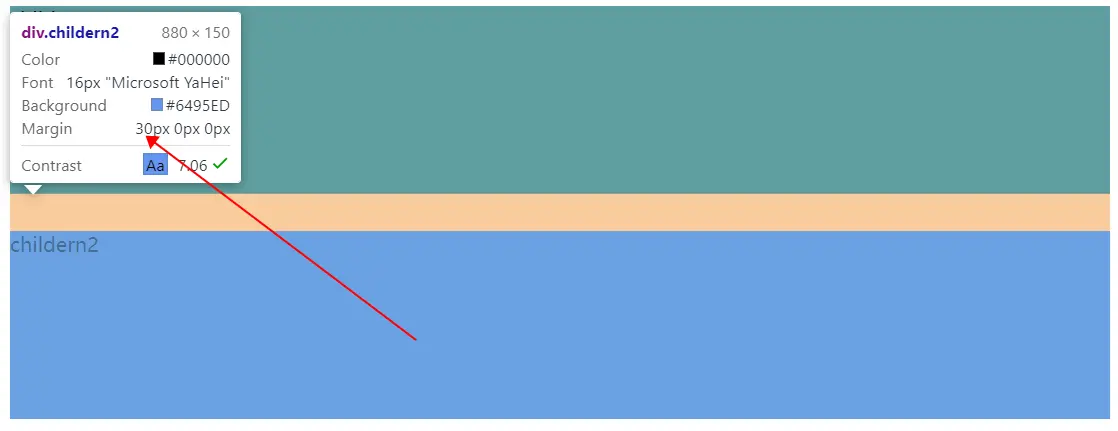

<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>BFC</title> <style> .childern1{ height: 150px; background-color: cadetblue; margin-bottom: 20px; } .childern2{ height: 150px; background-color: cornflowerblue; margin-top: 30px; } </style> </head> <body> <div class="childern1">childern1</div> <div class="childern2">childern2</div> </div> </body> </html>效果如图:
这样显然不是我们要的效果,所以我们还是需要触发BFC来形成一个独立的空间,所以需要给childern2外部增加一个父布局触发BFC,这样就可以让我们布局间隔按照我们需求所展示出来了,代码如下:.father2{ overflow: hidden; } <div class="father2"> <div class="childern2">childern2</div> </div>
