Runloop

Runloop的定义

  • Runloop可以认为是一个运行循环对象
  • 提供一个入口函数之后 一直进入do..while循环
  • 在官方文档中 Runloop是在threading里的

Runloop作用

  • 保持程序运行
  • 处理app中的各种事件(触摸,定时器等)
  • 节省cpu资源,提供程序的性能:该忙时候忙,该休息时候休息

Runloop源码

  • CFRunLoop源码
struct __CFRunLoop {
    CFRuntimeBase _base;
    pthread_mutex_t _lock;            /* locked for accessing mode list */
    __CFPort _wakeUpPort;            // used for CFRunLoopWakeUp
    Boolean _unused;
    volatile _per_run_data *_perRunData;              // reset for runs of the run loop
    pthread_t _pthread;
    uint32_t _winthread;
    CFMutableSetRef _commonModes;
    CFMutableSetRef _commonModeItems;
    CFRunLoopModeRef _currentMode;
    CFMutableSetRef _modes;
    struct _block_item *_blocks_head;
    struct _block_item *_blocks_tail;
    CFAbsoluteTime _runTime;
    CFAbsoluteTime _sleepTime;
    CFTypeRef _counterpart;
};

struct __CFRunLoopMode {
    CFRuntimeBase _base;
    pthread_mutex_t _lock;    /* must have the run loop locked before locking this */
    CFStringRef _name;
    Boolean _stopped;
    char _padding[3];
    CFMutableSetRef _sources0;
    CFMutableSetRef _sources1;
    CFMutableArrayRef _observers;
    CFMutableArrayRef _timers;
    CFMutableDictionaryRef _portToV1SourceMap;
    __CFPortSet _portSet;
    CFIndex _observerMask;
#if USE_DISPATCH_SOURCE_FOR_TIMERS
    dispatch_source_t _timerSource;
    dispatch_queue_t _queue;
    Boolean _timerFired; // set to true by the source when a timer has fired
    Boolean _dispatchTimerArmed;
#endif
#if USE_MK_TIMER_TOO
    mach_port_t _timerPort;
    Boolean _mkTimerArmed;
#endif
#if DEPLOYMENT_TARGET_WINDOWS
    DWORD _msgQMask;
    void (*_msgPump)(void);
#endif
    uint64_t _timerSoftDeadline; /* TSR */
    uint64_t _timerHardDeadline; /* TSR */
};
  • 1个runloop对应1个mode, 每个mode里都有 source, timer, observer(source,,timer, obsever, 都是在items里)
void CFRunLoopRun(void) {    /* DOES CALLOUT */
    int32_t result;
    do {
        result = CFRunLoopRunSpecific(CFRunLoopGetCurrent(), kCFRunLoopDefaultMode, 1.0e10, false);
        CHECK_FOR_FORK();
    } while (kCFRunLoopRunStopped != result && kCFRunLoopRunFinished != result);
}

SInt32 CFRunLoopRunInMode(CFStringRef modeName, CFTimeInterval seconds, Boolean returnAfterSourceHandled) {     /* DOES CALLOUT */
    CHECK_FOR_FORK();
    return CFRunLoopRunSpecific(CFRunLoopGetCurrent(), modeName, seconds, returnAfterSourceHandled);
}

SInt32 CFRunLoopRunSpecific(CFRunLoopRef rl, CFStringRef modeName, CFTimeInterval seconds, Boolean returnAfterSourceHandled) {     /* DOES CALLOUT */
    CHECK_FOR_FORK();
    if (__CFRunLoopIsDeallocating(rl)) return kCFRunLoopRunFinished;
    __CFRunLoopLock(rl);
    CFRunLoopModeRef currentMode = __CFRunLoopFindMode(rl, modeName, false);
    if (NULL == currentMode || __CFRunLoopModeIsEmpty(rl, currentMode, rl->_currentMode)) {
        Boolean did = false;
        if (currentMode) __CFRunLoopModeUnlock(currentMode);
        __CFRunLoopUnlock(rl);
        return did ? kCFRunLoopRunHandledSource : kCFRunLoopRunFinished;
    }
    volatile _per_run_data *previousPerRun = __CFRunLoopPushPerRunData(rl);
    CFRunLoopModeRef previousMode = rl->_currentMode;
    rl->_currentMode = currentMode;
    int32_t result = kCFRunLoopRunFinished;

    if (currentMode->_observerMask & kCFRunLoopEntry ) __CFRunLoopDoObservers(rl, currentMode, kCFRunLoopEntry); // 1. 通知 Observers: RunLoop 即将进入 loop。
    result = __CFRunLoopRun(rl, currentMode, seconds, returnAfterSourceHandled, previousMode);
    if (currentMode->_observerMask & kCFRunLoopExit ) __CFRunLoopDoObservers(rl, currentMode, kCFRunLoopExit); // 10. 通知 Observers: RunLoop 即将退出。

    __CFRunLoopModeUnlock(currentMode);
    __CFRunLoopPopPerRunData(rl, previousPerRun);
    rl->_currentMode = previousMode;
    __CFRunLoopUnlock(rl);
    return result;
}

static int32_t __CFRunLoopRun(CFRunLoopRef rl, CFRunLoopModeRef rlm, CFTimeInterval seconds, Boolean stopAfterHandle, CFRunLoopModeRef previousMode) {

    //获取系统启动后的CPU运行时间，用于控制超时时间
    uint64_t startTSR = mach_absolute_time();

    ...省略

    //标志位默认为true
    Boolean didDispatchPortLastTime = true;
    //记录最后runloop状态，用于return
    int32_t retVal = 0;
    do {
        ... 省略

        /// 2. 通知 Observers: RunLoop 即将触发 Timer 回调。
        if (rlm->_observerMask & kCFRunLoopBeforeTimers) __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeTimers);
        if (rlm->_observerMask & kCFRunLoopBeforeSources)
            /// 3. 通知 Observers: RunLoop 即将触发 Source0 (非port) 回调。
            __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeSources);

        /// 执行被加入的block
        __CFRunLoopDoBlocks(rl, rlm);
        /// 4. RunLoop 触发 Source0 (非port) 回调。
        Boolean sourceHandledThisLoop = __CFRunLoopDoSources0(rl, rlm, stopAfterHandle);
        if (sourceHandledThisLoop) {
            /// 执行被加入的block
            __CFRunLoopDoBlocks(rl, rlm);
        }

        ... 省略

        if (MACH_PORT_NULL != dispatchPort && !didDispatchPortLastTime) {
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI

            msg = (mach_msg_header_t *)msg_buffer;
            /// 5. 如果有 Source1 (基于port) 处于 ready 状态，直接处理这个 Source1 然后跳转去处理消息。
            if (__CFRunLoopServiceMachPort(dispatchPort, &msg, sizeof(msg_buffer), &livePort, 0)) {
                //如果接收到了消息的话，前往第9步开始处理msg
                goto handle_msg;
            }
#elif DEPLOYMENT_TARGET_WINDOWS
            if (__CFRunLoopWaitForMultipleObjects(NULL, &dispatchPort, 0, 0, &livePort, NULL)) {
                goto handle_msg;
            }
#endif
        }

        didDispatchPortLastTime = false;
        /// 6.通知 Observers: RunLoop 的线程即将进入休眠(sleep)。
        if (!poll && (rlm->_observerMask & kCFRunLoopBeforeWaiting)) __CFRunLoopDoObservers(rl, rlm, kCFRunLoopBeforeWaiting);
        //设置RunLoop为休眠状态
        __CFRunLoopSetSleeping(rl);
        // do not do any user callouts after this point (after notifying of sleeping)

        // Must push the local-to-this-activation ports in on every loop
        // iteration, as this mode could be run re-entrantly and we don't
        // want these ports to get serviced.

        __CFPortSetInsert(dispatchPort, waitSet);

        __CFRunLoopModeUnlock(rlm);
        __CFRunLoopUnlock(rl);

#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
#if USE_DISPATCH_SOURCE_FOR_TIMERS

        //这里有个内循环，用于接收等待端口的消息
        //进入此循环后，线程进入休眠，直到收到新消息才跳出该循环，继续执行run loop
        do {
            if (kCFUseCollectableAllocator) {
                objc_clear_stack(0);
                memset(msg_buffer, 0, sizeof(msg_buffer));
            }

            msg = (mach_msg_header_t *)msg_buffer;
            //7.接收waitSet端口的消息
            __CFRunLoopServiceMachPort(waitSet, &msg, sizeof(msg_buffer), &livePort, poll ? 0 : TIMEOUT_INFINITY);
            //收到消息之后，livePort的值为msg->msgh_local_port，
            if (modeQueuePort != MACH_PORT_NULL && livePort == modeQueuePort) {
                // Drain the internal queue. If one of the callout blocks sets the timerFired flag, break out and service the timer.
                while (_dispatch_runloop_root_queue_perform_4CF(rlm->_queue));
                if (rlm->_timerFired) {
                    // Leave livePort as the queue port, and service timers below
                    rlm->_timerFired = false;
                    break;
                } else {
                    if (msg && msg != (mach_msg_header_t *)msg_buffer) free(msg);
                }
            } else {
                // Go ahead and leave the inner loop.
                break;
            }
        } while (1);
#else
        if (kCFUseCollectableAllocator) {
            objc_clear_stack(0);
            memset(msg_buffer, 0, sizeof(msg_buffer));
        }
        msg = (mach_msg_header_t *)msg_buffer;
        /// 7. 调用 mach_msg 等待接受 mach_port 的消息。线程将进入休眠, 直到被下面某一个事件唤醒。
        /// • 一个基于 port 的Source 的事件。
        /// • 一个 Timer 到时间了
        /// • RunLoop 自身的超时时间到了
        /// • 被其他什么调用者手动唤醒
        __CFRunLoopServiceMachPort(waitSet, &msg, sizeof(msg_buffer), &livePort, poll ? 0 : TIMEOUT_INFINITY);
#endif
        ... 省略

        __CFRunLoopSetIgnoreWakeUps(rl);

        // user callouts now OK again
        //取消runloop的休眠状态
        __CFRunLoopUnsetSleeping(rl);
        /// 8. 通知 Observers: RunLoop 的线程刚刚被唤醒了。
        if (!poll && (rlm->_observerMask & kCFRunLoopAfterWaiting)) __CFRunLoopDoObservers(rl, rlm, kCFRunLoopAfterWaiting);

        /// 收到消息，处理消息。
    handle_msg:;
        __CFRunLoopSetIgnoreWakeUps(rl);

        ... 省略


#if USE_DISPATCH_SOURCE_FOR_TIMERS
        else if (modeQueuePort != MACH_PORT_NULL && livePort == modeQueuePort) {
            CFRUNLOOP_WAKEUP_FOR_TIMER();
            /// 9.1 如果一个 Timer 到时间了，触发这个Timer的回调。
            if (!__CFRunLoopDoTimers(rl, rlm, mach_absolute_time())) {
                // Re-arm the next timer, because we apparently fired early
                __CFArmNextTimerInMode(rlm, rl);
            }
        }
#endif
#if USE_MK_TIMER_TOO
        else if (rlm->_timerPort != MACH_PORT_NULL && livePort == rlm->_timerPort) {
            CFRUNLOOP_WAKEUP_FOR_TIMER();
            // On Windows, we have observed an issue where the timer port is set before the time which we requested it to be set. For example, we set the fire time to be TSR 167646765860, but it is actually observed firing at TSR 167646764145, which is 1715 ticks early. The result is that, when __CFRunLoopDoTimers checks to see if any of the run loop timers should be firing, it appears to be 'too early' for the next timer, and no timers are handled.
            // In this case, the timer port has been automatically reset (since it was returned from MsgWaitForMultipleObjectsEx), and if we do not re-arm it, then no timers will ever be serviced again unless something adjusts the timer list (e.g. adding or removing timers). The fix for the issue is to reset the timer here if CFRunLoopDoTimers did not handle a timer itself. 9308754
            if (!__CFRunLoopDoTimers(rl, rlm, mach_absolute_time())) {
                // Re-arm the next timer
                __CFArmNextTimerInMode(rlm, rl);
            }
        }
#endif
        /// 9.2 如果有dispatch到main_queue的block，执行block
        else if (livePort == dispatchPort) {
            CFRUNLOOP_WAKEUP_FOR_DISPATCH();
            __CFRunLoopModeUnlock(rlm);
            __CFRunLoopUnlock(rl);
            _CFSetTSD(__CFTSDKeyIsInGCDMainQ, (void *)6, NULL);
#if DEPLOYMENT_TARGET_WINDOWS
            void *msg = 0;
#endif
            __CFRUNLOOP_IS_SERVICING_THE_MAIN_DISPATCH_QUEUE__(msg);
            _CFSetTSD(__CFTSDKeyIsInGCDMainQ, (void *)0, NULL);
            __CFRunLoopLock(rl);
            __CFRunLoopModeLock(rlm);
            sourceHandledThisLoop = true;
            didDispatchPortLastTime = true;
        } else {
            /// 9.3 如果一个 Source1 (基于port) 发出事件了，处理这个事件
            CFRUNLOOP_WAKEUP_FOR_SOURCE();
            // Despite the name, this works for windows handles as well
            CFRunLoopSourceRef rls = __CFRunLoopModeFindSourceForMachPort(rl, rlm, livePort);
            if (rls) {
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
                mach_msg_header_t *reply = NULL;
                sourceHandledThisLoop = __CFRunLoopDoSource1(rl, rlm, rls, msg, msg->msgh_size, &reply) || sourceHandledThisLoop;
                if (NULL != reply) {
                    (void)mach_msg(reply, MACH_SEND_MSG, reply->msgh_size, 0, MACH_PORT_NULL, 0, MACH_PORT_NULL);
                    CFAllocatorDeallocate(kCFAllocatorSystemDefault, reply);
                }
#elif DEPLOYMENT_TARGET_WINDOWS
                sourceHandledThisLoop = __CFRunLoopDoSource1(rl, rlm, rls) || sourceHandledThisLoop;
#endif
            }
        }
#if DEPLOYMENT_TARGET_MACOSX || DEPLOYMENT_TARGET_EMBEDDED || DEPLOYMENT_TARGET_EMBEDDED_MINI
        if (msg && msg != (mach_msg_header_t *)msg_buffer) free(msg);
#endif

        /// 执行加入到Loop的block
        __CFRunLoopDoBlocks(rl, rlm);

        if (sourceHandledThisLoop && stopAfterHandle) {
            /// 进入loop时参数说处理完事件就返回。
            retVal = kCFRunLoopRunHandledSource;
        } else if (timeout_context->termTSR < mach_absolute_time()) {
            /// 超出传入参数标记的超时时间了
            retVal = kCFRunLoopRunTimedOut;
        } else if (__CFRunLoopIsStopped(rl)) {
            /// 被外部调用者强制停止了
            __CFRunLoopUnsetStopped(rl);
            retVal = kCFRunLoopRunStopped;
        } else if (rlm->_stopped) {
            /// 自动停止了
            rlm->_stopped = false;
            retVal = kCFRunLoopRunStopped;
        } else if (__CFRunLoopModeIsEmpty(rl, rlm, previousMode)) {
            /// source/timer/observer一个都没有了
            retVal = kCFRunLoopRunFinished;
        }
        /// 如果没超时，mode里没空，loop也没被停止，那继续loop。
    } while (0 == retVal);

    if (timeout_timer) {
        dispatch_source_cancel(timeout_timer);
        dispatch_release(timeout_timer);
    } else {
        free(timeout_context);
    }

    return retVal;
}

如下方法给特定runloop的mode 添加或者删除source, observer, timer

void CFRunLoopAddSource(CFRunLoopRef rl, CFRunLoopSourceRef rls, CFStringRef modeName)
void CFRunLoopAddObserver(CFRunLoopRef rl, CFRunLoopObserverRef rlo, CFStringRef modeName)
void CFRunLoopAddTimer(CFRunLoopRef rl, CFRunLoopTimerRef rlt, CFStringRef modeName)

void CFRunLoopRemoveSource(CFRunLoopRef rl, CFRunLoopSourceRef rls, CFStringRef modeName)
void CFRunLoopRemoveObserver(CFRunLoopRef rl, CFRunLoopObserverRef rlo, CFStringRef modeName)
void CFRunLoopRemoveTimer(CFRunLoopRef rl, CFRunLoopTimerRef rlt, CFStringRef modeName)

如下方法是回调

block应用：__CFRUNLOOP_IS_CALLING_OUT_TO_A_BLOCK__

调用timer：__CFRUNLOOP_IS_CALLING_OUT_TO_A_TIMER_CALLBACK_FUNCTION__

响应source0：__CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION__

响应source1： __CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE1_PERFORM_FUNCTION__

GCD主队列：__CFRUNLOOP_IS_SERVICING_THE_MAIN_DISPATCH_QUEUE__

observer源：__CFRUNLOOP_IS_CALLING_OUT_TO_AN_OBSERVER_CALLBACK_FUNCTION__

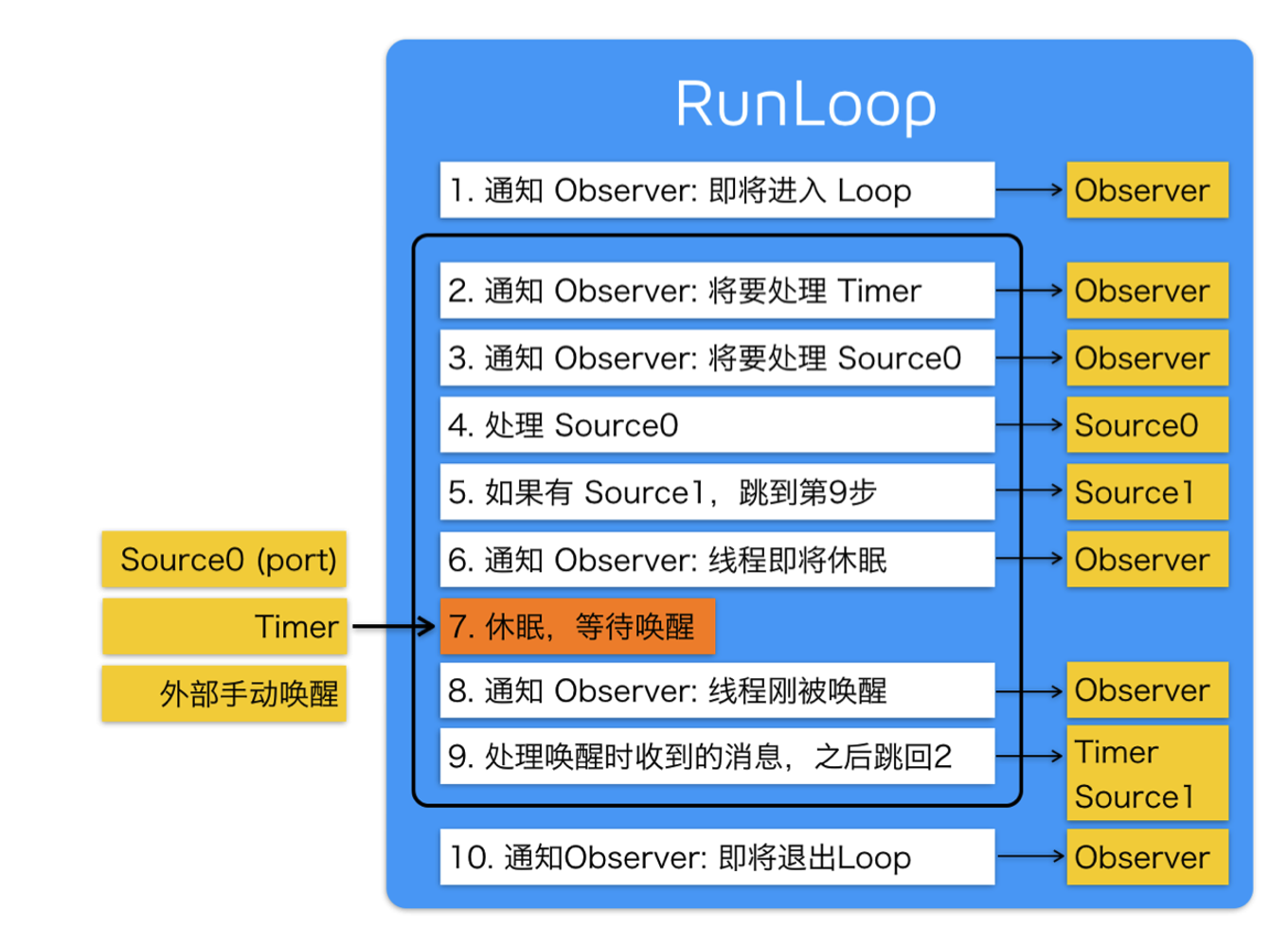

  1. CFRunLoopRun是开始runloop
  2. do...while循环进入CFRunLoopRunSpecific
  3. 进入 __CFRunLoopRun -- 核心代码
    • __CFRunLoopDoBlocks(rl, rlm),
    • __CFRunLoopDoSources0,
    • __CFRunLoopDoTimers (里边__CFRunLoopDoTimer),
    • __CFRunLoopDoObservers,
  4. 各自回调自己的方法
__CFRUNLOOP_IS_CALLING_OUT_TO_A_BLOCK__
__CFRUNLOOP_IS_CALLING_OUT_TO_A_SOURCE0_PERFORM_FUNCTION__
__CFRUNLOOP_IS_CALLING_OUT_TO_A_TIMER_CALLBACK_FUNCTION__
__CFRUNLOOP_IS_CALLING_OUT_TO_AN_OBSERVER_CALLBACK_FUNCTION__
  • runloop的状态
typedef CF_OPTIONS(CFOptionFlags, CFRunLoopActivity) {
   kCFRunLoopEntry         = (1UL << 0), // 即将进入Loop
   kCFRunLoopBeforeTimers  = (1UL << 1), // 即将处理 Timer
   kCFRunLoopBeforeSources = (1UL << 2), // 即将处理 Source
   kCFRunLoopBeforeWaiting = (1UL << 5), // 即将进入休眠
   kCFRunLoopAfterWaiting  = (1UL << 6), // 刚从休眠中唤醒
   kCFRunLoopExit          = (1UL << 7), // 即将退出Loop
};
  • 循环:

常驻线程

- (void)setupKeepAliveThread {
    self.keepAliveThread = [[NSThread alloc] initWithTarget:self selector:@selector(aliveThreadDoSomething) object:nil];
    self.keepAliveThread.name = @"myAliveThread";
    [self.keepAliveThread start];
}

- (void)aliveThreadDoSomething {
    NSPort *port = [NSMachPort port];
    [[NSRunLoop currentRunLoop] addPort:port forMode:NSDefaultRunLoopMode];
    [[NSRunLoop currentRunLoop] run];
}

- (void)touchesEnded:(NSSet<UITouch *> *)touches withEvent:(UIEvent *)event {
    [self performSelector:@selector(test) onThread:self.keepAliveThread withObject:nil waitUntilDone:NO modes:@[NSDefaultRunLoopMode]];
}

-(void)test {
    NSLog(@"%@", [NSThread currentThread]);
}

2020-05-24 15:18:11.898419+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:12.663878+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:13.071605+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:13.427575+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:13.787802+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:14.052359+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:14.236157+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:14.403727+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:14.589974+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:14.750470+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}
2020-05-24 15:18:14.925959+0800 TheThreadStudy[18699:3511911] <NSThread: 0x600003d07b00>{number = 6, name = myAliveThread}

注意点

  • 子线程默认不开启runloop
  • runloop中一定要有输入源或者定时器,才能启动.
  • 开启常驻线程的话,用timer虽然可以实现,但是性能不好,因为总是要wakeup, 最好监听port
  • [runloop run]方法开启的runloop 不会退出(因为退出loop之后马上又会进来) 具体退出runloop的办法在这里这里

总结:

Runloop是程序运行循环对象,是一个do...while循环,但是性能很好,可以节省cpu资源. 和线程是一对一的.一个runloop只能在一个mode下运行,每个mode有不同的source,timer,observer.Runloop处理app中的各种事件,触摸,performSelector等.子线程不自动开启runloop.

官方文档

avatar
文章
阅读
粉丝
