css盒模型

187 阅读2分钟

1. 基本概念:(content+padding+border+margin)

(包括标准模型和ie模型)

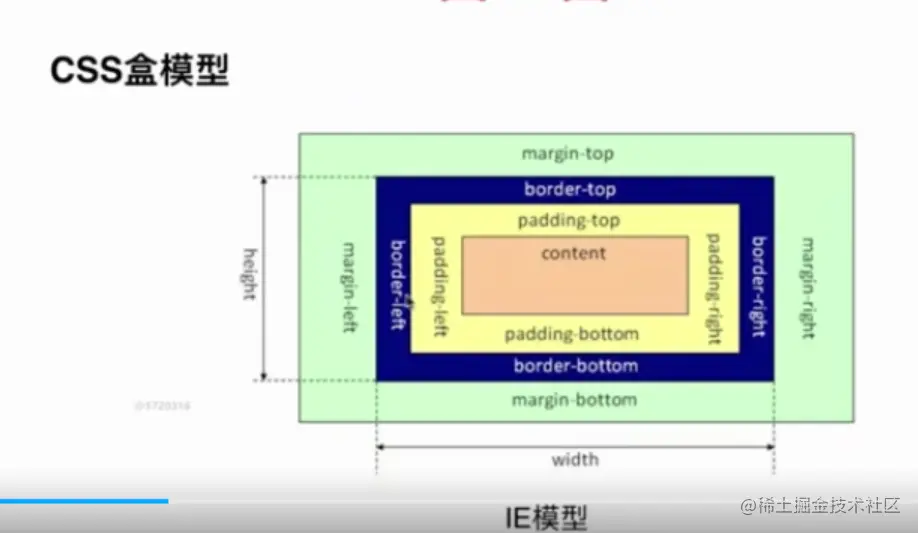

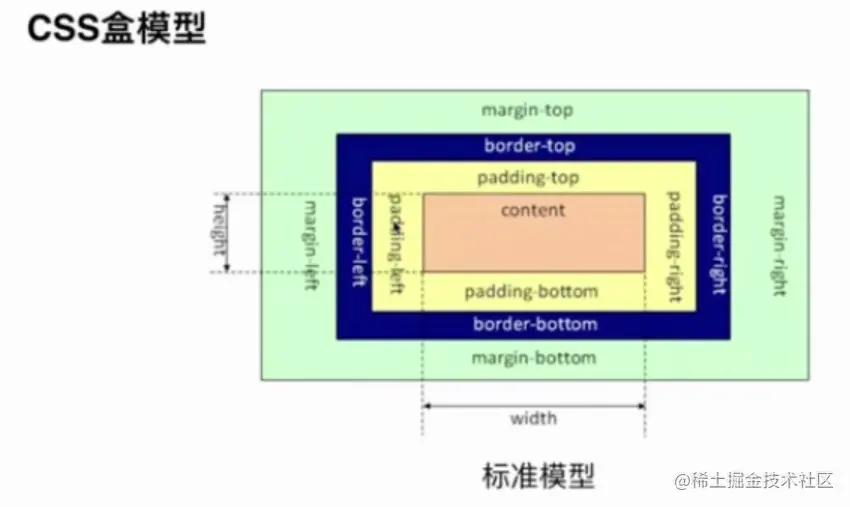

2. 标准模型和ie模型的区别就是宽和高的计算方式不同

标准模型的宽指的是content的宽,ie模型的宽高是加上border和padding的长度的

3. css是如何设置这种模型的

box-sizing: content-box(标准)--浏览器默认
box-sizing: border-box(ie)

4. js如何设置获取盒模型对应的宽和高

document.getElementsById(id)[0].style.width/height
// 局限性:只能取出内联样式的宽和高
document.getElementsById(id)[0].currentStyle.width/height
// 局限性:仅ie浏览器支持
window.getComputedStyle(dom).width/height
// 兼容性更好
document.getElementsById(id)[0].getBoundingClientRect().width/height;
// 也能拿到元素的宽和高,适用场景:计算元素的绝对位置
// 该方法返回元素的大小及其相对视口的位置

css属性的写法:

  1. 内联属性:直接往节点上内嵌
  2. 在页面中加入style节点
  3. 通过外联的css样式(link标签引入)

4.1 getBoundingClientRect();

let box = document.getElementsById(id)[0].getBoundingClientRect();
console.log('width',box.width) //容器的宽
console.log('height',box.height) //容器的高
console.log('top',box.top) // 容器相对于视口的高
console.log('right',box.right) // 容器最右边相对于视口的长度
console.log('bottom',box.bottom) // 容器最下边相对于视口的高
console.log('left',box.left) // 容器左边型对于视口的长度
console.log('x',box.x) // 容器左上角相对于视口的横坐标
console.log('y',box.y) // 容器左上角相对于视口的纵坐标

5. 根据盒模型解释边距重叠

BFC(是边距重叠解决方案)---(或者ifc)

  • 基本概念: 块级格式化上下文

  • 原理:bfc的渲染规则:

    1. 在bfc元素的垂直方向的边距会发生重叠
    2. bfc的区域不会与浮动元素的box重叠(用于清除浮动)
    3. bfc在页面上是一个独立的容器,外面的元素不会影响里面的元素,反过来,里面的元素也不会影响外面的元素
    4. 计算bfc高度的时候,浮动元素也会参与计算
  • 如何创建bfc

    1. float为left或right
    2. position的值absolute或者fixed
    3. display的值是inline-block、inline-flex、inline-grid、flex、flow-root、grid、table-caption、table-cell;
    4. overflow:hidding/auto/overlay(不是visible)
  • bfc的使用场景: bfc子元素即使是float也会参与计算

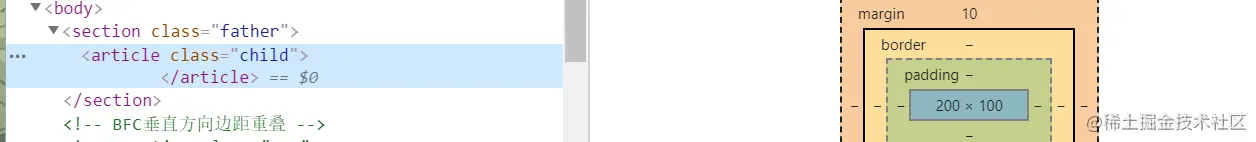

    例一:

    <section class="father">
        <article class="child">
        </article>
    </section>`
        .father{
            background-color: darkorange;
            width: 200px;
            /* overflow: hidden; */
            /* 创建BFC  */
        }
        .child{
            height: 100px;
            width: 200px;
            margin-top: 10px;
            background-color: darkolivegreen;
        }

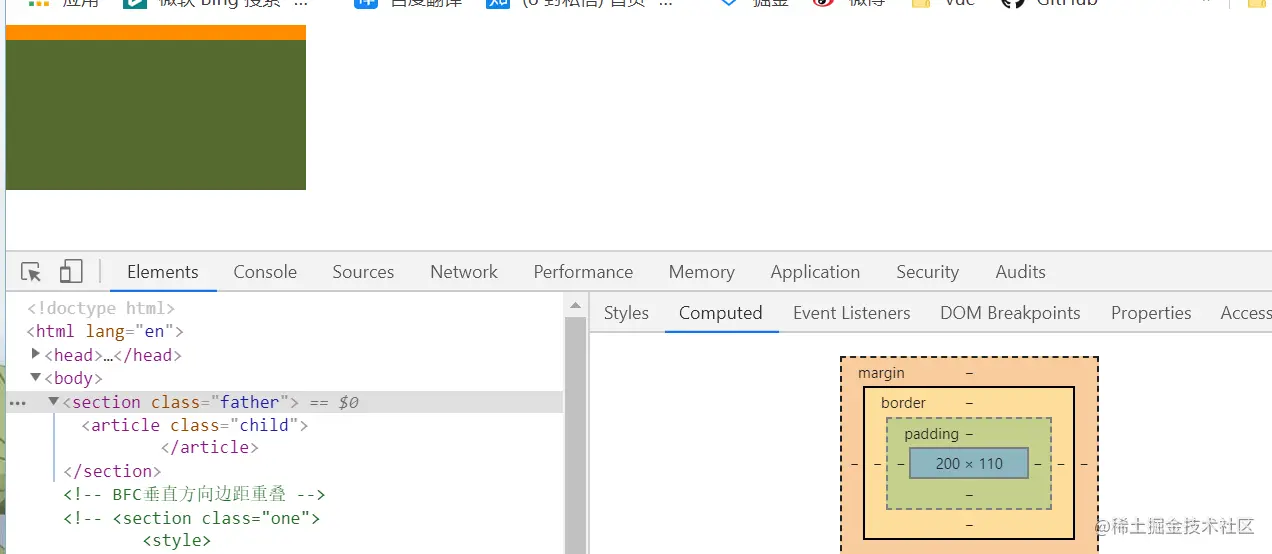

若不创建BFC

若创建BFC

例二: BFC垂直方向边距重叠

    <section class="one">
        <style>
            .one{
                background-color: pink;
                overflow: hidden;
            }
            p{
                margin: 5px auto 25px;
                background-color: yellow;
            }
        </style>

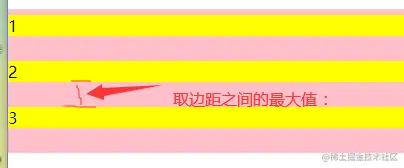

        <!-- 若没有设置bfc,则边距重叠,他们之间的边距取两个边距之间的最大值取最大值(25) -->
        <!-- 取消边距重叠的办法:给子元素创建一个父元素
        父元素创建一个bfc -->
        <p>1</p>
        <div style="overflow: hidden;">
            <p>2</p>
        </div>
        <p>3</p>
    </section>

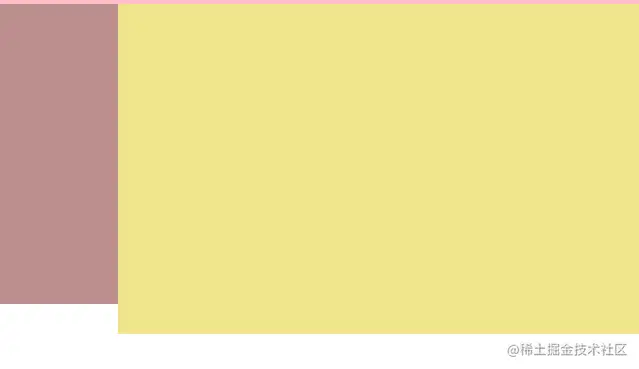

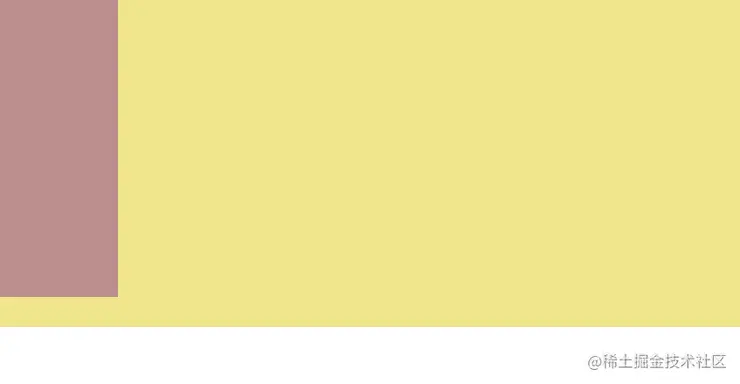

例三 两个元素左边固定宽,有边自适应

    <section class="layout">
        <style>
            .left{
                float: left;
                width: 100px;
                height: 200px;
                background-color: rosybrown;
            }
            .right{
                height: 220px;
                background-color: khaki;
                <!--overflow: hidden;-->
                <!--若不增加BFC,则右边元素溢出来向左浮动-->
            }
        </style>
        <div class="left"></div>
        <div class="right"></div>
    </section>

例四: 清除浮动(BFC即使子元素是float也会参与高度计算)

    <section class="clear">
        <style>
            .clear{
                /* overflow: auto; */
                /* 没有创建BFC,子元素是浮动元素的时候,高度不会计算进来
                当把父级元素设置为BFC的时候,级元素的浮动元素的高度也会计算进来 */
                background-color: red;
            }
            .float{
                float: left;
                font-size: 20px;
            }
        </style>
        <div class="float">我是浮动元素</div>
    </section>
