grpc for java 双向流式通信实践
一. 摘要
此篇文章将用实例介绍grpc四种服务类型中的双向流式通信，模拟一个简单的聊天室功能。
二. 实践

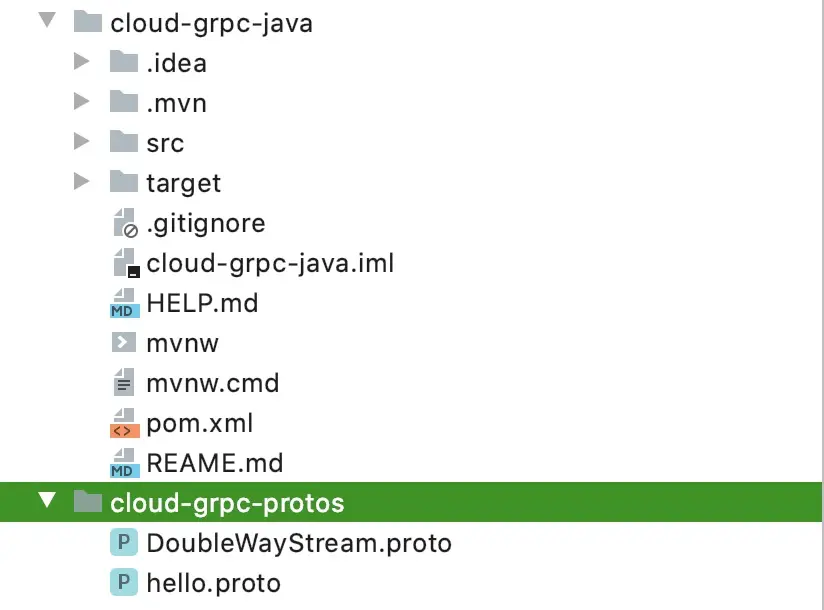

整体项目如下：
1.通过protobuf定义接口和数据类型
在cloud-grpc-protos文件夹下创建doubleWayStream.proto,内容如下：
syntax = "proto3";
option go_package = "pbfs/double_way_stream";
option java_multiple_files = true;
option java_package = "com.cloud.grpc.doubleWayStream";
option java_outer_classname = "DoubleWayStreamProto";
option objc_class_prefix = "DWS";
package double_way_stream;
//双向流式
service DoubleWayStreamService{
rpc DoubleWayStreamFun(stream RequestMessage) returns (stream ResponseMessage){}
}
message RequestMessage{
string req_msg = 1;
}
message ResponseMessage{
string rsp_msg = 1;
}
以上，一个 简单 的双向流式RPC
2.maven 配置
创建一个如上图（cloud-grpc-java)的maven项目,pom.xml加入grpc开发相关配置，如下：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.cloud.grpc</groupId>
<artifactId>java</artifactId>
<version>1.0.0.0</version>
<name>java</name>
<description>Demo project for grpc for java</description>
<properties>
<java.version>11</java.version>
<grpc.version>1.29.0</grpc.version>
<protobuf.version>3.11.0</protobuf.version>
</properties>
<dependencies>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-netty-shaded</artifactId>
<version>${grpc.version}</version>
</dependency>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-protobuf</artifactId>
<version>${grpc.version}</version>
</dependency>
<dependency>
<groupId>io.grpc</groupId>
<artifactId>grpc-stub</artifactId>
<version>${grpc.version}</version>
</dependency>
<dependency> <!-- necessary for Java 9+ -->
<groupId>org.apache.tomcat</groupId>
<artifactId>annotations-api</artifactId>
<version>6.0.53</version>
<scope>provided</scope>
</dependency>
</dependencies>
<build>
<extensions>
<extension>
<groupId>kr.motd.maven</groupId>
<artifactId>os-maven-plugin</artifactId>
<version>1.5.0.Final</version>
</extension>
</extensions>
<plugins>
<plugin>
<groupId>org.xolstice.maven.plugins</groupId>
<artifactId>protobuf-maven-plugin</artifactId>
<version>0.5.1</version>
<configuration>
<protocArtifact>com.google.protobuf:protoc:${protobuf.version}:exe:${os.detected.classifier}</protocArtifact>
<pluginId>grpc-java</pluginId>
<pluginArtifact>io.grpc:protoc-gen-grpc-java:${grpc.version}:exe:${os.detected.classifier}</pluginArtifact>
<protoSourceRoot>../cloud-grpc-protos</protoSourceRoot>
</configuration>
<executions>
<execution>
<goals>
<goal>compile</goal>
<goal>compile-custom</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>
说明： ../cloud-grpc-protos 红色标注部分需要根据pom.xml与上面创建proto所在路径相匹配，这样protobuf 插件才会根据此目录找到定义的proto文件生成相关代码。
3.生成grpc,protobuf相关类
mvn protobuf:compile
mvn protobuf:compile-custom
同步pom.xml,即可在target下生成如下源码：
4.编写服务端，并运行

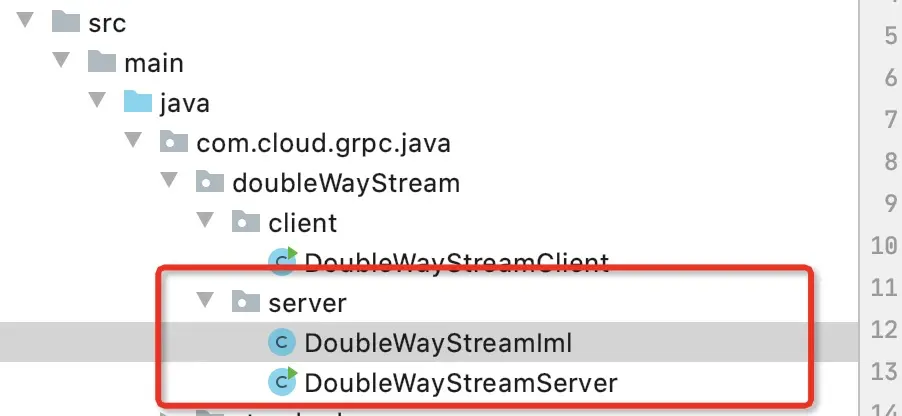

服务端源码如图：
package com.cloud.grpc.java.doubleWayStream.server;
import com.cloud.grpc.doubleWayStream.DoubleWayStreamServiceGrpc;
import com.cloud.grpc.doubleWayStream.RequestMessage;
import com.cloud.grpc.doubleWayStream.ResponseMessage;
import io.grpc.stub.StreamObserver;
public class DoubleWayStreamIml extends DoubleWayStreamServiceGrpc.DoubleWayStreamServiceImplBase {
//声明此服务端流响应，为了后面通过控制台向后端发送消息
private StreamObserver<com.cloud.grpc.doubleWayStream.ResponseMessage> responseOb;
@Override
public StreamObserver<com.cloud.grpc.doubleWayStream.RequestMessage> doubleWayStreamFun(StreamObserver<com.cloud.grpc.doubleWayStream.ResponseMessage> responseObserver) {
this.responseOb=responseObserver;
return new StreamObserver<RequestMessage>() {
@Override
public void onNext(RequestMessage requestMessage) {
System.out.println("[收到客户端消息]: " + requestMessage.getReqMsg());
responseObserver.onNext(ResponseMessage.newBuilder().setRspMsg("hello client ,I'm Java grpc Server,your message '" + requestMessage.getReqMsg() + "'").build());
}
@Override
public void onError(Throwable throwable) {
throwable.fillInStackTrace();
}
@Override
public void onCompleted() {
responseObserver.onCompleted();
}
};
}
public StreamObserver<ResponseMessage> getResponseOb() {
return responseOb;
}
}
如上图， private StreamObserver<com.cloud.grpc.doubleWayStream.ResponseMessage> responseOb 声明此服务端流响应，为了后面通过控制台向后端发送消息。 编码服务端启动类DoubleWayStreamServer.java，如下
package com.cloud.grpc.java.doubleWayStream.server;
import com.cloud.grpc.doubleWayStream.ResponseMessage;
import io.grpc.Server;
import io.grpc.ServerBuilder;
import java.io.IOException;
import java.util.Scanner;
public class DoubleWayStreamServer {
public static void main(String[] args) {
ServerBuilder<?> serverBuilder = ServerBuilder.forPort(8899);
DoubleWayStreamIml doubleWayStreamIml=new DoubleWayStreamIml();
serverBuilder.addService(doubleWayStreamIml);
Server server = serverBuilder.build();
try {
server.start();
//开启线程向客户端输入
new Thread(new Runnable() {
@Override
public void run() {
Scanner scanner=new Scanner(System.in);
for (;true;){
String str=scanner.nextLine();
if(str.equals("EOF")){
break;
}
try {
doubleWayStreamIml.getResponseOb().onNext(ResponseMessage.newBuilder().setRspMsg(str).build());
}catch (Exception e){
System.out.println("【异常】：没有客户端连接...");
//一般客户端链接失败就会断开
e.printStackTrace();
}
}
}
}).start();
server.awaitTermination();
} catch (IOException | InterruptedException e) {
e.printStackTrace();
}
}
}

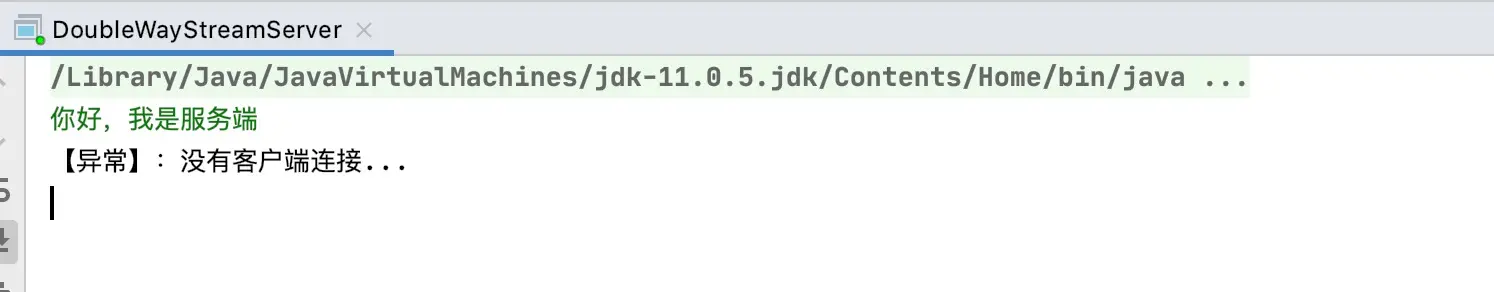

如上图所示，开启一个新的线程，为了向客户端推送消息。 通过main函数启动，此时我们向控制台输入一条消息，结果如下：
5.编写，运行客户端
编写DoubleWayStreamClient.java,如下：
package com.cloud.grpc.java.doubleWayStream.client;
import com.cloud.grpc.doubleWayStream.DoubleWayStreamServiceGrpc;
import com.cloud.grpc.doubleWayStream.RequestMessage;
import com.cloud.grpc.doubleWayStream.ResponseMessage;
import io.grpc.ManagedChannel;
import io.grpc.ManagedChannelBuilder;
import io.grpc.stub.StreamObserver;
import java.util.Scanner;
public class DoubleWayStreamClient {
public static void main(String[] args) {
//使用usePlaintext，否则使用加密连接
ManagedChannelBuilder<?> channelBuilder = ManagedChannelBuilder.forAddress("localhost", 8899).usePlaintext();
ManagedChannel channel = channelBuilder.build();
StreamObserver<RequestMessage> requestObserver = DoubleWayStreamServiceGrpc.newStub(channel).doubleWayStreamFun(new StreamObserver<ResponseMessage>() {
@Override
public void onNext(ResponseMessage value) {
System.out.println("[收到服务端发来] : " + value.getRspMsg());
}
@Override
public void onError(Throwable t) {
}
@Override
public void onCompleted() {
}
});
Scanner scanner = new Scanner(System.in);
for (; true; ) {
String str= scanner.nextLine();
if(str.equals("EOF")){
requestObserver.onCompleted();
break;
}
try {
requestObserver.onNext(RequestMessage.newBuilder().setReqMsg(scanner.nextLine()).build());
} catch (Exception e) {
e.printStackTrace();
}
}
}
}

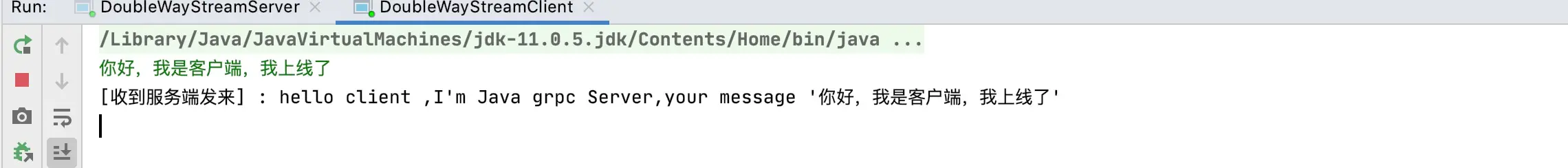

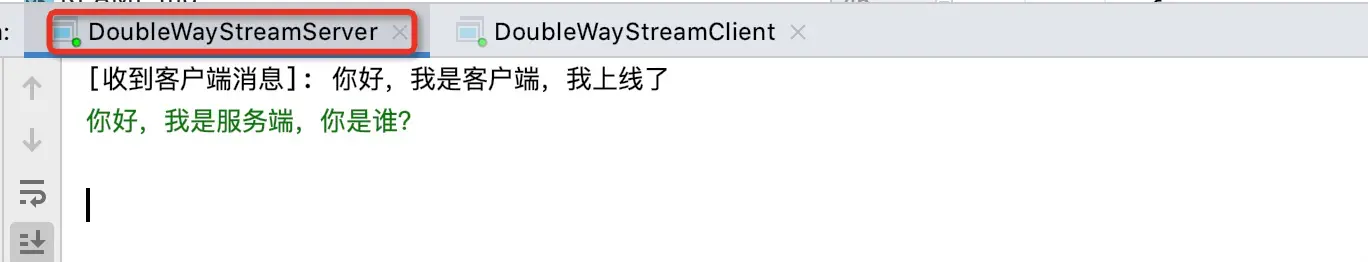

在上面源码中，我们实现了proto文件中rpc方法接口中的客户端流，在next方法中打印服务端的信息，执行main函数，在控制台输入"你好，我是客户端，我上线了",
