css3自适应布局

333 阅读6分钟

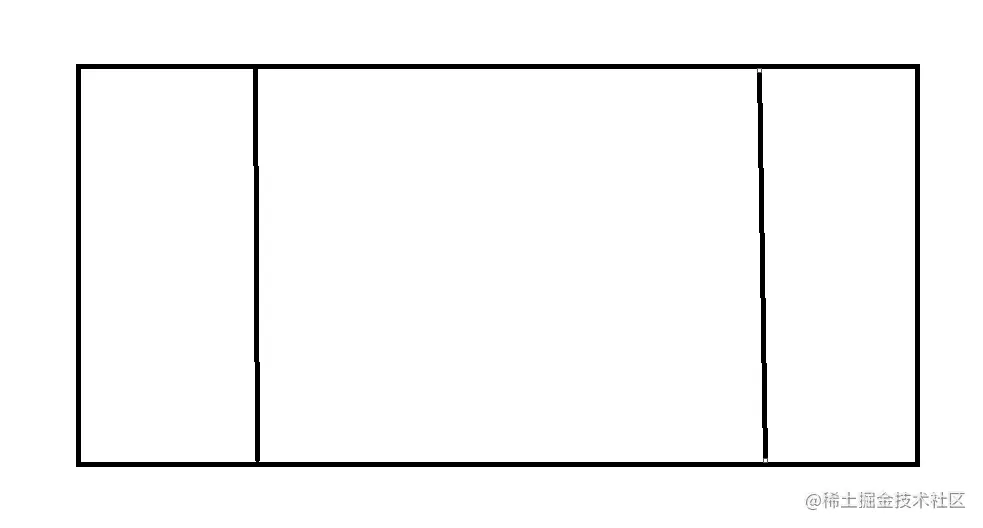

1. 如下如,高度已知,写出三栏布局,左右宽度为300px,之间自适应;

1. float 布局

    <article class="float">
        <div class="left">left</div>
        <div class="right">right</div>
        <div class="center">center</div>
    </article>
        article>div {
            min-height: 300px;
        }
        .left {
            float: left;
            width: 300px;
            background-color: red;
        }
        .right {
            float: right;
            width: 300px;
            background-color: blue;
        }
        .center {
            background-color: #f8f800;
        }

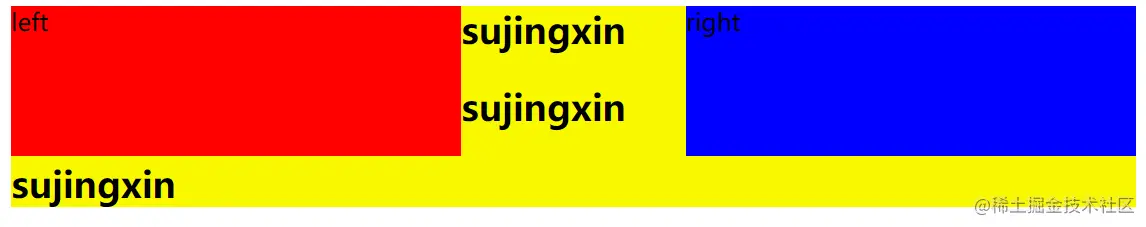

缺点:清除浮动,浮动之后是脱离文档流的,若内容太多,则会造成内容溢出,如下图

2. position 布局

    <style>
        article div{
            position: absolute;
            min-height: 100px;
        }
        .left{
            width: 300px;
            background-color: red;
        }
        .center{
            left: 300px;
            right: 300px;
            background-color: yellow;
        }
        .right{
            right: 0;
            width: 300px;
            background-color: teal;
        }
    </style>

缺点:布局脱离文档流,有效性和可使用性比较差

3. flex 布局

        article{
            display: flex;
        }
        div{
            height: 300px;
        }
        .left{
            width: 300px;
            background-color: red;
        }
        .right{
            width: 300px;
            background-color: blue;
        }
        .center{
            flex: 1;
            background-color: yellow;
        }

4. 表格布局

        article{
            display: table;
            width: 100%;
        }
        div{
            display: table-cell;
            height: 300px;
        }
        .left{
            width: 300px;
            background-color: red;
        }
        .center{
            background-color: yellow;
        }
        .right{
            width: 300px;
            background-color: blue;
        }

优点:兼容性好

5. grid 布局

        article{
            display: grid;
            width: 100%;
            grid-template-rows: 300px;
            grid-template-columns: 300px auto 300px;
        }

        .left{
            background-color: red;
        }
        .center{
            background-color: yellow;
        }
        .right{
            background-color: blue;
        }

2. 写出一个div块垂直居中

3. flex布局

1. 以下属性定义在box中

.box{
  display: flex;
}
// 行内元素:
.box{
  display: inline-flex;
}

注意,设为 Flex 布局以后,子元素的floatclearvertical-align属性将失效。

  1. flex-direction(决定items的排列方向)
.box {
  flex-direction: row | row-reverse | column | column-reverse;
}
  1. flex-wrap 默认情况下,项目都排在一条线(又称"轴线")上。flex-wrap属性定义,如果一条轴线排不下,如何换行。
.box{
  flex-wrap: nowrap | wrap | wrap-reverse;
}
// nowrap(默认):不换行
// wrap:换行,第一行在上方。
// wrap-reverse:换行,第一行在下方。
  1. flex-flow 是flex-direction属性和flex-wrap属性的简写形式,默认值为row nowrap
.box {
  flex-flow: <flex-direction> || <flex-wrap>;
}
  1. justify-content 定义了项目在主轴上的对齐方式。
.box {
  justify-content: flex-start | flex-end | center | space-between | space-around;
}
// flex-start(默认值):左对齐
// flex-end:右对齐
// center: 居中
// space-between:两端对齐,项目之间的间隔都相等。
// space-around:每个项目两侧的间隔相等。所以,项目之间的间隔比项目与边框的间隔大一倍。
  1. align-items 定义项目在交叉轴上如何对齐。
.box {
  align-items: flex-start | flex-end | center | baseline | stretch;
}
// flex-start:交叉轴的起点对齐。
// flex-end:交叉轴的终点对齐。
// center:交叉轴的中点对齐。
// baseline: 项目的第一行文字的基线对齐。
// stretch(默认值):如果项目未设置高度或设为auto,将占满整个容器的高度。

2. 以下属性定义在items上

  1. order 属性定义项目的排列顺序。数值越小,排列越靠前,默认为0。
.item {
  order: <integer>;
}
  1. flex-grow 定义项目的放大比例,默认为0,即如果存在剩余空间,也不放大。
.item {
  flex-grow: <number>; /* default 0 */
}

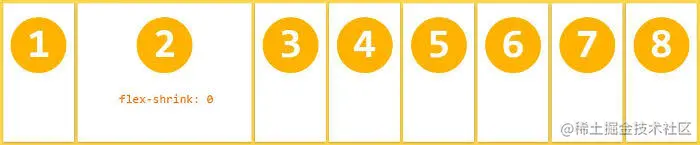

  1. flex-shrink 定义了项目的缩小比例,默认为1,即如果空间不足,该项目将缩小

如果所有项目的flex-shrink属性都为1,当空间不足时,都将等比例缩小。如果一个项目的flex-shrink属性为0,其他项目都为1,则空间不足时,前者不缩小。

3. grid

1. box元素属性

1. display

.box{
  display: grid;
}
// 行内元素:
.box{
  display: inline-grid;
}

2. 行和列

  grid-template-columns: 100px 100px 100px;
  grid-template-rows: 100px 100px 100px;

  grid-template-columns: repeat(2, 100px 20px 80px);
  // 相当于
  grid-template-columns: repeat(100px 20px 80px 100px 20px 80px);

  grid-template-columns: 150px 1fr 2fr;

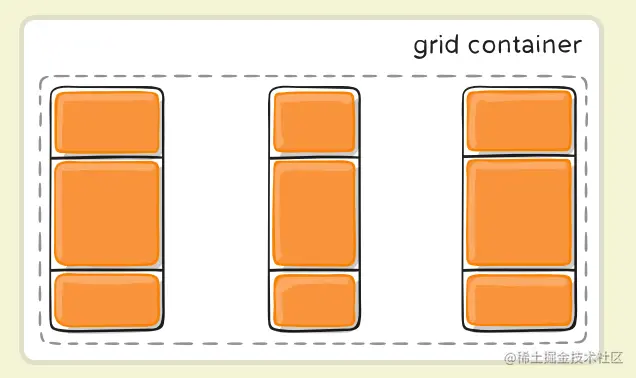

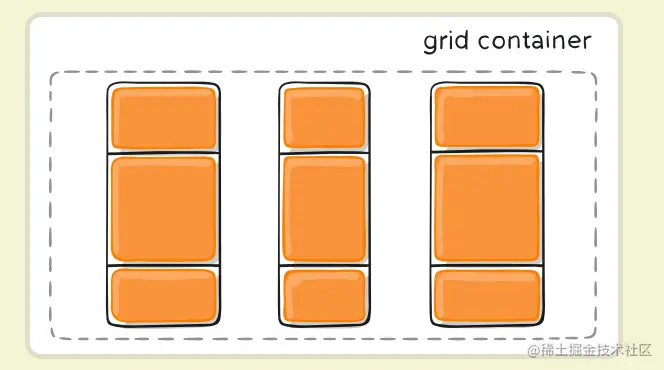

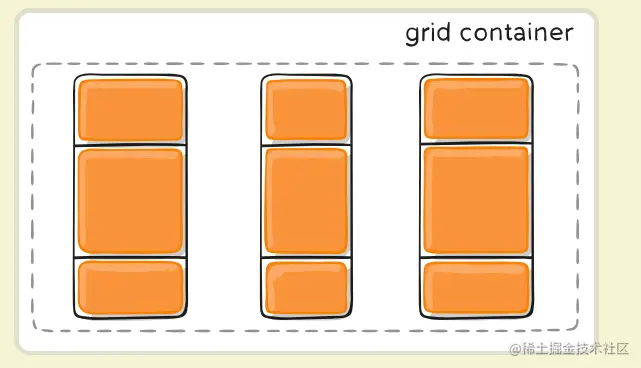

3. 每个单元格的位置

如:

  • 1.justify-items (设置单元格水平位置(左中右))
  • 2.align-items(设置单元格内容的垂直位置(上中下))
  justify-items: start | end | center | stretch;
  align-items: start | end | center | stretch;
  // stretch:拉伸,占满单元格的整个宽度(默认值)。
  • 3.place-items(justify-items 和 align-items 的合并简写)如:place-items: start end;

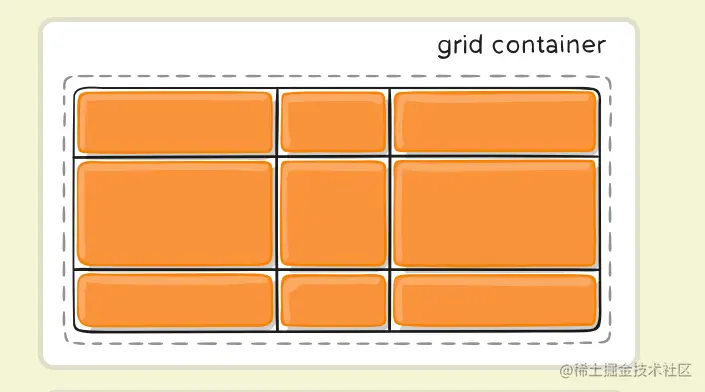

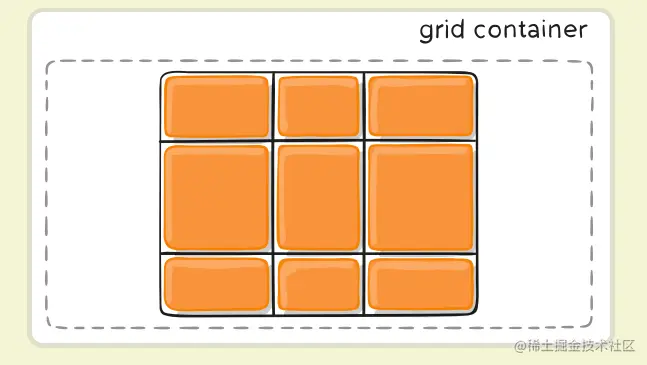

4. 整个内容区域的位置

如:

  • 1.justify-content (整个内容区域的水平位置(左中右))
  • 2.align-content(整个内容区域的垂直位置(上中下))
justify-content: start | end | center | stretch | space-around | space-between | space-evenly;
align-content: start | end | center | stretch | space-around | space-between | space-evenly;

  • 3.place-content(justify-content 和 align-content 的合并简写)如:place-content: space-around space-evenly;

5. 间隔

  grid-row-gap: 20px;  // 设置行与行之间的间隔
  grid-column-gap: 20px; // 设置列与列之间的间隔

  // 合并简写
  grid-gap: 20px 20px;

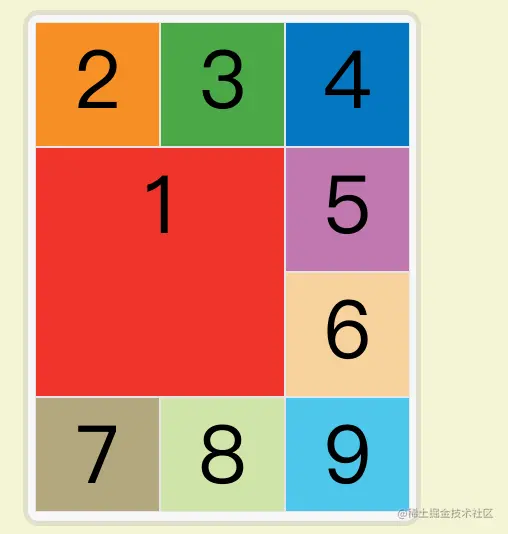

6. 先行后列 或者 先列后行

grid-auto-flow: row; // 先列后行
grid-auto-flow: column; // 先行后列

7. 多余的网格外的行高和列高设置

grid-auto-columns ,
grid-auto-rows

2.以下属性是设置在items上的

2.1 项目的位置

grid-column-start: <number>;  //属性:左边框所在的垂直网格线
grid-column-end: <number>;  //属性:右边框所在的垂直网格线
grid-row-start: <number>;  //属性:上边框所在的水平网格线
grid-row-end: <number>;  //属性:下边框所在的水平网格线

如:

.item-1 {
  grid-column-start: 1;
  grid-column-end: 3;
  grid-row-start: 2;
  grid-row-end: 4;
}

参考文章:阮一峰-gird

4. table

5. css3的响应式布局单位:vw 和 wh

vw和vh是视口(viewport units)单位,何谓视口,就是根据你浏览器窗口的大小的单位,不受显示器分辨率的影响,是不是很神奇,这就代表了,我们不需要顾虑到现在那么多不同电脑有关分辨率的自适应问题。 vw是可视窗口的宽度单位,和百分比有点一样,1vw = 可视窗口的宽度的百分之一。比如窗口宽度大小是1800px,那么1vw = 18px。和百分比不一样的是,vw始终相对于可视窗口的宽度,而百分比和其父元素的宽度有关。 vh就是可视窗口的高度了。
这边顺便提一下vmin和vmax,vmin是指选择vw和vh中最小的那个,而vmax是选择最大的那个。

  1. 使用vw和vh实现垂直居中
    .box {
        width: 50vw;
        height: 50wh;
        margin: 25vh auto;  // 上下边距为25vh,左右边距为自适应(居中)
        background-color: aquamarine;
    }

只要设置margin的上下间距,
使之 heigit + margin-top +margin-bottom = 100width + margin-left + margin-right = 100 ,
就能够响应垂直居中

4. em

em是相对长度单位。相对于当前对象内本文的字体尺寸(如果没有设置本文尺寸,那就是相对于浏览器默认的字体尺寸,也就是16px),这样计算的话。如果没有设置字体尺寸就是1em = 16px。如果使用em的话,有个好的建议,就是将body的font-size设置成62.5%,也就是16px * 62.5% = 10px。这样的话1em = 10px,方便我们计算。

5. rem

rem和em一样也是相对长度单位,但是不一样的是rem始终都是相对html根元素。这样有个很大的有点就是使用rem后不会受到对象内文本字体尺寸的影响,而且只需要改变根元素就能改变所有的字体大小。兼容性也是不错的,IE8以上版本和其他浏览器都已经支持,是个做响应式页面的好选择。
