CSS常见布局

160 阅读1分钟

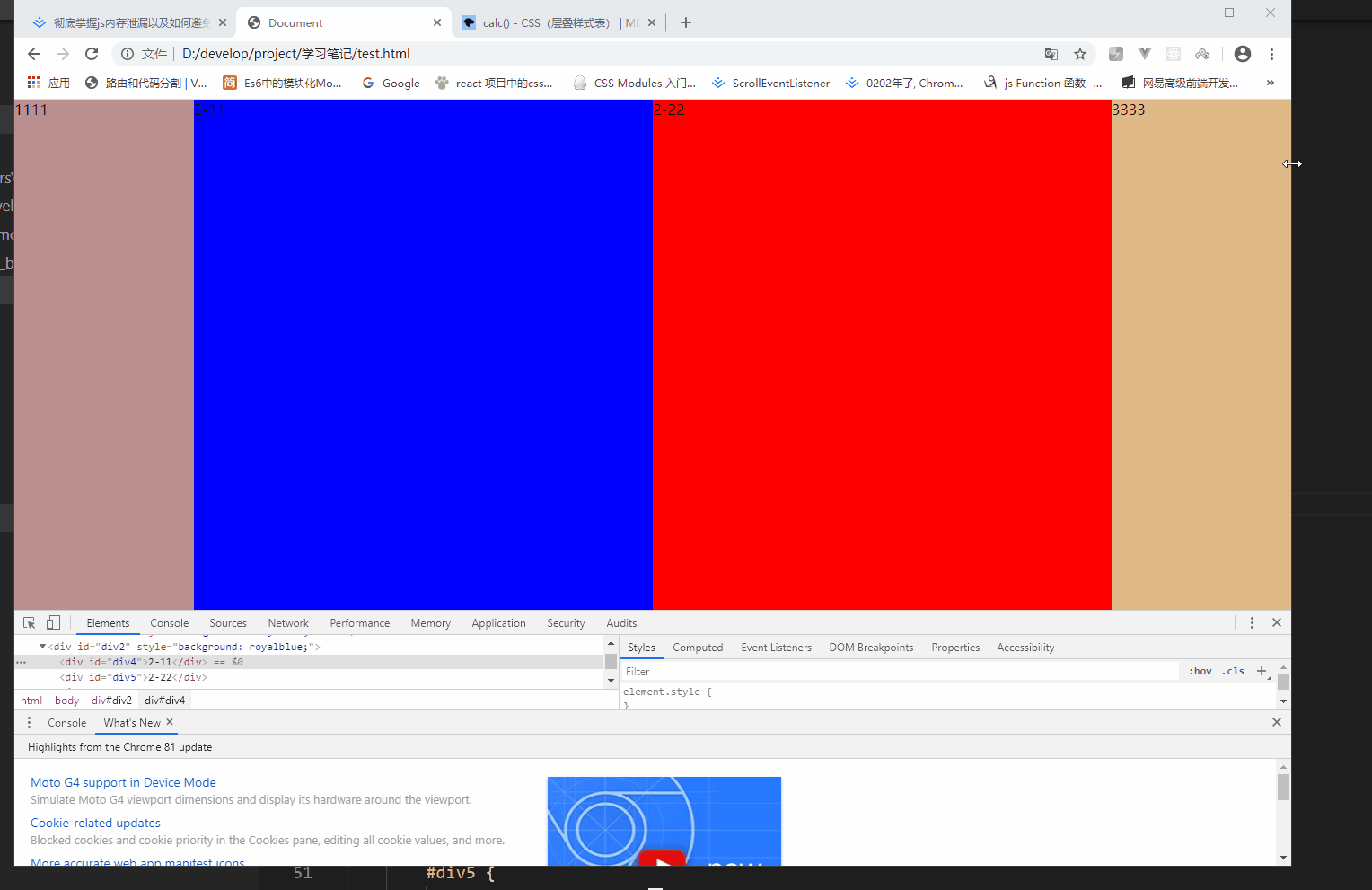

1. 两边固定,中间自适应,如果缩放,中间会变成一列排布


<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        * {
            margin: 0;
            padding: 0;
        }

        html {
            height: 100%;
        }

        body {
            width: 100%;
            height: 100%;
            display: flex;
            justify-content: space-between;
        }

        #div1 {
            height: 100%;
            width: 200px;
        }

        #div3 {
            height: 100%;
            width: 200px;
        }

        #div2 {
            flex-grow: 1;
            display: flex;
            flex-wrap: wrap;
        }

        #div4 {
            background-color: blue;
            flex-grow: 1;
            min-width: 250px;
        }

        #div5 {
            background-color: red;
            flex-grow: 1;
            min-width: 250px;
        }
    </style>
    <script src="https://cdn.bootcss.com/jquery/3.5.0/jquery.min.js"></script>
</head>

<body>
    <div id="div1" style="background: rosybrown;">1111</div>
    <div id="div2" style="background: royalblue;">
        <div id="div4">2-11</div>
        <div id="div5">2-22</div>
    </div>
    <div id="div3" style="background: burlywood;">3333</div>
</body>

</html>

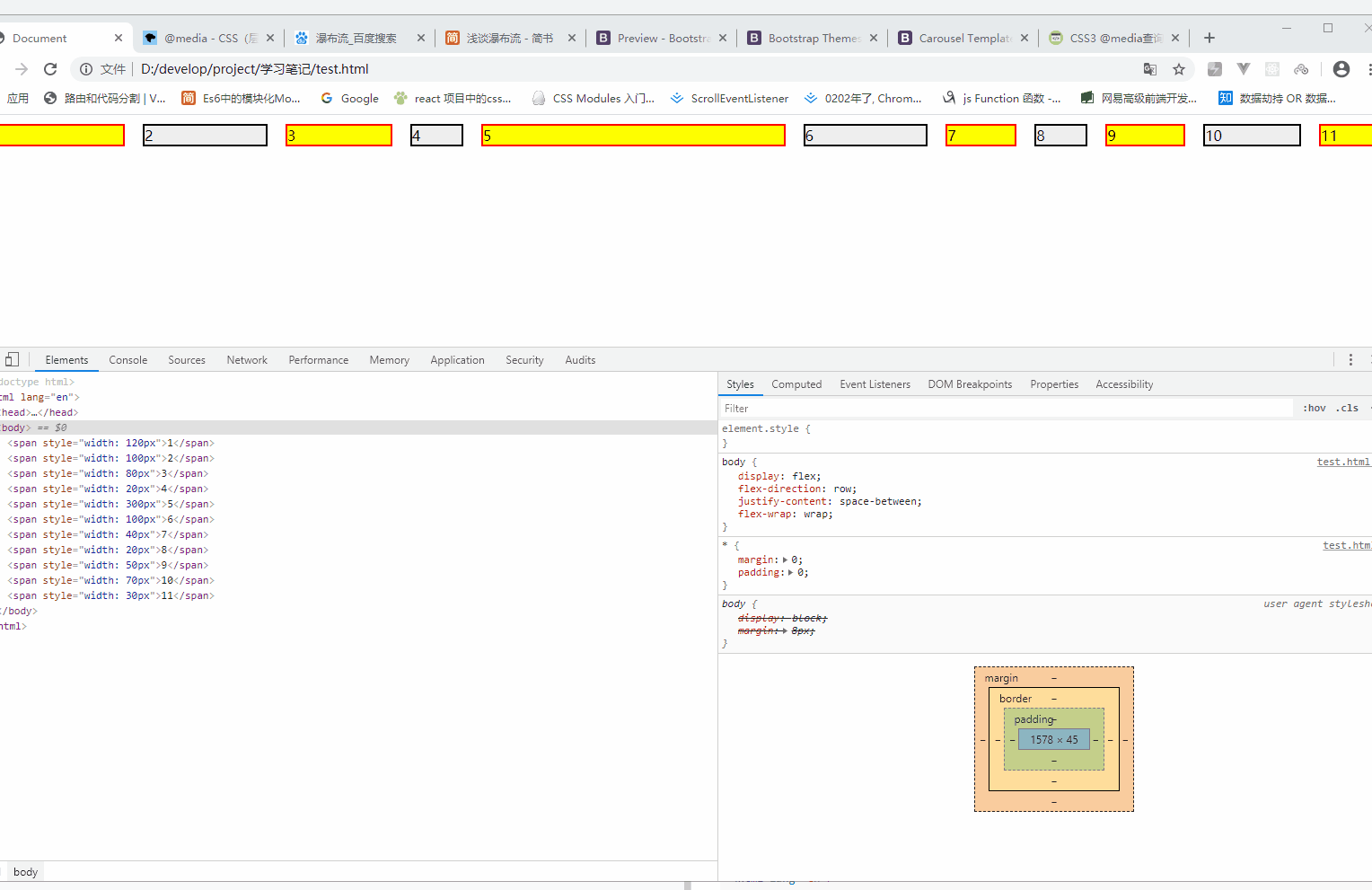

一些长宽不一样的元素,让它们尽量撑满一行,撑不下就换行。

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        * {
            margin: 0;
            padding: 0;
        }

        body {
            display: flex;
            flex-direction: row;
            justify-content: space-between;
            flex-wrap: wrap;
        }

        span {
            flex-grow: 1;
            margin: 10px;
        }

        span:nth-child(2n) {
            background: #eee;
            border: 2px solid black;
        }

        span:nth-child(2n + 1) {
            background: yellow;
            border: 2px solid red;
        }
    </style>
</head>

<body>
    <span style="width: 120px">1</span>
    <span style="width: 100px">2</span>
    <span style="width: 80px">3</span>
    <span style="width: 20px">4</span>
    <span style="width: 300px">5</span>
    <span style="width: 100px">6</span>
    <span style="width: 40px">7</span>
    <span style="width: 20px">8</span>
    <span style="width: 50px">9</span>
    <span style="width: 70px">10</span>
    <span style="width: 30px">11</span>
</body>

</html>

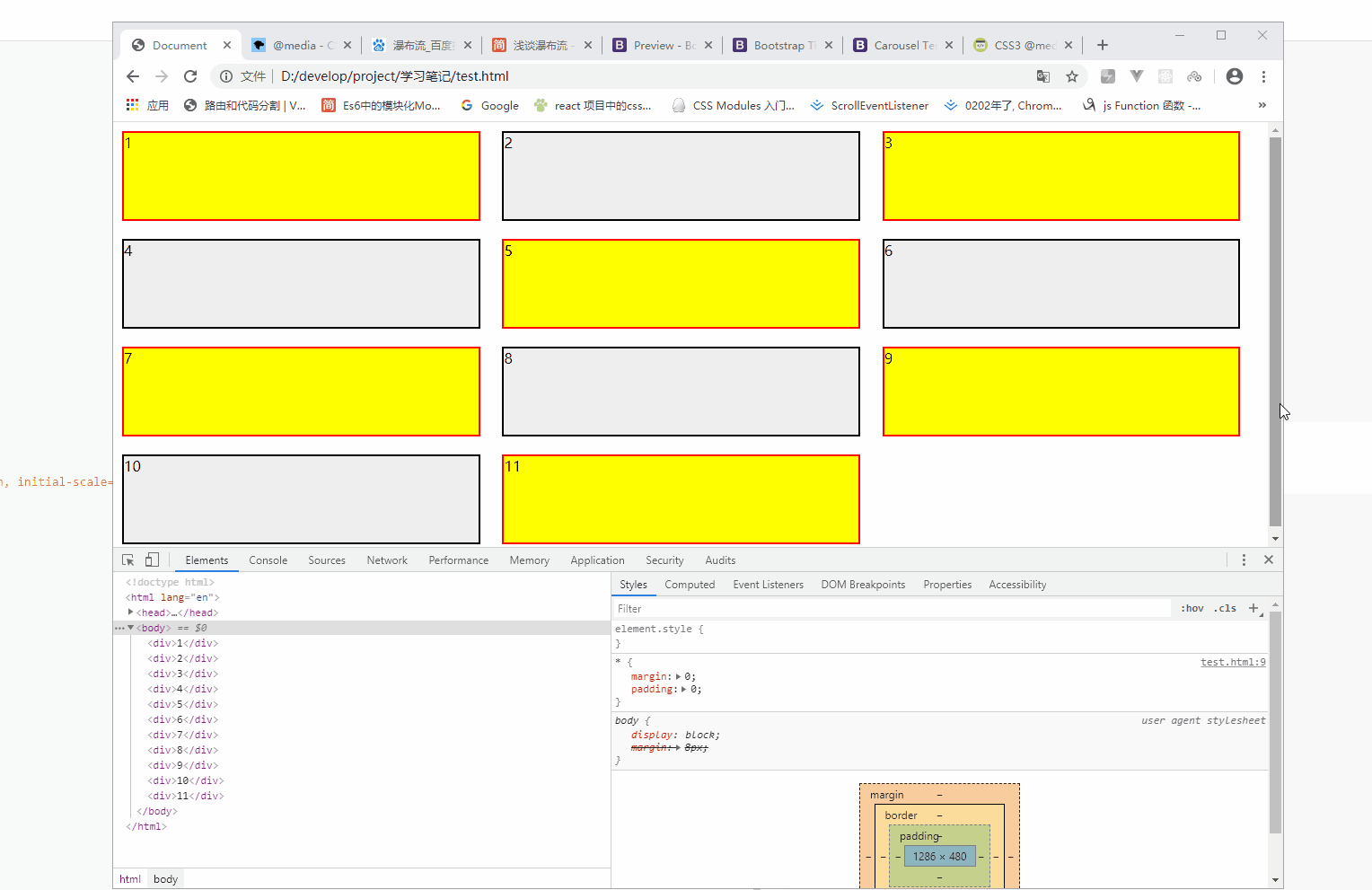

不同尺寸显示不同列数元素

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        * {
            margin: 0;
            padding: 0;
        }

        div {
            height: 100px;
            margin: 10px;
            box-sizing: border-box;
            display: inline-block;
            width: 31%;
        }

        @media screen and (max-width: 300px) {
            div {
                width: 100%;
            }
        }

        @media screen and (max-width: 800px) {
            div {
                width: 50%;
            }
        }
        /* @media screen and (max-width: 1280px) {
            div {
                width: 33%;
            }
        } */

        div:nth-child(2n) {
            background: #eee;
            border: 2px solid black;
        }

        div:nth-child(2n + 1) {
            background: yellow;
            border: 2px solid red;
        }
    </style>
</head>

<body>
    <div>1</div>
    <div>2</div>
    <div>3</div>
    <div>4</div>
    <div>5</div>
    <div>6</div>
    <div>7</div>
    <div>8</div>
    <div>9</div>
    <div>10</div>
    <div>11</div>
</body>

</html>

纯CSS实现瀑布流

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        .masonry {
            column-count: 3;
            column-gap: 0;
        }

        @media screen and (max-width: 800px) {
            .masonry {
                column-count: 2;
                column-gap: 0;
            }
        }

        @media screen and (max-width: 600px) {
            .masonry {
                /*分成几列*/
                column-count: 1;
                /*间隔大小*/
                column-gap: 0;
            }
        }

        .item {
            /*设置瀑布流的关键,设置中断点*/
            break-inside: avoid;
            box-sizing: border-box;
            padding: 10px;
        }

        #content1 {
            width: 200px;
            height: 200px;
            background-color: yellow;
            margin: 10px 10px;
        }

        #content2 {
            width: 200px;
            height: 350px;
            background-color: green;
            margin: 10px 10px;
        }

        #content3 {
            width: 200px;
            height: 150px;
            background-color: yellow;
            margin: 10px 10px;
        }

        #content4 {
            width: 200px;
            height: 200px;
            background-color: green;
            margin: 10px 10px;
        }
    </style>
</head>

<body>
    <div class="masonry">
        <div class="item">
            <div class="item__content" id="content1">
            </div>
        </div>
        <div class="item">
            <div class="item__content" id="content2">
            </div>
        </div>
        <div class="item">
            <div class="item__content" id="content3">
            </div>
        </div>
        <div class="item">
            <div class="item__content" id="content4">
            </div>
        </div>
        <!-- more items -->
    </div>
</body>

</html>

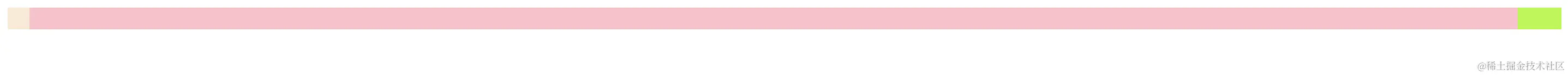

利用flex模仿实现左右浮动的布局

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Document</title>
    <style>
        .class1 {
            display: flex;
            justify-content: space-between;
        }
        .class2 {
            width: 20px;
            height: 20px;
            background-color: antiquewhite;
            text-align: left;
        }
        .class3 {
            width: 20px;
            height: 20px;
            background-color: pink;
            text-align: right;
            flex: 1;
            font-size: 0;
        }
        .class4 {
            display: inline-block;
            width: 20px;
            height: 20px;
            background-color: greenyellow;
        }
    </style>
</head>
<body>
    <div class="class1">
        <div class="class2"></div>
        <div class="class3">
            <div class="class4"></div>
            <div class="class4"></div>
        </div>
    </div>
</body>
</html>

常见居中的话可以用flex或者grid,设置justify-content, alitem-center 为center然后居中。
