SpringBoot整合Thymeleaf视图

156 阅读3分钟

3.1 Thymeleaf视图介绍

先看下官网的介绍:
==Thymeleaf是适用于Web和独立环境的现代服务器端Java模板引擎。
Thymeleaf的主要目标是为您的开发工作流程带来优雅的自然模板 -HTML可以在浏览器中正确显示,也可以作为静态原型工作,从而可以在开发团队中加强协作。
Thymeleaf拥有适用于Spring Framework的模块,与您喜欢的工具的大量集成以及插入您自己的功能的能力,对于现代HTML5 JVM Web开发而言,Thymeleaf是理想的选择。==
在SpringBoot中,SpringBoot对Thymeleaf提供了良好的支持,同时也提供了自动化配置,因此在SpringBoot中使用Thymeleaf非常快捷方便。

3.2 创建SpringBoot项目

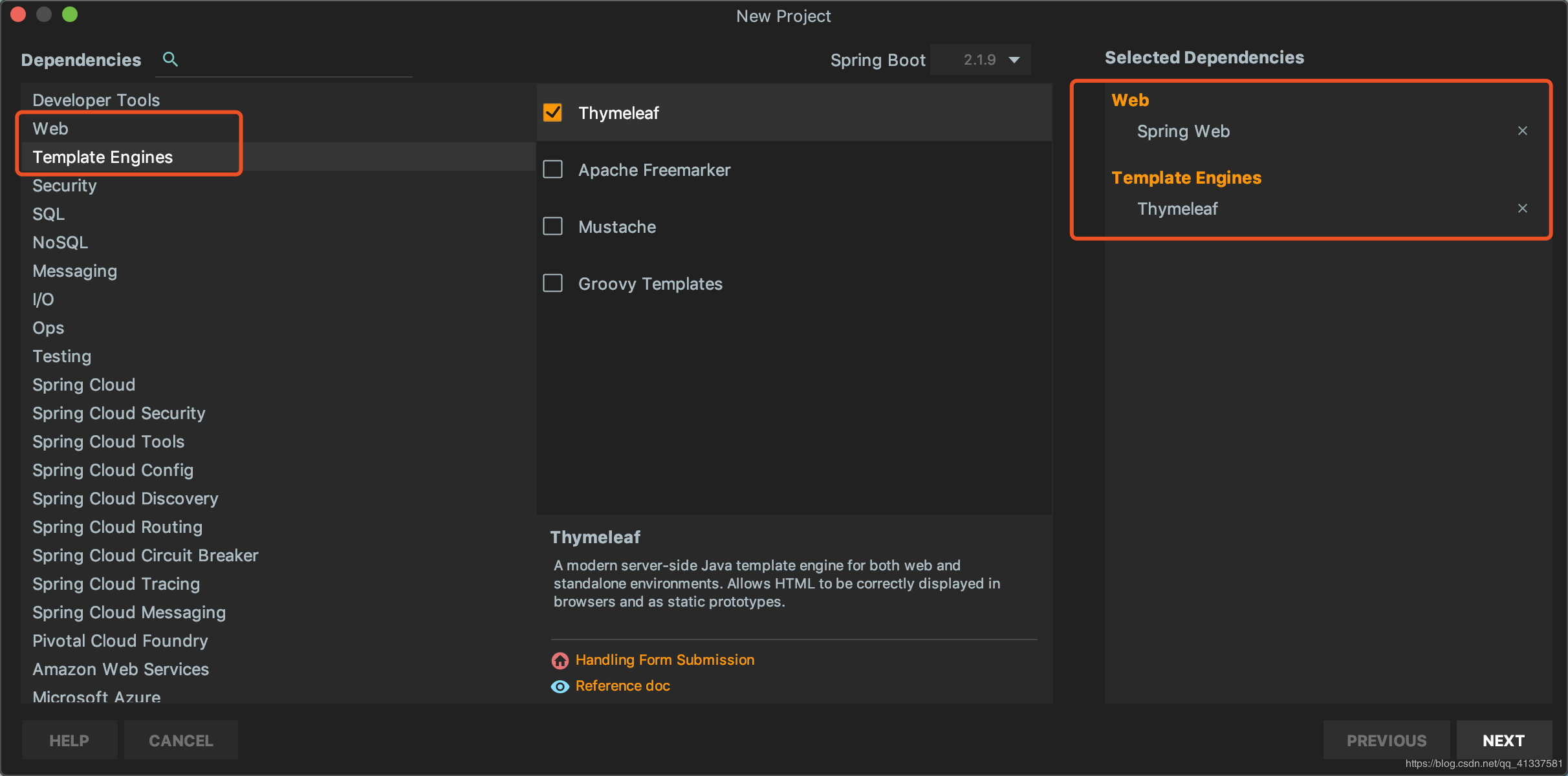

创建方法建议使用IDEA快速创建SpringBoot项目,并选择web、Thymeleaf依赖:

创建完成后,IDEA自动在pom中加入了web和Thymeleaf依赖管理,pom.xml:
<dependencies>
<dependency>
<groupId>

org.springframework.boot

</groupId>
<artifactId>

spring-boot-starter-thymeleaf

</artifactId>
</dependency>
<dependency>
<groupId>

org.springframework.boot

</groupId>
<artifactId>

spring-boot-starter-web

</artifactId>
</dependency>
<dependency>
<groupId>

org.springframework.boot

</groupId>
<artifactId>

spring-boot-starter-test

</artifactId>
<scope>

test

</scope>
</dependency>
</dependencies>

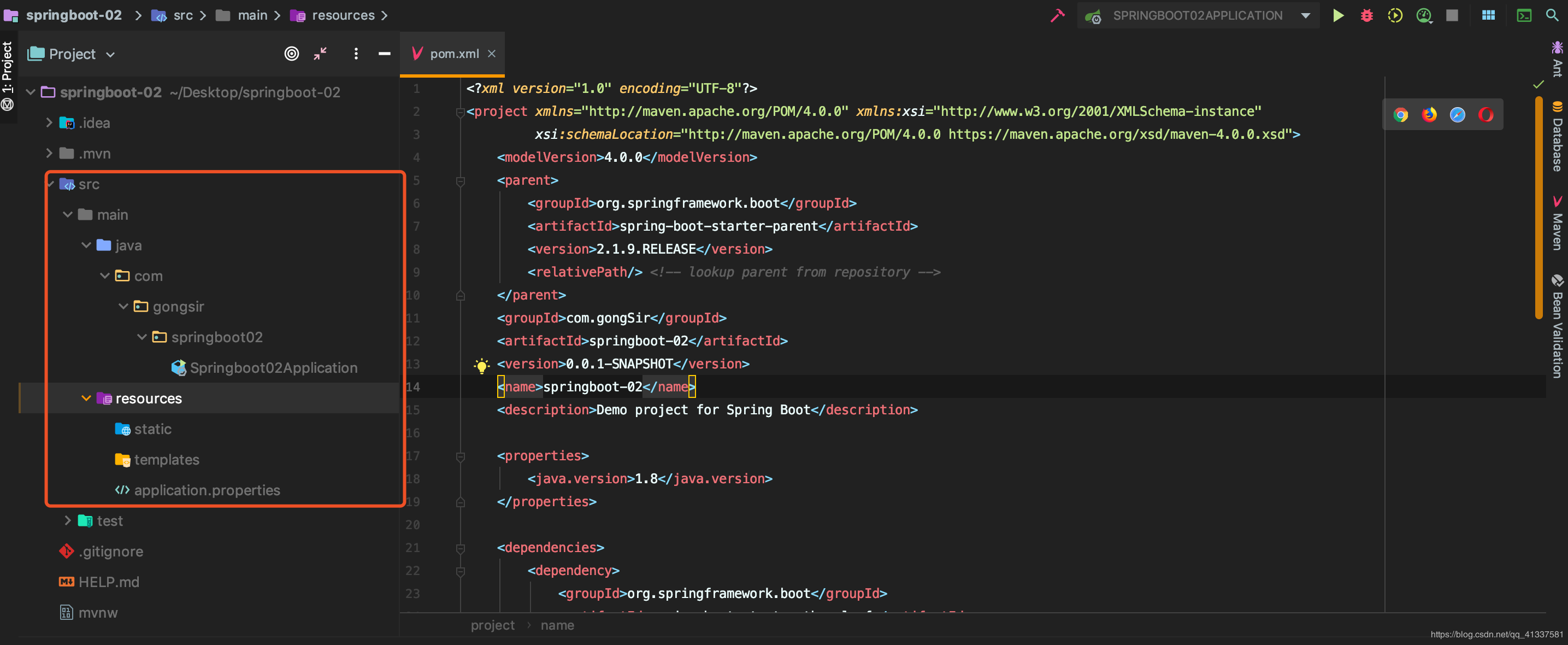

项目架构:

3.2 配置Thymeleaf

SpringBoot为Thymeleaf提供了自动化配置类ThymeleafAutoConfiguration,源码:
@Configuration
@EnableConfigurationProperties

({ThymeleafProperties.class})

@ConditionalOnClass

({TemplateMode.class, SpringTemplateEngine.class})

@AutoConfigureAfter

({WebMvcAutoConfiguration.class, WebFluxAutoConfiguration.class})

public

class ThymeleafAutoConfiguration {...}

可以看出相关的配置信息是从ThymeleafProperties类中获得的,进一步查看ThymeleafProperties的源码:
@ConfigurationProperties

( prefix =

"spring.thymeleaf"

)

public

class ThymeleafProperties {

private
static
final

Charset DEFAULT_ENCODING;

public
static
final

String DEFAULT_PREFIX =

"classpath:/templates/"

;

public
static
final

String DEFAULT_SUFFIX =

".html"

;

private
boolean

checkTemplate =

true

;

private
boolean

checkTemplateLocation =

true

;

private

String prefix =

"classpath:/templates/"

;

private

String suffix =

".html"

;

private

String mode =

"HTML"

;

//省略

}

从该配置可以看出默认的Thymeleaf存放位置是classpath:/templates/,即resources/templates/下,刚刚我们使用IDEA创建项目时,已经自动生成了该目录。
我们如果需要对Thymeleaf的配置进行更改,可直接在application.properties中配置:

#是否开启缓存,默认为

true

spring.thymeleaf.cache=

false

#检查模板文件是否存在spring.thymeleaf.check-template=

true

#检查模本目录是否存在spring.thymeleaf.check-template-location=

true

#模板文件编码spring.thymeleaf.encoding=UTF-8#模板位置spring.thymeleaf.prefix=classpath:/templates/#模板文件后缀名spring.thymeleaf.suffix=.html#Content-typespring.thymeleaf.servlet.content-type=text/html3.3 编写Demo

1、新建User和UserController:
User.java:
package

com.gongsir.springboot02.pojo;

public

class User {

private

String name;

private

String major;

private

String grade; public String getName() {

return

name; } public void setName(String name) {

this

.name = name; } public String getMajor() {

return

major; } public void setMajor(String major) {

this

.major = major; } public String getGrade() {

return

grade; } public void setGrade(String grade) {

this

.grade = grade; }}

UserController.java:
@Controller
public

class UserController {

@GetMapping

(path =

"/users"

) public ModelAndView getUsers(){ List<User> list =

new

ArrayList<>(); User u1 =

new

User(); u1.setName(

"龚涛"

); u1.setMajor(

"计算机"

); u1.setGrade(

"2017"

); list.add(u1); User u2 =

new

User(); u2.setName(

"李诗雅"

); u2.setMajor(

"网络工程"

); u2.setGrade(

"2017"

); list.add(u2);

//视图模板文件的名字,需在template目录下创建同名模板文件

ModelAndView mv =

new

ModelAndView(

"users"

); mv.addObject(

"users"

,list);

return

mv; }}

2、在模板目录下新建users.html模板文件,显示数据:
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>

用户列表

</title>
</head>
<body>
<table border="1px sold black">
<tr>
<td>

姓名

</td>
<td>

专业

</td>
<td>

年级

</td>
</tr>
<tr th:each="user:${users}">
<td th:text="${user.name}">
</td>
<td th:text="${user.major}">
</td>
<td th:text="${user.grade}">
</td>
</tr>
</table>
</body>
</html>

3、启动项目,访问,如图:
