什么是seata

一个分布式事务的解决方案具有高性能和易用性的微服务架构。

seata 如何解决分布式事务

Seata有3个基本组成部分：

  • 事务协调器（TC）：维护全局事务和分支事务的状态，驱动全局提交或回滚。 事

  • 务管理器TM：定义全局事务的范围：开始全局事务，提交或回滚全局事务。

  • 资源管理器（RM）：管理分支事务正在处理的资源，与TC进行对话以注册分支事务并报告分支事务的状态，并驱动分支事务的提交或回滚。

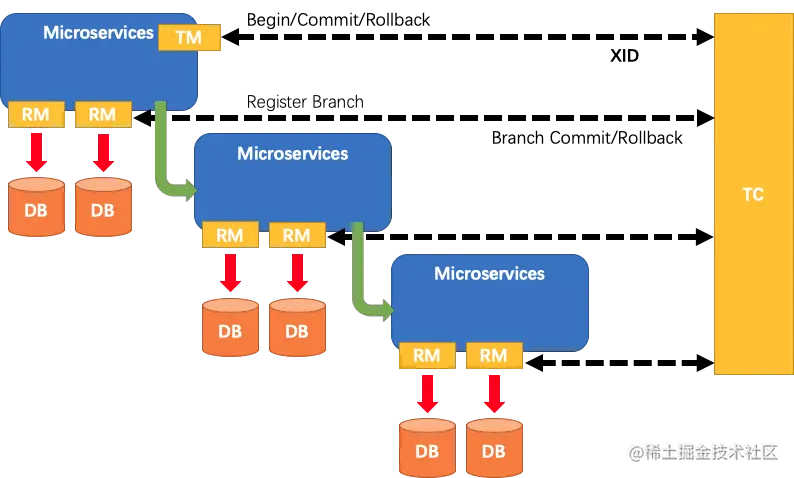

Seata管理的分布式事务的典型生命周期：

  • TM要求TC生成代表全局事务的XID。

  • XID通过微服务的调用链传播。

  • RM将本地事务注册为XID到TC的相应全局事务的分支。

  • TM要求TC提交或回滚XID的相应全局事务。

  • TC驱动XID对应的全局事务下的所有分支事务以完成分支提交或回滚。

github.com/seata/seata…

seata demo搭建

seata-server 数据库创建及配置修改

1、创建数据库 seata 创建表branch_table、global_table、lock_table

/*
 Navicat Premium Data Transfer

 Source Server         : 119.3.252.69
 Source Server Type    : MySQL
 Source Server Version : 50722
 Source Host           : 119.3.252.69:3306
 Source Schema         : seata

 Target Server Type    : MySQL
 Target Server Version : 50722
 File Encoding         : 65001

 Date: 01/05/2020 18:22:30
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for branch_table
-- ----------------------------
DROP TABLE IF EXISTS `branch_table`;
CREATE TABLE `branch_table`  (
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `transaction_id` bigint(20) NULL DEFAULT NULL,
  `resource_group_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `resource_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `branch_type` varchar(8) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `status` tinyint(4) NULL DEFAULT NULL,
  `client_id` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `application_data` varchar(2000) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`branch_id`) USING BTREE,
  INDEX `idx_xid`(`xid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for global_table
-- ----------------------------
DROP TABLE IF EXISTS `global_table`;
CREATE TABLE `global_table`  (
  `xid` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `transaction_id` bigint(20) NULL DEFAULT NULL,
  `status` tinyint(4) NOT NULL,
  `application_id` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `transaction_service_group` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `transaction_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `timeout` int(11) NULL DEFAULT NULL,
  `begin_time` bigint(20) NULL DEFAULT NULL,
  `application_data` varchar(2000) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`xid`) USING BTREE,
  INDEX `idx_gmt_modified_status`(`gmt_modified`, `status`) USING BTREE,
  INDEX `idx_transaction_id`(`transaction_id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for lock_table
-- ----------------------------
DROP TABLE IF EXISTS `lock_table`;
CREATE TABLE `lock_table`  (
  `row_key` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `xid` varchar(96) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `transaction_id` bigint(20) NULL DEFAULT NULL,
  `branch_id` bigint(20) NOT NULL,
  `resource_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `table_name` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `pk` varchar(36) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `gmt_create` datetime(0) NULL DEFAULT NULL,
  `gmt_modified` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`row_key`) USING BTREE,
  INDEX `idx_branch_id`(`branch_id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

2、打开seata server con文件夹修改配置

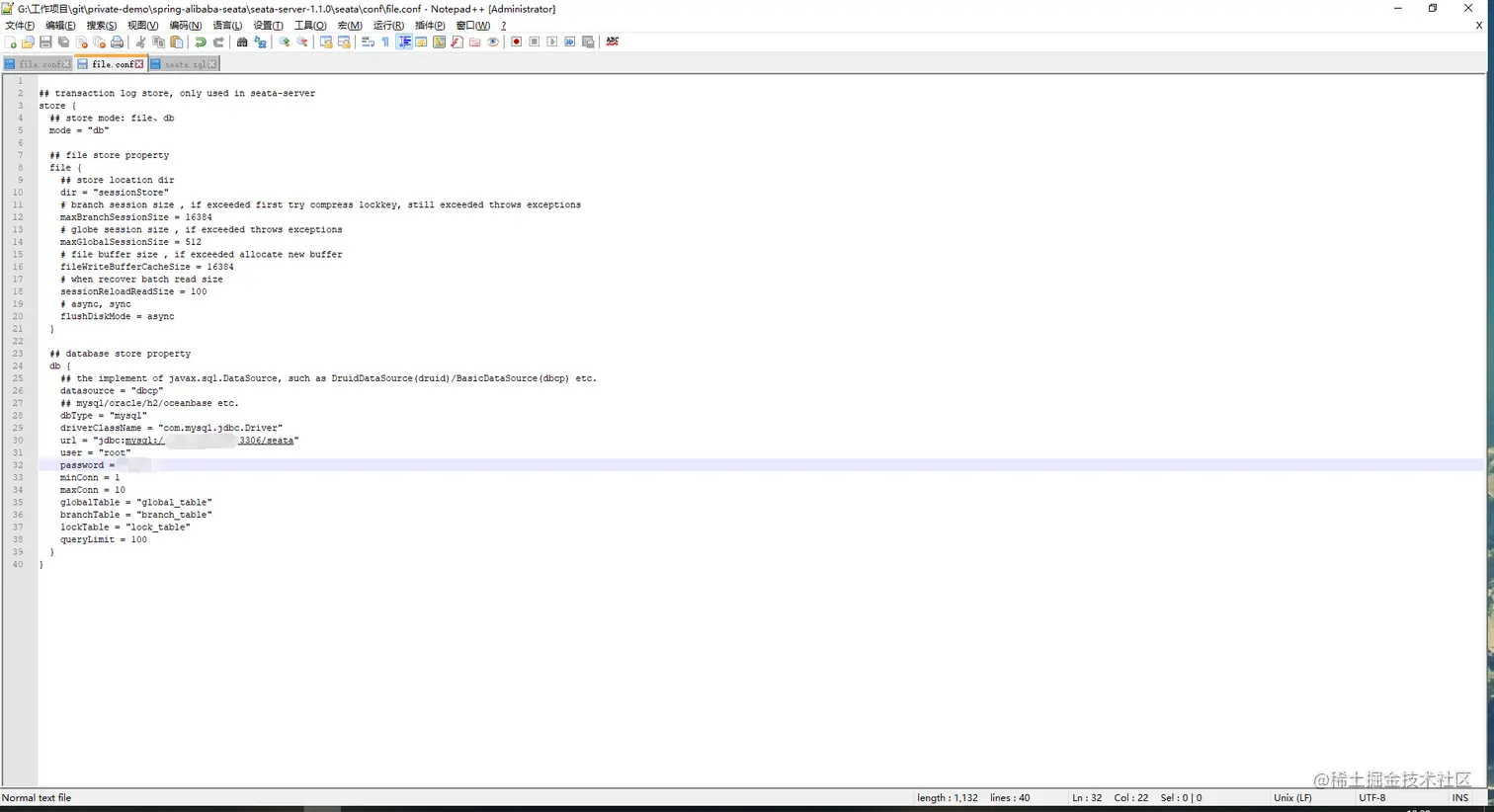

1、修改file.conf

1、修改 store -> model 为db模式

2、修改 db -> 数据库连接

分布式事务测试服务搭建

1、创建数据库 account_1 、account_2 分别创建account 与 undo_log 表

/*
 Navicat Premium Data Transfer

 Source Server         : 119.3.252.69
 Source Server Type    : MySQL
 Source Server Version : 50722
 Source Host           : 119.3.252.69:3306
 Source Schema         : account_1

 Target Server Type    : MySQL
 Target Server Version : 50722
 File Encoding         : 65001

 Date: 01/05/2020 22:01:05
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for account
-- ----------------------------
DROP TABLE IF EXISTS `account`;
CREATE TABLE `account`  (
  `id` int(11) NULL DEFAULT NULL,
  `user_id` int(11) NULL DEFAULT NULL,
  `total` decimal(10, 0) NULL DEFAULT NULL
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Table structure for undo_log
-- ----------------------------
DROP TABLE IF EXISTS `undo_log`;
CREATE TABLE `undo_log`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `context` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime(0) NOT NULL,
  `log_modified` datetime(0) NOT NULL,
  `ext` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE INDEX `ux_undo_log`(`xid`, `branch_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

2、创建account1、account2 服务

1、seata 主要依赖

    <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-alibaba-seata</artifactId>
        <version>2.1.0.RELEASE</version>
        <exclusions>
            <exclusion>
                <groupId>io.seata</groupId>
                <artifactId>seata-all</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>io.seata</groupId>
        <artifactId>seata-all</artifactId>
        <version>1.1.0</version>
    </dependency>
    </dependencies>

2、配置seata代理数据源

package com.yxy.springalibabaseata.config;

import com.alibaba.druid.pool.DruidDataSource;
import com.zaxxer.hikari.HikariDataSource;
import io.seata.rm.datasource.DataSourceProxy;
import org.springframework.boot.autoconfigure.jdbc.DataSourceProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;

import javax.sql.DataSource;

/**
 * @auther liuliang
 * @date 2020/3/3 11:26 AM
 */
@Configuration
public class DataSourceProxyAutoConfiguration {
    /**
     * 数据源属性配置
     * {@link DataSourceProperties}
     */
    private DataSourceProperties dataSourceProperties;

    public DataSourceProxyAutoConfiguration(DataSourceProperties dataSourceProperties) {
        this.dataSourceProperties = dataSourceProperties;
    }

    /**
     * 配置数据源代理，用于事务回滚
     *
     * @return The default datasource
     * @see DataSourceProxy
     */
    @Primary
    @Bean("dataSource")
    public DataSource dataSource() {
        DruidDataSource dataSource = new DruidDataSource();
//        HikariDataSource dataSource = new HikariDataSource();
        dataSource.setUrl(dataSourceProperties.getUrl());
        dataSource.setUsername(dataSourceProperties.getUsername());
        dataSource.setPassword(dataSourceProperties.getPassword());
        dataSource.setDriverClassName(dataSourceProperties.getDriverClassName());
        return new DataSourceProxy(dataSource);
    }
}

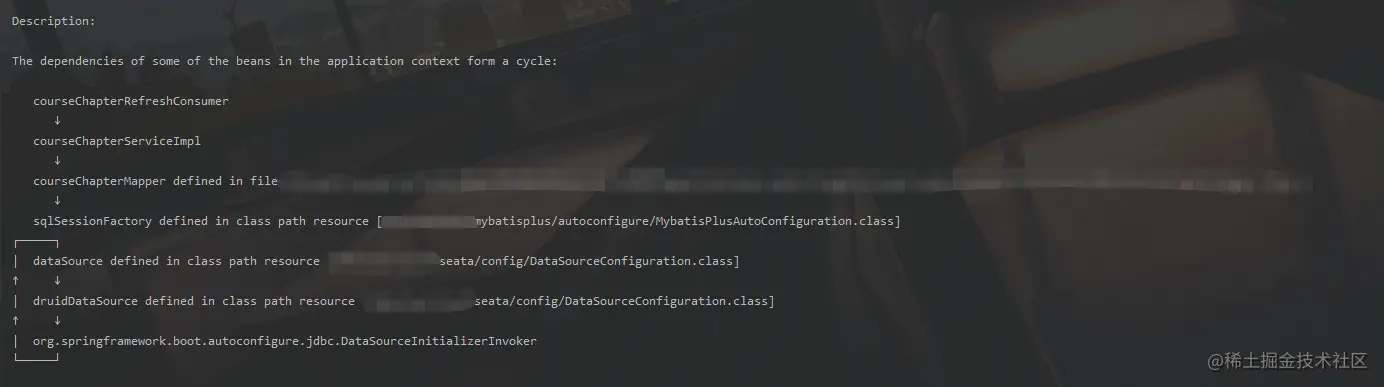

2.1、如出现数据源循环依赖 排除DataSourceAutoConfiguration的自动加载

@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})

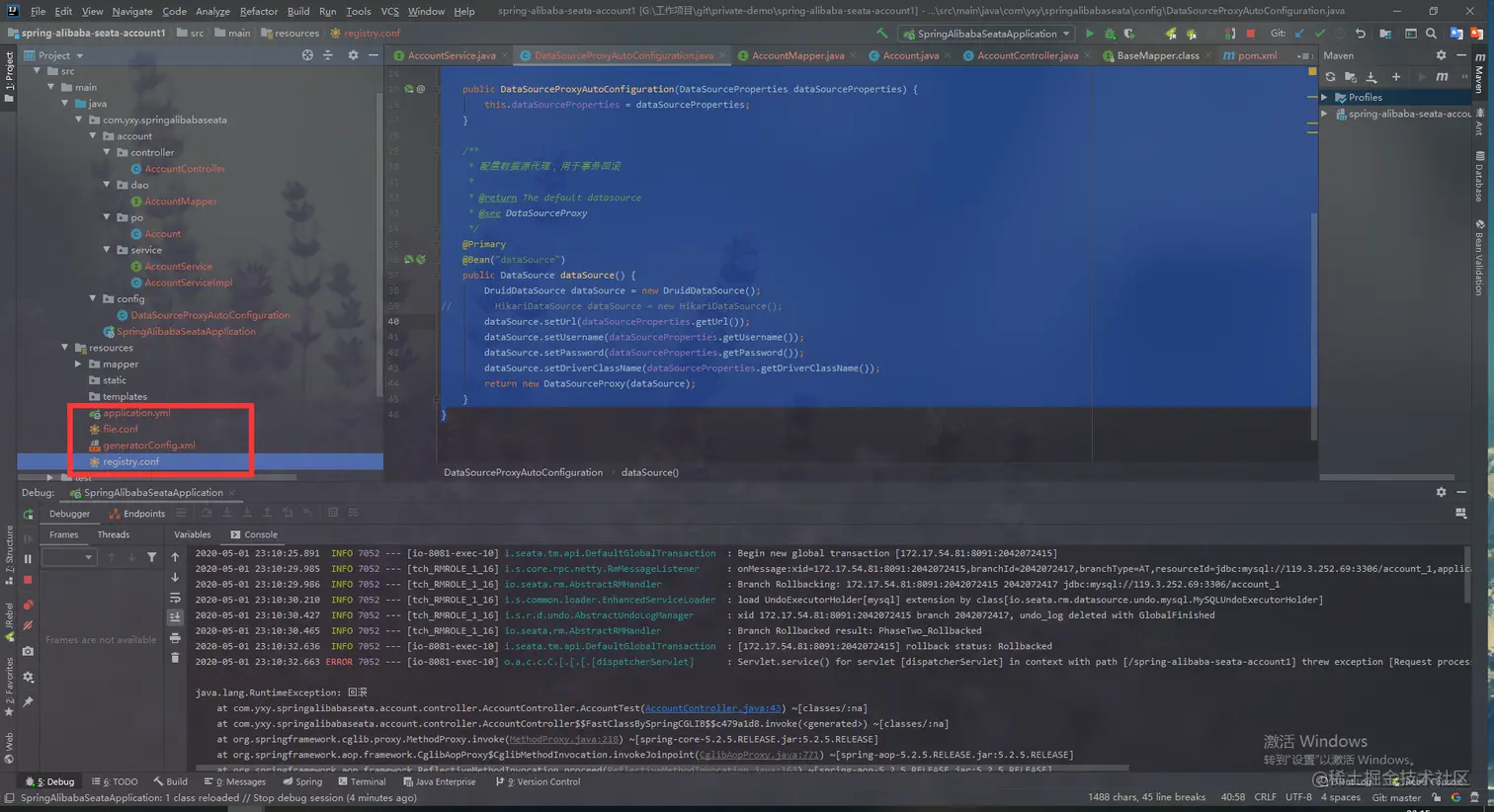

3、将seata-server 下的 file.com 与 registry.conf 拷贝到 resource 目录下

file.conf 增加 service 并且修改 vgroupMapping

service {
  # 修改vgroupMapping  spring-alibaba-seata-account1 = ${spring.application.name}
  vgroupMapping.spring-alibaba-seata-account1-fescar-service-group = "default"
  #seata-service 地址
  default.grouplist = "127.0.0.1:8091"
  #degrade, current not support
  enableDegrade = false
  #disable seata
  disableGlobalTransaction = false
}

4、启动seata-server 与 account1

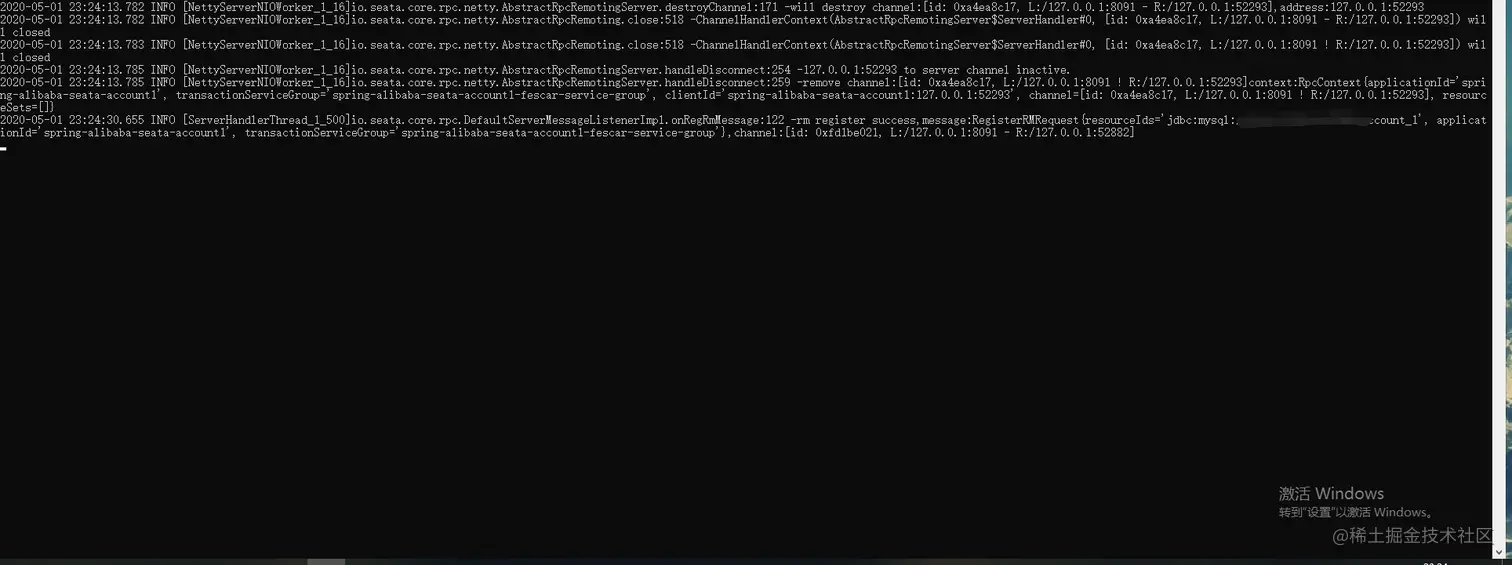

成功连接

5、之后拷贝一份account1 改名为 account2 作为服务提供者手动抛出异常，或断点查看undo_log数据验证事务是否生效

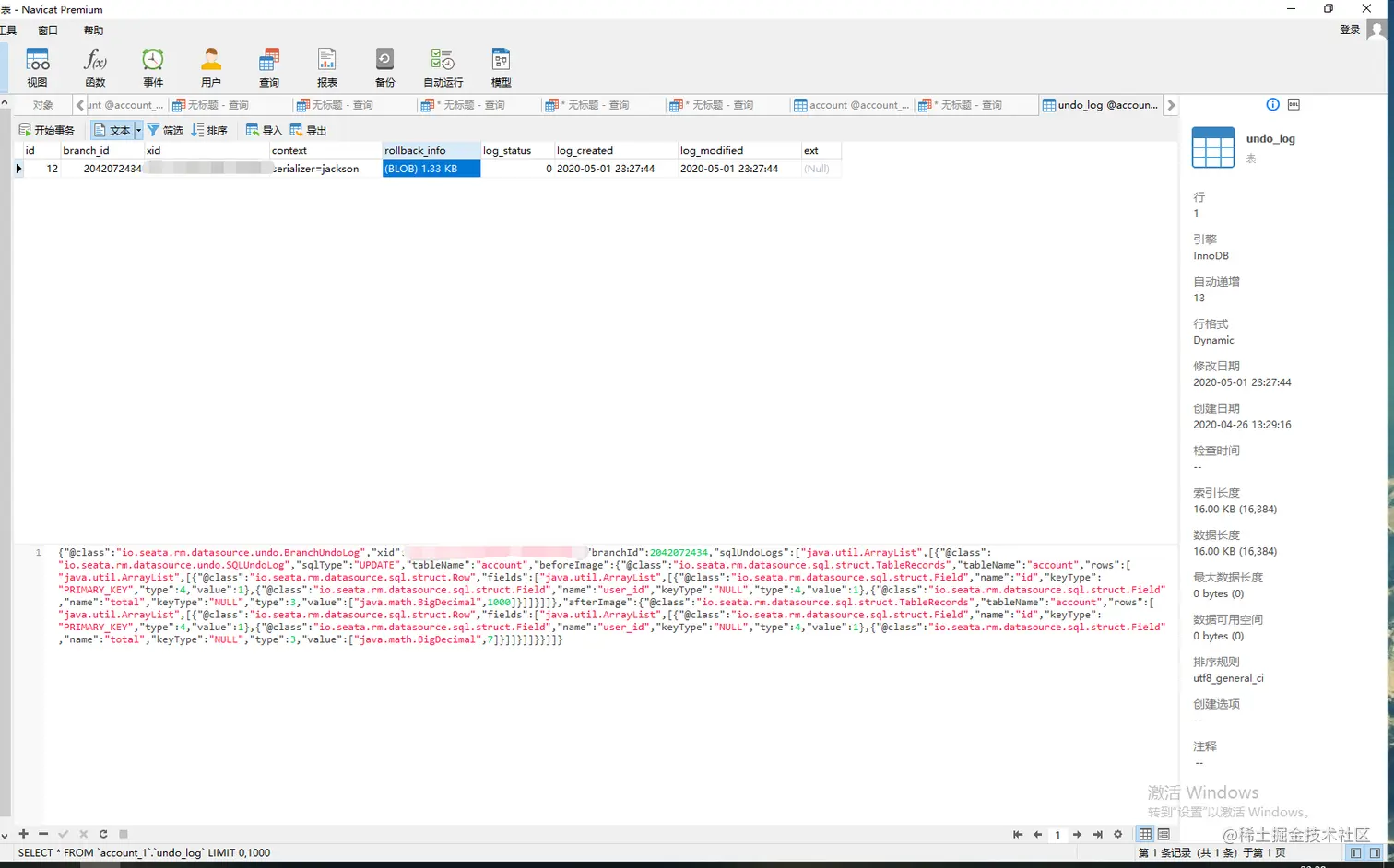

undo_log 数据日志 可以看到请求之前total 为 1000 手动抛出异常二阶段分支事务回滚

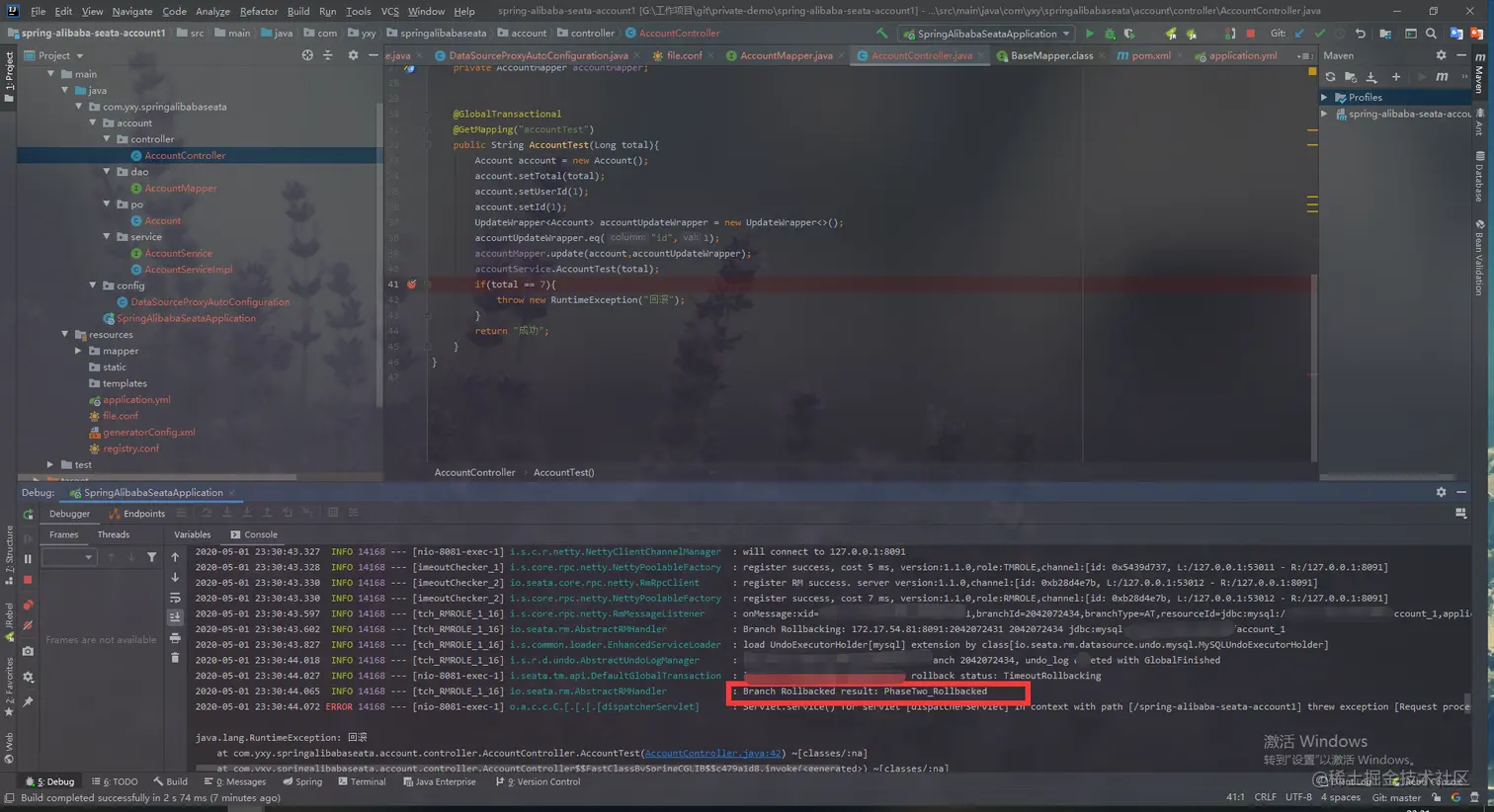

account1 回滚 account2 回滚

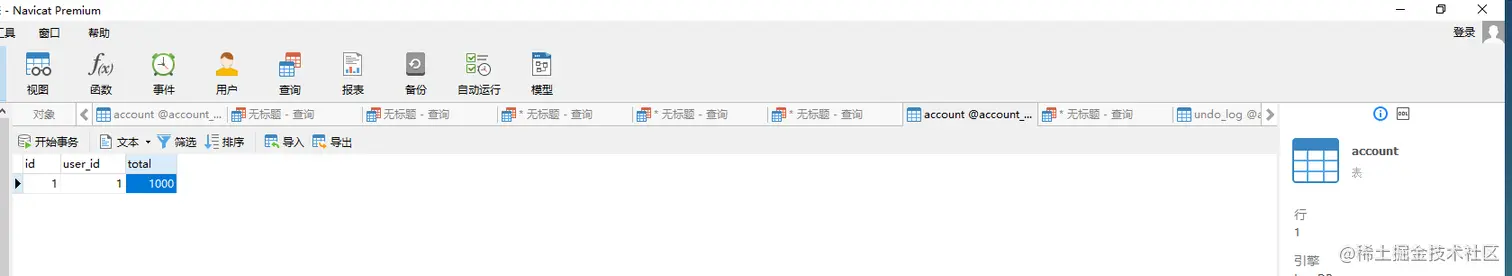

account1、account2 回滚后数据还是 1000
