全程代码高能预警，为了让读者看的明白，本文是从一个没有读过源码的小白视角来分析Retrofit的，代码量非常大，阅读时如有不适，及时休息。
Retrofit简单使用
对于Retrofit相信大家都不会陌生，使用起来也非常简单，以下代码就可以简单使用：
val retrofit = Retrofit.Builder()
.baseUrl("https://www.github.com")
.build()
val userService = retrofit.create(UserService::class.java)
val call = userService.getUserInfo("1")
call.enqueue(object : Callback<ResponseBody> {
override fun onFailure(call: Call<ResponseBody>, t: Throwable) {
}
override fun onResponse(call: Call<ResponseBody>, response: Response<ResponseBody>) {
}
})
用法都会，但是这几段代码究竟做了什么呢？接下来我会从源码的角度来分析一遍。
Retrofit源码分析
以下是retrofit的create方法:
@SuppressWarnings("unchecked") // Single-interface proxy creation guarded by parameter safety.
public <T> T create(final Class<T> service) {
Utils.validateServiceInterface(service);
if (validateEagerly) {
eagerlyValidateMethods(service);
}
return (T) Proxy.newProxyInstance(service.getClassLoader(), new Class<?>[] { service },
new InvocationHandler() {
private final Platform platform = Platform.get();
private final Object[] emptyArgs = new Object[0];
@Override public @Nullable Object invoke(Object proxy, Method method,
@Nullable Object[] args) throws Throwable {
// If the method is a method from Object then defer to normal invocation.
if (method.getDeclaringClass() == Object.class) {
return method.invoke(this, args);
}
if (platform.isDefaultMethod(method)) {
return platform.invokeDefaultMethod(method, service, proxy, args);
}
return loadServiceMethod(method).invoke(args != null ? args : emptyArgs);
}
});
}
第一行主要是对传入的class进行校验，具体校验方法如下：
static <T> void validateServiceInterface(Class<T> service) {
if (!service.isInterface()) {
throw new IllegalArgumentException("API declarations must be interfaces.");
}
// Prevent API interfaces from extending other interfaces. This not only avoids a bug in
// Android (http://b.android.com/58753) but it forces composition of API declarations which is
// the recommended pattern.
if (service.getInterfaces().length > 0) {
throw new IllegalArgumentException("API interfaces must not extend other interfaces.");
}
}
看代码我们会发现，主要是从两个角度校验的，第一是class是不是一个接口，第二这个接口有没有继承自其他接口，那为什么会做这样的校验呢，我们后面再说。 而
if (validateEagerly) {
eagerlyValidateMethods(service);
}
主要是为了程序的稳定性，这里我们就不多说了，主要看下面。细心的读者已经发现了
Proxy.newProxyInstance
从这我们可以看出create方法里面主要是使用了动态代理的方式，那么回到刚才第一段代码的校验我们就很容易理解了。而动态代理里面又做了什么呢？
// If the method is a method from Object then defer to normal invocation.
if (method.getDeclaringClass() == Object.class) {
return method.invoke(this, args);
}
这段代码组要是看方法是不是Object里面的，如果是我们就不处理。
if (platform.isDefaultMethod(method)) {
return platform.invokeDefaultMethod(method, service, proxy, args);
}
这段代码主要是适配平台的，我们可以简单看一下这个Platform,
private static final Platform PLATFORM = findPlatform();
static Platform get() {
return PLATFORM;
}
private static Platform findPlatform() {
try {
Class.forName("android.os.Build");
if (Build.VERSION.SDK_INT != 0) {
return new Android();
}
} catch (ClassNotFoundException ignored) {
}
try {
Class.forName("java.util.Optional");
return new Java8();
} catch (ClassNotFoundException ignored) {
}
return new Platform();
}
重点是下面这段代码
return loadServiceMethod(method).invoke(args != null ? args : emptyArgs);
这段代码我们可以分两部分解读，首先是loadServiceMethod(method),它主要是做什么的呢，让我们跟进去看一下
ServiceMethod<?> loadServiceMethod(Method method) {
ServiceMethod<?> result = serviceMethodCache.get(method);
if (result != null) return result;
synchronized (serviceMethodCache) {
result = serviceMethodCache.get(method);
if (result == null) {
result = ServiceMethod.parseAnnotations(this, method);
serviceMethodCache.put(method, result);
}
}
return result;
}
从上面代码中不难看出主要是返回一个ServiceMethod，会先从serviceMethodCache中查看有没有缓存，有的话直接返回，没有则创建一个并加入缓存,创建时则会先调用下parseAnnotations方法。ServiceMethod是一个抽象类，里面主要有两个方法，
static <T> ServiceMethod<T> parseAnnotations(Retrofit retrofit, Method method) {
RequestFactory requestFactory = RequestFactory.parseAnnotations(retrofit, method);
Type returnType = method.getGenericReturnType();
if (Utils.hasUnresolvableType(returnType)) {
throw methodError(method,
"Method return type must not include a type variable or wildcard: %s", returnType);
}
if (returnType == void.class) {
throw methodError(method, "Service methods cannot return void.");
}
return HttpServiceMethod.parseAnnotations(retrofit, method, requestFactory);
}
abstract @Nullable T invoke(Object[] args);
看ServiceMethod的parseAnnotations方法会发现最终返回的是HttpServiceMethod.parseAnnotations，打开HttpServiceMethod我们会发现它是ServiceMethod方法的一个实现类，让我们看看parseAnnotations究竟做了什么，代码稍微有点长，我就隐藏了下kotlin协程相关方面的处理（这段代码只有用到协程时才会调用）
static <ResponseT, ReturnT> HttpServiceMethod<ResponseT, ReturnT> parseAnnotations(
Retrofit retrofit, Method method, RequestFactory requestFactory) {
boolean isKotlinSuspendFunction = requestFactory.isKotlinSuspendFunction;
boolean continuationWantsResponse = false;
boolean continuationBodyNullable = false;
Annotation[] annotations = method.getAnnotations();
Type adapterType;
if (isKotlinSuspendFunction) {
......
} else {
adapterType = method.getGenericReturnType();
}
CallAdapter<ResponseT, ReturnT> callAdapter =
createCallAdapter(retrofit, method, adapterType, annotations);
Type responseType = callAdapter.responseType();
if (responseType == okhttp3.Response.class) {
throw methodError(method, "'"
+ getRawType(responseType).getName()
+ "' is not a valid response body type. Did you mean ResponseBody?");
}
if (responseType == Response.class) {
throw methodError(method, "Response must include generic type (e.g., Response<String>)");
}
// TODO support Unit for Kotlin?
if (requestFactory.httpMethod.equals("HEAD") && !Void.class.equals(responseType)) {
throw methodError(method, "HEAD method must use Void as response type.");
}
Converter<ResponseBody, ResponseT> responseConverter =
createResponseConverter(retrofit, method, responseType);
okhttp3.Call.Factory callFactory = retrofit.callFactory;
if (!isKotlinSuspendFunction) {
return new CallAdapted<>(requestFactory, callFactory, responseConverter, callAdapter);
} else if (continuationWantsResponse) {
//noinspection unchecked Kotlin compiler guarantees ReturnT to be Object.
return (HttpServiceMethod<ResponseT, ReturnT>) new SuspendForResponse<>(requestFactory,
callFactory, responseConverter, (CallAdapter<ResponseT, Call<ResponseT>>) callAdapter);
} else {
//noinspection unchecked Kotlin compiler guarantees ReturnT to be Object.
return (HttpServiceMethod<ResponseT, ReturnT>) new SuspendForBody<>(requestFactory,
callFactory, responseConverter, (CallAdapter<ResponseT, Call<ResponseT>>) callAdapter,
continuationBodyNullable);
}
}
分析代码我们会发现中间会创建一个callAdapter和一个responseConverter，最终调用
return new CallAdapted<>(requestFactory, callFactory, responseConverter, callAdapter);
首先我们先来看callAdapter，通过跟踪代码发现最终走到Retrofit的
public CallAdapter<?, ?> nextCallAdapter(@Nullable CallAdapter.Factory skipPast, Type returnType,
Annotation[] annotations) {
checkNotNull(returnType, "returnType == null");
checkNotNull(annotations, "annotations == null");
int start = callAdapterFactories.indexOf(skipPast) + 1;
for (int i = start, count = callAdapterFactories.size(); i < count; i++) {
CallAdapter<?, ?> adapter = callAdapterFactories.get(i).get(returnType, annotations, this);
if (adapter != null) {
return adapter;
}
}
...省略若干...
}
最后从callAdapterFactories中取到，那么callAdapterFactories是什么又是怎么存进去的呢，最终跟踪到了Retrofit的Build方法中：
/**
* Create the {@link Retrofit} instance using the configured values.
* <p>
* Note: If neither {@link #client} nor {@link #callFactory} is called a default {@link
* OkHttpClient} will be created and used.
*/
public Retrofit build() {
if (baseUrl == null) {
throw new IllegalStateException("Base URL required.");
}
okhttp3.Call.Factory callFactory = this.callFactory;
if (callFactory == null) {
callFactory = new OkHttpClient();
}
Executor callbackExecutor = this.callbackExecutor;
if (callbackExecutor == null) {
callbackExecutor = platform.defaultCallbackExecutor();
}
// Make a defensive copy of the adapters and add the default Call adapter.
List<CallAdapter.Factory> callAdapterFactories = new ArrayList<>(this.callAdapterFactories);
callAdapterFactories.addAll(platform.defaultCallAdapterFactories(callbackExecutor));
// Make a defensive copy of the converters.
List<Converter.Factory> converterFactories = new ArrayList<>(
1 + this.converterFactories.size() + platform.defaultConverterFactoriesSize());
// Add the built-in converter factory first. This prevents overriding its behavior but also
// ensures correct behavior when using converters that consume all types.
converterFactories.add(new BuiltInConverters());
converterFactories.addAll(this.converterFactories);
converterFactories.addAll(platform.defaultConverterFactories());
return new Retrofit(callFactory, baseUrl, unmodifiableList(converterFactories),
unmodifiableList(callAdapterFactories), callbackExecutor, validateEagerly);
}
从这里不难看出如果创建Retrofit的时候没有添加一个的话最终会添加一个默认的
// Make a defensive copy of the adapters and add the default Call adapter.
List<CallAdapter.Factory> callAdapterFactories = new ArrayList<>(this.callAdapterFactories);
callAdapterFactories.addAll(platform.defaultCallAdapterFactories(callbackExecutor));
在这里重点提一下callbackExecutor，这个由Platform创建的运行在android环境中最终会返回一个MainThreadExecutor，下面是具体代码
@Override public Executor defaultCallbackExecutor() {
return new MainThreadExecutor();
}
static class MainThreadExecutor implements Executor {
private final Handler handler = new Handler(Looper.getMainLooper());
@Override public void execute(Runnable r) {
handler.post(r);
}
}
而MainThreadExecutor中有个handler，会传入Looper.getMainLooper()，最终就是通过handler来最终于android主线程进行通讯的。回到前面DefaultCallAdapterFactory，发现里面有个get方法，我们的callAdapter最终就是通过get方法创建的
@Override public @Nullable CallAdapter<?, ?> get(
Type returnType, Annotation[] annotations, Retrofit retrofit) {
if (getRawType(returnType) != Call.class) {
return null;
}
if (!(returnType instanceof ParameterizedType)) {
throw new IllegalArgumentException(
"Call return type must be parameterized as Call<Foo> or Call<? extends Foo>");
}
final Type responseType = Utils.getParameterUpperBound(0, (ParameterizedType) returnType);
final Executor executor = Utils.isAnnotationPresent(annotations, SkipCallbackExecutor.class)
? null
: callbackExecutor;
return new CallAdapter<Object, Call<?>>() {
@Override public Type responseType() {
return responseType;
}
@Override public Call<Object> adapt(Call<Object> call) {
return executor == null
? call
: new ExecutorCallbackCall<>(executor, call);
}
};
}
而responseConverte也是最终能追踪到Retrofit的Build()中，下面我们继续看HttpServiceMethod的parseAnnotations的最终调用，
return new CallAdapted<>(requestFactory, callFactory, responseConverter, callAdapter);
最终会返回一个CallAdapted对象，CallAdapted则是继承自HttpServiceMethod，走到这Retrofit的create方法最终执行的前半部分就分析完了，感觉好累😫，喝口茶我们继续分析下半段invoke，
loadServiceMethod(method).invoke(args != null ? args : emptyArgs)
通过前面的分析我们知道invoke最终会走到HttpServiceMethod中的invoke,里面具体做了什么呢，先看代码
@Override final @Nullable ReturnT invoke(Object[] args) {
Call<ResponseT> call = new OkHttpCall<>(requestFactory, args, callFactory, responseConverter);
return adapt(call, args);
}
我们发现首先创建了一个OkHttpCall,然后调用了adapt方法，adapt方法则是HttpServiceMethod中的一个抽象类
protected abstract @Nullable ReturnT adapt(Call<ResponseT> call, Object[] args);
看到这里似乎又进了死胡同，别着急前面分析代码中知道有一个CallAdapted是HttpServiceMethod的实现类，而最终adapt方法则是进入了CallAdapted的adapt方法中
@Override protected ReturnT adapt(Call<ResponseT> call, Object[] args) {
return callAdapter.adapt(call);
}
最终则会调用callAdapter.adapt(call)，而callAdapter则是前面loadServiceMethod中创建的，bingo一切都对上了。
@Override public @Nullable CallAdapter<?, ?> get(
Type returnType, Annotation[] annotations, Retrofit retrofit) {
if (getRawType(returnType) != Call.class) {
return null;
}
if (!(returnType instanceof ParameterizedType)) {
throw new IllegalArgumentException(
"Call return type must be parameterized as Call<Foo> or Call<? extends Foo>");
}
final Type responseType = Utils.getParameterUpperBound(0, (ParameterizedType) returnType);
final Executor executor = Utils.isAnnotationPresent(annotations, SkipCallbackExecutor.class)
? null
: callbackExecutor;
return new CallAdapter<Object, Call<?>>() {
@Override public Type responseType() {
return responseType;
}
@Override public Call<Object> adapt(Call<Object> call) {
return executor == null
? call
: new ExecutorCallbackCall<>(executor, call);
}
};
通过上面的CallAdapter创建代码发现最终返回了一个ExecutorCallbackCall，那么ExecutorCallbackCall又是什么呢？继续看代码
static final class ExecutorCallbackCall<T> implements Call<T> {
final Executor callbackExecutor;
final Call<T> delegate;
ExecutorCallbackCall(Executor callbackExecutor, Call<T> delegate) {
this.callbackExecutor = callbackExecutor;
this.delegate = delegate;
}
@Override public void enqueue(final Callback<T> callback) {
checkNotNull(callback, "callback == null");
delegate.enqueue(new Callback<T>() {
@Override public void onResponse(Call<T> call, final Response<T> response) {
callbackExecutor.execute(new Runnable() {
@Override public void run() {
if (delegate.isCanceled()) {
// Emulate OkHttp's behavior of throwing/delivering an IOException on cancellation.
callback.onFailure(ExecutorCallbackCall.this, new IOException("Canceled"));
} else {
callback.onResponse(ExecutorCallbackCall.this, response);
}
}
});
}
@Override public void onFailure(Call<T> call, final Throwable t) {
callbackExecutor.execute(new Runnable() {
@Override public void run() {
callback.onFailure(ExecutorCallbackCall.this, t);
}
});
}
});
}
@Override public boolean isExecuted() {
return delegate.isExecuted();
}
@Override public Response<T> execute() throws IOException {
return delegate.execute();
}
@Override public void cancel() {
delegate.cancel();
}
@Override public boolean isCanceled() {
return delegate.isCanceled();
}
@SuppressWarnings("CloneDoesntCallSuperClone") // Performing deep clone.
@Override public Call<T> clone() {
return new ExecutorCallbackCall<>(callbackExecutor, delegate.clone());
}
@Override public Request request() {
return delegate.request();
}
}
在这里会发现几个熟悉的方法enqueue、execute,看到这里相信大家都恍然大悟了，当我们在使用过程中
val call = userService.getUserInfo("1")
call.enqueue(object : Callback<ResponseBody> {
override fun onFailure(call: Call<ResponseBody>, t: Throwable) {
}
override fun onResponse(call: Call<ResponseBody>, response: Response<ResponseBody>) {
}
})
调用的enqueue方法就是这里面的enqueue方法,callbackExecutor就是Retrofit build时传入的MainThreadExecutor,callback则是前面HttpServiceMethod的invoke方法中的OkhttpCallback,ExecutorCallbackCall中的enqueue和execute方法则最终会调用delegate中的相关方法，delegate则是一个OkhttpCall对象，下面来看下OkhttpCall中的enqueue
@Override public void enqueue(final Callback<T> callback) {
checkNotNull(callback, "callback == null");
okhttp3.Call call;
Throwable failure;
...省略若干...
if (failure != null) {
callback.onFailure(this, failure);
return;
}
if (canceled) {
call.cancel();
}
call.enqueue(new okhttp3.Callback() {
@Override public void onResponse(okhttp3.Call call, okhttp3.Response rawResponse) {
Response<T> response;
try {
response = parseResponse(rawResponse);
} catch (Throwable e) {
throwIfFatal(e);
callFailure(e);
return;
}
try {
callback.onResponse(OkHttpCall.this, response);
} catch (Throwable t) {
throwIfFatal(t);
t.printStackTrace(); // TODO this is not great
}
}
@Override public void onFailure(okhttp3.Call call, IOException e) {
callFailure(e);
}
private void callFailure(Throwable e) {
try {
callback.onFailure(OkHttpCall.this, e);
} catch (Throwable t) {
throwIfFatal(t);
t.printStackTrace(); // TODO this is not great
}
}
});
}
从这里面不难看出最终是调用的OKhttp中的网络连接方法，最终走到下面的方法中
Response<T> parseResponse(okhttp3.Response rawResponse) throws IOException {
ResponseBody rawBody = rawResponse.body();
// Remove the body's source (the only stateful object) so we can pass the response along.
rawResponse = rawResponse.newBuilder()
.body(new NoContentResponseBody(rawBody.contentType(), rawBody.contentLength()))
.build();
int code = rawResponse.code();
if (code < 200 || code >= 300) {
try {
// Buffer the entire body to avoid future I/O.
ResponseBody bufferedBody = Utils.buffer(rawBody);
return Response.error(bufferedBody, rawResponse);
} finally {
rawBody.close();
}
}
if (code == 204 || code == 205) {
rawBody.close();
return Response.success(null, rawResponse);
}
ExceptionCatchingResponseBody catchingBody = new ExceptionCatchingResponseBody(rawBody);
try {
T body = responseConverter.convert(catchingBody);
return Response.success(body, rawResponse);
} catch (RuntimeException e) {
// If the underlying source threw an exception, propagate that rather than indicating it was
// a runtime exception.
catchingBody.throwIfCaught();
throw e;
}
}

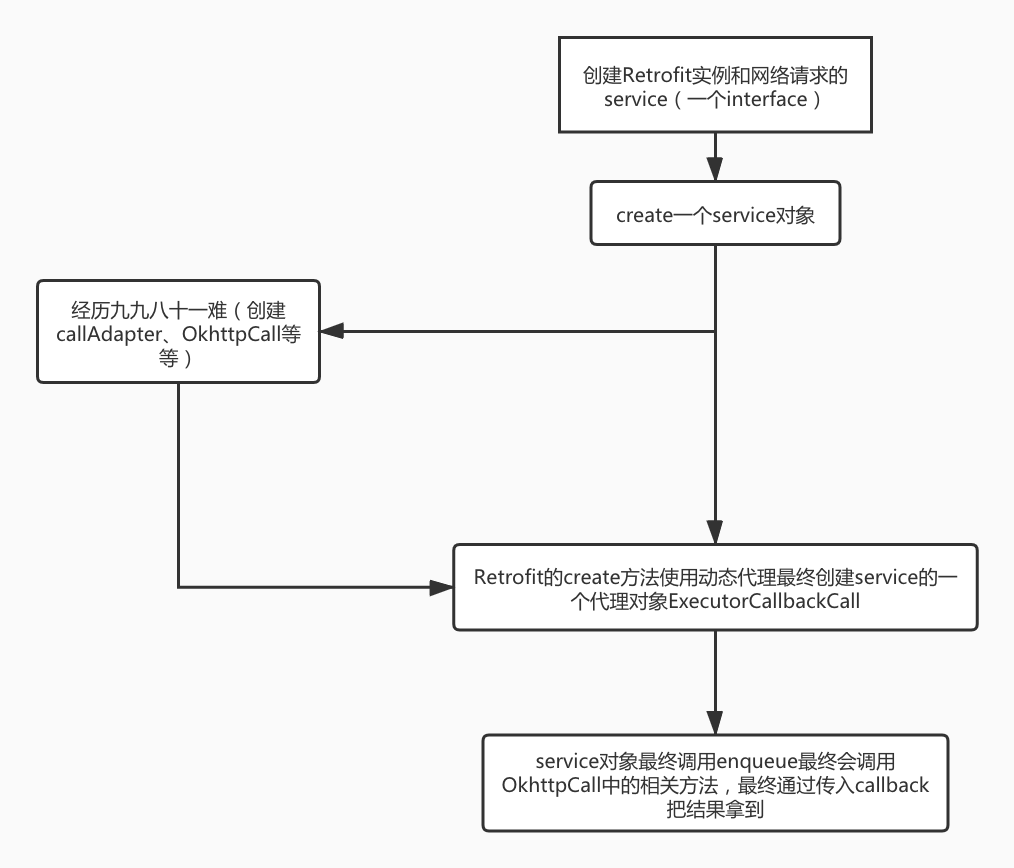

通过callback的回调使得我们拿到最终的结果,通过半天的追踪相信大家虽然会有点懵，但最终对Retrofit是如何运行的也有了一定的了解。
PS:喜欢的同学可以扫码关注我的公众号呦
