VSCode插件开发 流程尝试篇

2,049 阅读4分钟

一。前言

前一阵子被沈哥的一手mocha单测插件惊呆了,感觉帅的妙不可言,就萌生了自己去探索一下VScode插件开发流程的想法。

为啥子一只小前端要自己去开发VSCode插件呢?


借用沈哥(alek)的话说就是:一般是开发效率低 -> 发现可提升效率的点 -> 然后就去查插件文档 -> 产出。

二。插件开发

开发前你先确保你有vscode哦,再有个node

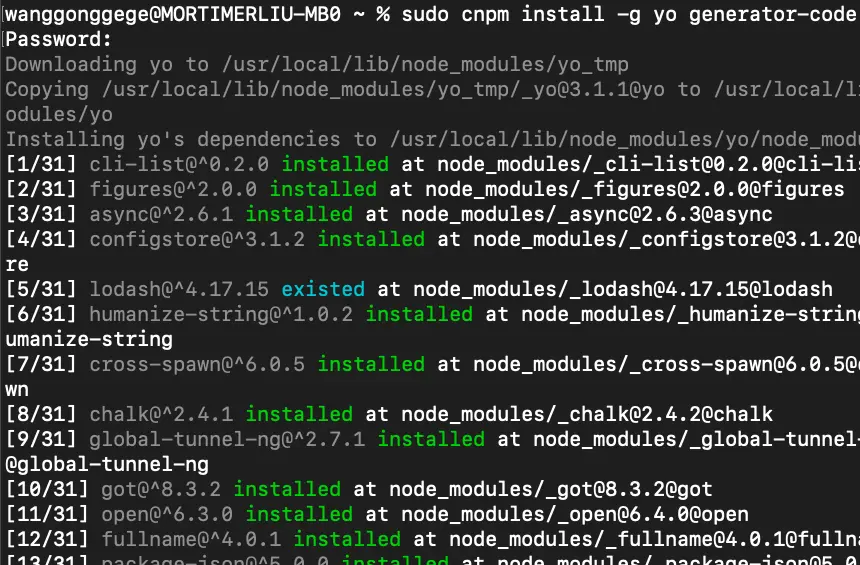

1. 安装vscode插件生产工具:(可理解为脚手架,就比如 vue-cli, create-react-app)命令行如下

npm install -g yo generator-code

官方推荐使用Yeoman 和 VS Code Extension Generator。

npm太慢了,直接cnpm了。

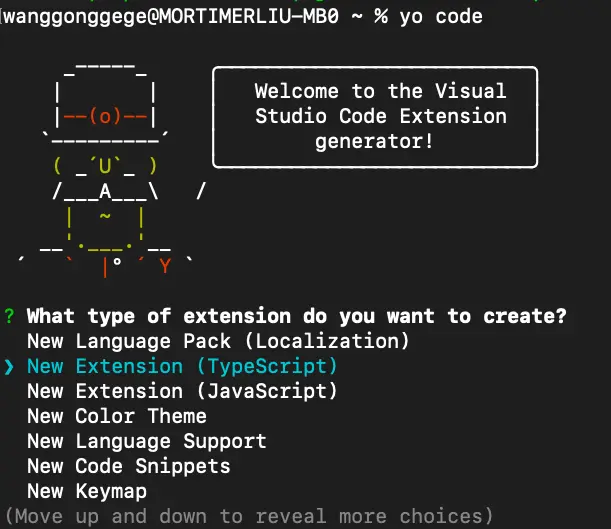

2.使用脚手架初始化项目:(先自己创建个文件夹,cd进去) 命令如下:

yo code

(如果安装权限不够,直接sudo)

下面跟着命令创建项目就行了,我选择的是typescript


接下来的完整流程如下:最后一步会自动帮你安装依赖,但我的npm有点慢,后来重新用yarn。

如果安装自动安装依赖失败的话,你进入插件项目根目录,npm install 即可。

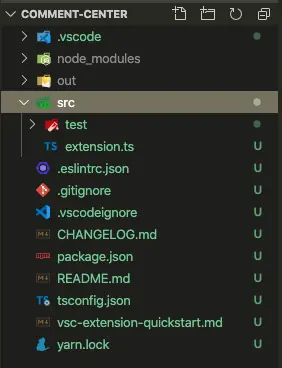

安装依赖也完成后,项目目录结构如下:


最重要的文件就两个:src/extension.ts 和 /package.json

src/extension.ts : 插件开发功能模块的编写。

/package.json : 命令行运行的命令,管理插件功能。

基本整个插件编写都是围绕着这两个文件来修改的。

首先,进入src/extension.ts中一探究竟

// The module 'vscode' contains the VS Code extensibility API
// Import the module and reference it with the alias vscode in your code below
import * as vscode from 'vscode';
// this method is called when your extension is activated
// your extension is activated the very first time the command is executed
export function activate(context: vscode.ExtensionContext) {

	// Use the console to output diagnostic information (console.log) and errors (console.error)
	// This line of code will only be executed once when your extension is activated
	console.log('Congratulations, your extension "comment-center" is now active!');

	// The command has been defined in the package.json file
	// Now provide the implementation of the command with registerCommand
	// The commandId parameter must match the command field in package.json
	let disposable = vscode.commands.registerCommand('comment-center.helloWorld', () => {
		// The code you place here will be executed every time your command is executed               // 在这里进行开发我们的代码

		// Display a message box to the user
		vscode.window.showInformationMessage('Hello World from comment center!');
	});

	context.subscriptions.push(disposable);
}

// this method is called when your extension is deactivated
export function deactivate() {}

在代码块中,最重要的是下面这部分,这就是一个小功能模块,名为comment-center.helloWorld

vscode.window这个是我们运行插件时,右下角的小窗口提示。

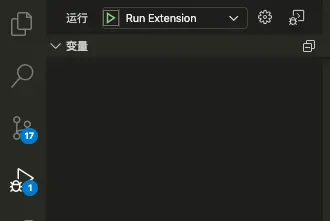

现在我们可以尝试运行一下我们的初始化插件。在debug中进行调试,会出现一个新的窗口




command+ shift + P 快速打开命令运行,输入hello 找到 "Hello World" 命令,即为运行我们的Hello world命令事件。

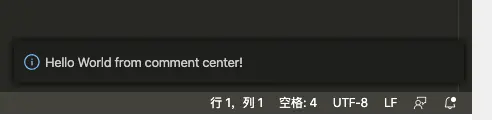

你会看到右下角弹出信息窗口,

即我们上面提过的 vscode.window.showInformationMessage('Hello World from comment center!');


这里仅仅用到了src/extension.ts。 别急,/package.json 马上就登场了。


这是项目默认提供的命令事件,可以修改,下面我们进行尝试,注册新的命令事件。

三。注册命令事件

我们先简单说说哦:package.json中有vscode的自定义配置,在执行打包命令时vscode会自检,如果配置错误或者遗漏会有提示信息。

那我们先开发一个 "commitFirst"的新功能吧,功能就是简单的右下角弹出窗口提示一下。


功能开发完毕,下面进入package.json中进行命令注册。

我们需要找到两个配置,进行注册新的命令事件。

activationEvents 配置中 添加命令行"onCommand:comment-center.commitFirst"

contributes 配置中的commands选项,添加命令

{
"command": "comment-center.commitFirst",
"title": "Hello commitFirst"
}

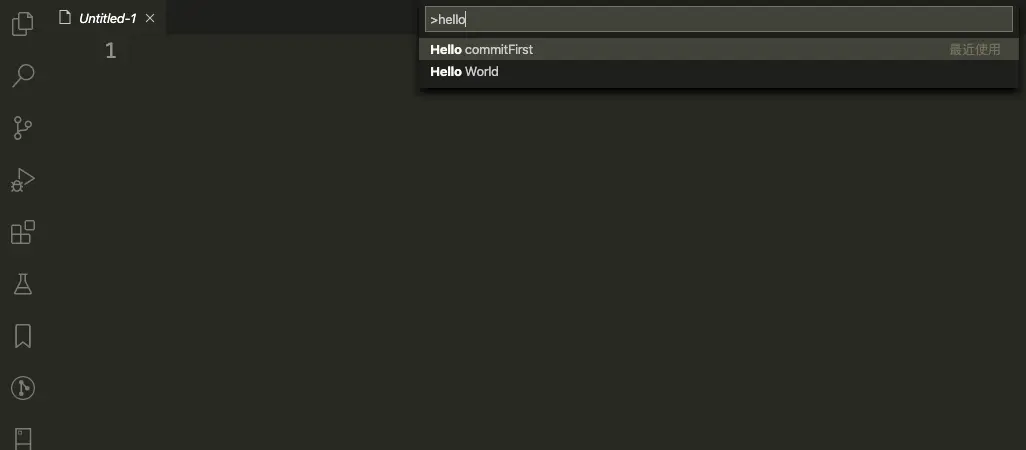

尝试一下运行咱们的新功能,这次快捷键选择 Hello commentFirst命令,很成功的预期显示弹窗了.


四。插件发布

两种方式,第一种是官方的,但是可能对网络要求比较高,我一直卡着。

第二种打包成 .vsix 的插件,然后可以上传网络分享,也可以直接和好友传送使用。

发布之前你先在package.json中添加作者信息:publisher字段

"publisher": "mortimerliu",

同时添加点信息,防止警告:

"license": "SEE LICENSE IN LICENSE.txt",
    "bugs": {
        "url": "https://github.com/sxei/vscode-plugin-demo/issues"
    },
    "repository": {
        "type": "git",
        "url": "https://github.com/sxei/vscode-plugin-demo"
    },
    "homepage": "https://github.com/sxei/vscode-plugin-demo/blob/master/README.md"

还要修改下readme.md,删除readme中开头的部分,不然不让你打包。


1.跟npm包发布差不多。先安装一手打包工具

npm install -g vsce

工具在手,打包我有,进入目录,运行盘它

vsce publish

然后,没有然后,gg了


打开微软网址,github关联一下,配置Personal Access Token。我这可能网不是很好,然后搞不定。

如果你喜欢这种方式,详情查看 code.visualstudio.com/api/working…

2. 打包成 .vsix 的插件

vsce package

非常成功,如下



上传分享的话打开这个网页就行:marketplace.visualstudio.com/manage/publ…

选择,下拉框的中间选项:Visual Studio Code

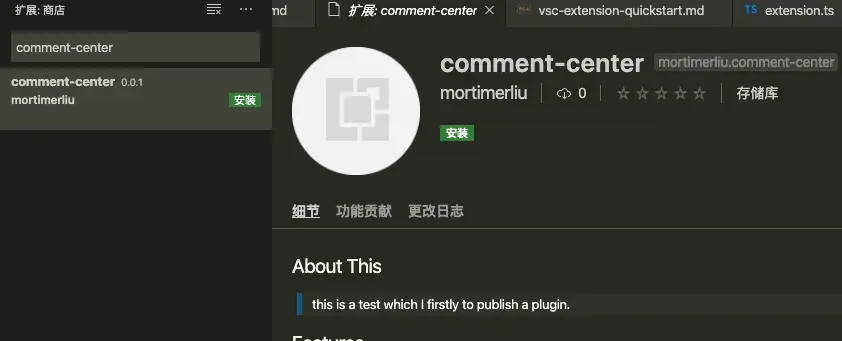

打开VSCode扩展商店,就可以看到你的插件了


开发VSCode插件可能需要用到API,官网查阅即可:code.visualstudio.com/api/referen…
