iphone状态栏

1,797 阅读1分钟

在不使用默认app的头部情况下,

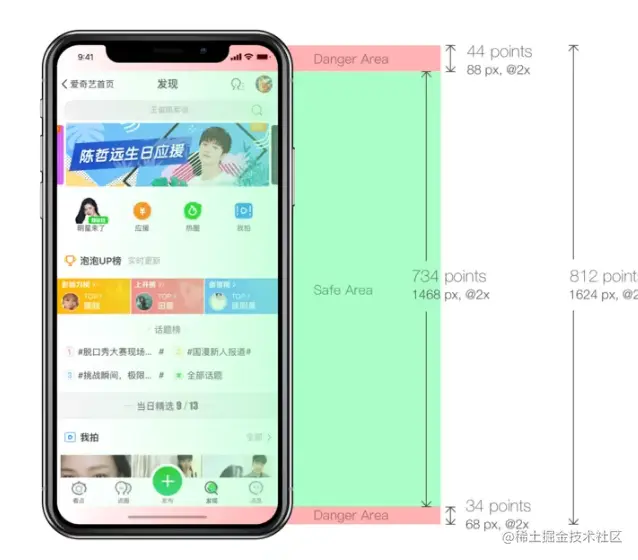

顶部高度如图1

正常iphone的状态栏高度是20px(宽度为750下是40px(@2x) ) iphonex的状态栏高度是44px (宽度为750下是88px(@2x) )

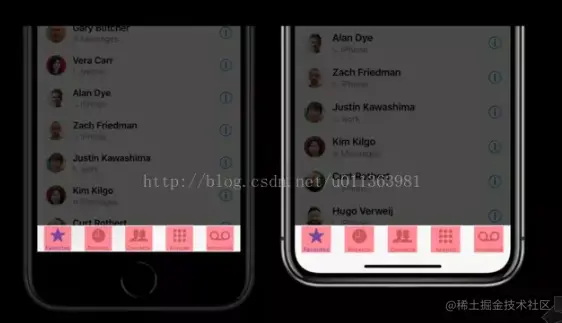

底部高度如图2

正常iphone的状态栏高度是0 iphonex的状态栏高度是34px (宽度为750下是68px(@2x) )

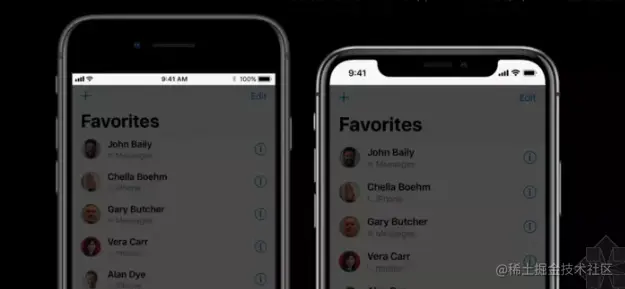

iphonex 示意图

适配办法之一

采用苹果官方推荐的css 函数env()、constant() 来适配

使用前提

当viewport-fit = contain时,env()是不起作用的,必须配合viewport-fit = cover使用。

env()和constant()

iOS11新增特性,Weblit的一个CSS函数,用于设定安全区域与边界的距离,由四个预定义的变量

safe-area-inset-left:安全区域距离左边边界距离
safe-area-inset-right:安全区域距离右边边界距离
safe-area-inset-top:安全区域距离顶部边界距离
safe-area-inset-bottom:安全区域距离底部边界距离

只需要关注 safe-area-inset-bottom这个变量,因为它对应的就是小黑条的高度。

使用meta标签,fixed元素的适配

padding-bottom:constant(safe-area-inset-bottom)
padding-bottom:env(safe-area-inset-bottom)
height:calc(50px(假设值)+env(safe-area-inset-bottom)) 改变高度来适配
margin-bottom:env(safe-area-inset-bottom)

css函数env()和constant()

  • 可以直接使用变量函数,只有在webkit内核下才支持
  • env()必须在 ios>=11.2才支持
  • constant() 必须在ios<11.2才支持
  • env()和constant()只有在viewport-fit = cover时才生效
