MediaProvider是什么?
MediaProvider继承自ContentProvider,而ContentProvider内容提供器可以帮助应用程序管理对自身存储的数据的访问，以及对其他应用程序存储的数据的访问，并提供与其他应用程序共享数据的方法。因此,谷歌针对图片视频音频这类多媒体文件设计了MediaProvider.
- MediaProvider: 使用SQLite数据库存储图片、视频、音频、文档等多媒体文件的信息,并提供获取详细的接口.
- APP:通过FileSystem存取文件,同时以扫描/广播形式更新MediaProvider.
p.s. 存储的数据库路径为/data/data/com.android.providers.media/databases
概括下几个关键类的作用
- MediaScannerReceiver/MediaReceiver：多媒体扫描广播接收者，继承 BroadcastReceiver，主要响应APP发送的广播命令，并开启MediaScannerService 执行扫描工作。
- MediaScannerService/MediaService：多媒体扫描服务，继承 Service，主要是处理 APP 发送的请求，要用到 Framework 中的 MediaScanner 来共同完成具体扫描工作，并获取媒体文件的 metadata，最后将数据写入或删除 MediaProvider 提供的数据库中。
- MediaProvider：多媒体内容提供者，继承 ContentProvider，主要是负责操作数据库，并提供给别的程序 insert、query、delete、update 等操作。
下面分别梳理android 9和10版本的MediaProvider的流程.
android 9 (android P)
如何使用MediaScannerService
从 Android 自带的 Dev Tools 中的 MediaScannerActivity 入手，看看它是如何扫描多媒体。 /development/apps/Development/src/com/android/development/MediaScannerActivity.java
- 注册扫描开始和结束的广播，用来展示扫描状态；
- 在点击事件startScan中，发送了 ACTION_MEDIA_MOUNTED 广播。由MediaScannerReceiver接收.
扫描入口MediaScannerReceiver.java
查看/packages/providers/MediaProvider/AndroidManifest.xml,可以知道MediaScannerReceiver主要监听以下广播.
<receiver android:name="MediaScannerReceiver">
55 <intent-filter>
56 <action android:name="android.intent.action.BOOT_COMPLETED" />
57 <action android:name="android.intent.action.LOCALE_CHANGED" />
58 </intent-filter>
59 <intent-filter>
60 <action android:name="android.intent.action.MEDIA_MOUNTED" />
61 <data android:scheme="file" />
62 </intent-filter>
63 <intent-filter>
64 <action android:name="android.intent.action.MEDIA_UNMOUNTED" />
65 <data android:scheme="file" />
66 </intent-filter>
67 <intent-filter>
68 <action android:name="android.intent.action.MEDIA_SCANNER_SCAN_FILE" />
69 <data android:scheme="file" />
70 </intent-filter>
71 </receiver>
- ACTION_BOOT_COMPLETED // 开机完成广播.只能由系统发送．此时会把内部卷标（“internal”）和外部卷标（“external”）都扫描一下；
- ACTION_LOCALE_CHANGED // 区域改变广播.只能由系统发送．
- ACTION_MEDIA_MOUNTED // 磁盘挂载完成广播.只扫描外部卷标
- ACTION_MEDIA_SCANNER_SCAN_FILE //指定扫描某个文件的广播
MediaScannerReceiver收到广播之后，收集整理数据随即就去启动 MediaScannerService.
public void onReceive(Context context, Intent intent) {
37 final String action = intent.getAction();
38 final Uri uri = intent.getData();
39 if (Intent.ACTION_BOOT_COMPLETED.equals(action)) {
40 // Scan internal only. //开机扫描内部存储区域
41 scan(context, MediaProvider.INTERNAL_VOLUME);
42 } else if (Intent.ACTION_LOCALE_CHANGED.equals(action)) {
43 scanTranslatable(context);//当所在地区发生改变之后，对数据进行区域更新等操作.处理系统语言变换
44 } else {
45 if (uri.getScheme().equals("file")) {
46 // handle intents related to external storage
47 String path = uri.getPath();
48 String externalStoragePath = Environment.getExternalStorageDirectory().getPath();
49 String legacyPath = Environment.getLegacyExternalStorageDirectory().getPath();
50
51 try {
52 path = new File(path).getCanonicalPath();
53 } catch (IOException e) {
54 Log.e(TAG, "couldn't canonicalize " + path);
55 return;
56 }
57 if (path.startsWith(legacyPath)) {
58 path = externalStoragePath + path.substring(legacyPath.length());
59 }
60
61 Log.d(TAG, "action: " + action + " path: " + path);
62 if (Intent.ACTION_MEDIA_MOUNTED.equals(action)) {
63 // scan whenever any volume is mounted //扫描外部分区，其实就是SD卡（分内部sd卡和外置sd卡）
64 scan(context, MediaProvider.EXTERNAL_VOLUME);
65 } else if (Intent.ACTION_MEDIA_SCANNER_SCAN_FILE.equals(action) &&
66 path != null && path.startsWith(externalStoragePath + "/")) {
67 scanFile(context, path);//扫描外部存储器上的一个媒体文件
68 }
69 }
70 }
71 }
// 扫描内部或者外部存储，根据volume进行区分
private void scan(Context context, String volume) {
74 Bundle args = new Bundle();
75 args.putString("volume", volume);
76 context.startService(// 启动MediaScannerService,后面scanFile scanTranslatable类似.
77 new Intent(context, MediaScannerService.class).putExtras(args));
78 }
79
// 扫描单个文件，不可以是文件夹
80 private void scanFile(Context context, String path) {
81 Bundle args = new Bundle();
82 args.putString("filepath", path);
83 context.startService(
84 new Intent(context, MediaScannerService.class).putExtras(args));
85 }
86
// 扫描可转换语言的多媒体
87 private void scanTranslatable(Context context) {
88 final Bundle args = new Bundle();
89 args.putBoolean(MediaStore.RETRANSLATE_CALL, true);
90 context.startService(new Intent(context, MediaScannerService.class).putExtras(args));
91 }
扫描的时机为以下几点：
- Intent.ACTION_BOOT_COMPLETED.equals(action) 6.0 中接到设备重启的广播，对 Internal 和 External 扫描，而 9.0 中只对 Internal 扫描。
- Intent.ACTION_LOCALE_CHANGED.equals(action) 9.0 相比 6.0 增加了系统语言发生改变时的广播，用于进行扫描可以转换语言的多媒体。
- uri.getScheme().equals("file") 6.0 和 9.0 处理的一致，都是先过滤 scheme 为 "file" 的 Intent，再通过下面两个 action 对 External 进行扫描：
- Intent.ACTION_MEDIA_MOUNTED.equals(action) 插入外部存储时扫描 scan()。
- Intent.ACTION_MEDIA_SCANNER_SCAN_FILE.equals(action) && path != null && path.startsWith(externalStoragePath + "/") 扫描外部存储中的单个文件 scanFile()。 注意：不支持扫描外部存储中的文件夹，需要遍历文件夹中文件，使用扫描单个文件的方式。

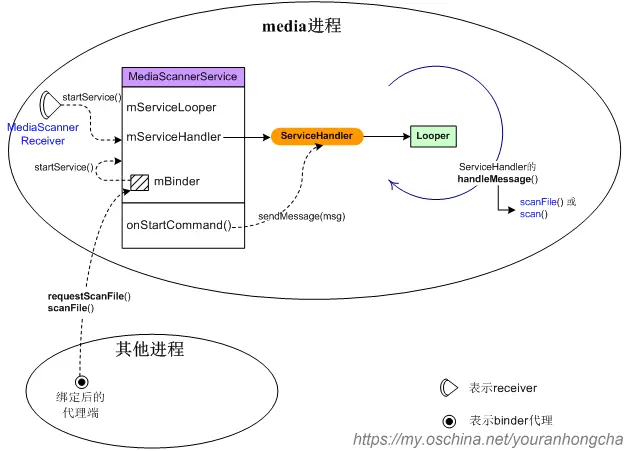

核心类MediaScannerService.java
MediaScannerService负责扫描媒体文件，然后将扫描得到的信息插入到媒体数据库中。 MediaScannerService 继承 Service，并实现 Runnable 工作线程。通过 ServiceHandler 这个 Handler 把主线程需要大量计算的工作放到工作线程中。
onCreate() 中启动工作线程
97 @Override
98 public void onCreate() {
// 获取电源锁,防止扫描过程中系统休眠
99 PowerManager pm = (PowerManager)getSystemService(Context.POWER_SERVICE);
100 mWakeLock = pm.newWakeLock(PowerManager.PARTIAL_WAKE_LOCK, TAG);
101 StorageManager storageManager = (StorageManager)getSystemService(Context.STORAGE_SERVICE);
102 mExternalStoragePaths = storageManager.getVolumePaths();// 获取外部存储路径
103
104 // Start up the thread running the service. Note that we create a
105 // separate thread because the service normally runs in the process's
106 // main thread, which we don't want to block.
107 Thread thr = new Thread(null, this, "MediaScannerService");
108 thr.start();// 启动最重要的工作线程，该线程也是个消息泵线程
109 }
每当用户需要扫描媒体文件时，基本上都是在向这个消息泵里发送 Message，并在处理 Message 时完成真正的 scan 动作。请注意，创建 Thread 时传入的第二个参数就是 MediaScannerService 自身，也就是说线程的主要行为其实就是 MediaScannerService 的 run() 方法.
151 @Override
152 public void run() {
153 // reduce priority below other background threads to avoid interfering
154 // with other services at boot time.
// 设置优先级.将优先级降低到其他后台线程之下，以避免在启动时干扰其他服务。
155 Process.setThreadPriority(Process.THREAD_PRIORITY_BACKGROUND +
156 Process.THREAD_PRIORITY_LESS_FAVORABLE);
157 Looper.prepare();
158
159 mServiceLooper = Looper.myLooper();
// mServiceHandler发送消息的handler
160 mServiceHandler = new ServiceHandler();
161
162 Looper.loop();
163 }
第一种向工作线程发送消息的方式
调用 startService()，并在 MediaScannerService 的 onStartCommand() 方法里 sendMessage()。 比如，和 MediaScannerService 配套提供的 MediaScannerReceiver，当它收到类似 ACTION_BOOT_COMPLETED 这样的系统广播时，就会调用自己的 scan() 或 scanFile() 方法，里面的 startService() 动作会导致走到 service 的 onStartCommand()，并进一步发送消息.
111 @Override
112 public int onStartCommand(Intent intent, int flags, int startId) {
113 while (mServiceHandler == null) {
114 synchronized (this) {
115 try {
116 wait(100);
117 } catch (InterruptedException e) {
118 }
119 }
120 }
121
122 if (intent == null) {
123 Log.e(TAG, "Intent is null in onStartCommand: ",
124 new NullPointerException());
125 return Service.START_NOT_STICKY;
126 }
127
128 Message msg = mServiceHandler.obtainMessage();
129 msg.arg1 = startId;
130 msg.obj = intent.getExtras();
131 mServiceHandler.sendMessage(msg);
132
133 // Try again later if we are killed before we can finish scanning.
134 return Service.START_REDELIVER_INTENT;
135 }
第二种向工作线程发送消息的方式
先直接或间接 bindService()，绑定成功后会得到一个 IMediaScannerService 接口，而后外界再通过该接口向 MediaScannerService 发起命令，请求其扫描特定文件或目录。
IMediaScannerService 接口只提供了两个接口方法： void requestScanFile(String path, String mimeType, in IMediaScannerListener listener); void scanFile(String path, String mimeType); 处理这两种请求的实体是服务内部的 mBinder 对象.
183 private final IMediaScannerService.Stub mBinder =
184 new IMediaScannerService.Stub() {
185 public void requestScanFile(String path, String mimeType, IMediaScannerListener listener) {
186 if (false) {
187 Log.d(TAG, "IMediaScannerService.scanFile: " + path + " mimeType: " + mimeType);
188 }
189 Bundle args = new Bundle();
190 args.putString("filepath", path);
191 args.putString("mimetype", mimeType);
192 if (listener != null) {
193 args.putIBinder("listener", listener.asBinder());
194 }
// 说到底还是在调用 startService()
195 startService(new Intent(MediaScannerService.this,
196 MediaScannerService.class).putExtras(args));
197 }
198
199 public void scanFile(String path, String mimeType) {
200 requestScanFile(path, mimeType, null);
201 }
202 };
具体处理消息
具体处理消息泵线程里的消息时，执行的是 ServiceHandler 的 handleMessage() 方法.
private final class ServiceHandler extends Handler {
205 @Override
206 public void handleMessage(Message msg) {
207 Bundle arguments = (Bundle) msg.obj;
208 if (arguments == null) {
209 Log.e(TAG, "null intent, b/20953950");
210 return;
211 }
212 String filePath = arguments.getString("filepath");
213
214 try {
215 if (filePath != null) {// 扫描单个文件
216 IBinder binder = arguments.getIBinder("listener");
217 IMediaScannerListener listener =
218 (binder == null ? null : IMediaScannerListener.Stub.asInterface(binder));
219 Uri uri = null;
220 try {
221 uri = scanFile(filePath, arguments.getString("mimetype"));// 扫描单个文件
222 } catch (Exception e) {
223 Log.e(TAG, "Exception scanning file", e);
224 }
225 if (listener != null) {
226 listener.scanCompleted(filePath, uri);
227 }
228 } else if (arguments.getBoolean(MediaStore.RETRANSLATE_CALL)) {// 切换语言
229 ContentProviderClient mediaProvider = getBaseContext().getContentResolver()
230 .acquireContentProviderClient(MediaStore.AUTHORITY);
231 mediaProvider.call(MediaStore.RETRANSLATE_CALL, null, null);
232 } else {// 扫描内部或外部
233 String volume = arguments.getString("volume");
234 String[] directories = null;
235
236 if (MediaProvider.INTERNAL_VOLUME.equals(volume)) {
237 // scan internal media storage 内部存储扫描目录
238 directories = new String[] {
239 Environment.getRootDirectory() + "/media",
240 Environment.getOemDirectory() + "/media",
241 Environment.getProductDirectory() + "/media",
242 };
243 }
244 else if (MediaProvider.EXTERNAL_VOLUME.equals(volume)) {
245 // scan external storage volumes 外部存储扫描目录
246 if (getSystemService(UserManager.class).isDemoUser()) {
247 directories = ArrayUtils.appendElement(String.class,
248 mExternalStoragePaths,
249 Environment.getDataPreloadsMediaDirectory().getAbsolutePath());
250 } else {
251 directories = mExternalStoragePaths;
252 }
253 }
254
255 if (directories != null) {
256 if (false) Log.d(TAG, "start scanning volume " + volume + ": "
257 + Arrays.toString(directories));
258 scan(directories, volume);// 扫描指定路径
259 if (false) Log.d(TAG, "done scanning volume " + volume);
260 }
261 }
262 } catch (Exception e) {
263 Log.e(TAG, "Exception in handleMessage", e);
264 }
265
266 stopSelf(msg.arg1);// 扫描结束，MediaScannerService完成本次使命，可以stop自身了
267 }
268 }

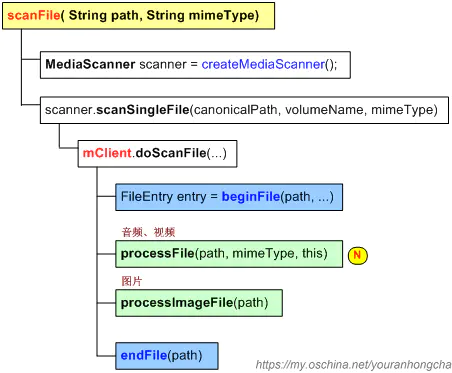

看下scanFile和scan 方法.

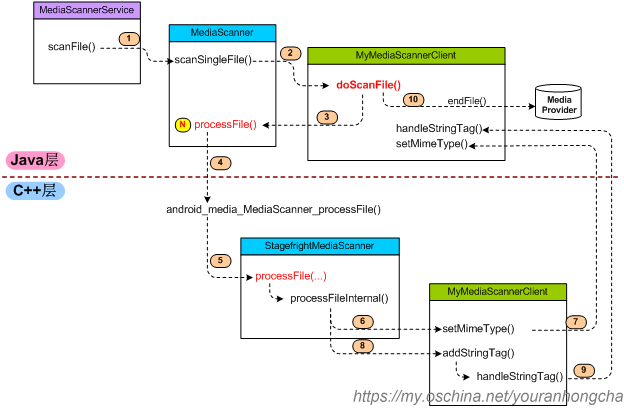

165 private Uri scanFile(String path, String mimeType) {
166 String volumeName = MediaProvider.EXTERNAL_VOLUME;
167
168 try (MediaScanner scanner = new MediaScanner(this, volumeName)) {
169 // make sure the file path is in canonical form
170 String canonicalPath = new File(path).getCanonicalPath();
171 return scanner.scanSingleFile(canonicalPath, mimeType);// 后面分析scanSingleFile
172 } catch (Exception e) {
173 Log.e(TAG, "bad path " + path + " in scanFile()", e);
174 return null;
175 }
176 }

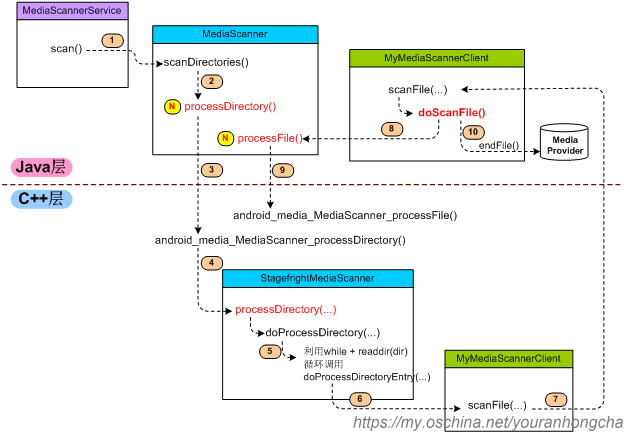

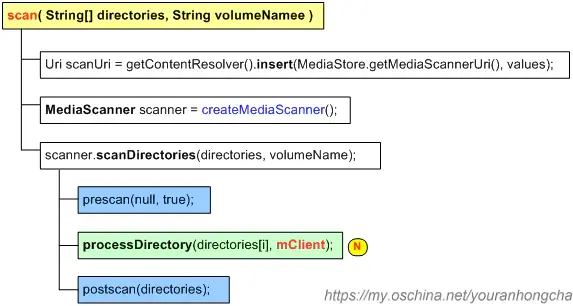

private void scan(String[] directories, String volumeName) {
66 Uri uri = Uri.parse("file://" + directories[0]);
67 // don't sleep while scanning
68 mWakeLock.acquire();
69
70 try {
71 ContentValues values = new ContentValues();
72 values.put(MediaStore.MEDIA_SCANNER_VOLUME, volumeName);
// 通过 insert 这个特殊的 uri，让 MeidaProvider 做一些准备工作
73 Uri scanUri = getContentResolver().insert(MediaStore.getMediaScannerUri(), values);
74 //发送 扫描开始的广播。
75 sendBroadcast(new Intent(Intent.ACTION_MEDIA_SCANNER_STARTED, uri));
76
77 try {
78 if (volumeName.equals(MediaProvider.EXTERNAL_VOLUME)) {
79 openDatabase(volumeName);// 打开数据库文件
80 }
81 //创建MediaScanner,调用scanDirectories扫描目标文件夹。
82 try (MediaScanner scanner = new MediaScanner(this, volumeName)) {
83 scanner.scanDirectories(directories);
84 }
85 } catch (Exception e) {
86 Log.e(TAG, "exception in MediaScanner.scan()", e);
87 }
88 // 通过 delete 这个 uri，让 MeidaProvider 做一些清理工作
89 getContentResolver().delete(scanUri, null, null);
90
91 } finally {//发送扫描完成的广播。
92 sendBroadcast(new Intent(Intent.ACTION_MEDIA_SCANNER_FINISHED, uri));
93 mWakeLock.release();
94 }
95 }
scanFile() 或 scan() 才是实际进行扫描的地方，扫描动作中主要借助的是 MediaScanner，它是打通 Java 层和 C++ 层的关键，扫描动作最终会调用到 MediaScanner的某个 native 函数，于是程序流程开始走到 C++ 层.下一节来分析MediaScanner.
MediaScanner分析(Java层到c++层)
MediaScanner有两个 native 函数：native_init() 和 native_setup()，以及两个重要成员变量：一个是mClient成员，另一个是 mNativeContext.
/frameworks/base/media/java/android/media/MediaScanner.java
public class MediaScanner implements AutoCloseable {
static {
System.loadLibrary("media_jni");
native_init(); // 将java层和c++层联系起来
}
...
private long mNativeContext;
...
public MediaScanner(Context c, String volumeName) {
native_setup();// 对应JNI的android_media_MediaScanner_native_setup
...
}
...
// 一开始就具有明确的mClient对象
private final MyMediaScannerClient mClient = new MyMediaScannerClient();
...
}
MediaScanner 类加载之时，就会同时加载动态链接库“media_jni”，并调用 native_init() 将 Java 层和 C++ 层联系起来。
/frameworks/base/media/jni/android_media_MediaScanner.cpp
372 // This function gets a field ID, which in turn causes class initialization.
373 // It is called from a static block in MediaScanner, which won't run until the
374 // first time an instance of this class is used.
375 static void
376 android_media_MediaScanner_native_init(JNIEnv *env)
377 {
378 ALOGV("native_init");
// Java 层 MediaScanner 类
379 jclass clazz = env->FindClass(kClassMediaScanner);
380 if (clazz == NULL) {
381 return;
382 }
383
// Java 层 mNativeContext 对象（long 类型）保存在 JNI 层 fields.context 对象中
384 fields.context = env->GetFieldID(clazz, "mNativeContext", "J");
385 if (fields.context == NULL) {
386 return;
387 }
388 }
390 static void
391 android_media_MediaScanner_native_setup(JNIEnv *env, jobject thiz)
392 {
393 ALOGV("native_setup");
// 创建 native 层的 MediaScanner 对象，StagefrightMediaScanner（frameworks/av/ 中定义）
394 MediaScanner *mp = new StagefrightMediaScanner;
395
396 if (mp == NULL) {
397 jniThrowException(env, kRunTimeException, "Out of memory");
398 return;
399 }
400
// 为 Java 层 MediaScanner 的 mNativeContext 域赋值.
// 将 mp 指针保存在 Java 层 MediaScanner 类 mNativeContext 对象中.
401 env->SetLongField(thiz, fields.context, (jlong)mp);
402 }

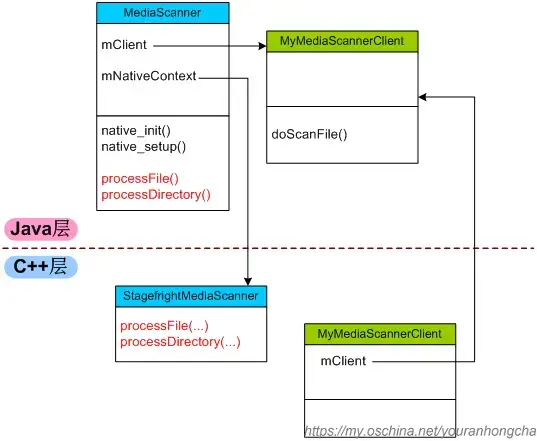

每当 C++ 层执行扫描动作时，还会再创建一个 MyMediaScannerClient 对象，这个对象和 Java 层的同名类对应。如下图所示:
接上文继续分析scanSingleFile 和scanDirectories.
scanSingleFile 和scanDirectories
先看scanSingleFile。
/frameworks/base/media/java/android/media/MediaScanner.java
1397 // this function is used to scan a single file
1398 public Uri scanSingleFile(String path, String mimeType) {
1399 try {
// 在扫描之前把上次扫描获取的数据库信息取出遍历并检测是否丢失，如果丢失，则从数据库中删除。
1400 prescan(path, true);
1401
1402 File file = new File(path);
1403 if (!file.exists() || !file.canRead()) {
1404 return null;
1405 }
1406
1407 // lastModified is in milliseconds on Files.
1408 long lastModifiedSeconds = file.lastModified() / 1000;
1409
// mClient 类型为 MyMediaScannerClient.
1410 // always scan the file, so we can return the content://media Uri for existing files
1411 return mClient.doScanFile(path, mimeType, lastModifiedSeconds, file.length(),
1412 false, true, MediaScanner.isNoMediaPath(path));
1413 } catch (RemoteException e) {
1414 Log.e(TAG, "RemoteException in MediaScanner.scanFile()", e);
1415 return null;
1416 } finally {
1417 releaseResources();
1418 }
1419 }
// 看下doScanFile
public Uri doScanFile(String path, String mimeType, long lastModified,
long fileSize, boolean isDirectory, boolean scanAlways, boolean noMedia) {
try {
FileEntry entry = beginFile(path, mimeType, lastModified,
fileSize, isDirectory, noMedia);
...
// rescan for metadata if file was modified since last scan
if (entry != null && (entry.mLastModifiedChanged || scanAlways)) {
if (noMedia) {
result = endFile(entry, false, false, false, false, false);
} else {
...
// we only extract metadata for audio and video files
if (isaudio || isvideo) {// 音视频
// native 函数processFile
mScanSuccess = processFile(path, mimeType, this);
}
if (isimage) {// 图片
mScanSuccess = processImageFile(path);
}
...
result = endFile(entry, ringtones, notifications, alarms, music, podcasts);
}
}
} catch (RemoteException e) {
Log.e(TAG, "RemoteException in MediaScanner.scanFile()", e);
}
...
return result;
}
再看scanDirectories
1353 public void scanDirectories(String[] directories) {
1354 try {
1355 long start = System.currentTimeMillis();
1356 prescan(null, true);// 扫描前预准备
1357 long prescan = System.currentTimeMillis();
1358
1359 if (ENABLE_BULK_INSERTS) {
1360 // create MediaInserter for bulk inserts
1361 mMediaInserter = new MediaInserter(mMediaProvider, 500);
1362 }
1363
1364 for (int i = 0; i < directories.length; i++) {
// native 函数，调用它来对目标文件夹进行扫描
1365 processDirectory(directories[i], mClient);
1366 }
1367
1368 if (ENABLE_BULK_INSERTS) {
1369 // flush remaining inserts
1370 mMediaInserter.flushAll();
1371 mMediaInserter = null;
1372 }
1373
1374 long scan = System.currentTimeMillis();
1375 postscan(directories);// 扫描后处理
1376 long end = System.currentTimeMillis();
...
1395 }
继续往c++层看
/frameworks/base/media/java/android/media/MediaScanner.java
1901 private native void processDirectory(String path, MediaScannerClient client);
1902 private native boolean processFile(String path, String mimeType, MediaScannerClient client);
MediaScanner中调用的processFile()对应于C + +层的android_media_MediaScanner_processFile(), processDirectory()对应于C + +层的android_media_MediaScanner_processDirectory()。 路径:/frameworks/base/media/jni/android_media_MediaScanner.cpp
238 static void
239 android_media_MediaScanner_processDirectory(
240 JNIEnv *env, jobject thiz, jstring path, jobject client)
241 {
242 ALOGV("processDirectory");
243 MediaScanner *mp = getNativeScanner_l(env, thiz);
244 if (mp == NULL) {
245 jniThrowException(env, kRunTimeException, "No scanner available");
246 return;
247 }
248
249 if (path == NULL) {
250 jniThrowException(env, kIllegalArgumentException, NULL);
251 return;
252 }
253
254 const char *pathStr = env->GetStringUTFChars(path, NULL);
255 if (pathStr == NULL) { // Out of memory
256 return;
257 }
258
259 MyMediaScannerClient myClient(env, client);
260 MediaScanResult result = mp->processDirectory(pathStr, myClient);
261 if (result == MEDIA_SCAN_RESULT_ERROR) {
262 ALOGE("An error occurred while scanning directory '%s'.", pathStr);
263 }
264 env->ReleaseStringUTFChars(path, pathStr);
265 }
266
267 static jboolean
268 android_media_MediaScanner_processFile(
269 JNIEnv *env, jobject thiz, jstring path,
270 jstring mimeType, jobject client)
271 {
272 ALOGV("processFile");
273
274 // Lock already hold by processDirectory
// mp指向的其实就是StagefrightMediaScanner
275 MediaScanner *mp = getNativeScanner_l(env, thiz);
...
298
// 构造了一个局部的（C++层次）MyMediaScannerClient对象，
// 构造myClient时传入的client参数来自于Java层调用processFile()时传入的那个（Java层次）MyMediaScannerClient对象。
// 这个对象会记录在C++层MyMediaScannerClient的mClient域中.
299 MyMediaScannerClient myClient(env, client);
// 调用的就是StagefrightMediaScanner::processFile
300 MediaScanResult result = mp->processFile(pathStr, mimeTypeStr, myClient);
...
308 return result != MEDIA_SCAN_RESULT_ERROR;
309 }
StagefrightMediaScanner::processFile()
/frameworks/av/media/libstagefright/StagefrightMediaScanner.cpp
58 MediaScanResult StagefrightMediaScanner::processFile(
59 const char *path, const char *mimeType,
60 MediaScannerClient &client) {
61 ALOGV("processFile '%s'.", path);
62
63 client.setLocale(locale());
64 client.beginFile();
// 再看processFileInternal
65 MediaScanResult result = processFileInternal(path, mimeType, client);
66 ALOGV("result: %d", result);
67 if (mimeType == NULL && result != MEDIA_SCAN_RESULT_OK) {
68 ALOGW("media scan failed for %s", path);
69 client.setMimeType("application/octet-stream");
70 }
71 client.endFile();
72 return result;
73 }
74
75 MediaScanResult StagefrightMediaScanner::processFileInternal(
76 const char *path, const char * /* mimeType */,
77 MediaScannerClient &client) {
78 const char *extension = strrchr(path, '.');
79
80 if (!extension) {
81 return MEDIA_SCAN_RESULT_SKIPPED;
82 }
83
// 看文件的扩展名是不是属于多媒体文件扩展名
/*static const char *kValidExtensions[] = {
39 ".mp3", ".mp4", ".m4a", ".3gp", ".3gpp", ".3g2", ".3gpp2",
40 ".mpeg", ".ogg", ".mid", ".smf", ".imy", ".wma", ".aac",
41 ".wav", ".amr", ".midi", ".xmf", ".rtttl", ".rtx", ".ota",
42 ".mkv", ".mka", ".webm", ".ts", ".fl", ".flac", ".mxmf",
43 ".avi", ".mpeg", ".mpg", ".awb", ".mpga", ".mov",
44 ".m4v", ".oga"
45 };*/
84 if (!FileHasAcceptableExtension(extension)) {
85 return MEDIA_SCAN_RESULT_SKIPPED;
86 }
87
// 获取文件的元数据
88 sp<MediaMetadataRetriever> mRetriever(new MediaMetadataRetriever);
89
90 int fd = open(path, O_RDONLY | O_LARGEFILE);
91 status_t status;
92 if (fd < 0) {
93 // couldn't open it locally, maybe the media server can?
94 sp<IMediaHTTPService> nullService;
95 status = mRetriever->setDataSource(nullService, path);
96 } else {
97 status = mRetriever->setDataSource(fd, 0, 0x7ffffffffffffffL);
98 close(fd);
99 }
100
101 if (status) {
102 return MEDIA_SCAN_RESULT_ERROR;
103 }
104
105 const char *value;
106 if ((value = mRetriever->extractMetadata(
107 METADATA_KEY_MIMETYPE)) != NULL) {
// 关键函数setMimeType
108 status = client.setMimeType(value);
109 if (status) {
110 return MEDIA_SCAN_RESULT_ERROR;
111 }
112 }
113
114 struct KeyMap {
115 const char *tag;
116 int key;
117 };
118 static const KeyMap kKeyMap[] = {
119 { "tracknumber", METADATA_KEY_CD_TRACK_NUMBER },
120 { "discnumber", METADATA_KEY_DISC_NUMBER },
121 { "album", METADATA_KEY_ALBUM },
122 { "artist", METADATA_KEY_ARTIST },
123 { "albumartist", METADATA_KEY_ALBUMARTIST },
124 { "composer", METADATA_KEY_COMPOSER },
125 { "genre", METADATA_KEY_GENRE },
126 { "title", METADATA_KEY_TITLE },
127 { "year", METADATA_KEY_YEAR },
128 { "duration", METADATA_KEY_DURATION },
129 { "writer", METADATA_KEY_WRITER },
130 { "compilation", METADATA_KEY_COMPILATION },
131 { "isdrm", METADATA_KEY_IS_DRM },
132 { "date", METADATA_KEY_DATE },
133 { "width", METADATA_KEY_VIDEO_WIDTH },
134 { "height", METADATA_KEY_VIDEO_HEIGHT },
135 };
136 static const size_t kNumEntries = sizeof(kKeyMap) / sizeof(kKeyMap[0]);
137
138 for (size_t i = 0; i < kNumEntries; ++i) {
139 const char *value;
140 if ((value = mRetriever->extractMetadata(kKeyMap[i].key)) != NULL) {
// 关键函数addStringTag。该函数仅调用handleStringTag(name, value);
// /frameworks/av/media/libmedia/MediaScannerClient.cpp
// native层handleStringTag 回调java层handleStringTag
141 status = client.addStringTag(kKeyMap[i].tag, value);
142 if (status != OK) {
143 return MEDIA_SCAN_RESULT_ERROR;
144 }
145 }
146 }
147
148 return MEDIA_SCAN_RESULT_OK;
149 }
利用工具类MediaMetadataRetriever来获取文件的元数据，并将得到的元数据传递给MyMediaScannerClient。 其实MediaMetadataRetriever内部是利用系统服务“media.player”来解析多媒体文件的，这个系统服务对应的代理接口是IMediaPlayerService，它有个成员函数createMetadataRetriever()可以用于获取IMediaMetadataRetriever接口，而后就可以调用该接口的setDataSource()和extractMetadata()了。
processFileInternal()里主要通过两个函数，向Java层的MyMediaScannerClient传递数据，一个是setMimeType()，另一个是addStringTag()。 C++层的setMimeType()其代码如下：
/frameworks/base/media/jni/android_media_MediaScanner.cpp
// 通过JNI技术，调用到Java层的setMimeType()。
204 virtual status_t setMimeType(const char* mimeType)
205 {
206 ALOGV("setMimeType: %s", mimeType);
207 jstring mimeTypeStr;
208 if ((mimeTypeStr = mEnv->NewStringUTF(mimeType)) == NULL) {
209 mEnv->ExceptionClear();
210 return NO_MEMORY;
211 }
212
213 mEnv->CallVoidMethod(mClient, mSetMimeTypeMethodID, mimeTypeStr);
214
215 mEnv->DeleteLocalRef(mimeTypeStr);
216 return checkAndClearExceptionFromCallback(mEnv, "setMimeType");
217 }
C++层的addStringTag()其代码如下：
/frameworks/av/media/libmedia/MediaScannerClient.cpp
42 status_t MediaScannerClient::addStringTag(const char* name, const char* value)
43 {
44 handleStringTag(name, value);
45 return OK;
46 }
/frameworks/base/media/java/android/media/MediaScanner.java
@UnsupportedAppUsage
738 public void handleStringTag(String name, String value) {
739 if (name.equalsIgnoreCase("title") || name.startsWith("title;")) {
740 // Don't trim() here, to preserve the special \001 character
741 // used to force sorting. The media provider will trim() before
742 // inserting the title in to the database.
743 mTitle = value;
744 } else if (name.equalsIgnoreCase("artist") || name.startsWith("artist;")) {
745 mArtist = value.trim();
746 } else if (name.equalsIgnoreCase("albumartist") || name.startsWith("albumartist;")
747 || name.equalsIgnoreCase("band") || name.startsWith("band;")) {
748 mAlbumArtist = value.trim();
749 } else if (name.equalsIgnoreCase("album") || name.startsWith("album;")) {
750 mAlbum = value.trim();
751 } else if (name.equalsIgnoreCase("composer") || name.startsWith("composer;")) {
752 mComposer = value.trim();
753 } else if (mProcessGenres &&
754 (name.equalsIgnoreCase("genre") || name.startsWith("genre;"))) {
755 mGenre = getGenreName(value);
756 } else if (name.equalsIgnoreCase("year") || name.startsWith("year;")) {
757 mYear = parseSubstring(value, 0, 0);
758 } else if (name.equalsIgnoreCase("tracknumber") || name.startsWith("tracknumber;")) {
759 // track number might be of the form "2/12"
760 // we just read the number before the slash
761 int num = parseSubstring(value, 0, 0);
762 mTrack = (mTrack / 1000) * 1000 + num;
763 } else if (name.equalsIgnoreCase("discnumber") ||
764 name.equals("set") || name.startsWith("set;")) {
765 // set number might be of the form "1/3"
766 // we just read the number before the slash
767 int num = parseSubstring(value, 0, 0);
768 mTrack = (num * 1000) + (mTrack % 1000);
769 } else if (name.equalsIgnoreCase("duration")) {
770 mDuration = parseSubstring(value, 0, 0);
771 } else if (name.equalsIgnoreCase("writer") || name.startsWith("writer;")) {
772 mWriter = value.trim();
773 } else if (name.equalsIgnoreCase("compilation")) {
774 mCompilation = parseSubstring(value, 0, 0);
775 } else if (name.equalsIgnoreCase("isdrm")) {
776 mIsDrm = (parseSubstring(value, 0, 0) == 1);
777 } else if (name.equalsIgnoreCase("date")) {
778 mDate = parseDate(value);
779 } else if (name.equalsIgnoreCase("width")) {
780 mWidth = parseSubstring(value, 0, 0);
781 } else if (name.equalsIgnoreCase("height")) {
782 mHeight = parseSubstring(value, 0, 0);
783 } else if (name.equalsIgnoreCase("colorstandard")) {
784 mColorStandard = parseSubstring(value, 0, -1);
785 } else if (name.equalsIgnoreCase("colortransfer")) {
786 mColorTransfer = parseSubstring(value, 0, -1);
787 } else if (name.equalsIgnoreCase("colorrange")) {
788 mColorRange = parseSubstring(value, 0, -1);
789 } else {
790 //Log.v(TAG, "unknown tag: " + name + " (" + mProcessGenres + ")");
791 }
792 }

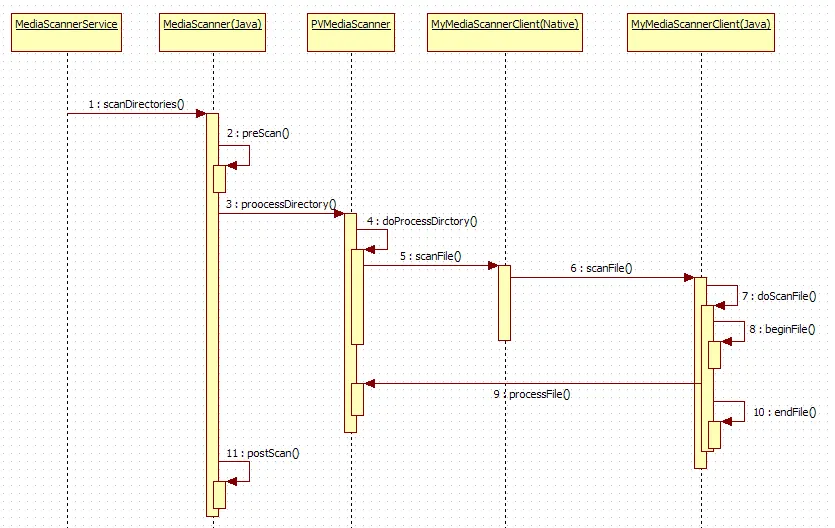

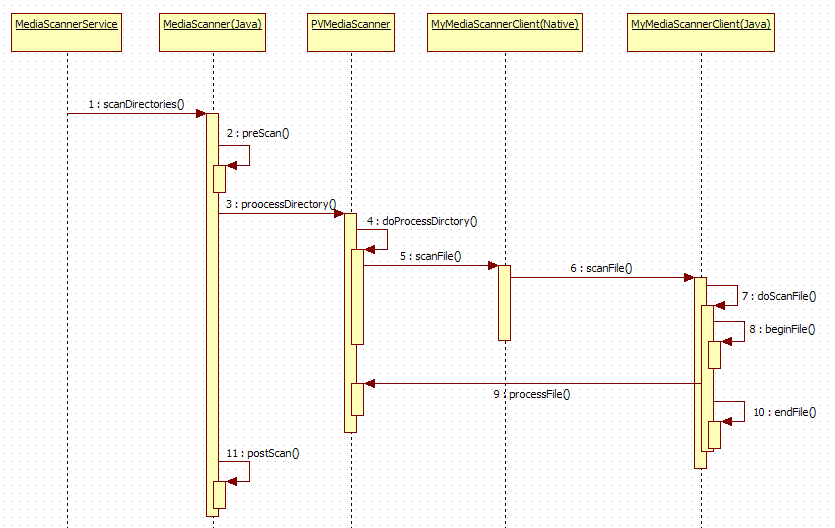

MediaScanner::processDirectory()
按理说，和processFile()类似，processDirectory()最终对应的代码也应该在StagefrightMediaScanner里，但是StagefrightMediaScanner并没有编写这个函数，又因为StagefrightMediaScanner继承于MediaScanner.cpp（C++层次），所以实际上使用的是MediaScanner.cpp的ProcessDirectory().
/frameworks/av/media/libmedia/MediaScanner.cpp
81 MediaScanResult MediaScanner::processDirectory(
82 const char *path, MediaScannerClient &client) {
83 int pathLength = strlen(path);
84 if (pathLength >= PATH_MAX) {
85 return MEDIA_SCAN_RESULT_SKIPPED;
86 }
87 char* pathBuffer = (char *)malloc(PATH_MAX + 1);
88 if (!pathBuffer) {
89 return MEDIA_SCAN_RESULT_ERROR;
90 }
91
92 int pathRemaining = PATH_MAX - pathLength;
93 strcpy(pathBuffer, path);
94 if (pathLength > 0 && pathBuffer[pathLength - 1] != '/') {
95 pathBuffer[pathLength] = '/';
96 pathBuffer[pathLength + 1] = 0;
97 --pathRemaining;
98 }
99
100 client.setLocale(locale());
101
102 MediaScanResult result = doProcessDirectory(pathBuffer, pathRemaining, client, false);
103
104 free(pathBuffer);
105
106 return result;
107 }
131 MediaScanResult MediaScanner::doProcessDirectory(
132 char *path, int pathRemaining, MediaScannerClient &client, bool noMedia) {
133 // place to copy file or directory name
134 char* fileSpot = path + strlen(path);
135 struct dirent* entry;
136
// 判断扫描的目录是否要跳过.
// 可跳过的目录存在于mSkipList列表中。这个列表的内容其实来自于“testing.mediascanner.skiplist”属性.
// C++层MediaScanner构造函数中，会调用loadSkipList()来读取这个属性，解析属性中记录的所有目录名并写入mSkipList列表。
137 if (shouldSkipDirectory(path)) {
138 ALOGD("Skipping: %s", path);
139 return MEDIA_SCAN_RESULT_OK;
140 }
141
142 // Treat all files as non-media in directories that contain a ".nomedia" file
143 if (pathRemaining >= 8 /* strlen(".nomedia") */ ) {
144 strcpy(fileSpot, ".nomedia");
145 if (access(path, F_OK) == 0) {
146 ALOGV("found .nomedia, setting noMedia flag");
147 noMedia = true;
148 }
149
150 // restore path
151 fileSpot[0] = 0;
152 }
153
154 DIR* dir = opendir(path);
155 if (!dir) {
156 ALOGW("Error opening directory '%s', skipping: %s.", path, strerror(errno));
157 return MEDIA_SCAN_RESULT_SKIPPED;
158 }
159
160 MediaScanResult result = MEDIA_SCAN_RESULT_OK;
// 用一个while循环多次调用doProcessDirectoryEntry()，其内部在必要时候，会再次调用doProcessDirectory()分析子目录。
// readdir()是linux上返回所指目录中“下一个进入点”（next entry）的函数，我们常常在一个while循环中调用它，以便遍历出目录中的所有内容。
161 while ((entry = readdir(dir))) {
162 if (doProcessDirectoryEntry(path, pathRemaining, client, noMedia, entry, fileSpot)
163 == MEDIA_SCAN_RESULT_ERROR) {
164 result = MEDIA_SCAN_RESULT_ERROR;
165 break;
166 }
167 }
168 closedir(dir);
169 return result;
170 }
172 MediaScanResult MediaScanner::doProcessDirectoryEntry(
173 char *path, int pathRemaining, MediaScannerClient &client, bool noMedia,
174 struct dirent* entry, char* fileSpot) {
175 struct stat statbuf;
176 const char* name = entry->d_name;
177
178
189
190 int type = entry->d_type;
191 ...
205 if (type == DT_DIR) {// 目录
206 ...
212 // report the directory to the client
213 if (stat(path, &statbuf) == 0) {
214 status_t status = client.scanFile(path, statbuf.st_mtime, 0,
215 true /*isDirectory*/, childNoMedia);
216 if (status) {
217 return MEDIA_SCAN_RESULT_ERROR;
218 }
219 }
220
221 // and now process its contents
222 strcat(fileSpot, "/");
223 MediaScanResult result = doProcessDirectory(path, pathRemaining - nameLength - 1,
224 client, childNoMedia);
225 if (result == MEDIA_SCAN_RESULT_ERROR) {
226 return MEDIA_SCAN_RESULT_ERROR;
227 }
228 } else if (type == DT_REG) {// 文件
229 stat(path, &statbuf);
230 status_t status = client.scanFile(path, statbuf.st_mtime, statbuf.st_size,
231 false /*isDirectory*/, noMedia);
232 if (status) {
233 return MEDIA_SCAN_RESULT_ERROR;
234 }
235 }
236
237 return MEDIA_SCAN_RESULT_OK;
238 }
不管当前处理的入口类型是“目录”还是“文件”，最终都是依靠client的scanFile()来处理，只不过前者倒数第二个参数（isDirectory）为true，后者为false而已。 client.scanFile()最终也是要调回到Java层的.
/frameworks/base/media/java/android/media/MediaScanner.java
// java层 private class MyMediaScannerClient implements MediaScannerClient中
617 @Override
618 @UnsupportedAppUsage
619 public void scanFile(String path, long lastModified, long fileSize,
620 boolean isDirectory, boolean noMedia) {
621 // This is the callback funtion from native codes.
// 回调。doScanFile最终会调用StagefrightMediaScanner::processFile()
623 doScanFile(path, null, lastModified, fileSize, isDirectory, false, noMedia);
624 }
MediaProvider功能
MediaProvider 创建数据库
/packages/providers/MediaProvider/src/com/android/providers/media/MediaProvider.java
@Override
public boolean onCreate() {
...
// DatabaseHelper缓存
mDatabases = new HashMap<String, DatabaseHelper>();
// 绑定内部存储数据库
attachVolume(INTERNAL_VOLUME);
...
String state = Environment.getExternalStorageState();
if (Environment.MEDIA_MOUNTED.equals(state) ||
Environment.MEDIA_MOUNTED_READ_ONLY.equals(state)) {
// 如果已挂载外部存储，绑定外部存储数据库
attachVolume(EXTERNAL_VOLUME);
}
...
return true;
}
看下attachVolume方法. 创建数据库：如果此存储卷已经链接上了，则不执行任何操作。否则，查询存储卷的 ID 并且建立对应的数据库。
/**
* Attach the database for a volume (internal or external).
* Does nothing if the volume is already attached, otherwise
* checks the volume ID and sets up the corresponding database.
*
* @param volume to attach, either {@link #INTERNAL_VOLUME} or {@link #EXTERNAL_VOLUME}.
* @return the content URI of the attached volume.
*/
private Uri attachVolume(String volume) {
...
// Update paths to reflect currently mounted volumes
// 更新路径以反映当前装载的卷
updateStoragePaths();
DatabaseHelper helper = null;
synchronized (mDatabases) {
helper = mDatabases.get(volume);
// 判断是否已经attached过了
if (helper != null) {
if (EXTERNAL_VOLUME.equals(volume)) {
// 确保默认的文件夹已经被创建在挂载的主要存储设备上，
// 对每个存储卷只做一次这种操作，所以当用户手动删除时不会打扰
ensureDefaultFolders(helper, helper.getWritableDatabase());
}
return Uri.parse("content://media/" + volume);
}
Context context = getContext();
if (INTERNAL_VOLUME.equals(volume)) {
// 如果是内部存储则直接实例化DatabaseHelper
helper = new DatabaseHelper(context, INTERNAL_DATABASE_NAME, true,
false, mObjectRemovedCallback);
} else if (EXTERNAL_VOLUME.equals(volume)) {
// 如果是外部存储的操作，只获取主要的外部卷 ID
// Only extract FAT volume ID for primary public
final VolumeInfo vol = mStorageManager.getPrimaryPhysicalVolume();
if (vol != null) {// 判断是否存在主要的外部卷
// 获取主要的外部卷
final StorageVolume actualVolume = mStorageManager.getPrimaryVolume();
// 获取主要的外部卷 ID
final int volumeId = actualVolume.getFatVolumeId();
// Must check for failure!
// If the volume is not (yet) mounted, this will create a new
// external-ffffffff.db database instead of the one we expect. Then, if
// android.process.media is later killed and respawned, the real external
// database will be attached, containing stale records, or worse, be empty.
// 数据库都是以类似 external-ffffffff.db 的形式命名的，
// 后面的 8 个 16 进制字符是该 SD 卡 FAT 分区的 Volume ID。
// 该 ID 是分区时决定的，只有重新分区或者手动改变才会更改，
// 可以防止插入不同 SD 卡时数据库冲突。
if (volumeId == -1) {
String state = Environment.getExternalStorageState();
if (Environment.MEDIA_MOUNTED.equals(state) ||
Environment.MEDIA_MOUNTED_READ_ONLY.equals(state)) {
// This may happen if external storage was _just_ mounted. It may also
// happen if the volume ID is _actually_ 0xffffffff, in which case it
// must be changed since FileUtils::getFatVolumeId doesn't allow for
// that. It may also indicate that FileUtils::getFatVolumeId is broken
// (missing ioctl), which is also impossible to disambiguate.
// 已经挂载但是sd卡是只读状态
Log.e(TAG, "Can't obtain external volume ID even though it's mounted.");
} else {
// 还没有挂载
Log.i(TAG, "External volume is not (yet) mounted, cannot attach.");
}
throw new IllegalArgumentException("Can't obtain external volume ID for " +
volume + " volume.");
}
// generate database name based on volume ID
// 根据volume ID设置数据库的名称
String dbName = "external-" + Integer.toHexString(volumeId) + ".db";
// 创建外部存储数据库
helper = new DatabaseHelper(context, dbName, false,
false, mObjectRemovedCallback);
mVolumeId = volumeId;
} else {
// external database name should be EXTERNAL_DATABASE_NAME
// however earlier releases used the external-XXXXXXXX.db naming
// for devices without removable storage, and in that case we need to convert
// to this new convention
// 外部数据库名称应为EXTERNAL_DATABASE_NAME
// 但是较早的版本对没有可移动存储的设备使用external-XXXXXXXX.db命名
// 在这种情况下，我们需要转换为新的约定
...
// 根据之前转换的数据库名，创建数据库
helper = new DatabaseHelper(context, dbFile.getName(), false,
false, mObjectRemovedCallback);
}
} else {
throw new IllegalArgumentException("There is no volume named " + volume);
}
// 缓存起来，标识已经创建过了数据库
mDatabases.put(volume, helper);
...
}
if (EXTERNAL_VOLUME.equals(volume)) {
// 给外部存储创建默认的文件夹
ensureDefaultFolders(helper, helper.getWritableDatabase());
}
return Uri.parse("content://media/" + volume);
}
先来关注一下 getPrimaryPhysicalVolume() 这个相关的方法：
/frameworks/base/core/java/android/os/storage/StorageManager.java
// 获取主要的外部的 VolumeInfo
public @Nullable VolumeInfo getPrimaryPhysicalVolume() {
final List<VolumeInfo> vols = getVolumes();
for (VolumeInfo vol : vols) {
if (vol.isPrimaryPhysical()) {
return vol;
}
}
return null;
}
/frameworks/base/core/java/android/os/storage/VolumeInfo.java
// 判断该 VolumeInfo 是否是主要的，并且是外部的
public boolean isPrimaryPhysical() {
return isPrimary() && (getType() == TYPE_PUBLIC);
}
// 判断该 VolumeInfo 是否是主要的
public boolean isPrimary() {
return (mountFlags & MOUNT_FLAG_PRIMARY) != 0;
}
继续分析创建数据库的源头DatabaseHelper
/**
* Creates database the first time we try to open it.
*/
@Override
public void onCreate(final SQLiteDatabase db) {
// 在此方法中对700版本以下的都会新建数据库
updateDatabase(mContext, db, mInternal, 0, getDatabaseVersion(mContext));
}
/**
* Updates the database format when a new content provider is used
* with an older database format.
*/
@Override
public void onUpgrade(final SQLiteDatabase db, final int oldV, final int newV) {
// 对数据库进行更新
mUpgradeAttempted = true;
updateDatabase(mContext, db, mInternal, oldV, newV);
}
这里强调一句 getDatabaseVersion() 方法获取的 fromVersion 不是数据库版本，而是 /packages/providers/MediaProvider/AndroidManifest.xml 中的 versionCode。
/**
* This method takes care of updating all the tables in the database to the
* current version, creating them if necessary.
* This method can only update databases at schema 700 or higher, which was
* used by the KitKat release. Older database will be cleared and recreated.
* @param db Database
* @param internal True if this is the internal media database
*/
private static void updateDatabase(Context context, SQLiteDatabase db, boolean internal,
int fromVersion, int toVersion) {
...
// 对不同版本的数据库进行判断
if (fromVersion < 700) {
// 小于700，重新创建数据库
createLatestSchema(db, internal);
} else if (fromVersion < 800) {
// 对700-800之间的数据库处理
updateFromKKSchema(db);
} else if (fromVersion < 900) {
// 对800-900之间的数据库处理
updateFromOCSchema(db);
}
// 检查audio_meta的_data值是否是不同的，如果不同就删除audio_meta，
// 在扫描的时候重新创建
sanityCheck(db, fromVersion);
}
那么还有一个疑惑，我们知道 ContentProvider 的 onCreate() 执行时间，早于 Application onCreate()，那么在 onCreate() 之后挂载外部存储，是如何处理的呢？
搜索 attachVolume() 的调用位置，可以找到在 insertInternal() 中看到：
/packages/providers/MediaProvider/src/com/android/providers/media/MediaProvider.java
private Uri insertInternal(Uri uri, int match, ContentValues initialValues,
ArrayList<Long> notifyRowIds) {
...
switch (match) {
...
case VOLUMES:
{
String name = initialValues.getAsString("name");
// 根据name绑定存储数据库
Uri attachedVolume = attachVolume(name);
...
return attachedVolume;
}
...
}
根据 VOLUMES 找到对应的 URI：URI_MATCHER.addURI("media", null, VOLUMES); 而调用 insertInternal() 方法的地方，是在 insert() 方法中。
那么说明，必然存在一个调用 insert() 方法，并传入了 "content://media/" 的URI，可以在 MediaScannerService 的 openDatabase() 方法中找到： /packages/providers/MediaProvider/src/com/android/providers/media/MediaScannerService.java
private void openDatabase(String volumeName) {
try {
ContentValues values = new ContentValues();
values.put("name", volumeName);
getContentResolver().insert(Uri.parse("content://media/"), values);
} catch (IllegalArgumentException ex) {
Log.w(TAG, "failed to open media database");
}
}
调用 openDatabase() 方法的地方就是在开始扫描外部存储的时候，也就在这个时候，进行了 DatabaseHelper 的实例化，在前文已经分析了 scan() 的代码，为了方便查看，这里再列该方法：
private void scan(String[] directories, String volumeName) {
Uri uri = Uri.parse("file://" + directories[0]);
// don't sleep while scanning
mWakeLock.acquire();
try {
ContentValues values = new ContentValues();
values.put(MediaStore.MEDIA_SCANNER_VOLUME, volumeName);
Uri scanUri = getContentResolver().insert(MediaStore.getMediaScannerUri(), values);
sendBroadcast(new Intent(Intent.ACTION_MEDIA_SCANNER_STARTED, uri));
try {
if (volumeName.equals(MediaProvider.EXTERNAL_VOLUME)) {
openDatabase(volumeName);
}
try (MediaScanner scanner = new MediaScanner(this, volumeName)) {
scanner.scanDirectories(directories);
}
} catch (Exception e) {
Log.e(TAG, "exception in MediaScanner.scan()", e);
}
getContentResolver().delete(scanUri, null, null);
} finally {
sendBroadcast(new Intent(Intent.ACTION_MEDIA_SCANNER_FINISHED, uri));
mWakeLock.release();
}
}
MediaProvider更新update
3550 @Override
3551 public int update(Uri uri, ContentValues initialValues, String userWhere,
3552 String[] whereArgs) {
// 将uri进行转换成合适的格式，去除标准化
3553 uri = safeUncanonicalize(uri);
3554 int count;
3555 //Log.v(TAG, "update for uri=" + uri + ", initValues=" + initialValues +
3556 // ", where=" + userWhere + ", args=" + Arrays.toString(whereArgs) + " caller:" +
3557 // Binder.getCallingPid());
// 对uri进行匹配
3558 int match = URI_MATCHER.match(uri);
// 返回查询的对应uri的数据库帮助类
3559 DatabaseHelper helper = getDatabaseForUri(uri);
3560 if (helper == null) {
3561 throw new UnsupportedOperationException(
3562 "Unknown URI: " + uri);
3563 }
// 记录更新的次数
3564 helper.mNumUpdates++;
3565
// 通过可写的方式获得数据库实例
3566 SQLiteDatabase db = helper.getWritableDatabase();
3567
3568 String genre = null;
3569 if (initialValues != null) {// 获取流派的信息，然后删除掉
3570 genre = initialValues.getAsString(Audio.AudioColumns.GENRE);
3571 initialValues.remove(Audio.AudioColumns.GENRE);
3572 }
3573
...
3668
// 根据匹配的uri进行相应的操作
3669 switch (match) {
3670 case AUDIO_MEDIA:
3671 case AUDIO_MEDIA_ID:
// 更新音乐人和专辑字段。首先从缓存中判断是否有值，如果有直接用缓存中的
// 数据，如果没有再从数据库中查询是否有对应的信息，如果有则更新，
// 如果没有插入这条数据.接下来的操作是增加更新次数，并更新流派
3672 ...
break;
3792 case IMAGES_MEDIA:
3793 case IMAGES_MEDIA_ID:
3794 case VIDEO_MEDIA:
3795 case VIDEO_MEDIA_ID:
// 更新照片 视频，并且发出生成略缩图请求
...
3835 break;
3836
3837 case AUDIO_PLAYLISTS_ID_MEMBERS_ID:
// 更新播放列表数据
3852 default:
3853 helper.mNumUpdates++;
3854 count = db.update(tableAndWhere.table, initialValues,
3855 tableAndWhere.where, whereArgs);
3856 break;
3857 }
3858 // in a transaction, the code that began the transaction should be taking
3859 // care of notifications once it ends the transaction successfully
3860 if (count > 0 && !db.inTransaction()) {
3861 getContext().getContentResolver().notifyChange(uri, null);
3862 }
3863 return count;
3864 }
MediaProvider 插入bulkInsert insert
关于插入，有两个方法插入，一个是大量的插入 bulkInsert 方法传入的是 ContentValues 数组；一个是 insert，传入的是单一个 ContentValues。
@Override
public int bulkInsert(Uri uri, ContentValues values[]) {
// 首先对传入的Uri进行匹配
int match = URI_MATCHER.match(uri);
if (match == VOLUMES) {
// 如果是匹配的是存储卷，则直接调用父类的方法，进行循环插入
return super.bulkInsert(uri, values);
}
// 对DatabaseHelper和SQLiteDatabase的初始化
DatabaseHelper helper = getDatabaseForUri(uri);
if (helper == null) {
throw new UnsupportedOperationException(
"Unknown URI: " + uri);
}
SQLiteDatabase db = helper.getWritableDatabase();
if (db == null) {
throw new IllegalStateException("Couldn't open database for " + uri);
}
if (match == AUDIO_PLAYLISTS_ID || match == AUDIO_PLAYLISTS_ID_MEMBERS) {
// 插入播放列表的数据，在playlistBulkInsert中是开启的事务进行插入
return playlistBulkInsert(db, uri, values);
} else if (match == MTP_OBJECT_REFERENCES) {
// 将MTP对象的ID转换成音频的ID，最终也是调用到playlistBulkInsert
int handle = Integer.parseInt(uri.getPathSegments().get(2));
return setObjectReferences(helper, db, handle, values);
}
ArrayList<Long> notifyRowIds = new ArrayList<Long>();
int numInserted = 0;
// insert may need to call getParent(), which in turn may need to update the database,
// so synchronize on mDirectoryCache to avoid deadlocks
synchronized (mDirectoryCache) {
// 如果不满足上述的条件，则开启事务进行插入其他的数据
db.beginTransaction();
try {
int len = values.length;
for (int i = 0; i < len; i++) {
if (values[i] != null) {
// 循环调用insertInternal去插入相关的数据
insertInternal(uri, match, values[i], notifyRowIds);
}
}
numInserted = len;
db.setTransactionSuccessful();
} finally {
// 结束事务
db.endTransaction();
}
}
// 通知更新
getContext().getContentResolver().notifyChange(uri, null);
return numInserted;
}
@Override
public Uri insert(Uri uri, ContentValues initialValues) {
int match = URI_MATCHER.match(uri);
ArrayList<Long> notifyRowIds = new ArrayList<Long>();
// 只是调用insertInternal进行插入
Uri newUri = insertInternal(uri, match, initialValues, notifyRowIds);
// do not signal notification for MTP objects.
// we will signal instead after file transfer is successful.
if (newUri != null && match != MTP_OBJECTS) {
// Report a general change to the media provider.
// We only report this to observers that are not looking at
// this specific URI and its descendants, because they will
// still see the following more-specific URI and thus get
// redundant info (and not be able to know if there was just
// the specific URI change or also some general change in the
// parent URI).
getContext().getContentResolver().notifyChange(uri, null, match != MEDIA_SCANNER
? ContentResolver.NOTIFY_SKIP_NOTIFY_FOR_DESCENDANTS : 0);
// Also report the specific URIs that changed.
if (match != MEDIA_SCANNER) {
getContext().getContentResolver().notifyChange(newUri, null, 0);
}
}
return newUri;
}
MediaProvider 删除delete
3219 @Override
3220 public int delete(Uri uri, String userWhere, String[] whereArgs) {
MediaProvider 查询query
@SuppressWarnings("fallthrough")
@Override
public Cursor query(Uri uri, String[] projectionIn, String selection,
String[] selectionArgs, String sort) {
uri = safeUncanonicalize(uri);
int table = URI_MATCHER.match(uri);
List<String> prependArgs = new ArrayList<String>();
// handle MEDIA_SCANNER before calling getDatabaseForUri()
if (table == MEDIA_SCANNER) {
if (mMediaScannerVolume == null) {
return null;
} else {
// create a cursor to return volume currently being scanned by the media scanner
MatrixCursor c = new MatrixCursor(
new String[] {MediaStore.MEDIA_SCANNER_VOLUME});
c.addRow(new String[] {mMediaScannerVolume});
//直接返回的是有关存储卷的cursor
return c;
}
}
// Used temporarily (until we have unique media IDs) to get an identifier
// for the current sd card, so that the music app doesn't have to use the
// non-public getFatVolumeId method
if (table == FS_ID) {
MatrixCursor c = new MatrixCursor(new String[] {"fsid"});
c.addRow(new Integer[] {mVolumeId});
return c;
}
if (table == VERSION) {
MatrixCursor c = new MatrixCursor(new String[] {"version"});
c.addRow(new Integer[] {getDatabaseVersion(getContext())});
return c;
}
//初始化DatabaseHelper和SQLiteDatabase
String groupBy = null;
DatabaseHelper helper = getDatabaseForUri(uri);
if (helper == null) {
return null;
}
helper.mNumQueries++;
SQLiteDatabase db = null;
try {
db = helper.getReadableDatabase();
} catch (Exception e) {
e.printStackTrace();
return null;
}
if (db == null) return null;
// SQLiteQueryBuilder类是组成查询语句的帮助类
SQLiteQueryBuilder qb = new SQLiteQueryBuilder();
//获取uri里面的查询字符
String limit = uri.getQueryParameter("limit");
String filter = uri.getQueryParameter("filter");
String [] keywords = null;
if (filter != null) {
filter = Uri.decode(filter).trim();
if (!TextUtils.isEmpty(filter)) {
//对字符进行筛选
String [] searchWords = filter.split(" ");
keywords = new String[searchWords.length];
for (int i = 0; i < searchWords.length; i++) {
String key = MediaStore.Audio.keyFor(searchWords[i]);
key = key.replace("\\", "\\\\");
key = key.replace("%", "\\%");
key = key.replace("_", "\\_");
keywords[i] = key;
}
}
}
if (uri.getQueryParameter("distinct") != null) {
qb.setDistinct(true);
}
boolean hasThumbnailId = false;
//对匹配的其他类型进行设置查询语句的操作
switch (table) {
case IMAGES_MEDIA:
//设置查询的表是images
qb.setTables("images");
if (uri.getQueryParameter("distinct") != null)
//设置为唯一的
qb.setDistinct(true);
break;
//其他类型相类似
... ...
}
//根据拼装的搜索条件，进行查询
Cursor c = qb.query(db, projectionIn, selection,
combine(prependArgs, selectionArgs), groupBy, null, sort, limit);
if (c != null) {
String nonotify = uri.getQueryParameter("nonotify");
if (nonotify == null || !nonotify.equals("1")) {
//通知更新数据库
c.setNotificationUri(getContext().getContentResolver(), uri);
}
}
return c;
}
MediaProvider 如何更新数据库
站在 Java 层来看，不管是扫描具体的文件，还是扫描一个目录，最终都会走到 Java 层 MyMediaScannerClient 的 doScanFile()。在前文我们已经列出过这个函数的代码，为了说明问题，这里再列一下其中的重要句子： /frameworks/base/media/java/android/media/MediaScanner.java
public Uri doScanFile(String path, String mimeType, long lastModified,
long fileSize, boolean isDirectory, boolean scanAlways, boolean noMedia) {
try {
// ① beginFile
FileEntry entry = beginFile(path, mimeType, lastModified,
fileSize, isDirectory, noMedia);
...
// rescan for metadata if file was modified since last scan
if (entry != null && (entry.mLastModifiedChanged || scanAlways)) {
if (noMedia) {
result = endFile(entry, false, false, false, false, false);
} else {
// 正常文件处理走到这里
...
// we only extract metadata for audio and video files
if (isaudio || isvideo) {
// ② processFile 这边主要是解析媒体文件的元数据，以便后续存入到数据库中
mScanSuccess = processFile(path, mimeType, this);
}
if (isimage) {
mScanSuccess = processImageFile(path);
}
...
// ③ endFile
result = endFile(entry, ringtones, notifications, alarms, music, podcasts);
}
}
} catch (RemoteException e) {
Log.e(TAG, "RemoteException in MediaScanner.scanFile()", e);
}
...
return result;
}
重看一下其中和 MediaProvider 相关的 beginFile() 和 endFile()。
beginFile()是为了后续和MediaProvider打交道，准备一个FileEntry。FileEntry的定义如下：
private static class FileEntry {
long mRowId;
String mPath;
long mLastModified;
int mFormat;
boolean mLastModifiedChanged;
FileEntry(long rowId, String path, long lastModified, int format) {
mRowId = rowId;
mPath = path;
mLastModified = lastModified;
mFormat = format;
mLastModifiedChanged = false;
}
...
}
FileEntry 的几个成员变量，其实体现了查表时的若干列的值。 beginFile()的代码截选如下：
public FileEntry beginFile(String path, String mimeType, long lastModified,
long fileSize, boolean isDirectory, boolean noMedia) {
...
FileEntry entry = makeEntryFor(path); // 从MediaProvider中查出该文件或目录对应的入口
...
if (entry == null || wasModified) {
// 不管原来表中是否存在这个路径文件数据，这里面都会执行到
if (wasModified) {
// 更新最后编辑时间
entry.mLastModified = lastModified;
} else {
// 如果前面没查到FileEntry，就在这里new一个新的FileEntry
entry = new FileEntry(0, path, lastModified,
(isDirectory ? MtpConstants.FORMAT_ASSOCIATION : 0));
}
entry.mLastModifiedChanged = true;
}
...
return entry;
}
其中调用的 makeEntryFor() 内部就会查询 MediaProvider：
FileEntry makeEntryFor(String path) {
String where;
String[] selectionArgs;
Cursor c = null;
try {
where = Files.FileColumns.DATA + "=?";
selectionArgs = new String[] { path };
c = mMediaProvider.query(mFilesUriNoNotify, FILES_PRESCAN_PROJECTION,
where, selectionArgs, null, null);
if (c.moveToFirst()) {
long rowId = c.getLong(FILES_PRESCAN_ID_COLUMN_INDEX);
int format = c.getInt(FILES_PRESCAN_FORMAT_COLUMN_INDEX);
long lastModified = c.getLong(FILES_PRESCAN_DATE_MODIFIED_COLUMN_INDEX);
return new FileEntry(rowId, path, lastModified, format);
}
} catch (RemoteException e) {
} finally {
if (c != null) {
c.close();
}
}
return null;
}
查询语句中用的 FILES_PRESCAN_PROJECTION 的定义如下：
private static final String[] FILES_PRESCAN_PROJECTION = new String[] {
Files.FileColumns._ID, // 0
Files.FileColumns.DATA, // 1
Files.FileColumns.FORMAT, // 2
Files.FileColumns.DATE_MODIFIED, // 3
};
看到了吗，特意要去查一下 MediaProvider 中记录的待查文件的最后修改日期。能查到就返回一个 FileEntry，如果查询时出现异常就返回 null。beginFile() 的 lastModified 参数可以理解为是从文件系统里拿到的待查文件的最后修改日期，它应该是最准确的。而 MediaProvider 里记录的信息则有可能“较老”。beginFile() 内部通过比对这两个“最后修改日期”，就可以知道该文件是不是真的改动了。如果的确改动了，就要把 FileEntry 里的 mLastModified 调整成最新数据。
基本上而言，beginFile() 会返回一个 FileEntry。如果该阶段没能在MediaProvider里找到文件对应的记录，那么 FileEntry 对象的mRowId会为0，而如果找到了，则为非0值。
与 beginFile() 相对的，就是 endFile() 了。endFile() 是真正向 MediaProvider 数据库插入数据或更新数据的地方。当 FileEntry 的 mRowId 为0时，会考虑调用：
result = mMediaProvider.insert(tableUri, values);
而当 mRowId 为非0值时，则会考虑调用：
mMediaProvider.update(result, values, null, null);
这就是改变 MediaProvider 中相关信息的最核心代码。
endFile() 的代码截选如下：
private Uri endFile(FileEntry entry, boolean ringtones, boolean notifications,
boolean alarms, boolean music, boolean podcasts)
throws RemoteException {
...
ContentValues values = toValues();
String title = values.getAsString(MediaStore.MediaColumns.TITLE);
if (title == null || TextUtils.isEmpty(title.trim())) {
title = MediaFile.getFileTitle(values.getAsString(MediaStore.MediaColumns.DATA));
values.put(MediaStore.MediaColumns.TITLE, title);
}
...
long rowId = entry.mRowId;
if (MediaFile.isAudioFileType(mFileType) && (rowId == 0 || mMtpObjectHandle != 0)) {
// Only set these for new entries. For existing entries, they
// may have been modified later, and we want to keep the current
// values so that custom ringtones still show up in the ringtone
// picker.
values.put(Audio.Media.IS_RINGTONE, ringtones);
values.put(Audio.Media.IS_NOTIFICATION, notifications);
values.put(Audio.Media.IS_ALARM, alarms);
values.put(Audio.Media.IS_MUSIC, music);
values.put(Audio.Media.IS_PODCAST, podcasts);
} else if ((mFileType == MediaFile.FILE_TYPE_JPEG
|| mFileType == MediaFile.FILE_TYPE_HEIF
|| MediaFile.isRawImageFileType(mFileType)) && !mNoMedia) {
...
}
...
if (rowId == 0) {
// 扫描的是新文件，insert记录。如果是目录的话，必须比它所含有的所有文件更早插入记录，
// 所以在批量插入时，就需要有更高的优先权。如果是文件的话，而且我们现在就需要其对应
// 的rowId，那么应该立即进行插入，此时不过多考虑批量插入。
// New file, insert it.
// Directories need to be inserted before the files they contain, so they
// get priority when bulk inserting.
// If the rowId of the inserted file is needed, it gets inserted immediately,
// bypassing the bulk inserter.
if (inserter == null || needToSetSettings) {
if (inserter != null) {
inserter.flushAll();
}
result = mMediaProvider.insert(tableUri, values);
} else if (entry.mFormat == MtpConstants.FORMAT_ASSOCIATION) {
inserter.insertwithPriority(tableUri, values);
} else {
inserter.insert(tableUri, values);
}
if (result != null) {
rowId = ContentUris.parseId(result);
entry.mRowId = rowId;
}
} else {
...
mMediaProvider.update(result, values, null, null);
}
...
return result;
}
除了直接调用 mMediaProvider.insert() 向 MediaProvider 中写入数据，函数中还有一种方式是经由 inserter 对象，其类型为 MediaInserter。
MediaInserter 也是向 MediaProvider 中写入数据，最终大体上会走到其 flush() 函数，该函数的代码如下：
private void flush(Uri tableUri, List<ContentValues> list) throws RemoteException {
if (!list.isEmpty()) {
ContentValues[] valuesArray = new ContentValues[list.size()];
valuesArray = list.toArray(valuesArray);
mProvider.bulkInsert(tableUri, valuesArray);
list.clear();
}
}
android 10(android Q)
扫描入口MediaReceiver.java
查看/packages/providers/MediaProvider/AndroidManifest.xml. 新增了action.PACKAGE_FULLY_REMOVED和action.PACKAGE_FULLY_REMOVED以及action.PACKAGE_DATA_CLEARED．
<receiver android:name=".MediaReceiver">// 注意名称有变化．
58 <intent-filter>
59 <action android:name="android.intent.action.BOOT_COMPLETED" />
// 表示已下载并应用新的设备自定义项（安装了包、启用了运行时资源覆盖、复制了xml文件等），然后可以清除其缓存。
60 <action android:name="android.intent.action.DEVICE_CUSTOMIZATION_READY"/>
61 <action android:name="android.intent.action.LOCALE_CHANGED" />
62 </intent-filter>
63 <intent-filter>
// 已从设备中完全删除现有的应用程序包。数据包含包的名称。
// 这类似于ACTION_PACKAGE_REMOVED，但仅当EXTRA_DATA_REMOVED为真且EXTRA_REPLACING为假时才设置。
// 这是一个受保护的intent,只能由系统发送．
64 <action android:name="android.intent.action.PACKAGE_FULLY_REMOVED" />
// 用户已清除包的数据。在这之前应该有ACTION_PACKAGE_RESTARTED，在这之后，它的所有持久性数据都将被删除并发送此广播。
// 请注意，清除的包不会接收此广播。数据包含包名。
// EXTRA_UID}包含分配给程序包的整数uid。 如果已清除其数据的软件包是已卸载的即时应用程序，则UID将为-1。
// 卸载后，平台会保留一些与即时应用程序关联的元数据。
// 这是一个受保护的intent,只能由系统发送．
65 <action android:name="android.intent.action.PACKAGE_DATA_CLEARED" />
66 <data android:scheme="package" />
67 </intent-filter>
68 <intent-filter>
69 <action android:name="android.intent.action.MEDIA_MOUNTED" />
70 <data android:scheme="file" />
71 </intent-filter>
72 <intent-filter>
73 <action android:name="android.intent.action.MEDIA_SCANNER_SCAN_FILE" />
74 <data android:scheme="file" />
75 </intent-filter>
76 </receiver>
// android 9版本入口文件名称为MediaScannerReceiver
public class MediaReceiver extends BroadcastReceiver {
26 @Override
27 public void onReceive(Context context, Intent intent) {
28 final String action = intent.getAction();
29 if (Intent.ACTION_BOOT_COMPLETED.equals(action)) {
30 // Register our idle maintenance service
31 IdleService.scheduleIdlePass(context);
32
33 } else if (Intent.ACTION_DEVICE_CUSTOMIZATION_READY.equals(action)) {
34 initResourceRingtones(context);// 初始化自定义的默认声音
35
36 } else {
// 所有其他操作都是重量级的，因此请通过服务将其重定向，以确保它们有空间来完成.
37 // All other operations are heavier-weight, so redirect them through
38 // service to ensure they have breathing room to finish
39 intent.setComponent(new ComponentName(context, MediaService.class));
40 context.startService(intent);
41 }
42 }
43
44 private void initResourceRingtones(Context context) {
45 context.startService(
46 new Intent(context, RingtoneOverlayService.class));
47 }
48 }
核心类MediaService.java
进入MediaService接着看.
@Override
59 public void onCreate() {
60 super.onCreate();
61 // 与android 9对比 仅获取电源锁。
62 mWakeLock = getSystemService(PowerManager.class).newWakeLock(
63 PowerManager.PARTIAL_WAKE_LOCK, TAG);
64 }
66 @Override
67 protected void onHandleIntent(Intent intent) {// 处理接收到的不同intent
68 mWakeLock.acquire();
69 Trace.traceBegin(Trace.TRACE_TAG_DATABASE, intent.getAction());
70 if (Log.isLoggable(TAG, Log.INFO)) {
71 Log.i(TAG, "Begin " + intent);
72 }
73 try {
74 switch (intent.getAction()) {
75 case Intent.ACTION_LOCALE_CHANGED: {// 区域改变
76 onLocaleChanged();
77 break;
78 }
79 case Intent.ACTION_PACKAGE_FULLY_REMOVED:
80 case Intent.ACTION_PACKAGE_DATA_CLEARED: {// 用户已清除包的数据
81 final String packageName = intent.getData().getSchemeSpecificPart();
82 onPackageOrphaned(packageName);
83 break;
84 }
85 case Intent.ACTION_MEDIA_MOUNTED: {
86 onScanVolume(this, intent.getData());// 扫描卷
87 break;
88 }
89 case Intent.ACTION_MEDIA_SCANNER_SCAN_FILE: {
90 onScanFile(this, intent.getData());// 扫描文件
91 break;
92 }
93 default: {
94 Log.w(TAG, "Unknown intent " + intent);
95 break;
96 }
97 }
98 } catch (Exception e) {
99 Log.w(TAG, "Failed operation " + intent, e);
100 } finally {
101 if (Log.isLoggable(TAG, Log.INFO)) {
102 Log.i(TAG, "End " + intent);
103 }
104 Trace.traceEnd(Trace.TRACE_TAG_DATABASE);
105 mWakeLock.release();
106 }
107 }
看onScanVolume()和onScanFile()这两个方法。
123 public static void onScanVolume(Context context, Uri uri) throws IOException {
124 final File file = new File(uri.getPath()).getCanonicalFile();
125 final String volumeName = MediaStore.getVolumeName(file);
126
127 // If we're about to scan primary external storage, scan internal first
128 // to ensure that we have ringtones ready to roll before a possibly very
129 // long external storage scan
130 if (MediaStore.VOLUME_EXTERNAL_PRIMARY.equals(volumeName)) {
131 onScanVolume(context, Uri.fromFile(Environment.getRootDirectory()));
132 ensureDefaultRingtones(context);
133 }
134
135 try (ContentProviderClient cpc = context.getContentResolver()
136 .acquireContentProviderClient(MediaStore.AUTHORITY)) {
137 ((MediaProvider) cpc.getLocalContentProvider()).attachVolume(volumeName);
138
139 final ContentResolver resolver = ContentResolver.wrap(cpc.getLocalContentProvider());
140
141 ContentValues values = new ContentValues();
142 values.put(MediaStore.MEDIA_SCANNER_VOLUME, volumeName);
143 Uri scanUri = resolver.insert(MediaStore.getMediaScannerUri(), values);
144
145 if (!MediaStore.VOLUME_INTERNAL.equals(volumeName)) {
146 context.sendBroadcast(new Intent(Intent.ACTION_MEDIA_SCANNER_STARTED, uri));
147 }
148
149 for (File dir : resolveDirectories(volumeName)) {
// MediaScanner实例化. 扫描卷目录
150 MediaScanner.instance(context).scanDirectory(dir);
151 }
152
153 resolver.delete(scanUri, null, null);
154
155 } finally {
156 if (!MediaStore.VOLUME_INTERNAL.equals(volumeName)) {
157 context.sendBroadcast(new Intent(Intent.ACTION_MEDIA_SCANNER_FINISHED, uri));
158 }
159 }
160 }
161
162 public static Uri onScanFile(Context context, Uri uri) throws IOException {
163 final File file = new File(uri.getPath()).getCanonicalFile();
// MediaScanner实例化.扫描文件
164 return MediaScanner.instance(context).scanFile(file);
165 }
MediaScanner分析
继续看MediaScanner.
26 public interface MediaScanner {
27 public Context getContext();
28 public void scanDirectory(File file);
29 public Uri scanFile(File file);
30 public void onDetachVolume(String volumeName);
31
32 public static MediaScanner instance(Context context) {
// ENABLE_MODERN_SCANNER 通过这个值的设置来选择使用新旧API.ModernMediaScanner或者LegacyMediaScanner
// public static final boolean ENABLE_MODERN_SCANNER = SystemProperties
// .getBoolean("persist.sys.modern_scanner", true);
33 if (MediaProvider.ENABLE_MODERN_SCANNER) {
34 return new ModernMediaScanner(context);
35 } else {
36 return new LegacyMediaScanner(context);
37 }
38 }
39 }
看下ModernMediaScanner或者LegacyMediaScanner二者有啥区别
LegacyMediaScanner(Java层到c++层)
/packages/providers/MediaProvider/src/com/android/providers/media/scan/LegacyMediaScanner.java
public class LegacyMediaScanner implements MediaScanner {
29 private final Context mContext;
30
31 public LegacyMediaScanner(Context context) {
32 mContext = context;
33 }
34
35 @Override
36 public Context getContext() {
37 return mContext;
38 }
39
40 @Override
41 public void scanDirectory(File file) {
42 final String path = file.getAbsolutePath();
43 final String volumeName = MediaStore.getVolumeName(file);
44
45 Trace.traceBegin(Trace.TRACE_TAG_DATABASE, "scanDirectory");
46 try (android.media.MediaScanner scanner =
47 new android.media.MediaScanner(mContext, volumeName)) {
48 scanner.scanDirectories(new String[] { path });// 继续看framework层 scanDirectories
49 } finally {
50 Trace.traceEnd(Trace.TRACE_TAG_DATABASE);
51 }
52 }
53
54 @Override
55 public Uri scanFile(File file) {
56 final String path = file.getAbsolutePath();
57 final String volumeName = MediaStore.getVolumeName(file);
58
59 Trace.traceBegin(Trace.TRACE_TAG_DATABASE, "scanFile");
60 try (android.media.MediaScanner scanner =
61 new android.media.MediaScanner(mContext, volumeName)) {
62 final String ext = path.substring(path.lastIndexOf('.') + 1);
63 return scanner.scanSingleFile(path,
64 MimeUtils.guessMimeTypeFromExtension(ext));// 继续看framework层 scanSingleFile
65 } finally {
66 Trace.traceEnd(Trace.TRACE_TAG_DATABASE);
67 }
68 }
framework层MediaScanner.java
MediaScanner有两个 native 函数：native_init() 和 native_setup()，以及两个重要成员变量：一个是mClient成员，另一个是 mNativeContext.
/frameworks/base/media/java/android/media/MediaScanner.java // 与android 9相比 没有变化。
...
System.loadLibrary("media_jni");
native_init(); // 将java层和c++层联系起来
...
native_setup();// 对应JNI的android_media_MediaScanner_native_setup
...
// 一开始就具有明确的mClient对象
private final MyMediaScannerClient mClient = new MyMediaScannerClient();
...
}
MediaScanner 类加载之时，就会同时加载动态链接库“media_jni”，并调用 native_init() 将 Java 层和 C++ 层联系起来。
/frameworks/base/media/jni/android_media_MediaScanner.cpp // 与android 9相比 没有变化。
android_media_MediaScanner_native_init(JNIEnv *env)
{...
}
android_media_MediaScanner_native_setup(JNIEnv *env, jobject thiz)
{
// 创建 native 层的 MediaScanner 对象，StagefrightMediaScanner（frameworks/av/ 中定义）
// 为 Java 层 MediaScanner 的 mNativeContext 域赋值.
// 将 mp 指针保存在 Java 层 MediaScanner 类 mNativeContext 对象中.
}
每当 C++ 层执行扫描动作时，还会再创建一个 MyMediaScannerClient 对象，这个对象和 Java 层的同名类对应。
接上文继续分析scanSingleFile 和scanDirectories.
scanSingleFile 和scanDirectories
先看scanSingleFile
/frameworks/base/media/java/android/media/MediaScanner.java
// scanSingleFile 与android 9 相比没有变化，返回mClient.doScanFile
1459 // this function is used to scan a single file
1460 @UnsupportedAppUsage
1461 public Uri scanSingleFile(String path, String mimeType) {
1462 try {
1463 prescan(path, true);
...
1473 // always scan the file, so we can return the content://media Uri for existing files
1474 return mClient.doScanFile(path, mimeType, lastModifiedSeconds, file.length(),
1475 false, true, MediaScanner.isNoMediaPath(path));
...
1482 }
// 看下doScanFile
public Uri doScanFile(String path, String mimeType, long lastModified,
long fileSize, boolean isDirectory, boolean scanAlways, boolean noMedia) {
...
// we only extract metadata for audio and video files
if (isaudio || isvideo) {// 音视频
// native 函数processFile
mScanSuccess = processFile(path, mimeType, this);
}
if (isimage) {// 图片
mScanSuccess = processImageFile(path);
}
...
}
再看scanDirectories
/frameworks/base/media/java/android/media/MediaScanner.java
// scanDirectories 与android 9 相比没有变化，调用processDirectory
1415 public void scanDirectories(String[] directories) {
...
1418 prescan(null, true);// 扫描前预准备
...
1425
1426 for (int i = 0; i < directories.length; i++) {
// native 函数，调用它来对目标文件夹进行扫描
1427 processDirectory(directories[i], mClient);
}
...
1437 postscan(directories);// 扫描后处理
...
1457 }
继续往c++层看
/frameworks/base/media/java/android/media/MediaScanner.java
1968 private native void processDirectory(String path, MediaScannerClient client);
1969 private native boolean processFile(String path, String mimeType, MediaScannerClient client);
MediaScanner中调用的processFile()对应于C + +层的android_media_MediaScanner_processFile(), processDirectory()对应于C + +层的android_media_MediaScanner_processDirectory()。 路径:/frameworks/base/media/jni/android_media_MediaScanner.cpp
// 与android 9 相比没有变化.
240 static void
241 android_media_MediaScanner_processDirectory(
242 JNIEnv *env, jobject thiz, jstring path, jobject client)
243 {
...
// 调用的是MediaScanner::processDirectory()
262 MediaScanResult result = mp->processDirectory(pathStr, myClient);
...
267 }
268
269 static jboolean
270 android_media_MediaScanner_processFile(
271 JNIEnv *env, jobject thiz, jstring path,
272 jstring mimeType, jobject client)
273 {
...
// 调用的就是StagefrightMediaScanner::processFile
302 MediaScanResult result = mp->processFile(pathStr, mimeTypeStr, myClient);
...
311 }
StagefrightMediaScanner::processFile()
/frameworks/av/media/libstagefright/StagefrightMediaScanner.cpp
50 MediaScanResult StagefrightMediaScanner::processFile(
51 const char *path, const char *mimeType,
52 MediaScannerClient &client) {
...
57 MediaScanResult result = processFileInternal(path, mimeType, client);
...
65 }
58 MediaScanResult StagefrightMediaScanner::processFile(
59 const char *path, const char *mimeType,
60 MediaScannerClient &client) {
...
// processFileInternal()里主要通过两个函数，向Java层的MyMediaScannerClient传递数据，一个是setMimeType()，另一个是addStringTag()。与android 9 相比没有变化。这里不再赘述。
65 MediaScanResult result = processFileInternal(path, mimeType, client);
...
73 }
MediaScanner::processDirectory()
/frameworks/av/media/libmedia/MediaScanner.cpp
81 MediaScanResult MediaScanner::processDirectory(
82 const char *path, MediaScannerClient &client) {
...
// 与android 9 相比没有变化。这里不再赘述。
102 MediaScanResult result = doProcessDirectory(pathBuffer, pathRemaining, client, false);
...
107 }
ModernMediaScanner(Java层到c++层)
/packages/providers/MediaProvider/src/com/android/providers/media/scan/ModernMediaScanner.java
163 @Override
164 public void scanDirectory(File file) {
165 try (Scan scan = new Scan(file)) {
166 scan.run();//看这个run方法
167 } catch (OperationCanceledException ignored) {
168 }
169 }
170
171 @Override
172 public Uri scanFile(File file) {
173 try (Scan scan = new Scan(file)) {
174 scan.run();//看这个run方法
175 return scan.mFirstResult;
176 } catch (OperationCanceledException ignored) {
177 return null;
178 }
179 }
202 /**
203 * Individual scan request for a specific file or directory. When run it
204 * will traverse all included media files under the requested location,
205 * reconciling them against {@link MediaStore}.
206 */
// 对特定文件或目录的单独扫描请求.运行时，它将遍历请求位置下所有包含的媒体文件，并与MediaStore进行协调。
207 private class Scan implements Runnable, FileVisitor<Path>, AutoCloseable {
...
223
224 public Scan(File root) {
225 Trace.traceBegin(TRACE_TAG_DATABASE, "ctor");
226
227 mClient = mContext.getContentResolver()
228 .acquireContentProviderClient(MediaStore.AUTHORITY);
229 mResolver = ContentResolver.wrap(mClient.getLocalContentProvider());
230
231 mRoot = root;
232 mVolumeName = MediaStore.getVolumeName(root);
233 mFilesUri = MediaStore.setIncludePending(MediaStore.Files.getContentUri(mVolumeName));
234 mSignal = getOrCreateSignal(mVolumeName);
235
236 mSingleFile = mRoot.isFile();
237
238 Trace.traceEnd(TRACE_TAG_DATABASE);
239 }
240
241 @Override
242 public void run() {
243 // First, scan everything that should be visible under requested
244 // location, tracking scanned IDs along the way
// 首先，扫描在请求位置下应该可见的所有内容，并跟踪扫描的ID
245 walkFileTree();
246
247 // Second, reconcile all items known in the database against all the
248 // items we scanned above
// 其次,将数据库中已知的所有项目与我们上面扫描的所有项目进行协调.
249 if (mSingleFile && mScannedIds.size() == 1) {
250 // We can safely skip this step if the scan targeted a single
251 // file which we scanned above
// 如果扫描针对的是我们上面扫描的单个文件，我们可以安全地跳过此步骤.否则调用reconcileAndClean()
252 } else {
253 reconcileAndClean();
254 }
255
256 // Third, resolve any playlists that we scanned
// 最后,解决我们扫描的所有播放列表.
257 if (mPlaylistIds.size() > 0) {
258 resolvePlaylists();
259 }
260 }
261
262 private void walkFileTree() {
263 mSignal.throwIfCanceled();
264 if (!isDirectoryHiddenRecursive(mSingleFile ? mRoot.getParentFile() : mRoot)) {
265 Trace.traceBegin(Trace.TRACE_TAG_DATABASE, "walkFileTree");
266 try {
// 最终调用到/libcore/ojluni/src/main/java/java/nio/file/Files.java里的walkFileTree(...)
// 遍历以给定起始文件为根的文件树.
267 Files.walkFileTree(mRoot.toPath(), this);
268 } catch (IOException e) {
269 // This should never happen, so yell loudly
270 throw new IllegalStateException(e);
271 } finally {
272 Trace.traceEnd(Trace.TRACE_TAG_DATABASE);
273 }
274 applyPending();
275 }
276 }
...
470 }
/libcore/ojluni/src/main/java/java/nio/file/Files.java
2651 public static Path walkFileTree(Path start,
2652 Set<FileVisitOption> options,
2653 int maxDepth,
2654 FileVisitor<? super Path> visitor)
2655 throws IOException
2656 {
2657 /**
2658 * Create a FileTreeWalker to walk the file tree, invoking the visitor
2659 * for each event.
2660 */
2661 try (FileTreeWalker walker = new FileTreeWalker(options, maxDepth)) {
2662 FileTreeWalker.Event ev = walker.walk(start);
2663 do {
2664 FileVisitResult result;
2665 switch (ev.type()) {
2666 case ENTRY :
2667 IOException ioe = ev.ioeException();
2668 if (ioe == null) {
2669 assert ev.attributes() != null;
2670 result = visitor.visitFile(ev.file(), ev.attributes());
2671 } else {
2672 result = visitor.visitFileFailed(ev.file(), ioe);
2673 }
2674 break;
2675
2676 case START_DIRECTORY :
2677 result = visitor.preVisitDirectory(ev.file(), ev.attributes());
2678
2679 // if SKIP_SIBLINGS and SKIP_SUBTREE is returned then
2680 // there shouldn't be any more events for the current
2681 // directory.
2682 if (result == FileVisitResult.SKIP_SUBTREE ||
2683 result == FileVisitResult.SKIP_SIBLINGS)
2684 walker.pop();
2685 break;
2686
2687 case END_DIRECTORY :
2688 result = visitor.postVisitDirectory(ev.file(), ev.ioeException());
2689
2690 // SKIP_SIBLINGS is a no-op for postVisitDirectory
2691 if (result == FileVisitResult.SKIP_SIBLINGS)
2692 result = FileVisitResult.CONTINUE;
2693 break;
2694
2695 default :
2696 throw new AssertionError("Should not get here");
2697 }
2698
2699 if (Objects.requireNonNull(result) != FileVisitResult.CONTINUE) {
2700 if (result == FileVisitResult.TERMINATE) {
2701 break;
2702 } else if (result == FileVisitResult.SKIP_SIBLINGS) {
2703 walker.skipRemainingSiblings();
2704 }
2705 }
2706 ev = walker.next();
2707 } while (ev != null);
2708 }
2709
2710 return start;
2711 }
MediaScanner总结
- Java层MediaScannerService创建(或MediaService)一个MediaScanner(/frameworks/base/media/java/android/media/MediaScanner.java)，并在其上调用MediaScanner.scanDirectories()。
- MediaScanner.scanDirectories()为每个指定目录调用native方法processDirectory(). processDirectory()JNI方法将提供的mediascanner客户端包装在native类“ MyMediaScannerClient”中，然后在native层MediaScanner对象StagefrightMediaScanner（创建Java MediaScanner时创建）上调用processDirectory（）。
- native层MediaScanner.processDirectory（）调用doProcessDirectory（）遍历该文件夹，并对扩展名匹配的每个文件调用native层MyMediaScannerClient.scanFile（）。
- native层MyMediaScannerClient.scanFile（）调用Java层MediaScannerClient.scanFile，后者调用doScanFile，在进行一些设置后，它将调用native层MediaScanner.processFile（）。 MediaScanner.processFile（）调用几种方法之一，具体取决于文件的类型：parseMP3，parseMP4，parseMidi，parseOgg或parseWMA。
- 这些方法中的每一个都从文件中获取元数据键/值对，并重复调用native层MyMediaScannerClient.handleStringTag，该MyMediaScannerClient.handleStringTag调用此文件中的Java副本。
- Java层handleStringTag（）收集其感兴趣的键/值对。
- 一旦processFile返回并且我们回到doScanFile（）中的Java代码中，它就会调用Java层MyMediaScannerClient.endFile（），它将获取所有已收集的数据并将一个条目插入到数据库中。
MediaProvider功能
764 @Override
765 public boolean onCreate() {
766 final Context context = getContext();
767
768 // Enable verbose transport logging when requested
769 setTransportLoggingEnabled(LOCAL_LOGV);
770
771 // Shift call statistics back to the original caller
772 Binder.setProxyTransactListener(
773 new Binder.PropagateWorkSourceTransactListener());
774
775 mStorageManager = context.getSystemService(StorageManager.class);
776 mAppOpsManager = context.getSystemService(AppOpsManager.class);
777 mPackageManager = context.getPackageManager();
778
779 // Reasonable thumbnail size is half of the smallest screen edge width
780 final DisplayMetrics metrics = context.getResources().getDisplayMetrics();
781 final int thumbSize = Math.min(metrics.widthPixels, metrics.heightPixels) / 2;
782 mThumbSize = new Size(thumbSize, thumbSize);
783
784 mInternalDatabase = new DatabaseHelper(context, INTERNAL_DATABASE_NAME, true,
785 false, mObjectRemovedCallback);
786 mExternalDatabase = new DatabaseHelper(context, EXTERNAL_DATABASE_NAME, false,
787 false, mObjectRemovedCallback);
788
789 final IntentFilter filter = new IntentFilter();
790 filter.setPriority(10);
791 filter.addDataScheme("file");
792 filter.addAction(Intent.ACTION_MEDIA_UNMOUNTED);
793 filter.addAction(Intent.ACTION_MEDIA_MOUNTED);
794 filter.addAction(Intent.ACTION_MEDIA_EJECT);
795 filter.addAction(Intent.ACTION_MEDIA_REMOVED);
796 filter.addAction(Intent.ACTION_MEDIA_BAD_REMOVAL);
797 context.registerReceiver(mMediaReceiver, filter);
798
799 // Watch for invalidation of cached volumes
800 mStorageManager.registerListener(new StorageEventListener() {
801 @Override
802 public void onVolumeStateChanged(VolumeInfo vol, int oldState, int newState) {
803 updateVolumes();
804 }
805 });
806 updateVolumes();
807
808 attachVolume(MediaStore.VOLUME_INTERNAL);
809
810 // Attach all currently mounted external volumes
811 for (String volumeName : getExternalVolumeNames()) {
812 attachVolume(volumeName);
813 }
814
815 // Watch for performance-sensitive activity
816 mAppOpsManager.startWatchingActive(new int[] {
817 AppOpsManager.OP_CAMERA
818 }, mActiveListener);
819
820 return true;
821 }
MediaProvider更新update
4481 @Override
4482 public int update(Uri uri, ContentValues initialValues, String userWhere,
4483 String[] userWhereArgs) {
4484 Trace.traceBegin(TRACE_TAG_DATABASE, "update");
4485 try {
4486 return updateInternal(uri, initialValues, userWhere, userWhereArgs);
4487 } finally {
4488 Trace.traceEnd(TRACE_TAG_DATABASE);
4489 }
4490 }
MediaProvider 插入bulkInsert insert
2190 @Override
2191 public int bulkInsert(Uri uri, ContentValues values[]) {
2192 final int targetSdkVersion = getCallingPackageTargetSdkVersion();
2193 final boolean allowHidden = isCallingPackageAllowedHidden();
2194 final int match = matchUri(uri, allowHidden);
2195
2196 if (match == VOLUMES) {
2197 return super.bulkInsert(uri, values);
2198 }
2199
2200 final DatabaseHelper helper;
2201 final SQLiteDatabase db;
2202 try {
2203 helper = getDatabaseForUri(uri);
2204 db = helper.getWritableDatabase();
2205 } catch (VolumeNotFoundException e) {
2206 return e.translateForUpdateDelete(targetSdkVersion);
2207 }
2208
2209 if (match == MTP_OBJECT_REFERENCES) {
2210 int handle = Integer.parseInt(uri.getPathSegments().get(2));
2211 return setObjectReferences(helper, db, handle, values);
2212 }
2213
2214 helper.beginTransaction();
2215 try {
2216 final int result = super.bulkInsert(uri, values);
2217 helper.setTransactionSuccessful();
2218 return result;
2219 } finally {
2220 helper.endTransaction();
2221 }
2222 }
2899 @Override
2900 public Uri insert(Uri uri, ContentValues initialValues) {
2901 Trace.traceBegin(TRACE_TAG_DATABASE, "insert");
2902 try {
2903 return insertInternal(uri, initialValues);
2904 } finally {
2905 Trace.traceEnd(TRACE_TAG_DATABASE);
2906 }
2907 }
MediaProvider 删除delete
3886 @Override
3887 public int delete(Uri uri, String userWhere, String[] userWhereArgs) {
3888 Trace.traceBegin(TRACE_TAG_DATABASE, "insert");
3889 try {
3890 return deleteInternal(uri, userWhere, userWhereArgs);
3891 } finally {
3892 Trace.traceEnd(TRACE_TAG_DATABASE);
3893 }
3894 }
MediaProvider 查询query
1665 @Override
1666 public Cursor query(Uri uri, String[] projection, String selection, String[] selectionArgs,
1667 String sortOrder) {
1668 return query(uri, projection,
1669 ContentResolver.createSqlQueryBundle(selection, selectionArgs, sortOrder), null);
1670 }
1671
1672 @Override
1673 public Cursor query(Uri uri, String[] projection, Bundle queryArgs, CancellationSignal signal) {
1674 Trace.traceBegin(TRACE_TAG_DATABASE, "query");
1675 try {
1676 return queryInternal(uri, projection, queryArgs, signal);
1677 } finally {
1678 Trace.traceEnd(TRACE_TAG_DATABASE);
1679 }
1680 }
