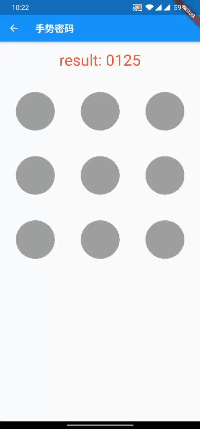

效果图如下：
import 'dart:async';
import 'dart:ui';
import 'package:flutter/material.dart';
class ShowHeadModel extends StatefulWidget {
ShowHeadModel({Key key})
: super(key: key);
@override _ShowHeadModelState createState() => _ShowHeadModelState();
}
class _ShowHeadModelState extends State<ShowHeadModel> {
String password = "";
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text("手势密码"),
),
body: Column(
children: <Widget>[
SizedBox(height: 20,),
Text("result: $password",style: TextStyle(color: Colors.red,fontSize: 32),),
SizedBox(height: 20,),
Container(
alignment: Alignment.center,
child: GesturePwdModel(
width: 400.0,
height: 400.0,
onSuccess: (value) {
setState(() {
password = value;
});
},
onError: () {
setState(() {
password = "密码长度小于4位";
});
},
),
)
],
)
);
}
}
/* 手势密码 */
class GesturePwdModel extends StatefulWidget {
final double width;
final double height;
final Color unSelectedColor;
final Color selectedColor;
final Color selectedCenterColor;
final double circleSize;
final double circleCenterSize;
final Color lineColor;
final double lineWidth;
final ValueChanged<String> onSuccess;
final VoidCallback onError;
final int minLineLength;
final int showTimes;
GesturePwdModel({Key key,
this.width,
this.height,
this.unSelectedColor = Colors.grey,
this.selectedColor = Colors.greenAccent,
this.selectedCenterColor = Colors.green,
this.circleSize = 40.0,
this.circleCenterSize = 16.0,
this.lineColor = Colors.green,
this.lineWidth = 4.0,
this.minLineLength = 4,
this.showTimes = 1000,
@required this.onSuccess,
this.onError
}): super(key: key);
@override
_GesturePwdModelState createState() => _GesturePwdModelState();
}
class _GesturePwdModelState extends State<GesturePwdModel> {
List<Circle> circleList = []; //每个的圆心
List<Circle> lineList = []; //连线的拐点
Offset nowMoveXY;
Timer _timer;
@override
void initState() {
/* 确定九个点的圆心 */
double width = widget.width??MediaQueryData.fromWindow(window).size.width;
double itemWidthHalf = width / 6;
double height = widget.height??MediaQueryData.fromWindow(window).size.width;
double itemHeightHalf = height / 6; //每个圆的中心点
for (int i = 0; i < 9; i++) {
double coordinateX = (2 * (i % 3) + 1) * itemWidthHalf; //x为2n-1的位置
double coordinateY = (2 * ((i ~/ 3)) +1) * itemHeightHalf;
circleList.add(Circle(Offset(coordinateX, coordinateY),i));
}
super.initState();
}
/* 手指按下或移动 */
headDownOrMove(details) {
setState(() {
RenderBox box = context.findRenderObject();
nowMoveXY = box.globalToLocal(details.globalPosition);
if (nowMoveXY.dy < 0) {
nowMoveXY = Offset(nowMoveXY.dx, 0.0);
}
if (nowMoveXY.dy > widget.height) {
nowMoveXY = Offset(nowMoveXY.dx, widget.height);
}
for (var i = 0; i < circleList.length; i++) {
Offset cross = nowMoveXY - circleList[i].offset;
if(!circleList[i].isSelected){
if (cross.dx.abs() < (widget.circleSize??40.0) / 2 &&
cross.dy.abs() < (widget.circleSize??40.0) / 2) {
circleList[i].isSelected = true;
lineList.add(circleList[i]);
if(lineList.length == 9){
successBack();
}
}
}
}
});
}
/* 松手指或者连接9个回调 */
successBack() {
if(lineList.length < widget.minLineLength){
widget.onError != null?widget.onError():print(lineList.length);
}else{
String result = "";
for (int i = 0; i < lineList.length; i++) {
result += "${lineList[i].index}";
}
widget.onSuccess(result);
}
startTimer();
}
startTimer() {
_timer = Timer.periodic(Duration(milliseconds: widget.showTimes), (timer){
setState(() {
lineList.clear();
circleList.forEach((element) {
element.isSelected = false;
});
});
timer.cancel();
});
}
@override void dispose() {
if(_timer != null){
_timer.cancel();
}
super.dispose();
}
@override
Widget build(BuildContext context) {
return GestureDetector(
onPanDown: (DragDownDetails details) {
headDownOrMove(details);
},
onPanUpdate: (DragUpdateDetails details) {
if(lineList.length < 9){
headDownOrMove(details);
}
},
onPanEnd: (DragEndDetails details) {
successBack();
},
child: CustomPaint(
size: Size(widget.width??MediaQuery.of(context).size.width, widget.height??MediaQuery.of(context).size.width),
painter: MyPainter(
circleList,
lineList,
nowMoveXY,
unSelectedColor: widget.unSelectedColor,
selectedColor: widget.selectedColor,
selectedCenterColor: widget.selectedCenterColor,
circleSize: widget.circleSize,
circleCenterSize: widget.circleCenterSize,
lineColor: widget.lineColor,
lineWidth: widget.lineWidth
),
)
);
}
}
class MyPainter extends CustomPainter {
List<Circle> circleList;
List<Circle> lineList;
Color unSelectedColor; //未选中颜色
Color selectedColor; //选中圆的颜色
Color selectedCenterColor; //选中圆心颜色
double circleSize; //圆宽度
double circleCenterSize; //圆心宽度
Color lineColor; //线颜色
double lineWidth; //线宽度
Offset nowMoveXY; //现在的手指位置
MyPainter(
this.circleList,
this.lineList,
this.nowMoveXY,
{
this.unSelectedColor,
this.selectedColor,
this.selectedCenterColor,
this.circleSize,
this.circleCenterSize,
this.lineColor,
this.lineWidth
}
);
@override
void paint(Canvas canvas, Size size) {
/* 未选中 */
var unSelectPanint = Paint()
..style = PaintingStyle.fill
..color = unSelectedColor;
/* 选中颜色 */
var selectPanint = Paint()
..style = PaintingStyle.fill
..color = selectedColor;
/* 选中圆心颜色 */
var selectCenterPanint = Paint()
..style = PaintingStyle.fill
..color = selectedCenterColor;
//线
final linePaint = new Paint()
..color = lineColor
..style = PaintingStyle.fill
..strokeWidth = lineWidth;
//画圆
for (int i = 0; i < circleList.length; i++) {
Circle circle = circleList[i];
if(circle.isSelected){
canvas.drawCircle(circle.offset, circleSize, selectPanint);
canvas.drawCircle(circle.offset, circleCenterSize, selectCenterPanint);
}else{
canvas.drawCircle(circle.offset, circleSize, unSelectPanint);
}
}
/* 画线 */
if (lineList.length > 0) {
for (int i = 0; i < lineList.length; i++) {
canvas.drawLine(
lineList[i].offset,
i == lineList.length - 1 ? nowMoveXY : lineList[i + 1].offset,
linePaint
);
}
}
}
@override
bool shouldRepaint(CustomPainter oldDelegate) => true;}
class Circle{
Offset offset; //(x,y)
bool isSelected = false; //是否被选中
int index; //第几个小圆点
Circle(this.offset, this.index);
}
