深入理解Spring AOP代理对象的调用过程

1 导语

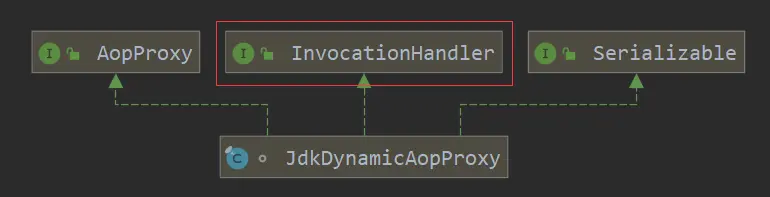

可以看到JdkDynamicAopProxy是一个InvocationHandler，而在前面可以看到，是将JdkDynamicAopProxy对象作为Proxy.newProxyInstance(classLoader, proxiedInterfaces, this);handler来传递的。按照jdk动态代理，我们可以知道接下来就是调用JdkDynamicAopProxy的invoke方法

2 JdkDynamicAopProxy#invoke

整个最重要的就是第一处代码

MethodInvocation invocation =
new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
// Proceed to the joinpoint through the interceptor chain.
retVal = invocation.proceed();

public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
	Object oldProxy = null;
	boolean setProxyContext = false;

	TargetSource targetSource = this.advised.targetSource;
	Object target = null;

	try {
		if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
			// The target does not implement the equals(Object) method itself.
			return equals(args[0]);
		}
		else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
			// The target does not implement the hashCode() method itself.
			return hashCode();
		}
		else if (method.getDeclaringClass() == DecoratingProxy.class) {
			// There is only getDecoratedClass() declared -> dispatch to proxy config.
			return AopProxyUtils.ultimateTargetClass(this.advised);
		}
		else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
				method.getDeclaringClass().isAssignableFrom(Advised.class)) {
			// Service invocations on ProxyConfig with the proxy config...
			return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
		}

		Object retVal;

		if (this.advised.exposeProxy) {
			// Make invocation available if necessary.
			oldProxy = AopContext.setCurrentProxy(proxy);
			setProxyContext = true;
		}

		// Get as late as possible to minimize the time we "own" the target,
		// in case it comes from a pool.
		target = targetSource.getTarget();
		Class<?> targetClass = (target != null ? target.getClass() : null);

		// Get the interception chain for this method.
		List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

		// Check whether we have any advice. If we don't, we can fallback on direct
		// reflective invocation of the target, and avoid creating a MethodInvocation.
		if (chain.isEmpty()) {
			// We can skip creating a MethodInvocation: just invoke the target directly
			// Note that the final invoker must be an InvokerInterceptor so we know it does
			// nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
			Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
			retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
		}
		else {
			// We need to create a method invocation...
			// 最重要的调用处理
			MethodInvocation invocation =
					new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
			// Proceed to the joinpoint through the interceptor chain.
			retVal = invocation.proceed();
		}

		// Massage return value if necessary.
		Class<?> returnType = method.getReturnType();
		if (retVal != null && retVal == target &&
				returnType != Object.class && returnType.isInstance(proxy) &&
				!RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
			// Special case: it returned "this" and the return type of the method
			// is type-compatible. Note that we can't help if the target sets
			// a reference to itself in another returned object.
			retVal = proxy;
		}
		else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
			throw new AopInvocationException(
					"Null return value from advice does not match primitive return type for: " + method);
		}
		return retVal;
	}
	finally {
		if (target != null && !targetSource.isStatic()) {
			// Must have come from TargetSource.
			targetSource.releaseTarget(target);
		}
		if (setProxyContext) {
			// Restore old proxy.
			AopContext.setCurrentProxy(oldProxy);
		}
	}
}

3 new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);

public Object proceed() throws Throwable {
	// We start with an index of -1 and increment early.
	if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
	    // 当interceptor调用完毕之后就调用原来的targetClass本身的方法
		return invokeJoinpoint();
	}

	Object interceptorOrInterceptionAdvice =
			this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
	if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
		// Evaluate dynamic method matcher here: static part will already have
		// been evaluated and found to match.
		InterceptorAndDynamicMethodMatcher dm =
				(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
		Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
		if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
			return dm.interceptor.invoke(this);
		}
		else {
			// Dynamic matching failed.
			// Skip this interceptor and invoke the next in the chain.
			return proceed();
		}
	}
	else {
		// It's an interceptor, so we just invoke it: The pointcut will have
		// been evaluated statically before this object was constructed.
	// 将this[刚刚创建的ReflectiveMethodInvocation对象作为参数传递给invoke方法，方便invoke里面调用this.proceed方法]
		return ((MethodInterceptor)
		interceptorOrInterceptionAdvice).invoke(this);
	}
}
