天地图添加面

在一些使用天地图的项目中，地图上需要添加区域

• 首先创建地图，初始化地图
• 然后把区域所对应的json格式的数据加载进来
• json数据中的每一条就是一个区域面，循环每一条，画出对应的区域
• 最后给每一块区域加点击事件，弹出区域名称

<script>
    var map=""
    initMap()
    function initMap(){
        map = new T.Map('loadMap');
        map.centerAndZoom(new T.LngLat(120.5689390,30.2653626), zoom);
        draw()
    }    function draw(){
        var json=	{
	  "type": "FeatureCollection",
		"features": [
		  {
			"type": "Feature",
			"properties": {
			  "stroke": "#ff8080",
			  "stroke-width": 2,
			  "stroke-opacity": 1,
			  "fill": "#ff8080",
			  "fill-opacity": 0.5,
			  "name": "1号区块1号网格"
			},
			"geometry": {
			  "type": "Polygon",
			  "coordinates": [
				[
				  [
					120.55684056133032,
					30.28462107474871
				  ],
				  [
					120.55629339069131,
					30.284593280699056
				  ],
				  [
					120.55628266185522,
					30.28425975148924
				  ],
				  [
					120.55633630603553,
					30.28235120142624
				  ],
				  [
					120.55657234042886,
					30.281322792554214
				  ]
				]
			  ]
			}
		  },
		  {
			"type": "Feature",
			"properties": {
			  "stroke": "#ffff80",
			  "stroke-width": 2,
			  "stroke-opacity": 1,
			  "fill": "#ffff80",
			  "fill-opacity": 0.5,
			  "name": "1号区块2号网格"
			},
			"geometry": {
			  "type": "Polygon",
			  "coordinates": [
				[
				  [
					120.55819272994995,
					30.279026494991495
				  ],
				  [
					120.55844753980637,
					30.275551979675335
				  ],
				  [
					120.55651333183049,
					30.275458166056332
				  ],
				  [
					120.55651802569626,
					30.26727113472435
				  ],
				  [
					120.55724926292896,
					30.267857227705527
				  ]
				]
			  ]
			}
		  },
		  {
			"type": "Feature",
			"properties": {
			  "stroke": "#80ff80",
			  "stroke-width": 2,
			  "stroke-opacity": 1,
			  "fill": "#80ff80",
			  "fill-opacity": 0.5,
			  "name": "1号区块3号网格"
			},
			"geometry": {
			  "type": "Polygon",
			  "coordinates": [
				[
				  [
					120.56070327758789,
					30.284954313209877
				  ],
				  [
					120.56093294173479,
					30.282018822710658
				  ],
				  [
					120.56452877819537,
					30.282313273249937
				  ],
				  [
					120.56460857391357,
					30.27982329983024
				  ],
				  [
					120.57295259088279,
					30.280272947379515
				  ]
				]
			  ]
			}
		  }
		]
	}
      for (var i=0;i<json.features.length;i++){
	  var points=[]
	  for(var j=0;j<json.features[i].geometry.coordinates[0].length;j++){
		points.push(new T.LngLat(json.features[i].geometry.coordinates[0][j][0],json.features[i].geometry.coordinates[0][j][1]))
	  }
	  var polygon
	  polygon = new T.Polygon(points, {
		color: json.features[i].properties.stroke,
		weight: json.features[i].properties.strokeWidth,
		opacity: json.features[i].properties.strokeOpacity,
		fillColor: json.features[i].properties.fill,
		fillOpacity: json.features[i].properties.fillOpacity,
		name: json.features[i].properties.name,
	  });
	  map.addOverLay(polygon);
	  polygon.addEventListener('click',function (e) {
		var name = e.target.options.name
		var latlng = new T.LngLat(e.lnglat.lng,e.lnglat.lat);
		var label = new T.Label({
		  text: name,
		  position: latlng,
		});
		label.setBackgroundColor("#040E3E")
		label.setFontColor("#ffffff")
		label.setBorderColor("#00E0E7")
		label.setOffset(new T.Point(-20, -15))
		map.addOverLay(label);
		label.addEventListener("mouseout",function () {
		  map.removeOverLay(label)
		})
	  })
      }
    }
</script>

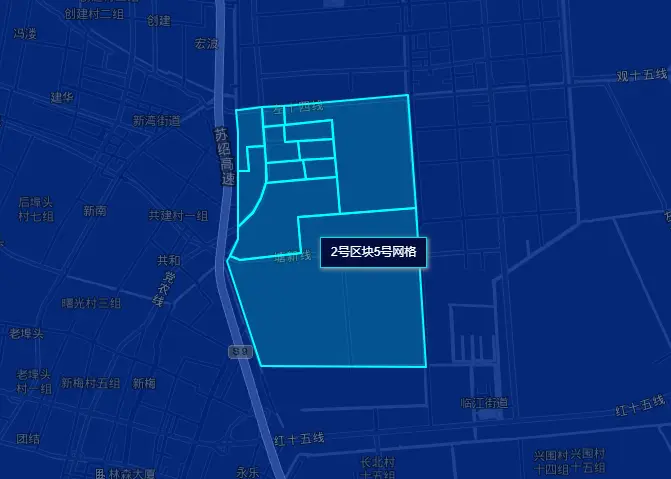

效果图

这是我自己在项目中遇到的实际需求，有什么问题，欢迎私聊！！！
