环境：xcode 11.5

源码：objc4-781

上一篇文章中探索了类的结构，如下所示：

struct objc_class : objc_object {
    // Class ISA;
    Class superclass;
    cache_t cache;             // formerly cache pointer and vtable
    class_data_bits_t bits;    // class_rw_t * plus custom rr/alloc flags
    ...
}

其中ISA是一个指向objc_class的指针，superclass指向的是父类，bits中存储的当前类的一些基本信息。今天来继续探索objc_class结构体中最后一个变量cache_t。

Cache_t简介

首先我们看一下Cache_t的结构：

struct cache_t {
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_OUTLINED
    explicit_atomic<struct bucket_t *> _buckets;  //可以理解为结构体bucket_t数据
    explicit_atomic<mask_t> _mask;
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
	explicit_atomic<uintptr_t> _maskAndBuckets;
    mask_t _mask_unused;
    一些常量：
    static constexpr uintptr_t maskShift = 48;
    static constexpr uintptr_t maskZeroBits = 4;
    static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;
    static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << (maskShift - maskZeroBits)) - 1;
    ...
#endif
#if __LP64__
    uint16_t _flags;
#endif
    uint16_t _occupied; //当前缓存中的方法个数
}

在arm架构和x86架构下有些不同。具体区别在于arm架构下mask和buckets指针存储在一个uintptr_t数据中，x86架构下分别存储。同时arm架构下还定义了一些掩码等数据来进行数据的读取，即上述代码中的一些常量。

其中bucket_t的结构为：

struct bucket_t {
private:
    // IMP-first is better for arm64e ptrauth and no worse for arm64.
    // SEL-first is better for armv7* and i386 and x86_64.
#if __arm64__
    explicit_atomic<uintptr_t> _imp;
    explicit_atomic<SEL> _sel;
#else
    explicit_atomic<SEL> _sel;
    explicit_atomic<uintptr_t> _imp;
#endif

bucket_t有两个属性，key 为方法标识，而_imp为方法实现。

Cache_t探索

接下来我们直接使用lldb来进行探索。

@interface ZHYObject : NSObject

- (void)method1;
- (void)method2;
- (void)method3;

@end

int main(int argc, const char * argv[]) {
    @autoreleasepool {
        ZHYObject *object = [[ZHYObject alloc] init];
        [object method1];
        [object method2];
        [object method3];
        NSLog(@"%@",object);
    }
    return 0;
}

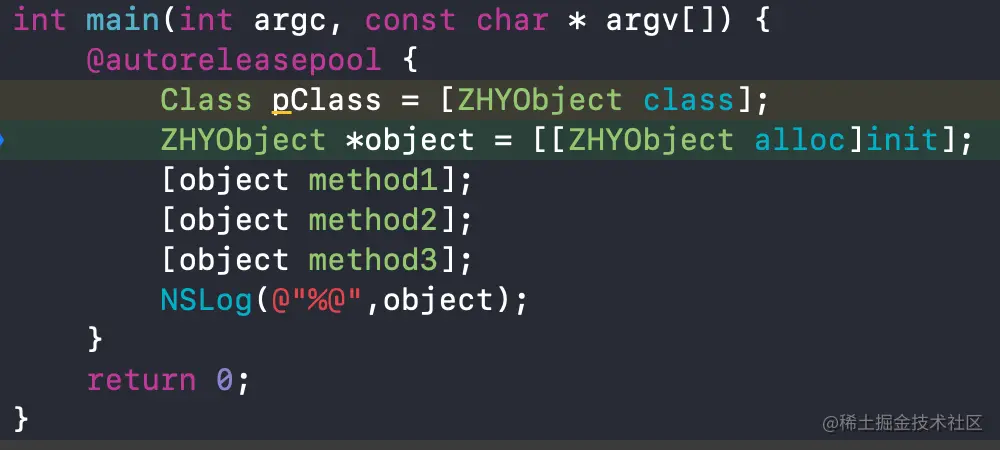

实例方法调用之前进行断点并打印

(lldb) x/4gx pClass
0x1000023d0: 0x00000001000023a8 0x00000001003ef140
0x1000023e0: 0x00000001003e9450 0x0000801000000000
(lldb) p (cache_t*)0x1000023e0
(cache_t *) $1 = 0x00000001000023e0
(lldb) p *$1
(cache_t) $2 = {
  _buckets = {
    std::__1::atomic<bucket_t *> = 0x00000001003e9450 {
      _sel = {
        std::__1::atomic<objc_selector *> = 0x0000000000000000
      }
      _imp = {
        std::__1::atomic<unsigned long> = 0
      }
    }
  }
  _mask = {
    std::__1::atomic<unsigned int> = 0
  }
  _flags = 32784
  _occupied = 0
}

当前cache_t中，没有方法缓存，occupied为0。

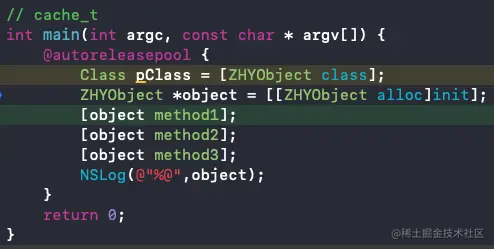

接下来断点走一步。重新打印cache_t

(lldb) p *$1
(cache_t) $3 = {
  _buckets = {
    std::__1::atomic<bucket_t *> = 0x00000001006263e0 {
      _sel = {
        std::__1::atomic<objc_selector *> = 0x00007fff7482ec60
      }
      _imp = {
        std::__1::atomic<unsigned long> = 4046048
      }
    }
  }
  _mask = {
    std::__1::atomic<unsigned int> = 3
  }
  _flags = 32784
  _occupied = 1
}
(lldb) p $3.buckets()
(bucket_t *) $4 = 0x00000001006263e0
(lldb) p *($4)
(bucket_t) $5 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x00007fff7482ec60
  }
  _imp = {
    std::__1::atomic<unsigned long> = 4046048
  }
}
(lldb) p $5.sel()
(SEL) $6 = "init"
(lldb) p *($4+1)
(bucket_t) $7 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000000000000
  }
  _imp = {
    std::__1::atomic<unsigned long> = 0
  }
}

对比可以发现：

_buckets内存地址发生了改变，由0x00000001003e9450变成了0x00000001006263e0
_buckets数组里面只有一个bucket_t，对应的是init方法
_mask由0变成了3
_occupied由0变成了1

接下来断点再走一步，并进行打印

(lldb) p *$1
(cache_t) $8 = {
  _buckets = {
    std::__1::atomic<bucket_t *> = 0x00000001006263e0 {
      _sel = {
        std::__1::atomic<objc_selector *> = 0x00007fff7482ec60
      }
      _imp = {
        std::__1::atomic<unsigned long> = 4046048
      }
    }
  }
  _mask = {
    std::__1::atomic<unsigned int> = 3
  }
  _flags = 32784
  _occupied = 2
}
(lldb) p *($4)
(bucket_t) $9 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x00007fff7482ec60
  }
  _imp = {
    std::__1::atomic<unsigned long> = 4046048
  }
}
(lldb) p $9.sel()
(SEL) $10 = "init"
(lldb) p *($4+1)
(bucket_t) $11 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000100000e15
  }
  _imp = {
    std::__1::atomic<unsigned long> = 11904
  }
}
(lldb) p $11.sel()
(SEL) $12 = "method1"

对比可以发现：

_buckets和第一次相比，地址并没有发生变化
_mask也没有发生变化
_occupied变成了2，和打印结果一致，_buckets数组里面有两个方法，和_occupied的值一致

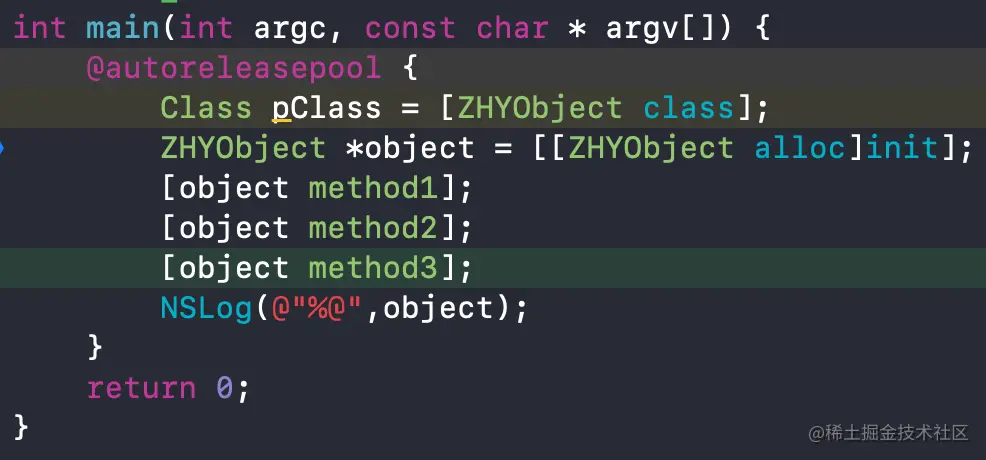

断点继续下一步，并打印

(lldb) p *$1
(cache_t) $14 = {
  _buckets = {
    std::__1::atomic<bucket_t *> = 0x0000000101929660 {
      _sel = {
        std::__1::atomic<objc_selector *> = 0x0000000000000000
      }
      _imp = {
        std::__1::atomic<unsigned long> = 0
      }
    }
  }
  _mask = {
    std::__1::atomic<unsigned int> = 7
  }
  _flags = 32784
  _occupied = 1
}
(lldb) p $14.buckets()
(bucket_t *) $20 = 0x0000000101929660
(lldb) p *$20
(bucket_t) $21 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000000000000
  }
  _imp = {
    std::__1::atomic<unsigned long> = 0
  }
}
(lldb) p *($20+1)
(bucket_t) $22 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000000000000
  }
  _imp = {
    std::__1::atomic<unsigned long> = 0
  }
}
(lldb) p *($20+2)
(bucket_t) $23 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000000000000
  }
  _imp = {
    std::__1::atomic<unsigned long> = 0
  }
}
(lldb) p *($20+3)
(bucket_t) $24 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000000000000
  }
  _imp = {
    std::__1::atomic<unsigned long> = 0
  }
}
(lldb) p *($20+4)
(bucket_t) $25 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000000000000
  }
  _imp = {
    std::__1::atomic<unsigned long> = 0
  }
}
(lldb) p *($20+5)
(bucket_t) $26 = {
  _sel = {
    std::__1::atomic<objc_selector *> = 0x0000000100000e1d
  }
  _imp = {
    std::__1::atomic<unsigned long> = 11952
  }
}
(lldb) p $26.sel()
(SEL) $27 = "method2"

对比可以发现：

_buckets内存地址再次发生了改变
_mask由3变成了7
_occupied由3变成了1
method2方法并不是存储在第一个空位，我们找了好几次才找到

根据以上的探索，产生了几个疑问：

_buckets的内存地址什么时候会发生改变？
_mask的含义是什么？
_occupied为什么变成了1，反而变小了？
_buckets中存储方法的位置有什么规则？

Cache_t底层实现

根据上面的lldb探索，可以发现这样的规律，每次_buckets发生变化的时候，_mask也会发生变化，而且_mask的值为2的n次方-1，同时_occupied的值会变为1。那么接下来我们通过相关源码来验证一下我们的发现。
在objc_cache.mm的注释中发现了一下几行注释：

 * Cache writers (hold cacheUpdateLock while reading or writing; not PC-checked)
 * cache_fill         (acquires lock)
 * cache_expand       (only called from cache_fill)
 * cache_create       (only called from cache_expand)
 * bcopy               (only called from instrumented cache_expand)
 * flush_caches        (acquires lock)
 * cache_flush        (only called from cache_fill and flush_caches)
 * cache_collect_free (only called from cache_expand and cache_flush)

我们从cache_fill中开始追踪源码

void cache_fill(Class cls, SEL sel, IMP imp, id receiver)
{
    runtimeLock.assertLocked();

#if !DEBUG_TASK_THREADS
    // Never cache before +initialize is done
    if (cls->isInitialized()) {
        cache_t *cache = getCache(cls);
#if CONFIG_USE_CACHE_LOCK
        mutex_locker_t lock(cacheUpdateLock);
#endif
        cache->insert(cls, sel, imp, receiver);
    }
#else
    _collecting_in_critical();
#endif
}

首先判断类是否已经初始化，如果初始化就从objc_class结构体中读取对应的cache变量，然后执行insert方法。

insert

ALWAYS_INLINE
void cache_t::insert(Class cls, SEL sel, IMP imp, id receiver)
{
#if CONFIG_USE_CACHE_LOCK
    cacheUpdateLock.assertLocked();
#else
    runtimeLock.assertLocked();
#endif

    ASSERT(sel != 0 && cls->isInitialized());

    // Use the cache as-is if it is less than 3/4 full
    mask_t newOccupied = occupied() + 1;
    unsigned oldCapacity = capacity(), capacity = oldCapacity;
    if (slowpath(isConstantEmptyCache())) {
    	//如果缓存此时还没有，初始化容量为4，重新开辟缓存的内存
        // Cache is read-only. Replace it.
        if (!capacity) capacity = INIT_CACHE_SIZE;
        reallocate(oldCapacity, capacity, /* freeOld */false);
    }
    else if (fastpath(newOccupied + CACHE_END_MARKER <= capacity / 4 * 3)) { // 4  3 + 1 bucket cache_t
        // Cache is less than 3/4 full. Use it as-is.
    }
    else {
        capacity = capacity ? capacity * 2 : INIT_CACHE_SIZE;  // 扩容两倍 4
        if (capacity > MAX_CACHE_SIZE) {
            capacity = MAX_CACHE_SIZE;
        }
        reallocate(oldCapacity, capacity, true);  // 内存 库容完毕
    }

    bucket_t *b = buckets();
    mask_t m = capacity - 1;
    mask_t begin = cache_hash(sel, m);
    mask_t i = begin;

    // Scan for the first unused slot and insert there.
    // There is guaranteed to be an empty slot because the
    // minimum size is 4 and we resized at 3/4 full.
    do {
        if (fastpath(b[i].sel() == 0)) {
            incrementOccupied();
            b[i].set<Atomic, Encoded>(sel, imp, cls);
            return;
        }
        if (b[i].sel() == sel) {
            // The entry was added to the cache by some other thread
            // before we grabbed the cacheUpdateLock.
            return;
        }
    } while (fastpath((i = cache_next(i, m)) != begin));

    cache_t::bad_cache(receiver, (SEL)sel, cls);
}

insert是cache_t进行缓存的核心方法。主要操作如下：

1. 判断是否需要扩容

当`cache`为空或者插入后`bucket`个数大于原有容量的`3/4`时，会调用`reallocate`方法。`reallocate`主要负责`_buckets`的重新开辟内存以及`旧_buckets`的释放。

ALWAYS_INLINE
void cache_t::reallocate(mask_t oldCapacity, mask_t newCapacity, bool freeOld)
{
    bucket_t *oldBuckets = buckets();
    bucket_t *newBuckets = allocateBuckets(newCapacity);

    // Cache's old contents are not propagated.
    // This is thought to save cache memory at the cost of extra cache fills.
    // fixme re-measure this

    ASSERT(newCapacity > 0);
    ASSERT((uintptr_t)(mask_t)(newCapacity-1) == newCapacity-1);

    setBucketsAndMask(newBuckets, newCapacity - 1);

    if (freeOld) {
        cache_collect_free(oldBuckets, oldCapacity);
    }
}

在reallocate中做了一下几件事情：

根据传入的newCapacity创建新的bucket
将新的bucket赋给当前的cache，并且更新mask的值为newCapacity - 1
如果需要的话，释放旧的bucket
需要注意的是，因为初始的容量为4，而且每次扩容都会变为旧容量的2倍，因此新的容量必然是2ⁿ，mask的值是2ⁿ-1

2. 将`sel`和`imp`放到指定的`bucket`中

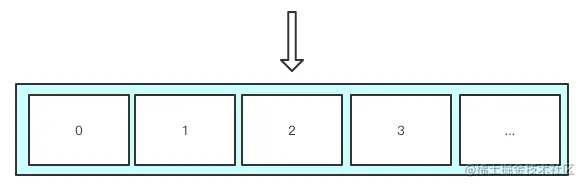

之前有说到，_buckets中的方法存储不是按顺序排列的，它是一个什么规则呢？答案也在insert函数中。寻找对应bucket的思路大致如下图：

根据cache_hash方法获取sel对应的哈希值key。

static inline mask_t cache_hash(SEL sel, mask_t mask)
{
    return (mask_t)(uintptr_t)sel & mask;
}

如果位置2对应的bucket->sel为0，就是说该位置没有存入某个方法，查找结束，赋值即可，同时_occupied自增

如果位置2对应的bucket->sel和当前sel相等，有可能是其他的线程缓存了这个方法，直接返回。

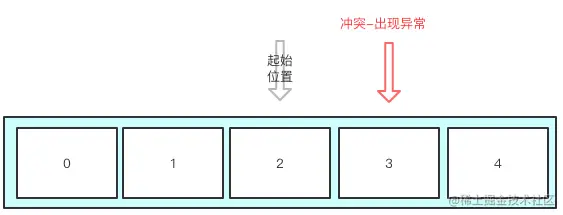

否则的话就是说出现了hash冲突，那么就要寻找新的hash值。

//__arm64__ 不同的架构下cache_next实现不一样，需要注意。
static inline mask_t cache_next(mask_t i, mask_t mask) {
    return i ? i-1 : mask;
}

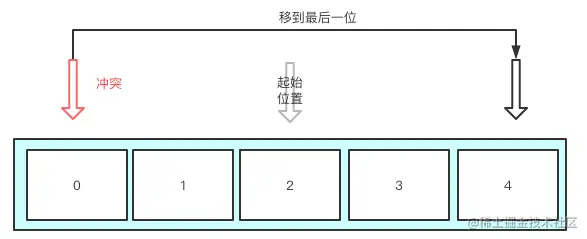

在arm64架构下解决冲突的方式是往前一位寻找，如果找到bucket数组的第一个还是冲突，则从数组的最后一位开始。当寻找了一遍之后又回到最初的起点时，说明当前出现异常，执行bad_cache逻辑。

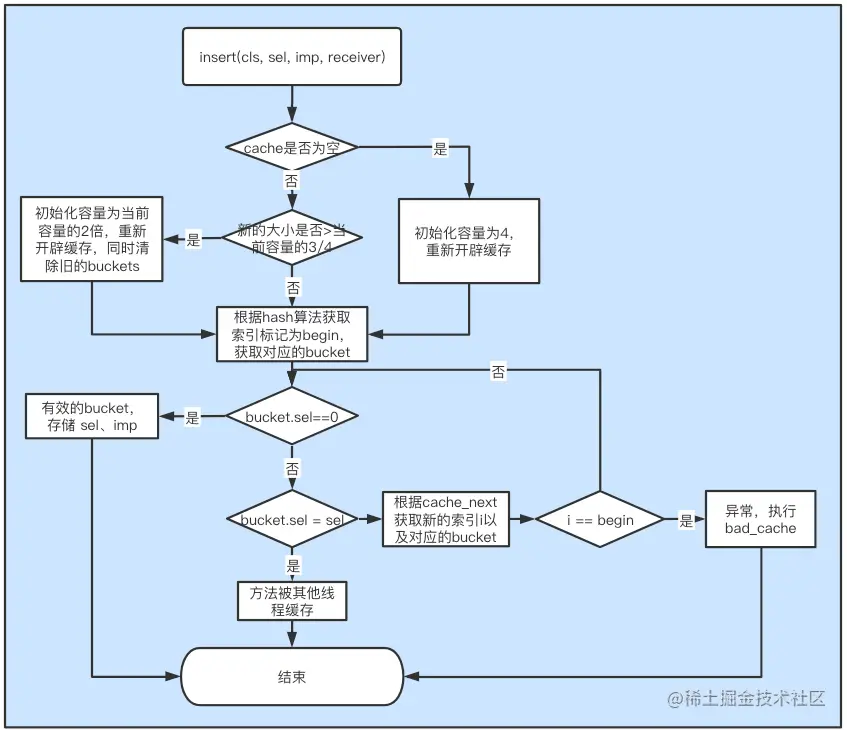

自此，方法进行缓存的流程结束，核心方法insert流程图如下：
