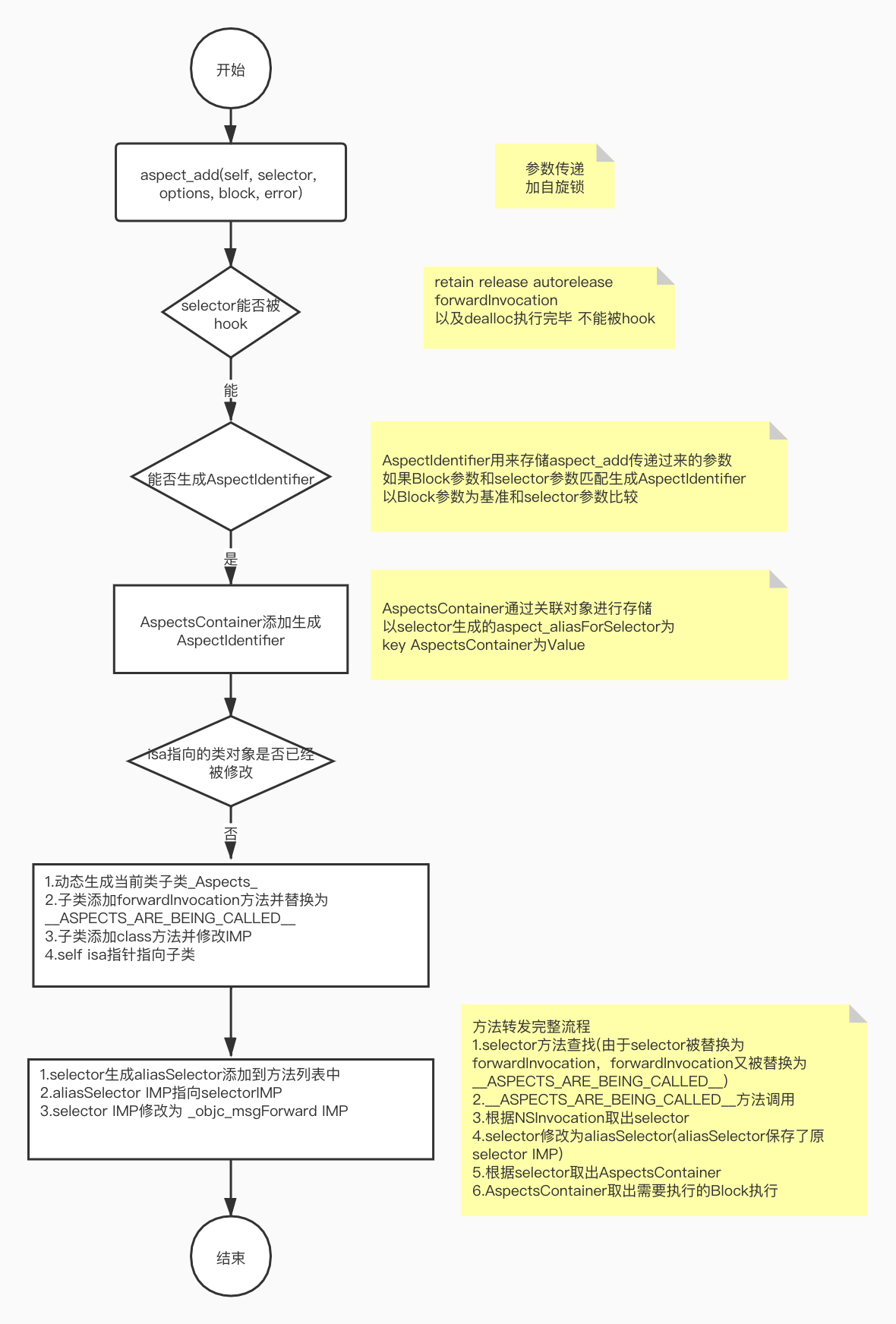

具体流程
基本原理
对象调用方法，先找到对象的isa指针指向的类对象，先从类对象的方法缓存cachelist查询没有命中则查询类对象的方法列表methodlist，还没查询到则查询类对象super指针指向的类对象查询。查询到NSObject仍然没有查询到，则进入动态解析，重定向，方法签名等。
Aspect就是通过动态的生成当前类的子类，并且修改对象的isa指针指向生成的子类，这样方法寻址从子类的方法列表开始寻址，修改子类的方法列表也并不会影响原有类。
刚生成的子类方法列表为空，这时就需要把hook的selector添加到子类中，否则子类中查询不到selector去父类中查找找到后则会替换父类selector的IMP影响父类。
具体例子
AspectsViewController *aspectsController = [AspectsViewController new];
[aspectsController aspect_hookSelector:@selector(viewWillLayoutSubviews) withOptions:0|8 usingBlock:^{
NSLog(@"Controller is layouting!");
} error:NULL];
1.生成类AspectsViewController__Aspects_
2.对象aspectsControllerisa指向类对象AspectsViewController__Aspects_
3.AspectsViewController__Aspects_添加class，forwardInvocation方法
4.修改AspectsViewController__Aspects_ forwardInvocation IMP为__ASPECTS_ARE_BEING_CALLED__，修改class方法返回AspectsViewController
5.类AspectsViewController__Aspects_添加aspects_viewWillLayoutSubviews 及viewWillLayoutSubview方法
6.类AspectsViewController__Aspects_的aspects_viewWillLayoutSubviews IMP设置为AspectsViewController的viewWillLayoutSubview方法IMP
7.类AspectsViewController__Aspects_的viewWillLayoutSubview IMP替换为forwardInvocation的IMP
当aspectsController对象调用viewWillLayoutSubviews时，先找到isa指向的类对象AspectsViewController__Aspects_并调用viewWillLayoutSubview，此时AspectsViewController__Aspects_的viewWillLayoutSubview已经被替换为forwardInvocation的IMP,forwardInvocation的IMP又被替换为__ASPECTS_ARE_BEING_CALLED__，此时就会执行__ASPECTS_ARE_BEING_CALLED__
static void __ASPECTS_ARE_BEING_CALLED__(__unsafe_unretained NSObject *self, SEL selector, NSInvocation *invocation) {
NSCParameterAssert(self);
NSCParameterAssert(invocation);
SEL originalSelector = invocation.selector;
SEL aliasSelector = aspect_aliasForSelector(invocation.selector);
invocation.selector = aliasSelector;
AspectsContainer *objectContainer = objc_getAssociatedObject(self, aliasSelector);
AspectsContainer *classContainer = aspect_getContainerForClass(object_getClass(self), aliasSelector);
AspectInfo *info = [[AspectInfo alloc] initWithInstance:self invocation:invocation];
NSArray *aspectsToRemove = nil;
// Before hooks.
aspect_invoke(classContainer.beforeAspects, info);
aspect_invoke(objectContainer.beforeAspects, info);
// Instead hooks.
BOOL respondsToAlias = YES;
if (objectContainer.insteadAspects.count || classContainer.insteadAspects.count) {
aspect_invoke(classContainer.insteadAspects, info);
aspect_invoke(objectContainer.insteadAspects, info);
}else {
Class klass = object_getClass(invocation.target);
do {
if ((respondsToAlias = [klass instancesRespondToSelector:aliasSelector])) {
[invocation invoke];
break;
}
}while (!respondsToAlias && (klass = class_getSuperclass(klass)));
}
// After hooks.
aspect_invoke(classContainer.afterAspects, info);
aspect_invoke(objectContainer.afterAspects, info);
// If no hooks are installed, call original implementation (usually to throw an exception)
if (!respondsToAlias) {
invocation.selector = originalSelector;
SEL originalForwardInvocationSEL = NSSelectorFromString(AspectsForwardInvocationSelectorName);
if ([self respondsToSelector:originalForwardInvocationSEL]) {
((void( *)(id, SEL, NSInvocation *))objc_msgSend)(self, originalForwardInvocationSEL, invocation);
}else {
[self doesNotRecognizeSelector:invocation.selector];
}
}
// Remove any hooks that are queued for deregistration.
[aspectsToRemove makeObjectsPerformSelector:@selector(remove)];
}
根据viewWillLayoutSubview找到aspects_viewWillLayoutSubviews，然后调用AspectsViewController__Aspects_的aspects_viewWillLayoutSubviews就是调用了AspectsViewController的viewWillLayoutSubview方法(步骤6 类AspectsViewController__Aspects_的aspects_viewWillLayoutSubviews IMP设置为AspectsViewController的viewWillLayoutSubview方法IMP )
取出selector关联的Block
^{
NSLog(@"Controller is layouting!");
}
执行
答疑解惑
1.为什么要动态生成子类
不影响原类
2.为什么要hook子类forwardInvocation
forwardInvocatio中NSInvocation能拿到selector所有的参数以及返回值信息，方便传递给Block
class_replaceMethod简介
This function behaves in two different ways:
If the method identified by name does not yet exist, it is added as if class_addMethod were called. The type encoding specified by types is used as given.
If the method identified by name does exist, its IMP is replaced as if method_setImplementation were called. The type encoding specified by types is ignored.
源代码
入口函数
- (id<AspectToken>)aspect_hookSelector:(SEL)selector
withOptions:(AspectOptions)options
usingBlock:(id)block
error:(NSError **)error {
return aspect_add(self, selector, options, block, error);
}
selector是否能被hook
static BOOL aspect_isSelectorAllowedAndTrack(NSObject *self, SEL selector, AspectOptions options, NSError **error) {
static NSSet *disallowedSelectorList;
static dispatch_once_t pred;
dispatch_once(&pred, ^{
disallowedSelectorList = [NSSet setWithObjects:@"retain", @"release", @"autorelease", @"forwardInvocation:", nil];
});
// Check against the blacklist.
NSString *selectorName = NSStringFromSelector(selector);
if ([disallowedSelectorList containsObject:selectorName]) {
NSString *errorDescription = [NSString stringWithFormat:@"Selector %@ is blacklisted.", selectorName];
AspectError(AspectErrorSelectorBlacklisted, errorDescription);
return NO;
}
// Additional checks.
AspectOptions position = options&AspectPositionFilter;
if ([selectorName isEqualToString:@"dealloc"] && position != AspectPositionBefore) {
NSString *errorDesc = @"AspectPositionBefore is the only valid position when hooking dealloc.";
AspectError(AspectErrorSelectorDeallocPosition, errorDesc);
return NO;
}
if (![self respondsToSelector:selector] && ![self.class instancesRespondToSelector:selector]) {
NSString *errorDesc = [NSString stringWithFormat:@"Unable to find selector -[%@ %@].", NSStringFromClass(self.class), selectorName];
AspectError(AspectErrorDoesNotRespondToSelector, errorDesc);
return NO;
}
// Search for the current class and the class hierarchy IF we are modifying a class object
if (class_isMetaClass(object_getClass(self))) {
Class klass = [self class];
NSMutableDictionary *swizzledClassesDict = aspect_getSwizzledClassesDict();
Class currentClass = [self class];
AspectTracker *tracker = swizzledClassesDict[currentClass];
if ([tracker subclassHasHookedSelectorName:selectorName]) {
NSSet *subclassTracker = [tracker subclassTrackersHookingSelectorName:selectorName];
NSSet *subclassNames = [subclassTracker valueForKey:@"trackedClassName"];
NSString *errorDescription = [NSString stringWithFormat:@"Error: %@ already hooked subclasses: %@. A method can only be hooked once per class hierarchy.", selectorName, subclassNames];
AspectError(AspectErrorSelectorAlreadyHookedInClassHierarchy, errorDescription);
return NO;
}
do {
tracker = swizzledClassesDict[currentClass];
if ([tracker.selectorNames containsObject:selectorName]) {
if (klass == currentClass) {
// Already modified and topmost!
return YES;
}
NSString *errorDescription = [NSString stringWithFormat:@"Error: %@ already hooked in %@. A method can only be hooked once per class hierarchy.", selectorName, NSStringFromClass(currentClass)];
AspectError(AspectErrorSelectorAlreadyHookedInClassHierarchy, errorDescription);
return NO;
}
} while ((currentClass = class_getSuperclass(currentClass)));
// Add the selector as being modified.
currentClass = klass;
AspectTracker *subclassTracker = nil;
do {
tracker = swizzledClassesDict[currentClass];
if (!tracker) {
tracker = [[AspectTracker alloc] initWithTrackedClass:currentClass];
swizzledClassesDict[(id<NSCopying>)currentClass] = tracker;
}
if (subclassTracker) {
[tracker addSubclassTracker:subclassTracker hookingSelectorName:selectorName];
} else {
[tracker.selectorNames addObject:selectorName];
}
// All superclasses get marked as having a subclass that is modified.
subclassTracker = tracker;
}while ((currentClass = class_getSuperclass(currentClass)));
} else {
return YES;
}
return YES;
}
参数保存以及Block参数校验
+ (instancetype)identifierWithSelector:(SEL)selector object:(id)object options:(AspectOptions)options block:(id)block error:(NSError **)error {
NSCParameterAssert(block);
NSCParameterAssert(selector);
NSMethodSignature *blockSignature = aspect_blockMethodSignature(block, error); // TODO: check signature compatibility, etc.
if (!aspect_isCompatibleBlockSignature(blockSignature, object, selector, error)) {
return nil;
}
AspectIdentifier *identifier = nil;
if (blockSignature) {
identifier = [AspectIdentifier new];
identifier.selector = selector;
identifier.block = block;
identifier.blockSignature = blockSignature;
identifier.options = options;
identifier.object = object; // weak
}
return identifier;
}
动态生成子类并且修改子类forwardInvocation IMP
static Class aspect_hookClass(NSObject *self, NSError **error) {
NSCParameterAssert(self);
Class statedClass = self.class;
Class baseClass = object_getClass(self);
NSString *className = NSStringFromClass(baseClass);
// Already subclassed
if ([className hasSuffix:AspectsSubclassSuffix]) {
return baseClass;
// We swizzle a class object, not a single object.
}else if (class_isMetaClass(baseClass)) {
return aspect_swizzleClassInPlace((Class)self);
// Probably a KVO'ed class. Swizzle in place. Also swizzle meta classes in place.
}else if (statedClass != baseClass) {
return aspect_swizzleClassInPlace(baseClass);
}
// Default case. Create dynamic subclass.
const char *subclassName = [className stringByAppendingString:AspectsSubclassSuffix].UTF8String;
Class subclass = objc_getClass(subclassName);
if (subclass == nil) {
subclass = objc_allocateClassPair(baseClass, subclassName, 0);
if (subclass == nil) {
NSString *errrorDesc = [NSString stringWithFormat:@"objc_allocateClassPair failed to allocate class %s.", subclassName];
AspectError(AspectErrorFailedToAllocateClassPair, errrorDesc);
return nil;
}
aspect_swizzleForwardInvocation(subclass);
aspect_hookedGetClass(subclass, statedClass);
aspect_hookedGetClass(object_getClass(subclass), statedClass);
objc_registerClassPair(subclass);
}
object_setClass(self, subclass);
return subclass;
}
static void aspect_swizzleForwardInvocation(Class klass) {
NSCParameterAssert(klass);
// If there is no method, replace will act like class_addMethod.
IMP originalImplementation = class_replaceMethod(klass, @selector(forwardInvocation:), (IMP)__ASPECTS_ARE_BEING_CALLED__, "v@:@");
if (originalImplementation) {
class_addMethod(klass, NSSelectorFromString(AspectsForwardInvocationSelectorName), originalImplementation, "v@:@");
}
AspectLog(@"Aspects: %@ is now aspect aware.", NSStringFromClass(klass));
}
修改子类对应selector IMP指针
static void aspect_prepareClassAndHookSelector(NSObject *self, SEL selector, NSError **error) {
NSCParameterAssert(selector);
Class klass = aspect_hookClass(self, error);
Method targetMethod = class_getInstanceMethod(klass, selector);
IMP targetMethodIMP = method_getImplementation(targetMethod);
if (!aspect_isMsgForwardIMP(targetMethodIMP)) {
// Make a method alias for the existing method implementation, it not already copied.
const char *typeEncoding = method_getTypeEncoding(targetMethod);
SEL aliasSelector = aspect_aliasForSelector(selector);
if (![klass instancesRespondToSelector:aliasSelector]) {
__unused BOOL addedAlias = class_addMethod(klass, aliasSelector, method_getImplementation(targetMethod), typeEncoding);
NSCAssert(addedAlias, @"Original implementation for %@ is already copied to %@ on %@", NSStringFromSelector(selector), NSStringFromSelector(aliasSelector), klass);
}
// We use forwardInvocation to hook in.
class_replaceMethod(klass, selector, aspect_getMsgForwardIMP(self, selector), typeEncoding);
AspectLog(@"Aspects: Installed hook for -[%@ %@].", klass, NSStringFromSelector(selector));
}
}
