SpringMVC

M: Model；V: View；C: Controller ->DispatcherServlet(通过 DispatcherServlet 进行处理)

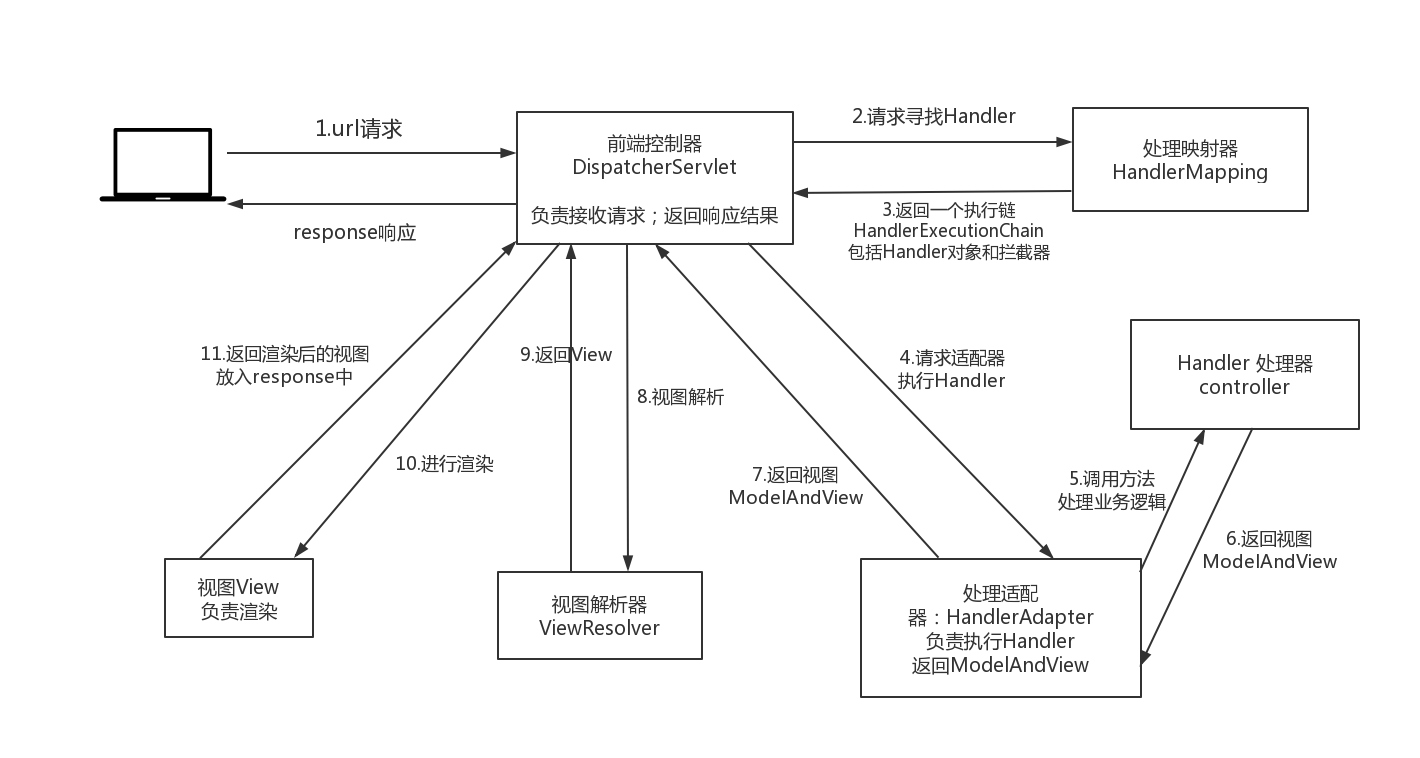

流程说明

（1）客户端（浏览器）发送请求，直接请求到 DispatcherServlet。

（2）DispatcherServlet 根据请求信息调用 HandlerMapping，解析请求对应的 Handler。

（3）解析到对应的 Handler（也就是我们平常说的 Controller 控制器）后，开始由 HandlerAdapter 适配器处理。

（4）HandlerAdapter 会根据 Handler 来调用真正的处理器开处理请求，并处理相应的业务逻辑。

（5）处理器处理完业务后，会返回一个 ModelAndView 对象，Model 是返回的数据对象，View 是个逻辑上的 View。

（6）ViewResolver 会根据逻辑 View 查找实际的 View。

（7）DispaterServlet 把返回的 Model 传给 View（视图渲染）。

（8）把 View 返回给请求者（浏览器）

MVC 重要组件

1. 前端控制器DispatcherServlet（不需要程序员开发），由框架提供

   Spring MVC 的入口函数。功能是接收请求，响应结果，相当于转发器，是整个MVC流程控制的核心。DispatcherServlet 减少了其它组件之间的耦合度。相当于MVC模式中的c。

2. 处理器映射器**HandlerMapping **（不需要程序员开发）

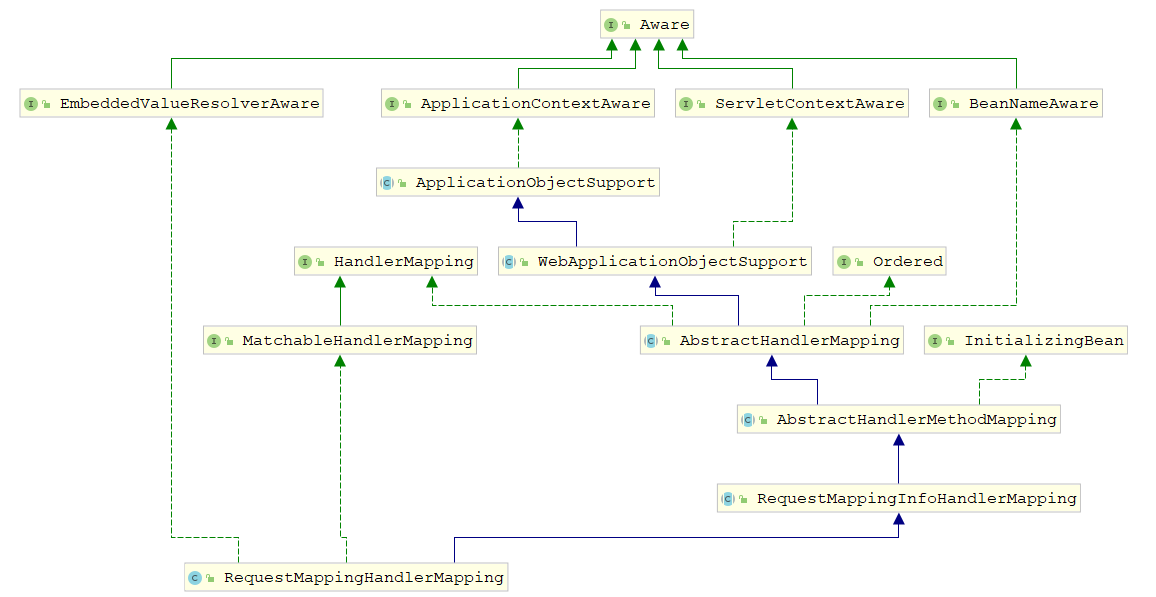

   HandlerMapping负责根据用户请求的url找到Handler即处理器（Controller），标注了@RequestMapping 的每个method 都可以看成是一个Handler，由Handler 来负责实际的请求处理

3. 处理器适配器HandlerAdapter

   按照特定规则（HandlerAdapter要求的规则）去执行Handler，这是适配器模式的应用，通过扩展适配器可以执行更多的方法

4. 处理器Handler(需要程序员开发)

   对url请求进行实际业务处理的类或方法，例如：标注了@RequestMapping 的每个method 都可以看成是一个Handler，由Handler 来负责实际的请求处理

5. 视图解析器ViewResolver(不需要程序员开发)，由框架提供

   负责将处理结果生成View视图，ViewResolver首先根据逻辑视图名解析成物理视图名，即具体的页面地址；再生成View视图对象，最后对View进行渲染将处理结果通过页面展示给用户

6. 视图View(需要程序员开发)

   View是一个接口，实现类支持不同的View类型（jsp、freemarker、 velocity)

初始化阶段

DispatcherServlet

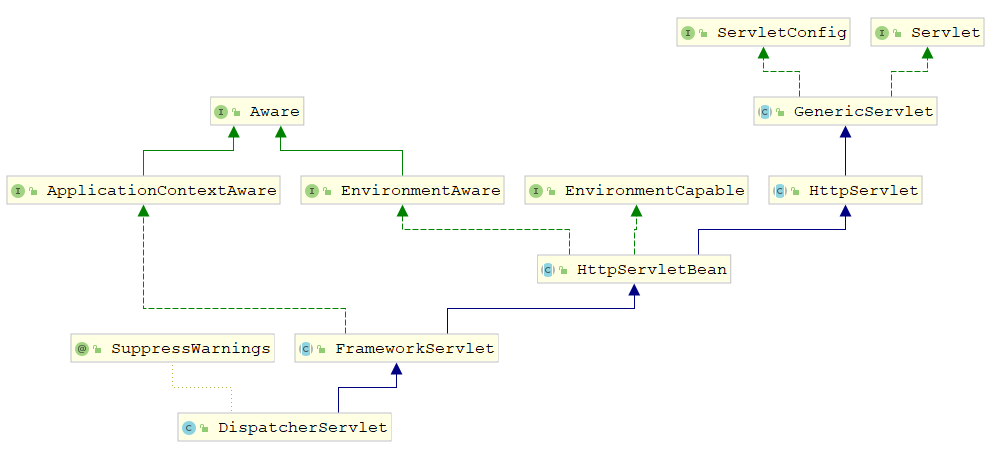

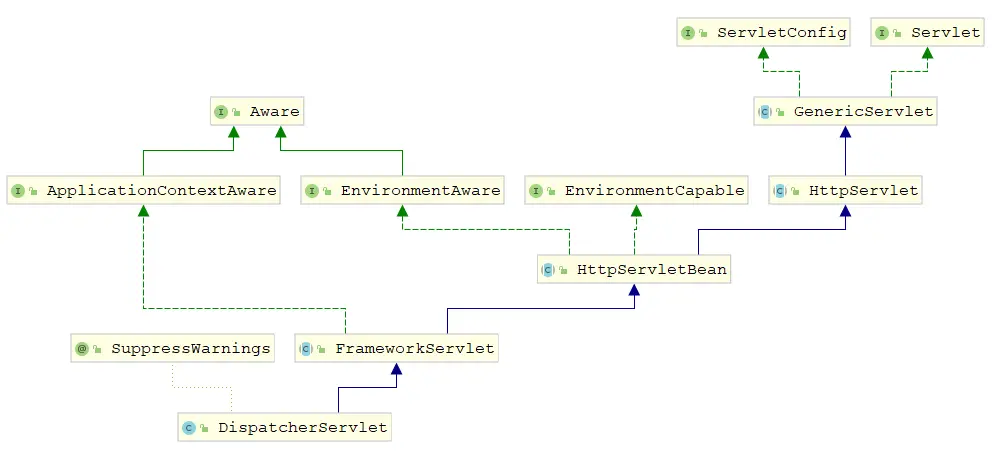

DispatcherServlet => FrameworkServlet => HttpServletBean

HttpServletBean

按照Servlet规范， Servlet容器在加载Servlet类的时候会调用init()方法，会调用HttpServletBean 的init()

public abstract class HttpServletBean extends HttpServlet implements EnvironmentCapable, EnvironmentAware {
    @Override
    public final void init() throws ServletException {
        // 把 Servlet 配置信息封装到PropertyValues对象
        PropertyValues pvs = new ServletConfigPropertyValues(getServletConfig(), this.requiredProperties);
        if (!pvs.isEmpty()) {
            try {
                // 包装DispatcherServlet，准备放入容器
                BeanWrapper bw = PropertyAccessorFactory.forBeanPropertyAccess(this);
                // 加载spring-mvc配置信息
                ResourceLoader resourceLoader = new ServletContextResourceLoader(getServletContext());
                bw.registerCustomEditor(Resource.class,
                    new ResourceEditor(resourceLoader, getEnvironment()));
                // 空方法,没有子类重写
                initBeanWrapper(bw);
                bw.setPropertyValues(pvs, true);
            } catch (BeansException ex) {
            	throw ex;
            }
        }
        // 空方法,委派给子类执行其他初始化
        initServletBean();
    }
}

FrameworkServlet

委派给子类FrameworkServlet调用initServletBean

public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware {
    protected final void initServletBean() throws ServletException {
        try {
            // 初始化 WebApplicationContext 容器
            this.webApplicationContext = initWebApplicationContext();
            // 空方法,没有子类重写
            initFrameworkServlet();
        } //...catch

    }
    protected WebApplicationContext initWebApplicationContext() {
        // 容器查找,可以通过ContextLoaderListener创建容器
        WebApplicationContext rootContext =
            WebApplicationContextUtils.getWebApplicationContext(getServletContext());
        WebApplicationContext wac = null;
        if (this.webApplicationContext != null) {
            wac = this.webApplicationContext;
            if (wac instanceof ConfigurableWebApplicationContext) {
                ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) wac;
                if (!cwac.isActive()) {
                    if (cwac.getParent() == null) {
                        // 把rootContext设置为父容器
                        cwac.setParent(rootContext);
                    }
                    configureAndRefreshWebApplicationContext(cwac);
                }
            }
        }
        if (wac == null) {
            // 在servletContext中查找是否有context实例
            wac = findWebApplicationContext();
        }
        if (wac == null) {
            // 创建 ConfigurableWebApplicationContext容器，把rootContext设置为父容器
            // 因此,同时设置DispatcherServlet 和 ContextLoaderListener会有两个不同的容器
            wac = createWebApplicationContext(rootContext);
        }
        if (!this.refreshEventReceived) {
            // 空方法，交给子类实现
            onRefresh(wac);
        }

        if (this.publishContext) {
            // Publish the context as a servlet context attribute.
            String attrName = getServletContextAttributeName();
            // 把容器保存在servletContext中
            getServletContext().setAttribute(attrName, wac);
        }
        return wac;
    }
}

容器初始化

root容器查找

spring-mvc支持Spring容器与MVC容器共存，此时，Spring容器即根容器，mvc容器将根容器视为父容器

<!--使用 Contextloaderlistener 配置时,需要告诉它 Spring配置文件的位置 -->
<context-param id="context">
    <param-name>contextConfigLocation</param-name>
    <param-value>
        classpath:spring/spring-mvc.xml
    </param-value>
</context-param>
<!--配置上下文载入器-->
<!--上下文载入器载入除 Dispatcherserv1et载入的配置文件之外的其他上下文配置文件-->
<!--最常用的上下文载入器是一个serv1et监听器,其名称为 Contextloaderlistener-->
<listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>

根据Servlet规范，各组件的加载 顺序如下: listener --> filter --> servlet

ContextLoaderListener

ContextLoaderListener是可以脱离spring-mvc单独存在的，最早的Spring容器是和Struts配合使用的

public class ContextLoaderListener extends ContextLoader implements ServletContextListener {
    public void contextInitialized(ServletContextEvent event) {
        // 创建 spring 容器
        initWebApplicationContext(event.getServletContext());
    }
}
public class ContextLoader {

    public WebApplicationContext initWebApplicationContext(ServletContext servletContext) {
        // 不为空表示容器已经创建
        if (servletContext.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE)
            != null) {
            // throw new IllegalStateException( );
        }

        try {
            // Store context in local instance variable, to guarantee that
            // it is available on ServletContext shutdown.
            if (this.context == null) {
                // 创建 spring 容器
                this.context = createWebApplicationContext(servletContext);
            }
            if (this.context instanceof ConfigurableWebApplicationContext) {
                ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext) this.context;
                if (!cwac.isActive()) {
                    if (cwac.getParent() == null) {
                        // loadParentContext现在直接返回null,应改可以交给子类重新,实现自定义配置
                        ApplicationContext parent = loadParentContext(servletContext);
                        cwac.setParent(parent);
                    }
                    configureAndRefreshWebApplicationContext(cwac, servletContext);
                }
            }
            // 向servletContext设置属性
            servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE,
                this.context);
            ClassLoader ccl = Thread.currentThread().getContextClassLoader();
            if (ccl == ContextLoader.class.getClassLoader()) {
                currentContext = this.context;
            } else if (ccl != null) {
                currentContextPerThread.put(ccl, this.context);
            }

            return this.context;
        } // catch ..
    }
}

servletContext

ContextLoaderListener创建容器的时候会被保存在ServletContext中，其key为WebApplicationContext.class.getName() + ".ROOT"，我们可以通过key来查找是否创建了root容器

WebApplicationContext rootContext = WebApplicationContextUtils.getWebApplicationContext(getServletContext());
public abstract class WebApplicationContextUtils {
    public static WebApplicationContext getWebApplicationContext(ServletContext sc) {
        // 找到默认的root容器属性名,查询容器
        return getWebApplicationContext(sc, WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE);
    }

    public static WebApplicationContext getWebApplicationContext(ServletContext sc, String attrName) {
        Assert.notNull(sc, "ServletContext must not be null");
        // 通过attrName向ServletContext中查询root容器
        Object attr = sc.getAttribute(attrName);
        if (attr == null) {
            return null;
        }
        // throws ..
        return (WebApplicationContext) attr;
    }
}

容器创建

public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware {

    protected WebApplicationContext createWebApplicationContext(@Nullable ApplicationContext parent) {
        Class<?> contextClass = getContextClass();
        if (!ConfigurableWebApplicationContext.class.isAssignableFrom(contextClass)) {
            // throw new ApplicationContextException( );
        }
        // 创建容器ConfigurableWebApplicationContext
        ConfigurableWebApplicationContext wac =
            (ConfigurableWebApplicationContext) BeanUtils.instantiateClass(contextClass);
        // 设置
        wac.setEnvironment(getEnvironment());
        wac.setParent(parent);
        String configLocation = getContextConfigLocation();
        if (configLocation != null) {
            wac.setConfigLocation(configLocation);
        }
        // 配置并刷新Cnotext
        configureAndRefreshWebApplicationContext(wac);

        return wac;
    }
}

refresh

当容器创建成功后，会调用 context的refresh方法，触发IOC容器的核心功能

public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware {
    // 配置并刷新Cnotext
    protected void configureAndRefreshWebApplicationContext(ConfigurableWebApplicationContext wac) {
        // 设置ID
        if (ObjectUtils.identityToString(wac).equals(wac.getId())) {
            if (this.contextId != null) {
                wac.setId(this.contextId);
            } else {
                // Generate default id...
                wac.setId(ConfigurableWebApplicationContext.APPLICATION_CONTEXT_ID_PREFIX +
                    ObjectUtils.getDisplayString(getServletContext().getContextPath()) +
                    '/' + getServletName());
            }
        }

        wac.setServletContext(getServletContext());
        wac.setServletConfig(getServletConfig());
        wac.setNamespace(getNamespace());
        wac.addApplicationListener(new SourceFilteringListener(wac, new ContextRefreshListener()));

        ConfigurableEnvironment env = wac.getEnvironment();
        if (env instanceof ConfigurableWebEnvironment) {
            ((ConfigurableWebEnvironment) env).initPropertySources(getServletContext(), getServletConfig());
        }

        postProcessWebApplicationContext(wac);
        applyInitializers(wac);
        // 调用 context的refresh方法,IOC容器的核心
        wac.refresh();
    }
}

配置解析

Spring 解析扩展元素解析BeanDefinition时，会解析到MVC相关的标签，MvcNamespaceHandler是基于Spring实现命名空间处理的扩展

public class MvcNamespaceHandler extends NamespaceHandlerSupport {
    @Override
    public void init() {
        // 注解驱动
        registerBeanDefinitionParser("annotation-driven", new AnnotationDrivenBeanDefinitionParser());
        // 静态资源处理
        registerBeanDefinitionParser("default-servlet-handler",
            new DefaultServletHandlerBeanDefinitionParser());
        // 拦截器
        registerBeanDefinitionParser("interceptors", new InterceptorsBeanDefinitionParser());
        // resource 资源路径
        registerBeanDefinitionParser("resources", new ResourcesBeanDefinitionParser());
        // 控制器
        registerBeanDefinitionParser("view-controller", new ViewControllerBeanDefinitionParser());
        registerBeanDefinitionParser("redirect-view-controller", new ViewControllerBeanDefinitionParser());
        registerBeanDefinitionParser("status-controller", new ViewControllerBeanDefinitionParser());
        // 视图解析器
        registerBeanDefinitionParser("view-resolvers", new ViewResolversBeanDefinitionParser());
        // 视图配置器 tiles,freemarker
        registerBeanDefinitionParser("tiles-configurer", new TilesConfigurerBeanDefinitionParser());

        registerBeanDefinitionParser("freemarker-configurer",
            new FreeMarkerConfigurerBeanDefinitionParser());
        registerBeanDefinitionParser("groovy-configurer", new GroovyMarkupConfigurerBeanDefinitionParser());
        registerBeanDefinitionParser("script-template-configurer",
            new ScriptTemplateConfigurerBeanDefinitionParser());
        registerBeanDefinitionParser("cors", new CorsBeanDefinitionParser());
    }
}

注解驱动

<mvc:annotation-driven/> <!-- XML配置 -->

开始解析，主要注册HandlerMappings-url匹配器、HandlerAdapters-url匹配适配器、HandlerExceptionResolvers-异常解析器、UrlPathHelper-url请求路径获取帮助类等beans，提前为mvc做好基础的准备

class AnnotationDrivenBeanDefinitionParser implements BeanDefinitionParser {
    public BeanDefinition parse(Element element, ParserContext context) {
        Object source = context.extractSource(element);
        // 获取XmlReaderContext
        XmlReaderContext readerContext = context.getReaderContext();

        CompositeComponentDefinition compDefinition =
        new CompositeComponentDefinition(element.getTagName(), source);
        context.pushContainingComponent(compDefinition);
        // 内容协商
        RuntimeBeanReference contentNegotiationManager =
        getContentNegotiationManager(element, source, context);
        // 请求处理映射器BeanDefinition, className = RequestMappingHandlerMapping.class
        RootBeanDefinition handlerMappingDef = new RootBeanDefinition(RequestMappingHandlerMapping.class);
        handlerMappingDef.setSource(source);
        handlerMappingDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        handlerMappingDef.getPropertyValues().add("order", 0);
        handlerMappingDef.getPropertyValues().add("contentNegotiationManager", contentNegotiationManager);

        if (element.hasAttribute("enable-matrix-variables")) {
            Boolean enableMatrixVariables = Boolean.valueOf(element.getAttribute("enable-matrix-variables"));
            handlerMappingDef.getPropertyValues().add("removeSemicolonContent", !enableMatrixVariables);
        }
        // 设置handlerMapping路径匹配规则
        configurePathMatchingProperties(handlerMappingDef, element, context);
        readerContext.getRegistry().registerBeanDefinition(HANDLER_MAPPING_BEAN_NAME, handlerMappingDef);
        // 跨源资源共享
        RuntimeBeanReference corsRef = MvcNamespaceUtils.registerCorsConfigurations(null, context, source);
        handlerMappingDef.getPropertyValues().add("corsConfigurations", corsRef);

        // 获取参数conversion-service的属性值,是一个类型转换bean的引用
        RuntimeBeanReference conversionService = getConversionService(element, source, context);
        // 获取参数validator的属性值,是一个参数校验bean的引用
        RuntimeBeanReference validator = getValidator(element, source, context);
        // 获取参数message-codes-resolver的属性值,是一个消息编码解析器bean的引用
        RuntimeBeanReference messageCodesResolver = getMessageCodesResolver(element);

        // 可配置的Web绑定初始值设定项BeanDefinition, className = ConfigurableWebBindingInitializer.class
        RootBeanDefinition bindingDef = new RootBeanDefinition(ConfigurableWebBindingInitializer.class);
        bindingDef.setSource(source);
        bindingDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        bindingDef.getPropertyValues().add("conversionService", conversionService);
        bindingDef.getPropertyValues().add("validator", validator);
        bindingDef.getPropertyValues().add("messageCodesResolver", messageCodesResolver);

        // 获取子标签 <mvc:message-converters>  获取所有消息转换器
        ManagedList<?> messageConverters = getMessageConverters(element, source, context);
        // 获取子标签 <mvc:argument-resolvers>  参数解析器
        ManagedList<?> argumentResolvers = getArgumentResolvers(element, context);
        // 获取子标签 <mvc:return-value-handlers>  返回值handler
        ManagedList<?> returnValueHandlers = getReturnValueHandlers(element, context);
        // 获取子标签 <mvc:async-support> 的参数default-timeout   异步超时时间
        String asyncTimeout = getAsyncTimeout(element);
        // 获取子标签 <mvc:async-support> 的参数task-executor   异步线程池
        RuntimeBeanReference asyncExecutor = getAsyncExecutor(element);
        // 获取<mvc:async-support>的子标签  <mvc:callable-interceptors>  有返回值的拦截器
        ManagedList<?> callableInterceptors = getCallableInterceptors(element, source, context);
        // 获取<mvc:async-support>的子标签  <mvc:deferred-result-interceptors>     延迟拦截器
        ManagedList<?> deferredResultInterceptors = getDeferredResultInterceptors(element, source, context);

        // 请求处理适配器BeanDefinition, className = RequestMappingHandlerAdapter.class
        RootBeanDefinition handlerAdapterDef = new RootBeanDefinition(RequestMappingHandlerAdapter.class);
        handlerAdapterDef.setSource(source);
        handlerAdapterDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        handlerAdapterDef.getPropertyValues().add("contentNegotiationManager", contentNegotiationManager);
        handlerAdapterDef.getPropertyValues().add("webBindingInitializer", bindingDef);
        handlerAdapterDef.getPropertyValues().add("messageConverters", messageConverters);
        // 添加json请求通知处理器JsonViewRequestBodyAdvice
        addRequestBodyAdvice(handlerAdapterDef);
        // 添加json响应通知处理器JsonViewResponseBodyAdvice
        addResponseBodyAdvice(handlerAdapterDef);
        // 重定向操作是否默认不带参数
        if (element.hasAttribute("ignore-default-model-on-redirect")) {
            Boolean ignoreDefaultModel = Boolean.valueOf(
                element.getAttribute("ignore-default-model-on-redirect"));
            handlerAdapterDef.getPropertyValues().add("ignoreDefaultModelOnRedirect", ignoreDefaultModel);
        }
        if (argumentResolvers != null) {
            handlerAdapterDef.getPropertyValues().add("customArgumentResolvers", argumentResolvers);
        }
        if (returnValueHandlers != null) {
            handlerAdapterDef.getPropertyValues().add("customReturnValueHandlers", returnValueHandlers);
        }
        if (asyncTimeout != null) {
            // 异步请求超时时间
            handlerAdapterDef.getPropertyValues().add("asyncRequestTimeout", asyncTimeout);
        }
        if (asyncExecutor != null) {
            // 异步线程池
            handlerAdapterDef.getPropertyValues().add("taskExecutor", asyncExecutor);
        }

        handlerAdapterDef.getPropertyValues().add("callableInterceptors", callableInterceptors);
        handlerAdapterDef.getPropertyValues().add("deferredResultInterceptors", deferredResultInterceptors);
        // 注册 RequestMappingHandlerAdapter
        readerContext.getRegistry().registerBeanDefinition(HANDLER_ADAPTER_BEAN_NAME, handlerAdapterDef);
        // URI 组件
        RootBeanDefinition uriContributorDef =
            new RootBeanDefinition(CompositeUriComponentsContributorFactoryBean.class);
        uriContributorDef.setSource(source);
        uriContributorDef.getPropertyValues().addPropertyValue("handlerAdapter", handlerAdapterDef);
        uriContributorDef.getPropertyValues().addPropertyValue("conversionService", conversionService);
        String uriContributorName = MvcUriComponentsBuilder.MVC_URI_COMPONENTS_CONTRIBUTOR_BEAN_NAME;
		readerContext.getRegistry().registerBeanDefinition(uriContributorName, uriContributorDef);
        // 类型转换拦截BeanDefinition, className = ConversionServiceExposingInterceptor.class
        RootBeanDefinition csInterceptorDef =
            new RootBeanDefinition(ConversionServiceExposingInterceptor.class);
        csInterceptorDef.setSource(source);
        csInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(0, conversionService);
        // 映射拦截器BeanDefinition, className = MappedInterceptor.class
        RootBeanDefinition mappedInterceptorDef = new RootBeanDefinition(MappedInterceptor.class);
        mappedInterceptorDef.setSource(source);
        mappedInterceptorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        mappedInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(0, (Object) null);
        mappedInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(1, csInterceptorDef);
        String mappedInterceptorName = readerContext.registerWithGeneratedName(mappedInterceptorDef);
        // 方法异常处理解析器BeanDefinition, className = ExceptionHandlerExceptionResolver.class
        RootBeanDefinition methodExceptionResolver =
            new RootBeanDefinition(ExceptionHandlerExceptionResolver.class);
        methodExceptionResolver.setSource(source);
        methodExceptionResolver.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        methodExceptionResolver.getPropertyValues().
            add("contentNegotiationManager", contentNegotiationManager);
        methodExceptionResolver.getPropertyValues().add("messageConverters", messageConverters);
        methodExceptionResolver.getPropertyValues().add("order", 0);
        // 添加json响应通知处理器JsonViewResponseBodyAdvice,把异常信息转换成Json
        addResponseBodyAdvice(methodExceptionResolver);
        if (argumentResolvers != null) {
            methodExceptionResolver.getPropertyValues().
                add("customArgumentResolvers", argumentResolvers);
        }
        if (returnValueHandlers != null) {
            methodExceptionResolver.getPropertyValues().
                add("customReturnValueHandlers", returnValueHandlers);
        }
        String methodExResolverName = readerContext.registerWithGeneratedName(methodExceptionResolver);
        // 响应状态码异常解析器BeanDefinition, className = ResponseStatusExceptionResolver.class
        RootBeanDefinition statusExceptionResolver =
            new RootBeanDefinition(ResponseStatusExceptionResolver.class);
        statusExceptionResolver.setSource(source);
        statusExceptionResolver.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        statusExceptionResolver.getPropertyValues().add("order", 1);
        String statusExResolverName = readerContext.registerWithGeneratedName(statusExceptionResolver);
        // 默认异常处理解析器BeanDefinition, className = DefaultHandlerExceptionResolver.class
        RootBeanDefinition defaultExceptionResolver =
            new RootBeanDefinition(DefaultHandlerExceptionResolver.class);
        defaultExceptionResolver.setSource(source);
        defaultExceptionResolver.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        defaultExceptionResolver.getPropertyValues().add("order", 2);
        String defaultExResolverName = readerContext.registerWithGeneratedName(defaultExceptionResolver);

        context.registerComponent(new BeanComponentDefinition(handlerMappingDef, HANDLER_MAPPING_BEAN_NAME));
        context.registerComponent(new BeanComponentDefinition(handlerAdapterDef, HANDLER_ADAPTER_BEAN_NAME));
        context.registerComponent(new BeanComponentDefinition(uriContributorDef, uriContributorName));
        context.registerComponent(new BeanComponentDefinition(mappedInterceptorDef, mappedInterceptorName));
        context.registerComponent(
            new BeanComponentDefinition(methodExceptionResolver, methodExResolverName));
        context.registerComponent(
            new BeanComponentDefinition(statusExceptionResolver, statusExResolverName));
        context.registerComponent(
            new BeanComponentDefinition(defaultExceptionResolver, defaultExResolverName));

        // Ensure BeanNameUrlHandlerMapping (SPR-8289) and default HandlerAdapters are not "turned off"
        // 注册默认组件 BeanNameUrlHandlerMapping,HttpRequestHandlerAdapter,
        // SimpleControllerHandlerAdapter,HandlerMappingIntrospector
        MvcNamespaceUtils.registerDefaultComponents(context, source);

        context.popAndRegisterContainingComponent();

        return null;
    }
}

内容协商

对web服务来说，进行数据交换可以使用多种格式（xml，json等），具体请求使用哪种格式是可以通过header信息沟通的，这里MVC需要创建一个内容协商管理器，保存当前web支持解析的格式

private RuntimeBeanReference getContentNegotiationManager(
    Element element, @Nullable Object source, ParserContext context) {
    RuntimeBeanReference beanRef;
    if (element.hasAttribute("content-negotiation-manager")) {
        // 自定义实现
        String name = element.getAttribute("content-negotiation-manager");
        beanRef = new RuntimeBeanReference(name);
    } else {
        // 默认实现
        RootBeanDefinition factoryBeanDef =
            new RootBeanDefinition(ContentNegotiationManagerFactoryBean.class);
        factoryBeanDef.setSource(source);
        factoryBeanDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        // 添加默认的mediaTypes
        factoryBeanDef.getPropertyValues().add("mediaTypes", getDefaultMediaTypes());
        String name = CONTENT_NEGOTIATION_MANAGER_BEAN_NAME;
        context.getReaderContext().getRegistry().registerBeanDefinition(name, factoryBeanDef);
        context.registerComponent(new BeanComponentDefinition(factoryBeanDef, name));
        beanRef = new RuntimeBeanReference(name);
    }
    return beanRef;
}

默认的mediaTypes

static {
    ClassLoader classLoader = AnnotationDrivenBeanDefinitionParser.class.getClassLoader();
    javaxValidationPresent = ClassUtils.isPresent("javax.validation.Validator", classLoader);
    // 判断当前包是否存在class,判断当前是否支持格式
    romePresent = ClassUtils.isPresent("com.rometools.rome.feed.WireFeed", classLoader);
    jaxb2Present = ClassUtils.isPresent("javax.xml.bind.Binder", classLoader);
    // json
    jackson2Present = ClassUtils.isPresent("com.fasterxml.jackson.databind.ObjectMapper", classLoader) &&
        ClassUtils.isPresent("com.fasterxml.jackson.core.JsonGenerator", classLoader);
    // xml
    jackson2XmlPresent = ClassUtils.isPresent("com.fasterxml.jackson.dataformat.xml.XmlMapper", classLoader);
    jackson2SmilePresent = ClassUtils
        .isPresent("com.fasterxml.jackson.dataformat.smile.SmileFactory", classLoader);
    jackson2CborPresent = ClassUtils
        .isPresent("com.fasterxml.jackson.dataformat.cbor.CBORFactory", classLoader);
    gsonPresent = ClassUtils.isPresent("com.google.gson.Gson", classLoader);
}

private Properties getDefaultMediaTypes() {
    Properties defaultMediaTypes = new Properties();
    if (romePresent) {
        defaultMediaTypes.put("atom", MediaType.APPLICATION_ATOM_XML_VALUE);
        defaultMediaTypes.put("rss", MediaType.APPLICATION_RSS_XML_VALUE);
    }
    if (jaxb2Present || jackson2XmlPresent) {
        // "application/xml"
        defaultMediaTypes.put("xml", MediaType.APPLICATION_XML_VALUE);
    }
    if (jackson2Present || gsonPresent) {
        // "application/json"
        defaultMediaTypes.put("json", MediaType.APPLICATION_JSON_VALUE);
    }
    if (jackson2SmilePresent) {
        defaultMediaTypes.put("smile", "application/x-jackson-smile");
    }
    if (jackson2CborPresent) {
        defaultMediaTypes.put("cbor", MediaType.APPLICATION_CBOR_VALUE);
    }
    return defaultMediaTypes;
}

设置handlerMapping路径匹配规则

private void configurePathMatchingProperties(
    RootBeanDefinition handlerMappingDef, Element element, ParserContext context) {
    Element pathMatchingElement = DomUtils.getChildElementByTagName(element, "path-matching");
    if (pathMatchingElement != null) {
        Object source = context.extractSource(element);
        // 后缀匹配
        if (pathMatchingElement.hasAttribute("suffix-pattern")) {
            Boolean useSuffixPatternMatch =
                Boolean.valueOf(pathMatchingElement.getAttribute("suffix-pattern"));
            handlerMappingDef.getPropertyValues().add("useSuffixPatternMatch", useSuffixPatternMatch);
        }
        // 尾斜杠 /user也匹配/user/ 默认为true
        if (pathMatchingElement.hasAttribute("trailing-slash")) {
            Boolean useTrailingSlashMatch =
                Boolean.valueOf(pathMatchingElement.getAttribute("trailing-slash"));
            handlerMappingDef.getPropertyValues().add("useTrailingSlashMatch", useTrailingSlashMatch);
        }
        // 是否采用对后缀匹配,比如*.json/*.xml。默认为false
        if (pathMatchingElement.hasAttribute("registered-suffixes-only")) {
            Boolean useRegisteredSuffixPatternMatch =
                Boolean.valueOf(pathMatchingElement.getAttribute("registered-suffixes-only"));
            handlerMappingDef.getPropertyValues().add("useRegisteredSuffixPatternMatch",
                                                      useRegisteredSuffixPatternMatch);
        }
        // 路径解析帮助类,默认为UrlPathHelper
        RuntimeBeanReference pathHelperRef = null;
        if (pathMatchingElement.hasAttribute("path-helper")) {
            pathHelperRef = new RuntimeBeanReference(pathMatchingElement.getAttribute("path-helper"));
        }
        pathHelperRef = MvcNamespaceUtils.registerUrlPathHelper(pathHelperRef, context, source);
        handlerMappingDef.getPropertyValues().add("urlPathHelper", pathHelperRef);
        // 路径解析器,默认为AntPathMatcher解析器
        RuntimeBeanReference pathMatcherRef = null;
        if (pathMatchingElement.hasAttribute("path-matcher")) {
            pathMatcherRef = new RuntimeBeanReference(pathMatchingElement.getAttribute("path-matcher"));
        }
        pathMatcherRef = MvcNamespaceUtils.registerPathMatcher(pathMatcherRef, context, source);
        handlerMappingDef.getPropertyValues().add("pathMatcher", pathMatcherRef);
    }
}

RequestMappingHandlerMapping

注册url和Handler的映射关系，记录@RequestMapping和@Controller之间的关系

RequestMappingHandlerMapping作为一个bean被注入到Spring容器中，实现了ApplicationContextAware和InitializingBean接口

ApplicationContextAware

在bean 初始化前会调用setApplicationContext方法

public abstract class ApplicationObjectSupport implements ApplicationContextAware {
    @Nullable
    private ApplicationContext applicationContext;
    // ApplicationContextAware 接口在bean初始化时会执行 setApplicationContext 方法
    @Override
    public final void setApplicationContext(@Nullable ApplicationContext context) throws BeansException {
        if (context == null && !isContextRequired()) {
            // Reset internal context state.
            this.applicationContext = null;
            this.messageSourceAccessor = null;
        } else if (this.applicationContext == null) {
            // Initialize with passed-in context.
            if (!requiredContextClass().isInstance(context)) {
                // throw new ApplicationContextException( );
            }
            // applicationContext赋值,防止重复调用
            this.applicationContext = context;
            this.messageSourceAccessor = new MessageSourceAccessor(context);
            // 在这里执行了initApplicationContext,子类重写
            initApplicationContext(context);
        } else {
            // Ignore reinitialization if same context passed in.
            if (this.applicationContext != context) {
                // throw new ApplicationContextException( );
            }
        }
    }
}

initApplicationContext

RequestMappingHandlerMapping的initApplicationContext的主要目的是初始化拦截器

public abstract class WebApplicationObjectSupport extends ApplicationObjectSupport
    implements ServletContextAware {
    @Override
    protected void initApplicationContext(ApplicationContext context) {
        // 父类方法
        super.initApplicationContext(context);
        if (this.servletContext == null && context instanceof WebApplicationContext) {
            this.servletContext = ((WebApplicationContext) context).getServletContext();
            if (this.servletContext != null) {
                // 初始化 ServletContext
                initServletContext(this.servletContext);
            }
        }
    }
}
// 父类方法
public abstract class ApplicationObjectSupport implements ApplicationContextAware {
    protected void initApplicationContext(ApplicationContext context) throws BeansException {
        initApplicationContext();
    }
    // 其他子类重写
    protected void initApplicationContext() throws BeansException {
    }
}
public abstract class AbstractHandlerMapping extends WebApplicationObjectSupport
    implements HandlerMapping, Ordered, BeanNameAware {
    @Override
    protected void initApplicationContext() throws BeansException {
        extendInterceptors(this.interceptors);
        detectMappedInterceptors(this.adaptedInterceptors);
        // 初始化拦截器
        initInterceptors();
    }
}

InitializingBean

RequestMappingHandlerMapping实现了InitializingBean接口，在bean 初始化时调用afterPropertiesSet方法

afterPropertiesSet

// T 对应 RequestMappingInfo
public class RequestMappingHandlerMapping extends RequestMappingInfoHandlerMapping
    implements MatchableHandlerMapping, EmbeddedValueResolverAware {
    // 重写afterPropertiesSet
    @Override
    public void afterPropertiesSet() {
        // 创建配置信息并初始化
        this.config = new RequestMappingInfo.BuilderConfiguration();
        this.config.setUrlPathHelper(getUrlPathHelper());
        this.config.setPathMatcher(getPathMatcher());
        this.config.setSuffixPatternMatch(this.useSuffixPatternMatch);
        this.config.setTrailingSlashMatch(this.useTrailingSlashMatch);
        this.config.setRegisteredSuffixPatternMatch(this.useRegisteredSuffixPatternMatch);
        this.config.setContentNegotiationManager(getContentNegotiationManager());
        // 还会调用父类的afterPropertiesSet方法
        super.afterPropertiesSet();
    }

}
public abstract class AbstractHandlerMethodMapping<T> extends AbstractHandlerMapping
    implements InitializingBean {
    // 子类有重写,但子类中也调用了这个方法
    @Override
    public void afterPropertiesSet() {
        // 初始化handler
        initHandlerMethods();
    }
}

initHandlerMethods

遍历 bean

protected void initHandlerMethods() {
    // 遍历 beanName
    for (String beanName : getCandidateBeanNames()) {
        if (!beanName.startsWith(SCOPED_TARGET_NAME_PREFIX)) {
            // 处理 bean
            processCandidateBean(beanName);
        }
    }
    // 统计信息 mappings的数量,打印
    handlerMethodsInitialized(getHandlerMethods());
}

处理 bean

1. 判断当前class是否有注解：@Controller 或 @RequestMapping

protected void processCandidateBean(String beanName) {
    Class<?> beanType = null;
    try {
        beanType = obtainApplicationContext().getType(beanName);
    }
    // catch (Throwable ex) {  }
    // isHandler 子类实现,判断beanType 是否有 @Controller 或 @RequestMapping
    if (beanType != null && isHandler(beanType)) {
        // 检测 beanName 包含的所有HandlerMethod
        detectHandlerMethods(beanName);
    }
}
// isHandler 子类方法
@Override
protected boolean isHandler(Class<?> beanType) {
    return (AnnotatedElementUtils.hasAnnotation(beanType, Controller.class) ||
            AnnotatedElementUtils.hasAnnotation(beanType, RequestMapping.class));
}

处理 bean内部的method

// 检测 beanName 包含的所有HandlerMethod
protected void detectHandlerMethods(Object handler) {
    Class<?> handlerType = (handler instanceof String ?
                            obtainApplicationContext().getType((String) handler) : handler.getClass());
    if (handlerType != null) {
        // 如果是cglib代理的class,需要获取原来的class
        Class<?> userType = ClassUtils.getUserClass(handlerType);
        // 生成 method -> RequestMappingInfo 的 map
        // selectMethods 遍历 class 所有的 method
        // 把@RequestMapping 注解 封装成RequestMappingInfo对象 放入map中
        // T 对应 RequestMappingInfo
        Map<Method, T> methods = MethodIntrospector.selectMethods(userType,
            (MethodIntrospector.MetadataLookup<T>) method -> {
                try {
                    // 获取 RequestMappingInfo,模板方法 子类实现
                    return getMappingForMethod(method, userType);
                }
                catch (Throwable ex) {
                    throw new IllegalStateException( );
                }
            });
        // 遍历 methods, 注册
        methods.forEach((method, mapping) -> {
            Method invocableMethod = AopUtils.selectInvocableMethod(method, userType);
            // 注册 handler（beanName）,invocableMethod, mapping
            registerHandlerMethod(handler, invocableMethod, mapping);
        });
    }
}

getMappingForMethod

获取 方法的 @RequestMapping 注解 然后封装成RequestMappingInfo对象

public class RequestMappingHandlerMapping extends RequestMappingInfoHandlerMapping
    implements MatchableHandlerMapping, EmbeddedValueResolverAware {
    @Override
    @Nullable
    protected RequestMappingInfo getMappingForMethod(Method method, Class<?> handlerType) {
        // 获取 方法的 @RequestMapping 注解 然后封装成RequestMappingInfo对象
        RequestMappingInfo info = createRequestMappingInfo(method);
        if (info != null) {
            // 获取 controller 的 @RequestMapping 注解 然后封装成RequestMappingInfo对象
            RequestMappingInfo typeInfo = createRequestMappingInfo(handlerType);
            if (typeInfo != null) {
                // 合并
                info = typeInfo.combine(info);
            }
            // 路径前缀 例如 /api
            String prefix = getPathPrefix(handlerType);
            if (prefix != null) {
                info = RequestMappingInfo.paths(prefix).build().combine(info);
            }
        }
        return info;
    }
}
@Nullable
private RequestMappingInfo createRequestMappingInfo(AnnotatedElement element) {
    // 获取 @RequestMapping 注解 然后封装成RequestMappingInfo对象
    RequestMapping requestMapping = AnnotatedElementUtils.findMergedAnnotation(element,
        RequestMapping.class);
    RequestCondition<?> condition = (element instanceof Class ?
        getCustomTypeCondition((Class<?>) element) : getCustomMethodCondition((Method) element));
    return (requestMapping != null ? createRequestMappingInfo(requestMapping, condition) : null);
}

注册

// 注册
protected void registerHandlerMethod(Object handler, Method method, T mapping) {
    this.mappingRegistry.register(mapping, handler, method);
}

MappingRegistry

MappingRegistry是AbstractHandlerMethodMapping 的内部类，T 对应 RequestMappingInfo

用来记录method 和 RequestMappingInfo 的映射关系

class MappingRegistry {
    // RequestMappingInfo -> MappingRegistration 的映射
    private final Map<T, MappingRegistration<T>> registry = new HashMap<>();
    // RequestMappingInfo -> HandlerMethod 的映射
    private final Map<T, HandlerMethod> mappingLookup = new LinkedHashMap<>();
    // url路径 -> RequestMappingInfo 的映射
    private final MultiValueMap<String, T> urlLookup = new LinkedMultiValueMap<>();

    private final Map<String, List<HandlerMethod>> nameLookup = new ConcurrentHashMap<>();

    private final Map<HandlerMethod, CorsConfiguration> corsLookup = new ConcurrentHashMap<>();
    // 读写锁
    private final ReentrantReadWriteLock readWriteLock = new ReentrantReadWriteLock();

    public void register(T mapping, Object handler, Method method) {
        // Assert that the handler method is not a suspending one.
        if (KotlinDetector.isKotlinType(method.getDeclaringClass()) && KotlinDelegate.isSuspend(method)) {
            throw new IllegalStateException("Unsupported suspending handler method detected: " + method);
        }
        // 加锁
        this.readWriteLock.writeLock().lock();
        try {
            // 创建 HandlerMethod
            HandlerMethod handlerMethod = createHandlerMethod(handler, method);
            // 验证是否存在
            validateMethodMapping(handlerMethod, mapping);
            // 注册 RequestMappingInfo -> HandlerMethod
            this.mappingLookup.put(mapping, handlerMethod);
            // 获取 url 集合, urlLookup
            List<String> directUrls = getDirectUrls(mapping);
            for (String url : directUrls) {
                this.urlLookup.add(url, mapping);
            }

            String name = null;
            if (getNamingStrategy() != null) {
                name = getNamingStrategy().getName(handlerMethod, mapping);
                addMappingName(name, handlerMethod);
            }

            CorsConfiguration corsConfig = initCorsConfiguration(handler, method, mapping);
            if (corsConfig != null) {
                this.corsLookup.put(handlerMethod, corsConfig);
            }

            this.registry.put(mapping, new MappingRegistration<>(mapping, handlerMethod, directUrls, name));
        }  finally {
            // 释放锁
            this.readWriteLock.writeLock().unlock();
        }
    }
}

消息转换器

解析子标签 <mvc:message-converters> ， 获取所有消息转换器，同时注册默认的消息转换器

private ManagedList<?> getMessageConverters(Element element, @Nullable Object source,ParserContext context) {
    Element convertersElement = DomUtils.getChildElementByTagName(element, "message-converters");
    // 消息转换器List
    ManagedList<Object> messageConverters = new ManagedList<>();
    if (convertersElement != null) {
        messageConverters.setSource(source);
        for (Element beanElement : DomUtils.getChildElementsByTagName(convertersElement, "bean", "ref")) {
            Object object = context.getDelegate().parsePropertySubElement(beanElement, null);
            messageConverters.add(object);
        }
    }
    // 是否注册默认值
    if (convertersElement == null ||
        Boolean.parseBoolean(convertersElement.getAttribute("register-defaults"))) {
        messageConverters.setSource(source);
        // 添加 ByteArrayHttpMessageConverter
        messageConverters.add(createConverterDefinition(ByteArrayHttpMessageConverter.class, source));

        RootBeanDefinition stringConverterDef =
            createConverterDefinition(StringHttpMessageConverter.class, source);
        stringConverterDef.getPropertyValues().add("writeAcceptCharset", false);
        // 添加 StringHttpMessageConverter
        messageConverters.add(stringConverterDef);
        // 添加 ResourceHttpMessageConverter
        messageConverters.add(createConverterDefinition(ResourceHttpMessageConverter.class, source));
        // 添加 ResourceRegionHttpMessageConverter
        messageConverters.add(createConverterDefinition(ResourceRegionHttpMessageConverter.class, source));
        // 添加 SourceHttpMessageConverter
        messageConverters.add(createConverterDefinition(SourceHttpMessageConverter.class, source));

        messageConverters.add(
            createConverterDefinition(AllEncompassingFormHttpMessageConverter.class, source));

        if (romePresent) {
            messageConverters.add(createConverterDefinition(AtomFeedHttpMessageConverter.class, source));
            messageConverters.add(createConverterDefinition(RssChannelHttpMessageConverter.class, source));
        }
        // json转xml转换器
        if (jackson2XmlPresent) {
            Class<?> type = MappingJackson2XmlHttpMessageConverter.class;
            RootBeanDefinition jacksonConverterDef = createConverterDefinition(type, source);
            GenericBeanDefinition jacksonFactoryDef = createObjectMapperFactoryDefinition(source);
            jacksonFactoryDef.getPropertyValues().add("createXmlMapper", true);
            jacksonConverterDef.getConstructorArgumentValues().addIndexedArgumentValue(0, jacksonFactoryDef);
            messageConverters.add(jacksonConverterDef);
        }
        //  实体类 xml转换器
        else if (jaxb2Present) {
            messageConverters.add(
                createConverterDefinition(Jaxb2RootElementHttpMessageConverter.class, source));
        }
        // Jackson json转换器
        if (jackson2Present) {
            Class<?> type = MappingJackson2HttpMessageConverter.class;
            RootBeanDefinition jacksonConverterDef = createConverterDefinition(type, source);
            GenericBeanDefinition jacksonFactoryDef = createObjectMapperFactoryDefinition(source);
            jacksonConverterDef.getConstructorArgumentValues().addIndexedArgumentValue(0, jacksonFactoryDef);
            messageConverters.add(jacksonConverterDef);
        }
        // Gson json转换器
        else if (gsonPresent) {
            messageConverters.add(createConverterDefinition(GsonHttpMessageConverter.class, source));
        }

        if (jackson2SmilePresent) {
            Class<?> type = MappingJackson2SmileHttpMessageConverter.class;
            RootBeanDefinition jacksonConverterDef = createConverterDefinition(type, source);
            GenericBeanDefinition jacksonFactoryDef = createObjectMapperFactoryDefinition(source);
            jacksonFactoryDef.getPropertyValues().add("factory", new SmileFactory());
            jacksonConverterDef.getConstructorArgumentValues().addIndexedArgumentValue(0, jacksonFactoryDef);
            messageConverters.add(jacksonConverterDef);
        }
        if (jackson2CborPresent) {
            Class<?> type = MappingJackson2CborHttpMessageConverter.class;
            RootBeanDefinition jacksonConverterDef = createConverterDefinition(type, source);
            GenericBeanDefinition jacksonFactoryDef = createObjectMapperFactoryDefinition(source);
            jacksonFactoryDef.getPropertyValues().add("factory", new CBORFactory());
            jacksonConverterDef.getConstructorArgumentValues().addIndexedArgumentValue(0, jacksonFactoryDef);
            messageConverters.add(jacksonConverterDef);
        }
    }
    return messageConverters;
}

注册默认组件

public static void registerDefaultComponents(ParserContext parserContext, @Nullable Object source) {
    // 注册 BeanNameUrlHandlerMapping
    registerBeanNameUrlHandlerMapping(parserContext, source);
    // 注册 HttpRequestHandlerAdapter 判断是否适配http请求
    registerHttpRequestHandlerAdapter(parserContext, source);
    // 注册 SimpleControllerHandlerAdapter 判断是否适配controller
    registerSimpleControllerHandlerAdapter(parserContext, source);
    // 注册 HandlerMappingIntrospector
    registerHandlerMappingIntrospector(parserContext, source);
}

BeanNameUrlHandlerMapping

以beanName作为url路径访问Controller，代码实现方式

// 以斜杠开头,继承AbstractController
@Controller("/index")
public class BeanNameController extends AbstractController {
    @Override
    protected ModelAndView handleRequestInternal(HttpServletRequest request, HttpServletResponse response)
        throws Exception {
        ModelAndView model = new ModelAndView("index");
        model.addObject("message", "JavaInterviewPoint");
        return model;
    }
}

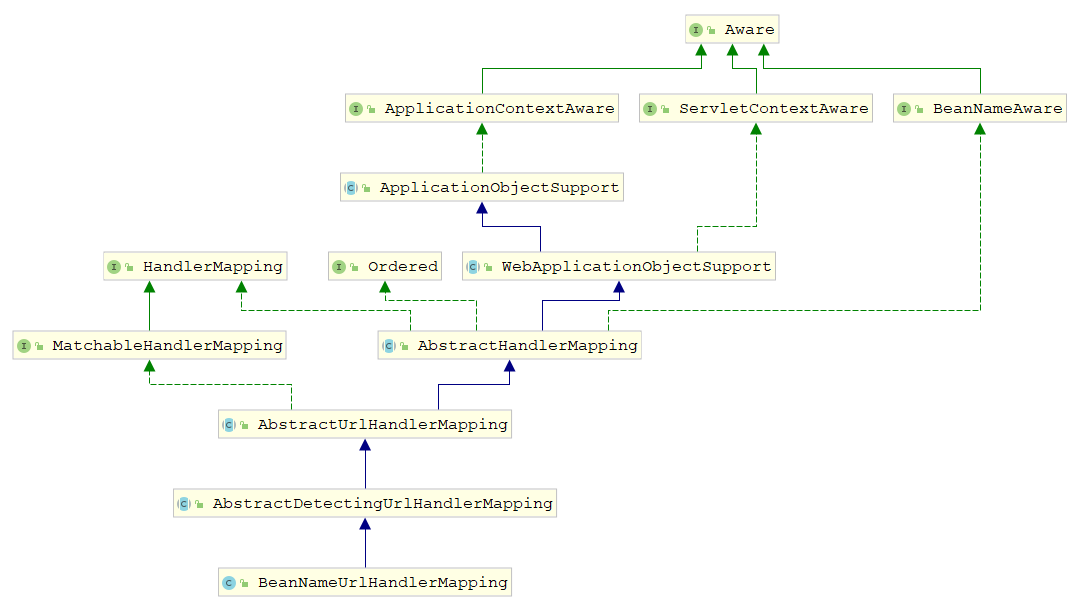

BeanNameUrlHandlerMapping被注入到Spring容器中，由于实现了ApplicationContextAware接口，会在bean 初始化前调用setApplicationContext方法

public abstract class ApplicationObjectSupport implements ApplicationContextAware {

    @Nullable
    private ApplicationContext applicationContext;

    // ApplicationContextAware 接口在bean初始化时会执行 setApplicationContext 方法
    @Override
    public final void setApplicationContext(@Nullable ApplicationContext context) throws BeansException {
        if (context == null && !isContextRequired()) {
            // Reset internal context state.
            this.applicationContext = null;
            this.messageSourceAccessor = null;
        } else if (this.applicationContext == null) {
            // Initialize with passed-in context.
            if (!requiredContextClass().isInstance(context)) {
                // throw new ApplicationContextException( );
            }
            // applicationContext赋值,防止重复调用
            this.applicationContext = context;
            this.messageSourceAccessor = new MessageSourceAccessor(context);
            // 在这里执行了initApplicationContext,子类重写
            initApplicationContext(context);
        } else {
            // Ignore reinitialization if same context passed in.
            if (this.applicationContext != context) {
                // throw new ApplicationContextException( );
            }
        }
    }
}

initApplicationContext

initApplicationContext()方法最终会调用AbstractDetectingUrlHandlerMapping的initApplicationContext()；AbstractDetectingUrlHandlerMapping是BeanNameUrlHandlerMapping 的父类

public abstract class AbstractDetectingUrlHandlerMapping extends AbstractUrlHandlerMapping {
    // 最终调用
    @Override
    public void initApplicationContext() throws ApplicationContextException {
        // 父类方法,处理拦截器
        super.initApplicationContext();
        // 建立映射关系
        detectHandlers();
    }
    // 建立当前ApplicationContext中的所有controller和url的对应关系
    protected void detectHandlers() throws BeansException {
        ApplicationContext applicationContext = obtainApplicationContext();
        // 获取ApplicationContext容器中所有bean的Name
        String[] beanNames = (this.detectHandlersInAncestorContexts ?
            BeanFactoryUtils.beanNamesForTypeIncludingAncestors(applicationContext, Object.class) :
            applicationContext.getBeanNamesForType(Object.class));

        // Take any bean name that we can determine URLs for.
        // 遍历beanNames,并找到这些bean对应的url
        for (String beanName : beanNames) {
            // 找bean上的所有url(controller上的url+方法上的url),该方法由对应的子类实现
            String[] urls = determineUrlsForHandler(beanName);
            if (!ObjectUtils.isEmpty(urls)) {
                // URL paths found: Let's consider it a handler.
                // 保存urls和beanName的对应关系,put it to Map<urls,beanName>,
                // 该方法在父类AbstractUrlHandlerMapping中实现
                registerHandler(urls, beanName);
            }
        }
    }
    // 获取controller中所有方法的url,由子类实现,典型的模板模式
    protected abstract String[] determineUrlsForHandler(String beanName);
}

public class BeanNameUrlHandlerMapping extends AbstractDetectingUrlHandlerMapping {
    // 返回以"/"开头的beanName和别名集合
    @Override
    protected String[] determineUrlsForHandler(String beanName) {
        List<String> urls = new ArrayList<>();
        if (beanName.startsWith("/")) {
            urls.add(beanName);
        }
        String[] aliases = obtainApplicationContext().getAliases(beanName);
        for (String alias : aliases) {
            if (alias.startsWith("/")) {
                urls.add(alias);
            }
        }
        return StringUtils.toStringArray(urls);
    }
}

注册

public abstract class AbstractUrlHandlerMapping extends AbstractHandlerMapping
    implements MatchableHandlerMapping {
    // 通过map保存url和bean的映射关系
    private final Map<String, Object> handlerMap = new LinkedHashMap<>();

    protected void registerHandler(String urlPath, Object handler)
        throws BeansException, IllegalStateException {
        Assert.notNull(urlPath, "URL path must not be null");
        Assert.notNull(handler, "Handler object must not be null");
        Object resolvedHandler = handler;

        // Eagerly resolve handler if referencing singleton via name.
        if (!this.lazyInitHandlers && handler instanceof String) {
            String handlerName = (String) handler;
            ApplicationContext applicationContext = obtainApplicationContext();
            if (applicationContext.isSingleton(handlerName)) {
                resolvedHandler = applicationContext.getBean(handlerName);
            }
        }

        Object mappedHandler = this.handlerMap.get(urlPath);
        if (mappedHandler != null) {
            if (mappedHandler != resolvedHandler) {
                throw new IllegalStateException( );
            }
        } else {
            if (urlPath.equals("/")) {
                setRootHandler(resolvedHandler);
            }
            else if (urlPath.equals("/*")) {
                setDefaultHandler(resolvedHandler);
            }
            else {
                this.handlerMap.put(urlPath, resolvedHandler);
            }
        }
    }
}

HandlerMappingIntrospector

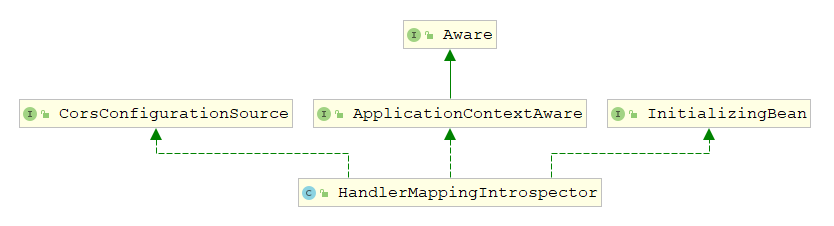

HandlerMappingIntrospector注入到Spring容器中，实现了ApplicationContextAware和InitializingBean接口

public class HandlerMappingIntrospector
    implements CorsConfigurationSource, ApplicationContextAware, InitializingBean {
    @Override
    public void setApplicationContext(ApplicationContext applicationContext) {
        // 设置 applicationContext
        this.applicationContext = applicationContext;
    }

    @Override
    public void afterPropertiesSet() {
        if (this.handlerMappings == null) {
            Assert.notNull(this.applicationContext, "No ApplicationContext");
            // 初始化 HandlerMappings
            this.handlerMappings = initHandlerMappings(this.applicationContext);
        }
    }
    // 获取 HandlerMapping,排序
    private static List<HandlerMapping> initHandlerMappings(ApplicationContext applicationContext) {
        Map<String, HandlerMapping> beans = BeanFactoryUtils.beansOfTypeIncludingAncestors(
            applicationContext, HandlerMapping.class, true, false);
        if (!beans.isEmpty()) {
            List<HandlerMapping> mappings = new ArrayList<>(beans.values());
            AnnotationAwareOrderComparator.sort(mappings);
            return Collections.unmodifiableList(mappings);
        }
        return Collections.unmodifiableList(initFallback(applicationContext));
    }
}

静态资源处理

在配置dispatchServlet时配置/拦截所有请求，这时候dispatchServlet完全取代了default servlet，将不会再访问容器中原始默认的servlet，而对静态资源的访问就是通过容器默认servlet处理的，故而这时候静态资源将不可访问；

如果要访问静态资源问，一种方式是dispatchServlet让拦截统一后缀（.html）的请求，但是不符合REST风格

另一种使用默认handler

<mvc:default-servlet-handler/>

default-servlet-handler对于静态资源的请求，就将请求转由Web应用服务器默认的Servlet处理，如果不是静态资源的请求，才由DispatcherServlet继续处理

class DefaultServletHandlerBeanDefinitionParser implements BeanDefinitionParser {
    @Override
    @Nullable
    public BeanDefinition parse(Element element, ParserContext parserContext) {
        Object source = parserContext.extractSource(element);
        // 解析default-servlet-name属性值
        String defaultServletName = element.getAttribute("default-servlet-name");
        // 创建BeanDefinition  beanClass为DefaultServletHttpRequestHandler.class;
        RootBeanDefinition defaultServletHandlerDef =
            new RootBeanDefinition(DefaultServletHttpRequestHandler.class);
        defaultServletHandlerDef.setSource(source);
        defaultServletHandlerDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        if (StringUtils.hasText(defaultServletName)) {
            defaultServletHandlerDef.getPropertyValues().add("defaultServletName", defaultServletName);
        }
        String defaultServletHandlerName =
            parserContext.getReaderContext().generateBeanName(defaultServletHandlerDef);
        // 注册BeanDefinition 容器的beanDefinitionMap中
        parserContext.getRegistry().registerBeanDefinition(defaultServletHandlerName,
            defaultServletHandlerDef);
        parserContext.registerComponent(
            new BeanComponentDefinition(defaultServletHandlerDef, defaultServletHandlerName));
        // 注册mapping
        Map<String, String> urlMap = new ManagedMap<>();
        urlMap.put("/**", defaultServletHandlerName);
         // 创建BeanDefinition  beanClass为SimpleUrlHandlerMapping.class;
        RootBeanDefinition handlerMappingDef = new RootBeanDefinition(SimpleUrlHandlerMapping.class);
        handlerMappingDef.setSource(source);
        handlerMappingDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        handlerMappingDef.getPropertyValues().add("urlMap", urlMap);

        String handlerMappingBeanName = parserContext.getReaderContext().generateBeanName(handlerMappingDef);
        parserContext.getRegistry().registerBeanDefinition(handlerMappingBeanName, handlerMappingDef);
        parserContext.registerComponent(
            new BeanComponentDefinition(handlerMappingDef, handlerMappingBeanName));

        // Ensure BeanNameUrlHandlerMapping (SPR-8289) and default HandlerAdapters are not "turned off"
        MvcNamespaceUtils.registerDefaultComponents(parserContext, source);

        return null;
    }
}

拦截器

class InterceptorsBeanDefinitionParser implements BeanDefinitionParser {
    public BeanDefinition parse(Element element, ParserContext context) {
        context.pushContainingComponent(
            new CompositeComponentDefinition(element.getTagName(), context.extractSource(element)));

        RuntimeBeanReference pathMatcherRef = null;
        // 解析路径匹配器
        if (element.hasAttribute("path-matcher")) {
            pathMatcherRef = new RuntimeBeanReference(element.getAttribute("path-matcher"));
        }
        // 获取所有拦截器 interceptor
        List<Element> interceptors =
            DomUtils.getChildElementsByTagName(element, "bean", "ref", "interceptor");
        for (Element interceptor : interceptors) {
            RootBeanDefinition mappedInterceptorDef = new RootBeanDefinition(MappedInterceptor.class);
            mappedInterceptorDef.setSource(context.extractSource(interceptor));
            mappedInterceptorDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);

            ManagedList<String> includePatterns = null;
            ManagedList<String> excludePatterns = null;
            Object interceptorBean;
            if ("interceptor".equals(interceptor.getLocalName())) {
                // 解析mvc:mapping节点中的path属性，保存里面的拦截路径集合
                includePatterns = getIncludePatterns(interceptor, "mapping");
                // 解析mvc:exclude-mapping节点中的path属性，保存里面的不拦截路径集合
                excludePatterns = getIncludePatterns(interceptor, "exclude-mapping");
                // 解析bean标签/ref标签，并封装成beanDefinition
                Element beanElem = DomUtils.getChildElementsByTagName(interceptor, "bean", "ref").get(0);
                interceptorBean = context.getDelegate().parsePropertySubElement(beanElem, null);
            } else {
                interceptorBean = context.getDelegate().parsePropertySubElement(interceptor, null);
            }
            mappedInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(0, includePatterns);
            mappedInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(1, excludePatterns);
            mappedInterceptorDef.getConstructorArgumentValues().addIndexedArgumentValue(2, interceptorBean);

            if (pathMatcherRef != null) {
                mappedInterceptorDef.getPropertyValues().add("pathMatcher", pathMatcherRef);
            }

            String beanName = context.getReaderContext().registerWithGeneratedName(mappedInterceptorDef);
            context.registerComponent(new BeanComponentDefinition(mappedInterceptorDef, beanName));
        }

        context.popAndRegisterContainingComponent();
        return null;
    }

    private ManagedList<String> getIncludePatterns(Element interceptor, String elementName) {
        List<Element> paths = DomUtils.getChildElementsByTagName(interceptor, elementName);
        ManagedList<String> patterns = new ManagedList<>(paths.size());
        for (Element path : paths) {
            patterns.add(path.getAttribute("path"));
        }
        return patterns;
    }

}

resource

<mvc:resources location="/static/" mapping="/static/**"/>

location元素：表示webapp目录下（即服务器根目录）的static包下的所有文件；

mapping元素：表示以/static开头的所有请求路径，如/static/a 或者/static/a/b；

配置作用：DispatcherServlet不会拦截以/static开头的所有请求路径，并当作静态资源交由Servlet处理；

class ResourcesBeanDefinitionParser implements BeanDefinitionParser {
    @Override
    public BeanDefinition parse(Element element, ParserContext context) {
        Object source = context.extractSource(element);
        // url服务处理器,注册3个BeanDefinition
        // ResourceUrlProvider,ResourceUrlProviderExposingInterceptor, MappedInterceptor
        registerUrlProvider(context, source);
        // 路径匹配器
        RuntimeBeanReference pathMatcherRef = MvcNamespaceUtils.registerPathMatcher(null, context, source);
        // url路径匹配器
        RuntimeBeanReference pathHelperRef = MvcNamespaceUtils.registerUrlPathHelper(null, context, source);
        // 获取参数"location"  注册 ResourceHttpRequestHandler
        String resourceHandlerName = registerResourceHandler(context, element, pathHelperRef, source);
        if (resourceHandlerName == null) {
            return null;
        }

        Map<String, String> urlMap = new ManagedMap<>();
        // 获取参数"mapping"
        String resourceRequestPath = element.getAttribute("mapping");
        if (!StringUtils.hasText(resourceRequestPath)) {
            context.getReaderContext().error("The 'mapping' attribute is required.",
                context.extractSource(element));
            return null;
        }
        // 添加映射 mapping -> location
        urlMap.put(resourceRequestPath, resourceHandlerName);
        // BeanDefinition  SimpleUrlHandlerMapping
        RootBeanDefinition handlerMappingDef = new RootBeanDefinition(SimpleUrlHandlerMapping.class);
        handlerMappingDef.setSource(source);
        handlerMappingDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        handlerMappingDef.getPropertyValues().add("urlMap", urlMap);
        handlerMappingDef.getPropertyValues()
            .add("pathMatcher", pathMatcherRef).add("urlPathHelper", pathHelperRef);
        // order属性 执行顺序，越大优先级越低
        String orderValue = element.getAttribute("order");
        Object order = StringUtils.hasText(orderValue) ? orderValue : Ordered.LOWEST_PRECEDENCE - 1;
        handlerMappingDef.getPropertyValues().add("order", order);
        // 注册跨域bean支持BeanDefinition
        RuntimeBeanReference corsRef = MvcNamespaceUtils.registerCorsConfigurations(null, context, source);
        handlerMappingDef.getPropertyValues().add("corsConfigurations", corsRef);

        String beanName = context.getReaderContext().generateBeanName(handlerMappingDef);
        context.getRegistry().registerBeanDefinition(beanName, handlerMappingDef);
        context.registerComponent(new BeanComponentDefinition(handlerMappingDef, beanName));

        // Ensure BeanNameUrlHandlerMapping (SPR-8289) and default HandlerAdapters are not "turned off"
        // Register HttpRequestHandlerAdapter
        // 注册四个BeanDefinition BeanNameUrlHandlerMapping, HttpRequestHandlerAdapter
        // SimpleControllerHandlerAdapter, HandlerMappingIntrospector
        MvcNamespaceUtils.registerDefaultComponents(context, source);

        return null;
    }
}

控制器

配置解析<mvc:view-controller/>、<mvc:redirect-view-controller/>、<mvc:status-controller/>。

class ViewControllerBeanDefinitionParser implements BeanDefinitionParser {
    @Override
    @SuppressWarnings("unchecked")
    public BeanDefinition parse(Element element, ParserContext parserContext) {
        Object source = parserContext.extractSource(element);

        // 注册 SimpleUrlHandlerMapping
        BeanDefinition hm = registerHandlerMapping(parserContext, source);
        // Ensure BeanNameUrlHandlerMapping (SPR-8289) and default HandlerAdapters are not "turned off"
        MvcNamespaceUtils.registerDefaultComponents(parserContext, source);
        // 注册ParameterizableViewController BeanDefinition
        RootBeanDefinition controller = new RootBeanDefinition(ParameterizableViewController.class);
        controller.setSource(source);

        // 状态码
        HttpStatus statusCode = null;
        if (element.hasAttribute("status-code")) {
            int statusValue = Integer.parseInt(element.getAttribute("status-code"));
            statusCode = HttpStatus.valueOf(statusValue);
        }

        String name = element.getLocalName();
        // 解析view-controller属性值
        if (name.equals("view-controller")) {
            if (element.hasAttribute("view-name")) {
                controller.getPropertyValues().add("viewName", element.getAttribute("view-name"));
            }
            if (statusCode != null) {
                controller.getPropertyValues().add("statusCode", statusCode);
            }
        }
        // 解析redirect-view-controller
        else if (name.equals("redirect-view-controller")) {
            controller.getPropertyValues().add("view", getRedirectView(element, statusCode, source));
        }
        // 解析status-controller
        else if (name.equals("status-controller")) {
            controller.getPropertyValues().add("statusCode", statusCode);
            controller.getPropertyValues().add("statusOnly", true);
        }
        else {
            // Should never happen...
            throw new IllegalStateException("Unexpected tag name: " + name);
        }
        // 保存 path -> controller 的映射
        Map<String, BeanDefinition> urlMap =
            (Map<String, BeanDefinition>) hm.getPropertyValues().get("urlMap");
        if (urlMap == null) {
            urlMap = new ManagedMap<>();
            hm.getPropertyValues().add("urlMap", urlMap);
        }
        urlMap.put(element.getAttribute("path"), controller);

        return null;
    }
}

视图解析器

public class ViewResolversBeanDefinitionParser implements BeanDefinitionParser {
    @Override
    public BeanDefinition parse(Element element, ParserContext context) {
        Object source = context.extractSource(element);
        context.pushContainingComponent(new CompositeComponentDefinition(element.getTagName(), source));

        ManagedList<Object> resolvers = new ManagedList<>(4);
        resolvers.setSource(context.extractSource(element));
        // 支持以下视图
        String[] names = new String[] {
            "jsp", "tiles", "bean-name", "freemarker", "groovy", "script-template", "bean", "ref"};

        for (Element resolverElement : DomUtils.getChildElementsByTagName(element, names)) {
            String name = resolverElement.getLocalName();
            if ("bean".equals(name) || "ref".equals(name)) {
                resolvers.add(context.getDelegate().parsePropertySubElement(resolverElement, null));
                continue;
            }
            RootBeanDefinition resolverBeanDef;
            if ("jsp".equals(name)) {
                resolverBeanDef = new RootBeanDefinition(InternalResourceViewResolver.class);
                // 视图文件前缀
                resolverBeanDef.getPropertyValues().add("prefix", "/WEB-INF/");
                // 视图文件后缀
                resolverBeanDef.getPropertyValues().add("suffix", ".jsp");
                // 添加基于url的视图属性
                addUrlBasedViewResolverProperties(resolverElement, resolverBeanDef);
            }
            else if ("tiles".equals(name)) {
                resolverBeanDef = new RootBeanDefinition(TilesViewResolver.class);
                addUrlBasedViewResolverProperties(resolverElement, resolverBeanDef);
            }
            else if ("freemarker".equals(name)) {
                resolverBeanDef = new RootBeanDefinition(FreeMarkerViewResolver.class);
                resolverBeanDef.getPropertyValues().add("suffix", ".ftl");
                addUrlBasedViewResolverProperties(resolverElement, resolverBeanDef);
            }
            else if ("groovy".equals(name)) {
                resolverBeanDef = new RootBeanDefinition(GroovyMarkupViewResolver.class);
                resolverBeanDef.getPropertyValues().add("suffix", ".tpl");
                addUrlBasedViewResolverProperties(resolverElement, resolverBeanDef);
            }
            else if ("script-template".equals(name)) {
                resolverBeanDef = new RootBeanDefinition(ScriptTemplateViewResolver.class);
                addUrlBasedViewResolverProperties(resolverElement, resolverBeanDef);
            }
            else if ("bean-name".equals(name)) {
                resolverBeanDef = new RootBeanDefinition(BeanNameViewResolver.class);
            }
            else {
                // Should never happen
                throw new IllegalStateException("Unexpected element name: " + name);
            }
            resolverBeanDef.setSource(source);
            resolverBeanDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
            resolvers.add(resolverBeanDef);
        }

        String beanName = VIEW_RESOLVER_BEAN_NAME;
        RootBeanDefinition compositeResolverBeanDef = new RootBeanDefinition(ViewResolverComposite.class);
        compositeResolverBeanDef.setSource(source);
        compositeResolverBeanDef.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);

        names = new String[] {"content-negotiation"};
        List<Element> contentNegotiationElements = DomUtils.getChildElementsByTagName(element, names);
        if (contentNegotiationElements.isEmpty()) {
            compositeResolverBeanDef.getPropertyValues().add("viewResolvers", resolvers);
        }
        else if (contentNegotiationElements.size() == 1) {
            BeanDefinition beanDef =
                createContentNegotiatingViewResolver(contentNegotiationElements.get(0), context);
            beanDef.getPropertyValues().add("viewResolvers", resolvers);
            ManagedList<Object> list = new ManagedList<>(1);
            list.add(beanDef);
            compositeResolverBeanDef.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
            compositeResolverBeanDef.getPropertyValues().add("viewResolvers", list);
        }
        else {
            throw new IllegalArgumentException("Only one <content-negotiation> element is allowed.");
        }

        if (element.hasAttribute("order")) {
            compositeResolverBeanDef.getPropertyValues().add("order", element.getAttribute("order"));
        }

        context.getReaderContext().getRegistry().registerBeanDefinition(beanName, compositeResolverBeanDef);
        context.registerComponent(new BeanComponentDefinition(compositeResolverBeanDef, beanName));
        context.popAndRegisterContainingComponent();
        return null;
    }
}

视图配置器

public class FreeMarkerConfigurerBeanDefinitionParser extends AbstractSingleBeanDefinitionParser {
    @Override
    protected void doParse(Element element, ParserContext parserContext, BeanDefinitionBuilder builder) {
        // 解析template-loader-path属性值
        List<Element> childElements = DomUtils.getChildElementsByTagName(element, "template-loader-path");
        if (!childElements.isEmpty()) {
            List<String> locations = new ArrayList<>(childElements.size());
            for (Element childElement : childElements) {
                // 解析location属性值
                locations.add(childElement.getAttribute("location"));
            }
            if (locations.isEmpty()) {
                // 路径目录,默认在/WEB-INF/下
                locations.add("/WEB-INF/");
            }
            builder.addPropertyValue("templateLoaderPaths", StringUtils.toStringArray(locations));
        }
    }
}

MVC初始化

在容器初始化结束后，会调用一个onRefresh方法，委派给子类实现

public class DispatcherServlet extends FrameworkServlet {
    // 实现父类定好的模板
    @Override
    protected void onRefresh(ApplicationContext context) {
        initStrategies(context);
    }
    // 初始化策略
    protected void initStrategies(ApplicationContext context) {
        // 多文件上传的组件
        initMultipartResolver(context);
        // 初始化本地语言环境，国际化
        initLocaleResolver(context);
        // 初始化模板处理器
        initThemeResolver(context);
        // 初始化HandlerMapping
        initHandlerMappings(context);
        // 初始化Handler适配器
        initHandlerAdapters(context);
        // 初始化Handler异常解析器
        initHandlerExceptionResolvers(context);
        // 初始化Request请求到ViewName的转换器
        initRequestToViewNameTranslator(context);
        // 初始化视图转换器
        initViewResolvers(context);
        // FlashMap 管理器
        initFlashMapManager(context);
    }
}

文件上传

默认情况下，Spring是没有 multipart处理的，需要在Web应用的Context中添加 multipart解析器

<!-- 定义文件上传解析器 -->
<bean id="multipartResolver"
      class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
    <!-- 设定默认编码 -->
    <property name="defaultEncoding" value="UTF-8"></property>
    <!-- 设定文件上传的最大值5MB，5*1024*1024 -->
    <property name="maxUploadSize" value="5242880"></property>
</bean>

private void initMultipartResolver(ApplicationContext context) {
    try {
        // 通过getBean方法把对应的bean实例化,并注入IOC容器
        this.multipartResolver = context.getBean(MULTIPART_RESOLVER_BEAN_NAME, MultipartResolver.class);
    } catch (NoSuchBeanDefinitionException ex) {
        // Default is no multipart resolver.
        this.multipartResolver = null;
    }
}

国际化

private void initLocaleResolver(ApplicationContext context) {
    try {
        // 通过getBean方法把对应的bean实例化,并注入IOC容器
        this.localeResolver = context.getBean(LOCALE_RESOLVER_BEAN_NAME, LocaleResolver.class);
    } catch (NoSuchBeanDefinitionException ex) {
        // We need to use the default.
        this.localeResolver = getDefaultStrategy(context, LocaleResolver.class);
    }
}

主题解析

private void initThemeResolver(ApplicationContext context) {
    try {
        // 通过getBean方法把对应的bean实例化,并注入IOC容器
        this.themeResolver = context.getBean(THEME_RESOLVER_BEAN_NAME, ThemeResolver.class);
    } catch (NoSuchBeanDefinitionException ex) {
        // We need to use the default.
        this.themeResolver = getDefaultStrategy(context, ThemeResolver.class);
    }
}

HandlerMapping

从IOC容器中获取 HandlerMapping 接口的bean集合，赋值给this.handlerMappings

private void initHandlerMappings(ApplicationContext context) {
    this.handlerMappings = null;
    // 是否检测所有 HandlerMappings 默认为true
    if (this.detectAllHandlerMappings) {
      	// 获取所有 HandlerMapping 接口的bean
        Map<String, HandlerMapping> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
        if (!matchingBeans.isEmpty()) {
            this.handlerMappings = new ArrayList<>(matchingBeans.values());
            // We keep HandlerMappings in sorted order.
            // 排序
            AnnotationAwareOrderComparator.sort(this.handlerMappings);
        }
    } else {
        // 只获取 name = "handlerMapping" 的 HandlerMapping
        try {
            HandlerMapping hm = context.getBean(HANDLER_MAPPING_BEAN_NAME, HandlerMapping.class);
            this.handlerMappings = Collections.singletonList(hm);
        } // catch (NoSuchBeanDefinitionException ex)
    }

    // 如果为null,构造一个默认的 HandlerMapping
    if (this.handlerMappings == null) {
        this.handlerMappings = getDefaultStrategies(context, HandlerMapping.class);
    }
}

HandlerAdapter

从IOC容器中获取 HandlerAdapter 接口的bean集合，赋值给this.handlerAdapters

private void initHandlerAdapters(ApplicationContext context) {
    this.handlerAdapters = null;
    // 是否检测所有 HandlerAdapter 默认为true
    if (this.detectAllHandlerAdapters) {
        // 获取所有 HandlerAdapter 接口的bean
        Map<String, HandlerAdapter> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
        if (!matchingBeans.isEmpty()) {
            this.handlerAdapters = new ArrayList<>(matchingBeans.values());
            // We keep HandlerAdapters in sorted order.
            AnnotationAwareOrderComparator.sort(this.handlerAdapters);
        }
    }
    else {
        // 只获取 name = "handlerAdapter" 的 HandlerAdapter
        try {
            HandlerAdapter ha = context.getBean(HANDLER_ADAPTER_BEAN_NAME, HandlerAdapter.class);
            this.handlerAdapters = Collections.singletonList(ha);
        } // catch (NoSuchBeanDefinitionException ex)
    }

    // 如果为null,构造一个默认的 HandlerAdapter
    if (this.handlerAdapters == null) {
        this.handlerAdapters = getDefaultStrategies(context, HandlerAdapter.class);
    }
}

HandlerException

private void initHandlerExceptionResolvers(ApplicationContext context) {
    this.handlerExceptionResolvers = null;
    // 是否检测所有异常解析器
    if (this.detectAllHandlerExceptionResolvers) {
        // 获取所有 HandlerExceptionResolver 接口的bean
        Map<String, HandlerExceptionResolver> matchingBeans = BeanFactoryUtils
            .beansOfTypeIncludingAncestors(context, HandlerExceptionResolver.class, true, false);
        if (!matchingBeans.isEmpty()) {
            this.handlerExceptionResolvers = new ArrayList<>(matchingBeans.values());
            // We keep HandlerExceptionResolvers in sorted order.
            AnnotationAwareOrderComparator.sort(this.handlerExceptionResolvers);
        }
    }
    else {
        try {
            // 只获取 name = "handlerExceptionResolver" 的 HandlerExceptionResolver
            HandlerExceptionResolver her =
                context.getBean(HANDLER_EXCEPTION_RESOLVER_BEAN_NAME, HandlerExceptionResolver.class);
            this.handlerExceptionResolvers = Collections.singletonList(her);
        } // catch (NoSuchBeanDefinitionException ex)
    }

    // 如果为null,构造一个默认的 HandlerExceptionResolver
    if (this.handlerExceptionResolvers == null) {
        this.handlerExceptionResolvers = getDefaultStrategies(context, HandlerExceptionResolver.class);
    }
}

RequestToViewName

private void initRequestToViewNameTranslator(ApplicationContext context) {
    try {
        // 通过getBean方法把对应的bean实例化,并注入IOC容器
        this.viewNameTranslator =
            context.getBean(REQUEST_TO_VIEW_NAME_TRANSLATOR_BEAN_NAME, RequestToViewNameTranslator.class);
    } catch (NoSuchBeanDefinitionException ex) {
        // We need to use the default.
        this.viewNameTranslator = getDefaultStrategy(context, RequestToViewNameTranslator.class);
    }
}

ViewResolver

private void initViewResolvers(ApplicationContext context) {
    this.viewResolvers = null;
    // 是否检测所有视图解析器
    if (this.detectAllViewResolvers) {
        // 获取所有 ViewResolver 接口的bean
        Map<String, ViewResolver> matchingBeans =
            BeanFactoryUtils.beansOfTypeIncludingAncestors(context, ViewResolver.class, true, false);
        if (!matchingBeans.isEmpty()) {
            this.viewResolvers = new ArrayList<>(matchingBeans.values());
            // We keep ViewResolvers in sorted order.
            AnnotationAwareOrderComparator.sort(this.viewResolvers);
        }
    }  else {
        try {
            // 只获取 name = "viewResolver" 的 ViewResolver
            ViewResolver vr = context.getBean(VIEW_RESOLVER_BEAN_NAME, ViewResolver.class);
            this.viewResolvers = Collections.singletonList(vr);
        } // catch (NoSuchBeanDefinitionException ex)
    }

    // 如果为null,构造一个默认的 ViewResolver
    if (this.viewResolvers == null) {
        this.viewResolvers = getDefaultStrategies(context, ViewResolver.class);
    }
}

FlashMapManager

private void initFlashMapManager(ApplicationContext context) {
    try {
        // 通过getBean方法把对应的bean实例化,并注入IOC容器
        this.flashMapManager = context.getBean(FLASH_MAP_MANAGER_BEAN_NAME, FlashMapManager.class);
    } catch (NoSuchBeanDefinitionException ex) {
        // We need to use the default.
        this.flashMapManager = getDefaultStrategy(context, FlashMapManager.class);
    }
}

请求响应阶段

Servlet标准定义了所有请求先由service方法处理，FrameworkServlet覆盖了service方法:

public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware {
    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response) {
        HttpMethod httpMethod = HttpMethod.resolve(request.getMethod());
        // patch
        if (HttpMethod.PATCH == httpMethod || httpMethod == null) {
            processRequest(request, response);
        } else { // 其他请求会到父类对应的方法doGet,doPost方法
            super.service(request, response);
        }
    }
    // doGet,doPost被重写,最终调用processRequest
    @Override
    protected final void doGet(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {
        processRequest(request, response);
    }
    @Override
    protected final void doPost(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {
        processRequest(request, response);
    }
    @Override
    protected final void doPut(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {
        processRequest(request, response);
    }
    @Override
    protected final void doDelete(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {
        processRequest(request, response);
    }

    protected final void processRequest(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {

        long startTime = System.currentTimeMillis();
        Throwable failureCause = null;
        LocaleContext previousLocaleContext = LocaleContextHolder.getLocaleContext();
        LocaleContext localeContext = buildLocaleContext(request);
        // 获取请求绑定属性
        RequestAttributes previousAttributes = RequestContextHolder.getRequestAttributes();
        ServletRequestAttributes requestAttributes =
            buildRequestAttributes(request, response, previousAttributes);
        // 获取异步请求管理器
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
        asyncManager.registerCallableInterceptor(FrameworkServlet.class.getName(),
            new RequestBindingInterceptor());
        // 初始化Context
        initContextHolders(request, localeContext, requestAttributes);

        try {
            // 空方法,委派给子类
            doService(request, response);
        } // catch ...
        finally {
            resetContextHolders(request, previousLocaleContext, previousAttributes);
            if (requestAttributes != null) {
                requestAttributes.requestCompleted();
            }
            logResult(request, response, failureCause, asyncManager);
            // 发布请求处理事件
            publishRequestHandledEvent(request, response, startTime, failureCause);
        }
    }
}

doDispatch

最终会调用DispatcherServlet 的doService()；而doService()的核心方法是doDispatch()

public class DispatcherServlet extends FrameworkServlet {
    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
        HttpServletRequest processedRequest = request;
        HandlerExecutionChain mappedHandler = null;
        boolean multipartRequestParsed = false;
        // 获取异步请求管理器
        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

        try {
            ModelAndView mv = null;
            Exception dispatchException = null;

            try {
                // 是否 上传文件请求
                processedRequest = checkMultipart(request);
                multipartRequestParsed = (processedRequest != request);

                // Determine handler for the current request.
                // 获取请求的handler
                // 获取处理当前请求的controller,这里也称为hanlder,
                // 返回一个HandlerExecutionChain请求处理器链 ,封装了handler和interceptors.
                mappedHandler = getHandler(processedRequest);
                // 如果handler为空,则返回404
                if (mappedHandler == null) {
                    noHandlerFound(processedRequest, response);
                    return;
                }

                // Determine handler adapter for the current request.
                // 获取当前请求的handler适配器
                HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

                // Process last-modified header, if supported by the handler.
                // 处理 last-modified 请求头
                String method = request.getMethod();
                boolean isGet = "GET".equals(method);
                if (isGet || "HEAD".equals(method)) {
                    long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                    if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                        return;
                    }
                }
                // 前置拦截 请求之前调用,可以进行编码、安全控制、权限校验等处理  执行 HandlerInterceptor.preHandle
                if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                    return;
                }

                // Actually invoke the handler.
                // 执行handler,返回结果视图对象
                mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
                // 如果是异步直接返回
                if (asyncManager.isConcurrentHandlingStarted()) {
                    return;
                }

                // 解析默认的视图
                applyDefaultViewName(processedRequest, mv);
                // 后置拦截器 请求执行完成后，生成视图之前执行 执行 HandlerInterceptor.postHandle
                mappedHandler.applyPostHandle(processedRequest, response, mv);
            } //  catch..
            // 拦截器完成事件,在DispatcherServlet完全处理完请求后被调用,可用于清理资源等
            // 执行 HandlerInterceptor.afterCompletion
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            // 异常执行拦截器的完成事件
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                new NestedServletException("Handler processing failed", err));
        }
        finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                // Instead of postHandle and afterCompletion
                if (mappedHandler != null) {
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            }
            else {
                // 清理文件上传占用的资源
                // Clean up any resources used by a multipart request.
                if (multipartRequestParsed) {
                    cleanupMultipart(processedRequest);
                }
            }
        }
    }
}

查找handler

@Nullable
protected HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
    if (this.handlerMappings != null) {
        // 遍历所有的HandlerMapping，一个个去匹配
        for (HandlerMapping mapping : this.handlerMappings) {
            // 获取request的handler执行链
            HandlerExecutionChain handler = mapping.getHandler(request);
            // handler != null 说明匹配成功
            if (handler != null) {
                return handler;
            }
        }
    }
    return null;
}

获取request的handler执行链

public abstract class AbstractHandlerMapping extends WebApplicationObjectSupport
    implements HandlerMapping, Ordered, BeanNameAware {
    public final HandlerExecutionChain getHandler(HttpServletRequest request) throws Exception {
        // 根据请求找到hander
        Object handler = getHandlerInternal(request);
        if (handler == null) {
            // 默认的handler
            handler = getDefaultHandler();
        }
        if (handler == null) {
            return null;
        }
        // Bean name or resolved handler?
        if (handler instanceof String) {
            // 如果handler是String类型,得到的handler的beanName
            String handlerName = (String) handler;
            // 通过handlerName去容器中找到bean对象
            handler = obtainApplicationContext().getBean(handlerName);
        }
        // 根据handler和request获取执行链 拦截器和要执行的handler
        HandlerExecutionChain executionChain = getHandlerExecutionChain(handler, request);
        // 如果是跨域请求，header中有Origin
        if (hasCorsConfigurationSource(handler)) {
            CorsConfiguration config = (this.corsConfigurationSource != null ?
                this.corsConfigurationSource.getCorsConfiguration(request) : null);
            CorsConfiguration handlerConfig = getCorsConfiguration(handler, request);
            config = (config != null ? config.combine(handlerConfig) : handlerConfig);
            executionChain = getCorsHandlerExecutionChain(request, executionChain, config);
        }
        return executionChain;
    }
}

getHandlerInternal

根据request获取对应的HandlerMethod

public class RequestMappingHandlerMapping extends RequestMappingInfoHandlerMapping
    implements MatchableHandlerMapping, EmbeddedValueResolverAware {
    @Override
    protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
        try {
            return super.getHandlerInternal(request);
        }
        finally {
            ProducesRequestCondition.clearMediaTypesAttribute(request);
        }
    }
}
public abstract class AbstractHandlerMethodMapping<T> extends AbstractHandlerMapping
    implements InitializingBean {
    @Override
    protected HandlerMethod getHandlerInternal(HttpServletRequest request) throws Exception {
        // 根据request获取对应的urlpath
        String lookupPath = getUrlPathHelper().getLookupPathForRequest(request);
        request.setAttribute(LOOKUP_PATH, lookupPath);
        // 加锁
        this.mappingRegistry.acquireReadLock();
        try {
            // 根据lookupPath和request匹配业务handler方法
            // RequestMappingInfo -> HandlerMethod 的映射 Map<T, HandlerMethod> mappingLookup
            // url路径 -> RequestMappingInfo 的映射 MultiValueMap<String, T> urlLookup
            // 最终通过MappingRegistry的两个映射map匹配到 HandlerMethod
            HandlerMethod handlerMethod = lookupHandlerMethod(lookupPath, request);
            return (handlerMethod != null ? handlerMethod.createWithResolvedBean() : null);
        }
        finally {
            // 释放锁
            this.mappingRegistry.releaseReadLock();
        }
    }
}

getHandlerExecutionChain

根据handler和request获取执行链

protected HandlerExecutionChain getHandlerExecutionChain(Object handler, HttpServletRequest request) {
    // 先把handler加入执行链
    HandlerExecutionChain chain = (handler instanceof HandlerExecutionChain ?
        (HandlerExecutionChain) handler : new HandlerExecutionChain(handler));
    // 根据request获取对应的urlpath
    String lookupPath = this.urlPathHelper.getLookupPathForRequest(request, LOOKUP_PATH);
    for (HandlerInterceptor interceptor : this.adaptedInterceptors) {
        if (interceptor instanceof MappedInterceptor) {
            MappedInterceptor mappedInterceptor = (MappedInterceptor) interceptor;
            // urlpath 匹配拦截器, 加入到 执行链
            if (mappedInterceptor.matches(lookupPath, this.pathMatcher)) {
                chain.addInterceptor(mappedInterceptor.getInterceptor());
            }
        }
        else {
            chain.addInterceptor(interceptor);
        }
    }
    return chain;
}

查找HandlerAdapter

protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
    if (this.handlerAdapters != null) {
        // 遍历所有 handlerAdapters
        for (HandlerAdapter adapter : this.handlerAdapters) {
            // 是否适配,适配器模式
            if (adapter.supports(handler)) {
                return adapter;
            }
        }
    }
    // throw new ServletException( );
}

请求处理

前置拦截

请求之前调用，可以进行编码、安全控制、权限校验等处理

public class HandlerExecutionChain {
    boolean applyPreHandle(HttpServletRequest request, HttpServletResponse response) throws Exception {
        // 获取handler的拦截器
        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = 0; i < interceptors.length; i++) {
                HandlerInterceptor interceptor = interceptors[i];
                //  执行拦截器的前置处理方法
                if (!interceptor.preHandle(request, response, this.handler)) {
                    // 如果返回false 直接执行完成后方法
                    triggerAfterCompletion(request, response, null);
                    return false;
                }
                this.interceptorIndex = i;
            }
        }
        return true;
    }
}

执行handler

public abstract class AbstractHandlerMethodAdapter extends WebContentGenerator
    implements HandlerAdapter, Ordered {
    // 执行handler,返回ModelAndView
    public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response,
        Object handler) throws Exception {
        // 空方法,子类实现
        return handleInternal(request, response, (HandlerMethod) handler);
    }
}

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
    implements BeanFactoryAware, InitializingBean {
    protected ModelAndView handleInternal(HttpServletRequest request,
        HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

        ModelAndView mav;
        // 检查请求
        checkRequest(request);
        // Execute invokeHandlerMethod in synchronized block if required.
        // Session同步
        if (this.synchronizeOnSession) {
            HttpSession session = request.getSession(false);
            if (session != null) {
                Object mutex = WebUtils.getSessionMutex(session);
                synchronized (mutex) {
                    //  执行handler的业务方法
                    mav = invokeHandlerMethod(request, response, handlerMethod);
                }
            } else {
                // No HttpSession available -> no mutex necessary
                mav = invokeHandlerMethod(request, response, handlerMethod);
            }
        } else {
            // No synchronization on session demanded at all...
            mav = invokeHandlerMethod(request, response, handlerMethod);
        }
        //  响应消息头是否包含缓存
        if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
            if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
                applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
            } else {
                // 准备响应
                prepareResponse(response);
            }
        }
        return mav;
    }
}

执行handler方法

public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter
    implements BeanFactoryAware, InitializingBean {

    protected ModelAndView invokeHandlerMethod(HttpServletRequest request,
        HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

        ServletWebRequest webRequest = new ServletWebRequest(request, response);
        try {
            // 数据绑定
            WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
            // 模板工厂
            ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);
            // 把handlerMethod 封装成ServletInvocableHandlerMethod
            ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
            // 参数解析器
            if (this.argumentResolvers != null) {
                invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
            }
            // 返回值解析器
            if (this.returnValueHandlers != null) {
                invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
            }
            invocableMethod.setDataBinderFactory(binderFactory);
            invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);
            // 创建 ModelAndView 容器
            ModelAndViewContainer mavContainer = new ModelAndViewContainer();
            mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
            // 模板工厂初始化model
            modelFactory.initModel(webRequest, mavContainer, invocableMethod);
            mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);
            // 创建异步请求
            AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
            asyncWebRequest.setTimeout(this.asyncRequestTimeout);
            // 获取异步请求管理器
            WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
            asyncManager.setTaskExecutor(this.taskExecutor);
            asyncManager.setAsyncWebRequest(asyncWebRequest);
            asyncManager.registerCallableInterceptors(this.callableInterceptors);
            asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);

            if (asyncManager.hasConcurrentResult()) {
                Object result = asyncManager.getConcurrentResult();
                mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
                asyncManager.clearConcurrentResult();
                LogFormatUtils.traceDebug(logger, traceOn -> {
                    String formatted = LogFormatUtils.formatValue(result, !traceOn);
                    return "Resume with async result [" + formatted + "]";
                });
                invocableMethod = invocableMethod.wrapConcurrentResult(result);
			}
            // 方法执行
            invocableMethod.invokeAndHandle(webRequest, mavContainer);

            if (asyncManager.isConcurrentHandlingStarted()) {
                return null;
            }
            // 返回ModelAndView
            return getModelAndView(mavContainer, modelFactory, webRequest);
        } finally {
            // 请求完成
            webRequest.requestCompleted();
        }
    }
}

后置拦截

请求执行完成后，生成视图之前执行

public class HandlerExecutionChain {
    void applyPostHandle(HttpServletRequest request, HttpServletResponse response, @Nullable ModelAndView mv)
        throws Exception {
        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = interceptors.length - 1; i >= 0; i--) {
                HandlerInterceptor interceptor = interceptors[i];
                // 执行业务handler拦截器后置方法
                interceptor.postHandle(request, response, this.handler, mv);
            }
        }
    }
}

完成后处理

在DispatcherServlet完全处理完请求后被调用，可用于清理资源等

private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
    @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
    @Nullable Exception exception) throws Exception {

    boolean errorView = false;
    // 异常不为空
    if (exception != null) {
        if (exception instanceof ModelAndViewDefiningException) {
            mv = ((ModelAndViewDefiningException) exception).getModelAndView();
        }  else {
            // 使用异常解析器处理异常
            Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
            mv = processHandlerException(request, response, handler, exception);
            errorView = (mv != null);
        }
    }

    // Did the handler return a view to render?
    if (mv != null && !mv.wasCleared()) {
        // 渲染视图
        render(mv, request, response);
        if (errorView) {
            WebUtils.clearErrorRequestAttributes(request);
        }
    }  else {
    }

    if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
        // Concurrent handling started during a forward
        return;
    }

    if (mappedHandler != null) {
        // Exception (if any) is already handled..
        // 执行拦截器的处理完成事件
        mappedHandler.triggerAfterCompletion(request, response, null);
    }
}

渲染视图

protected void render(ModelAndView mv, HttpServletRequest request, HttpServletResponse response) throws Exception {
    // 国际化,确定请求的语言环境
    Locale locale =
        (this.localeResolver != null ? this.localeResolver.resolveLocale(request) : request.getLocale());
    // 请求响应设置国际化
    response.setLocale(locale);

    View view;
    // 获取视图名称
    String viewName = mv.getViewName();
    if (viewName != null) {
        // 解析视图
        view = resolveViewName(viewName, mv.getModelInternal(), locale, request);
        if (view == null) {
            throw new ServletException();
        }
    }
    else {
        // No need to lookup: the ModelAndView object contains the actual View object.
        view = mv.getView();
        if (view == null) {
            throw new ServletException();
        }
    }

    try {
        if (mv.getStatus() != null) {
            response.setStatus(mv.getStatus().value());
        }
        // 视图渲染
        view.render(mv.getModelInternal(), request, response);
    }  catch (Exception ex) {
        throw ex;
    }
}

完成后拦截

请求执行完成后，生成视图之后执行

public class HandlerExecutionChain {
    void triggerAfterCompletion(HttpServletRequest request, HttpServletResponse response,  Exception ex)
        throws Exception {
        // 获取拦截器
        HandlerInterceptor[] interceptors = getInterceptors();
        if (!ObjectUtils.isEmpty(interceptors)) {
            for (int i = this.interceptorIndex; i >= 0; i--) {
                HandlerInterceptor interceptor = interceptors[i];
                try {
                    // 执行拦截器的完成事件
                    interceptor.afterCompletion(request, response, this.handler, ex);
                } // catch ...
            }
        }
    }
}
