Netty是基于NIO的一个异步网络框架，它将NIO的selector、channel、buffer封装在底层，提供了一层易于使用的api。
Netty模型结构

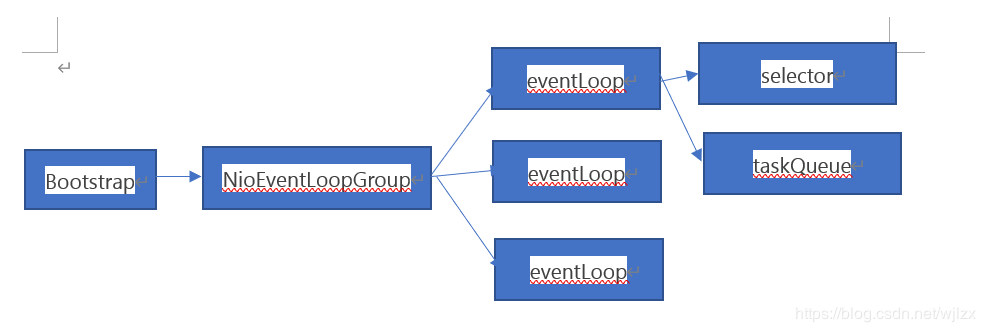

如上图所示，netty的入口是AbstractBootstrap：
- 服务端使用的是ServerBootstrap，接收2个NioEventLoopGroup实例，按照职责划分成boss和work，boss负责处理accept请求，work负责处理read、write请求
- 客户端使用的是Bootstrap，接收一个NioEventLoopGroup实例，负责处理read、write请求
Netty服务的创建和初始化
NioEventLoopGroup里面管理着多个eventLoop，创建NioEventLoopGroup实例时，默认会创建处理器数量的两倍的eventLoop实例，每个eventLoop会维护一个selector和taskQueue，selector即是NIO里面的多路复用器，taskQueue是存放请求任务的队列。
源码如下：
/*MultithreadEventLoopGroup为EventLoopGroup的父类，创建实例时会调用以下方法，其中DEFAULT_EVENT_LOOP_THREADS为处理器数量的两倍*/
protected MultithreadEventLoopGroup(int nThreads, Executor executor, Object... args) {
super(nThreads == 0 ? DEFAULT_EVENT_LOOP_THREADS : nThreads, executor, args);
}
protected MultithreadEventExecutorGroup(int nThreads, Executor executor,
EventExecutorChooserFactory chooserFactory, Object... args) {
if (nThreads <= 0) {
throw new IllegalArgumentException(String.format("nThreads: %d (expected: > 0)", nThreads));
}
if (executor == null) {
executor = new ThreadPerTaskExecutor(newDefaultThreadFactory());
}
children = new EventExecutor[nThreads];
//这里遍历了nThreads次，调用了nThreads次newChild方法，创建了nThreads个NioEventLoop实例
for (int i = 0; i < nThreads; i ++) {
boolean success = false;
try {
children[i] = newChild(executor, args);
success = true;
} catch (Exception e) {
// TODO: Think about if this is a good exception type
throw new IllegalStateException("failed to create a child event loop", e);
} finally {
if (!success) {
for (int j = 0; j < i; j ++) {
children[j].shutdownGracefully();
}
for (int j = 0; j < i; j ++) {
EventExecutor e = children[j];
try {
while (!e.isTerminated()) {
e.awaitTermination(Integer.MAX_VALUE, TimeUnit.SECONDS);
}
} catch (InterruptedException interrupted) {
// Let the caller handle the interruption.
Thread.currentThread().interrupt();
break;
}
}
}
}
}
chooser = chooserFactory.newChooser(children);
final FutureListener<Object> terminationListener = new FutureListener<Object>() {
@Override
public void operationComplete(Future<Object> future) throws Exception {
if (terminatedChildren.incrementAndGet() == children.length) {
terminationFuture.setSuccess(null);
}
}
};
for (EventExecutor e: children) {
e.terminationFuture().addListener(terminationListener);
}
Set<EventExecutor> childrenSet = new LinkedHashSet<EventExecutor>(children.length);
Collections.addAll(childrenSet, children);
readonlyChildren = Collections.unmodifiableSet(childrenSet);
}
//创建NioEventLoop实例
protected EventLoop newChild(Executor executor, Object... args) throws Exception {
return new NioEventLoop(this, executor, (SelectorProvider) args[0],
((SelectStrategyFactory) args[1]).newSelectStrategy(), (RejectedExecutionHandler) args[2]);
}到这里，就已经创建了NIO里的多路复用器selector，接下来就是把channel注册到selector里去，netty的处理有点复杂，我也没有完全摸透，这里简单讲下我的理解（建议去看看狼哥的博客，讲得很详细，以下图片也来源于他的博客）

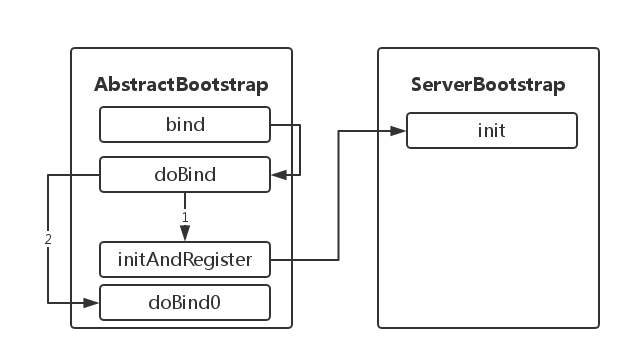

以ServerBootstrap为例，上图是ServerBootstrap创建的流程，我们重点看下initAndRegister方法：
- 先创建了一个netty对NIO的ServerSocketChannel封装的channel对象
- 通过chooser策略找到EventLoopGroup里的某个EventLoop
- 将channel注册到EventLoop的selector中
AbstractBootStrap的initAndRegister方法源码如下：
final ChannelFuture initAndRegister() {
Channel channel = null;
try {
//这里的channel是netty对NIO的channel自己封装的对象，用于接收Accept请求
channel = channelFactory.newChannel();
init(channel);
} catch (Throwable t) {
if (channel != null) {
channel.unsafe().closeForcibly();
return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
}
return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
}
//这里的group就是上面讲到的EventLoopGroup
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) {
if (channel.isRegistered()) {
channel.close();
} else {
channel.unsafe().closeForcibly();
}
}
return regFuture;
}
MultithreadEventLoopGroup注册源码如下：
//因为EventLoopGroup中维护了多个eventLoop，next方法会调用chooser策略找到下一个eventLoop，并执行eventLoop的register方法注册到eventLoop里的selector
public ChannelFuture register(Channel channel) {
return next().register(channel);
}
public EventLoop next() {
return (EventLoop) super.next();
}
public EventExecutor next() {
return chooser.next();
}Netty请求响应
如上面所说，netty注册到EventLoop的是自己封装的Channel对象，每个channel内部都会持有一个ChannelPipeline对象，ChannelPipeline的默认实现DefaultChannelPipeline类内部维护了一个ChannelHandlerContext链表，包括一个链表头head和链表尾tail。
将channel注册到EventLoop的selector多路复用器之后，当有请求时，EventLoop的处理方式也跟NIO类似：
- EventLoop会根据不同的key类型，调用channel的NioUnsafe对象中不同的方法来处理
- 在NioUnsafe的处理方法中，会遍历Channel里ChannelPipeline的ChannelHandlerContext链表，找到第一个符合要求的hanler类，执行其中的方法。
这里简单说下netty的事件在handler处理链中的传播：
- read事件是靠调用ChannelHandlerContext.fireChannelRead()方法，会往后寻找下个Inboundhandler的channelRead方法，若调用channel或ChannelPipeline的fireChannelRead()方法，则从头开始找下个Inboundhandler；
- writer事件则是靠ChannelHandlerContext.writer()方法，会往前找上一个outboundhandler，若调用channel或ChannelPipeline的writer()方法，则从尾开始找上个outboundhandler。
处理selectKey的源码如下：
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
if (!k.isValid()) {
final EventLoop eventLoop;
try {
eventLoop = ch.eventLoop();
} catch (Throwable ignored) {
return;
}
if (eventLoop != this || eventLoop == null) {
return;
}
unsafe.close(unsafe.voidPromise());
return;
}
//根据不同的key类型执行不同处理方法
try {
int readyOps = k.readyOps();
if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
int ops = k.interestOps();
ops &= ~SelectionKey.OP_CONNECT;
k.interestOps(ops);
unsafe.finishConnect();
}
if ((readyOps & SelectionKey.OP_WRITE) != 0) {
ch.unsafe().forceFlush();
}
if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
unsafe.read();
}
} catch (CancelledKeyException ignored) {
unsafe.close(unsafe.voidPromise());
}
}实际的处理链源码如下（这里以read请求为例）：
//NioUnsafe的read方法
public void read() {
//其他操作
···
//调用pipeline的fireChannelRead和fireChannelReadComplete方法
int size = readBuf.size();
for (int i = 0; i < size; i ++) {
readPending = false;
pipeline.fireChannelRead(readBuf.get(i));
}
readBuf.clear();
allocHandle.readComplete();
pipeline.fireChannelReadComplete();
}
//pipeline的fireChannelRead方法
public final ChannelPipeline fireChannelRead(Object msg) {
//调用ChannelHandlerContext的invokeChannelRead方法
AbstractChannelHandlerContext.invokeChannelRead(head, msg);
return this;
}
//ChannelHandlerContext的invokeChannelRead方法
static void invokeChannelRead(final AbstractChannelHandlerContext next, Object msg) {
final Object m = next.pipeline.touch(ObjectUtil.checkNotNull(msg, "msg"), next);
EventExecutor executor = next.executor();
if (executor.inEventLoop()) {
//这里最终会找到第一个符合条件的handler类，执行里面的channelRead0方法
next.invokeChannelRead(m);
} else {
executor.execute(new Runnable() {
@Override
public void run() {
next.invokeChannelRead(m);
}
});
}
}
Netty服务端处理Accept请求
上面已经简单介绍了netty请求响应的过程，但似乎都是EvenLoop处理自己接收到的selectKey的流程，那netty是怎么把不同的请求分配到不同的EvenLoop里的呢，这里要从ServerBootstrap的初始化重新讲起：
- 之前说过，ServerBootstrap初始化时，会创建一个Channel，这个Channel是用于绑定我们指定的端口和接收Accept请求，然后在ServerBootstrap的init()里，会为这个Channel里ChannelPipeline的ChannelHandlerContext链表插入一个ServerBootstrapAcceptor处理类，然后按上面Netty请求响应的逻辑，在接收到Accept请求后，调用ServerBootstrapAcceptor里的channelRead方法
- 在ServerBootstrapAcceptor的channelRead方法里，会找到ServerBootstrap的workGroup(用于处理read、writer请求的group)，然后跟之前注册channel的流程一样，通过chooser策略找到workGroup里的某个EventLoop，将这次Accept请求的channel注册到EventLoop的selector里
ServerBootStrap的init方法源码如下：
void init(Channel channel) throws Exception {
final Map<ChannelOption<?>, Object> options = options0();
synchronized (options) {
setChannelOptions(channel, options, logger);
}
final Map<AttributeKey<?>, Object> attrs = attrs0();
synchronized (attrs) {
for (Entry<AttributeKey<?>, Object> e: attrs.entrySet()) {
@SuppressWarnings("unchecked")
AttributeKey<Object> key = (AttributeKey<Object>) e.getKey();
channel.attr(key).set(e.getValue());
}
}
ChannelPipeline p = channel.pipeline();
final EventLoopGroup currentChildGroup = childGroup;
final ChannelHandler currentChildHandler = childHandler;
final Entry<ChannelOption<?>, Object>[] currentChildOptions;
final Entry<AttributeKey<?>, Object>[] currentChildAttrs;
synchronized (childOptions) {
currentChildOptions = childOptions.entrySet().toArray(newOptionArray(childOptions.size()));
}
synchronized (childAttrs) {
currentChildAttrs = childAttrs.entrySet().toArray(newAttrArray(childAttrs.size()));
}
//为ChannelPipeline的handler链表插入ServerBootstrapAcceptor处理类
p.addLast(new ChannelInitializer<Channel>() {
@Override
public void initChannel(final Channel ch) throws Exception {
final ChannelPipeline pipeline = ch.pipeline();
ChannelHandler handler = config.handler();
if (handler != null) {
pipeline.addLast(handler);
}
ch.eventLoop().execute(new Runnable() {
@Override
public void run() {
pipeline.addLast(new ServerBootstrapAcceptor(
ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
}
});
}
});
}ServerBootstrapAcceptor的channelRead方法源码如下：
public void channelRead(ChannelHandlerContext ctx, Object msg) {
final Channel child = (Channel) msg;
child.pipeline().addLast(childHandler);
setChannelOptions(child, childOptions, logger);
for (Entry<AttributeKey<?>, Object> e: childAttrs) {
child.attr((AttributeKey<Object>) e.getKey()).set(e.getValue());
}
try {
//这里的childGroup就是ServerBootStrap的workGroup
childGroup.register(child).addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
if (!future.isSuccess()) {
forceClose(child, future.cause());
}
}
});
} catch (Throwable t) {
forceClose(child, t);
}
}
