Android事件分发底层原理

1.简介

1.1事件构成

在Android中,事件(TouchEvent)主要包括点按、长按、拖拽、滑动等,所有的事件都由如下三个部分组成

  • 按下(ACTION_DOWN)

  • 移动(ACTION_MOVE)

  • 抬起(ACTION_UP)

一般来说,一次完整的Touch事件,应该是由一个Down、一个Up和若干个Move组成。

1.2View的分发事件

  • public boolean dispatchTouchEvent(MotionEvent ev) 如果事件能够传递到当前的View,那么此方法一定会被调用。

  • public boolean onInterceptTouchEvent(MotionEvent ev) 用来判断是否拦截某个事件

  • public boolean onTouchEvent(MotionEvent ev) 用来处理点击事件

ViewGroup的相关事件有三个:onInterceptTouchEvent、dispatchTouchEvent、onTouchEvent。View的相关事件只有两个:dispatchTouchEvent、onTouchEvent。

1.3滑动冲突处理:

(1)外部拦截方法 (在父容器的 onInterceptTouchEvent 进行控制,是否分发到子元素),遵循Android规范

(2)内部拦截方法(在子元素通过控制父容器的 requestDisallowInterceptTouchEvent 进行控制)

2.流程

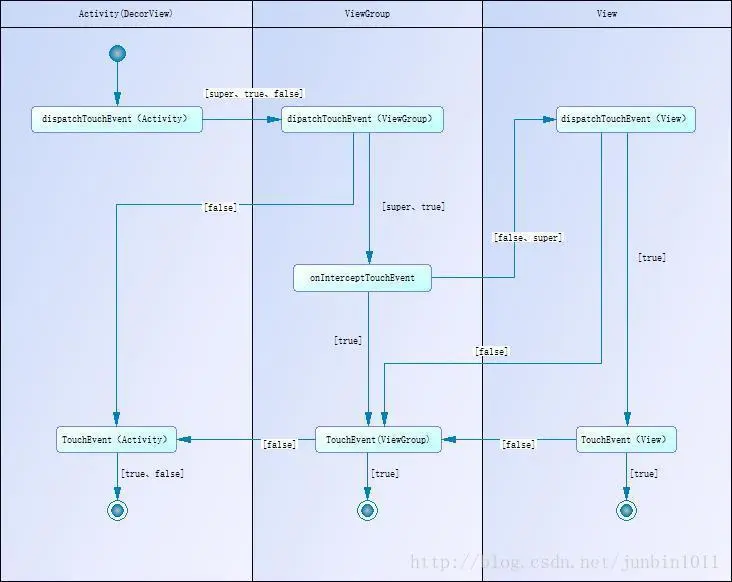

Android中事件传递按照从上到下再从下到上进行层级传递,事件处理从Activity开始到ViewGroup再到View,如果View没有消费事件会再次从View到ViewGroup再到Activity最后事件被抛出消费掉。流转的流程图如下:

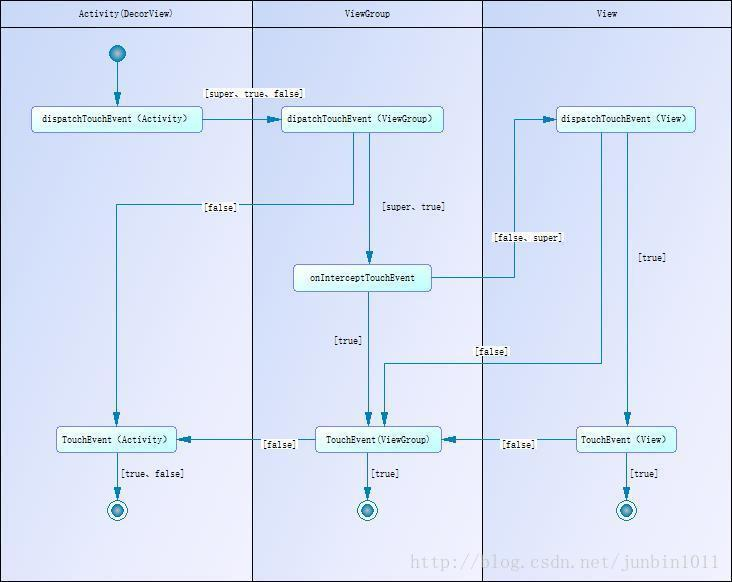

这里写图片描述

  • dispatchTouchEvent和TouchEvnet return false的 时候,事件都会回传给父控件的onTouchEvent处理

  • onInterceptTouchEvent默认为false不进行事件拦截,OnDispatchTouchEvnet默认为true进行事件分发,onTouchEvent需要根据具体的View是否设置了listener及具体View的实现进行区分是否为true

  • Activity的dispatchTouchEvent不管返回true或false都会进行分发

  • 如果事件在具体的View或者ViewGroup的onTouchEvent返回true,则表明事件被消费,事件传递机制就会结束

3.示例

具体可以根据流程图修改对应方法返回值进行日志验证。这里就不一一进行日志输出显示。

public class MyView extends Button {
    private String TAG = "MyView";

    public MyView(Context context, AttributeSet attrs) {
        super(context, attrs);
        TAG += getTag();
    }

    @Override
    public boolean dispatchTouchEvent(MotionEvent ev) {
        switch (ev.getAction()) {
            case MotionEvent.ACTION_DOWN:
                Log.i(TAG, "MyView dispatchTouchEvent--ACTION_DOWN");
                break;
            case MotionEvent.ACTION_MOVE:
                Log.i(TAG, "MyView dispatchTouchEvent--ACTION_MOVE");
                break;
            case MotionEvent.ACTION_UP:
                Log.i(TAG, "MyView dispatchTouchEvent--ACTION_UP");
                break;
        }
        return super.dispatchTouchEvent(ev);
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        switch (event.getAction()) {
            case MotionEvent.ACTION_DOWN:
                Log.i(TAG, "MyView onTouchEvent--ACTION_DOWN");
                break;
            case MotionEvent.ACTION_MOVE:
                Log.i(TAG, "MyView onTouchEvent--ACTION_MOVE");
                break;
            case MotionEvent.ACTION_UP:
                Log.i(TAG, "MyView onTouchEvent--ACTION_UP");
                break;
        }
        boolean touch = super.onTouchEvent(event);
        Log.i(TAG, "MyView onTouchEvent--touch" + touch);
        return touch;
    }
}
复制代码
public class MyViewGroup extends RelativeLayout {
    private String TAG = "MyViewGroup";

    public MyViewGroup(Context context, AttributeSet attrs) {
        super(context, attrs);
        TAG+=getTag();
    }

    @Override
    public boolean dispatchTouchEvent(MotionEvent ev) {
        switch (ev.getAction()) {
            case MotionEvent.ACTION_DOWN:
                Log.i(TAG, "MyViewGroup dispatchTouchEvent--ACTION_DOWN");
                break;
            case MotionEvent.ACTION_MOVE:
                Log.i(TAG, "MyViewGroup dispatchTouchEvent--ACTION_MOVE");
                break;
            case MotionEvent.ACTION_UP:
                Log.i(TAG, "MyViewGroup dispatchTouchEvent--ACTION_UP");
                break;
        }
        return super.dispatchTouchEvent(ev) ;
    }

    @Override
    public boolean onInterceptTouchEvent(MotionEvent ev) {
        switch (ev.getAction()) {
            case MotionEvent.ACTION_DOWN:
                Log.d(TAG, "MyViewGroup onInterceptTouchEvent--ACTION_DOWN");
                break;
            case MotionEvent.ACTION_MOVE:
                Log.d(TAG, "MyViewGroup onInterceptTouchEvent--ACTION_MOVE");
                break;
            case MotionEvent.ACTION_UP:
                Log.d(TAG, "MyViewGroup onInterceptTouchEvent--ACTION_UP");
                break;
        }
       return super.onInterceptTouchEvent(ev);
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        switch (event.getAction()) {
            case MotionEvent.ACTION_DOWN:
                Log.i(TAG, "MyViewGroup onTouchEvent--ACTION_DOWN");
                break;
            case MotionEvent.ACTION_MOVE:
                Log.i(TAG, "MyViewGroup onTouchEvent--ACTION_MOVE");
                break;
            case MotionEvent.ACTION_UP:
                Log.i(TAG, "MyViewGroup onTouchEvent--ACTION_UP");
                break;
        }
        boolean touch = super.onTouchEvent(event);
        Log.i(TAG, "MyViewGroup onTouchEvent--touch" + touch);
        return touch;
    }
}
复制代码
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/activity_main"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    tools:context="com.jd.test.myapplication.MainActivity">

    <com.jd.test.myapplication.view.MyViewGroup
        android:id="@+id/mg1"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:tag="mg1">

        <com.jd.test.myapplication.view.MyView
            android:id="@+id/v3"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:tag="btn3"
            android:text="btn3" />
    </com.jd.test.myapplication.view.MyViewGroup>

</RelativeLayout>
复制代码

public class ViewEventActivity extends Activity {

    Button btn3;
    MyViewGroup myViewGroup1;
    private  String  TAG="ViewEventActivity";
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_view_event);
        btn3= (Button) findViewById(R.id.v3);
        myViewGroup1= (MyViewGroup) findViewById(R.id.mg1);

    }

    @Override
    public boolean dispatchTouchEvent(MotionEvent ev) {
        switch (ev.getAction()) {
            case MotionEvent.ACTION_DOWN:
                Log.i(TAG, "DecorView dispatchTouchEvent--ACTION_DOWN");
                break;
            case MotionEvent.ACTION_MOVE:
                Log.i(TAG, "DecorView dispatchTouchEvent--ACTION_MOVE");
                break;
            case MotionEvent.ACTION_UP:
                Log.i(TAG, "DecorView dispatchTouchEvent--ACTION_UP");
                break;
        }
        return super.dispatchTouchEvent(ev);
        //return true;
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        switch (event.getAction()) {
            case MotionEvent.ACTION_DOWN:
                Log.i(TAG, "DecorView onTouchEvent--ACTION_DOWN");
                break;
            case MotionEvent.ACTION_MOVE:
                Log.i(TAG, "DecorView onTouchEvent--ACTION_MOVE");
                break;
            case MotionEvent.ACTION_UP:
                Log.i(TAG, "DecorView onTouchEvent--ACTION_UP");
                break;
        }
        boolean touch=super.onTouchEvent(event);
        Log.d(TAG, "DecorView touch boolean---"+touch);
        return touch;
    }
复制代码

4.源码解析

1.Activity的TouchEvent流程

首先看一下Activity的dispatchTouchEvnet源码,实际是调用了Window的 superDispatchTouchEvent(); Activity:

public boolean dispatchTouchEvent(MotionEvent ev) {
    if (ev.getAction() == MotionEvent.ACTION_DOWN) {
        onUserInteraction();
    }
    if (getWindow().superDispatchTouchEvent(ev)) {
        return true;
    }
    return onTouchEvent(ev);
}
复制代码

Window是一个抽象类,他的实现类是PhoneWindow,而PhoneWidow的最底层视图是mDecorView,是一个FrameLayout。其实也就是ViewGroup。 PhoneWindow:

  @Override
  public boolean superDispatchTouchEvent(MotionEvent event) {
  return mDecor.superDispatchTouchEvent(event);
  }
复制代码

DecorView的 superDispatchTouchEvent

  public boolean superDispatchTouchEvent(MotionEvent event) {
  return super.dispatchTouchEvent(event);
  }
复制代码

如果Activity有实现 dispatchTouchEvent回调则调用改回调,若没有则调用super的 dispatchTouchEvent,继续往子View进行事件分发

 @Override
  public boolean dispatchTouchEvent(MotionEvent ev) {
  final Callback cb = getCallback();
  return cb != null && !isDestroyed() && mFeatureId < 0 ? cb.dispatchTouchEvent(ev)
  : super.dispatchTouchEvent(ev);
  }
复制代码

2.DispatchTouchEvent

ViewGroup:

 /**
  * {@inheritDoc}
  */
  @Override
  public boolean dispatchTouchEvent(MotionEvent ev) {
  if (mInputEventConsistencyVerifier != null) {
  mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
  }

//对于辅助功能的事件处理
  if (ev.isTargetAccessibilityFocus() && isAccessibilityFocusedViewOrHost()) {
  ev.setTargetAccessibilityFocus(false);
  }

  boolean handled = false;
  if (onFilterTouchEventForSecurity(ev)) {
  final int action = ev.getAction();
  final int actionMasked = action & MotionEvent.ACTION_MASK;

  // 处理原始的DOWN事件
  if (actionMasked == MotionEvent.ACTION_DOWN) {
  //这里主要是在新事件开始时处理完上一个事件
  // due to an app switch, ANR, or some other state change.
  cancelAndClearTouchTargets(ev);
  resetTouchState();
  }

  //检查事件拦截
  final boolean intercepted;
  if (actionMasked == MotionEvent.ACTION_DOWN
  || mFirstTouchTarget != null) {
  final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
  if (!disallowIntercept) {
  intercepted = onInterceptTouchEvent(ev);
  ev.setAction(action); //恢复事件防止其改变
  } else {
  intercepted = false;
  }
  } else {
  // There are no touch targets and this action is not an initial down
  // so this view group continues to intercept touches.
  intercepted = true;
  }

  //如果事件被拦截了,则进行正常的事件分发
  if (intercepted || mFirstTouchTarget != null) {
  ev.setTargetAccessibilityFocus(false);
  }

  // 检查事件是否取消
  final boolean canceled = resetCancelNextUpFlag(this)
  || actionMasked == MotionEvent.ACTION_CANCEL;

  // 如果有必要的话,为DOWN事件检查所有的目标对象
  final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0;
  TouchTarget newTouchTarget = null;
  boolean alreadyDispatchedToNewTouchTarget = false;

//如果事件未被取消并未被拦截
  if (!canceled && !intercepted) {

  //如果有辅助功能的参与,则直接将事件投递到对应的View,否则将事件分发给所有的子View
  View childWithAccessibilityFocus = ev.isTargetAccessibilityFocus()
  ? findChildWithAccessibilityFocus() : null;

  if (actionMasked == MotionEvent.ACTION_DOWN
  || (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
  || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
  final int actionIndex = ev.getActionIndex(); // always 0 for down
  final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
  : TouchTarget.ALL_POINTER_IDS;

  // Clean up earlier touch targets for this pointer id in case they
  // have become out of sync.
  removePointersFromTouchTargets(idBitsToAssign);

  final int childrenCount = mChildrenCount;

//如果TouchTarget为空并且子元素不为0
  if (newTouchTarget == null && childrenCount != 0) {
  final float x = ev.getX(actionIndex);
  final float y = ev.getY(actionIndex);
  //由上至下去寻找一个可以接收改事件的子View
  final ArrayList<View> preorderedList = buildOrderedChildList();
  final boolean customOrder = preorderedList == null
  && isChildrenDrawingOrderEnabled();
  final View[] children = mChildren;

//遍历子元素
  for (int i = childrenCount - 1; i >= 0; i--) {
  final int childIndex = customOrder
  ? getChildDrawingOrder(childrenCount, i) : i;
  final View child = (preorderedList == null)
  ? children[childIndex] : preorderedList.get(childIndex);

  // If there is a view that has accessibility focus we want it
  // to get the event first and if not handled we will perform a
  // normal dispatch. We may do a double iteration but this is
  // safer given the timeframe.
  if (childWithAccessibilityFocus != null) {
  if (childWithAccessibilityFocus != child) {
  continue;
  }
  childWithAccessibilityFocus = null;
  i = childrenCount - 1;
  }

//如果这个子元素无法接收Pointer Event或这个事件电压根本就没有在子元素的边界范围内
  if (!canViewReceivePointerEvents(child)
  || !isTransformedTouchPointInView(x, y, child, null)) {
  ev.setTargetAccessibilityFocus(false);

//那么就跳出该次循环继续遍历
  continue;
  }

//找到Event该由那个子元素持有
  newTouchTarget = getTouchTarget(child);
  if (newTouchTarget != null) {
  // Child is already receiving touch within its bounds.
  // Give it the new pointer in addition to the ones it is handling.
  newTouchTarget.pointerIdBits |= idBitsToAssign;
  break;
  }

  resetCancelNextUpFlag(child);
//投递事件执行触摸操作
//如果子元素还是一个ViewGroup,则递归调用重复此过程
//如果子元素还是一个View,那么则会调用View的dispatTouchEvent,
//并最终由onTouchEvent处理

  if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
  // 子View在其边界范围内接收事件
  mLastTouchDownTime = ev.getDownTime();
  if (preorderedList != null) {
  // childIndex points into presorted list, find original index
  for (int j = 0; j < childrenCount; j++) {
  if (children[childIndex] == mChildren[j]) {
  mLastTouchDownIndex = j;
  break;
  }
  }
  } else {
  mLastTouchDownIndex = childIndex;
  }
  mLastTouchDownX = ev.getX();
  mLastTouchDownY = ev.getY();
  newTouchTarget = addTouchTarget(child, idBitsToAssign);
  alreadyDispatchedToNewTouchTarget = true;
  break;
  }

  // The accessibility focus didn't handle the event, so clear
  // the flag and do a normal dispatch to all children.
  ev.setTargetAccessibilityFocus(false);
  }
  if (preorderedList != null) preorderedList.clear();
  }

//如果发现没有子元素可以持有该次事件
  if (newTouchTarget == null && mFirstTouchTarget != null) {
  // Did not find a child to receive the event.
  // Assign the pointer to the least recently added target.
  newTouchTarget = mFirstTouchTarget;
  while (newTouchTarget.next != null) {
  newTouchTarget = newTouchTarget.next;
  }
  newTouchTarget.pointerIdBits |= idBitsToAssign;
  }
  }
  }

  // Dispatch to touch targets.
  if (mFirstTouchTarget == null) {
  // No touch targets so treat this as an ordinary view.
  handled = dispatchTransformedTouchEvent(ev, canceled, null,
  TouchTarget.ALL_POINTER_IDS);
  } else {
  // Dispatch to touch targets, excluding the new touch target if we already
  // dispatched to it. Cancel touch targets if necessary.
  TouchTarget predecessor = null;
  TouchTarget target = mFirstTouchTarget;
  while (target != null) {
  final TouchTarget next = target.next;
  if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
  handled = true;
  } else {
  final boolean cancelChild = resetCancelNextUpFlag(target.child)
  || intercepted;
  if (dispatchTransformedTouchEvent(ev, cancelChild,
  target.child, target.pointerIdBits)) {
  handled = true;
  }
  if (cancelChild) {
  if (predecessor == null) {
  mFirstTouchTarget = next;
  } else {
  predecessor.next = next;
  }
  target.recycle();
  target = next;
  continue;
  }
  }
  predecessor = target;
  target = next;
  }
  }

  // Update list of touch targets for pointer up or cancel, if needed.
  if (canceled
  || actionMasked == MotionEvent.ACTION_UP
  || actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
  resetTouchState();
  } else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
  final int actionIndex = ev.getActionIndex();
  final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
  removePointersFromTouchTargets(idBitsToRemove);
  }
  }

  if (!handled && mInputEventConsistencyVerifier != null) {
  mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
  }
  return handled;
  }
复制代码

View:

  /**
  * Dispatches a key shortcut event.
  *
  * @param event The key event to be dispatched.
  * @return True if the event was handled by the view, false otherwise.
  */
  public boolean dispatchKeyShortcutEvent(KeyEvent event) {
  return onKeyShortcut(event.getKeyCode(), event);
  }

  /**
  * Pass the touch screen motion event down to the target view, or this
  * view if it is the target.
  *
  * @param event The motion event to be dispatched.
  * @return True if the event was handled by the view, false otherwise.
  */
  public boolean dispatchTouchEvent(MotionEvent event) {
  // If the event should be handled by accessibility focus first.
  if (event.isTargetAccessibilityFocus()) {
  // We don't have focus or no virtual descendant has it, do not handle the event.
  if (!isAccessibilityFocusedViewOrHost()) {
  return false;
  }
  // We have focus and got the event, then use normal event dispatch.
  event.setTargetAccessibilityFocus(false);
  }

  boolean result = false;

  if (mInputEventConsistencyVerifier != null) {
  mInputEventConsistencyVerifier.onTouchEvent(event, 0);
  }

  final int actionMasked = event.getActionMasked();
  if (actionMasked == MotionEvent.ACTION_DOWN) {
  // Defensive cleanup for new gesture
  stopNestedScroll();
  }

  if (onFilterTouchEventForSecurity(event)) {
  //noinspection SimplifiableIfStatement
  ListenerInfo li = mListenerInfo;
  if (li != null && li.mOnTouchListener != null
  && (mViewFlags & ENABLED_MASK) == ENABLED
  && li.mOnTouchListener.onTouch(this, event)) {
  result = true;
  }

  if (!result && onTouchEvent(event)) {
  result = true;
  }
  }

  if (!result && mInputEventConsistencyVerifier != null) {
  mInputEventConsistencyVerifier.onUnhandledEvent(event, 0);
  }

  // Clean up after nested scrolls if this is the end of a gesture;
  // also cancel it if we tried an ACTION_DOWN but we didn't want the rest
  // of the gesture.
  if (actionMasked == MotionEvent.ACTION_UP ||
  actionMasked == MotionEvent.ACTION_CANCEL ||
  (actionMasked == MotionEvent.ACTION_DOWN && !result)) {
  stopNestedScroll();
  }

  return result;
  }
复制代码

3.onInterceptTouchEvent

 public boolean onInterceptTouchEvent(MotionEvent ev) {
  return false;
  }
复制代码

4.TouchEvent

  /**
  * Implement this method to handle touch screen motion events.
  * <p>
  * If this method is used to detect click actions, it is recommended that
  * the actions be performed by implementing and calling
  * {@link #performClick()}. This will ensure consistent system behavior,
  * including:
  * <ul>
  * <li>obeying click sound preferences
  * <li>dispatching OnClickListener calls
  * <li>handling {@link AccessibilityNodeInfo#ACTION_CLICK ACTION_CLICK} when
  * accessibility features are enabled
  * </ul>
  *
  * @param event The motion event.
  * @return True if the event was handled, false otherwise.
  */
  public boolean onTouchEvent(MotionEvent event) {
  final float x = event.getX();
  final float y = event.getY();
  final int viewFlags = mViewFlags;
  final int action = event.getAction();

  if ((viewFlags & ENABLED_MASK) == DISABLED) {
  if (action == MotionEvent.ACTION_UP && (mPrivateFlags & PFLAG_PRESSED) != 0) {
  setPressed(false);
  }
  // A disabled view that is clickable still consumes the touch
  // events, it just doesn't respond to them.
  return (((viewFlags & CLICKABLE) == CLICKABLE
  || (viewFlags & LONG_CLICKABLE) == LONG_CLICKABLE)
  || (viewFlags & CONTEXT_CLICKABLE) == CONTEXT_CLICKABLE);
  }

  if (mTouchDelegate != null) {
  if (mTouchDelegate.onTouchEvent(event)) {
  return true;
  }
  }

  if (((viewFlags & CLICKABLE) == CLICKABLE ||
  (viewFlags & LONG_CLICKABLE) == LONG_CLICKABLE) ||
  (viewFlags & CONTEXT_CLICKABLE) == CONTEXT_CLICKABLE) {
  switch (action) {
  case MotionEvent.ACTION_UP:
  boolean prepressed = (mPrivateFlags & PFLAG_PREPRESSED) != 0;
  if ((mPrivateFlags & PFLAG_PRESSED) != 0 || prepressed) {
  // take focus if we don't have it already and we should in
  // touch mode.
  boolean focusTaken = false;
  if (isFocusable() && isFocusableInTouchMode() && !isFocused()) {
  focusTaken = requestFocus();
  }

  if (prepressed) {
  // The button is being released before we actually
  // showed it as pressed. Make it show the pressed
  // state now (before scheduling the click) to ensure
  // the user sees it.
  setPressed(true, x, y);
  }

  if (!mHasPerformedLongPress && !mIgnoreNextUpEvent) {
  // This is a tap, so remove the longpress check
  removeLongPressCallback();

  // Only perform take click actions if we were in the pressed state
  if (!focusTaken) {
  // Use a Runnable and post this rather than calling
  // performClick directly. This lets other visual state
  // of the view update before click actions start.
  if (mPerformClick == null) {
  mPerformClick = new PerformClick();
  }
  if (!post(mPerformClick)) {
  performClick();
  }
  }
  }

  if (mUnsetPressedState == null) {
  mUnsetPressedState = new UnsetPressedState();
  }

  if (prepressed) {
  postDelayed(mUnsetPressedState,
  ViewConfiguration.getPressedStateDuration());
  } else if (!post(mUnsetPressedState)) {
  // If the post failed, unpress right now
  mUnsetPressedState.run();
  }

  removeTapCallback();
  }
  mIgnoreNextUpEvent = false;
  break;

  case MotionEvent.ACTION_DOWN:
  mHasPerformedLongPress = false;

  if (performButtonActionOnTouchDown(event)) {
  break;
  }

  // Walk up the hierarchy to determine if we're inside a scrolling container.
  boolean isInScrollingContainer = isInScrollingContainer();

  // For views inside a scrolling container, delay the pressed feedback for
  // a short period in case this is a scroll.
  if (isInScrollingContainer) {
  mPrivateFlags |= PFLAG_PREPRESSED;
  if (mPendingCheckForTap == null) {
  mPendingCheckForTap = new CheckForTap();
  }
  mPendingCheckForTap.x = event.getX();
  mPendingCheckForTap.y = event.getY();
  postDelayed(mPendingCheckForTap, ViewConfiguration.getTapTimeout());
  } else {
  // Not inside a scrolling container, so show the feedback right away
  setPressed(true, x, y);
  checkForLongClick(0);
  }
  break;

  case MotionEvent.ACTION_CANCEL:
  setPressed(false);
  removeTapCallback();
  removeLongPressCallback();
  mInContextButtonPress = false;
  mHasPerformedLongPress = false;
  mIgnoreNextUpEvent = false;
  break;

  case MotionEvent.ACTION_MOVE:
  drawableHotspotChanged(x, y);

  // Be lenient about moving outside of buttons
  if (!pointInView(x, y, mTouchSlop)) {
  // Outside button
  removeTapCallback();
  if ((mPrivateFlags & PFLAG_PRESSED) != 0) {
  // Remove any future long press/tap checks
  removeLongPressCallback();

  setPressed(false);
  }
  }
  break;
  }

  return true;
  }

  return false;
  }
复制代码

关于

欢迎关注我的个人公众号

微信搜索:一码一浮生,或者搜索公众号ID:life2code
