本文分以下几个部分： 第一部分：并口传输显示中英文 第二部分：并口传输显示图片 第三部分：串口传输 首先说明，我使用的LCD12864是采用ST7920控制器芯片的，操作LCD12864其实是在操作ST7920

第一部分 并口传输显示中英文

主要是以下几个函数:
首先：写一个LCD_write函数来给LCD发送数据.根据时序图，发送数据是RW要置0，E要产生下降沿，RS置1为数据，RS置0为命令，由于是并口传输PSB置1.
其次：能够给LCD发命令后，我们就要使用LCD_init函数发送初始化命令。初始化命令至少包括：1、设置显示，2、功能设定，3、初始化清屏3个部分。
写命令时注意每个命令都有自己的运行时间，记得保证足够延时。
第三：写一个LCD_display函数可以分行分列显示内容。
void LCD_write(u8 data,u8 cmd_flag);
void LCD_init(void);
void LCD_display(u8 row,u8 col,u8 *string);
一、并口方式理论及资料

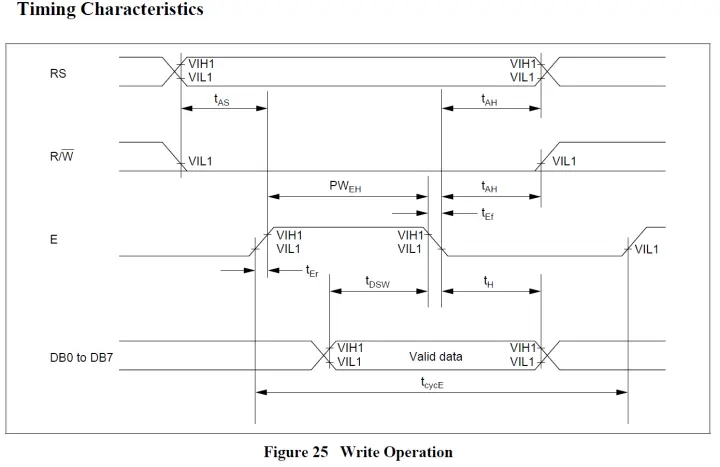

1.先上时序图：
这里要注意的是 PWeh 要大于450ns 以STM8S208MB内部16M RC振荡器计算，每次执行时间为： 1s/(16M/8分频) =500ns 所以必须延时保证E引脚上升区域大于450ns。
同理 tdsw也需要延时。

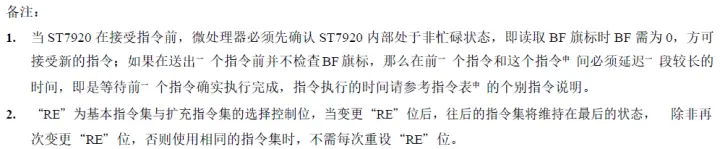

2.指令表
ST7920指令集分为2种，第一种：10种基础指令集RE=0，第二种：6种高级指令集RE=0
第一部分是显示中英文，所以只需用到基础指令集RE=0

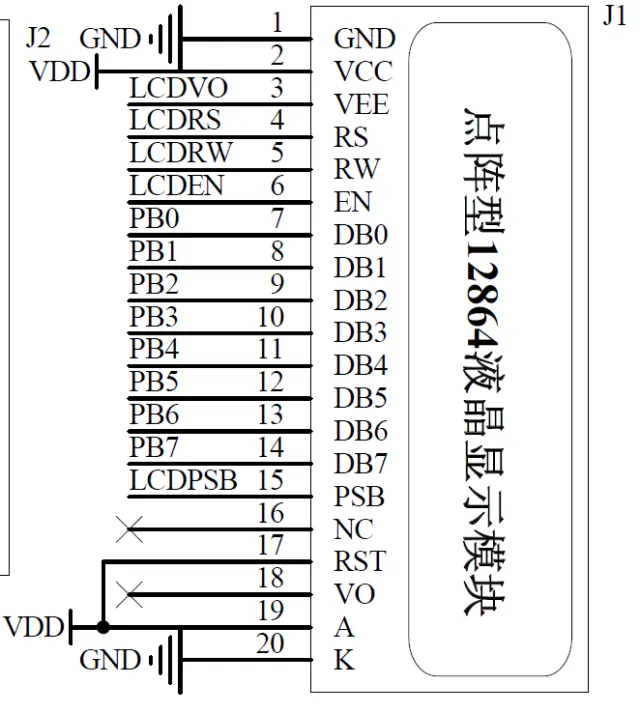

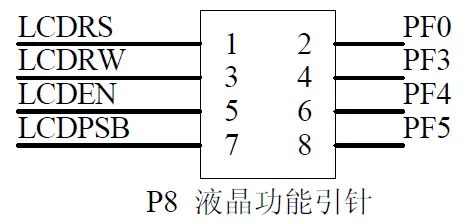

3.引脚图和硬件电路
4.为什么每行可以写八个汉字或16个英文/数字？
因为每个汉字需要占2个字节。

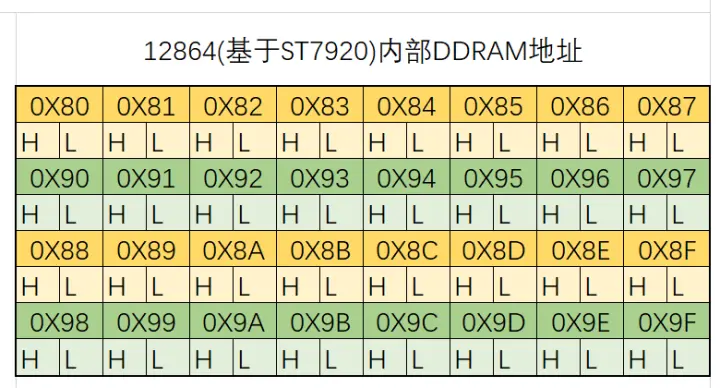

此外还要留意，第一行和第三行的内存地址是连在一起的，不控制光标的话，写完第一行就会换行到第三行。（光标写完是自动加一的）
5.程序代码
//------------------------------header------------------------------------------
#include "iostm8s208mb.h"
//------------------------------common datatype---------------------------------
typedef unsigned char uint8_t;
typedef unsigned short uint16_t;
typedef unsigned long uint32_t;
#define u8 uint8_t
#define u16 uint16_t
#define u32 uint32_t
//------------------------------macros------------------------------------------
#define LCDRS PF_ODR_ODR0
#define LCDRW PF_ODR_ODR3
#define LCDEN PF_ODR_ODR4
#define LCDPSB PF_ODR_ODR5
#define LCDDATA PB_ODR
//------------------------------function declare--------------------------------
void delay(u8 count);
void GPIO_init(void);
void LCD_write(u8 data,u8 cmd_flag);
void LCD_init(void);
void LCD_display(u8 row,u8 col,u8 *string);
//------------------------------global------------------------------------------
//------------------------------main--------------------------------------------
void main( void )
{
  GPIO_init();
  LCD_init();
  LCD_display(1,0,"熊爸的学习时间");
  LCD_display(2,0,"================");
  LCD_display(3,0,"使用LCD12864显示");
  LCD_display(4,0,"屏来并口显示数据");

}
//------------------------------functions---------------------------------------
void delay(u8 count)
{
  u8 i,j;
  while (count--)
  {
    for(i=0;i<50;i++)
      for(j=0;j<20;j++);
  }
}
void GPIO_init(void)
{
  //lcd DB0~DB7
  PB_DDR |=0XFF;
  PB_CR1 |=0XFF;
  PB_CR2 &=0X00;
  PB_ODR &=0X00;

  //LCD RS RW EN PSB
  PF_DDR |=0X39;
  PF_CR1 |=0X39;
  PF_CR2 &=0XC6;
  PF_ODR &=0XC6;

  LCDPSB=1;
  LCDRW=0;
}
void LCD_write(u8 data,u8 cmd_flag)
{
  LCDRS=cmd_flag;
  LCDEN=0;
  delay(1);
  LCDEN=1;
  LCDDATA=data;
  delay(1);       //delay保证E的周期
  LCDEN=0;
  delay(1);
}
void LCD_init(void)
{
  LCD_write(0X0C,0);
  delay(1);
  LCD_write(0X30,0);
  delay(1);
  LCD_write(0X01,0);
  delay(1);
}
void LCD_display(u8 row,u8 col,u8 *string)
{
  switch (row)
  {
    case 1:row=0X80;break;
    case 2:row=0X90;break;
    case 3:row=0X88;break;
    case 4:row=0X98;break;
    default:row=0X80;
  }
  LCD_write(row+col,0);
  while (*string != '\0')
  {
    LCD_write(*string,1);
    string++;
  }
}

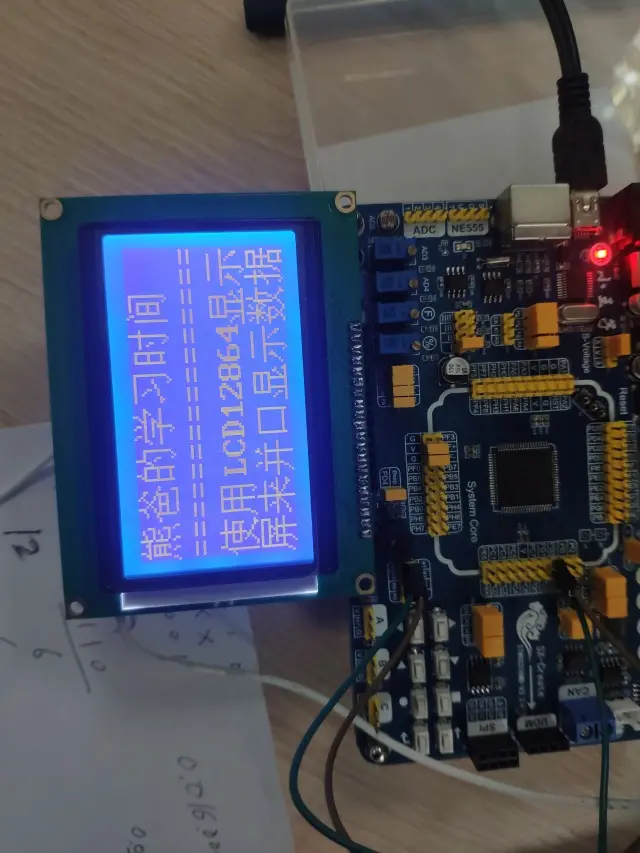

5.实验效果

第二部分 并行显示图片

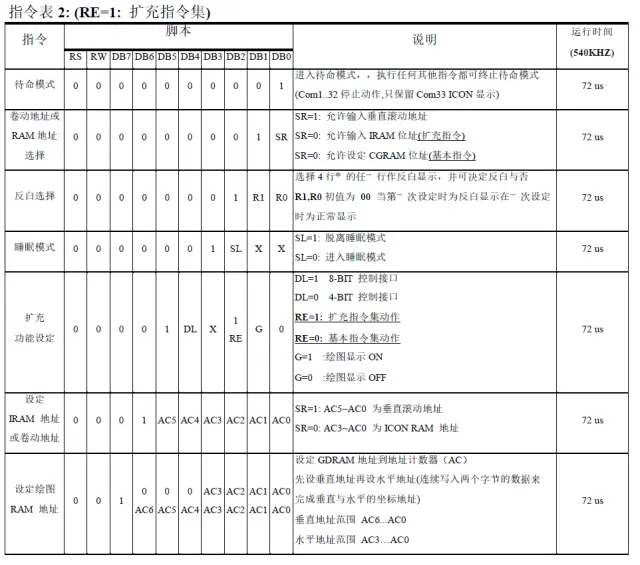

1、指令集
使用绘图功能需要打开扩展指令集
2、绘画步骤
1.使用扩展指令集并关闭绘图显示功能 0X34 2.设置垂直地址 3.设置水平地址 4.写D15~D8位 5.写D7~D0位 6.打开绘图显示功能 0X36 7.返回基本指令集
垂直地址：表示方法 第几行+偏移量 例如： 0x80+j
水平地址：第一行0X80 第二行0X90 第三行0X88 第四行0X98
这部分处理函数如下：
void LCD_pic(u8 *pic)
{
  u8 i,j,k;
  LCD_write(0X34,0);delay(10);
  for ( i = 0; i <2; i++)
  {
    for ( j = 0; j <32; j++)
    {
      LCD_write(0X80+j,0);
      LCD_write(0X80+8*i,0);
      for ( k = 0; k <16; k++)
      {
        LCD_write(*pic++,1);
      }
    }
  }
  LCD_write(0X36,0);delay(10);
  LCD_write(0X30,0);delay(10);
}

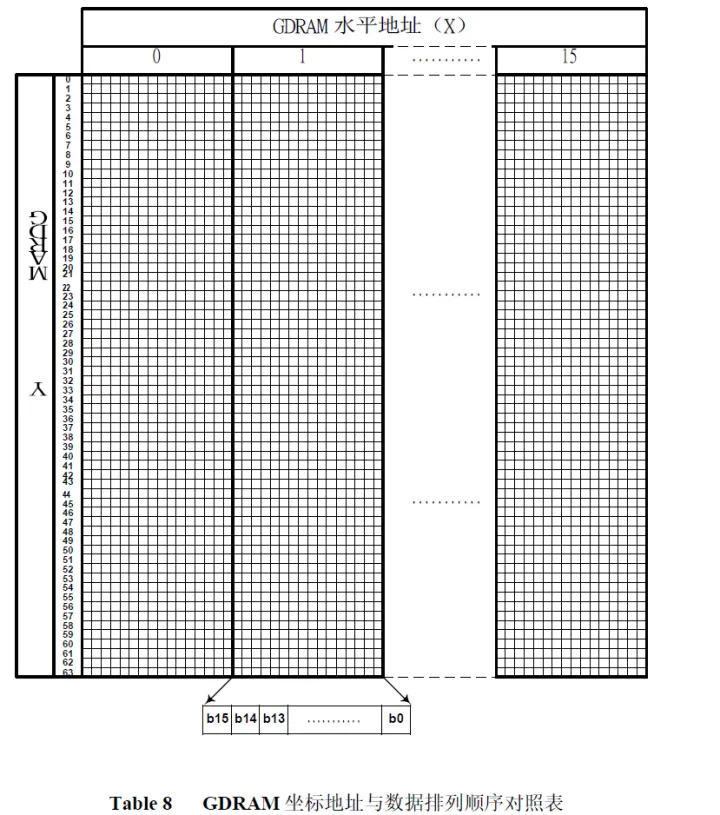

3、再来看GDRAM
其实12864 只用了GDRAM的一半
Y坐标取值范围：0X80+0-31
X坐标取值范围：0X80或者0X88
//------------------------------header------------------------------------------
#include "iostm8s208mb.h"
//------------------------------common datatype---------------------------------
typedef unsigned char uint8_t;
typedef unsigned short uint16_t;
typedef unsigned long uint32_t;
#define u8 uint8_t
#define u16 uint16_t
#define u32 uint32_t
//------------------------------macros------------------------------------------
#define LCDRS PF_ODR_ODR0
#define LCDRW PF_ODR_ODR3
#define LCDEN PF_ODR_ODR4
#define LCDPSB PF_ODR_ODR5
#define LCDDATA PB_ODR
//------------------------------function declare--------------------------------
void delay(u8 count);
void GPIO_init(void);
void LCD_write(u8 data,u8 cmd_flag);
void LCD_init(void);
void LCD_pic(u8 *pic);
//------------- -----------------global------------------------------------------
u8 dis[]={0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x03,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x0F,0xFC,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x3F,0xF8,0x7F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xFF,0xC3,0x0F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x01,0xFF,0xC7,0x8F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xFE,0x3F,0xF1,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xFC,0x3F,0xF0,0xFF,0x80,0x03,0x00,0x00,0x00,0x30,0x60,0x00,0x00,0x00,0x00,
0x07,0xE3,0xFF,0xFF,0x1F,0x80,0x03,0x00,0x63,0xFC,0x30,0xE0,0x30,0xC4,0x08,0x60,
0x07,0xE3,0xFF,0xFF,0x8F,0x80,0xFF,0xFC,0x63,0x0C,0x30,0xC0,0xC6,0xFC,0x7C,0xF8,
0x07,0x8F,0xFC,0xFF,0xE7,0x80,0xC0,0x0C,0x63,0x0C,0xFD,0xFC,0xFF,0xC8,0xF8,0x5C,
0x07,0x8F,0xF0,0x3F,0xE7,0x80,0xC6,0x0D,0xFB,0x0C,0xCD,0x8C,0x02,0xCC,0x4F,0xE0,
0x07,0x8F,0xC0,0x0F,0xE7,0x80,0x06,0x00,0x5B,0xFC,0xCF,0x8C,0xFE,0xFC,0x0F,0xE0,
0x07,0x8F,0x80,0x07,0xE7,0x80,0x0E,0x00,0xDB,0x00,0xCD,0x0C,0xC6,0xC5,0xFF,0xFE,
0x07,0x8F,0xC0,0x0F,0xE7,0x81,0xFF,0xFE,0xDB,0x60,0xCC,0x8C,0xFE,0xDC,0xF0,0x1C,
0x07,0x8F,0xF0,0x3F,0xE7,0x80,0x18,0x70,0xDB,0x6C,0xFD,0xCC,0xC6,0xF8,0x7F,0xF8,
0x07,0x8F,0xFC,0xFF,0xE7,0x80,0x38,0x60,0xDB,0x7C,0xCC,0xCC,0xFE,0xC4,0x63,0x18,
0x07,0x8F,0xFF,0xFF,0xE7,0x80,0x3E,0xE0,0xF3,0x78,0xCC,0xEC,0xC6,0xCC,0x63,0x18,
0x07,0x8F,0xFF,0xFF,0xE7,0x80,0x0F,0xC0,0x3F,0x70,0xCC,0x6C,0xDE,0xFC,0x7F,0xF8,
0x07,0x8F,0xFF,0xFF,0xE7,0x80,0x07,0xC0,0x7E,0x64,0xCC,0x4C,0x4C,0x98,0x60,0x0E,
0x07,0x8F,0x3F,0xF3,0xE7,0x80,0x1E,0xF0,0xF6,0x66,0xCC,0x0C,0xCC,0xCC,0x60,0x0C,
0x01,0x8F,0x0F,0xC3,0xE6,0x00,0x7C,0x39,0xCE,0x6C,0xFC,0x0C,0xCC,0xCC,0x70,0x1C,
0x00,0x8F,0x03,0x03,0xE4,0x00,0xE0,0x0C,0x84,0x7C,0xCC,0xF8,0x80,0x04,0x3F,0xF8,
0x06,0x0F,0x00,0x03,0xE1,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0x0F,0x00,0x03,0xC3,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xE3,0x00,0x03,0x1F,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xF1,0x00,0x02,0x3F,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,
0x07,0xFE,0x00,0x01,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xFF,0x00,0x03,0xFF,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,
0x01,0xFF,0xC0,0x0F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x7F,0xE0,0x1F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x1F,0xF8,0x7F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x0F,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};
//------------------------------main--------------------------------------------
void main( void )
{
  CLK_CKDIVR=0X00;
  delay(100);
  GPIO_init();
  LCD_init();
  LCD_pic(dis);
}
//------------------------------functions---------------------------------------
void delay(u8 count)
{
  u8 i,j;
  while (count--)
  {
    for(i=0;i<50;i++)
      for(j=0;j<20;j++);
  }
}
void GPIO_init(void)
{
  //lcd DB0~DB7
  PB_DDR |=0XFF;
  PB_CR1 |=0XFF;
  PB_CR2 &=0X00;
  PB_ODR &=0X00;

  //LCD RS RW EN PSB
  PF_DDR |=0X39;
  PF_CR1 |=0X39;
  PF_CR2 &=0XC6;
  PF_ODR &=0XC6;

  LCDPSB=1;
  LCDRW=0;
}
void LCD_write(u8 data,u8 cmd_flag)
{
  LCDRS=cmd_flag;
  LCDEN=0;
  delay(1);
  LCDDATA=data;
  LCDEN=1;
  delay(1);
  LCDEN=0;
  delay(1);
}
void LCD_init(void)
{
  LCD_write(0X0C,0);
  delay(1);
  LCD_write(0X34,0);
  delay(1);
  LCD_write(0X01,0);
  delay(1);
}
void LCD_pic(u8 *pic)
{
  u8 i,j,k;
  LCD_write(0X34,0);delay(10);
  for ( i = 0; i <2; i++)
  {
    for ( j = 0; j <32; j++)
    {
      LCD_write(0X80+j,0);
      LCD_write(0X80+8*i,0);
      for ( k = 0; k <16; k++)
      {
        LCD_write(*pic++,1);
      }
    }
  }
  LCD_write(0X36,0);delay(10);
  LCD_write(0X30,0);delay(10);
}

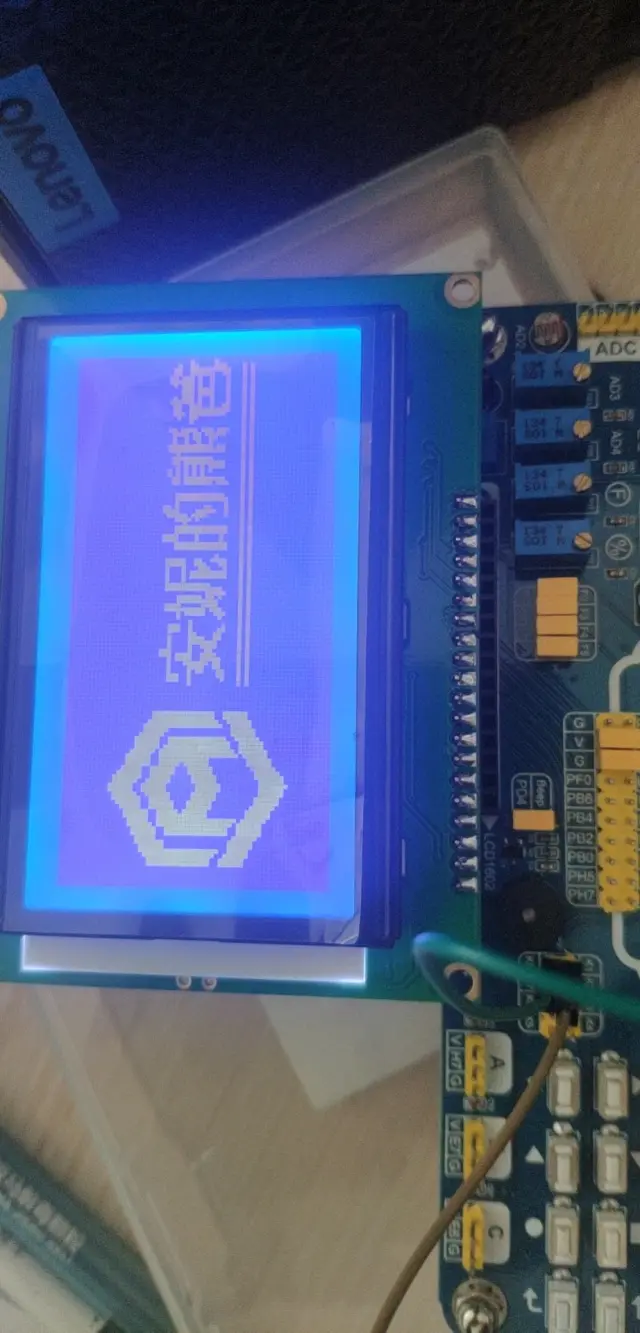

实验效果：

这里说一下怎么得到DIS数组的
用PS制作一张128*64的BMP图片

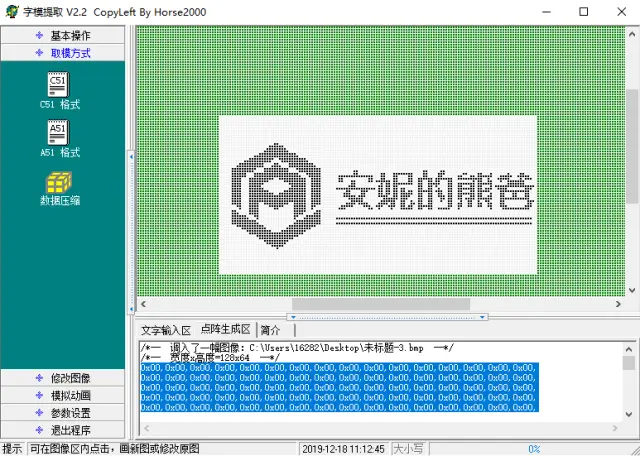

然后将其导入 字模提取 软件中 用C51格式取模即可

第三部分 串口传输

串口传输非常省GPIO，可以做到用两个GPIO控制整块显示屏。非常给力！
选择串口通讯模式需要把PSB置0（或接GND）
此时 RS变为了片选端口 我们直接置1（或接VDD）
RW变成了SDIO 我们用它来发送数据 （接GPIO）
把EN变成了SCLK 我们用它来给通讯时钟（接GPIO）

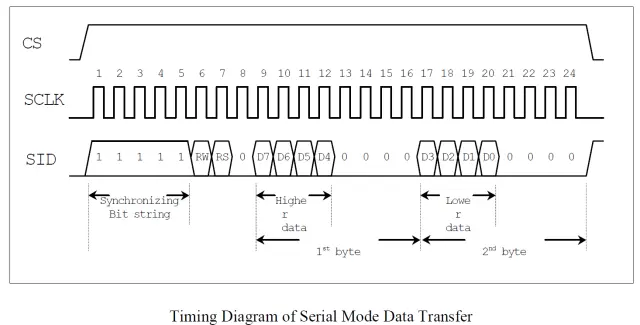

1. 串口输出时序图

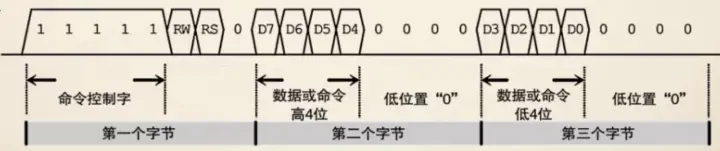

比如 我们发送一个命令 0X34到LCD，可以
11111 0 0 0 （命令控制字）0XF8
0011 0000 ( 0X34的高4位) 0X30
0100 0000( 0X34的低4位) 0X40

通过仔细观察时序图，我们发现：时钟为0时可以改变数据，时钟为1时采集。所以大体思路是在CLK=0时装载，在CLK=1时发射。
2. 需要写的函数
通过上面的分析总结出我们需要以下函数：
① 一个将命令/数据分解成3个字节并发送的处理函数
void LCD_write(u8 data,u8 cmd_flag)
{
  if(cmd_flag)
    LCD_send_byte(0XFA);
  else
    LCD_send_byte(0XF8);
  LCD_send_byte(data & 0XF0);
  LCD_send_byte((data<<4) & 0XF0);
}
②一个控制时钟引脚并将数据在SDIO口逐位发送的函数
LCD_send_byte(u8 byte)
{
  for (u8 i = 0; i < 8; i++)
  {
    LCDCLK=0;
    if ((byte<<i) & 0X80)
      LCDDIO=1;
    else
      LCDDIO=0;
    LCDCLK=1;
  }
}
3.程序（用并行显示图片程序改的）
//------------------------------header------------------------------------------
#include "iostm8s208mb.h"
//------------------------------common datatype---------------------------------
typedef unsigned char uint8_t;
typedef unsigned short uint16_t;
typedef unsigned long uint32_t;
#define u8 uint8_t
#define u16 uint16_t
#define u32 uint32_t
//------------------------------macros------------------------------------------
#define LCDCS PF_ODR_ODR0
#define LCDDIO PF_ODR_ODR3
#define LCDCLK PF_ODR_ODR4
#define LCDPSB PF_ODR_ODR5
//------------------------------function declare--------------------------------
void delay(u8 count);
void GPIO_init(void);
void LCD_write(u8 data,u8 cmd_flag);
void LCD_init(void);
void LCD_pic(u8 *pic);
void LCD_send_byte(u8 byte);
//------------- -----------------global------------------------------------------
u8 dis[]={0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x0F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x03,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x0F,0xFC,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x3F,0xF8,0x7F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0xFF,0xC3,0x0F,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x01,0xFF,0xC7,0x8F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xFE,0x3F,0xF1,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xFC,0x3F,0xF0,0xFF,0x80,0x03,0x00,0x00,0x00,0x30,0x60,0x00,0x00,0x00,0x00,
0x07,0xE3,0xFF,0xFF,0x1F,0x80,0x03,0x00,0x63,0xFC,0x30,0xE0,0x30,0xC4,0x08,0x60,
0x07,0xE3,0xFF,0xFF,0x8F,0x80,0xFF,0xFC,0x63,0x0C,0x30,0xC0,0xC6,0xFC,0x7C,0xF8,
0x07,0x8F,0xFC,0xFF,0xE7,0x80,0xC0,0x0C,0x63,0x0C,0xFD,0xFC,0xFF,0xC8,0xF8,0x5C,
0x07,0x8F,0xF0,0x3F,0xE7,0x80,0xC6,0x0D,0xFB,0x0C,0xCD,0x8C,0x02,0xCC,0x4F,0xE0,
0x07,0x8F,0xC0,0x0F,0xE7,0x80,0x06,0x00,0x5B,0xFC,0xCF,0x8C,0xFE,0xFC,0x0F,0xE0,
0x07,0x8F,0x80,0x07,0xE7,0x80,0x0E,0x00,0xDB,0x00,0xCD,0x0C,0xC6,0xC5,0xFF,0xFE,
0x07,0x8F,0xC0,0x0F,0xE7,0x81,0xFF,0xFE,0xDB,0x60,0xCC,0x8C,0xFE,0xDC,0xF0,0x1C,
0x07,0x8F,0xF0,0x3F,0xE7,0x80,0x18,0x70,0xDB,0x6C,0xFD,0xCC,0xC6,0xF8,0x7F,0xF8,
0x07,0x8F,0xFC,0xFF,0xE7,0x80,0x38,0x60,0xDB,0x7C,0xCC,0xCC,0xFE,0xC4,0x63,0x18,
0x07,0x8F,0xFF,0xFF,0xE7,0x80,0x3E,0xE0,0xF3,0x78,0xCC,0xEC,0xC6,0xCC,0x63,0x18,
0x07,0x8F,0xFF,0xFF,0xE7,0x80,0x0F,0xC0,0x3F,0x70,0xCC,0x6C,0xDE,0xFC,0x7F,0xF8,
0x07,0x8F,0xFF,0xFF,0xE7,0x80,0x07,0xC0,0x7E,0x64,0xCC,0x4C,0x4C,0x98,0x60,0x0E,
0x07,0x8F,0x3F,0xF3,0xE7,0x80,0x1E,0xF0,0xF6,0x66,0xCC,0x0C,0xCC,0xCC,0x60,0x0C,
0x01,0x8F,0x0F,0xC3,0xE6,0x00,0x7C,0x39,0xCE,0x6C,0xFC,0x0C,0xCC,0xCC,0x70,0x1C,
0x00,0x8F,0x03,0x03,0xE4,0x00,0xE0,0x0C,0x84,0x7C,0xCC,0xF8,0x80,0x04,0x3F,0xF8,
0x06,0x0F,0x00,0x03,0xE1,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0x0F,0x00,0x03,0xC3,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xE3,0x00,0x03,0x1F,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xF1,0x00,0x02,0x3F,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,
0x07,0xFE,0x00,0x01,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xFF,0x00,0x03,0xFF,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,
0x01,0xFF,0xC0,0x0F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x7F,0xE0,0x1F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x1F,0xF8,0x7F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x0F,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x3F,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x1F,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x07,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};
//------------------------------main--------------------------------------------
void main( void )
{
  CLK_CKDIVR=0X00;
  delay(100);
  GPIO_init();
  LCD_init();
  LCD_pic(dis);
}
//------------------------------functions---------------------------------------
void delay(u8 count)
{
  u8 i,j;
  while (count--)
  {
    for(i=0;i<50;i++)
      for(j=0;j<20;j++);
  }
}
void GPIO_init(void)
{
  //LCD CS DIO CLK PSB
  PF_DDR |=0X39;
  PF_CR1 |=0X39;
  PF_CR2 &=0XC6;
  PF_ODR &=0XC6;

  LCDPSB=0;
  LCDCS=1;
}
void LCD_write(u8 data,u8 cmd_flag)
{
  if(cmd_flag)
    LCD_send_byte(0XFA);
  else
    LCD_send_byte(0XF8);
  LCD_send_byte(data & 0XF0);
  LCD_send_byte((data<<4) & 0XF0);
}
void LCD_init(void)
{
  LCD_write(0X0C,0);
  delay(1);
  LCD_write(0X34,0);
  delay(1);
  LCD_write(0X01,0);
  delay(1);
}
void LCD_pic(u8 *pic)
{
  u8 i,j,k;
  LCD_write(0X34,0);delay(10);
  for ( i = 0; i <2; i++)
  {
    for ( j = 0; j <32; j++)
    {
      LCD_write(0X80+j,0);
      LCD_write(0X80+8*i,0);
      for ( k = 0; k <16; k++)
      {
        LCD_write(*pic++,1);
      }
    }
  }
  LCD_write(0X36,0);delay(10);
  LCD_write(0X30,0);delay(10);
}
void LCD_send_byte(u8 byte)
{
  for (u8 i = 0; i < 8; i++)
  {
    LCDCLK=0;
    if ((byte<<i) & 0X80)
      LCDDIO=1;
    else
      LCDDIO=0;
    LCDCLK=1;
  }
}

avatar
文章
阅读
粉丝
