redis事件监听的应用场景与案例实战

7,427 阅读10分钟

什么是事件监听

在使用Redis的过程中,我们对Redis做的每一个操作,下发的每一个命令, 都可以认为是事件的存在。所谓事件监听,就是Redis Server会对客户端下发命令进行一个监控, 一但有人对Redis Server做操作, Redis Server都能知道,并通过某种方式将监听到的事件转发到对应的订阅者。

应用场景

需求一:

一个电商商家后台,商家可以设置多个商品的价格并指定价格的生效时间。后台服务需要生效时间到时对所有已经上架的商品进行价格修改。并在价格修改成功后通知所有关注该商品的买家客户。

注意: 假设该平台拥有1w商家,平均每个商家设置了100个商品,也就是你要保证200w件商品价格修改的实时通知性。

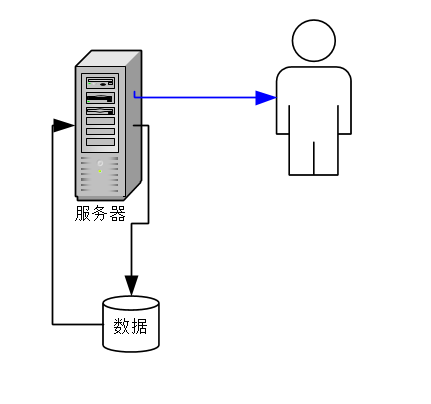

解决方案一: 每个商品都有一份表去记录所有的新价格和生效时间,由定时任务job去轮询表中的数据,如果符合当前时间则取出并执行接下来的业务逻辑。

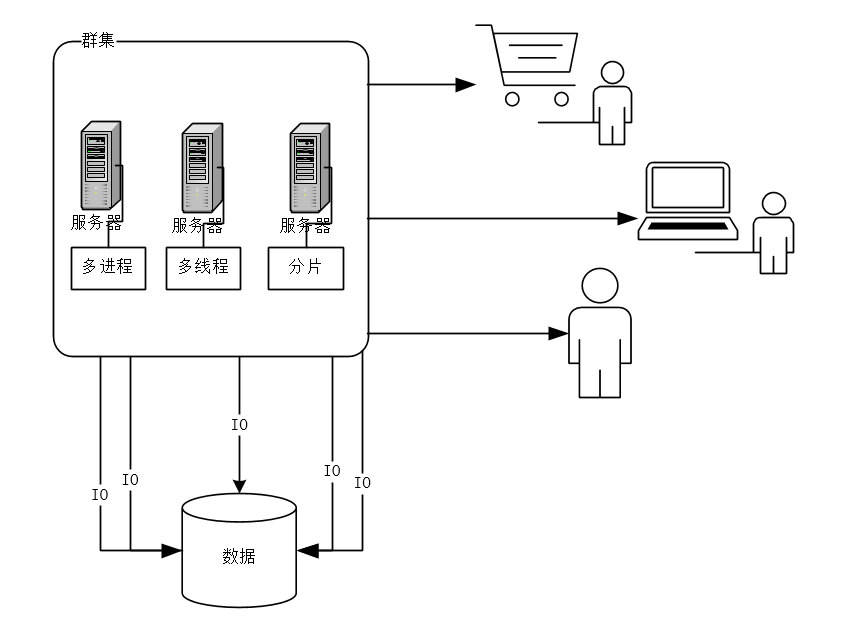

解决方案二: 每个商品都有一份表去记录所有的新价格和生效时间,由多个分布式job去轮询表中的数据,为了减轻job服务实例的压力,设置每2秒执行一次(定时任务不建议设置每秒)。在这基础上其实还有优化的空间,可以在设置分布式job分片处理逻辑。对于每一个job实例,还可以在其内部开启异步线程并行处理。

从上述的描述中我们可以发现,用户量还是比较大,其实实时性要求比较高,所以如果我们把数据落库,然后每次定时的时候从数据库里面去取然后做逻辑的判断,这样肯定是无法达到实时性的要求的,所以有一种方案是采用redis来管理这批数据。但是也有两个个问题

  1. 当这批数据过期的时候,要提醒用户
  2. 从redis删除后,要修改数据库的状态。

要解决这个功能就需要使用到redis的一个高级的功能:redis 键空间通知(供Keyspace Notifications功能)其允许客户Publish / Subscribe ,以便以某种方式接收影响Redis数据集的事件。

需求二:

同样是电商平台,商家可以设置商品的预售时间, 当预售时间到达时,修改商品状态,并上架商品。该需求和需求一类似,都是以时间或者秒作为计算依据,每个商品都是独立的,它们的时间属性都不会一样,所以是没有规律性的。

需求三:

订单超时30分钟自动关闭。(不管多少订单,都是固定的时间间隔30分钟,有规律)
这个问题解决的方案就有多种了,我们可以通过MQ来进行,现在大多的MQ都带有死信队列的机制,我们可以通过这个机制来完成,其次也可以通过quartz的轮询方式的完成,选择合适解决方案应对当前的需求即可。当然本次主要是解决第一个需求,所以只谈如何使用redis来解决。

需求四:

  • 监控key的操作(set、del、expire……)
  • 监听key的过期,自动触发事件

如何使用Keyspace Notifications

由于Keyspace Notifications是在Redis 2.8.0之后的版本才提供的功能,所以我们的Redis版本需要再2.8.0之上,否则无法使用Redis时间监听,在笔者写这篇文章之时,Redis的最新正式版本已经为5.0

修改Redis配置,开启Keyspace Notifications的两种方式

  • 命令修改

CONFIG set notify-keyspace-events AKEx

  • 配置文件修改
    修改配置文件redis.conf, notify-keyspace-events AKEx,重新启动Redis

参数说明

1)notify-keyspace-events选项的参数为空字符串时,表示功能关闭,当参数不是空字符串时,表示功能开启
2)notify-keyspace-events默功能是关闭的
3)如果要使用此功能,必须字符串包含 K 或者 E,否则收不到任何事件消息
4)如果参数为“AKE”,意味着接收所有事件消息
notify-keyspace-events 的参数可以是以下字符的任意组合, 它指定了服务器该发送哪些类型的通知:

字符 发送的通知
K 键空间通知,所有通知以 keyspace@ 为前缀
E 键事件通知,所有通知以 keyevent@ 为前缀
g DEL 、 EXPIRE 、 RENAME 等类型无关的通用命令的通知
字符串命令的通知
l 列表命令的通知
s 集合命令的通知
h 哈希命令的通知
z 有序集合命令的通知
x 过期事件:每当有过期键被删除时发送
e 驱逐(evict)事件:每当有键因为 maxmemory 政策而被删除时发送
A 参数 glshzxe 的别名

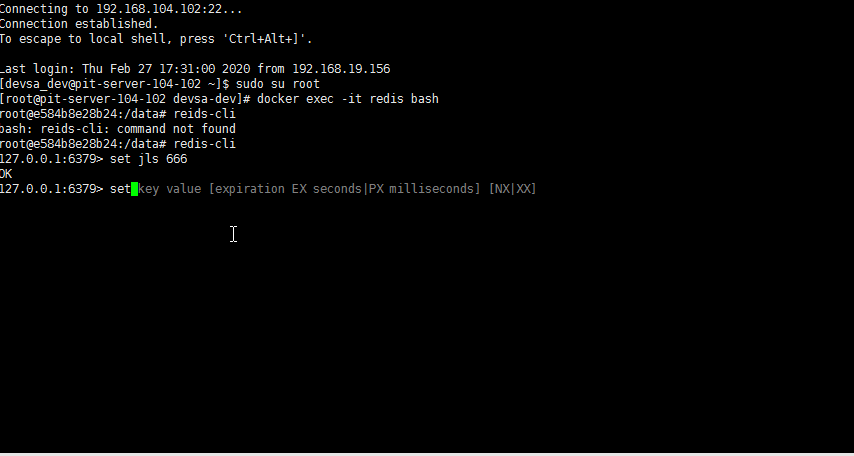

实例演示

同时监听 set、get、del 、 expire 操作

注意:get 操作监听不到消息,set,del ,expire 如果操作成功可以监听到消息,如果操作失败也监听不到消息.

更多命令参考

# 以keyevent订阅库0上的set、get、del、expire多个事件
subscribe __keyevent@0__:set __keyevent@0__:get __keyevent@0__:del __keyevent@0__:expire
# 以keyspace订阅库0上关于key为mykey的所有事件
subscribe __keyspace@0__:mykey

模式匹配则使用psubscribe

# 以keyspace订阅库0上关于key为mykey:*的所有事件
psubscribe __keyspace@0__:mykey:*
# 以keyevent、keyspace订阅所有库上的所有事件
psubscribe __key*@*__:*

程序实战

使用技术Spring Boot + RedisTemplate

  • Redis监听类 RedisExpiredListener
import org.springframework.data.redis.connection.Message;
import org.springframework.data.redis.connection.MessageListener;
import org.springframework.stereotype.Component;

@Component
public class RedisExpiredListener implements MessageListener {
    public final static String LISTENER_PATTERN = "__key*@*__:*";

    @Override
    public void onMessage(Message message, byte[] bytes) {
        // 建议使用: valueSerializer
        String body = new String(message.getBody());
        String channel = new String(message.getChannel());
        System.out.println("onMessage >> " + String.format("channel: %s, body: %s, bytes: %s"
                , channel, body, new String(bytes)));

        if (body.startsWith("product:")) {
            final String productId = body.replace("product:""");
            System.out.println("得到产品id:" + productId);
        }
    }

}
  • 启动类 RedisExpiredApplication
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Primary;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.listener.PatternTopic;
import org.springframework.data.redis.listener.RedisMessageListenerContainer;
import org.springframework.data.redis.listener.Topic;
import org.springframework.data.redis.serializer.RedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;

import java.util.concurrent.Executor;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;

@SpringBootApplication
public class RedisExpiredApplication implements CommandLineRunner {
    @Autowired
    private RedisTemplate redisTemplate;

    public static void main(String[] args) {
        SpringApplication.run(RedisExpiredApplication.class, args);
    }

    @Bean
    @Primary
    public RedisTemplate redisTemplate() {
        RedisSerializer<String> stringSerializer = new StringRedisSerializer();
        redisTemplate.setKeySerializer(stringSerializer);
        redisTemplate.setValueSerializer(stringSerializer);
        redisTemplate.setHashKeySerializer(stringSerializer);
        redisTemplate.setHashValueSerializer(stringSerializer);
        return redisTemplate;
    }

    @Bean
    public RedisMessageListenerContainer listenerContainer(RedisConnectionFactory redisConnection, Executor executor) {
        RedisMessageListenerContainer container = new RedisMessageListenerContainer();
        // 设置Redis的连接工厂
        container.setConnectionFactory(redisConnection);
        // 设置监听使用的线程池
        container.setTaskExecutor(executor);
        // 设置监听的Topic: PatternTopic/ChannelTopic
        Topic topic = new PatternTopic(RedisExpiredListener.LISTENER_PATTERN);
        // 设置监听器
        container.addMessageListener(new RedisExpiredListener(), topic);
        return container;
    }

    @Bean
    public Executor executor() {
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        executor.setCorePoolSize(10);
        executor.setMaxPoolSize(20);
        executor.setQueueCapacity(100);
        executor.setKeepAliveSeconds(60);
        executor.setThreadNamePrefix("V-Thread");

        // rejection-policy:当pool已经达到max size的时候,如何处理新任务
        // CALLER_RUNS:不在新线程中执行任务,而是由调用者所在的线程来执行
        executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
        executor.initialize();
        return executor;
    }

    @Override
    public void run(String... strings) throws Exception {
        redisTemplate.opsForValue().set("orderId:123""过期了是取不到的"5, TimeUnit.SECONDS);
        System.out.println("初始化设置 key 过期时间 5s");
        System.out.println("main 线程休眠10秒");
        Thread.sleep(10 * 1000);
        System.out.println("main 线程休眠结束:获取key orderId结果为:" + redisTemplate.opsForValue().get("orderId:123"));
    }
  • 配置文件:application.properties
spring.redis.database=0
spring.redis.host=192.168.104.102
spring.redis.port=6378
spring.redis.pool.max-idle=8
spring.redis.pool.min-idle=0
spring.redis.pool.max-active=8
spring.redis.pool.max-wait=-1

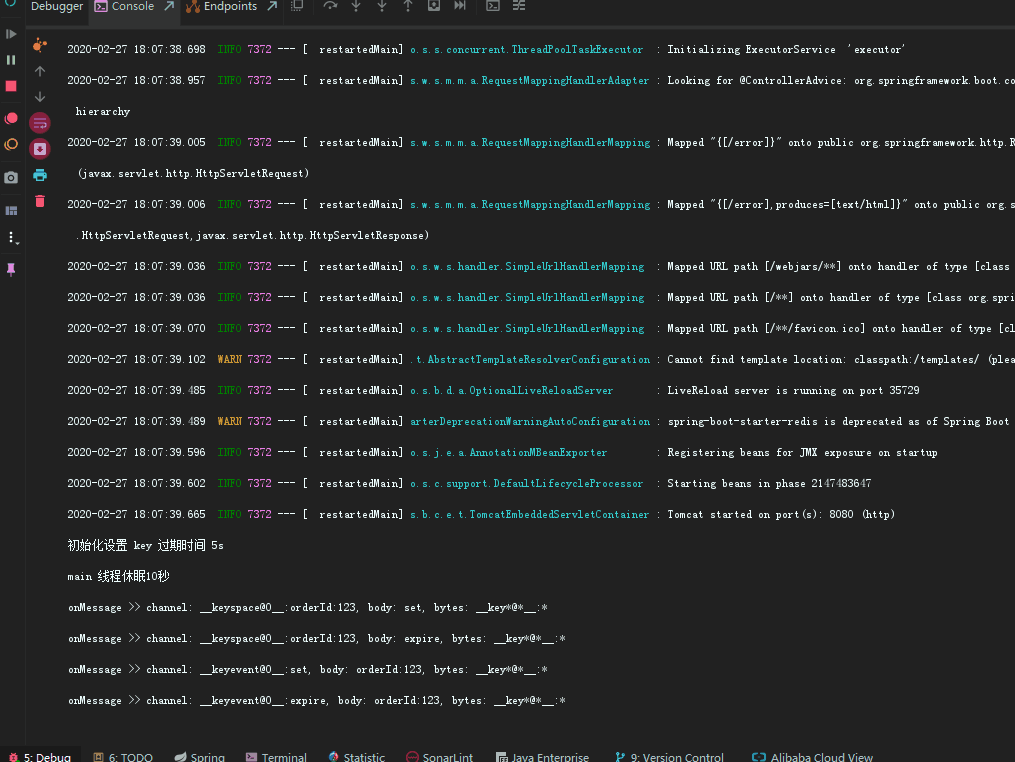

效果展示:

因为redis key 过期之后,其中的value是无法获取到的, 所以在设计key的时候就包含了业务主键id在其中,以此来解决value消失无法处理业务逻辑的情况。到这里,就可以根据具体到期时间执行具体逻辑了。

Redis过期命令设置

# Redis Expire 命令用于设置 key 的过期时间。key 过期后将不再可用。
Expire KEY_NAME TIME_IN_SECONDS
# Redis Expireat 命令用于以 UNIX 时间戳(unix timestamp)格式设置 key 的过期时间。key 过期后将不再可用。
Expireat KEY_NAME TIME_IN_UNIX_TIMESTAMP
# Redis PEXPIREAT 命令用于设置 key 的过期时间,已毫秒计。key 过期后将不再可用。
PEXPIREAT KEY_NAME TIME_IN_MILLISECONDS_IN_UNIX_TIMESTAMP

注意事项

因为 Redis 目前的订阅与发布功能采取的是 发送即忘(fire and forget) 策略, 所以如果你的程序需要可靠事件通知(reliable notification of events), 那么目前的键空间通知可能并不适合你:当订阅事件的客户端(服务实例)断线时, 它会丢失所有在断线期间分发给它的事件。并不能确保消息送达。未来有计划允许更可靠的事件传递,但可能这将在更基础的层面上解决,或者为Pub / Sub本身带来可靠性,或者允许Lua脚本拦截Pub / Sub消息来执行诸如推送将事件列入清单。
