Flutter BLoC 实践优势在于性能, 使用 InheritedWidget 组件, 通过调用时间复杂度为 O(1

转自连接: www.didierboelens.com/2018/12/rea…
原文作者: Didier Boelens
原文作者更多Flutter文章: www.didierboelens.com/
github:github.com/boeledi/blo…

1.BlocProvider

import 'package:flutter/material.dart';

/// 删除BlocBuilder, BlocDisposer
abstract class BlocBase {
  void dispose();
}

// 定义泛型 BlocProvider, 继承 StatefulWidget, 参数继承 BlocBase
class BlocProvider<T extends BlocBase> extends StatefulWidget {
  // 构造函数, child 和 bloc 为必要参数
  BlocProvider({
    Key key,
    @required this.child,
    @required this.bloc,
  }): super(key: key);

  /// 定义属性
  final Widget child;
  final T bloc;

  @override
  _BlocProviderState<T> createState() => _BlocProviderState<T>();

  /// 静态方法, 返回泛型 _BlocProviderInherited
  static T of<T extends BlocBase>(BuildContext context){
    _BlocProviderInherited<T> provider = context.getElementForInheritedWidgetOfExactType<_BlocProviderInherited<T>>()?.widget;

    return provider?.bloc;
  }
}

// BlocProvider 对应的 泛型 state
class _BlocProviderState<T extends BlocBase> extends State<BlocProvider<T>>{
  @override
  void dispose(){
    widget.bloc?.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context){
    /// 通过bloc 及 child 实例化 _BlocProviderInherited泛型
    return new _BlocProviderInherited<T>(
      bloc: widget.bloc,
      child: widget.child,
    );
  }
}

/// 定义继承自InheritedWidget 的 _BlocProviderInherited泛型
class _BlocProviderInherited<T> extends InheritedWidget {
  // 构造函数: 必要参数为 bloc 及 child
  _BlocProviderInherited({
    Key key,
    @required Widget child,
    @required this.bloc,
  }) : super(key: key, child: child);

  final T bloc;

  @override
  bool updateShouldNotify(_BlocProviderInherited oldWidget) => false;
}

API

getElementForInheritedWidgetOfExactType

updateShouldNotify

why

优势在于性能, 使用 InheritedWidget 组件, 通过调用时间复杂度为 O(1) 的 context.getElementForInheritedWidgetOfExactType() 方法, 即刻获取到对应组件.

2.BLoC 初始化

2.1. 应用内全局使用

2.1.1. 最顶层

示例代码

void main() => runApp(Application());

class Application extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return BlocProvider<AuthenticationBloc>(
      blocBuilder: () => AuthenticationBloc(),
      blocDispose: (AuthenticationBloc bloc) => bloc?.dispose(),
      child: MaterialApp(
        title: 'BLoC Samples',
        theme: ThemeData(
          primarySwatch: Colors.blue,
        ),
        home: InitializationPage(),
      ),
    );
  }
}

2.2. 应用内部分组件使用

2.2.1. 子组件树顶层

示例代码

class MyTree extends StatelessWidget {
  @override
  Widget build(BuildContext context){
    return BlocProvider<MyBloc>(
      blocBuilder: () => MyBloc(),
      child: Column(
        children: <Widget>[
          MyChildWidget(),
        ],
      ),
    );
  }
}

class MyChildWidget extends StatelessWidget {
  @override
  Widget build(BuildContext context){
    MyBloc = BlocProvider.of<MyBloc>(context);
    return Container();
  }
}

2.3. 单一组件使用

2.3.1. 组件内初始化

3. 事件状态

3.1. BlocEventState

3.1.1. 此BLoC设计初衷

接收事件作为输入
事件触发时, 调用对用的 eventHandler
eventHandler 负责基于事件作出对应的行为并反馈相应的状态

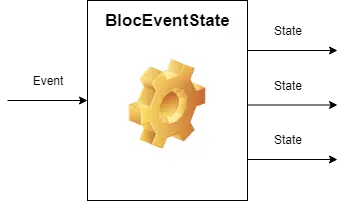

展示

代码段 2

BlocBase

// 分别定义BLoC 事件 状态 抽象类 暂时用不上, 后面会用到
abstract class BlocEvent extends Object {}
abstract class BlocState extends Object {}
// 定义 AsyncBlocStateBuilder签名, 用作 StreamBuilder 的实际代理
typedef Widget AsyncBlocStateBuilder<State>(BuildContext context, State state);

// 定义泛型 BLoC时间状态基本抽象类, 实现 BlocBase 接口
// 主要负责定义 eventHandler 处理过程
abstract class BlocEventStateBase<Event, State> implements BlocBase {
  // 初始化 事件/状态 控制器
  PublishSubject<Event> _eventController = PublishSubject<Event>();
  BehaviorSubject<State> _stateController = BehaviorSubject<State>();

  /// 事件触发器, 接收()事件
  Function(Event) get emitEvent => _eventController.sink.add;

  /// 当前状态, 监听事件 并 响应 对应 结果 状态
  Stream<State> get state => _stateController.stream;

  /// 上一状态
  State get lastState => _stateController.value;

  /// 事件处理器
  Stream<State> eventHandler(Event event, State currentState);

  /// 初始化状态
  final State initialState;

  // 构造器, 唯一 且 必要 参数: 初始化状态
  BlocEventStateBase({
    @required this.initialState,
  }){
    // 为事件控制器添加监听
    // 获取当前状态
    // 对于 每一个接收到的事件, 调用 eventHandler 处理 并释放最新的状态
    _eventController.listen((Event event){
      State currentState = lastState ?? initialState;
      eventHandler(event, currentState).forEach((State newState){
        _stateController.sink.add(newState);
      });
    });
  }

  @override
  void dispose() {
    _eventController.close();
    _stateController.close();
  }
}

API

AsyncWidgetBuilder
PublishSubject
BehaviorSubject
Exploring RxJava in Android — Different types of Subjects

注解

It exposes:

a Sink (emitEvent) to push an Event;
a Stream (state) to listen to emitted State(s).

At initialization time (see Constructor):

an initialState needs to be provided;
it creates a StreamSubscription to listen to incoming Events to dispatch them to the eventHandler to emit resulting state(s).

3.2. Specialized BlocEventState

代码段 3

class TemplateEventStateBloc extends BlocEventStateBase<BlocEvent, BlocState> {
  TemplateEventStateBloc()
      : super(
          initialState: BlocState.notInitialized(),
        );

  @override
  Stream<BlocState> eventHandler( BlocEvent event, BlocState currentState) async* {
     yield BlocState.notInitialized();
  }
}

API

generators

3.3. BlocEvent and BlocState

代码

BlocEvent and BlocState

3.4. BlocEventStateBuilder Widget

代码段 4

AsyncBlocStateBuilder


import 'package:blocs/bloc_helpers/bloc_event_state.dart';
import 'package:flutter/material.dart';

/// This Widget is nothing else but a specialized StreamBuilder,
/// which will invoke the builder input argument
/// each time a new BlocState will be emitted.
class BlocEventStateBuilder<State> extends StatelessWidget {
  const BlocEventStateBuilder({
    Key key,
    @required this.builder,
    @required this.bloc,
  }): assert(builder != null),
      assert(bloc != null),
      super(key: key);

  final BlocEventStateBase<BlocEvent,State> bloc;
  /// 参数为 对应 State 的 builder 泛型
  final AsyncBlocStateBuilder<State> builder;

  @override
  Widget build(BuildContext context){
    return StreamBuilder<State>(
      stream: bloc.state,
      initialData: bloc.initialState,
      builder: (BuildContext context, AsyncSnapshot<State> snapshot){
        return builder(context, snapshot.data);
      },
    );
  }
}

3.5. 示例 1: 应用初始化

3.5.1. ApplicationInitializationEvent

代码段 5

/// 应用初始化事件 继承 BlocEvent
class ApplicationInitializationEvent extends BlocEvent {

  /// 唯一属性 应用初始化类型
  final ApplicationInitializationEventType type;

  /// 构造方法: 初始化方法 默认 类型 为 start
  ApplicationInitializationEvent({
    this.type: ApplicationInitializationEventType.start,
  }) : assert(type != null);
}

/// 应用初始化类型 枚举
enum ApplicationInitializationEventType {
  start, /// 触发 初始化 进程
  stop, /// 停止 初始化
}

3.5.2. ApplicationInitializationState

代码段 6

/// 应用初始化状态
class ApplicationInitializationState extends BlocState {
  /// 构造函数
  ApplicationInitializationState({
    @required this.isInitialized,
    this.isInitializing: false,
    this.progress: 0,
  });

  /// 是否初始化完成标志
  final bool isInitialized;
  /// 是否初始化过程中标志
  final bool isInitializing;
  /// 初始化完成率
  final int progress;

  /// 三个工厂命名构造函数
  /// 未初始化
  factory ApplicationInitializationState.notInitialized() {
    return ApplicationInitializationState(
      isInitialized: false,
    );
  }

  /// 初始化进行中
  factory ApplicationInitializationState.progressing(int progress) {
    return ApplicationInitializationState(
      isInitialized: progress == 100,
      isInitializing: true,
      progress: progress,
    );
  }

  /// 初始化完成
  factory ApplicationInitializationState.initialized() {
    return ApplicationInitializationState(
      isInitialized: true,
      progress: 100,
    );
  }
}

API

dart constructors

3.5.3. ApplicationInitializationBloc

基于事件处理初始化进程

代码段 7

BlocEventStateBase
ApplicationInitializationEvent
ApplicationInitializationState

/// 应用初始化BLoC, 基于 ApplicationInitializationEvent,
/// ApplicationInitializationState 继承自 BlocEventStateBase
class ApplicationInitializationBloc
    extends BlocEventStateBase<ApplicationInitializationEvent, ApplicationInitializationState> {

  /// 构造函数, 初始化状态 为 应用初始化 的 未初始化状态
  ApplicationInitializationBloc()
      : super(
          initialState: ApplicationInitializationState.notInitialized(),
        );

  /// 事件处理器
  @override
  Stream<ApplicationInitializationState> eventHandler(
      ApplicationInitializationEvent event, ApplicationInitializationState currentState) async* {

    /// 当前状态 未 初始化完成, 响应未初始化完成状态
    if (!currentState.isInitialized){
      yield ApplicationInitializationState.notInitialized();
    }

    /// 启动事件, 自定义响应 进行中 状态
    if (event.type == ApplicationInitializationEventType.start) {
      for (int progress = 0; progress < 101; progress += 10){
        await Future.delayed(const Duration(milliseconds: 300));
        yield ApplicationInitializationState.progressing(progress);
      }
    }

    /// 停止事件, 响应 完成状态
    if (event.type == ApplicationInitializationEventType.stop){
      yield ApplicationInitializationState.initialized();
    }
  }
}

3.5.4. 整合

代码段 8

ApplicationInitializationBloc
BlocEventStateBuilder
ApplicationInitializationEvent
ApplicationInitializationState

/// 初始化页面
class InitializationPage extends StatefulWidget {
  @override
  _InitializationPageState createState() => _InitializationPageState();
}

class _InitializationPageState extends State<InitializationPage> {
  /// 定义 对应 BLoC
  ApplicationInitializationBloc bloc;

  @override
  void initState(){
    super.initState();
    /// 初始化bloc
    bloc = ApplicationInitializationBloc();
    /// 触发 应用启动事件
    bloc.emitEvent(ApplicationInitializationEvent());
  }

  @override
  void dispose(){
    bloc?.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext pageContext) {
    return SafeArea(
      child: Scaffold(
        body: Container(
          child: Center(
            child: BlocEventStateBuilder<ApplicationInitializationState>(
              bloc: bloc,
              builder: (BuildContext context, ApplicationInitializationState state){
                if (state.isInitialized){
                  /// 初始化完成, 跳转到其他页面
                  WidgetsBinding.instance.addPostFrameCallback((_){
                    Navigator.of(context).pushReplacementNamed('/home');
                  });
                }
                return Text('Initialization in progress... ${state.progress}%');
              },
            ),
          ),
        ),
      ),
    );
  }
}

API

addPostFrameCallback
pushReplacementNamed

3.6. 示例 2: 认证及注销

展示

3.6.1. AuthenticationEvent

代码段 9

/// 认证事件抽象类, 继承自 BlocEvent
abstract class AuthenticationEvent extends BlocEvent {
  /// 唯一属性, 事件名称
  final String name;
  AuthenticationEvent({
    this.name: '',
  });
}

/// 登录事件
class AuthenticationEventLogin extends AuthenticationEvent {
  AuthenticationEventLogin({
    String name,
  }) : super(
          name: name,
        );
}

/// 注销事件
class AuthenticationEventLogout extends AuthenticationEvent {}

3.6.2. AuthenticationState

代码段 10

BlocState

/// 认证状态 继承自 BlocState
class AuthenticationState extends BlocState {
  /// 构造函数 必要参数 isAuthenticated
  AuthenticationState({
    @required this.isAuthenticated,
    this.isAuthenticating: false,
    this.hasFailed: false,
    this.name: '',
  });

  /// 是否认证完成标志
  final bool isAuthenticated;
  /// 是否认证流程中标志
  final bool isAuthenticating;
  /// 是否认证失败标志
  final bool hasFailed;
  /// 用户名称
  final String name;

  /// 四个工厂命名构造函数
  /// 未认证完成
  factory AuthenticationState.notAuthenticated() {
    return AuthenticationState(
      isAuthenticated: false,
    );
  }

  /// 认证完成
  factory AuthenticationState.authenticated(String name) {
    return AuthenticationState(
      isAuthenticated: true,
      name: name,
    );
  }

  /// 认证流程中
  factory AuthenticationState.authenticating() {
    return AuthenticationState(
      isAuthenticated: false,
      isAuthenticating: true,
    );
  }

  /// 认证失败
  factory AuthenticationState.failure() {
    return AuthenticationState(
      isAuthenticated: false,
      hasFailed: true,
    );
  }
}

3.5.3. AuthenticationBloc

基于事件处理认证流程

代码段 11

BlocEventStateBase AuthenticationEvent AuthenticationState


class AuthenticationBloc
    extends BlocEventStateBase<AuthenticationEvent, AuthenticationState> {
  /// 构造函数 初始化状态为 未认证完成
  AuthenticationBloc()
      : super(
          initialState: AuthenticationState.notAuthenticated(),
        );

  @override
  Stream<AuthenticationState> eventHandler(
      AuthenticationEvent event, AuthenticationState currentState) async* {
    /// 登陆事件处理
    if (event is AuthenticationEventLogin) {
      // 确定我们在认证流程中
      yield AuthenticationState.authenticating();

      // 模拟后台处理流程
      await Future.delayed(const Duration(seconds: 2));

      // 通知我们认证完成 或 失败
      if (event.name == "failure"){
        yield AuthenticationState.failure();
      } else {
        yield AuthenticationState.authenticated(event.name);
      }
    }
    /// 注销事件处理
    if (event is AuthenticationEventLogout){
      yield AuthenticationState.notAuthenticated();
    }
  }
}

3.5.4. AuthenticationPage

代码段 12

AuthenticationBloc
BlocEventStateBuilder
AuthenticationState

/// 登录页面
class AuthenticationPage extends StatelessWidget {
  /// 禁用"返回"按钮
  Future<bool> _onWillPopScope() async {
    return false;
  }

  @override
  Widget build(BuildContext context) {
    AuthenticationBloc bloc = BlocProvider.of<AuthenticationBloc>(context);
    return WillPopScope(
      onWillPop: _onWillPopScope,
      child: SafeArea(
        child: Scaffold(
          appBar: AppBar(
            title: Text('Authentication Page'),
            leading: Container(),
          ),
          body: Container(
            child:
                BlocEventStateBuilder<AuthenticationState>(
              bloc: bloc,
              builder: (BuildContext context, AuthenticationState state) {
                /// 认证中
                if (state.isAuthenticating) {
                  return PendingAction();
                }
                /// 认证完成
                if (state.isAuthenticated){
                  return Container();
                }

                List<Widget> children = <Widget>[];

                // 模拟认证成功
                children.add(
                  ListTile(
                      title: RaisedButton(
                        child: Text('Log in (success)'),
                        onPressed: () {
                            /// 触发认证成功事件
                            bloc.emitEvent(AuthenticationEventLogin(name: 'Didier'));
                        },
                      ),
                    ),
                );

                // 模拟认证失败
                children.add(
                  ListTile(
                      title: RaisedButton(
                        child: Text('Log in (failure)'),
                        onPressed: () {
                            /// 触发认证失败事件
                            bloc.emitEvent(AuthenticationEventLogin(name: 'failure'));
                        },
                      ),
                    ),
                );

                // 展示认证失败提示信息
                if (state.hasFailed){
                  children.add(
                    Text('Authentication failure!'),
                  );
                }

                return Column(
                  children: children,
                );
              },
            ),
          ),
        ),
      ),
    );
  }
}

API

WillPopScope
onWillPop

3.5.5. DecisionPage

代码段 13

AuthenticationState AuthenticationBloc

/// 判定page
class DecisionPage extends StatefulWidget {
  @override
  DecisionPageState createState() => DecisionPageState();
}

class DecisionPageState extends State<DecisionPage> {
  /// 旧的认证状态
  AuthenticationState oldAuthenticationState;

  @override
  Widget build(BuildContext context) {
    AuthenticationBloc bloc = BlocProvider.of<AuthenticationBloc>(context);
    return BlocEventStateBuilder<AuthenticationState>(
      bloc: bloc,
      builder: (BuildContext context, AuthenticationState state) {
        /// 认证状态变化
        if (state != oldAuthenticationState){
          oldAuthenticationState = state;
          /// 认证成功, 跳转到主页
          if (state.isAuthenticated){
            _redirectToPage(context, HomePage());
          } else if (state.isAuthenticating || state.hasFailed){
          /// 认证失败或 认证中, 什么也不做
          } else {
            /// 未认证, 跳转到认证页
            _redirectToPage(context, AuthenticationPage());
          }
        }
        // This page does not need to display anything since it will
        // always remind behind any active page (and thus 'hidden').
        return Container();
      }
    );
  }

  /// 重定向路由
  void _redirectToPage(BuildContext context, Widget page){
    WidgetsBinding.instance.addPostFrameCallback((_){
      MaterialPageRoute newRoute = MaterialPageRoute(
          builder: (BuildContext context) => page
        );

      Navigator.of(context).pushAndRemoveUntil(newRoute, ModalRoute.withName('/decision'));
    });
  }
}

addPostFrameCallback
pushAndRemoveUntil

3.5.6. 注销

代码段 14


class LogOutButton extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    AuthenticationBloc bloc = BlocProvider.of<AuthenticationBloc>(context);
    return IconButton(
      icon: Icon(Icons.exit_to_app),
      onPressed: () {
        bloc.emitEvent(AuthenticationEventLogout());
      },
    );
  }
}

3.5.7. AuthenticationBloc

代码段 15

AuthenticationBloc

void main() => runApp(Application());

class Application extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return BlocProvider<AuthenticationBloc>(
      blocBuilder: () => AuthenticationBloc(),
      child: MaterialApp(
        title: 'BLoC Samples',
        theme: ThemeData(
          primarySwatch: Colors.blue,
        ),
        home: DecisionPage(),
      ),
    );
  }
}

4. 表单验证

4.1. The RegistrationFormBloc

代码段 16

/// 注册表单bloc, 使用 邮箱密码验证代码, 并继承自 BlocBase
class RegistrationFormBloc extends Object with EmailValidator, PasswordValidator implements BlocBase {

  /// 为三个输入项分别定义控制器
  final BehaviorSubject<String> _emailController = BehaviorSubject<String>();
  final BehaviorSubject<String> _passwordController = BehaviorSubject<String>();
  final BehaviorSubject<String> _passwordConfirmController = BehaviorSubject<String>();

  /// 接收输入事件
  Function(String) get onEmailChanged => _emailController.sink.add;
  Function(String) get onPasswordChanged => _passwordController.sink.add;
  Function(String) get onRetypePasswordChanged => _passwordConfirmController.sink.add;


  /// 定义输入项的验证结果
  Stream<String> get email => _emailController.stream.transform(validateEmail);
  Stream<String> get password => _passwordController.stream.transform(validatePassword);
  Stream<String> get confirmPassword => _passwordConfirmController.stream.transform(validatePassword)
    .doOnData((String c){
      /// 确保两次密码输入一致, 不一致则返回错误
      if (0 != _passwordController.value.compareTo(c)){
        _passwordConfirmController.addError("No Match");
      }
    });

  // 注册按钮可用标志, 所有输入项都验证通过时, 按钮方可使用
  Stream<bool> get registerValid => CombineLatestStream.combine3(
                                      email,
                                      password,
                                      confirmPassword,
                                      (e, p, c) => true
                                    );

  @override
  void dispose() {
    _emailController?.close();
    _passwordController?.close();
    _passwordConfirmController?.close();
  }
}

API

CombineLatestStream

4.1.1. Validator Mixins

代码段 17


const String _kEmailRule = r"^[a-zA-Z0-9_.+-]+@[a-zA-Z0-9-]+\.[a-zA-Z0-9-.]+$";

class EmailValidator {
  final StreamTransformer<String,String> validateEmail =
      StreamTransformer<String,String>.fromHandlers(handleData: (email, sink){
        final RegExp emailExp = new RegExp(_kEmailRule);

        if (!emailExp.hasMatch(email) || email.isEmpty){
          sink.addError('Entre a valid email');
        } else {
          sink.add(email);
        }
      });
}

4.2. The RegistrationForm

代码段 18

BlocEventStateBuilder

/// 注册表单
class RegistrationForm extends StatefulWidget {
  @override
  _RegistrationFormState createState() => _RegistrationFormState();
}

class _RegistrationFormState extends State<RegistrationForm> {
  /// 定义三个 输入项保持器
  TextEditingController _emailController;
  TextEditingController _passwordController;
  TextEditingController _retypeController;
  /// 注册表单 及 注册 BLoC
  RegistrationFormBloc _registrationFormBloc;
  RegistrationBloc _registrationBloc;

  @override
  void initState() {
    super.initState();
    /// 初始化所有属性
    _emailController = TextEditingController();
    _passwordController = TextEditingController();
    _retypeController = TextEditingController();
    _registrationFormBloc = RegistrationFormBloc();
    _registrationBloc = RegistrationBloc();
  }

  @override
  void dispose() {
    _registrationBloc?.dispose();
    _registrationFormBloc?.dispose();
    _emailController?.dispose();
    _passwordController?.dispose();
    _retypeController?.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return BlocEventStateBuilder<RegistrationState>(
        bloc: _registrationBloc,
        builder: (BuildContext context, RegistrationState state) {
          if (state.isBusy) {
            return PendingAction();
          } else if (state.isSuccess) {
            return _buildSuccess();
          } else if (state.isFailure) {
            return _buildFailure();
          }
          return _buildForm();
        });
  }

  Widget _buildSuccess() {
    return Center(
      child: Text('Success'),
    );
  }

  Widget _buildFailure() {
    return Center(
      child: Text('Failure'),
    );
  }

  Widget _buildForm() {
    return Form(
      child: Column(
        children: <Widget>[
          StreamBuilder<String>(
              stream: _registrationFormBloc.email,
              builder: (BuildContext context, AsyncSnapshot<String> snapshot) {
                return TextField(
                  decoration: InputDecoration(
                    labelText: 'email',
                    errorText: snapshot.error,
                  ),
                  controller: _emailController,
                  onChanged: _registrationFormBloc.onEmailChanged,
                  keyboardType: TextInputType.emailAddress,
                );
              }),
          StreamBuilder<String>(
              stream: _registrationFormBloc.password,
              builder: (BuildContext context, AsyncSnapshot<String> snapshot) {
                return TextField(
                  decoration: InputDecoration(
                    labelText: 'password',
                    errorText: snapshot.error,
                  ),
                  controller: _passwordController,
                  obscureText: false,
                  onChanged: _registrationFormBloc.onPasswordChanged,
                );
              }),
          StreamBuilder<String>(
              stream: _registrationFormBloc.confirmPassword,
              builder: (BuildContext context, AsyncSnapshot<String> snapshot) {
                return TextField(
                  decoration: InputDecoration(
                    labelText: 'retype password',
                    errorText: snapshot.error,
                  ),
                  controller: _retypeController,
                  obscureText: false,
                  onChanged: _registrationFormBloc.onRetypePasswordChanged,
                );
              }),
          StreamBuilder<bool>(
              stream: _registrationFormBloc.registerValid,
              builder: (BuildContext context, AsyncSnapshot<bool> snapshot) {
                return RaisedButton(
                  child: Text('Register'),
                  /// 所有输入项验证成功, 注册按钮方可点击并触发注册事件
                  onPressed: (snapshot.hasData && snapshot.data == true)
                      ? () {
                          _registrationBloc.emitEvent(RegistrationEvent(
                              event: RegistrationEventType.working,
                              email: _emailController.text,
                              password: _passwordController.text));
                        }
                      : null,
                );
              }),
        ],
      ),
    );
  }
}

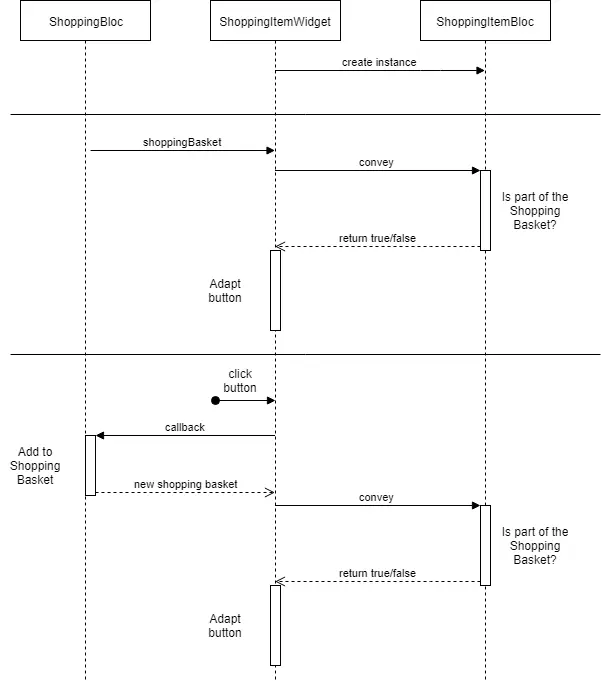

5. Part Of

5.1. ShoppingBloc

代码段 19

/// 购物Bloc, 继承自 BlocBase
class ShoppingBloc implements BlocBase {
  /// 购物车商品集合
  Set<ShoppingItem> _shoppingBasket = Set<ShoppingItem>();

  // 所有商品
  BehaviorSubject<List<ShoppingItem>> _itemsController = BehaviorSubject<List<ShoppingItem>>();
  Stream<List<ShoppingItem>> get items => _itemsController;

  /// 购物车 商品数量, 初始值为 0
  BehaviorSubject<int> _shoppingBasketSizeController = BehaviorSubject<int>.seeded(0);
  Stream<int> get shoppingBasketSize => _shoppingBasketSizeController;

  /// 购物车 总价, 初始值为 0.0
  BehaviorSubject<double> _shoppingBasketPriceController = BehaviorSubject<double>.seeded(0.0);
  Stream<double> get shoppingBasketTotalPrice => _shoppingBasketPriceController;

  /// 购物车 商品列表, 初始化 为空表
  BehaviorSubject<List<ShoppingItem>> _shoppingBasketController = BehaviorSubject<List<ShoppingItem>>.seeded(<ShoppingItem>[]);
  Stream<List<ShoppingItem>> get shoppingBasket => _shoppingBasketController;

  @override
  void dispose() {
    _itemsController?.close();
    _shoppingBasketSizeController?.close();
    _shoppingBasketController?.close();
    _shoppingBasketPriceController?.close();
  }

  // 构造器, 初始化 所有商品
  ShoppingBloc() {
    _loadShoppingItems();
  }

  /// 购物车新增删除 商品
  void addToShoppingBasket(ShoppingItem item){
    _shoppingBasket.add(item);
    _postActionOnBasket();
  }

  void removeFromShoppingBasket(ShoppingItem item){
    _shoppingBasket.remove(item);
    _postActionOnBasket();
  }

  /// 购物车 对应新增删除 操作
  /// 更新商品列表, 商品数量, 商品总价
  void _postActionOnBasket(){
    _shoppingBasketController.sink.add(_shoppingBasket.toList());
    _shoppingBasketSizeController.sink.add(_shoppingBasket.length);
    _computeShoppingBasketTotalPrice();
  }

  /// 计算商品总价
  void _computeShoppingBasketTotalPrice(){
    double total = 0.0;

    _shoppingBasket.forEach((ShoppingItem item){
      total += item.price;
    });

    _shoppingBasketPriceController.sink.add(total);
  }

  /// 加载 商品
  void _loadShoppingItems() {
    _itemsController.sink.add(List<ShoppingItem>.generate(50, (int index) {
      return ShoppingItem(
        id: index,
        title: "Item $index",
        price: ((Random().nextDouble() * 40.0 + 10.0) * 100.0).roundToDouble() /
            100.0,
        color: Color((Random().nextDouble() * 0xFFFFFF).toInt() << 0)
            .withOpacity(1.0),
      );
    }));
  }
}

5.2. ShoppingPage

代码段 20

/// 购物页面
class ShoppingPage extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    ShoppingBloc bloc = BlocProvider.of<ShoppingBloc>(context);

    return SafeArea(
        child: Scaffold(
      appBar: AppBar(
        title: Text('Shopping Page'),
        actions: <Widget>[
          ShoppingBasket(),
        ],
      ),
      body: Container(
        child: StreamBuilder<List<ShoppingItem>>(
          stream: bloc.items,
          builder: (BuildContext context,
              AsyncSnapshot<List<ShoppingItem>> snapshot) {
            if (!snapshot.hasData) {
              return Container();
            }
            return GridView.builder(
              gridDelegate: SliverGridDelegateWithFixedCrossAxisCount(
                crossAxisCount: 3,
                childAspectRatio: 1.0,
              ),
              itemCount: snapshot.data.length,
              itemBuilder: (BuildContext context, int index) {
                return ShoppingItemWidget(
                  shoppingItem: snapshot.data[index],
                );
              },
            );
          },
        ),
      ),
    ));
  }
}

5.3. ShoppingItemWidget and ShoppingItemBloc

The Part Of pattern relies on the combination of these 2 elements:

the ShoppingItemWidget is responsible for:
- displaying the item and
- the button to add or remove the item to/from the shopping basket
the ShoppingItemBloc is responsible for telling the ShoppingItemWidget whether the latter is part or not of the shopping basket.

5.3.1. ShoppingItemBloc

代码段 20

class ShoppingItemBloc implements BlocBase {
  /// 流控制器 判断 当前商品是否在购物车中
  BehaviorSubject<bool> _isInShoppingBasketController = BehaviorSubject<bool>();
  Stream<bool> get isInShoppingBasket => _isInShoppingBasketController;

  /// 流控制器 接收所有购物车商品
  PublishSubject<List<ShoppingItem>> _shoppingBasketController = PublishSubject<List<ShoppingItem>>();
  Function(List<ShoppingItem>) get shoppingBasket => _shoppingBasketController.sink.add;

  /// 构造函数, 包含一个 商品 属性, 作为 身份标识
  ShoppingItemBloc(ShoppingItem shoppingItem){
    /// 每次购物车发生变化,
    _shoppingBasketController.stream
                          /// 判断对应商品是否在购物车中
                          .map((list) => list.any((ShoppingItem item) => item.id == shoppingItem.id))
                          /// 如果在, 通知对应 商品组件
                          .listen((isInShoppingBasket)
                            => _isInShoppingBasketController.add(isInShoppingBasket));
  }

  @override
  void dispose() {
    _isInShoppingBasketController?.close();
    _shoppingBasketController?.close();
  }
}

5.3.2. ShoppingItemWidget

This Widget is responsible for:

creating an instance of the ShoppingItemBloc and passing its own identity to the BLoC

listening to any variation of the ShoppingBasket content and transferring it to the BLoC

listening to the ShoppingItemBloc to know whether it is part of the basket

displaying the corresponding button (add/remove) depending on its presence in the basket

responding to user action of the button

when the user clicks the add button, to add itself to the basket

when the user clicks the remove button, to remove itself from the basket.

代码段 21

/// 商品组件
class ShoppingItemWidget extends StatefulWidget {
  /// 构造函数, 必要参数 shoppingItem
  ShoppingItemWidget({
    Key key,
    @required this.shoppingItem,
  }) : super(key: key);

  final ShoppingItem shoppingItem;

  @override
  _ShoppingItemWidgetState createState() => _ShoppingItemWidgetState();
}

class _ShoppingItemWidgetState extends State<ShoppingItemWidget> {
  /// 分别定义 流订阅, 商品BLoC, 购物BLoC
  StreamSubscription _subscription;
  ShoppingItemBloc _bloc;
  ShoppingBloc _shoppingBloc;

  @override
  void didChangeDependencies() {
    super.didChangeDependencies();

    // As the context should not be used in the "initState()" method,
    // prefer using the "didChangeDependencies()" when you need
    // to refer to the context at initialization time
    _initBloc();
  }

  @override
  void didUpdateWidget(ShoppingItemWidget oldWidget) {
    super.didUpdateWidget(oldWidget);

    // as Flutter might decide to reorganize the Widgets tree
    // it is preferable to recreate the links
    _disposeBloc();
    _initBloc();
  }

  @override
  void dispose() {
    _disposeBloc();
    super.dispose();
  }

  /// 初始化相关BLoC
  void _initBloc() {
    /// 商品 BLoC
    _bloc = ShoppingItemBloc(widget.shoppingItem);

    /// 购物 BLoC
    _shoppingBloc = BlocProvider.of<ShoppingBloc>(context);

    //将 购物BLoC 中的购物车商品数据变化 转移到 商品 BLoC 中
    _subscription = _shoppingBloc.shoppingBasket.listen(_bloc.shoppingBasket);
  }

  void _disposeBloc() {
    _subscription?.cancel();
    _bloc?.dispose();
  }

  /// 通过判断此商品是否在购物车中, 显示 "ADD"/"REBOVE" 按钮
  Widget _buildButton() {
    return StreamBuilder<bool>(
      stream: _bloc.isInShoppingBasket,
      initialData: false,
      builder: (BuildContext context, AsyncSnapshot<bool> snapshot) {
        return snapshot.data
            ? _buildRemoveFromShoppingBasket()
            : _buildAddToShoppingBasket();
      },
    );
  }

  Widget _buildAddToShoppingBasket(){
    return RaisedButton(
      child: Text('Add...'),
      onPressed: (){
        _shoppingBloc.addToShoppingBasket(widget.shoppingItem);
      },
    );
  }

  Widget _buildRemoveFromShoppingBasket(){
    return RaisedButton(
      child: Text('Remove...'),
      onPressed: (){
        _shoppingBloc.removeFromShoppingBasket(widget.shoppingItem);
      },
    );
  }

  @override
  Widget build(BuildContext context) {
    return Card(
      child: GridTile(
        header: Center(
          child: Text(widget.shoppingItem.title),
        ),
        footer: Center(
          child: Text('${widget.shoppingItem.price} €'),
        ),
        child: Container(
          color: widget.shoppingItem.color,
          child: Center(
            child: _buildButton(),
          ),
        ),
      ),
    );
  }
}

API

didChangeDependencies
didUpdateWidget

Flutter BLoC 实践

1.BlocProvider

API

why

2.BLoC 初始化

2.1. 应用内全局使用

2.1.1. 最顶层

示例代码

2.2. 应用内部分组件使用

2.2.1. 子组件树顶层

示例代码

2.3. 单一组件使用

2.3.1. 组件内初始化

3. 事件状态

3.1. BlocEventState

3.1.1. 此BLoC设计初衷

展示

代码段 2

API

注解

3.2. Specialized BlocEventState

代码段 3

API

3.3. BlocEvent and BlocState

代码

3.4. BlocEventStateBuilder Widget

代码段 4

3.5. 示例 1: 应用 初始化

3.5.1. ApplicationInitializationEvent

代码段 5

3.5.2. ApplicationInitializationState

代码段 6

API

3.5.3. ApplicationInitializationBloc

代码段 7

3.5.4. 整合

代码段 8

API

3.6. 示例 2: 认证 及 注销

展示

3.6.1. AuthenticationEvent

代码段 9

3.6.2. AuthenticationState

代码段 10

3.5.3. AuthenticationBloc

代码段 11

3.5.4. AuthenticationPage

代码段 12

API

3.5.5. DecisionPage

代码段 13

3.5.6. 注销

代码段 14

3.5.7. AuthenticationBloc

代码段 15

4. 表单验证

4.1. The RegistrationFormBloc

代码段 16

API

4.1.1. Validator Mixins

代码段 17

4.2. The RegistrationForm

代码段 18

5. Part Of

5.1. ShoppingBloc

代码段 19

5.2. ShoppingPage

代码段 20

5.3. ShoppingItemWidget and ShoppingItemBloc

5.3.1. ShoppingItemBloc

代码段 20

5.3.2. ShoppingItemWidget

代码段 21

API

5.4. How does all this work?

展示

3.5. 示例 1: 应用初始化

3.6. 示例 2: 认证及注销
