写在开头：
作为一名曾经重度使用Node.js作为即时通讯客户端接入层的开发人员，无法避免调试V8，配合开发addon。于是对Node.js源码产生了很大的兴趣～
顺便吐槽一句，Node的内存控制，由于是自动回收，我之前做的产品是20万人超级群的IM产品，像一秒钟1000条消息，持续时间长了内存和CPU占用还是会有一些问题
之前写过cluster模块源码分析、PM2原理等,感觉兴趣的可以去公众号翻一翻
Node.js的js部分源码基本看得差不多了，今天写一个 createServer过程给大家,对于不怎么熟悉Node.js源码的朋友来说，可能是一个不错的开始，源码在gitHub上有，直接克隆即可，最近一直比较忙，公司和业余的工作也是，所以原创比较少。
原生Node.js创建一个基本的服务：
var http = require('http');http.createServer(function (request, response) {// 发送 HTTP 头部 // HTTP 状态值: 200 : OK// 内容类型: text/plainresponse.writeHead(200, {'Content-Type': 'text/plain'});// 发送响应数据 "Hello World"response.end('Hello World\n');}).listen(8888);// 终端打印如下信息console.log('Server running at http://127.0.0.1:8888/');我们目前只分析Node.js 源码的js部分的

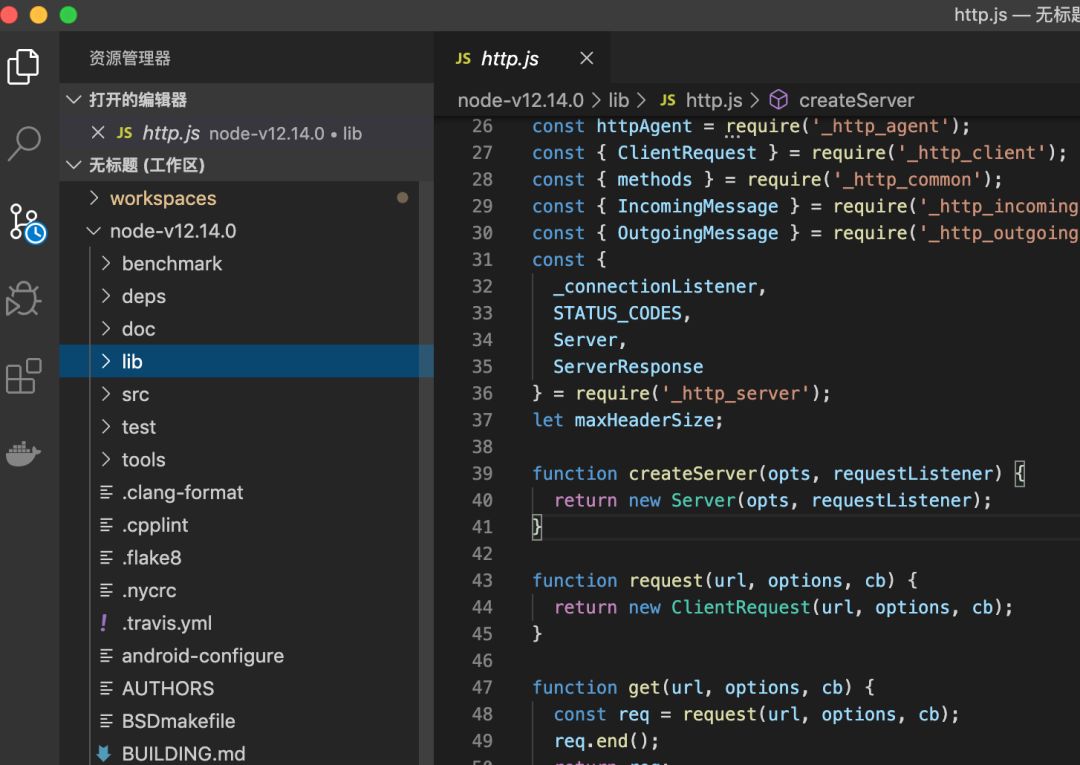

首先找到Node.js 源码的lib文件夹
然后找到http.js文件
发现createServer 真正返回的是new Server，而 Server来自_http_server
于是找到同目录下的_http_server.js 文件，发现整个文件有800行的样子，全局搜索 Server找到函数
function Server(options, requestListener) {if (!(this instanceof Server)) return new Server(options, requestListener);if (typeof options === 'function') { requestListener = options; options = {}; } else if (options == null || typeof options === 'object') { options = { ...options }; } else {throw new ERR_INVALID_ARG_TYPE('options', 'object', options); }this[kIncomingMessage] = options.IncomingMessage || IncomingMessage;this[kServerResponse] = options.ServerResponse || ServerResponse; net.Server.call(this, { allowHalfOpen: true });if (requestListener) {this.on('request', requestListener); }createServer函数解析：
-
参数控制有点像redux源码里的initState和reducer，根据传入类型不同，做响应的处理
-
this.on('request', requestListener);} -
每次有请求，就会调用requestListener这个回调函数
-
至于IncomingMessage和 ServerResponse,请求是流，响应也是流，请求是可读流，响应是可写流，当时写那个静态资源服务器时候有提到过
-
那么怎么可以链式调用？有人可能会有疑惑。Node.js源码遵循commonJs规范，大都挂载在prototype上，所以函数开头有,就是确保可以链式调用
if (!(this instanceof Server)) return new Server(options, requestListener);上面已经将onrequest事件触发回调函数讲清楚了，那么链式调用 listen方法，监听端口是怎么回事呢？
传统的链式调用，像JQ源码是return this , 手动实现A+规范的 Promise则是返回一个全新的Promise ,然后Promise原型上有 then方法，于是可以链式调用
怎么实现.listen链式调用，重点在这行代码：
net.Server.call(this, { allowHalfOpen: true });allowHalfOpen实验结论: 这里TCP的知识不再做过度的讲解
（1）allowHalfOpen为true，一端发送FIN报文：进程结束了，那么肯定会发送FIN报文；进程未结束，不会发送FIN报文（2）allowHalfOpen为false，一端发送FIN报文：进程结束了，肯定发送FIN报文；进程未结束，也会发送FIN报文；于是找到net.js文件模块中的 Server函数
function Server(options, connectionListener) { if (!(this instanceof Server)) return new Server(options, connectionListener); EventEmitter.call(this); if (typeof options === 'function') { connectionListener = options; options = {}; this.on('connection', connectionListener); } else if (options == null || typeof options === 'object') { options = { ...options }; if (typeof connectionListener === 'function') { this.on('connection', connectionListener); } } else { throw new ERR_INVALID_ARG_TYPE('options', 'Object', options); } this._connections = 0; Object.defineProperty(this, 'connections', { get: deprecate(() => { if (this._usingWorkers) { return null; } return this._connections; }, 'Server.connections property is deprecated. ' + 'Use Server.getConnections method instead.', 'DEP0020'), set: deprecate((val) => (this._connections = val), 'Server.connections property is deprecated.', 'DEP0020'), configurable: true, enumerable: false }); this[async_id_symbol] = -1; this._handle = null; this._usingWorkers = false; this._workers = []; this._unref = false; this.allowHalfOpen = options.allowHalfOpen || false; this.pauseOnConnect = !!options.pauseOnConnect;}这里巧妙的通过.call调用net模块Server函数，保证了this指向一致
this._handle = null 这里是因为Node.js考虑到多进程问题，所以会hack掉这个属性，因为.listen方法最终会调用_handle中的方法，多个进程只会启动一个真正进程监听端口，然后负责分发给不同进程，这个后面会讲
Node.js源码的几个特色：
-
遵循conmonjs规范，很多方法挂载到prototype上了
-
很多object.definepropoty数据劫持
-
this指向的修改，配合第一个进行链式调用
-
自带自定义事件模块，很多内置的函数都继承或通过Object.setPrototypeOf去封装了一些自定义事件
-
代码模块互相依赖比较多，一个.listen过程就很麻烦，初学代码者很容易睡着
-
源码学习，本就枯燥。没什么好说的了
我在net.js文件模块中发现了一个原型上.listen的方法：
Server.prototype.listen = function(...args) { const normalized = normalizeArgs(args); var options = normalized[0]; const cb = normalized[1]; if (this._handle) { throw new ERR_SERVER_ALREADY_LISTEN(); } if (cb !== null) { this.once('listening', cb); } const backlogFromArgs = // (handle, backlog) or (path, backlog) or (port, backlog) toNumber(args.length > 1 && args[1]) || toNumber(args.length > 2 && args[2]); // (port, host, backlog) options = options._handle || options.handle || options; const flags = getFlags(options.ipv6Only); // (handle[, backlog][, cb]) where handle is an object with a handle if (options instanceof TCP) { this._handle = options; this[async_id_symbol] = this._handle.getAsyncId(); listenInCluster(this, null, -1, -1, backlogFromArgs); return this; } // (handle[, backlog][, cb]) where handle is an object with a fd if (typeof options.fd === 'number' && options.fd >= 0) { listenInCluster(this, null, null, null, backlogFromArgs, options.fd); return this; } // ([port][, host][, backlog][, cb]) where port is omitted, // that is, listen(), listen(null), listen(cb), or listen(null, cb) // or (options[, cb]) where options.port is explicitly set as undefined or // null, bind to an arbitrary unused port if (args.length === 0 || typeof args[0] === 'function' || (typeof options.port === 'undefined' && 'port' in options) || options.port === null) { options.port = 0; } // ([port][, host][, backlog][, cb]) where port is specified // or (options[, cb]) where options.port is specified // or if options.port is normalized as 0 before var backlog; if (typeof options.port === 'number' || typeof options.port === 'string') { if (!isLegalPort(options.port)) { throw new ERR_SOCKET_BAD_PORT(options.port); } backlog = options.backlog || backlogFromArgs; // start TCP server listening on host:port if (options.host) { lookupAndListen(this, options.port | 0, options.host, backlog, options.exclusive, flags); } else { // Undefined host, listens on unspecified address // Default addressType 4 will be used to search for master server listenInCluster(this, null, options.port | 0, 4, backlog, undefined, options.exclusive); } return this; } // (path[, backlog][, cb]) or (options[, cb]) // where path or options.path is a UNIX domain socket or Windows pipe if (options.path && isPipeName(options.path)) { var pipeName = this._pipeName = options.path; backlog = options.backlog || backlogFromArgs; listenInCluster(this, pipeName, -1, -1, backlog, undefined, options.exclusive); if (!this._handle) { // Failed and an error shall be emitted in the next tick. // Therefore, we directly return. return this; } let mode = 0; if (options.readableAll === true) mode |= PipeConstants.UV_READABLE; if (options.writableAll === true) mode |= PipeConstants.UV_WRITABLE; if (mode !== 0) { const err = this._handle.fchmod(mode); if (err) { this._handle.close(); this._handle = null; throw errnoException(err, 'uv_pipe_chmod'); } } return this; } if (!(('port' in options) || ('path' in options))) { throw new ERR_INVALID_ARG_VALUE('options', options, 'must have the property "port" or "path"'); } throw new ERR_INVALID_OPT_VALUE('options', inspect(options));};这个就是我们要找的listen方法，可是里面很多ipv4和ipv6的处理，最重要的方法是listenInCluster
这个函数需要好好看一下，只有几十行
function listenInCluster(server, address, port, addressType, backlog, fd, exclusive, flags) { exclusive = !!exclusive; if (cluster === undefined) cluster = require('cluster'); if (cluster.isMaster || exclusive) { // Will create a new handle // _listen2 sets up the listened handle, it is still named like this // to avoid breaking code that wraps this method server._listen2(address, port, addressType, backlog, fd, flags); return; } const serverQuery = { address: address, port: port, addressType: addressType, fd: fd, flags, }; // Get the master's server handle, and listen on it cluster._getServer(server, serverQuery, listenOnMasterHandle); function listenOnMasterHandle(err, handle) { err = checkBindError(err, port, handle); if (err) { var ex = exceptionWithHostPort(err, 'bind', address, port); return server.emit('error', ex); } // Reuse master's server handle server._handle = handle; // _listen2 sets up the listened handle, it is still named like this // to avoid breaking code that wraps this method server._listen2(address, port, addressType, backlog, fd, flags); }}如果是主进程，那么就直接调用_.listen2 方法了
Server.prototype._listen2 = setupListenHandle;找到setupListenHandle函数
function setupListenHandle(address, port, addressType, backlog, fd, flags) { debug('setupListenHandle', address, port, addressType, backlog, fd); // If there is not yet a handle, we need to create one and bind. // In the case of a server sent via IPC, we don't need to do this. if (this._handle) { debug('setupListenHandle: have a handle already'); } else { debug('setupListenHandle: create a handle'); var rval = null; // Try to bind to the unspecified IPv6 address, see if IPv6 is available if (!address && typeof fd !== 'number') { rval = createServerHandle(DEFAULT_IPV6_ADDR, port, 6, fd, flags); if (typeof rval === 'number') { rval = null; address = DEFAULT_IPV4_ADDR; addressType = 4; } else { address = DEFAULT_IPV6_ADDR; addressType = 6; } } if (rval === null) rval = createServerHandle(address, port, addressType, fd, flags); if (typeof rval === 'number') { var error = uvExceptionWithHostPort(rval, 'listen', address, port); process.nextTick(emitErrorNT, this, error); return; } this._handle = rval; } this[async_id_symbol] = getNewAsyncId(this._handle); this._handle.onconnection = onconnection; this._handle[owner_symbol] = this; // Use a backlog of 512 entries. We pass 511 to the listen() call because // the kernel does: backlogsize = roundup_pow_of_two(backlogsize + 1); // which will thus give us a backlog of 512 entries. const err = this._handle.listen(backlog || 511); if (err) { var ex = uvExceptionWithHostPort(err, 'listen', address, port); this._handle.close(); this._handle = null; defaultTriggerAsyncIdScope(this[async_id_symbol], process.nextTick, emitErrorNT, this, ex); return; } // Generate connection key, this should be unique to the connection this._connectionKey = addressType + ':' + address + ':' + port; // Unref the handle if the server was unref'ed prior to listening if (this._unref) this.unref(); defaultTriggerAsyncIdScope(this[async_id_symbol], process.nextTick, emitListeningNT, this);}里面的createServerHandle是重点
function createServerHandle(address, port, addressType, fd, flags) { var err = 0; // Assign handle in listen, and clean up if bind or listen fails var handle; var isTCP = false; if (typeof fd === 'number' && fd >= 0) { try { handle = createHandle(fd, true); } catch (e) { // Not a fd we can listen on. This will trigger an error. debug('listen invalid fd=%d:', fd, e.message); return UV_EINVAL; } err = handle.open(fd); if (err) return err; assert(!address && !port); } else if (port === -1 && addressType === -1) { handle = new Pipe(PipeConstants.SERVER); if (process.platform === 'win32') { var instances = parseInt(process.env.NODE_PENDING_PIPE_INSTANCES); if (!Number.isNaN(instances)) { handle.setPendingInstances(instances); } } } else { handle = new TCP(TCPConstants.SERVER); isTCP = true; } if (address || port || isTCP) { debug('bind to', address || 'any'); if (!address) { // Try binding to ipv6 first err = handle.bind6(DEFAULT_IPV6_ADDR, port, flags); if (err) { handle.close(); // Fallback to ipv4 return createServerHandle(DEFAULT_IPV4_ADDR, port); } } else if (addressType === 6) { err = handle.bind6(address, port, flags); } else { err = handle.bind(address, port); } } if (err) { handle.close(); return err; } return handle;}已经可以看到TCP了，离真正的绑定监听端口，更近了一步
最终通过下面的方法绑定监听端口
handle.bind6(address, port, flags); 或者 handle.bind(address, port);首选ipv6绑定，是因为ipv6可以接受到ipv4的套接字，而ipv4不可以接受ipv6的套接字，当然也有方法可以接收，就是麻烦了一点
上面的内容，请你认真看，因为下面会更复杂，设计到Node.js的多进程负载均衡原理
如果不是主进程，就调用cluster._getServer，找到cluster源码
'use strict';const childOrMaster = 'NODE_UNIQUE_ID' in process.env ? 'child' : 'master';module.exports = require(`internal/cluster/${childOrMaster}`);找到_getServer函数源码
// `obj` is a net#Server or a dgram#Socket object.cluster._getServer = function(obj, options, cb) { let address = options.address; // Resolve unix socket paths to absolute paths if (options.port < 0 && typeof address === 'string' && process.platform !== 'win32') address = path.resolve(address); const indexesKey = [address, options.port, options.addressType, options.fd ].join(':'); let index = indexes.get(indexesKey); if (index === undefined) index = 0; else index++; indexes.set(indexesKey, index); const message = { act: 'queryServer', index, data: null, ...options }; message.address = address; // Set custom data on handle (i.e. tls tickets key) if (obj._getServerData) message.data = obj._getServerData(); send(message, (reply, handle) => { if (typeof obj._setServerData === 'function') obj._setServerData(reply.data); if (handle) shared(reply, handle, indexesKey, cb); // Shared listen socket. else rr(reply, indexesKey, cb); // Round-robin. }); obj.once('listening', () => { cluster.worker.state = 'listening'; const address = obj.address(); message.act = 'listening'; message.port = (address && address.port) || options.port; send(message); });};我们之前传入了三个参数给它,分别是
server,serverQuery,listenOnMasterHandle
这里是比较复杂的，曾经我也在这里迷茫过一段时间，但是想着还是看下去吧。坚持下，大家如果看到这里看不下去了，先休息下，保存着。后面等心情平复了再静下来接下去看
首先我们传入了Server、serverQuery和cb（回调函数listenOnMasterHandle），整个cluster模块的_getServer中最重要的就是：
if (obj._getServerData) message.data = obj._getServerData(); send(message, (reply, handle) => { if (typeof obj._setServerData === 'function') obj._setServerData(reply.data); if (handle) shared(reply, handle, indexesKey, cb); // Shared listen socket. else rr(reply, indexesKey, cb); // Round-robin. });首先我们会先获取server上的data数据，然后调用send函数
function send(message, cb) { return sendHelper(process, message, null, cb);}send函数调用的是cluster模块的utills文件内的函数，传入了一个默认值process
function sendHelper(proc, message, handle, cb) { if (!proc.connected) return false; // Mark message as internal. See INTERNAL_PREFIX in lib/child_process.js message = { cmd: 'NODE_CLUSTER', ...message, seq }; if (typeof cb === 'function') callbacks.set(seq, cb); seq += 1; return proc.send(message, handle);}这里要看清楚，我们调用sendHelper传入的第三个参数是null ！！！
那么主进程返回也是null
send(message, (reply, handle) => { if (typeof obj._setServerData === 'function') obj._setServerData(reply.data); if (handle) shared(reply, handle, indexesKey, cb); // Shared listen socket. else rr(reply, indexesKey, cb); // Round-robin. });所以我们会进入rr 函数调用的这个判断,这里调用rr传入的cb就是在net.js模块定义的listenOnMasterHandle 函数
Node.js的负载均衡算法是轮询，官方给出的解释是简单粗暴效率高
上面的sendHelper函数就是做到了这点，每次+1
if (typeof cb === 'function') callbacks.set(seq, cb); seq += 1;
function rr(message, indexesKey, cb) { if (message.errno) return cb(message.errno, null); var key = message.key; function listen(backlog) { // TODO(bnoordhuis) Send a message to the master that tells it to // update the backlog size. The actual backlog should probably be // the largest requested size by any worker. return 0; } function close() { // lib/net.js treats server._handle.close() as effectively synchronous. // That means there is a time window between the call to close() and // the ack by the master process in which we can still receive handles. // onconnection() below handles that by sending those handles back to // the master. if (key === undefined) return; send({ act: 'close', key }); handles.delete(key); indexes.delete(indexesKey); key = undefined; } function getsockname(out) { if (key) Object.assign(out, message.sockname); return 0; } // Faux handle. Mimics a TCPWrap with just enough fidelity to get away // with it. Fools net.Server into thinking that it's backed by a real // handle. Use a noop function for ref() and unref() because the control // channel is going to keep the worker alive anyway. const handle = { close, listen, ref: noop, unref: noop }; if (message.sockname) { handle.getsockname = getsockname; // TCP handles only. } assert(handles.has(key) === false); handles.set(key, handle); cb(0, handle);}此时的handle已经被重写，listen方法调用会返回0，不会再占用端口了。所以这样Node.js多个进程也只是一个进程监听端口而已
此时的cb还是net.js模块的setupListenHandle即 - _listen2方法。
官方的注释：
Faux handle. Mimics a TCPWrap with just enough fidelity to get away仿句柄。以足够的保真度来模拟TCPWrap推荐阅读 点击标题可跳转
