Spring在Web容器中的启动过程

环境

spring-framework：5.1.x

spring-boot: v2.1.2.RELEASE

看一眼历史的感觉

先看一眼我们很久以前用的XML的配置方式，我举得用最原始的方式来学习会相对于简单，因为很多的配置都是显性的。我只截取最核心的部分，大概找一下感觉。

<?xml version="1.0" encoding="UTF-8" ?>
<web-app version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="
             http://java.sun.com/xml/ns/j2ee  http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">

    <context-param>
        <param-name>contextConfigLocation</param-name> <!--参数名字不能随意取，约定的。-->
        <param-value>classpath:context.xml</param-value>
    </context-param>

    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    </filter>

    <servlet>
        <servlet-name>dispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:config/spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

</web-app>

上面的配置基本就把一个SpringMVC的项目配置完成了，大家都了解。web.xml是一个WEB项目的入口，而这里面就把Spring与Servlet关联起来了。

Loader1：org.springframework.web.context.ContextLoaderListener 父IOC容器，管理所有的Bean。

Loader2：org.springframework.web.servlet.DispatcherServlet 子IOC容器，主要关于与WEB相关的一些配置，比如：Controller、HandlerMapping等等。

这里粗略的描述一下WEB项目的一个加载顺序：listener → filter → servlet。

ContextLoaderListener

org.springframework.web.context.ContextLoaderListener
javax.servlet.ServletContextListener
javax.servlet.ServletContext
javax.servlet.ServletContextEvent

ContextLoaderListener（spring中的类）继承ContextLoader（spring中的类），并实现ServletContextListener（servlet中的接口），ServletContextListener监听ServletContext，当容器启动时，会触发ServletContextEvent事件，该事件由ServletContextListener来处理，启动初始化ServletContext时，调用contextInitialized方法。而ContextLoaderListener实现了ServletContextListener，所以，当容器启动时，触发ServletContextEvent事件，让ContextLoaderListener执行实现方法contextInitialized(ServletContextEvent sce);

引自：www.jianshu.com/p/c1384f3d5…

@Override
public void contextInitialized(ServletContextEvent event) {
	initWebApplicationContext(event.getServletContext());
}

我们细看一下我们是如何初始化一个Context的：

if (this.context == null) {
	this.context = createWebApplicationContext(servletContext);
}
// 确定我们容器是哪个Context
protected Class<?> determineContextClass(ServletContext servletContext)
  // public static final String CONTEXT_CLASS_PARAM = "contextClass";
	String contextClassName = servletContext.getInitParameter(CONTEXT_CLASS_PARAM);
	if (contextClassName != null) {
		try {
			return ClassUtils.forName(contextClassName, ClassUtils.getDefaultClassLoader());
		} catch (ClassNotFoundException ex) {
			throw new ApplicationContextException("Failed to load custom context class [" + contextClassName + "]", ex);
		}
	} else {
		contextClassName = defaultStrategies.getProperty(WebApplicationContext.class.getName());
		try {
			return ClassUtils.forName(contextClassName, ContextLoader.class.getClassLoader());
		}
		catch (ClassNotFoundException ex) {
			throw new ApplicationContextException("Failed to load default context class [" + contextClassName + "]", ex);
		}
	}
}

servletContext.getInitParameter(CONTEXT_CLASS_PARAM); 这句话实际上是优先用用户配置的，否则才会取默认的。如果我们自己配置要在哪儿配置了。对的还是要在我们的web.xml里面。

<context-param>
  <param-name>contextClass</param-name>
  <param-value>org.springframework.web.context.support.StaticWebApplicationContext</param-value>
</context-param>

那我们默认的是哪个呢？

static {
		// Load default strategy implementations from properties file.
		// This is currently strictly internal and not meant to be customized
		// by application developers.
		try {
			ClassPathResource resource = new ClassPathResource(DEFAULT_STRATEGIES_PATH, ContextLoader.class);
			defaultStrategies = PropertiesLoaderUtils.loadProperties(resource);
		}
		catch (IOException ex) {
			throw new IllegalStateException("Could not load 'ContextLoader.properties': " + ex.getMessage());
		}
	}

private static final String DEFAULT_STRATEGIES_PATH = "ContextLoader.properties";

是滴，有一个properties文件，里面就是默认的Context配置。

org.springframework.web.context.WebApplicationContext=org.springframework.web.context.support.XmlWebApplicationContext

实际上，我们默认的就是XmlWebApplicationContext。继续扫读web.xml的配置来加载与Spring相关的配置。

// public static final String CONFIG_LOCATION_PARAM = "contextConfigLocation";
// 这里就是all.xml/application.xml/context.xml 等的加载地方
String configLocationParam = sc.getInitParameter(CONFIG_LOCATION_PARAM);
if (configLocationParam != null) {
	wac.setConfigLocation(configLocationParam);
}

调用refresh开始构建

wac.refresh(); // 然而这里我觉得要单独拿一个篇章来讲Spring是如何来加载Bean。

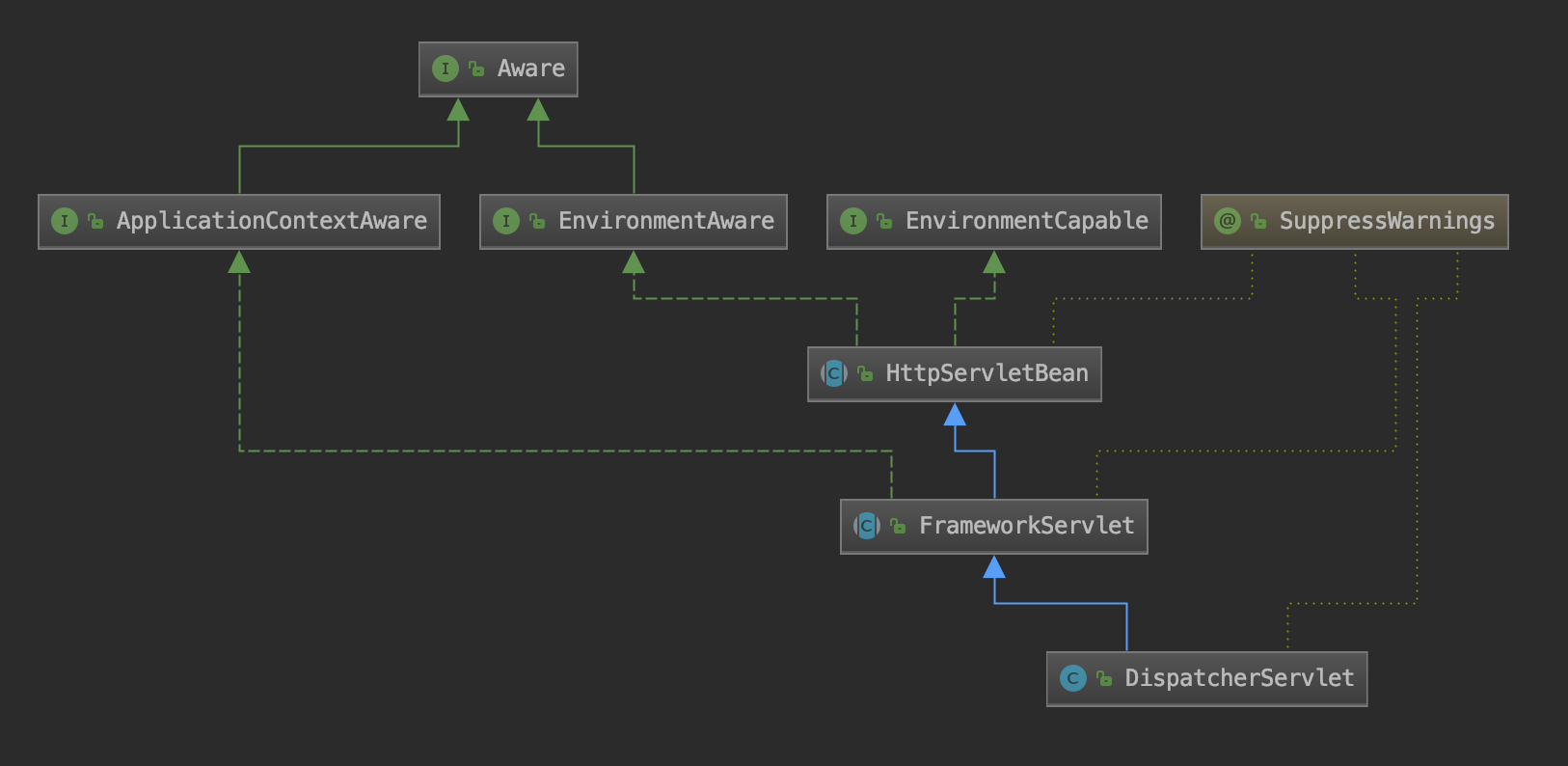

DispatcherServlet

• HttpServlet 及以上部分是 Servlet 标准中提供的接口及类
• DispatcherServlet、FrameworkServlet、HttpServletBean 三者是 SpringMVC 提供的类，且后者依次分别是前者的父类。

因为是Servlet，所有会调用init来初始化。

org.springframework.web.servlet.HttpServletBean

public final void init() throws ServletException {
		// Set bean properties from init parameters.
		PropertyValues pvs = new ServletConfigPropertyValues(getServletConfig(), this.requiredProperties);
		if (!pvs.isEmpty()) {
			try {
				BeanWrapper bw = PropertyAccessorFactory.forBeanPropertyAccess(this);
				ResourceLoader resourceLoader = new ServletContextResourceLoader(getServletContext());
				bw.registerCustomEditor(Resource.class, new ResourceEditor(resourceLoader, getEnvironment()));
				initBeanWrapper(bw);
				bw.setPropertyValues(pvs, true);
			}
			catch (BeansException ex) {
				if (logger.isErrorEnabled()) {
					logger.error("Failed to set bean properties on servlet '" + getServletName() + "'", ex);
				}
				throw ex;
			}
		}

		// Let subclasses do whatever initialization they like.
		initServletBean();
	}

org.springframework.web.servlet.FrameworkServlet

protected final void initServletBean() throws ServletException {
	getServletContext().log("Initializing Spring " + getClass().getSimpleName() + " '" + getServletName() + "'");
	if (logger.isInfoEnabled()) {
		logger.info("Initializing Servlet '" + getServletName() + "'");
	}
	long startTime = System.currentTimeMillis();

	try {
    // 看到这里，回到之前说初始化ContextLoaderListener的initWebApplicationContext
		this.webApplicationContext = initWebApplicationContext();
		initFrameworkServlet();
	}
	catch (ServletException | RuntimeException ex) {
		logger.error("Context initialization failed", ex);
		throw ex;
	}

	if (logger.isDebugEnabled()) {
		String value = this.enableLoggingRequestDetails ?
				"shown which may lead to unsafe logging of potentially sensitive data" :
				"masked to prevent unsafe logging of potentially sensitive data";
		logger.debug("enableLoggingRequestDetails='" + this.enableLoggingRequestDetails +
				"': request parameters and headers will be " + value);
	}

	if (logger.isInfoEnabled()) {
		logger.info("Completed initialization in " + (System.currentTimeMillis() - startTime) + " ms");
	}
}

org.springframework.web.servlet.FrameworkServlet

protected WebApplicationContext createWebApplicationContext(@Nullable ApplicationContext parent) {
  //public static final Class<?> DEFAULT_CONTEXT_CLASS = XmlWebApplicationContext.class;
		Class<?> contextClass = getContextClass();
		if (!ConfigurableWebApplicationContext.class.isAssignableFrom(contextClass)) {
			throw new ApplicationContextException(
					"Fatal initialization error in servlet with name '" + getServletName() +
					"': custom WebApplicationContext class [" + contextClass.getName() +
					"] is not of type ConfigurableWebApplicationContext");
		}
		ConfigurableWebApplicationContext wac =
				(ConfigurableWebApplicationContext) BeanUtils.instantiateClass(contextClass);

		wac.setEnvironment(getEnvironment());
		wac.setParent(parent);
		String configLocation = getContextConfigLocation();
		if (configLocation != null) {
			wac.setConfigLocation(configLocation);
		}
		configureAndRefreshWebApplicationContext(wac); // 这里面又会调用wac.refresh();
		return wac;
	}

看到这里，我们的2个容器都是默认用的XmlWebApplicationContext。

那问哪些HandlerMapping、HandlerAdapter、ViewResolver是在哪儿加载进来的？

org.springframework.web.servlet.DispatcherServlet#onRefresh

/**
	 * Initialize the strategy objects that this servlet uses.
	 * <p>May be overridden in subclasses in order to initialize further strategy objects.
	 */
	protected void initStrategies(ApplicationContext context) {
		initMultipartResolver(context);
		initLocaleResolver(context);
		initThemeResolver(context);
		// 初始化HandlerMapping
		initHandlerMappings(context);
    // 初始化HandlerAdapter
		initHandlerAdapters(context);
		initHandlerExceptionResolvers(context);
		initRequestToViewNameTranslator(context);
		initViewResolvers(context);
		initFlashMapManager(context);
	}

org.springframework.web.servlet.handler.AbstractHandlerMethodMapping

protected void detectHandlerMethods(Object handler) {
		Class<?> handlerType = (handler instanceof String ?
				obtainApplicationContext().getType((String) handler) : handler.getClass());

		if (handlerType != null) {
			Class<?> userType = ClassUtils.getUserClass(handlerType);
			Map<Method, T> methods = MethodIntrospector.selectMethods(userType,
					(MethodIntrospector.MetadataLookup<T>) method -> {
						try {
							return getMappingForMethod(method, userType);
						}
						catch (Throwable ex) {
							throw new IllegalStateException("Invalid mapping on handler class [" +
									userType.getName() + "]: " + method, ex);
						}
					});
			if (logger.isTraceEnabled()) {
				logger.trace(formatMappings(userType, methods));
			}
			methods.forEach((method, mapping) -> {
				Method invocableMethod = AopUtils.selectInvocableMethod(method, userType);
				registerHandlerMethod(handler, invocableMethod, mapping);
			});
		}
	}

• 遍历Handler中的所有方法，找出其中被@RequestMapping注解标记的方法。
• 然后遍历这些方法，生成RequestMappingInfo实例。
• 将RequestMappingInfo实例以及处理器方法注册到缓存中。

org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping

@Override
@Nullable
protected RequestMappingInfo getMappingForMethod(Method method, Class<?> handlerType) {
 // RequestMapping requestMapping = AnnotatedElementUtils.findMergedAnnotation(element, RequestMapping.class); 只要打了注解@RequestMapping的方法
	RequestMappingInfo info = createRequestMappingInfo(method);
	if (info != null) {
		RequestMappingInfo typeInfo = createRequestMappingInfo(handlerType);
		if (typeInfo != null) {
			info = typeInfo.combine(info);
		}
		String prefix = getPathPrefix(handlerType);
		if (prefix != null) {
			info = RequestMappingInfo.paths(prefix).build().combine(info);
		}
	}
	return info;
}

public void register(T mapping, Object handler, Method method) {
			this.readWriteLock.writeLock().lock();
			try {
				HandlerMethod handlerMethod = createHandlerMethod(handler, method);
				assertUniqueMethodMapping(handlerMethod, mapping);
				this.mappingLookup.put(mapping, handlerMethod);

				List<String> directUrls = getDirectUrls(mapping);
				for (String url : directUrls) {
					this.urlLookup.add(url, mapping);
				}

				String name = null;
				if (getNamingStrategy() != null) {
					name = getNamingStrategy().getName(handlerMethod, mapping);
					addMappingName(name, handlerMethod);
				}

				CorsConfiguration corsConfig = initCorsConfiguration(handler, method, mapping);
				if (corsConfig != null) {
					this.corsLookup.put(handlerMethod, corsConfig);
				}

				this.registry.put(mapping, new MappingRegistration<>(mapping, handlerMethod, directUrls, name));
			}
			finally {
				this.readWriteLock.writeLock().unlock();
			}
		}

把一些请求的映射关系放入到Map中，为后续的路由功能做数据初始化。

private final Map<T, HandlerMethod> mappingLookup = new LinkedHashMap<>();
private final MultiValueMap<String, T> urlLookup = new LinkedMultiValueMap<>();

对于Request参数的一些封装&映射：

@Override
	public RequestMappingInfo combine(RequestMappingInfo other) {
		String name = combineNames(other);
		PatternsRequestCondition patterns = this.patternsCondition.combine(other.patternsCondition);
		RequestMethodsRequestCondition methods = this.methodsCondition.combine(other.methodsCondition);
		ParamsRequestCondition params = this.paramsCondition.combine(other.paramsCondition);
		HeadersRequestCondition headers = this.headersCondition.combine(other.headersCondition);
		ConsumesRequestCondition consumes = this.consumesCondition.combine(other.consumesCondition);
		ProducesRequestCondition produces = this.producesCondition.combine(other.producesCondition);
		RequestConditionHolder custom = this.customConditionHolder.combine(other.customConditionHolder);

		return new RequestMappingInfo(name, patterns,
				methods, params, headers, consumes, produces, custom.getCondition());
	}

一般我们对关心的是一个url是如何组装的。

public PatternsRequestCondition combine(PatternsRequestCondition other) {
		Set<String> result = new LinkedHashSet<>();
		if (!this.patterns.isEmpty() && !other.patterns.isEmpty()) {
			for (String pattern1 : this.patterns) {
				for (String pattern2 : other.patterns) {
					result.add(this.pathMatcher.combine(pattern1, pattern2));
				}
			}
		}
		else if (!this.patterns.isEmpty()) {
			result.addAll(this.patterns);
		}
		else if (!other.patterns.isEmpty()) {
			result.addAll(other.patterns);
		}
		else {
			result.add("");
		}
		return new PatternsRequestCondition(result, this.pathHelper, this.pathMatcher,
				this.useSuffixPatternMatch, this.useTrailingSlashMatch, this.fileExtensions);
	}

这是从注释上copy下来的注解，主要有这里的pathMatcher来组装。

public String combine(String pattern1, String pattern2) {
		if (!StringUtils.hasText(pattern1) && !StringUtils.hasText(pattern2)) {
			return "";
		}
		if (!StringUtils.hasText(pattern1)) {
			return pattern2;
		}
		if (!StringUtils.hasText(pattern2)) {
			return pattern1;
		}

		boolean pattern1ContainsUriVar = (pattern1.indexOf('{') != -1);
		if (!pattern1.equals(pattern2) && !pattern1ContainsUriVar && match(pattern1, pattern2)) {
			// /* + /hotel -> /hotel ; "/*.*" + "/*.html" -> /*.html
			// However /user + /user -> /usr/user ; /{foo} + /bar -> /{foo}/bar
			return pattern2;
		}

		// /hotels/* + /booking -> /hotels/booking
		// /hotels/* + booking -> /hotels/booking
		if (pattern1.endsWith(this.pathSeparatorPatternCache.getEndsOnWildCard())) {
			return concat(pattern1.substring(0, pattern1.length() - 2), pattern2);
		}

		// /hotels/** + /booking -> /hotels/**/booking
		// /hotels/** + booking -> /hotels/**/booking
		if (pattern1.endsWith(this.pathSeparatorPatternCache.getEndsOnDoubleWildCard())) {
			return concat(pattern1, pattern2);
		}

		int starDotPos1 = pattern1.indexOf("*.");
		if (pattern1ContainsUriVar || starDotPos1 == -1 || this.pathSeparator.equals(".")) {
			// simply concatenate the two patterns
			return concat(pattern1, pattern2);
		}

		String ext1 = pattern1.substring(starDotPos1 + 1);
		int dotPos2 = pattern2.indexOf('.');
		String file2 = (dotPos2 == -1 ? pattern2 : pattern2.substring(0, dotPos2));
		String ext2 = (dotPos2 == -1 ? "" : pattern2.substring(dotPos2));
		boolean ext1All = (ext1.equals(".*") || ext1.isEmpty());
		boolean ext2All = (ext2.equals(".*") || ext2.isEmpty());
		if (!ext1All && !ext2All) {
			throw new IllegalArgumentException("Cannot combine patterns: " + pattern1 + " vs " + pattern2);
		}
		String ext = (ext1All ? ext2 : ext1);
		return file2 + ext;
	}

还是稍微的有点粗，也只描述了我们最最关心的一些点。后面再继续的对每个细节点做一个总结。

参考地址：

• www.jianshu.com/p/c1384f3d5…
• www.cnblogs.com/cyhbyw/p/86…
• blog.csdn.net/J080624/art…

如果大家喜欢我的文章，可以关注个人订阅号。欢迎随时留言、交流。
