注解驱动
配置Class
// 注解驱动配置文件
@Configuration
// 扫描包
@ComponentScan(basePackages = "com.qinfengsa.spring")
// 配置文件
@PropertySource(value = "classpath:properties/qin-dev.properties")
public class SpringConfig {
@Bean("student")
// @Conditional条件注解
@Conditional(TestCondition.class)
public Student student() {
return new Student(18,"qin");
}
// 内部配置类
@Configuration
class InnerConfig{
@Bean("student2")
public Student student() {
return new Student(20,"win");
}
}
}
启动代码
public static void main(String[] args) {
AbstractApplicationContext context = new AnnotationConfigApplicationContext(SpringConfig.class);
Student student = context.getBean("student",Student.class);
}
构造方法
public class AnnotationConfigApplicationContext extends GenericApplicationContext
implements AnnotationConfigRegistry {
// 注解BeanDefinition读取器
private final AnnotatedBeanDefinitionReader reader;
// 按类路径扫描的BeanDefinition扫描器
private final ClassPathBeanDefinitionScanner scanner;
public AnnotationConfigApplicationContext() {
// 带注解的BeanDefinition的读取器
this.reader = new AnnotatedBeanDefinitionReader(this);
// 按类路径扫描的BeanDefinition扫描器
this.scanner = new ClassPathBeanDefinitionScanner(this);
}
// 构造方法
public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
// 创建注解的BeanDefinition的读取器 和 BeanDefinition扫描器
this();
// 注册 config配置类和类中定义的bean
register(componentClasses);
// 刷新context
refresh();
}
}
AnnotatedBeanDefinitionReader
public class AnnotatedBeanDefinitionReader {
public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry) {
this(registry, getOrCreateEnvironment(registry));
}
public AnnotatedBeanDefinitionReader(BeanDefinitionRegistry registry, Environment environment) {
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
Assert.notNull(environment, "Environment must not be null");
// 注册器
this.registry = registry;
// 条件判断
this.conditionEvaluator = new ConditionEvaluator(registry, environment, null);
// 注册了6个 BeanDefinition
// ConfigurationClassPostProcessor
// AutowiredAnnotationBeanPostProcessor
// CommonAnnotationBeanPostProcessor
// PersistenceAnnotationBeanPostProcessor(需要判断当前是否支持JPA)
// EventListenerMethodProcessor
// DefaultEventListenerFactory
AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
}
}
通过AnnotationConfigUtils注册注解驱动需要的bean
public abstract class AnnotationConfigUtils {
public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
BeanDefinitionRegistry registry, @Nullable Object source) {
DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
if (beanFactory != null) {
if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
}
if (!(beanFactory.getAutowireCandidateResolver()
instanceof ContextAnnotationAutowireCandidateResolver)) {
beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
}
}
Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);
// 解析加了@Configuration的配置类，还会解析@ComponentScan、@ComponentScans注解扫描的包，
// 以及解析@Import等注解。
if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
}

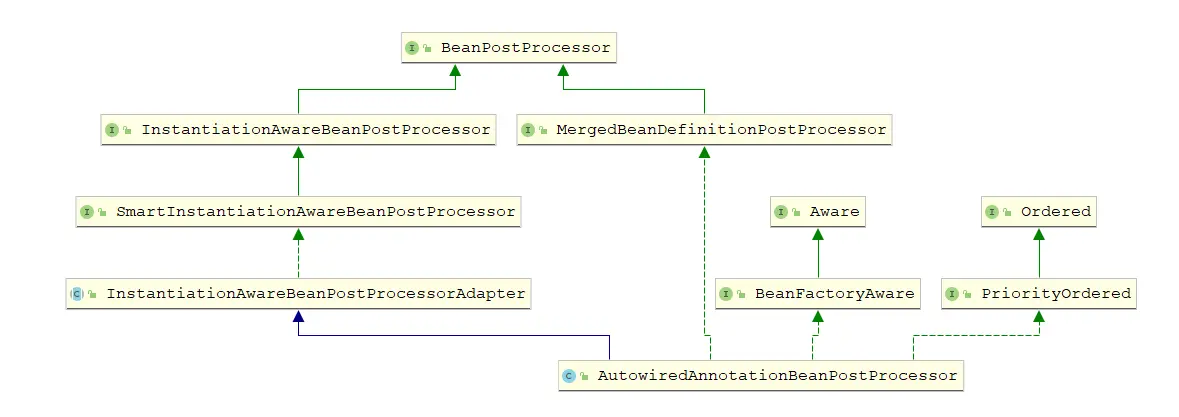

// @Autowired 注解扫描 自动注入
if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
// JSR-250 规范 对@PostConstruct和@PreDestroy注解的处理
if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
}
// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
// 检查JPA支持,兼容JPA注解,如果存在支持的类 则添加PersistenceAnnotationBeanPostProcessor
if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition();
try {
def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
AnnotationConfigUtils.class.getClassLoader()));
}
catch (ClassNotFoundException ex) {
// throw new IllegalStateException( );
}
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
}

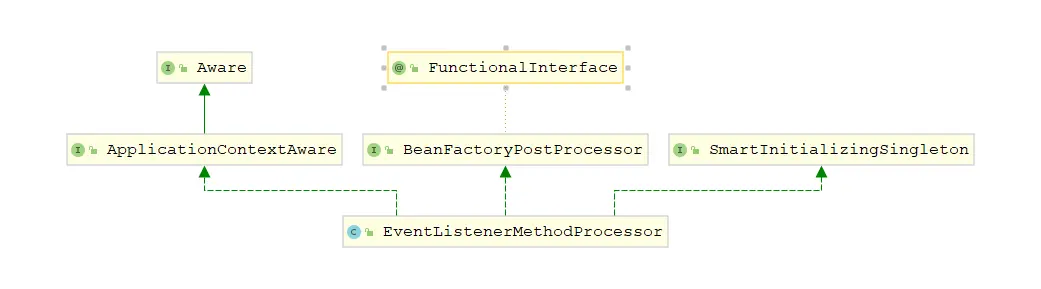

// 当所有bean（除了lazy）完成实例化之后调用；为context添加ApplicationListener 寻找@EventListener注解
if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
}
// 注册EventListenerFactory ,用于创建 ApplicationListener（在上面的EventListenerMethodProcessor会调用 ）
if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
def.setSource(source);
beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
}
return beanDefs;
}
}

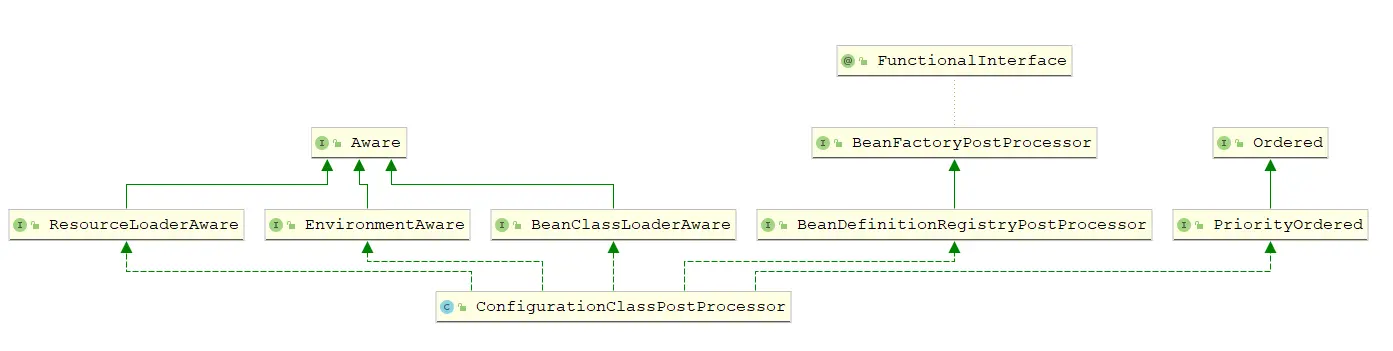

ConfigurationClassPostProcessor
ConfigurationClassPostProcessor实现了BeanDefinitionRegistryPostProcessor和BeanFactoryPostProcessor接口；功能是解析加@Configuration的配置类，还会解析@ComponentScan、@ComponentScans注解扫描的包，以及解析@Import等注解
调用时机
在refresh()方法中调用invokeBeanFactoryPostProcessors(beanFactory)方法中，最终调用所有注册的BeanFactoryPostProcessor接口的Bean
- BeanFactoryPostProcessor是Spring提供的扩展机制，允许在bean实例化之前，对bean的BeanDefinition做出修改
- 主要调用 BeanDefinitionRegistryPostProcessor 和 BeanFactoryPostProcessor 两个接口的方法
public class ConfigurationClassPostProcessor implements BeanDefinitionRegistryPostProcessor,
PriorityOrdered, ResourceLoaderAware, BeanClassLoaderAware, EnvironmentAware {
// 处理 配置的class类
@Override
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
int registryId = System.identityHashCode(registry);
if (this.registriesPostProcessed.contains(registryId)) {
// throw new IllegalStateException();
}
if (this.factoriesPostProcessed.contains(registryId)) {
// throw new IllegalStateException();
}
this.registriesPostProcessed.add(registryId);
// 处理配置的BeanDefinition
processConfigBeanDefinitions(registry);
}
@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
int factoryId = System.identityHashCode(beanFactory);
if (this.factoriesPostProcessed.contains(factoryId)) {
// throw new IllegalStateException();
}
this.factoriesPostProcessed.add(factoryId);
if (!this.registriesPostProcessed.contains(factoryId)) {
// BeanDefinitionRegistryPostProcessor hook apparently not supported...
// Simply call processConfigurationClasses lazily at this point then.
processConfigBeanDefinitions((BeanDefinitionRegistry) beanFactory);
}
enhanceConfigurationClasses(beanFactory);
beanFactory.addBeanPostProcessor(new ImportAwareBeanPostProcessor(beanFactory));
}
}
处理配置
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
String[] candidateNames = registry.getBeanDefinitionNames();
for (String beanName : candidateNames) {
BeanDefinition beanDef = registry.getBeanDefinition(beanName);
if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
// ...
}
// 判断当前BeanDefinition是否配置类
// 如果加了@Configuration，那么对应的BeanDefinition为full;
// 如果加了@Bean,@Component,@ComponentScan,@Import,@ImportResource这些注解，则为lite。
else if (ConfigurationClassUtils
.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
}
}
// 没有@Configuration注解直接返回
if (configCandidates.isEmpty()) {
return;
}
// 根据order排序
configCandidates.sort((bd1, bd2) -> {
int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
return Integer.compare(i1, i2);
});
// Detect any custom bean name generation strategy supplied through the enclosing application context
SingletonBeanRegistry sbr = null;
if (registry instanceof SingletonBeanRegistry) {
sbr = (SingletonBeanRegistry) registry;
if (!this.localBeanNameGeneratorSet) {
BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
if (generator != null) {
this.componentScanBeanNameGenerator = generator;
this.importBeanNameGenerator = generator;
}
}
}
if (this.environment == null) {
this.environment = new StandardEnvironment();
}
// Parse each @Configuration class
// 解析 加了@Configuration注解的类
ConfigurationClassParser parser = new ConfigurationClassParser(
this.metadataReaderFactory, this.problemReporter, this.environment,
this.resourceLoader, this.componentScanBeanNameGenerator, registry);
Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
// 循环，直到candidates为空
do {
// 解析配置类上的注解(@ComponentScan @Import @Bean方法 )
parser.parse(candidates);
parser.validate();
// 创建配置class集合,并移除已解析的class
Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
configClasses.removeAll(alreadyParsed);
// Read the model and create bean definitions based on its content
if (this.reader == null) {
this.reader = new ConfigurationClassBeanDefinitionReader(
registry, this.sourceExtractor, this.resourceLoader, this.environment,
this.importBeanNameGenerator, parser.getImportRegistry());
}
// 将@Import、@Bean等注解 注册的类解析成BeanDefinition
// 例如实现了ImportBeanDefinitionRegistrar或者ImportSelector接口的bean
this.reader.loadBeanDefinitions(configClasses);
alreadyParsed.addAll(configClasses);
candidates.clear();
// 这里判断registry.getBeanDefinitionCount() > candidateNames.length的目的是
// 为了向candidates集合添加 可能遗漏的配置类
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
Set<String> alreadyParsedClasses = new HashSet<>();
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
// 如果存在依赖的配置class
if (ConfigurationClassUtils
.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
!alreadyParsedClasses.contains(bd.getBeanClassName())) {
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
candidateNames = newCandidateNames;
}
}
while (!candidates.isEmpty());
// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
}
if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
// Clear cache in externally provided MetadataReaderFactory; this is a no-op
// for a shared cache since it'll be cleared by the ApplicationContext.
((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
}
}
解析配置类
遍历配置类然后依次解析，重载方法最终调用processConfigurationClass()方法
public void parse(Set<BeanDefinitionHolder> configCandidates) {
// 遍历 configCandidates
for (BeanDefinitionHolder holder : configCandidates) {
BeanDefinition bd = holder.getBeanDefinition();
try {
// 根据不同的类型调用不同的重载方法,最终都调用方法processConfigurationClass
if (bd instanceof AnnotatedBeanDefinition) {
parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
}
else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
}
else {
parse(bd.getBeanClassName(), holder.getBeanName());
}
}
catch (BeanDefinitionStoreException ex) {
throw ex;
}
catch (Throwable ex) {
// throw new BeanDefinitionStoreException( );
}
}
// 最后处理 deferredImportSelectorHandler
this.deferredImportSelectorHandler.process();
}
protected void processConfigurationClass(ConfigurationClass configClass) throws IOException {
// 是否满足@Conditional装配条件,不满足跳过注册
if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(),
ConfigurationPhase.PARSE_CONFIGURATION)) {
return;
}
ConfigurationClass existingClass = this.configurationClasses.get(configClass);
if (existingClass != null) {
if (configClass.isImported()) {
if (existingClass.isImported()) {
existingClass.mergeImportedBy(configClass);
}
// Otherwise ignore new imported config class; existing non-imported class overrides it.
return;
}
else {
// Explicit bean definition found, probably replacing an import.
// Let's remove the old one and go with the new one.
this.configurationClasses.remove(configClass);
this.knownSuperclasses.values().removeIf(configClass::equals);
}
}
// Recursively process the configuration class and its superclass hierarchy.
SourceClass sourceClass = asSourceClass(configClass);
// 从子类到父类层层解析
do {
// 真正干活的方法,返回父类
sourceClass = doProcessConfigurationClass(configClass, sourceClass);
}
while (sourceClass != null);
// 添加到映射
this.configurationClasses.put(configClass, configClass);
}
protected final SourceClass doProcessConfigurationClass(ConfigurationClass configClass,
SourceClass sourceClass) throws IOException {
// 如果有 @Component 注解 ,处理sourceClass的内部类
if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
// Recursively process any member (nested) classes first
processMemberClasses(configClass, sourceClass);
}
// Process any @PropertySource annotations
// 处理@PropertySource 注解
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), PropertySources.class,
org.springframework.context.annotation.PropertySource.class)) {
if (this.environment instanceof ConfigurableEnvironment) {
// 解析properties文件
processPropertySource(propertySource);
}
else {
// logger
}
}
// Process any @ComponentScan annotations
// 处理@ComponentScan 注解
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
// 遍历 @ComponentScan和@ComponentScans注解的所有属性
for (AnnotationAttributes componentScan : componentScans) {
// 解析@ComponentScan和@ComponentScans配置的扫描的包所包含的类
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
// 遍历 扫描到的bean
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
// 判断当前bdCand是否配置类
if (ConfigurationClassUtils
.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
// Process any @Import annotations
// 处理@Import 注解
processImports(configClass, sourceClass, getImports(sourceClass), true);
// Process any @ImportResource annotations
// 处理@ImportResource 注解
AnnotationAttributes importResource =
AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
if (importResource != null) {
String[] resources = importResource.getStringArray("locations");
Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
for (String resource : resources) {
String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
configClass.addImportedResource(resolvedResource, readerClass);
}
}
// Process individual @Bean methods
// 处理带@Bean 注解的方法
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
// 遍历@Bean注释的方法,添加到configClass
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
// Process default methods on interfaces
// 处理接口上的默认方法
processInterfaces(configClass, sourceClass);
// Process superclass, if any
if (sourceClass.getMetadata().hasSuperClass()) {
String superclass = sourceClass.getMetadata().getSuperClassName();
if (superclass != null && !superclass.startsWith("java") &&
!this.knownSuperclasses.containsKey(superclass)) {
this.knownSuperclasses.put(superclass, configClass);
// 返回父类
return sourceClass.getSuperClass();
}
}
// No superclass -> processing is complete
return null;
}
条件装配
Spring4提供了@Conditional注解，作用：根据条件，决定类是否加载到Spring容器中，在SpringBoot中有大量的运用
@Configuration
public class SpringConfig {
@Bean("student")
@Conditional(TestCondition.class)
public Student student() {
return new Student(18,"qin");
}
}
// Condition接口
public class TestCondition implements Condition {
// 判断是否加载bean;返回true表示加载
@Override
public boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata) {
Environment environment = context.getEnvironment();
String config = environment.getProperty("com.test");
if (Objects.equals(config,"yes")) {
return true;
}
return false;
}
}
实现原理
判断当前bean是否跳过；最终执行Condition.matches方法，如果不满足条件返回true；表示跳过当前bean的注册
public boolean shouldSkip(@Nullable AnnotatedTypeMetadata metadata, @Nullable ConfigurationPhase phase) {
if (metadata == null || !metadata.isAnnotated(Conditional.class.getName())) {
return false;
}
if (phase == null) {
if (metadata instanceof AnnotationMetadata &&
ConfigurationClassUtils.isConfigurationCandidate((AnnotationMetadata) metadata)) {
return shouldSkip(metadata, ConfigurationPhase.PARSE_CONFIGURATION);
}
return shouldSkip(metadata, ConfigurationPhase.REGISTER_BEAN);
}
// 获取Condition接口列表
List<Condition> conditions = new ArrayList<>();
for (String[] conditionClasses : getConditionClasses(metadata)) {
for (String conditionClass : conditionClasses) {
// 通过反射生成实例对象
Condition condition = getCondition(conditionClass, this.context.getClassLoader());
conditions.add(condition);
}
}
AnnotationAwareOrderComparator.sort(conditions);
for (Condition condition : conditions) {
ConfigurationPhase requiredPhase = null;
if (condition instanceof ConfigurationCondition) {
// ConfigurationCondition 接口在SpringFramwork中没有具体实现，在SpringBoot中应用
requiredPhase = ((ConfigurationCondition) condition).getConfigurationPhase();
}
// 执行Condition.matches方法,如果不满足,返回true,表示跳过 当前bean的注册
if ((requiredPhase == null || requiredPhase == phase) &&
!condition.matches(this.context, metadata)) {
return true;
}
}
return false;
}
内部类
配置class可能存在内部类，内部类持有相关注解，也需要进行解析
private void processMemberClasses(ConfigurationClass configClass,SourceClass sourceClass)throws IOException {
// 获取内部类
Collection<SourceClass> memberClasses = sourceClass.getMemberClasses();
if (!memberClasses.isEmpty()) {
List<SourceClass> candidates = new ArrayList<>(memberClasses.size());
for (SourceClass memberClass : memberClasses) {
// 内部类是否有@Component @ComponentScan @Import @ImportResource 或者 有@Bean注解的方法
if (ConfigurationClassUtils.isConfigurationCandidate(memberClass.getMetadata()) &&
!memberClass.getMetadata().getClassName().equals(configClass.getMetadata().getClassName())) {
candidates.add(memberClass);
}
}
OrderComparator.sort(candidates);
for (SourceClass candidate : candidates) {
if (this.importStack.contains(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
// 递归处理嵌套的内部类
processConfigurationClass(candidate.asConfigClass(configClass));
}
finally {
this.importStack.pop();
}
}
}
}
}
@ComponentScan 注解
// 处理@ComponentScan 注解,获取 @ComponentScan注解集合
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
// 遍历 @ComponentScan和@ComponentScans注解的所有属性
for (AnnotationAttributes componentScan : componentScans) {
// 解析@ComponentScan和@ComponentScans配置的扫描的包所包含的类
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
// 遍历 扫描到的bean
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
// 判断当前bdCand是否配置类
if (ConfigurationClassUtils
.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
public Set<BeanDefinitionHolder> parse(AnnotationAttributes componentScan, final String declaringClass) {
// 创建 按类路径扫描的BeanDefinition扫描器
ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(this.registry,
componentScan.getBoolean("useDefaultFilters"), this.environment, this.resourceLoader);
// 设置BeanName生成器
Class<? extends BeanNameGenerator> generatorClass = componentScan.getClass("nameGenerator");
boolean useInheritedGenerator = (BeanNameGenerator.class == generatorClass);
scanner.setBeanNameGenerator(useInheritedGenerator ? this.beanNameGenerator :
BeanUtils.instantiateClass(generatorClass));
ScopedProxyMode scopedProxyMode = componentScan.getEnum("scopedProxy");
if (scopedProxyMode != ScopedProxyMode.DEFAULT) {
scanner.setScopedProxyMode(scopedProxyMode);
}
else {
Class<? extends ScopeMetadataResolver> resolverClass = componentScan.getClass("scopeResolver");
scanner.setScopeMetadataResolver(BeanUtils.instantiateClass(resolverClass));
}
scanner.setResourcePattern(componentScan.getString("resourcePattern"));
// includeFilters 包含的类
for (AnnotationAttributes filter : componentScan.getAnnotationArray("includeFilters")) {
for (TypeFilter typeFilter : typeFiltersFor(filter)) {
scanner.addIncludeFilter(typeFilter);
}
}
// excludeFilters 排除的类
for (AnnotationAttributes filter : componentScan.getAnnotationArray("excludeFilters")) {
for (TypeFilter typeFilter : typeFiltersFor(filter)) {
scanner.addExcludeFilter(typeFilter);
}
}
boolean lazyInit = componentScan.getBoolean("lazyInit");
if (lazyInit) {
scanner.getBeanDefinitionDefaults().setLazyInit(true);
}
Set<String> basePackages = new LinkedHashSet<>();
// 添加包名
String[] basePackagesArray = componentScan.getStringArray("basePackages");
for (String pkg : basePackagesArray) {
String[] tokenized = StringUtils.tokenizeToStringArray(this.environment.resolvePlaceholders(pkg),
ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
Collections.addAll(basePackages, tokenized);
}
for (Class<?> clazz : componentScan.getClassArray("basePackageClasses")) {
basePackages.add(ClassUtils.getPackageName(clazz));
}
// 如果没有指定包名,获取当前配置类所在的包
if (basePackages.isEmpty()) {
basePackages.add(ClassUtils.getPackageName(declaringClass));
}
// 设置排除类,当前已扫描的配置类declaringClass不在重新扫描
scanner.addExcludeFilter(new AbstractTypeHierarchyTraversingFilter(false, false) {
@Override
protected boolean matchClassName(String className) {
return declaringClass.equals(className);
}
});
// 调用doScan扫描
return scanner.doScan(StringUtils.toStringArray(basePackages));
}
@Import 注解
@Import注解可以导入3种类型的class
- ImportSelector 接口：调用selectImports方法
- ImportBeanDefinitionRegistrar 接口：加入集合importBeanDefinitionRegistrars；在后面执行的loadBeanDefinitions方法时调用
- 其他配置类（需要防止循环导入）：递归进行解析
private void processImports(ConfigurationClass configClass, SourceClass currentSourceClass,
Collection<SourceClass> importCandidates, boolean checkForCircularImports) {
// 如果importCandidates为空,则直接return
if (importCandidates.isEmpty()) {
return;
}
// 是否存在循环导入
if (checkForCircularImports && isChainedImportOnStack(configClass)) {
this.problemReporter.error(new CircularImportProblem(configClass, this.importStack));
}
else {
this.importStack.push(configClass);
try {
// 遍历导入的class
for (SourceClass candidate : importCandidates) {
// 实现了 ImportSelector 接口
if (candidate.isAssignable(ImportSelector.class)) {
// Candidate class is an ImportSelector -> delegate to it to determine imports
Class<?> candidateClass = candidate.loadClass();
ImportSelector selector = ParserStrategyUtils.instantiateClass(candidateClass, ImportSelector.class, this.environment, this.resourceLoader, this.registry);
if (selector instanceof DeferredImportSelector) {
// 如果 实现了DeferredImportSelector 接口,则加入到deferredImportSelectors
// 延迟加载 最后处理,而不是立马导入
// 在@Configguration注解中的其他逻辑,包括@ImportResource、@Bean这些注解的处理
this.deferredImportSelectorHandler
.handle(configClass, (DeferredImportSelector) selector);
}
else {
// 调用ImportSelector的selectImports方法，获取需要import的配置
String[] importClassNames = selector.selectImports(currentSourceClass.getMetadata());
Collection<SourceClass> importSourceClasses = asSourceClasses(importClassNames);
// 递归解析 import, 会把selectImports得到的类全部导入
processImports(configClass, currentSourceClass, importSourceClasses, false);
}
}
// 实现了 ImportBeanDefinitionRegistrar 接口;
// 例如@EnableAspectJAutoProxy注解的@Import(AspectJAutoProxyRegistrar.class)
else if (candidate.isAssignable(ImportBeanDefinitionRegistrar.class)) {
// Candidate class is an ImportBeanDefinitionRegistrar ->
// delegate to it to register additional bean definitions
Class<?> candidateClass = candidate.loadClass();
// 反射创建实例
ImportBeanDefinitionRegistrar registrar = ParserStrategyUtils
.instantiateClass(candidateClass, ImportBeanDefinitionRegistrar.class,
this.environment, this.resourceLoader, this.registry);
// 加入集合 importBeanDefinitionRegistrars;在后面执行的loadBeanDefinitions方法调用
configClass.addImportBeanDefinitionRegistrar(registrar,
currentSourceClass.getMetadata());
}
else {
// Candidate class not an ImportSelector or ImportBeanDefinitionRegistrar ->
// process it as an @Configuration class
this.importStack.registerImport(
currentSourceClass.getMetadata(), candidate.getMetadata().getClassName());
// 递归处理import的配置class(带@Configuration注解)
processConfigurationClass(candidate.asConfigClass(configClass));
}
}
}
// catch ...
finally {
this.importStack.pop();
}
}
}
@Bean 注解
// 处理带@Bean 注解的方法
// 获取所有带@Bean 注解的方法
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
// 遍历@Bean注释的方法,添加到configClass
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
最后处理
之前导入的DeferredImportSelector接口，会保存到deferredImportSelectors集合中，等到需要的条件class都注册成功后最后处理
private class DeferredImportSelectorHandler {
// 延迟处理
public void process() {
List<DeferredImportSelectorHolder> deferredImports = this.deferredImportSelectors;
this.deferredImportSelectors = null;
try {
if (deferredImports != null) {
DeferredImportSelectorGroupingHandler handler = new DeferredImportSelectorGroupingHandler();
deferredImports.sort(DEFERRED_IMPORT_COMPARATOR);
// 遍历deferredImports集合 调用 register方法
deferredImports.forEach(handler::register);
// 处理 需要导入的类
handler.processGroupImports();
}
}
finally {
this.deferredImportSelectors = new ArrayList<>();
}
}
}
private class DeferredImportSelectorGroupingHandler {
private final Map<Object, DeferredImportSelectorGrouping> groupings = new LinkedHashMap<>();
private final Map<AnnotationMetadata, ConfigurationClass> configurationClasses = new HashMap<>();
// 注册,把class 放入集合groupings和configurationClasses
public void register(DeferredImportSelectorHolder deferredImport) {
Class<? extends Group> group = deferredImport.getImportSelector()
.getImportGroup();
DeferredImportSelectorGrouping grouping = this.groupings.computeIfAbsent(
(group != null ? group : deferredImport),
key -> new DeferredImportSelectorGrouping(createGroup(group)));
grouping.add(deferredImport);
this.configurationClasses.put(deferredImport.getConfigurationClass().getMetadata(),
deferredImport.getConfigurationClass());
}
// 处理
public void processGroupImports() {
// 遍历
for (DeferredImportSelectorGrouping grouping : this.groupings.values()) {
// grouping.getImports()返回Iterable<Group.Entry>
// 然后遍历处理配置class
grouping.getImports().forEach(entry -> {
ConfigurationClass configurationClass = this.configurationClasses.get(
entry.getMetadata());
try {
// 处理导入的配置class
processImports(configurationClass, asSourceClass(configurationClass),
asSourceClasses(entry.getImportClassName()), false);
} // catch ...
});
}
}
}
loadBeanDefinitions
将@Import、@Bean等注解 注册的类解析成BeanDefinition
class ConfigurationClassBeanDefinitionReader {
public void loadBeanDefinitions(Set<ConfigurationClass> configurationModel) {
TrackedConditionEvaluator trackedConditionEvaluator = new TrackedConditionEvaluator();
// 遍历配置class集合
for (ConfigurationClass configClass : configurationModel) {
loadBeanDefinitionsForConfigurationClass(configClass, trackedConditionEvaluator);
}
}
private void loadBeanDefinitionsForConfigurationClass(
ConfigurationClass configClass, TrackedConditionEvaluator trackedConditionEvaluator) {
// 根据@Conditional注解判断是否需要跳过这个配置类
if (trackedConditionEvaluator.shouldSkip(configClass)) {
String beanName = configClass.getBeanName();
if (StringUtils.hasLength(beanName) && this.registry.containsBeanDefinition(beanName)) {
this.registry.removeBeanDefinition(beanName);
}
this.importRegistry.removeImportingClass(configClass.getMetadata().getClassName());
return;
}
// 如果 bean是通过@Import(ImportSelector)的方式添加到容器中的，那么此时configClass.isImported()返回的是true
if (configClass.isImported()) {
// 注册自己
registerBeanDefinitionForImportedConfigurationClass(configClass);
}
// 遍历BeanMethods,依次进行注册.
for (BeanMethod beanMethod : configClass.getBeanMethods()) {
loadBeanDefinitionsForBeanMethod(beanMethod);
}
// 注册@ImportResource注解 解析bean
loadBeanDefinitionsFromImportedResources(configClass.getImportedResources());
// ImportBeanDefinitionRegistrar接口,则执行ImportBeanDefinitionRegistrar的registerBeanDefinitions()方法
loadBeanDefinitionsFromRegistrars(configClass.getImportBeanDefinitionRegistrars());
}
}
AutowiredAnnotationBeanPostProcessor
AutowiredAnnotationBeanPostProcessor实现了MergedBeanDefinitionPostProcessor和InstantiationAwareBeanPostProcessor接口
public AutowiredAnnotationBeanPostProcessor() {
// 添加@Autowired,@Value注解
this.autowiredAnnotationTypes.add(Autowired.class);
this.autowiredAnnotationTypes.add(Value.class);
try {
// JSR-330 规范
this.autowiredAnnotationTypes.add((Class<? extends Annotation>)
lassUtils.forName("javax.inject.Inject",
AutowiredAnnotationBeanPostProcessor.class.getClassLoader()));
logger.trace("JSR-330 'javax.inject.Inject' annotation found and supported for autowiring");
}
catch (ClassNotFoundException ex) {
// JSR-330 API not available - simply skip.
}
}
postProcessMergedBeanDefinition
实现了MergedBeanDefinitionPostProcessor接口，会在bean实例化之后调用接口方法
调用时机
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd,
final @Nullable Object[] args) throws BeanCreationException {
if (instanceWrapper == null) {
// 创建bean实例
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
final Object bean = instanceWrapper.getWrappedInstance();
// 获取实例化对象的类型
Class<?> beanType = instanceWrapper.getWrappedClass();
if (beanType != NullBean.class) {
mbd.resolvedTargetType = beanType;
}
// 调用 MergedBeanDefinitionPostProcessor 接口
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
} catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Post-processing of merged bean definition failed", ex);
}
mbd.postProcessed = true;
}
}
}
// applyMergedBeanDefinitionPostProcessors
protected void applyMergedBeanDefinitionPostProcessors(RootBeanDefinition mbd,
Class<?> beanType, String beanName) {
// 遍历 MergedBeanDefinitionPostProcessor 接口
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof MergedBeanDefinitionPostProcessor) {
MergedBeanDefinitionPostProcessor bdp = (MergedBeanDefinitionPostProcessor) bp;
bdp.postProcessMergedBeanDefinition(mbd, beanType, beanName);
}
}
}
调用的方法
public void postProcessMergedBeanDefinition(RootBeanDefinition beanDefinition, Class<?> beanType, String beanName) {
// 获取指定bean的属性,注入元数据
InjectionMetadata metadata = findAutowiringMetadata(beanName, beanType, null);
metadata.checkConfigMembers(beanDefinition);
}
获取属性
private InjectionMetadata findAutowiringMetadata(String beanName, Class<?> clazz, @Nullable PropertyValues pvs) {
// Fall back to class name as cache key, for backwards compatibility with custom callers.
String cacheKey = (StringUtils.hasLength(beanName) ? beanName : clazz.getName());
// Quick check on the concurrent map first, with minimal locking.
InjectionMetadata metadata = this.injectionMetadataCache.get(cacheKey);
// 双重检查锁
if (InjectionMetadata.needsRefresh(metadata, clazz)) {
synchronized (this.injectionMetadataCache) {
metadata = this.injectionMetadataCache.get(cacheKey);
if (InjectionMetadata.needsRefresh(metadata, clazz)) {
if (metadata != null) {
metadata.clear(pvs);
}
// 把需要注入的字段和方法 放入集合返回；metadata为所有字段和方法的集合
metadata = buildAutowiringMetadata(clazz);
this.injectionMetadataCache.put(cacheKey, metadata);
}
}
}
return metadata;
}
private InjectionMetadata buildAutowiringMetadata(final Class<?> clazz) {
if (!AnnotationUtils.isCandidateClass(clazz, this.autowiredAnnotationTypes)) {
return InjectionMetadata.EMPTY;
}
List<InjectionMetadata.InjectedElement> elements = new ArrayList<>();
Class<?> targetClass = clazz;
// 循环遍历targetClass，从子类到父类一层层解析
do {
final List<InjectionMetadata.InjectedElement> currElements = new ArrayList<>();
// 遍历targetClass所有字段
ReflectionUtils.doWithLocalFields(targetClass, field -> {
// 获取字段的@Autowired,@Value注解（如果引入JSR-330 规范,javax.inject.Inject）
MergedAnnotation<?> ann = findAutowiredAnnotation(field);
if (ann != null) {
if (Modifier.isStatic(field.getModifiers())) {
return;
}
boolean required = determineRequiredStatus(ann);
currElements.add(new AutowiredFieldElement(field, required));
}
});
// 遍历targetClass所有方法
ReflectionUtils.doWithLocalMethods(targetClass, method -> {
// 桥接方法
Method bridgedMethod = BridgeMethodResolver.findBridgedMethod(method);
if (!BridgeMethodResolver.isVisibilityBridgeMethodPair(method, bridgedMethod)) {
return;
}
MergedAnnotation<?> ann = findAutowiredAnnotation(bridgedMethod);
if (ann != null && method.equals(ClassUtils.getMostSpecificMethod(method, clazz))) {
if (Modifier.isStatic(method.getModifiers())) {
return;
}
if (method.getParameterCount() == 0) {
}
boolean required = determineRequiredStatus(ann);
PropertyDescriptor pd = BeanUtils.findPropertyForMethod(bridgedMethod, clazz);
currElements.add(new AutowiredMethodElement(method, required, pd));
}
});
elements.addAll(0, currElements);
// targetClass 赋值为父类
targetClass = targetClass.getSuperclass();
}
while (targetClass != null && targetClass != Object.class);
return InjectionMetadata.forElements(elements, clazz);
}
checkedElements
public class InjectionMetadata {
public void checkConfigMembers(RootBeanDefinition beanDefinition) {
Set<InjectedElement> checkedElements = new LinkedHashSet<>(this.injectedElements.size());
// 遍历所有的字段和方法(injectedElements)
for (InjectedElement element : this.injectedElements) {
Member member = element.getMember();
if (!beanDefinition.isExternallyManagedConfigMember(member)) {
// 向beanDefinition注册
beanDefinition.registerExternallyManagedConfigMember(member);
checkedElements.add(element);
}
}
this.checkedElements = checkedElements;
}
}
postProcessPropertyValues
@Override
public PropertyValues postProcessPropertyValues(
PropertyValues pvs, PropertyDescriptor[] pds, Object bean, String beanName) {
return postProcessProperties(pvs, bean, beanName);
}
public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) {
// 获取属性
InjectionMetadata metadata = findAutowiringMetadata(beanName, bean.getClass(), pvs);
try {
// 注入字段和方法
metadata.inject(bean, beanName, pvs);
}
catch (BeanCreationException ex) {
throw ex;
}
catch (Throwable ex) {
throw new BeanCreationException(beanName, "Injection of autowired dependencies failed", ex);
}
return pvs;
}
反射注入
public class InjectionMetadata {
public void inject(Object target, @Nullable String beanName, @Nullable PropertyValues pvs)
throws Throwable {
// 遍历 checkedElements
Collection<InjectedElement> checkedElements = this.checkedElements;
Collection<InjectedElement> elementsToIterate =
(checkedElements != null ? checkedElements : this.injectedElements);
if (!elementsToIterate.isEmpty()) {
for (InjectedElement element : elementsToIterate) {
element.inject(target, beanName, pvs);
}
}
}
// 内部类
public abstract static class InjectedElement {
protected void inject(Object target, @Nullable String requestingBeanName,
@Nullable PropertyValues pvs) throws Throwable {
if (this.isField) {
Field field = (Field) this.member;
ReflectionUtils.makeAccessible(field);
// 反射注入field
field.set(target, getResourceToInject(target, requestingBeanName));
}
else {
if (checkPropertySkipping(pvs)) {
return;
}
try {
Method method = (Method) this.member;
ReflectionUtils.makeAccessible(method);
// 反射调用method
method.invoke(target, getResourceToInject(target, requestingBeanName));
}
catch (InvocationTargetException ex) {
throw ex.getTargetException();
}
}
}
}
}
EventListenerMethodProcessor
EventListenerMethodProcessor实现了SmartInitializingSingleton接口，在容器对配置了lazy-init=false的单例Bean实例化过程中调用该接口
public class EventListenerMethodProcessor implements SmartInitializingSingleton,
ApplicationContextAware, BeanFactoryPostProcessor {
@Override
public void afterSingletonsInstantiated() {
ConfigurableListableBeanFactory beanFactory = this.beanFactory;
Assert.state(this.beanFactory != null, "No ConfigurableListableBeanFactory set");
String[] beanNames = beanFactory.getBeanNamesForType(Object.class);
for (String beanName : beanNames) {
if (!ScopedProxyUtils.isScopedTarget(beanName)) {
Class<?> type = null;
try {
type = AutoProxyUtils.determineTargetClass(beanFactory, beanName);
}
catch (Throwable ex) {
}
if (type != null) {
if (ScopedObject.class.isAssignableFrom(type)) {
try {
Class<?> targetClass = AutoProxyUtils.determineTargetClass(
beanFactory, ScopedProxyUtils.getTargetBeanName(beanName));
if (targetClass != null) {
type = targetClass;
}
}
catch (Throwable ex) {
}
}
try {
// 处理bean
processBean(beanName, type);
}
catch (Throwable ex) {
throw new BeanInitializationException( );
}
}
}
}
}
private void processBean(final String beanName, final Class<?> targetType) {
if (!this.nonAnnotatedClasses.contains(targetType) &&
AnnotationUtils.isCandidateClass(targetType, EventListener.class) &&
!isSpringContainerClass(targetType)) {
Map<Method, EventListener> annotatedMethods = null;
try {
// 寻找@EventListener注解的方法
annotatedMethods = MethodIntrospector.selectMethods(targetType,
(MethodIntrospector.MetadataLookup<EventListener>) method ->
AnnotatedElementUtils.findMergedAnnotation(method, EventListener.class));
}
catch (Throwable ex) {
}
if (CollectionUtils.isEmpty(annotatedMethods)) {
this.nonAnnotatedClasses.add(targetType);
}
else {
// Non-empty set of methods
ConfigurableApplicationContext context = this.applicationContext;
Assert.state(context != null, "No ApplicationContext set");
List<EventListenerFactory> factories = this.eventListenerFactories;
Assert.state(factories != null, "EventListenerFactory List not initialized");
for (Method method : annotatedMethods.keySet()) {
// 遍历工厂
for (EventListenerFactory factory : factories) {
// 是否支持
if (factory.supportsMethod(method)) {
Method methodToUse = AopUtils
.selectInvocableMethod(method, context.getType(beanName));
// 通过工厂创建ApplicationListener
ApplicationListener<?> applicationListener =
factory.createApplicationListener(beanName, targetType, methodToUse);
if (applicationListener instanceof ApplicationListenerMethodAdapter) {
((ApplicationListenerMethodAdapter) applicationListener)
.init(context, this.evaluator);
}
context.addApplicationListener(applicationListener);
break;
}
}
}
}
}
}
}
DefaultEventListenerFactory
public class DefaultEventListenerFactory implements EventListenerFactory, Ordered {
private int order = LOWEST_PRECEDENCE;
public void setOrder(int order) {
this.order = order;
}
@Override
public int getOrder() {
return this.order;
}
@Override
public boolean supportsMethod(Method method) {
return true;
}
// 创建ApplicationListener
@Override
public ApplicationListener<?> createApplicationListener(String beanName, Class<?> type, Method method) {
return new ApplicationListenerMethodAdapter(beanName, type, method);
}
}
ClassPathBeanDefinitionScanner
public class ClassPathBeanDefinitionScanner extends ClassPathScanningCandidateComponentProvider {
// 最终调用的构造方法
public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters,
Environment environment, @Nullable ResourceLoader resourceLoader) {
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
this.registry = registry;
// useDefaultFilters 默认 true
if (useDefaultFilters) {
// 注册过滤器 @Component,用来判断哪些注解的bean需要注册
registerDefaultFilters();
}
// 设置环境信息
setEnvironment(environment);
setResourceLoader(resourceLoader);
}
// 添加注解
protected void registerDefaultFilters() {
// @Component 注解 通过 includeFilters 判断 基于注解的bean
this.includeFilters.add(new AnnotationTypeFilter(Component.class));
ClassLoader cl = ClassPathScanningCandidateComponentProvider.class.getClassLoader();
try {
// JSR-250 API 规范
this.includeFilters.add(new AnnotationTypeFilter(
((Class<? extends Annotation>) ClassUtils.forName("javax.annotation.ManagedBean", cl)), false));
}
catch (ClassNotFoundException ex) {
// JSR-250 1.1 API (as included in Java EE 6) not available - simply skip.
}
try {
// JSR-330 API 规范
this.includeFilters.add(new AnnotationTypeFilter(
((Class<? extends Annotation>) ClassUtils.forName("javax.inject.Named", cl)), false));
}
catch (ClassNotFoundException ex) {
// JSR-330 API not available - simply skip.
}
}
}
扫描方法
public int scan(String... basePackages) {
int beanCountAtScanStart = this.registry.getBeanDefinitionCount();
// 扫描
doScan(basePackages);
// Register annotation config processors, if necessary.
// 必要时,注册注释配置处理器;前面分析过了
if (this.includeAnnotationConfig) {
AnnotationConfigUtils.registerAnnotationConfigProcessors(this.registry);
}
return (this.registry.getBeanDefinitionCount() - beanCountAtScanStart);
}
// 扫描basePackages下的class,解析成对应的BeanDefinition
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
// 遍历包名
for (String basePackage : basePackages) {
// 扫描basePackage包下带@Component注解的类
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
for (BeanDefinition candidate : candidates) {
// 解析scope属性
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
if (candidate instanceof AbstractBeanDefinition) {
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
}
if (candidate instanceof AnnotatedBeanDefinition) {
// 处理常用注解: @Lazy @Primary @DependsOn @Role @Description
AnnotationConfigUtils
.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
}
// 检查当前bean是否已经注册
if (checkCandidate(beanName, candidate)) {
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
definitionHolder = AnnotationConfigUtils
.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
beanDefinitions.add(definitionHolder);
// 注册BeanDefinition
registerBeanDefinition(definitionHolder, this.registry);
}
}
}
return beanDefinitions;
}
其他注解
@EnableAspectJAutoProxy
导入了AspectJAutoProxyRegistrar类
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {
boolean proxyTargetClass() default false;
boolean exposeProxy() default false;
}
AspectJAutoProxyRegistrar
AspectJAutoProxyRegistrar实现了ImportBeanDefinitionRegistrar接口，前面分析@Import注解时，该接口最终会被调用
class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {
// 解析过程中会被调用
@Override
public void registerBeanDefinitions(
AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
// 最终会调用AopConfigUtils#registerAspectJAnnotationAutoProxyCreatorIfNecessary方法
AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
// 解析注解中的两个参数 "proxyTargetClass" 和 "exposeProxy"
AnnotationAttributes enableAspectJAutoProxy =
AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
if (enableAspectJAutoProxy != null) {
if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
}
if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
}
}
}
}
最终注册AnnotationAwareAspectJAutoProxyCreator的bean，这个bean是AOP生成代理的核心类
AnnotationAwareAspectJAutoProxyCreator实现了InstantiationAwareBeanPostProcessor和BeanPostProcessor两大接口，重写了postProcessBeforeInstantiation和postProcessAfterInitialization方法，对bean实例化前和初始化后做了处理
public abstract class AopConfigUtils {
// 调用
public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
BeanDefinitionRegistry registry) {
return registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, null);
}
public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(
BeanDefinitionRegistry registry, @Nullable Object source) {
// 选择AnnotationAwareAspectJAutoProxyCreator.class作为beanClass
return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class,
registry, source);
}
private static BeanDefinition registerOrEscalateApcAsRequired(Class<?> cls,
BeanDefinitionRegistry registry,@Nullable Object source) {
Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
int requiredPriority = findPriorityForClass(cls);
if (currentPriority < requiredPriority) {
apcDefinition.setBeanClassName(cls.getName());
}
}
return null;
}
// 创建 BeanDefinition beanClass = AnnotationAwareAspectJAutoProxyCreator.class
RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
beanDefinition.setSource(source);
beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
// 向容器注册 beanDefinition
registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
return beanDefinition;
}
}
@EnableWebMvc
导入了DelegatingWebMvcConfiguration类
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(DelegatingWebMvcConfiguration.class)
public @interface EnableWebMvc {
}
DelegatingWebMvcConfiguration
DelegatingWebMvcConfiguration加了@Configuration注解，是一个配置类，需要寻找@Bean注解的方法
最终我们可以发现，通过@Bean注解引入了启动MVC必要的bean
@Configuration(proxyBeanMethods = false)
public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {
}
// 父类
public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
// RequestMappingHandlerMapping
@Bean
public RequestMappingHandlerMapping requestMappingHandlerMapping(
@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,
@Qualifier("mvcConversionService") FormattingConversionService conversionService,
@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {
RequestMappingHandlerMapping mapping = createRequestMappingHandlerMapping();
mapping.setOrder(0);
mapping.setInterceptors(getInterceptors(conversionService, resourceUrlProvider));
mapping.setContentNegotiationManager(contentNegotiationManager);
mapping.setCorsConfigurations(getCorsConfigurations());
PathMatchConfigurer configurer = getPathMatchConfigurer();
Boolean useSuffixPatternMatch = configurer.isUseSuffixPatternMatch();
if (useSuffixPatternMatch != null) {
mapping.setUseSuffixPatternMatch(useSuffixPatternMatch);
}
Boolean useRegisteredSuffixPatternMatch = configurer.isUseRegisteredSuffixPatternMatch();
if (useRegisteredSuffixPatternMatch != null) {
mapping.setUseRegisteredSuffixPatternMatch(useRegisteredSuffixPatternMatch);
}
Boolean useTrailingSlashMatch = configurer.isUseTrailingSlashMatch();
if (useTrailingSlashMatch != null) {
mapping.setUseTrailingSlashMatch(useTrailingSlashMatch);
}
UrlPathHelper pathHelper = configurer.getUrlPathHelper();
if (pathHelper != null) {
mapping.setUrlPathHelper(pathHelper);
}
PathMatcher pathMatcher = configurer.getPathMatcher();
if (pathMatcher != null) {
mapping.setPathMatcher(pathMatcher);
}
Map<String, Predicate<Class<?>>> pathPrefixes = configurer.getPathPrefixes();
if (pathPrefixes != null) {
mapping.setPathPrefixes(pathPrefixes);
}
return mapping;
}
@Bean
public PathMatcher mvcPathMatcher() {
PathMatcher pathMatcher = getPathMatchConfigurer().getPathMatcher();
return (pathMatcher != null ? pathMatcher : new AntPathMatcher());
}
@Bean
public UrlPathHelper mvcUrlPathHelper() {
UrlPathHelper pathHelper = getPathMatchConfigurer().getUrlPathHelper();
return (pathHelper != null ? pathHelper : new UrlPathHelper());
}
@Bean
public ContentNegotiationManager mvcContentNegotiationManager() {
if (this.contentNegotiationManager == null) {
ContentNegotiationConfigurer configurer = new ContentNegotiationConfigurer(this.servletContext);
configurer.mediaTypes(getDefaultMediaTypes());
configureContentNegotiation(configurer);
this.contentNegotiationManager = configurer.buildContentNegotiationManager();
}
return this.contentNegotiationManager;
}
}
