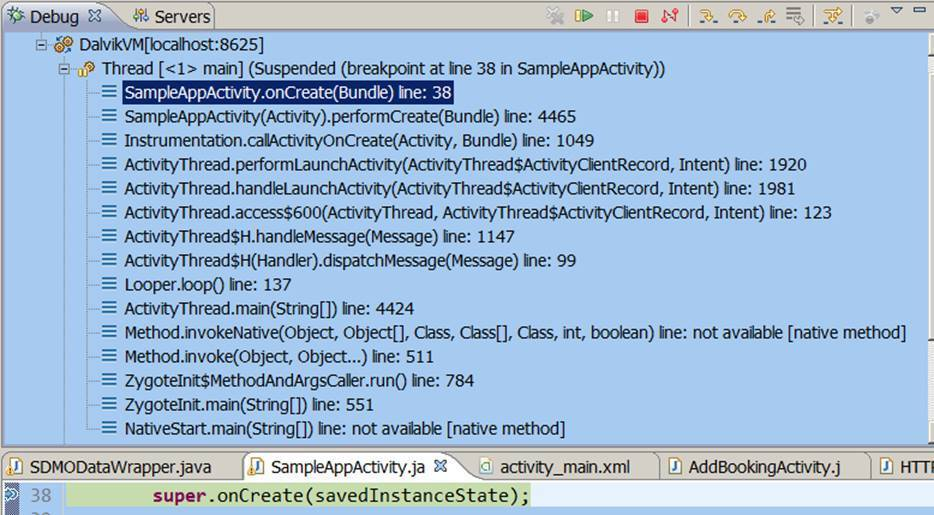

onCreate:

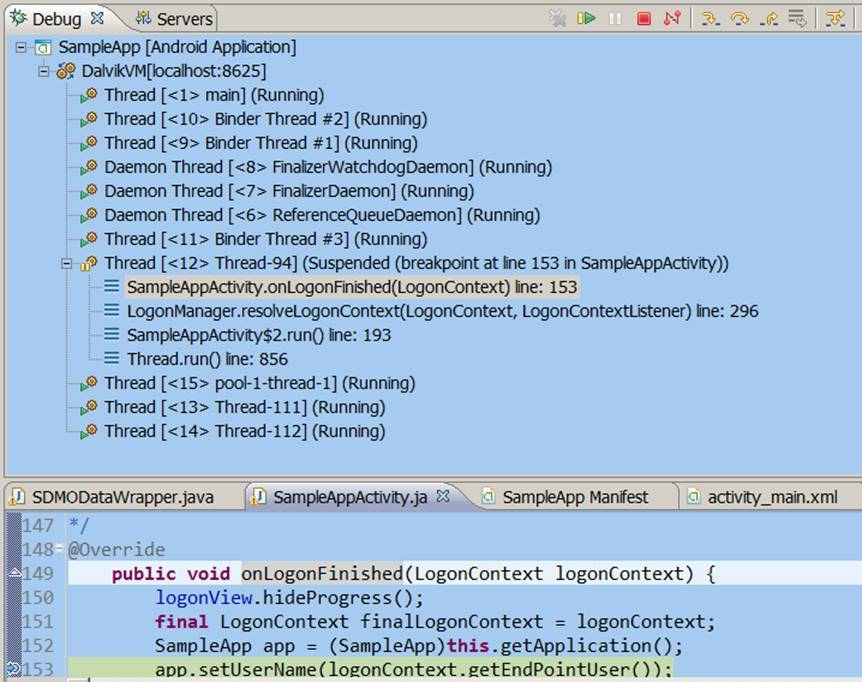

After click log in and wait for a while:

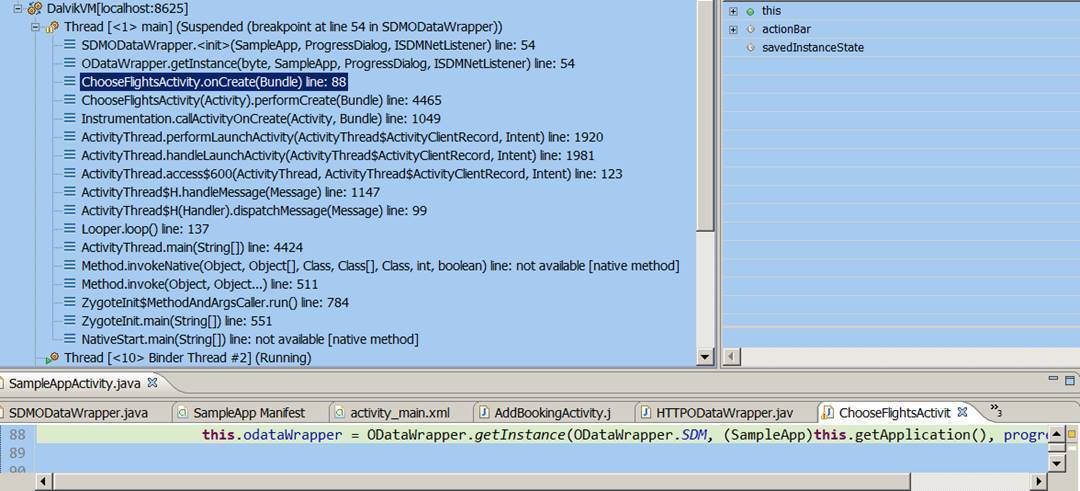

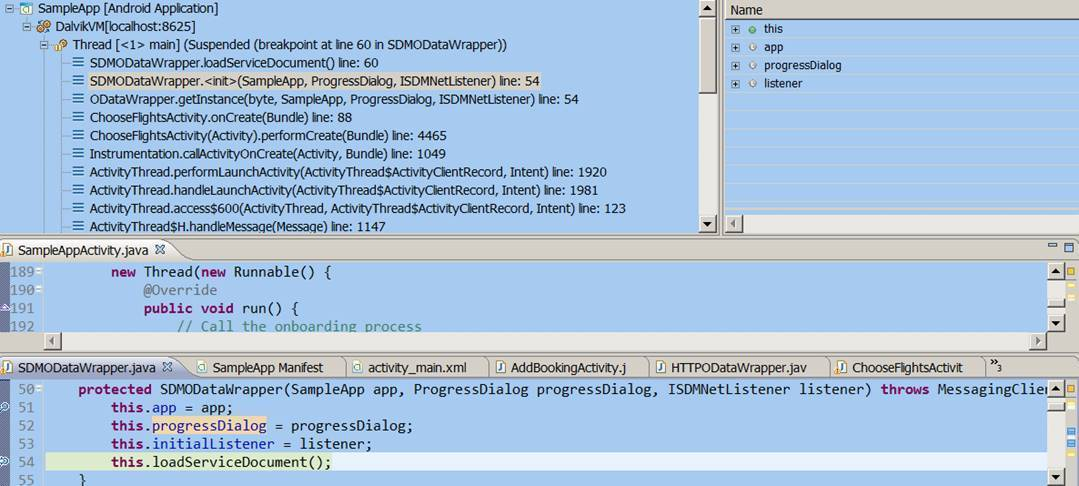

This will trigger constructor. Fetch service document and meta data in constructor.

Asynchronous task: The trigger point is in thread 1.

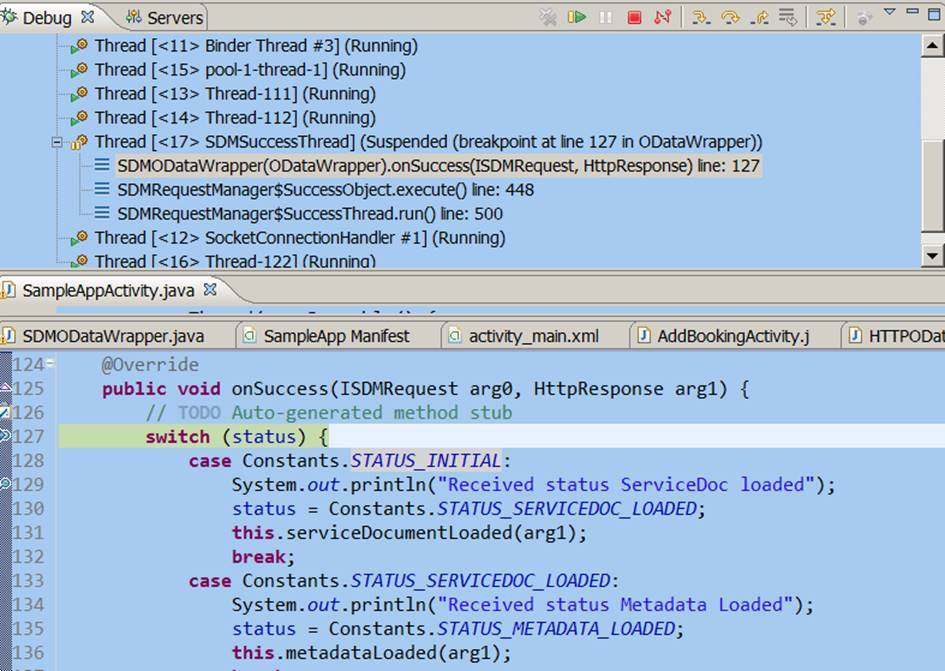

onSucceed: thread 17.

Since service document is loaded, next step is to try to load meta data. This is a state machine.

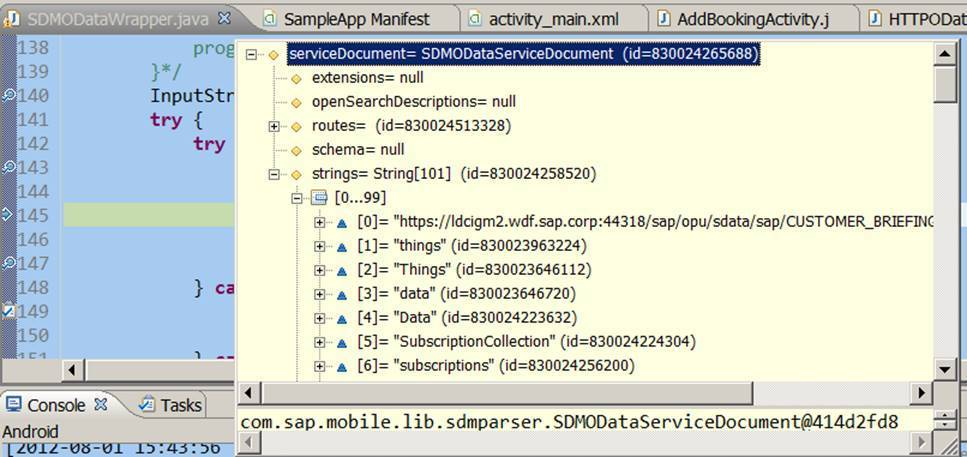

Service Document variable:

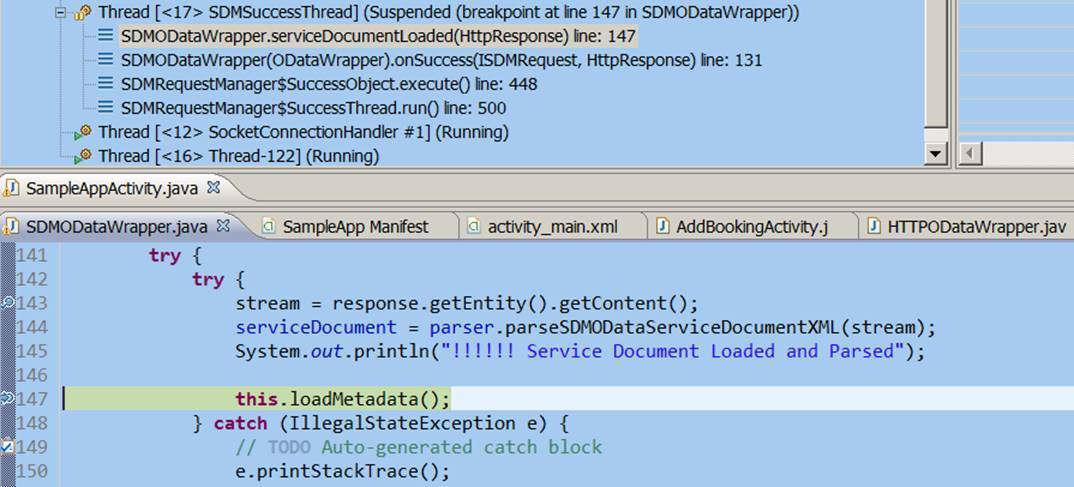

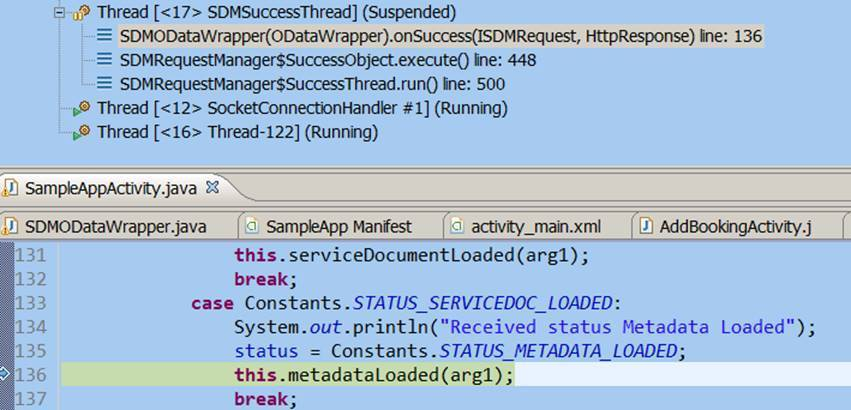

Now Load Metadata:

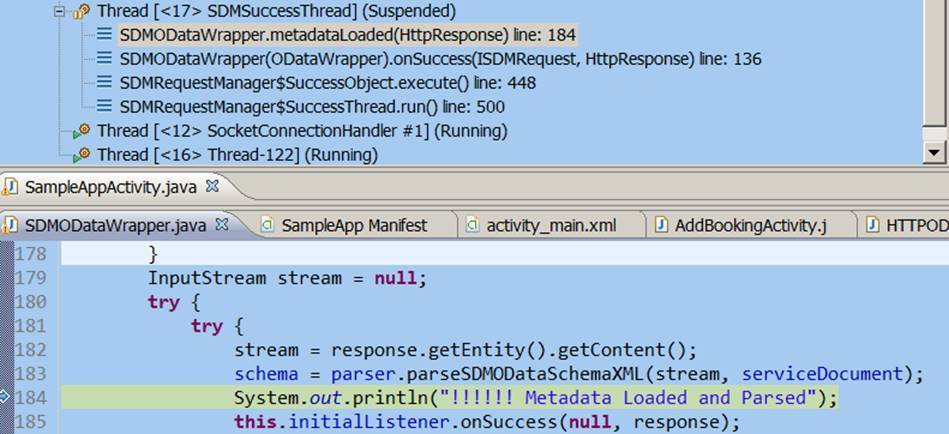

Now metadata loaded ok:

Metadata must be parsed with the help of service document:

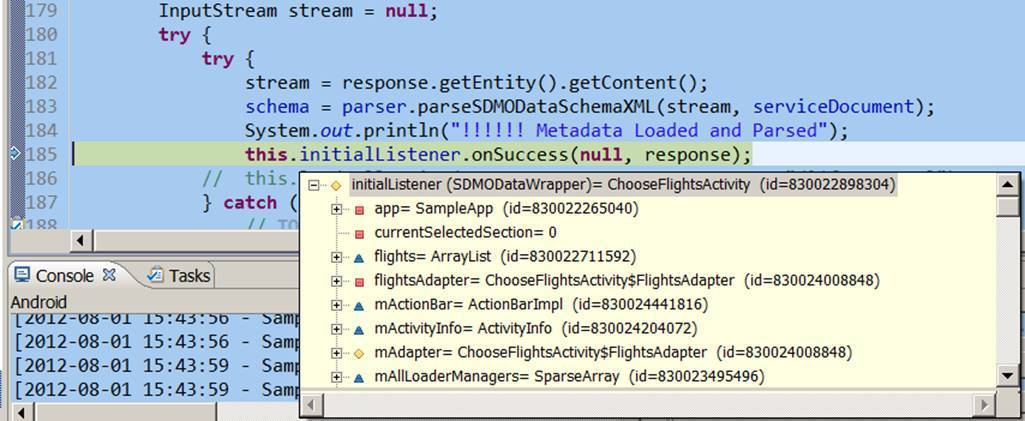

InitialListener:

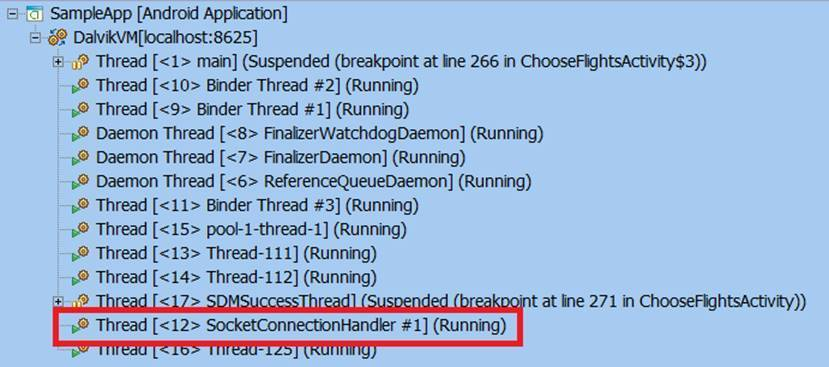

All thread lists:

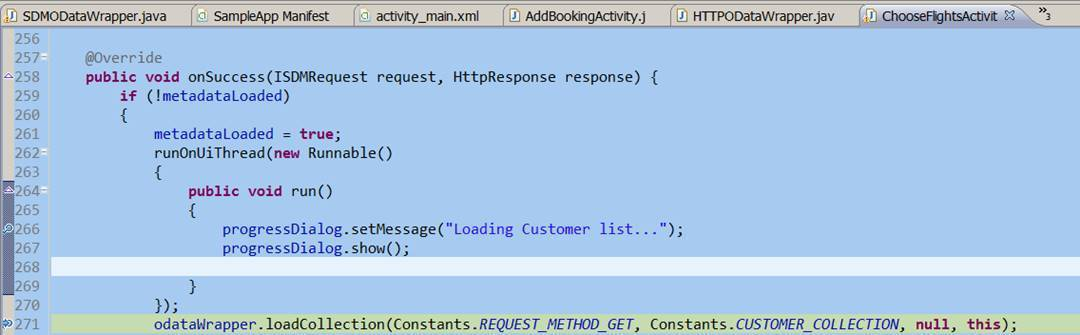

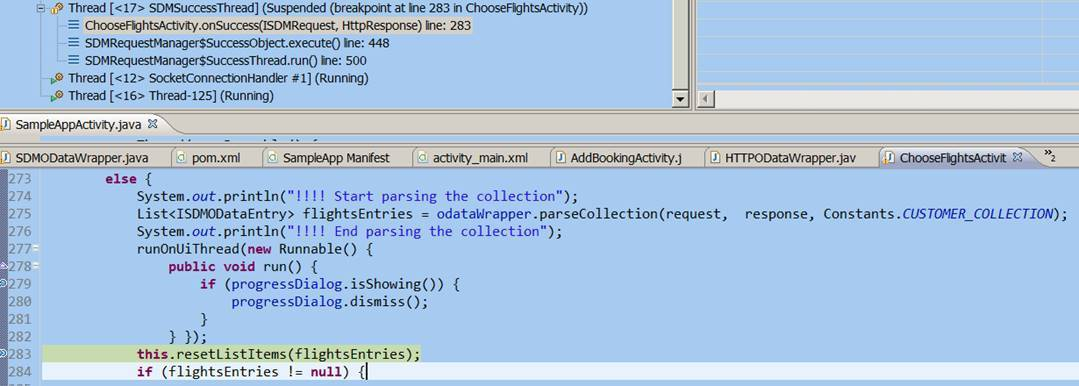

Get Customer collection list: And display in on UI:

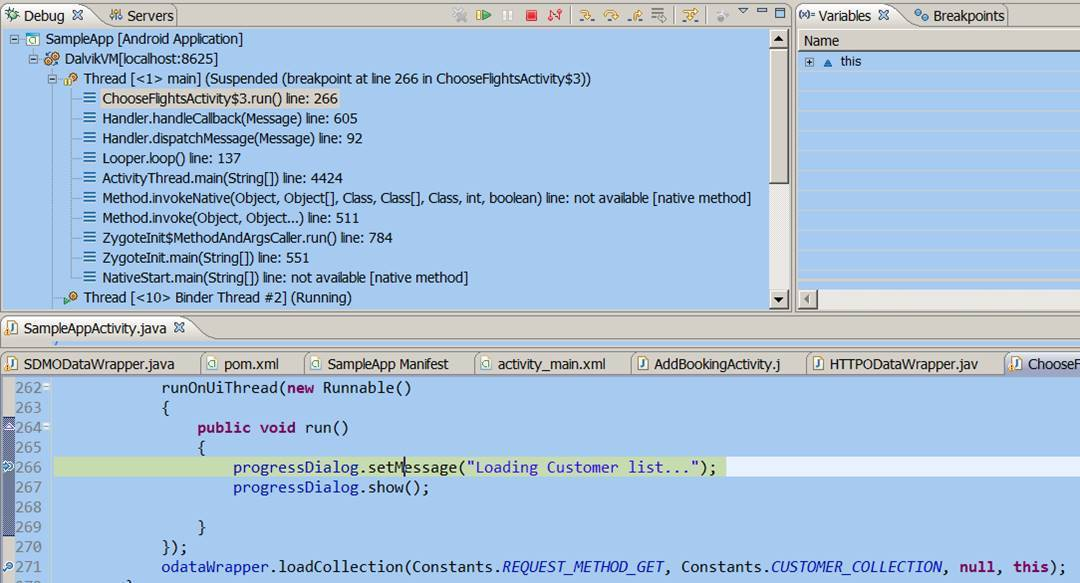

Control has moved to here:

Get view is called:

Click one item:

onCreate: now create detail view:

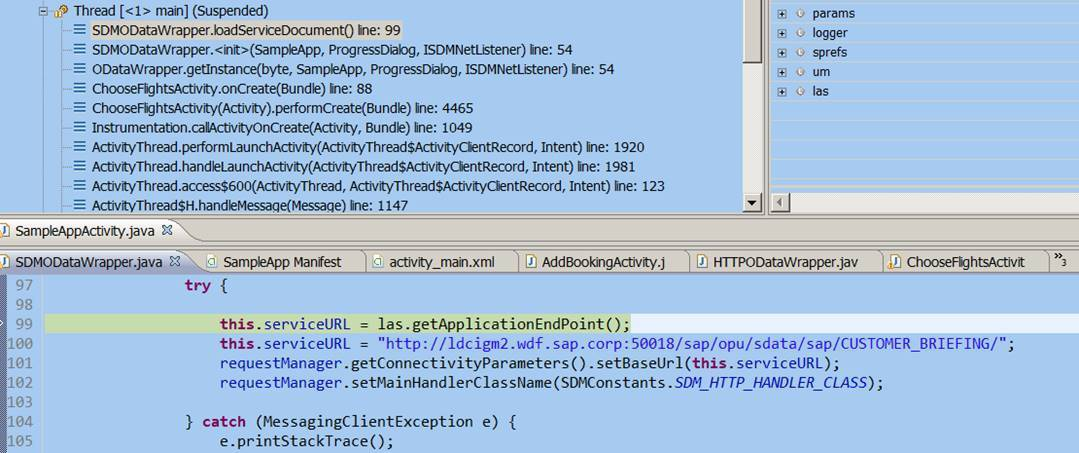

How does Gateway URL is fetched based on Application

private void loadServiceDocument() throws MessagingClientException, SDMParserException {
       //progressDialog.setMessage(app.getString(R.string.load_service_doc));
             //progressDialog.show();
             SDMConnectivityParameters params = new SDMConnectivityParameters();
             params.setUserName(app.getUserName());
             params.setUserPassword(app.getUserPassword());
             params.setBaseUrl(app.getGatewayUrl());

             SDMLogger logger = new SDMLogger();
             SDMPreferences sprefs = new SDMPreferences(app.getApplicationContext(), logger);

             requestManager = new SDMRequestManager(logger, sprefs, params, 1);

             parser = new SDMParser(sprefs, logger);
             if (app.isSup()) {
                    LiteUserManager.initInstance(app.getApplicationContext(), Constants.SUP_APPLICATION_NAME);
                    LiteUserManager um = LiteUserManager.getInstance();
                    try {

                       LiteMessagingClient.initInstance(app.getApplicationContext(), Constants.SUP_APPLICATION_NAME);

                    } catch (MessagingClientException e) {

                          e.printStackTrace();

                    }

                    try {

                           LiteMessagingClient.getInstance().startClient();

                    } catch (MessagingClientException e) {

                          e.printStackTrace();

                    }


                    if (um.isRegistered())
                    {
                          LiteAppSettings las = new LiteAppSettings();
                          try {

                                 this.serviceURL = las.getApplicationEndPoint();
                                 this.serviceURL = "http://ldcigm2.wdf.sap.corp:50018/sap/opu/sdata/sap/CUSTOMER_BRIEFING/";
                          requestManager.getConnectivityParameters().setBaseUrl(this.serviceURL);
                          requestManager.setMainHandlerClassName(SDMConstants.SDM_HTTP_HANDLER_CLASS);

                          } catch (MessagingClientException e) {
                                 e.printStackTrace();
                          }

                    } else {
                          //show message that the user is not registered
                    }
             } else { // configure using gateway
             requestManager.setMainHandlerClassName(SDMConstants.SDM_HTTP_HANDLER_CLASS);
                    this.serviceURL = "http:" + app.getGatewayUrl() + Constants.DEFAULT_APP;

             }

             // update language with every request
             String langCode = Locale.getDefault().getLanguage();
       requestManager.getConnectivityParameters().setLanguage(langCode);


             // prepare request
             ISDMRequest httpRequest = new SDMBaseRequest();

             httpRequest.setListener(this);
             httpRequest.setRequestUrl(this.serviceURL);
             System.out.println("!!!!!! Service URL: " + this.serviceURL);
          httpRequest.setRequestMethod(ISDMRequest.REQUEST_METHOD_GET);
              httpRequest.setPriority(ISDMRequest.PRIORITY_NORMAL);

             requestManager.makeRequest(httpRequest);
