vue vxe-table 基本使用

一个基于 vue 的 PC 端表格组件，支持增删改查、虚拟滚动、懒加载、快捷菜单、数据校验、树形结构、打印导出、表单渲染、数据分页、模态窗口、自定义模板、渲染器、贼灵活的配置项、扩展接口等...

查看官方文档 vxe-table

简单例子

<template>
  <div>
    <vxe-table :data="tableData">
      <vxe-table-column type="index" width="60"></vxe-table-column>
      <vxe-table-column field="name" title="Name"></vxe-table-column>
      <vxe-table-column field="date" title="Date"></vxe-table-column>
      <vxe-table-column field="address" title="Address"></vxe-table-column>
    </vxe-table>
  </div>
</template>

<script>
export default {
  data () {
    return {
      tableData: [
        {
          id: 10001,
          name: 'test1',
          sex: 'Man',
          date: '2019-05-01',
          address: 'address abc123'
        }
      ]
    }
  }
}
</script>

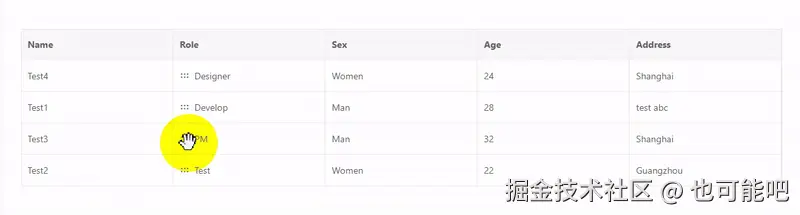

行拖拽调整顺序

<template>
  <div>
    <vxe-table
      border
      :row-config="rowConfig"
      :column-config="columnConfig"
      :data="tableData">
      <vxe-column field="name" title="Name"></vxe-column>
      <vxe-column field="role" title="Role" drag-sort></vxe-column>
      <vxe-column field="sex" title="Sex"></vxe-column>
      <vxe-column field="age" title="Age"></vxe-column>
      <vxe-column field="address" title="Address"></vxe-column>
    </vxe-table>
  </div>
</template>

<script setup>
import { ref, reactive } from 'vue'
const tableData = ref([
  { id: 10001, name: 'Test1', role: 'Develop', sex: 'Man', age: 28, address: 'test abc' },
  { id: 10002, name: 'Test2', role: 'Test', sex: 'Women', age: 22, address: 'Guangzhou' },
  { id: 10003, name: 'Test3', role: 'PM', sex: 'Man', age: 32, address: 'Shanghai' },
  { id: 10004, name: 'Test4', role: 'Designer', sex: 'Women', age: 24, address: 'Shanghai' }
])
const rowConfig = reactive({
  useKey: true,
  drag: true
})
const columnConfig = reactive({
  useKey: true
})

</script>

可编辑表格

<template>
  <div>
    <div>
      <vxe-button @click="validEvent">校验变动数据</vxe-button>
      <vxe-button @click="fullValidEvent">校验全量数据</vxe-button>
    </div>

    <vxe-table
      border
      show-overflow
      keep-source
      height="300"
      ref="tableRef"
      :data="tableData"
      :edit-rules="validRules"
      :edit-config="{trigger: 'click', mode: 'cell', showStatus: true}">
      <vxe-column type="checkbox" width="60"></vxe-column>
      <vxe-column type="seq" width="70"></vxe-column>
      <vxe-column field="name" title="Name" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="role" title="Role" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="sex" title="Sex" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="age" title="Age" :edit-render="{name: 'VxeInput'}"></vxe-column>
      <vxe-column field="date" title="Date" :edit-render="{name: 'VxeInput'}"></vxe-column>
    </vxe-table>
  </div>
</template>

<script lang="jsx" setup>
import { ref } from 'vue'
import { VxeUI } from 'vxe-table'
const tableRef = ref()
const tableData = ref([
  { id: 10001, name: 'Test1', role: 'Develop', sex: '0', age: 28, address: 'test abc' },
  { id: 10002, name: '', role: 'Test', sex: '1', age: 22, address: 'Guangzhou' },
  { id: 10003, name: 'Test3', role: 'PM', sex: '', age: 32, address: 'Shanghai' },
  { id: 10004, name: 'Test4', role: 'Designer', sex: '', age: 23, address: 'test abc' },
  { id: 10005, name: '', role: '', sex: '1', age: 30, address: 'Shanghai' },
  { id: 10006, name: 'Test6', role: 'Designer', sex: '1', age: 21, address: 'test abc' }
])
const validRules = ref({
  name: [
    { required: true, message: '必须填写' }
  ],
  role: [
    { required: true, message: '必须填写' }
  ]
})
const validEvent = async () => {
  const $table = tableRef.value
  if ($table) {
    const errMap = await $table.validate()
    if (errMap) {
      VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
    } else {
      VxeUI.modal.message({ status: 'success', content: '校验成功！' })
    }
  }
}
const fullValidEvent = async () => {
  const $table = tableRef.value
  if ($table) {
    const errMap = await $table.validate(true)
    if (errMap) {
      VxeUI.modal.message({ status: 'error', content: '校验不通过！' })
    } else {
      VxeUI.modal.message({ status: 'success', content: '校验成功！' })
    }
  }
}

</script>

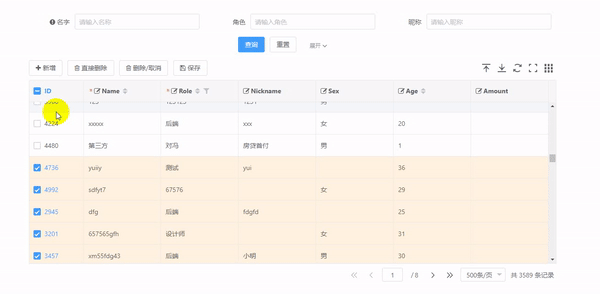

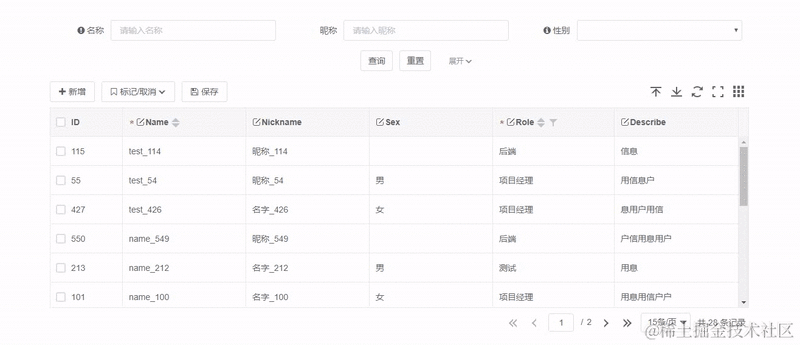

表单搜索

单元格选取
