1_ESP32-CAM_ESP32 Dev Module-ST7789-SPI-1.54

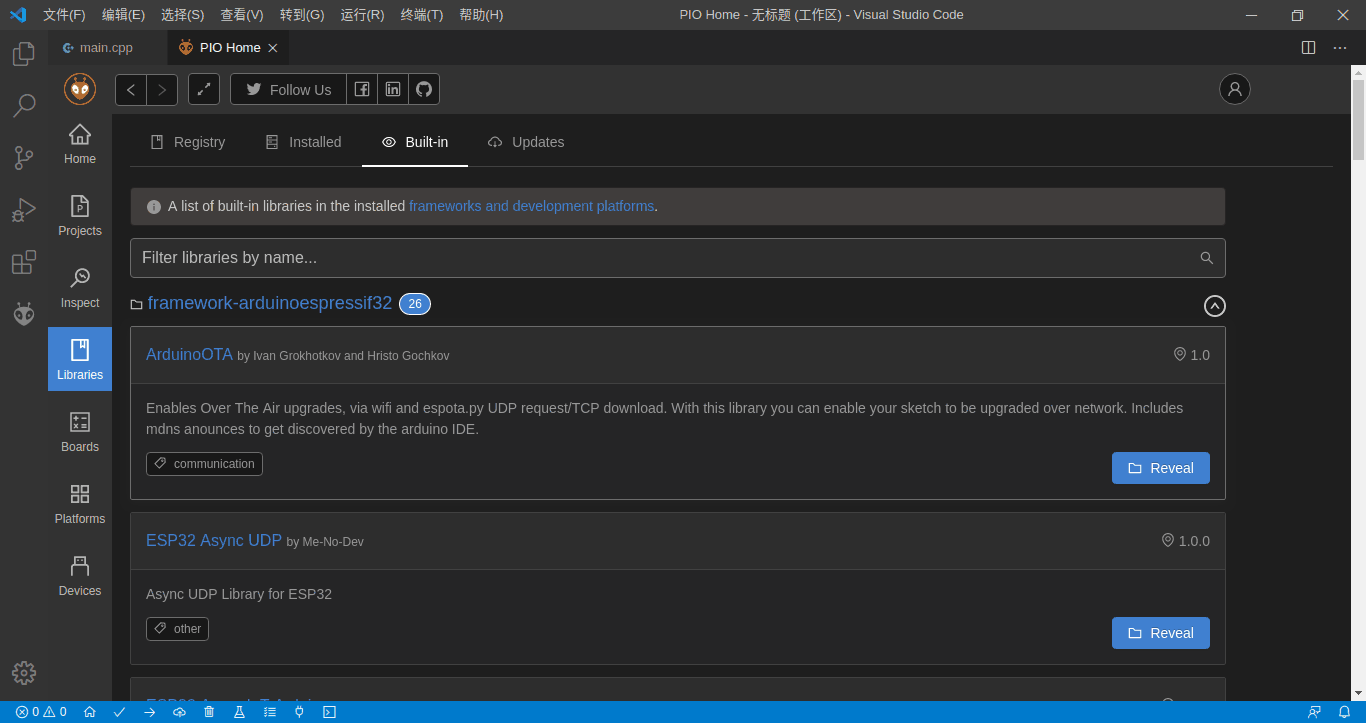

安装库
ArduinoWebsockets
TJpg_Decoder

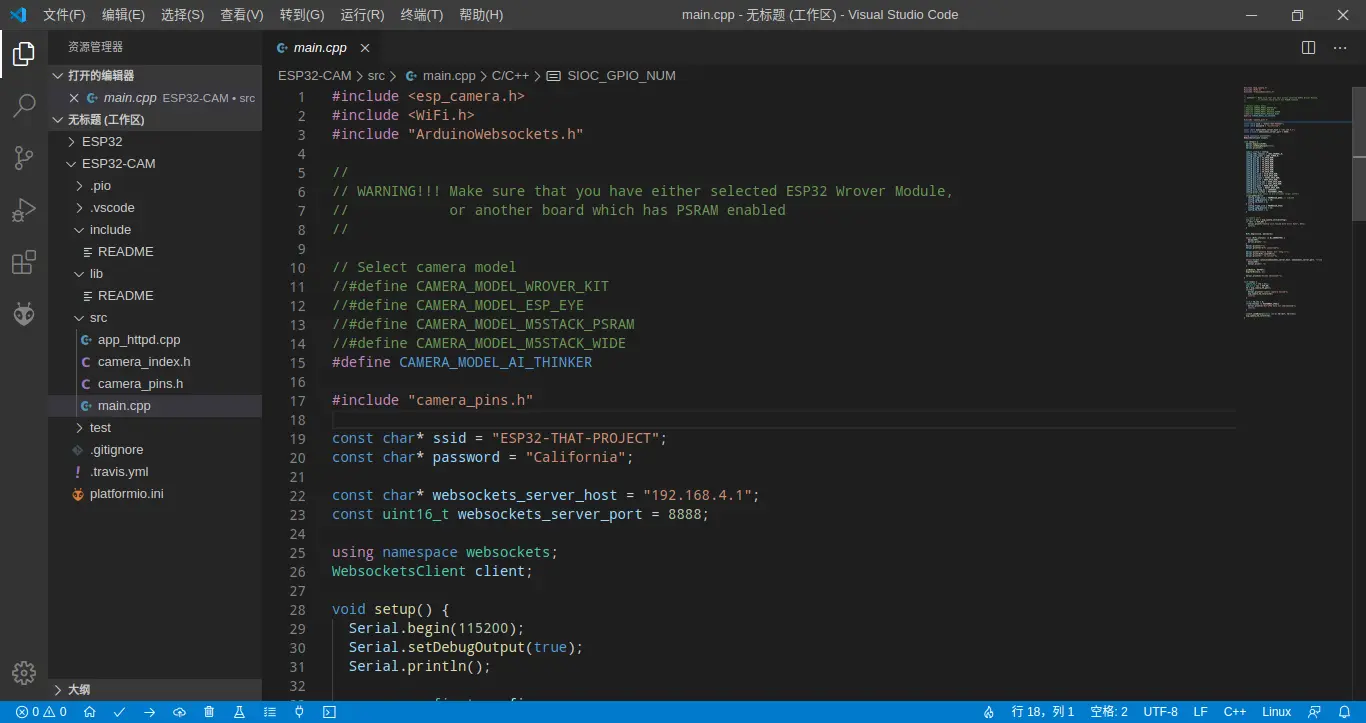

ESP32-CAM

#include "esp_camera.h"
#include <WiFi.h>
#include <ArduinoWebsockets.h>
//
// WARNING!!! Make sure that you have either selected ESP32 Wrover Module,
//            or another board which has PSRAM enabled
//

// Select camera model
//#define CAMERA_MODEL_WROVER_KIT
//#define CAMERA_MODEL_ESP_EYE
//#define CAMERA_MODEL_M5STACK_PSRAM
//#define CAMERA_MODEL_M5STACK_WIDE
#define CAMERA_MODEL_AI_THINKER

#include "camera_pins.h"

const char* ssid = "ESP32-THAT-PROJECT";
const char* password = "California";

const char* websockets_server_host = "192.168.4.1";
const uint16_t websockets_server_port = 8888;

using namespace websockets;
WebsocketsClient client;

void setup() {
  Serial.begin(115200);
  Serial.setDebugOutput(true);
  Serial.println();

  camera_config_t config;
  config.ledc_channel = LEDC_CHANNEL_0;
  config.ledc_timer = LEDC_TIMER_0;
  config.pin_d0 = Y2_GPIO_NUM;
  config.pin_d1 = Y3_GPIO_NUM;
  config.pin_d2 = Y4_GPIO_NUM;
  config.pin_d3 = Y5_GPIO_NUM;
  config.pin_d4 = Y6_GPIO_NUM;
  config.pin_d5 = Y7_GPIO_NUM;
  config.pin_d6 = Y8_GPIO_NUM;
  config.pin_d7 = Y9_GPIO_NUM;
  config.pin_xclk = XCLK_GPIO_NUM;
  config.pin_pclk = PCLK_GPIO_NUM;
  config.pin_vsync = VSYNC_GPIO_NUM;
  config.pin_href = HREF_GPIO_NUM;
  config.pin_sscb_sda = SIOD_GPIO_NUM;
  config.pin_sscb_scl = SIOC_GPIO_NUM;
  config.pin_pwdn = PWDN_GPIO_NUM;
  config.pin_reset = RESET_GPIO_NUM;
  config.xclk_freq_hz = 10000000;
  config.pixel_format = PIXFORMAT_JPEG;
  //init with high specs to pre-allocate larger buffers
  if(psramFound()){
    config.frame_size = FRAMESIZE_QVGA; // 320x240
    config.jpeg_quality = 10;
    config.fb_count = 2;
  } else {
    config.frame_size = FRAMESIZE_SVGA;
    config.jpeg_quality = 12;
    config.fb_count = 1;
  }


  // camera init
  esp_err_t err = esp_camera_init(&config);
  if (err != ESP_OK) {
    Serial.printf("Camera init failed with error 0x%x", err);
    return;
  }


  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");

  Serial.print("Camera Ready! Use 'http://");
  Serial.print(WiFi.localIP());
  Serial.println("' to connect");

  while(!client.connect(websockets_server_host, websockets_server_port, "/")){
    delay(500);
    Serial.print(".");
  }

  pinMode(4, OUTPUT);
  digitalWrite(4, 1);

  Serial.println("Socket Connected!");
}

void loop() {
  camera_fb_t *fb = NULL;
  esp_err_t res = ESP_OK;
  fb = esp_camera_fb_get();
  if(!fb){
    Serial.println("Camera capture failed");
    esp_camera_fb_return(fb);
    return;
  }

  size_t fb_len = 0;
  if(fb->format != PIXFORMAT_JPEG){
    Serial.println("Non-JPEG data not implemented");
    return;
  }

  client.sendBinary((const char*) fb->buf, fb->len);
  esp_camera_fb_return(fb);
}

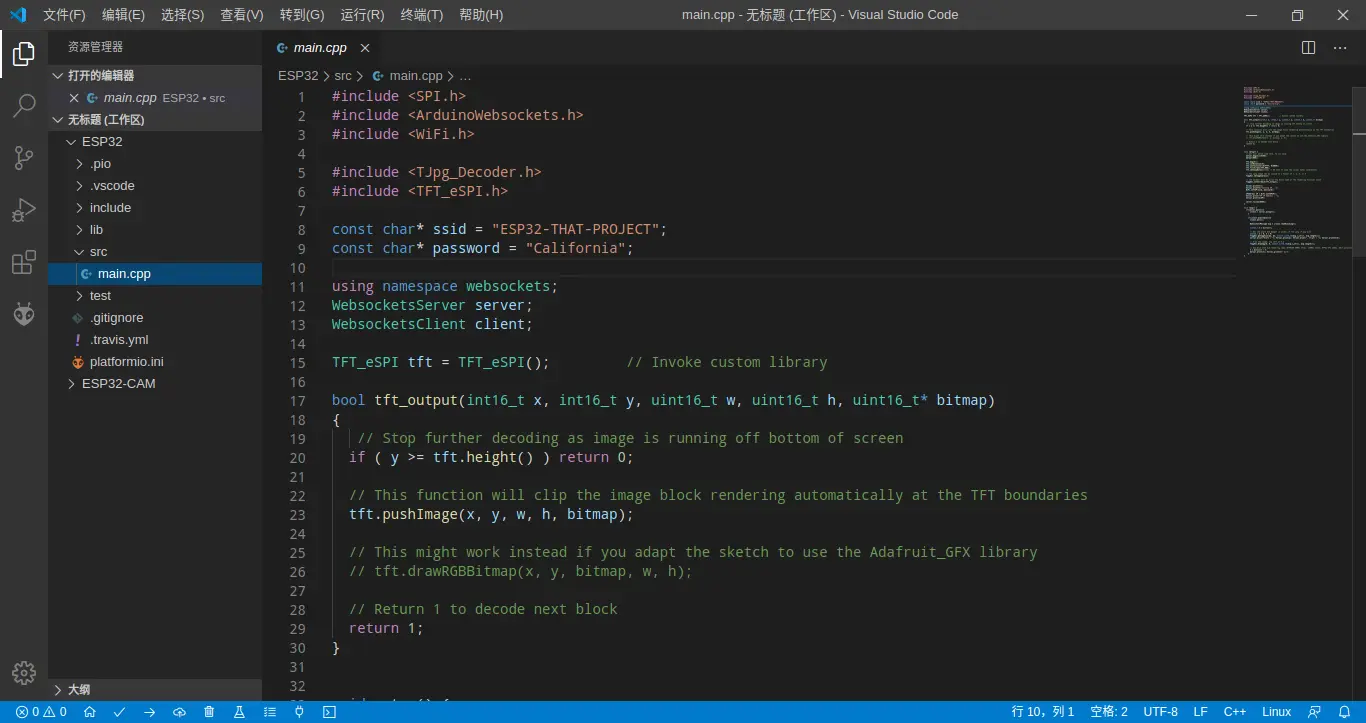

ESP32 Dev Module

#include <SPI.h>
#include <ArduinoWebsockets.h>
#include <WiFi.h>

#include <TJpg_Decoder.h>
#include <TFT_eSPI.h>

const char* ssid = "ESP32-THAT-PROJECT";
const char* password = "California";

using namespace websockets;
WebsocketsServer server;
WebsocketsClient client;

TFT_eSPI tft = TFT_eSPI();         // Invoke custom library

bool tft_output(int16_t x, int16_t y, uint16_t w, uint16_t h, uint16_t* bitmap)
{
   // Stop further decoding as image is running off bottom of screen
  if ( y >= tft.height() ) return 0;

  // This function will clip the image block rendering automatically at the TFT boundaries
  tft.pushImage(x, y, w, h, bitmap);

  // This might work instead if you adapt the sketch to use the Adafruit_GFX library
  // tft.drawRGBBitmap(x, y, bitmap, w, h);

  // Return 1 to decode next block
  return 1;
}


void setup() {
  // put your setup code here, to run once:
  Serial.begin(115200);
  delay(1000);

  tft.begin();
  tft.setRotation(3);
  tft.setTextColor(0xFFFF, 0x0000);
  tft.fillScreen(TFT_RED);
  tft.setSwapBytes(true); // We need to swap the colour bytes (endianess)

  // The jpeg image can be scaled by a factor of 1, 2, 4, or 8
  TJpgDec.setJpgScale(1);

  // The decoder must be given the exact name of the rendering function above
  TJpgDec.setCallback(tft_output);

  Serial.println();
  Serial.println("Setting AP...");
  WiFi.softAP(ssid, password);

  IPAddress IP = WiFi.softAPIP();
  Serial.print("AP IP Address : ");
  Serial.println(IP);

  server.listen(8888);
}

void loop() {
  if(server.poll()){
      client = server.accept();
    }

    if(client.available()){
      client.poll();

      WebsocketsMessage msg = client.readBlocking();

      uint32_t t = millis();

      // Get the width and height in pixels of the jpeg if you wish
      uint16_t w = 0, h = 0;
      TJpgDec.getJpgSize(&w, &h, (const uint8_t*)msg.c_str(), msg.length());
      Serial.print("Width = "); Serial.print(w); Serial.print(", height = "); Serial.println(h);

      // Draw the image, top left at 0,0
      TJpgDec.drawJpg(0, 0, (const uint8_t*)msg.c_str(), msg.length());

      // How much time did rendering take (ESP8266 80MHz 271ms, 160MHz 157ms, ESP32 SPI 120ms, 8bit parallel 105ms
      t = millis() - t;
      Serial.print(t); Serial.println(" ms");
    }
}
