Vue获取页面元素的相对位置

11,279 阅读3分钟

今天在开发源码栏目,发现有一处需要获取元素的相对位置高度,发现getBoundingClientRect有一个问题,它是用于获取某个元素相对于视窗的位置集合,达不到我想要的要求,如是看到阮老师写的一篇文章,关于用Javascript获取页面元素的位置,很好解决了我的问题,我也扩展关于其它方法

发现问题

当我滚动到元素的位置时候,我想把元素固定在头部

// html 结构
<div :class="['source-subnav', isFixed ? 'tab-nav-fixed' : '']" ref="subnav">
     <ul>
        <li class="active"><a href="javascript:;">首页推荐</a></li>
        <li><a href="javascript:;">最新发布</a></li>
     </ul>
</div>
export default {
    data(){
        return {
            isFixed:false,
        }
    },
    mounted(){
        if(this.$refs.subnav.getBoundingClientRect){
	    this.scrollTop(this.$refs.subnav.getBoundingClientRect())
        }
    },
    methods:{
	// 这是封装的一个方法
        scrollTop(h){
            console.log(h);
            this.utils.scrollTop((res)=>{
                this.isFixed = res.scrollH > h ? true :false;
            })
        }
    }
}

utils.js

// 该函数主要功能返回,滚动的高度以及文档占比窗口高度的百分比
utils.scrollTop = function(callback){
    // 页面总高
    var totalH = document.body.scrollHeight || document.documentElement.scrollHeight;
    // 可视高
    var clientH = window.innerHeight || document.documentElement.clientHeight;
    var result = {}
    window.addEventListener('scroll', function(e){
        // 计算有效高
        var validH = totalH - clientH
        // 滚动条卷去高度
        var scrollH = document.body.scrollTop || document.documentElement.scrollTop
        // 百分比
        result.percentage = (scrollH/validH*100).toFixed(2)
        result.scrollH = scrollH;
        callback && callback(result)
    })
}

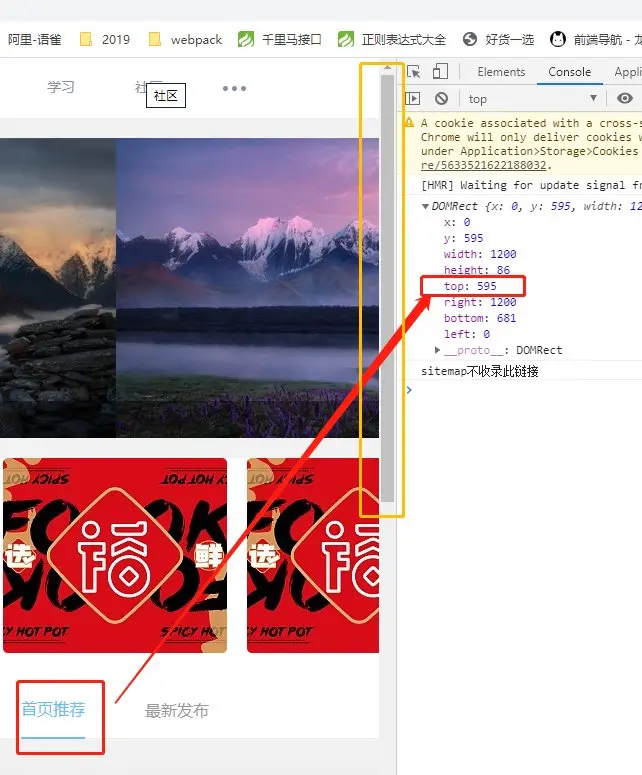

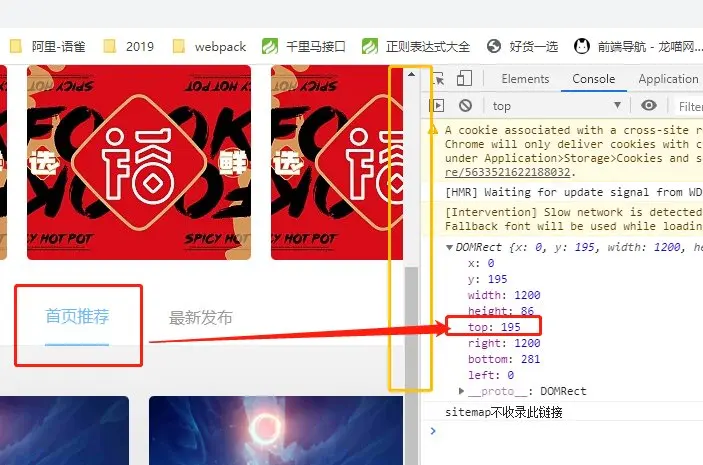

可以看到该元素的距离顶部595px,正常显示 当我先滚动一段距离后,然后再次刷新,滚动条位置还会记录之前的位置,这是top为195px,这也是正常的,因为getBoundingClientRect是根据浏览器窗口进行定位置的 而我想要的是想要不管浏览器滚动条位置在何处时刷新浏览器,我所绑定的dom元素都是根据文档左上角进行定位的


offsetTop

网上有人说用offsetTop,其实offsetTop是对当前对象到其上级层顶部的距离。不能对其进行赋值.设置对象到页面顶部的距离请用style.top属性

获取元素距离文档顶部距离

返回值是一个 DOMRect 对象,这个对象是由该元素的 getClientRects() 方法返回的一组矩形的集合, 即:是与该元素相关的 CSS 边框集合。
DOMRect 对象包含了一组用于描述边框的只读属性: left、top、right 和 bottom,单位为像素。除了 width 和 height 外的属性都是相对于视口的左上角位置而言的。
getBoundingClientRect返回值
   top: 元素上边框距离视窗顶部的距离
   bottom: 元素下边框距离视窗顶部的距离
   left: 元素左边框距离视窗左侧的距离
   right: 元素右边框距离视窗左侧的距离

由于getBoundingClientRect它们会随着视窗的滚动而相应的改变,那么元素距离页面顶部的距离就是,再加上滚动距离

this.$refs.subnav.getBoundingClientRect().top + window.scrollY;
或者
this.$refs.subnav.getBoundingClientRect().top+document.documentElement.scrollTop;

window.scrollY不兼容ie9,如需兼容请看Window.scrollY

修改上方代码

if(this.$refs.subnav.getBoundingClientRect){
    var top1 =  this.$refs.subnav.getBoundingClientRect().top + window.scrollY
    var top2 = this.$refs.subnav.getBoundingClientRect().top+document.documentElement.scrollTop;
    console.log(top1)
    console.log(top2)
    this.scrollTop(top)
}

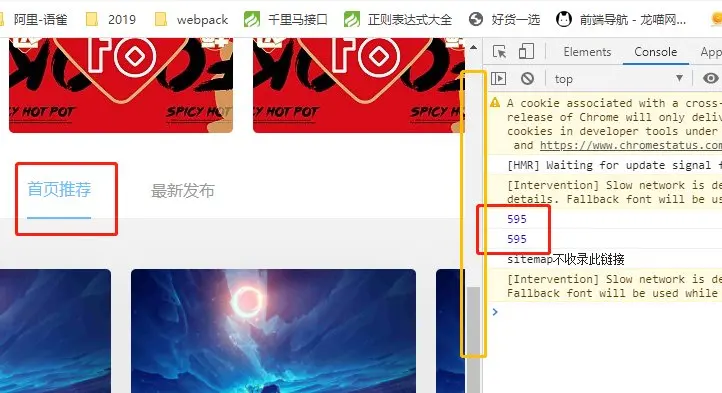

效果如下,不管滚动条何处位置都是一个相对文档最上面的左上角


阮一峰

function getElementTop(element){
    var actualTop = element.offsetTop;
    var current = element.offsetParent;

    while (current !== null){
        actualTop += current.offsetTop;
        current = current.offsetParent;
    }

    return actualTop;
}

实现原理

offsetTop可以返回元素距离offsetParent属性返回元素顶部的距离(如果父元素有定位的,那么将返回距离最近的定位元素,否则返回body元素,元素可能有多个定位元素,需要通过递归的方式层层获取距离,然后相加

特别说明: 需要将body的外边距设置为0,这样元素距离body顶部的距离就等同于距离文档顶部的距离

修改上方代码

if(this.$refs.subnav.getBoundingClientRect){
    var top1 =  this.$refs.subnav.getBoundingClientRect().top + window.scrollY
    var top2 = this.$refs.subnav.getBoundingClientRect().top+document.documentElement.scrollTop;
    // getElementTop在上方
    var top3 =  getElementTop(this.$refs.subnav)
    console.log(top1)
    console.log(top2)
    console.log(top3)
    this.scrollTop(top)
}

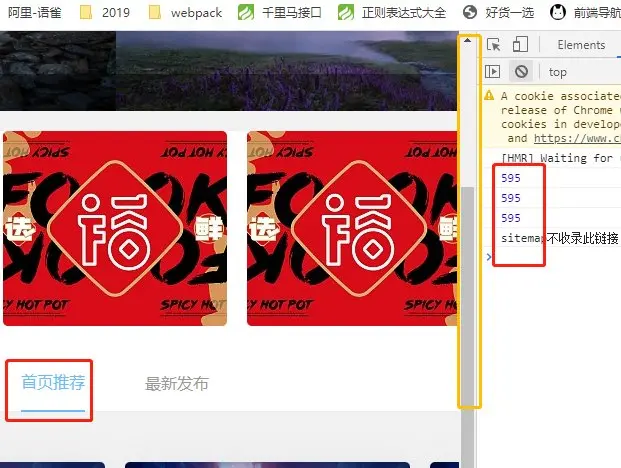

效果如下


总结三种方法获取元素距离文档顶部位置

dom.getBoundingClientRect().top + window.scrollY;
或者
dom.getBoundingClientRect().top+document.documentElement.scrollTop;
或者
function getElementTop(element){
    var actualTop = element.offsetTop;
    var current = element.offsetParent;

    while (current !== null){
        actualTop += current.offsetTop;
        current = current.offsetParent;
    }
    return actualTop;
}
