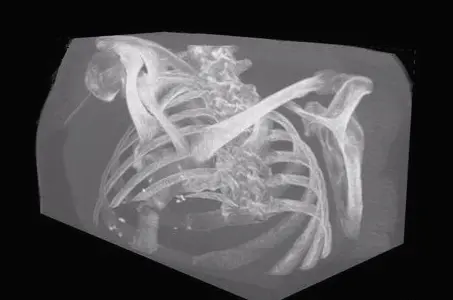

体渲染一般用于展示3D分布图及扫描图等。本文讨论一种适合在WebGL端实现的体渲染方法。
设计思路[1]
为了简单起见，本文只讨论立方体区域的体渲染方法。3D图像信息可以存储在3DTexture中，采样并计算色值的过程主要在片元着色器中完成。

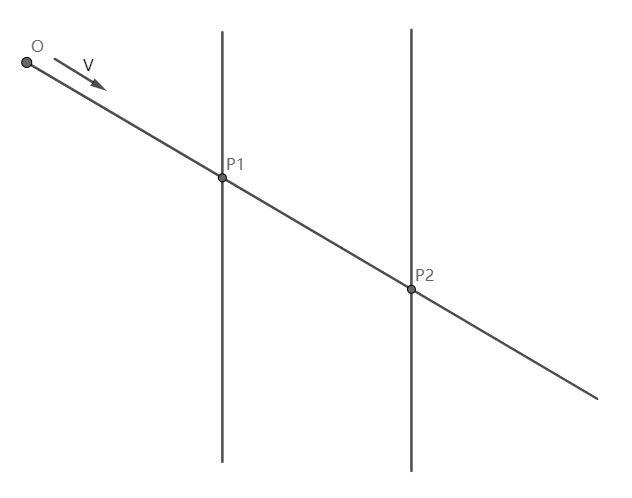

如上图所示，O代表相机的位置，V代表视线的观察方向，P1与P2代表视线在立方体表面的两个交点。若求得P1与P2的坐标，则可以通过P1到P2的平均采样与Alpha混合来得到最终眼睛看到的色值。
P1与P2的坐标如何计算呢？
为了在片元着色器中计算方便，计算坐标系确定方形区域的中心为原点。点O的坐标可以通过相机世界坐标左乘立方体变换矩阵的逆来求得，P1的坐标即为该片元的坐标。通过O与P1的坐标则可以确定视线的方向向量V。
假设立方体的size为（0.5，0.5，0.5），且立方体的原点坐标为（0，0，0），可以通过以下方法计算线段O-P1与O-P2的距离[2]。
// axis aligned box centered at the origin, with size boxSize
vec2 boxIntersection(vec3 ro, vec3 rd, vec3 boxSize) {
vec3 m = 1.0 / rd; // can precompute if traversing a set of aligned boxes
vec3 n = m * ro; // can precompute if traversing a set of aligned boxes
vec3 k = abs(m) * boxSize;
vec3 t1 = -n - k;
vec3 t2 = -n + k;
float tN = max(max(t1.x, t1.y), t1.z);
float tF = min(min(t2.x, t2.y), t2.z);
if( tN > tF || tF < 0.0) return vec2(-1.0); // no intersection
return vec2( tN, tF );
}
已知坐标O，向量V，以及线段O-P1与O-P2的距离，则可以计算出P1与P2的坐标了，进而可以通过P1到P2的平均采样与Alpha混合来得到最终眼睛看到的色值。
具体实现
采用zen3d作为示例的WebGL渲染库。
片元着色器的主要代码如下[1]：
precision highp sampler3D;
#include <common_frag>
varying vec3 v_modelPos;
uniform sampler2D platteTexture;
uniform sampler3D densityTexture;
uniform mat4 uInvTransform;
uniform float uAlphaCorrection;
const float STEP = 1.73205081 / 256.0;
// http://iquilezles.org/www/articles/intersectors/intersectors.htm
// axis aligned box centered at the origin, with size boxSize
vec2 boxIntersection(vec3 ro, vec3 rd, vec3 boxSize) {
vec3 m = 1.0 / rd; // can precompute if traversing a set of aligned boxes
vec3 n = m * ro; // can precompute if traversing a set of aligned boxes
vec3 k = abs(m) * boxSize;
vec3 t1 = -n - k;
vec3 t2 = -n + k;
float tN = max(max(t1.x, t1.y), t1.z);
float tF = min(min(t2.x, t2.y), t2.z);
if( tN > tF || tF < 0.0) return vec2(-1.0); // no intersection
return vec2( tN, tF );
}
vec4 getColor(float intensity) {
// makes the volume looks brighter;
intensity = min(0.46, intensity) / 0.46;
vec2 _uv = vec2(intensity, 0);
vec4 color = texture2D(platteTexture, _uv);
float alpha = intensity;
if (alpha < 0.03) {
alpha = 0.01;
}
return vec4(color.r, color.g, color.b, alpha);
}
vec4 sampleAs3DTexture(vec3 texCoord) {
texCoord += vec3(0.5);
return getColor(texture(densityTexture, texCoord).r);
}
vec3 shade(inout float transparent, in vec3 P, in vec3 V) {
// Transform to model space.
vec3 frontPos = (uInvTransform * vec4(P.xyz, 1.0)).xyz;
vec3 cameraPos = (uInvTransform * vec4(u_CameraPosition.xyz, 1.0)).xyz;
vec3 rayDir = normalize(frontPos - cameraPos);
vec3 backPos = frontPos;
vec2 t = boxIntersection(cameraPos, rayDir, vec3(0.5));
if (t.x > -1.0 && t.y > -1.0) {
backPos = cameraPos + rayDir * t.y;
}
float rayLength = length(backPos - frontPos);
int steps = int(max(1.0, floor(rayLength / STEP)));
// Calculate how long to increment in each step.
float delta = rayLength / float(steps);
// The increment in each direction for each step.
vec3 deltaDirection = rayDir * delta;
// Start the ray casting from the front position.
vec3 currentPosition = frontPos;
// The color accumulator.
vec4 accumulatedColor = vec4(0.0);
// The alpha value accumulated so far.
float accumulatedAlpha = 0.0;
vec4 colorSample;
float alphaSample;
// Perform the ray marching iterations
for (int i = 0; i < steps; i++) {
colorSample = sampleAs3DTexture(currentPosition);
alphaSample = colorSample.a * uAlphaCorrection;
alphaSample *= (1.0 - accumulatedAlpha);
// Perform the composition.
accumulatedColor += colorSample * alphaSample;
// Store the alpha accumulated so far.
accumulatedAlpha += alphaSample;
// Advance the ray.
currentPosition += deltaDirection;
}
transparent = accumulatedAlpha;
return accumulatedColor.xyz;
}
void main() {
vec3 V = normalize(v_modelPos - u_CameraPosition);
vec3 P = v_modelPos;
float transparent;
vec3 color = shade(transparent, P, V);
gl_FragColor = vec4(color, transparent);
}
完整示例代码在这里，采用simplex-noise[3]生成随机的3D纹理数据。
测试结果

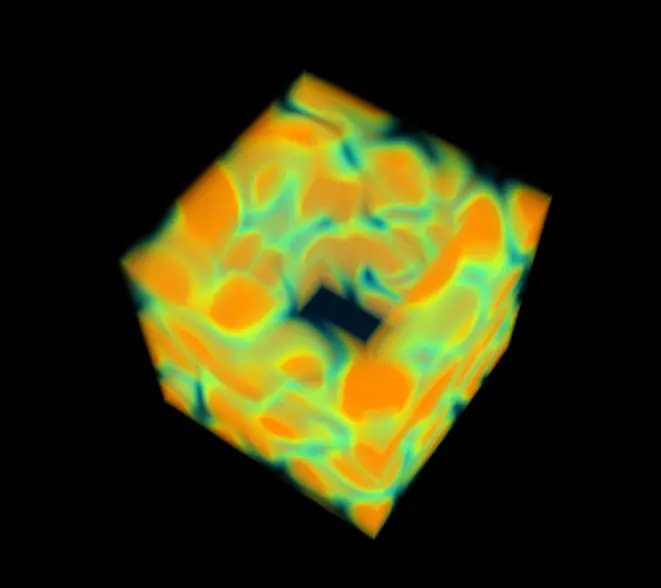

渲染结果截图：
