基于Gitlab进行开发团队管理的尝试——03.Dingding消息@人

相关代码提交至 GitHub -> github.com/wangyuheng/… 欢迎提交 issue

What

监听Gitlab Hook事件, 紧急消息通过钉钉机器人发送至钉钉群组, 并@(提醒)相关方. 同时自动流转issue的pipeline.

效果

新建紧要issue会在钉钉群内收到下列消息

xxx 创建了一个 [P0 issue] 给你，请尽快确认并处理
 Link -> https://gitlab.com/wangyuheng77/integration/issues/1
 title -> 提供issue变更钉钉消息通知
@wangyuheng

已发布的issue会

1. issue 自动从 Doing 变更为 Verify
2. issue assignee 从开发者变更为author
3. 钉钉群收到消息提醒 @author 进行验收工作

Why

1. 紧急事项实时提醒到人
2. 定制pipeline & 自动流转

为什么不通过钉钉自带的gitlab机器人 或者 gitlab notify email？

1. 发送的消息过多, 会忽略有意义的信息
2. 不能 @ 到相关的人, 达不到提醒的作用

How

gitlab -> keeper: listen event
keeper -> keeper: resolve event msg
alt isEmergency
    keeper -> Dingding: send msg to group by robot
    keeper -> gitlab: put next pipeline

note left of keeper: change assignee | close issue
end

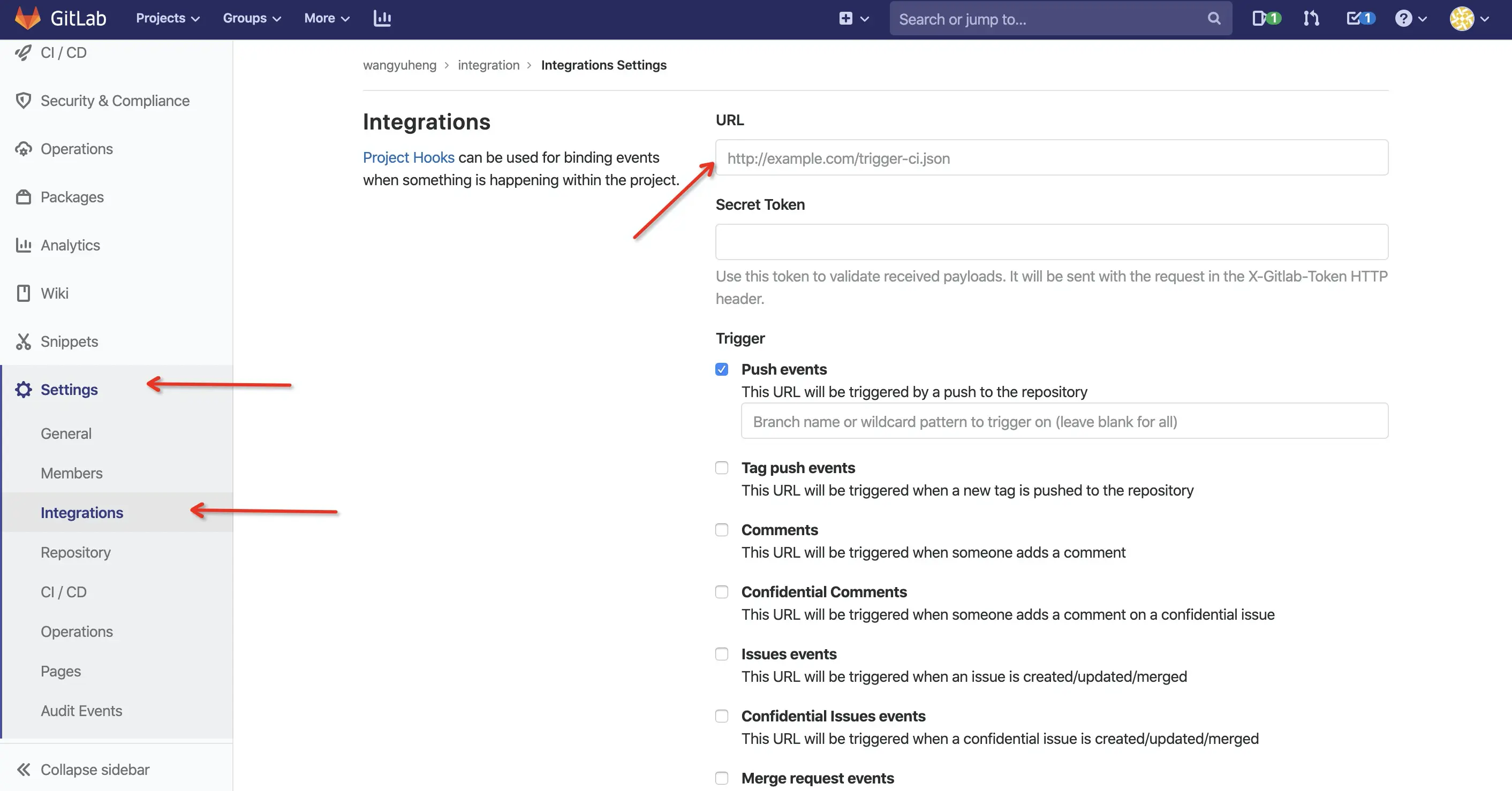

gitlab hook

在gitlab项目中配置hook地址并保存

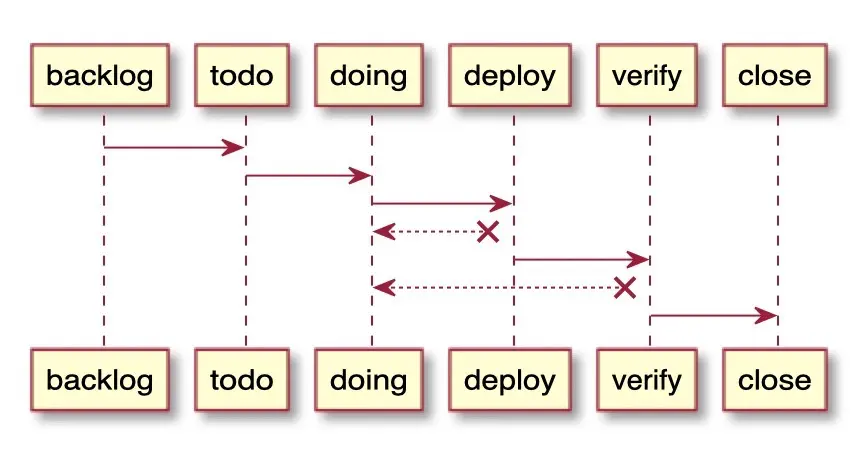

pipeline

根据团队状况制定pipeline, 基于事件自动流转. 比如:

1. 新建:WIP MR时流转至doing
2. CICD流转至deploy
3. 发布成功后流转至verify并修改assignee为author

backlog -> todo
todo -> doing
doing -> deploy
deploy x--> doing
deploy -> verify
verify x--> doing
verify -> close

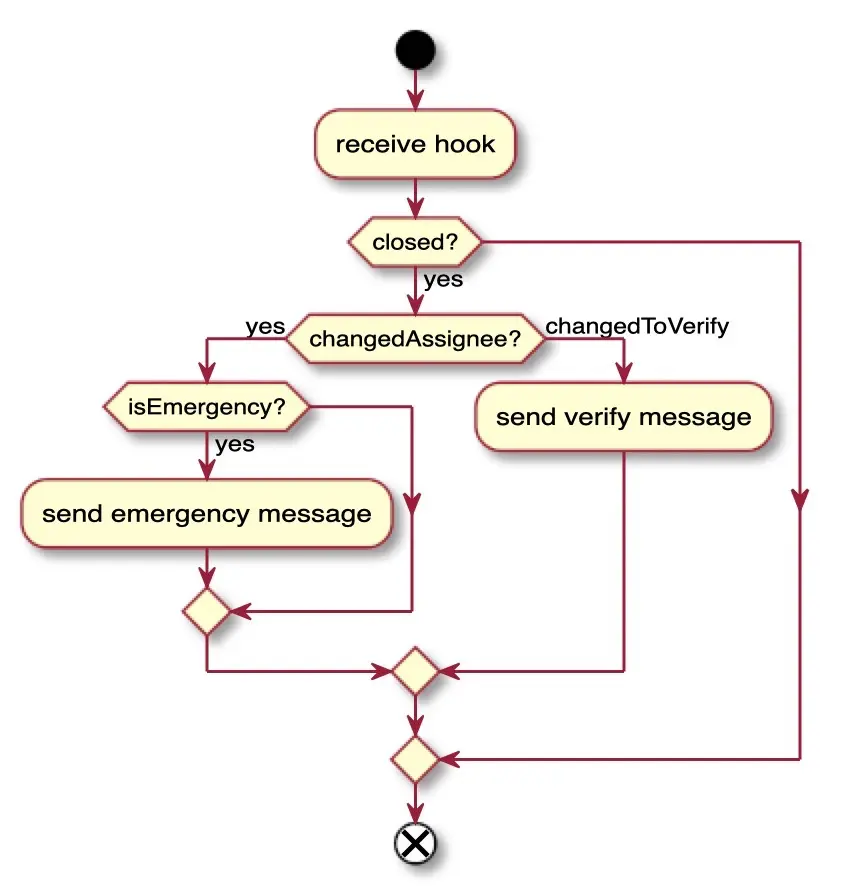

Emergency issue

通过label判断是否为紧要消息, 比如 Bug、P0.

start
:receive hook;
if (closed?) then (yes)
    if (changedAssignee?) then (yes)
        if (isEmergency?) then (yes)
            :send emergency message;
        endif
    else (changedToVerify)
        :send verify message;
    endif
endif
end

core code

private fun handlerIssue(body: JSONObject) {
    if (GitlabHookBodyHelper.isClose(body)) {
        //已关闭的issue不做处理
        return
    }
    val changedAssignee: GitlabHookBodyHelper.Assignee? = getChangedAssignee(body)
    log.info("handler issue changedAssignee: $changedAssignee")
    val labelTitles: MutableSet<String> = GitlabHookBodyHelper.listLabelTitle(body)
    log.info("handler issue labels: $labelTitles")
    // 是否变更assignee
    if (changedAssignee != null) {
        val developer = developerRepository.findByUsername(changedAssignee.username!!)
        // 为开发人员 && label为todo且不在进行中
        if (developer != null && labelTitles.isTodo() && !labelTitles.isProcessing()) {
            when {
                labelTitles.isBug() -> sendBugMsg(body, developer.mobile)
                labelTitles.isP0() -> sendEmergencyMsg(body, developer.mobile)
                else -> log.info("ignore issue change! labelTitles -> $labelTitles")
            }
        }
    } else {
        if (GitlabHookBodyHelper.isFirstChangeToVerifyLabel(body)) {
            val author = getAuthor(body)
            val assigneeUsername = editAssignee(body, author)
            val mobile = developerRepository.findByUsername(assigneeUsername)?.mobile
            if (null != mobile) {
                sendVerifyMsg(body, author, mobile)
            }
        }
    }
}

小技巧

非内网部署gitlab如何开发调试

ngrok 实现内网穿透

brew cask install ngrok

验证阶段的issue关闭不及时

先自动closeissue, 并dingding提醒. 如果有问题可以reopen并自动流转至Doing.
