源码学习笔记

以功能点为最小学习单元，由点到线、由线到面的学习方法

参考学习一些优秀的资料,为学习源码积蓄能量

小笔记

1. React有三种方式更新
 - React.render() || hydrate(ReactDOMServer渲染)
 - setState()
 - forceUpdate()

功能点：

  1. React.createElement:

    • webpack编写生React.createElement并嵌套调用，最终生成vdom。

  2. ReactDOM.render

    • 未完待续

  3. fiber

    • 含义和作用

      • 每个ReactElement对应一个Fiber
      • 记录节点的各种状态，比如ClassComponent中的state和props的状态就是记录在Fiber对象上的。只有当Fiber对象更新后，才会更新ClassComponent的this.state和this.props，this上的state和props是根据Fiber对象的state、props更新的。实际上也方便了ReactHooks，因为hooks是为FunctionalComponent服务的。虽然FunctionnaComponent没有this，但是Fiber上有，是可以拿到state和props的
      • 串联整个应用形成树结构，每个ReactElement通过props.children与其它ReactElement连接起来（如下 工作流程图 所示）

    • 结构解析：

    • 结构属性详解

      // A Fiber is work on a Component that needs to be done or was done. There can
// be more than one per component.
export type Fiber = {|
  // These first fields are conceptually members of an Instance. This used to
  // be split into a separate type and intersected with the other Fiber fields,
  // but until Flow fixes its intersection bugs, we've merged them into a
  // single type.

  // An Instance is shared between all versions of a component. We can easily
  // break this out into a separate object to avoid copying so much to the
  // alternate versions of the tree. We put this on a single object for now to
  // minimize the number of objects created during the initial render.

  // Tag identifying the type of fiber.
  // 标记不同的组件类型
  // 有原生的DOM节点，有React自己的节点
  tag: WorkTag,

  // Unique identifier of this child.
  // ReactElement里面的key
  key: null | string,

  // The value of element.type which is used to preserve the identity during
  // reconciliation of this child.
  // ReactElement.type，也就是我们调用createElement的第一个参数
  elementType: any,

  // The resolved function/class/ associated with this fiber.
  // 异步组件resolve之后返回的内容，一般是function或class
  // 比如懒加载
  type: any,

  // The local state associated with this fiber.
  // 当前Fiber的状态（比如浏览器环境就是DOM节点）

  // 不同类型的实例都会记录在stateNode上
  // 比如DOM组件对应DOM节点实例
  // ClassComponent对应Class实例
  // FunctionComponent没有实例，所以stateNode值为null

  //state更新了或props更新了均会更新到stateNode上
  stateNode: any,

  // Conceptual aliases
  // parent : Instance -> return The parent happens to be the same as the
  // return fiber since we've merged the fiber and instance.

  // Remaining fields belong to Fiber

  // The Fiber to return to after finishing processing this one.
  // This is effectively the parent, but there can be multiple parents (two)
  // so this is only the parent of the thing we're currently processing.
  // It is conceptually the same as the return address of a stack frame.
  // 是指程序(program)在处理完当前fiber之后应当返回的fiber，概念上来说，
  // 与一个栈帧返回一个地址是相同的，它也可被认为是一个parent fiber。
  return: Fiber | null,

  // Singly Linked List Tree Structure.
  // 链表结构兄弟节点的return指向同一个父节点
  // 指向自己的第一个子节点
  child: Fiber | null,
  // 兄弟节点
  sibling: Fiber | null,
  index: number,

// The ref last used to attach this node.
  // I'll avoid adding an owner field for prod and model that as functions.
  ref: null | (((handle: mixed) => void) & { _stringRef: ?string }) | RefObject,

  // Input is the data coming into process this fiber. Arguments. Props.
  // 新的变动带来的新的props，即nextProps
  pendingProps: any, // This type will be more specific once we overload the tag.
  //上一次渲染完成后的props,即 props
  memoizedProps: any, // The props used to create the output. 用于创建output的props值

  // A queue of state updates and callbacks.
  // 该Fiber对应的组件，所产生的update，都会放在该队列中
  updateQueue: UpdateQueue<any> | null,

  // The state used to create the output
  // 上次渲染的state，即 state
  // 新的state由updateQueue计算得出，并覆盖memoizedState
  memoizedState: any,

  // Dependencies (contexts, events) for this fiber, if it has any
  // 一个列表，存在该Fiber依赖的contexts，events
  dependencies: Dependencies | null,

  // Bitfield that describes properties about the fiber and its subtree. E.g.
  // the ConcurrentMode flag indicates whether the subtree should be async-by-
  // default. When a fiber is created, it inherits the mode of its
  // parent. Additional flags can be set at creation time, but after that the
  // value should remain unchanged throughout the fiber's lifetime, particularly
  // before its child fibers are created.

  // mode有conCurrentMode和strictMode
  // 用来描述当前Fiber和其他子树的Bitfield
  // 共存的模式表示这个子树是否默认是 异步渲染的
  // Fiber刚被创建时，会继承父Fiber
  // 其他标识也可以在创建的时候被设置，但是创建之后不该被修改，特别是它的子Fiber创建之前
  mode: TypeOfMode,

  // Effect
  effectTag: SideEffectTag,

  // Singly linked list fast path to the next fiber with side-effects.
  nextEffect: Fiber | null,

  // The first and last fiber with side-effect within this subtree. This allows
  // us to reuse a slice of the linked list when we reuse the work done within
  // this fiber.
  firstEffect: Fiber | null,
  lastEffect: Fiber | null,

  // Represents a time in the future by which this work should be completed.
  // Does not include work found in its subtree.
  // 代表任务在未来的哪个时间点 应该被完成
  // 不包括该Fiber的子树产生的任务
  expirationTime: ExpirationTime,

  // This is used to quickly determine if a subtree has no pending changes.
  // 快速确定子树中是否有 update
  // 如果子节点有update的话，就记录应该更新的时间
  childExpirationTime: ExpirationTime,

  // This is a pooled version of a Fiber. Every fiber that gets updated will
  // eventually have a pair. There are cases when we can clean up pairs to save
  // memory if we need to.
  // 在FIber树更新的过程中，每个Fiber都有与其对应的Fiber
  // 我们称之为 current <==> workInProgress
  // 在渲染完成后，会交换位置
  // doubleBuffer Fiber在更新后，不用再重新创建对象，
  // 而是复制自身，并且两者相互复用，用来提高性能
  alternate: Fiber | null,

  // Time spent rendering this Fiber and its descendants for the current update.
  // This tells us how well the tree makes use of sCU for memoization.
  // It is reset to 0 each time we render and only updated when we don't bailout.
  // This field is only set when the enableProfilerTimer flag is enabled.
  // 这个fiber以及它的子元素此次更新所花费的时间
  actualDuration?: number,

  // If the Fiber is currently active in the "render" phase,
  // This marks the time at which the work began.
  // This field is only set when the enableProfilerTimer flag is enabled.
  actualStartTime?: number,

  // Duration of the most recent render time for this Fiber.
  // This value is not updated when we bailout for memoization purposes.
  // This field is only set when the enableProfilerTimer flag is enabled.
  selfBaseDuration?: number,

  // Sum of base times for all descendants of this Fiber.
  // This value bubbles up during the "complete" phase.
  // This field is only set when the enableProfilerTimer flag is enabled.
  treeBaseDuration?: number,

  // Conceptual aliases
  // workInProgress : Fiber ->  alternate The alternate used for reuse happens
  // to be the same as work in progress.
  // __DEV__ only
  _debugID?: number,
  _debugSource?: Source | null,
  _debugOwner?: Fiber | null,
  _debugIsCurrentlyTiming?: boolean,
  _debugNeedsRemount?: boolean,

  // Used to verify that the order of hooks does not change between renders.
  _debugHookTypes?: Array<HookType> | null
|}

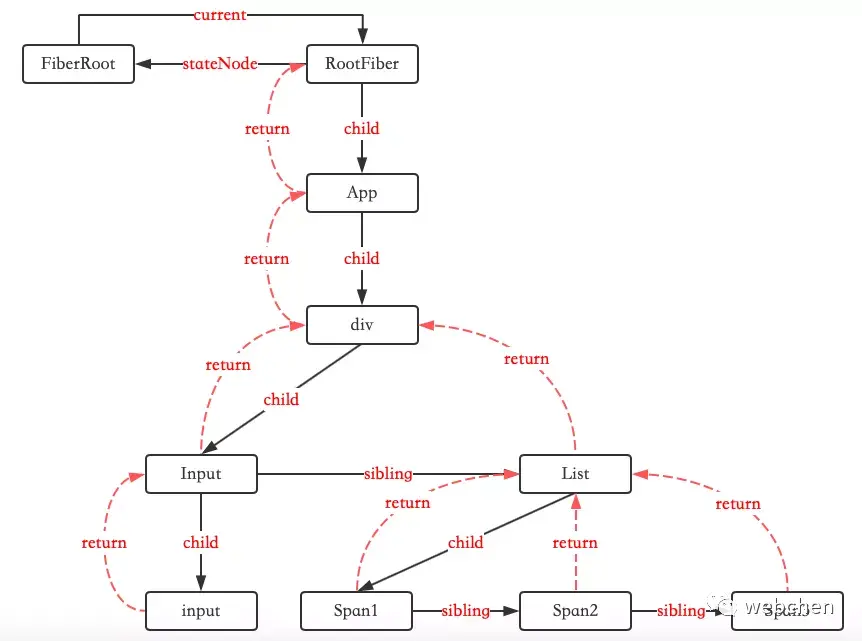

    • 工作流程图(串联整个应用形成树结构，也就是循环链表)

    • 循环链表

        // 一个简单的循环链表的插入和删除
    // person的类型定义
    interface Person {
        name : string  //姓名
        age : number  //年龄，依赖这个属性排序
        next : Person  //紧跟在后面的人,默认是null
        previous : Person //前面相邻的那个人,默认是null
    }
    var firstNode = null; //一开始链表里没有节点

    //插入的逻辑
    function insertByAge(newPerson:Person){
        if(firstNode = null){
        	//如果 firstNode为空，说明newPerson是第一个人，
        	//把它赋值给firstNode，并把next和previous属性指向自身，自成一个环。
          	firstNode = newPerson.next = newPerson.previous = newPerson;

        } else {
        	//队伍里有人了，新来的人要找准自己的位置
             var next = null; // 记录newPerson插入到哪个人前边
             var person = firstNode; // person 在下边的循环中会从第一个人开始往后找

             do {
                  if (person.age > newPerson.age) {
                      // 如果person的年龄比新来的人大，说明新来的人找到位置了，
                      // 他恰好要排在person的前边，结束
                      next = person;
                      break;
                  }
                  //继续找后面的人
                  person = person.next;
            } while (node !== firstNode); //这里的while是为了防止无限循环，毕竟是环形的结构

            if(next === null){
                // 找了一圈发现 没有person的age比newPerson大，
                // 说明newPerson应该放到队伍的最后,也就是说newPerson的后面应该是firstNode。
                next = firstNode;
            } else if(next === firstNode){
                // 找第一个的时候就找到next了，说明newPerson要放到firstNode前面，
                // 这时候firstNode就要更新为newPerson
                firstNode = newPerson
            }
            //下面是newPerson的插入操作，给next及previous两个人的前后链接都关联到newPerson
            var previous = next.previous;
            previous.next = next.previous = newPerson;
            newPerson.next = next;
            newPerson.previous = previous;
        }
        //插入成功
    }

    //删除第一个节点
    function deleteFirstPerson(){
        if(firstNode === null) return; //队伍里没有人，返回
        var next = firstNode.next; //第二个人
        if(firstNode === next) {
            //这时候只有一个人
            firstNode = null;
            next = null;
        } else {
            var lastPerson = firstNode.previous; //找到最后一个人
            firstNode = lastPerson.next = next; //更新新的第一人
            next.previous = lastPerson; //并在新的第一人和最后一人之间建立连接
        }
    }

  4. FiberRoot

    • 作用及含义

      是整个React应用的起点

      包含应用挂载的目标节点（<div id='root'>root</div>)

      记录整个React应用更新过程中的各种信息

    • 与RootFiber的关系

      FiberRoot.current = RootFiber
RootFiber.stateNode = FiberRoot

    • createFiberRoot()：初始化fiberRoot和rootFiber

      // 初始化fiberRoot和rootFiber
// fiberRoot与rootFiber相互赋值
export function createFiberRoot(
  containerInfo: any,
  tag: RootTag,
  hydrate: boolean,
): FiberRoot {
  //新建fiberRoot对象
  const root: FiberRoot = (new FiberRootNode(containerInfo, tag, hydrate): any);

  // Cyclic construction. This cheats the type system right now because
  // stateNode is any.
  //初始化RootFiber
  const uninitializedFiber = createHostRootFiber(tag);
  //FiberRoot和RootFiber的关系
  //FiberRoot.current = RootFiber
  root.current = uninitializedFiber;
  //RootFiber.stateNode = FiberRoot
  uninitializedFiber.stateNode = root;

  return root;
}

    • FiberRootNode()

      type BaseFiberRootProperties = {|
  // The type of root (legacy, batched, concurrent, etc.)
  // 用于标记组件类型
  tag: RootTag,

  // Any additional information from the host associated with this root.
  // ReactDOM.render挂载的根节点
  containerInfo: any,
  // Used only by persistent updates.
  // 只有在持久更新中才会用到，也就是不支持增量更新的平台会用到，
  // react-dom不会用到也就是不更新某一块地方，而是整个应用完全更新
  pendingChildren: any,
  // The currently active root fiber. This is the mutable root of the tree.
  // 当前应用root节点对应的Fiber对象，即Root Fiber
  // ReactElement会有一个树结构，同时一个ReactElement对应一个Fiber对象，
  // 所以Fiber也会有树结构
  // current:Fiber对象 对应的是 root 节点，即整个应用根对象
  current: Fiber,

  pingCache:
    | WeakMap<Thenable, Set<ExpirationTime>>
    | Map<Thenable, Set<ExpirationTime>>
    | null,
  // 任务有三种，优先级有高低：
  //（1）没有提交的任务
  //（2）没有提交的被挂起的任务
  //（3）没有提交的可能被挂起的任务

  // 当前更新对应的过期时间
  finishedExpirationTime: ExpirationTime,
  // A finished work-in-progress HostRoot that's ready to be committed.
  // 已经完成任务的FiberRoot对象，如果你只有一个Root，
  // 那么该对象就是这个Root对应的Fiber或null
  // 在commit(提交)阶段只会处理该值对应的任务
  finishedWork: Fiber | null,
  // Timeout handle returned by setTimeout.
  // Used to cancel a pending timeout, if it's superseded by a new one.
  // 在任务被挂起的时候，通过setTimeout设置的响应内容，
  // 并且清理之前挂起的任务 还没触发的timeout
  timeoutHandle: TimeoutHandle | NoTimeout,
  // Top context object, used by renderSubtreeIntoContainer
  // 顶层context对象，只有主动调用renderSubtreeIntoContainer才会生效
  context: Object | null,
  pendingContext: Object | null,
  // Determines if we should attempt to hydrate on the initial mount
  //用来判断 第一次渲染 是否需要融合
  +hydrate: boolean,
  // Node returned by Scheduler.scheduleCallback
  callbackNode: *,
  // Expiration of the callback associated with this root
  // 跟root有关联的回调函数的时间
  callbackExpirationTime: ExpirationTime,
  // Priority of the callback associated with this root
  callbackPriority: ReactPriorityLevel,
  // The earliest pending expiration time that exists in the tree
  // 存在root中，最旧的挂起时间
  // 不确定是否挂起的状态（所有任务一开始均是该状态）
  firstPendingTime: ExpirationTime,
  // The earliest suspended expiration time that exists in the tree
  firstSuspendedTime: ExpirationTime,
  // The latest suspended expiration time that exists in the tree
  // 存在root中，最新的挂起时间
  // 不确定是否挂起的状态（所有任务一开始均是该状态）
  lastSuspendedTime: ExpirationTime,
  // The next known expiration time after the suspended range
  nextKnownPendingLevel: ExpirationTime,
  // The latest time at which a suspended component pinged the root to
  // render again
  // 被挂起的组件发出ping信号使根再次呈现的最新时间
  lastPingedTime: ExpirationTime,
  lastExpiredTime: ExpirationTime,
|};

type ProfilingOnlyFiberRootProperties = {|
  interactionThreadID: number,
  memoizedInteractions: Set<Interaction>,
  pendingInteractionMap: PendingInteractionMap,
|};

// The follow fields are only used by enableSuspenseCallback for hydration.
type SuspenseCallbackOnlyFiberRootProperties = {|
  hydrationCallbacks: null | SuspenseHydrationCallbacks,
|};

export type FiberRoot = {
  ...BaseFiberRootProperties,
  ...ProfilingOnlyFiberRootProperties,
  ...SuspenseCallbackOnlyFiberRootProperties,
};

// 创建fiberRoot对象
function FiberRootNode(containerInfo, tag, hydrate) {
  this.tag = tag; // 用于标记组件类型
  this.current = null;
  this.containerInfo = containerInfo; // 根节点
  this.pendingChildren = null;
  this.pingCache = null;
  this.finishedExpirationTime = NoWork;
  this.finishedWork = null;
  this.timeoutHandle = noTimeout;
  this.context = null;
  this.pendingContext = null;
  this.hydrate = hydrate;
  this.callbackNode = null;
  this.callbackPriority = NoPriority;
  this.firstPendingTime = NoWork;
  this.firstSuspendedTime = NoWork;
  this.lastSuspendedTime = NoWork;
  this.nextKnownPendingLevel = NoWork;
  this.lastPingedTime = NoWork;
  this.lastExpiredTime = NoWork;

  if (enableSchedulerTracing) {
    this.interactionThreadID = unstable_getThreadID();
    this.memoizedInteractions = new Set();
    this.pendingInteractionMap = new Map();
  }
  if (enableSuspenseCallback) {
    this.hydrationCallbacks = null;
  }
}

  5. Scheduler.js 协调浏览器调度额包

  6. scheduleWork

7.未完待续

avatar
文章
阅读
粉丝
