| 作者 | 日期 | 天气 |
|---|---|---|
| 元公子 | 2020-01-27（周一） | 下雨后风大的东莞 |
你知道的越少，你不知道的就越少
没有朋友的点赞，就没法升级打怪
一、环境准备
- 示例使用Centos7 64位操作系统
- Java 1.8以上环境
- 已安装Hadoop环境
- 已安装Python环境
- 已安装Scala环境
二、下载安装包

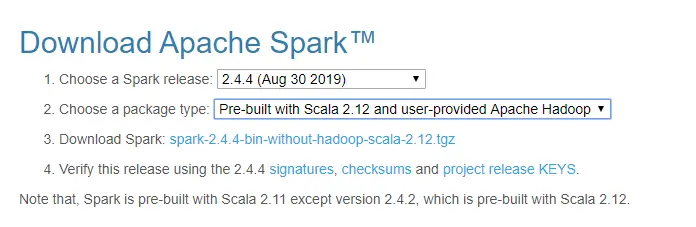

官方地址：前往下载页
下载最新版软件：spark-2.4.4-bin-without-hadoop.tgz
三、开始安装
创建安装目录
[root@hadoop-master /soft]$ tar -xvzf spark-2.4.4-bin-without-hadoop.tgz
[root@hadoop-master /soft]# chown -R hadoop:hadoop spark-2.4.4-bin-without-hadoop
[root@hadoop-master /soft]# ln -s spark-2.4.4-bin-without-hadoop spark
设置环境变量,PYSPARK_DRIVER_PYTHON参数用于设置python环境，请参考常用环境篇
[root@hadoop-master /soft]# vi /etc/profile
export SPARK_HOME=/soft/spark
export SPARK_CONF_DIR=/home/hadoop/spark/conf
export PATH=$PATH:$SPARK_HOME/bin
export PYSPARK_DRIVER_PYTHON=$ANACONDA_HOME/bin/ipython
export PYSPARK_PYTHON=$ANACONDA_HOME/bin/python
[root@hadoop-master /soft]# source /etc/profile
创建配置和暂存等目录文件夹
[root@hadoop-master /soft]# su - hadoop
[hadoop@hadoop-master /home/hadoop]$ mkdir -p /home/hadoop/spark/conf
[hadoop@hadoop-master /home/hadoop]$ cp -fr /soft/spark/conf/* /home/hadoop/spark/conf/
改改配置文件
[hadoop@hadoop-master /home/hadoop]$ cp /home/hadoop/spark/conf/spark-env.sh.template /home/hadoop/spark/conf/spark-env.sh
[hadoop@hadoop-master /home/hadoop]$ cp /home/hadoop/spark/conf/slaves.template /home/hadoop/spark/conf/slaves
[hadoop@hadoop-master /home/hadoop]$ vi /home/hadoop/spark/conf/spark-env.sh
export JAVA_HOME=/soft/jdk
export SCALA_HOME=/soft/scala
export SPARK_HOME=/soft/spark
export SPARK_CONF_DIR=/home/hadoop/spark/conf
export SPARK_LOG_DIR=/home/hadoop/spark/log
export SPARK_MASTER_IP=hadoop-master
export SPARK_WORKER_MEMORY=512m
export HADOOP_CONF_DIR=/soft/hadoop/etc/hadoop
export SPARK_DIST_CLASSPATH=$(${HADOOP_HOME}/bin/hadoop classpath)
[hadoop@hadoop-master /home/hadoop]$ vi /home/hadoop/spark/conf/slaves
hadoop-dn1
hadoop-dn2
hadoop-dn3
请按第五节内容，先处理可能遇到的异常后，再同步安装文件到子节点
# hadoop用户下
[hadoop@hadoop-master /soft]$ xrsync.sh /soft/spark
================ dn1 ==================
================ dn2 ==================
================ dn3 ==================
[hadoop@hadoop-master /soft]$ xrsync.sh /soft/spark-2.4.4-bin-without-hadoop
[hadoop@hadoop-master /soft]$ xrsync.sh /home/hadoop/spark
# root用户下
[hadoop@hadoop-master /soft]$ su - root
[root@hadoop-master /root]# xrsync.sh /etc/profile
[root@hadoop-master /root]# xcall.sh source /etc/profile
准备启动
[hadoop@hadoop-master /home/hadoop]$ run-example SparkPi 10
[hadoop@hadoop-master /home/hadoop]$ spark-shell --master local[2]
scala> :quit
[hadoop@hadoop-master /home/hadoop]$ pyspark --master local[2]
Using Python version 3.6.5 (default, Apr 29 2018 16:14:56)
SparkSession available as 'spark'.
In [1]: exit
[hadoop@hadoop-master /home/hadoo]$ /soft/spark/sbin/start-all.sh
org.apache.spark.deploy.master.Master running as process 36750. Stop it first.
hadoop-dn3: starting org.apache.spark.deploy.worker.Worker, logging to /home/hadoop/spark/log/spark-hadoop-org.apache.spark.deploy.worker.Worker-1-hadoop-dn3.out
hadoop-dn2: starting org.apache.spark.deploy.worker.Worker, logging to /home/hadoop/spark/log/spark-hadoop-org.apache.spark.deploy.worker.Worker-1-hadoop-dn2.out
hadoop-dn1: starting org.apache.spark.deploy.worker.Worker, logging to /home/hadoop/spark/log/spark-hadoop-org.apache.spark.deploy.worker.Worker-1-hadoop-dn1.out
[hadoop@hadoop-master /home/hadoo]$ jps
36750 Master
[hadoop@hadoop-dn1 /home/hadoo]$ jps
5653 Worker
# 补充：单独启动
# /soft/spark/sbin/start-master.sh //启动master服务器
# /soft/spark/sbin/start-slaves.sh //启动多个slave服务器
spark web ui
http://hadoop-master:8080
四、服务自启动
master节点
[hadoop@hadoop-master /home/hadoop]$ su - root
[root@hadoop-master /root]# vi /etc/systemd/system/spark-master.service
[Unit]
Description=spark-master
After=syslog.target network.target
[Service]
Type=forking
User=hadoop
Group=hadoop
ExecStart=/soft/spark/sbin/start-master.sh
ExecStop=/soft/spark/sbin/stop-master.sh
[Install]
WantedBy=multi-user.target
执行保存： Esc :wq
[root@hadoop-master /root]# chmod 755 /etc/systemd/system/spark-master.service
[root@hadoop-master /root]# systemctl enable spark-master
[root@hadoop-master /root]# service spark-master start
slave节点
[hadoop@hadoop-dn1 /home/hadoop]$ su - root
[root@hadoop-dn1 /root]# vi /etc/systemd/system/spark-slave.service
[Unit]
Description=spark-slave
After=syslog.target network.target
[Service]
Type=forking
User=hadoop
Group=hadoop
ExecStart=/soft/spark/sbin/start-slave.sh spark://hadoop-master:7077
ExecStop=/soft/spark/sbin/stop-slave.sh
[Install]
WantedBy=multi-user.target
执行保存： Esc :wq
[root@hadoop-master /root]# chmod 755 /etc/systemd/system/spark-slave.service
[root@hadoop-master /root]# systemctl enable spark-slave
[root@hadoop-master /root]# service spark-slave start
notebook
[hadoop@hadoop-master /home/hadoop]$ su - root
[root@hadoop-master /root]# vi /etc/init.d/notebook
#!/bin/sh
# chkconfig: 345 85 15
# description: service for notebook
# processname: notebook
case "$1" in
start)
echo "Starting hive"
su - hadoop -c 'export PYSPARK_DRIVER_PYTHON_OPTS="notebook --config=/home/hadoop/.ipython/profile_myserver/ipython_notebook_config.py"; nohup pyspark >/dev/null 2>&1 &'
echo "ipython_notebook started"
;;
stop)
echo "Stopping ipython_notebook"
PID_COUNT=`ps aux |grep ipython_notebook |grep -v grep | wc -l`
PID=`ps aux |grep ipython_notebook |grep -v grep | awk {'print $2'}`
if [ $PID_COUNT -gt 0 ];then
echo "Try stop ipython_notebook"
kill -9 $PID
echo "Kill ipython_notebook SUCCESS!"
else
echo "There is no ipython_notebook!"
fi
;;
restart)
echo "Restarting ipython_notebook"
$0 stop
$0 start
;;
status)
PID_COUNT=`ps aux |grep ipython_notebook |grep -v grep | wc -l`
if [ $PID_COUNT -gt 0 ];then
echo "ipython_notebook is running"
else
echo "ipython_notebook is stopped"
fi
;;
*)
echo "Usage:$0 {start|stop|restart|status}"
exit 1
esac
执行保存： Esc :wq
[root@hadoop-master /root]# chmod 755 /etc/init.d/notebook
[root@hadoop-master /root]# chkconfig --add notebook
[root@hadoop-master /root]# chkconfig notebook on
[root@hadoop-master /root]# service notebook start
五、偶遇的坑
- Exception in thread "main" java.lang.NoClassDefFoundError: org/slf4j/Logger
往/soft/spark/jars目录考入log4j-1.2.17.jar，slf4j-api-1.7.30.jar，slf4j-log4j12-1.7.25.jar等三个jar包，版本最近即可。
[hadoop@hadoop-master /home/hadoop]$ ll /soft/spark/jars/log*
log4j-1.2.17.jar logging-interceptor-3.12.0.jar
[hadoop@hadoop-master /home/hadoop]$ ll /soft/spark/jars/slf4j-*
slf4j-api-1.7.30.jar slf4j-log4j12-1.7.25.jar
- JAVA_HOME is not set
[hadoop@hadoop-master /home/hadoop]$ vi /soft/spark/sbin/spark-config.sh
# export PYSPARK_PYTHONPATH_SET=1 下面追加下面内容
export JAVA_HOME=/soft/jdk
export SPARK_HOME=/soft/spark
export HADOOP_HOME=/soft/hadoop
export HADOOP_CONF_DIR=/soft/hadoop/etc/hadoop
export SPARK_CONF_DIR=/home/hadoop/spark/conf
export SPARK_LOG_DIR=/home/hadoop/spark/log
六、补充内容
远程使用ipython notebook
[root@hadoop-master /root]# pip install ipython
[root@hadoop-master /root]# su - hadoop
[hadoop@hadoop-master /home/hadoop]$ ipython
Python 3.6.5 |Anaconda, Inc.| (default, Apr 29 2018, 16:14:56)
Type 'copyright', 'credits' or 'license' for more information
IPython 6.4.0 -- An enhanced Interactive Python. Type '?' for help.
In [1]: from IPython.lib import passwd
In [2]: passwd()
Enter password:
Verify password:
Out[2]: 'sha1:9435b2964949:cdcf603ca1cf095c5141270b66e9848db30d09f9'
#密码：123456
[hadoop@hadoop-master /home/hadoop]$ ipython profile create myserver
[hadoop@hadoop-master /home/hadoop]$ vi /home/hadoop/.ipython/profile_myserve/ipython_notebook_config.py
c = get_config()
c.IPKernelApp.pylab='inline'
c.NotebookApp.ip='*'
c.NotebookApp.open_browser=False
c.NotebookApp.password=u'sha1:9435b2964949:cdcf603ca1cf095c5141270b66e9848db30d09f9'
c.NotebookApp.port=8888
[hadoop@hadoop-master /home/hadoop]$ PYSPARK_DRIVER_PYTHON_OPTS="notebook --config=/home/hadoop/.ipython/profile_myserver/ipython_notebook_config.py" pyspark
