基于xml 配置的方式
几个概念
- BeanDefinition 是Bean在容器中的描述，是原料
- Bean 是最终我们要创建使用的对象，是成品
- BeanFactory 具体的BeanFactory实现类是 BeanDefinition 和 Bean 的容器，完成 BeanDefinition 解析、注册，以及 Bean 的实例化
- ApplicationContext 对BeanFactory的扩展，除了能完成BeanFactory的搜集、解析、注册 BeanDefinition、从BeanDefinition创建Bean等功能外，还扩展了自动注册BeanFactoryPostProcessor、BeanPostProcessor，声明周期管理、事件发布机制、国际化功能

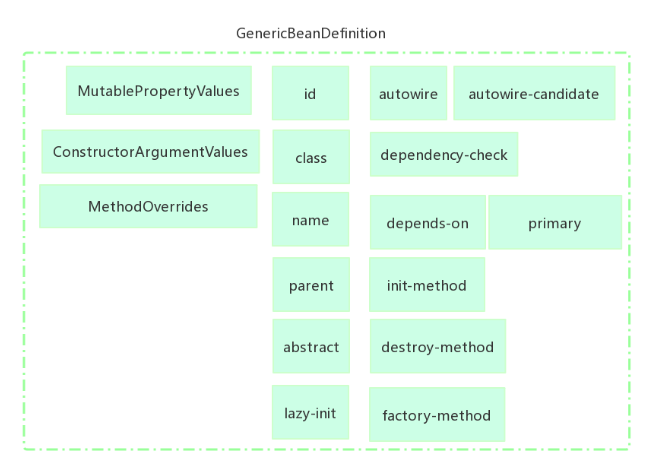

BeanDefinition
生产产品之前要有原料、创建Bean之前也需要有BeanDefinition
使用 xml 文件启动 Spring 容器 XmlApplicationContext
ClassPathXmlApplicationContext xmlApplicationContext = new ClassPathXmlApplicationContext("spring.xml");
// ClassPathXmlApplicationContext.java
public class ClassPathXmlApplicationContext extends AbstractXmlApplicationContext {
@Nullable
private Resource[] configResources;
public ClassPathXmlApplicationContext(String configLocation) throws BeansException {
this(new String[] {configLocation}, true, null);
}
public ClassPathXmlApplicationContext(
String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
throws BeansException {
super(parent);
setConfigLocations(configLocations);
if (refresh) {
refresh();
}
}
}
容器启动流程 // AbstractApplicationContext.java
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// Prepare this context for refreshing.
prepareRefresh();
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// Prepare the bean factory for use in this context.
prepareBeanFactory(beanFactory);
try {
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
// Invoke factory processors registered as beans in the context.
invokeBeanFactoryPostProcessors(beanFactory);
// Register bean processors that intercept bean creation.
registerBeanPostProcessors(beanFactory);
// Initialize message source for this context.
initMessageSource();
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
// Initialize other special beans in specific context subclasses.
onRefresh();
// Check for listener beans and register them.
registerListeners();
// Instantiate all remaining (non-lazy-init) singletons.
finishBeanFactoryInitialization(beanFactory);
// Last step: publish corresponding event.
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// Destroy already created singletons to avoid dangling resources.
destroyBeans();
// Reset 'active' flag.
cancelRefresh(ex);
// Propagate exception to caller.
throw ex;
}
finally {
// Reset common introspection caches in Spring's core, since we
// might not ever need metadata for singleton beans anymore...
resetCommonCaches();
}
}
}
基于 xml 配置方式的 BeanDefinition 的搜集、解析、注册
在 AbstractApplicationContext#refresh#obtainFreshBeanFactory() 中完成
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// Prepare this context for refreshing.
prepareRefresh();
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// AbstractApplicationContext#obtainFreshBeanFactory
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
refreshBeanFactory();
return getBeanFactory();
}
// AbstractApplicationContext#refreshBeanFactory
protected abstract void refreshBeanFactory() throws BeansException, IllegalStateException;
// AbstractRefreshableApplicationContext#refreshBeanFactory
protected final void refreshBeanFactory() throws BeansException {
if (hasBeanFactory()) {
destroyBeans();
closeBeanFactory();
}
try {
// 创建 DefaultListableBeanFactory
// BeanFactory 实例化
DefaultListableBeanFactory beanFactory = createBeanFactory();
beanFactory.setSerializationId(getId());
// 设置是否允许使用相同名称重新注册不同的bean实现
// 是否允许循环依赖
customizeBeanFactory(beanFactory);
// 5 解析xml，并把xml中的标签封装成BeanDefinition对象
loadBeanDefinitions(beanFactory);
synchronized (this.beanFactoryMonitor) {
this.beanFactory = beanFactory;
}
}
catch (IOException ex) {
throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
}
}
// AbstractRefreshableApplicationContext#loadBeanDefinitions
protected abstract void loadBeanDefinitions(DefaultListableBeanFactory beanFactory)
throws BeansException, IOException;
// AbstractXmlApplicationContext#loadBeanDefinitions(DefaultListableBeanFactory)
protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
// Create a new XmlBeanDefinitionReader for the given BeanFactory.
// 创建 xml 的解析器，委托模式, DefaultListableBeanFactory beanFactory 实现了 BeanDefinitionRegistry 接口
// XmlBeanDeifinitionReader 加载Dom文档，并将BeanDefinitionDocumentReader应用到该dom文档，
// BeanDefinitionDocumentReader 会将每一个bean定义注册到给定的 bean factory
XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);
// Configure the bean definition reader with this context's
// resource loading environment.
beanDefinitionReader.setEnvironment(this.getEnvironment());
// AbstractXmlApplicationContext 实现了ApplicationContext 接口，ApplicationContext 接口继承了
// ResourceLoader 接口，所以这里可以传递 this absxmlapp
beanDefinitionReader.setResourceLoader(this);
beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));
// Allow a subclass to provide custom initialization of the reader,
// then proceed with actually loading the bean definitions.
initBeanDefinitionReader(beanDefinitionReader);
// 重要程度 5
loadBeanDefinitions(beanDefinitionReader);
}
// AbstractBeanDefinitionReader#loadBeanDefinitions(String...)
public int loadBeanDefinitions(String... locations) throws BeanDefinitionStoreException {
Assert.notNull(locations, "Location array must not be null");
int count = 0;
for (String location : locations) {
count += loadBeanDefinitions(location);
}
return count;
}
public int loadBeanDefinitions(String location) throws BeanDefinitionStoreException {
return loadBeanDefinitions(location, null);
}
public int loadBeanDefinitions(String location, @Nullable Set<Resource> actualResources) throws BeanDefinitionStoreException {
ResourceLoader resourceLoader = getResourceLoader();
if (resourceLoader == null) {
throw new BeanDefinitionStoreException(
"Cannot load bean definitions from location [" + location + "]: no ResourceLoader available");
}
if (resourceLoader instanceof ResourcePatternResolver) {
// Resource pattern matching available.
try {
// 把字符串类型的xml文件路径，形如：classpath：user/**/*-context.xml 转换成Resource对象
// 其实就是用流的方式加载配置文件，然后封装成 Resource 对象
Resource[] resources = ((ResourcePatternResolver) resourceLoader).getResources(location);
// 重要程度 5
int count = loadBeanDefinitions(resources);
if (actualResources != null) {
Collections.addAll(actualResources, resources);
}
if (logger.isTraceEnabled()) {
logger.trace("Loaded " + count + " bean definitions from location pattern [" + location + "]");
}
return count;
}
catch (IOException ex) {
throw new BeanDefinitionStoreException(
"Could not resolve bean definition resource pattern [" + location + "]", ex);
}
}
else {
// Can only load single resources by absolute URL.
Resource resource = resourceLoader.getResource(location);
int count = loadBeanDefinitions(resource);
if (actualResources != null) {
actualResources.add(resource);
}
if (logger.isTraceEnabled()) {
logger.trace("Loaded " + count + " bean definitions from location [" + location + "]");
}
return count;
}
}
public int loadBeanDefinitions(Resource... resources) throws BeanDefinitionStoreException {
Assert.notNull(resources, "Resource array must not be null");
int count = 0;
for (Resource resource : resources) {
// 模板设计模式，调用到子类中的方法
count += loadBeanDefinitions(resource);
}
return count;
}
//BeanDefinitionReader#loadBeanDefinitions(org.springframework.core.io.Resource)
int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException;
// XmlBeanDefinitionReader#loadBeanDefinitions(org.springframework.core.io.Resource)
public int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException {
// 对 Resource 对象进行编码封装
return loadBeanDefinitions(new EncodedResource(resource));
}
public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
try {
InputStream inputStream = encodedResource.getResource().getInputStream();
try {
InputSource inputSource = new InputSource(inputStream);
if (encodedResource.getEncoding() != null) {
inputSource.setEncoding(encodedResource.getEncoding());
}
// 准备工作：首先对传入的 resource 做封装，出于对编码要求的考虑，通过 sax 读取 xml 的方式准备 InputSource
// 重要程度 5
return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
}
}
}
protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)throws BeanDefinitionStoreException {
try {
// 把 inputSource 封装成 Document 文件对象
Document doc = doLoadDocument(inputSource, resource);
// 重要程度 5，根据解析出来的document对象，拿到里面的标签元素封装成BeanDefinition对象
int count = registerBeanDefinitions(doc, resource);
return count;
}
}
public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
// 委托模式，BeanDefinitionReader 委托 BeanDefinitionDocumentReader 来进行 document 解析
BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
int countBefore = getRegistry().getBeanDefinitionCount();
// 重要程度 5，createReaderContext(resource)，XmlReaderContext 封装了XmlBeanDefinitionReader 对象
documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
return getRegistry().getBeanDefinitionCount() - countBefore;
}
// BeanDefinitionDocumentReader#registerBeanDefinitions()
void registerBeanDefinitions(Document doc, XmlReaderContext readerContext)
throws BeanDefinitionStoreException;
// DefaultBeanDefinitionDocumentReader#registerBeanDefinitions
public void registerBeanDefinitions(Document doc, XmlReaderContext readerContext) {
this.readerContext = readerContext;
// 把root 节点穿进去
doRegisterBeanDefinitions(doc.getDocumentElement());
}
protected void doRegisterBeanDefinitions(Element root) {
BeanDefinitionParserDelegate parent = this.delegate;
this.delegate = createDelegate(getReaderContext(), root, parent);
// PROFILE_ATTRIBUTE = "profile";
if (this.delegate.isDefaultNamespace(root)) {
String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
if (StringUtils.hasText(profileSpec)) {
String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
// We cannot use Profiles.of(...) since profile expressions are not supported
// in XML config. See SPR-12458 for details.
if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
if (logger.isDebugEnabled()) {
logger.debug("Skipped XML bean definition file due to specified profiles [" + profileSpec +
"] not matching: " + getReaderContext().getResource());
}
return;
}
}
}
preProcessXml(root);
// 5 标签解析的具体过程
parseBeanDefinitions(root, this.delegate);
postProcessXml(root);
this.delegate = parent;
}
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
if (delegate.isDefaultNamespace(root)) {
NodeList nl = root.getChildNodes();
for (int i = 0; i < nl.getLength(); i++) {
Node node = nl.item(i);
if (node instanceof Element) {
Element ele = (Element) node;
if (delegate.isDefaultNamespace(ele)) {
// 默认标签解析
parseDefaultElement(ele, delegate);
}
else {
// 自定义标签解析
delegate.parseCustomElement(ele);
}
}
}
}
else {
delegate.parseCustomElement(root);
}
}
//
private void parseDefaultElement (Element ele, BeanDefinitionParserDelegate delegate) {
if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
importBeanDefinitionResource(ele);
}
else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
processAliasRegistration(ele);
}
// 5， bean 标签解析
else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
processBeanDefinition(ele, delegate);
}
// 子标签解析
else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
// recurse
doRegisterBeanDefinitions(ele);
}
}
protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
// 5, 解析document，封装成 BeanDefinition
BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
if (bdHolder != null) {
// 装饰者设计模式，加上 SPI 思想
bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
try {
// Register the final decorated instance.
BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
}
// Send registration event.
getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
}
}
// 自定义标签解析 BeanDefinitionParserDelegate#parseCustomElement(org.w3c.dom.Element, BeanDefinition) 获得 NamespaceHandler 的方式和自定义标签相同
public BeanDefinition parseCustomElement(Element ele, @Nullable BeanDefinition containingBd) {
String namespaceUri = getNamespaceURI(ele);
if (namespaceUri == null) {
return null;
}
NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
if (handler == null) {
error("Unable to locate Spring NamespaceHandler for XML schema namespace [" + namespaceUri + "]", ele);
return null;
}
return handler.parse(ele, new ParserContext(this.readerContext, this, containingBd));
}
// NamespaceHandlerSupport#parse
public BeanDefinition parse(Element element, ParserContext parserContext) {
BeanDefinitionParser parser = findParserForElement(element, parserContext);
return (parser != null ? parser.parse(element, parserContext) : null);
}
// NamespaceHandlerSupport#findParserForElement
private BeanDefinitionParser findParserForElement(Element element, ParserContext parserContext) {
String localName = parserContext.getDelegate().getLocalName(element);
BeanDefinitionParser parser = this.parsers.get(localName);
if (parser == null) {
parserContext.getReaderContext().fatal(
"Cannot locate BeanDefinitionParser for element [" + localName + "]", element);
}
return parser;
}
// ComponentScanBeanDefinitionParser#parse
public BeanDefinition parse(Element element, ParserContext parserContext) {
String basePackage = element.getAttribute(BASE_PACKAGE_ATTRIBUTE);
basePackage = parserContext.getReaderContext().getEnvironment().resolvePlaceholders(basePackage);
String[] basePackages = StringUtils.tokenizeToStringArray(basePackage,
ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
// Actually scan for bean definitions and register them.
ClassPathBeanDefinitionScanner scanner = configureScanner(parserContext, element);
Set<BeanDefinitionHolder> beanDefinitions = scanner.doScan(basePackages);
registerComponents(parserContext.getReaderContext(), beanDefinitions, element);
return null;
}
// ClassPathBeanDefinitionScanner#doScan(), 完成扫描注册功能
protected Set<BeanDefinitionHolder> doScan(String... basePackages) {
Assert.notEmpty(basePackages, "At least one base package must be specified");
Set<BeanDefinitionHolder> beanDefinitions = new LinkedHashSet<>();
for (String basePackage : basePackages) {
Set<BeanDefinition> candidates = findCandidateComponents(basePackage);
for (BeanDefinition candidate : candidates) {
ScopeMetadata scopeMetadata = this.scopeMetadataResolver.resolveScopeMetadata(candidate);
candidate.setScope(scopeMetadata.getScopeName());
String beanName = this.beanNameGenerator.generateBeanName(candidate, this.registry);
if (candidate instanceof AbstractBeanDefinition) {
postProcessBeanDefinition((AbstractBeanDefinition) candidate, beanName);
}
if (candidate instanceof AnnotatedBeanDefinition) {
AnnotationConfigUtils.processCommonDefinitionAnnotations((AnnotatedBeanDefinition) candidate);
}
if (checkCandidate(beanName, candidate)) {
BeanDefinitionHolder definitionHolder = new BeanDefinitionHolder(candidate, beanName);
definitionHolder =
AnnotationConfigUtils.applyScopedProxyMode(scopeMetadata, definitionHolder, this.registry);
beanDefinitions.add(definitionHolder);
registerBeanDefinition(definitionHolder, this.registry);
}
}
}
return beanDefinitions;
}
public BeanDefinition parse(Element element, ParserContext parserContext) {
BeanDefinitionParser parser = findParserForElement(element, parserContext);
return (parser != null ? parser.parse(element, parserContext) : null);
}
// BeanDefinitionParserDelegate#parseBeanDefinitionElement(org.w3c.dom.Element)
public BeanDefinitionHolder parseBeanDefinitionElement(Element ele) {
return parseBeanDefinitionElement(ele, null);
}
public BeanDefinitionHolder parseBeanDefinitionElement(Element ele, @Nullable BeanDefinition containingBean) {
String id = ele.getAttribute(ID_ATTRIBUTE);
String nameAttr = ele.getAttribute(NAME_ATTRIBUTE);
List<String> aliases = new ArrayList<>();
if (StringUtils.hasLength(nameAttr)) {
String[] nameArr = StringUtils.tokenizeToStringArray(nameAttr, MULTI_VALUE_ATTRIBUTE_DELIMITERS);
aliases.addAll(Arrays.asList(nameArr));
}
String beanName = id;
if (!StringUtils.hasText(beanName) && !aliases.isEmpty()) {
beanName = aliases.remove(0);
}
if (containingBean == null) {
checkNameUniqueness(beanName, aliases, ele);
}
// 5, 解析document，封装成 BeanDefinition
AbstractBeanDefinition beanDefinition = parseBeanDefinitionElement(ele, beanName, containingBean);
if (beanDefinition != null) {
if (!StringUtils.hasText(beanName)) {
try {
if (containingBean != null) {
beanName = BeanDefinitionReaderUtils.generateBeanName(
beanDefinition, this.readerContext.getRegistry(), true);
}
else {
beanName = this.readerContext.generateBeanName(beanDefinition);
// Register an alias for the plain bean class name, if still possible,
// if the generator returned the class name plus a suffix.
// This is expected for Spring 1.2/2.0 backwards compatibility.
String beanClassName = beanDefinition.getBeanClassName();
if (beanClassName != null &&
beanName.startsWith(beanClassName) && beanName.length() > beanClassName.length() &&
!this.readerContext.getRegistry().isBeanNameInUse(beanClassName)) {
aliases.add(beanClassName);
}
}
}
String[] aliasesArray = StringUtils.toStringArray(aliases);
// 此处可以看出 BeanDefinitionHolder 保存着 beanDefinition、beanName、aliasesArray
return new BeanDefinitionHolder(beanDefinition, beanName, aliasesArray);
}
return null;
}
public AbstractBeanDefinition parseBeanDefinitionElement(
Element ele, String beanName, @Nullable BeanDefinition containingBean) {
this.parseState.push(new BeanEntry(beanName));
String className = null;
if (ele.hasAttribute(CLASS_ATTRIBUTE)) {
className = ele.getAttribute(CLASS_ATTRIBUTE).trim();
}
String parent = null;
if (ele.hasAttribute(PARENT_ATTRIBUTE)) {
parent = ele.getAttribute(PARENT_ATTRIBUTE);
}
try {
AbstractBeanDefinition bd = createBeanDefinition(className, parent);
parseBeanDefinitionAttributes(ele, beanName, containingBean, bd);
bd.setDescription(DomUtils.getChildElementValueByTagName(ele, DESCRIPTION_ELEMENT));
parseMetaElements(ele, bd);
parseLookupOverrideSubElements(ele, bd.getMethodOverrides());
parseReplacedMethodSubElements(ele, bd.getMethodOverrides());
parseConstructorArgElements(ele, bd);
parsePropertyElements(ele, bd);
parseQualifierElements(ele, bd);
bd.setResource(this.readerContext.getResource());
bd.setSource(extractSource(ele));
return bd;
}
return null;
}
public BeanDefinitionHolder decorateBeanDefinitionIfRequired(Element ele, BeanDefinitionHolder originalDef) {
return decorateBeanDefinitionIfRequired(ele, originalDef, null);
}
public BeanDefinitionHolder decorateBeanDefinitionIfRequired(
Element ele, BeanDefinitionHolder originalDef, @Nullable BeanDefinition containingBd) {
BeanDefinitionHolder finalDefinition = originalDef;
// Decorate based on custom attributes first.
// 根据bean标签的属性装饰BeanDefinitionHolder，如 <bean class="xx" p:username="dongzhi"/>
NamedNodeMap attributes = ele.getAttributes();
for (int i = 0; i < attributes.getLength(); i++) {
Node node = attributes.item(i);
finalDefinition = decorateIfRequired(node, finalDefinition, containingBd);
}
// Decorate based on custom nested elements.
// 根据 bean 标签子元素装饰 BeanDefinitionHolder， 如
NodeList children = ele.getChildNodes();
for (int i = 0; i < children.getLength(); i++) {
Node node = children.item(i);
if (node.getNodeType() == Node.ELEMENT_NODE) {
finalDefinition = decorateIfRequired(node, finalDefinition, containingBd);
}
}
return finalDefinition;
}
public BeanDefinitionHolder decorateIfRequired(
Node node, BeanDefinitionHolder originalDef, @Nullable BeanDefinition containingBd) {
// 根据node获取到node的命令空间，如 http://www.springframework.org/shcema/p p:username="dongzhi"
String namespaceUri = getNamespaceURI(node);
if (namespaceUri != null && !isDefaultNamespace(namespaceUri)) {
// 这里有 spi 服务发现的思想，根据配置文件获取 namespaceUri 对应的处理类
NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
if (handler != null) {
BeanDefinitionHolder decorated =
handler.decorate(node, originalDef, new ParserContext(this.readerContext, this, containingBd));
if (decorated != null) {
return decorated;
}
}
else if (namespaceUri.startsWith("http://www.springframework.org/")) {
error("Unable to locate Spring NamespaceHandler for XML schema namespace [" + namespaceUri + "]", node);
}
else {
// A custom namespace, not to be handled by Spring - maybe "xml:...".
if (logger.isDebugEnabled()) {
logger.debug("No Spring NamespaceHandler found for XML schema namespace [" + namespaceUri + "]");
}
}
}
return originalDef;
}
// NamespaceHandlerResolver#resolve
// NamespaceHandler handler = this.readerContext.getNamespaceHandlerResolver().resolve(namespaceUri);
// DefaultNamespaceHandlerResolver#resolve
public NamespaceHandler resolve(String namespaceUri) {
// 获取 spring 中所有jar包里面的 "META-INF/spring.handlers" 文件，并建立对应关系
Map<String, Object> handlerMappings = getHandlerMappings();
// 根据namespaceUri: http://www.springframework.org/schema/p, 获取这个命名空间的处理类
Object handlerOrClassName = handlerMappings.get(namespaceUri);
if (handlerOrClassName == null) {
return null;
}
else if (handlerOrClassName instanceof NamespaceHandler) {
return (NamespaceHandler) handlerOrClassName;
}
else {
String className = (String) handlerOrClassName;
try {
Class<?> handlerClass = ClassUtils.forName(className, this.classLoader);
if (!NamespaceHandler.class.isAssignableFrom(handlerClass)) {
throw new FatalBeanException("Class [" + className + "] for namespace [" + namespaceUri +
"] does not implement the [" + NamespaceHandler.class.getName() + "] interface");
}
NamespaceHandler namespaceHandler = (NamespaceHandler) BeanUtils.instantiateClass(handlerClass);
namespaceHandler.init();
handlerMappings.put(namespaceUri, namespaceHandler);
return namespaceHandler;
}
}
}
// 获得 NamespaceHandler 立即执行了初始化方法，注册一些解析器
public class ContextNamespaceHandler extends NamespaceHandlerSupport {
@Override
public void init() {
registerBeanDefinitionParser("property-placeholder", new PropertyPlaceholderBeanDefinitionParser());
registerBeanDefinitionParser("property-override", new PropertyOverrideBeanDefinitionParser());
registerBeanDefinitionParser("annotation-config", new AnnotationConfigBeanDefinitionParser());
registerBeanDefinitionParser("component-scan", new ComponentScanBeanDefinitionParser());
registerBeanDefinitionParser("load-time-weaver", new LoadTimeWeaverBeanDefinitionParser());
registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
registerBeanDefinitionParser("mbean-export", new MBeanExportBeanDefinitionParser());
registerBeanDefinitionParser("mbean-server", new MBeanServerBeanDefinitionParser());
}
}
