JavaScript实现电子时钟

2,400 阅读1分钟

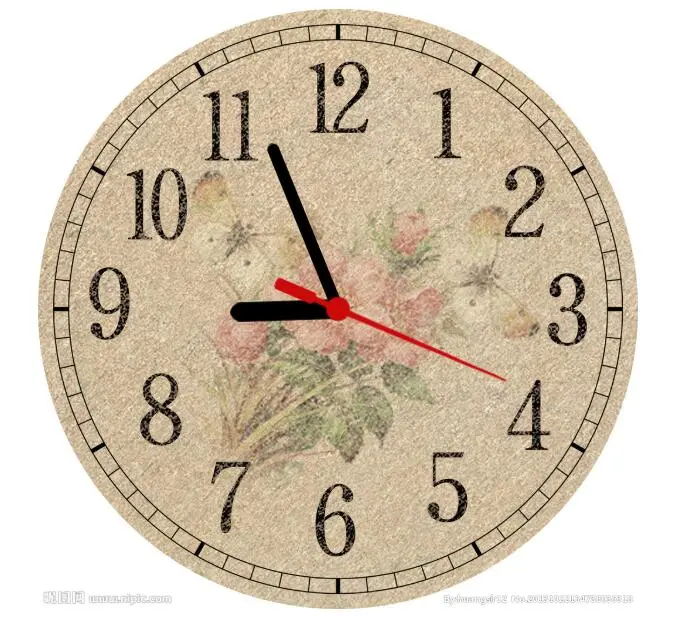

用js实现一个实时电子时钟,网上找了几个背景图,效果图如下:

结构代码如下:

<div id="clock">
    <div id="h"></div>
    <div id="m"></div>
    <div id="s"></div>
</div>

使用的背景图放在文章下方,css样式代码:

        /* 背景表盘 */
        #clock{
            width: 600px;
            height: 600px;
            background: url('./images/clock.jpg') no-repeat center;
            background-size: 100%;
            position: relative;
            /* 让时钟出现在网页中间区域 个人觉得看起来舒服点 */
            left: 300px;
            top: 20px;
        }
        /* 设置时针分针秒针背景图的大小位置以及旋转中心  */
        #clock div{
            width: 100%;
            height: 100%;
            position: absolute;
            left: 285px;
            top: 0;
            transform-origin:15px 300px;
        }
        /* 分别添加时针分针秒针的背景图 */
        #h{
            background: url('./images/h.png') no-repeat;
        }
        #m{
            background: url('./images/m.png') no-repeat;
        }
        #s{
            background: url('./images/s.png') no-repeat;
        }

最后是js代码:

    <script>
        //分别获取时针分针秒针的div
        var hour=document.getElementById("h"),
            minute=document.getElementById("m"),
            second=document.getElementById("s");
        //设置计时器16ms执行一次刷新获取时间,如果想要秒针缓慢跳动,可以设置500ms或者1000ms执行一次
        setInterval(function(){
            // 动态获取每个时间点
            var date=new Date(),ms,s,m,h;
            ms=date.getMilliseconds();
            s=date.getSeconds()+ms/1000;
            m=date.getMinutes()+s/60;
            h=date.getHours()%12+m/60;
            //计算该时间点每个指针分别转动的弧度
            second.style.transform = "rotate("+ s*6 +"deg)";
            minute.style.transform = "rotate("+ m*6 +"deg)";
            hour.style.transform = "rotate("+ h*30 +"deg)";
        },16)
    </script>

附上本次使用的系列背景图,也可以自己选择不同的图来更换
