SpringBoot + Swagger2
依赖
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.9.2</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>2.9.2</version>
</dependency>
Swagger2配置
@Configuration
@EnableSwagger2
public class Swagger2Config {
@Bean
public Docket createRestApi() {
return new Docket(DocumentationType.SWAGGER_2)
.apiInfo(apiInfo())
.select()
.apis(RequestHandlerSelectors.basePackage("com.xyz.swagger2demo")) //需要配置API的包路径
.paths(PathSelectors.any())
.build();
}
private ApiInfo apiInfo() {
Contact contact = new Contact("程序猿DD","", "");
return new ApiInfoBuilder()
.title("Spring Boot中使用Swagger2构建RESTful APIs")
.description("更多Spring Boot相关文章请关注")
.termsOfServiceUrl("https://github.com/buyimoutianxia/XyzSpringBootDemo")
.contact(contact)
.version("1.0")
.build();
}
}

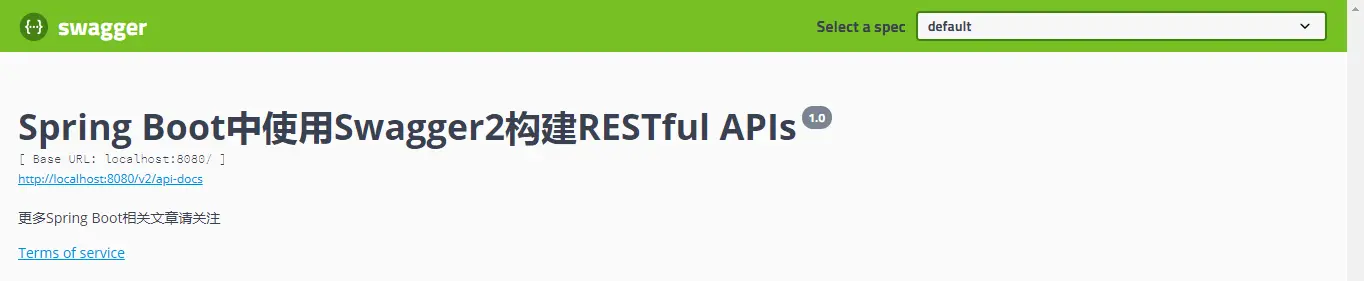

通过@EnableSwagger2开启Swagger2配置,然后配置1个Docket Bean,在Bean中配置扫描接口的位置 启动项目，输入http://localhost:8080/swagger-ui.html，能够看到如下页面，说明配置成功:
##创建接口
@RestController
@Api(tags = "用户相关接口" )
public class Swagger2Controller {
/**
* 增加用户
*/
@GetMapping("/add")
@ApiOperation(value = "增加用户接口", notes = "根据URL中内容增加用户")
@ApiImplicitParams(
{
@ApiImplicitParam(name="id" ,value="id"),
@ApiImplicitParam(name="name", value = "用户名" , defaultValue = "xyz"),
@ApiImplicitParam(name="address", value = "地址", defaultValue = "address_xyz")
}
)
public String addUser(@RequestParam("id") int id, @RequestParam("name") String name, @RequestParam("address") String address) {
return "id:" + id + ",name:" + name + ",address:" + address;
}
/**
* 根据ID更新用户
*/
@RequestMapping(value = "/update/{id}", method = RequestMethod.GET)
@ApiOperation(value = "更新用户", notes = "根据用户ID更新用户信息")
@ApiImplicitParam(name = "id", value = "用户ID", required = true)
public String updateUser(@PathVariable("id") int id) {
return "id:" + id;
}
/**
* 查询用户
*/
@ApiOperation(value = "获取用户信息", notes = "获取所有用户信息")
@GetMapping("/list")
public String listUser() {
return "userList";
}
}
启动成功后，看到如下界面：
注解说明：
- @Api注解可以用来标记当前Controller的功能
- @ApiOperation注解用来标记一个方法的作用
- @ApiImplicitParam注解用来描述一个参数，可以配置参数的中文含义，也可以给参数设置默认值，这样在接口测试的时候可以避免手动输入
- 如果有多个参数，则需要使用多个@ApiImplicitParam注解来描述，多个@ApiImplicitParam注解需要放在一个@ApiImplicitParams注解中
