Presto Oracle 插件编写教程

Presto 是一个分布式的 SQL 查询引擎，非常适合用于 OLAP 场景。官方也许因为版权原因没有提供 oracle 的插件，oracle 在实际场景中还是使用的非常多的，有必要介绍些插件开发的流程。如果读者只是部署，不做开发，可以 clone 我托管在 GitHub 的Presto 来进行编译、部署。

搭建开发环境

关于如何搭建开发环境，presto 的 github 首页已经给出教程，这里不再赘述。但是要注意presto 在 windows 平台下会编译失败，而且对源码开发之前必须要先编译 presto。这里推荐使用 IntelliJIDEA 作为开发的 IDE， 如果你已经将 presto 导入到 IDE 中，并且成功运行“PrestoServer”，那么你已经成功一半了，其实在 github 上面有人已经托管了presto-oracle这个插件，但是这个插件只能满足简单的查询，无法通过 presto 向 oracle 中插入数据。而且它这个不是集成到 presto 的源码中的，无法对插件进行调试。

新建 module

官方已经编写了 MySQL 插件，我们可以按照这个模板来开发。我们在 Presto 的根目录下新建 module，该 module 的 pom 信息如下：

<?xml version="1.0"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>com.facebook.presto</groupId>
        <artifactId>presto-root</artifactId>
        <version>0.157.2-SNAPSHOT</version>
    </parent>

    <artifactId>presto-oracle</artifactId>
    <description>Presto - Oracle Connector</description>
    <packaging>presto-plugin</packaging>

    <properties>
        <!--check license-->
        <air.main.basedir>${project.parent.basedir}</air.main.basedir>
    </properties>

    <dependencies>
        <dependency>
            <groupId>com.facebook.presto</groupId>
            <artifactId>presto-base-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>io.airlift</groupId>
            <artifactId>configuration</artifactId>
        </dependency>

        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
        </dependency>

        <dependency>
            <groupId>com.google.inject</groupId>
            <artifactId>guice</artifactId>
        </dependency>

        <dependency>
            <groupId>javax.validation</groupId>
            <artifactId>validation-api</artifactId>
        </dependency>

        <dependency>
            <groupId>com.oracle</groupId>
            <artifactId>ojdbc6</artifactId>
        </dependency>

        <dependency>
            <groupId>javax.inject</groupId>
            <artifactId>javax.inject</artifactId>
        </dependency>

        <!-- Presto SPI -->
        <dependency>
            <groupId>com.facebook.presto</groupId>
            <artifactId>presto-spi</artifactId>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>io.airlift</groupId>
            <artifactId>slice</artifactId>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>io.airlift</groupId>
            <artifactId>units</artifactId>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <scope>provided</scope>
        </dependency>

        <!-- for testing -->
        <dependency>
            <groupId>org.testng</groupId>
            <artifactId>testng</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>io.airlift</groupId>
            <artifactId>testing</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>io.airlift</groupId>
            <artifactId>json</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.facebook.presto</groupId>
            <artifactId>presto-main</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.facebook.presto</groupId>
            <artifactId>presto-tpch</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>io.airlift.tpch</groupId>
            <artifactId>tpch</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.facebook.presto</groupId>
            <artifactId>presto-tests</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>io.airlift</groupId>
            <artifactId>testing-mysql-server</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>

        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-dependency-plugin</artifactId>
                <version>2.10</version>
                <configuration>
                    <!--disable check dependency-->
                    <skip>true</skip>
                    <failOnWarning>${air.check.fail-dependency}</failOnWarning>
                    <ignoreNonCompile>true</ignoreNonCompile>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-checkstyle-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>validate</phase>
                        <goals>
                            <goal>check</goal>
                        </goals>
                        <configuration>
                            <!--disable check code style-->
                            <skip>true</skip>
                        </configuration>
                    </execution>
                </executions>

            </plugin>

        </plugins>
    </build>

</project>

这里需要说明下的是 Maven 的公共库查找不到 Oracle JDBC 的依赖，所以需要用户自行下载 jar 包并安装到本地 Maven 库中。另外 Presto 有很严格的代码规范以及依赖检查，如果代码或者依赖不通过检查是无法编译成功的。而且公共 Maven 库中无法找到 Oracle JDBC 的依赖，所以依赖检查肯定不能通过。所以我在 pom 文件中禁用了代码规范检查插件，还有依赖检查插件。

1. 禁用依赖检查

<plugin>
              <groupId>org.apache.maven.plugins</groupId>
              <artifactId>maven-dependency-plugin</artifactId>
              <version>2.10</version>
              <configuration>
                  <!--disable check dependency-->
                  <skip>true</skip>
                  <failOnWarning>${air.check.fail-dependency}</failOnWarning>
                  <ignoreNonCompile>true</ignoreNonCompile>
              </configuration>
          </plugin>

2. 禁用代码规范检查

<plugin>
              <groupId>org.apache.maven.plugins</groupId>
              <artifactId>maven-checkstyle-plugin</artifactId>
              <executions>
                  <execution>
                      <phase>validate</phase>
                      <goals>
                          <goal>check</goal>
                      </goals>
                      <configuration>
                          <!--disable check code style-->
                          <skip>true</skip>
                      </configuration>
                  </execution>
              </executions>
          </plugin>

3. 在 presto-root 下添加 ojdbc 的依赖信息

<dependency>
              <groupId>com.oracle</groupId>
              <artifactId>ojdbc6</artifactId>
              <version>11.2.0.4.0-atlassian-hosted</version>
          </dependency>

集成 module 到 Presto

因为我们是基于源码开发的，为了将 presto-oracle 集成到 Presto 中进行测试以及打包发布还需如下配置：

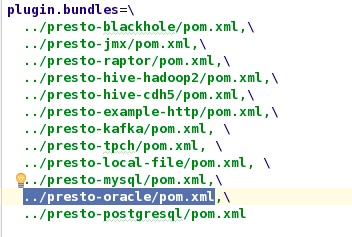

1.修改config.properties 配置文件

config.properties 文件在“presto/presto-main/etc”路径下，在plugin.bundles 下添加“../presto-oracle/pom.xml”。

只有添加了 presto-oracle 的 pom 信息 presto 在 IDE 中调试时再回加载 presto-oracle 插件，否则无效，上述配置只是用于开发环境，正式环境下无需配置。

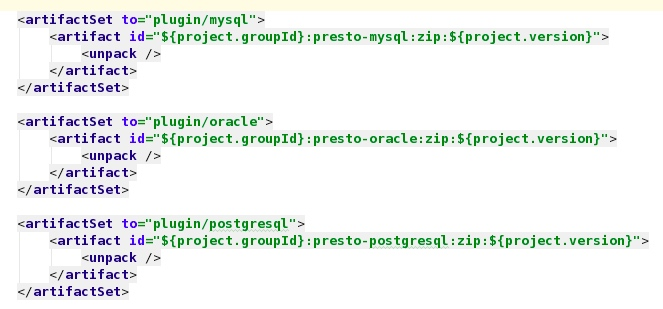

2. 修改 presto.xml 配置文件 presto.xml 文件在“presto/presto-server/src/main/provisio”路径下，添加如下配置信息：

<artifactSet to="plugin/oracle">
      <artifact id="${project.groupId}:presto-oracle:zip:${project.version}">
          <unpack />
      </artifact>
  </artifactSet>

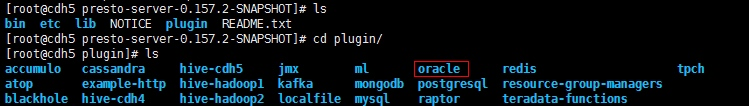

上述配置的作用是在 presto 编译时可以将我们的 presto-oracle 插件添加到 plugin 目录下。

编写代码

插件的代码就四个类，一点都不复杂，但是需要说明的是这些代码必须包含 license 信息，因为 presto 配置了证书的检查插件，如果代码中不包含license 编译时会报错。这个不像代码检查那么麻烦，代码检查有一点点不规范就会报错，这个证书检查只要在自己新建的类中添加 license 就即可通过。

1.OraclePlugin.java

/*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
*     http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.facebook.presto.plugin.oracle;

import com.facebook.presto.plugin.jdbc.JdbcPlugin;

public class OraclePlugin
      extends JdbcPlugin
{
  public OraclePlugin()
  {
      super("oracle", new OracleClientModule());
  }
}

上面构造函数中传入的”oracle” 应该是用于后面 catalog 中 name 的配置项，这个猜测没有验证，先这样配置。

2.OracleConfig.java

/*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
*     http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.facebook.presto.plugin.oracle;

import io.airlift.configuration.Config;

public class OracleConfig {
  private String user;
  private String password;
  private String url;

  public String getUser() {
      return user;
  }

  @Config("oracle.user")
  public OracleConfig setUser(String user) {
      this.user = user;
      return this;
  }

  public String getPassword() {
      return password;
  }

  @Config("oracle.password")
  public OracleConfig setPassword(String password) {
      this.password = password;
      return this;
  }

  public String getUrl() {
      return url;
  }

  @Config("oracle.password")
  public OracleConfig setUrl(String url) {
      this.url = url;
      return this;
  }
}

上述代码中的注解千万不要省略掉，否则 presto 加载 catalog 时无法查找到这些属性。

3.OracleClientModule.java

/*
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */
package com.facebook.presto.plugin.oracle;

import com.facebook.presto.plugin.jdbc.BaseJdbcConfig;
import com.facebook.presto.plugin.jdbc.JdbcClient;
import com.google.inject.Binder;
import com.google.inject.Module;
import com.google.inject.Scopes;

import static io.airlift.configuration.ConfigBinder.configBinder;

public class OracleClientModule
        implements Module
{
    @Override
    public void configure(Binder binder)
    {
        binder.bind(JdbcClient.class).to(OracleClient.class).in(Scopes.SINGLETON);
        configBinder(binder).bindConfig(BaseJdbcConfig.class);
        configBinder(binder).bindConfig(OracleConfig.class);
    }
}

4.OracleClient.java

/*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
*     http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.facebook.presto.plugin.oracle;

import com.facebook.presto.plugin.jdbc.*;
import com.facebook.presto.spi.*;
import com.facebook.presto.spi.type.Type;
import com.google.common.base.Joiner;
import com.google.common.base.Throwables;
import com.google.common.collect.ImmutableList;
import com.google.common.collect.ImmutableSet;
import oracle.jdbc.OracleDriver;

import javax.annotation.Nullable;
import javax.inject.Inject;

import java.sql.Connection;
import java.sql.DatabaseMetaData;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;
import java.util.Set;
import java.util.UUID;

import static com.facebook.presto.plugin.jdbc.JdbcErrorCode.JDBC_ERROR;
import static com.facebook.presto.spi.StandardErrorCode.NOT_FOUND;
import static com.facebook.presto.spi.StandardErrorCode.NOT_SUPPORTED;
import static com.google.common.collect.Iterables.getOnlyElement;
import static com.google.common.collect.Maps.fromProperties;
import static java.util.Locale.ENGLISH;

public class OracleClient
      extends BaseJdbcClient
{
  @Inject
  public OracleClient(JdbcConnectorId connectorId, BaseJdbcConfig config, OracleConfig oracleConfig)
          throws SQLException
  {
      super(connectorId, config, "", new OracleDriver());
  }

  @Override
  public Set<String> getSchemaNames() {
      try (Connection connection = driver.connect(connectionUrl,
              connectionProperties);
           ResultSet resultSet = connection.getMetaData().getSchemas()) {
          ImmutableSet.Builder<String> schemaNames = ImmutableSet.builder();
          while (resultSet.next()) {
              String schemaName = resultSet.getString(1).toLowerCase();
              schemaNames.add(schemaName);
          }
          return schemaNames.build();
      } catch (SQLException e) {
          throw Throwables.propagate(e);
      }
  }

  @Override
  protected ResultSet getTables(Connection connection, String schemaName, String tableName) throws SQLException {
      return connection.getMetaData().getTables(null, schemaName, tableName,
              new String[] { "TABLE", "SYNONYM" });
  }

  @Nullable
  @Override
  public JdbcTableHandle getTableHandle(SchemaTableName schemaTableName) {
      try (Connection connection = driver.connect(connectionUrl,
              connectionProperties)) {
          DatabaseMetaData metadata = connection.getMetaData();
          String jdbcSchemaName = schemaTableName.getSchemaName();
          String jdbcTableName = schemaTableName.getTableName();
          if (metadata.storesUpperCaseIdentifiers()) {
              jdbcSchemaName = jdbcSchemaName.toUpperCase();
              jdbcTableName = jdbcTableName.toUpperCase();
          }
          try (ResultSet resultSet = getTables(connection, jdbcSchemaName,
                  jdbcTableName)) {
              List<JdbcTableHandle> tableHandles = new ArrayList<>();
              while (resultSet.next()) {
                  tableHandles.add(new JdbcTableHandle(connectorId,
                          schemaTableName, resultSet.getString("TABLE_CAT"),
                          resultSet.getString("TABLE_SCHEM"), resultSet
                          .getString("TABLE_NAME")));
              }
              if (tableHandles.isEmpty()) {
                  return null;
              }
              if (tableHandles.size() > 1) {
                  throw new PrestoException(NOT_SUPPORTED,
                          "Multiple tables matched: " + schemaTableName);
              }
              return getOnlyElement(tableHandles);
          }
      } catch (SQLException e) {
          throw Throwables.propagate(e);
      }
  }

  @Override
  public List<JdbcColumnHandle> getColumns(JdbcTableHandle tableHandle) {
      try (Connection connection = driver.connect(connectionUrl,
              connectionProperties)) {

          ( (oracle.jdbc.driver.OracleConnection)connection ).setIncludeSynonyms(true);
          DatabaseMetaData metadata = connection.getMetaData();
          String schemaName = tableHandle.getSchemaName().toUpperCase();
          String tableName = tableHandle.getTableName().toUpperCase();
          try (ResultSet resultSet = metadata.getColumns(null, schemaName,
                  tableName, null)) {
              List<JdbcColumnHandle> columns = new ArrayList<>();
              boolean found = false;
              while (resultSet.next()) {
                  found = true;
                  Type columnType = toPrestoType(resultSet
                          .getInt("DATA_TYPE"), resultSet.getInt("COLUMN_SIZE"));
                  if (columnType != null) {
                      String columnName = resultSet.getString("COLUMN_NAME");
                      columns.add(new JdbcColumnHandle(connectorId,
                              columnName, columnType));
                  }
              }
              if (!found) {
                  throw new TableNotFoundException(
                          tableHandle.getSchemaTableName());
              }
              if (columns.isEmpty()) {
                  throw new PrestoException(NOT_SUPPORTED,
                          "Table has no supported column types: "
                                  + tableHandle.getSchemaTableName());
              }
              return ImmutableList.copyOf(columns);
          }
      } catch (SQLException e) {
          throw Throwables.propagate(e);
      }
  }

  @Override
  public List<SchemaTableName> getTableNames(@Nullable String schema) {
      try (Connection connection = driver.connect(connectionUrl,
              connectionProperties)) {
          DatabaseMetaData metadata = connection.getMetaData();
          if (metadata.storesUpperCaseIdentifiers() && (schema != null)) {
              schema = schema.toUpperCase();
          }
          try (ResultSet resultSet = getTables(connection, schema, null)) {
              ImmutableList.Builder<SchemaTableName> list = ImmutableList
                      .builder();
              while (resultSet.next()) {
                  list.add(getSchemaTableName(resultSet));
              }
              return list.build();
          }
      } catch (SQLException e) {
          throw Throwables.propagate(e);
      }
  }

  @Override
  protected SchemaTableName getSchemaTableName(ResultSet resultSet) throws SQLException {
      String tableSchema = resultSet.getString("TABLE_SCHEM");
      String tableName = resultSet.getString("TABLE_NAME");
      if (tableSchema != null) {
          tableSchema = tableSchema.toLowerCase();
      }
      if (tableName != null) {
          tableName = tableName.toLowerCase();
      }
      return new SchemaTableName(tableSchema, tableName);
  }

  @Override
  public void commitCreateTable(JdbcOutputTableHandle handle) {
      StringBuilder sql = new StringBuilder()
              .append("ALTER TABLE ")
              .append(quoted(handle.getCatalogName(), handle.getSchemaName(), handle.getTemporaryTableName()))
              .append(" RENAME TO ")
              //new table name needn't to be with catalog and schema
              .append(handle.getTableName());

      try (Connection connection = getConnection(handle)) {
          execute(connection, sql.toString());
      }
      catch (SQLException e) {
          throw new PrestoException(JDBC_ERROR, e);
      }
  }

}

上述代码中覆写了很多方法，主要是不同的数据库规则不一样，需要我们一一适配。之前提到过 github 中已经有人托管了presto-oracle 的插件，但是这个插件没有适配好。例如我又覆写了commitCreateTable 这个方法，主要是因为 oracle 中修改表名时新表名不需要再添加 schema ，否则会报错。

5.BaseJdbcClient.java

“BaseJdbcClient”是“OracleClient”的基类，它里面有一个方法涉及到创建临时表的方法，oracle 中表名有长度限制（30以内），所以我对表名进行了字符串的截取操作。

private JdbcOutputTableHandle beginWriteTable(ConnectorTableMetadata tableMetadata)
 {
     SchemaTableName schemaTableName = tableMetadata.getTable();
     String schema = schemaTableName.getSchemaName();
     String table = schemaTableName.getTableName();

     if (!getSchemaNames().contains(schema)) {
         throw new PrestoException(NOT_FOUND, "Schema not found: " + schema);
     }

     try (Connection connection = driver.connect(connectionUrl, connectionProperties)) {
         boolean uppercase = connection.getMetaData().storesUpperCaseIdentifiers();
         if (uppercase) {
             schema = schema.toUpperCase(ENGLISH);
             table = table.toUpperCase(ENGLISH);
         }
         String catalog = connection.getCatalog();

         String temporaryName = "tmp_presto_" + UUID.randomUUID().toString().replace("-", "");
         temporaryName = temporaryName.substring(0, 29);
         StringBuilder sql = new StringBuilder()
                 .append("CREATE TABLE ")
                 .append(quoted(catalog, schema, temporaryName))
                 .append(" (");
         ImmutableList.Builder<String> columnNames = ImmutableList.builder();
         ImmutableList.Builder<Type> columnTypes = ImmutableList.builder();
         ImmutableList.Builder<String> columnList = ImmutableList.builder();
         for (ColumnMetadata column : tableMetadata.getColumns()) {
             String columnName = column.getName();
             if (uppercase) {
                 columnName = columnName.toUpperCase(ENGLISH);
             }
             columnNames.add(columnName);
             columnTypes.add(column.getType());
             columnList.add(new StringBuilder()
                     .append(quoted(columnName))
                     .append(" ")
                     .append(toSqlType(column.getType()))
                     .toString());
         }
         Joiner.on(", ").appendTo(sql, columnList.build());
         sql.append(")");

         execute(connection, sql.toString());

         return new JdbcOutputTableHandle(
                 connectorId,
                 catalog,
                 schema,
                 table,
                 columnNames.build(),
                 columnTypes.build(),
                 temporaryName,
                 connectionUrl,
                 fromProperties(connectionProperties));
     }
     catch (SQLException e) {
         throw new PrestoException(JDBC_ERROR, e);
     }
 }

编译打包

如果上述操作无误的话，重新编译 presto。编译成功之后会有 tar.gz 和 rpm 两种安装包。

1.tar.gz 文件

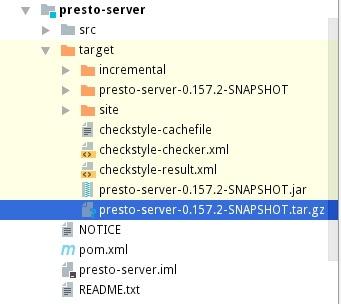

tar.gz 文件路径：presto/presto-srver/target

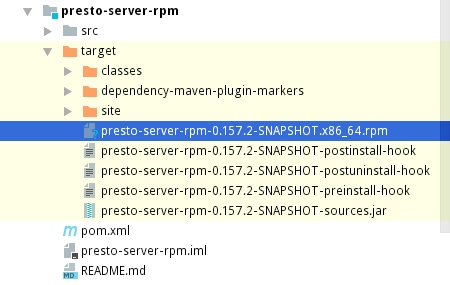

2.rpm 文件路径：presto/presto-server-rpm/target

如果上述操作出现问题，可以参照我托管的 Presto，也可以留言与我共同探讨 。
