论objc_msgSend消息机制之消息查找

 LGStudent *student = [[LGStudent alloc] init];
 [student sayHello];

2.2 对象调用父类的方法

 [student sayNB];

2.3 对象调用父类的父类方法

[student sayMaster];

2.4 如果调用的方法并没有在本类、父类以及NSObject里实现就会报经典的错误

 [student performSelector:@selector(sayLove)];

[LGStudent saySomething]: unrecognized selector sent to instance 0x100583970

类方法：

2.5 本类有 - 返回自己

[LGStudent sayObjc];

2.6 本类没有 - 父类里有

[LGStudent sayHappay];

2.7 本类没有 - 父类没有 - 根类NSObject里有

[LGStudent sayEasy];

2.8 本类没有 - 父类没有 - 根类NSObject里也没有

[LGStudent performSelector:@selector(sayLove)];

reason: '+[LGStudent sayLove]: unrecognized selector sent to class 0x100002290'

这里是我们平时开发过程中调用方法几乎遇到的所有场景,那么这个方法调用以及查找到底是怎么样的呢？那么我们只有在源码里一探究竟呐.

三.慢速查找流程之进阶

在这里类方法和实例方法就放在一块来分析了:

首先对象方法 :

 LGStudent *student = [[LGStudent alloc] init];
 [student sayHello];

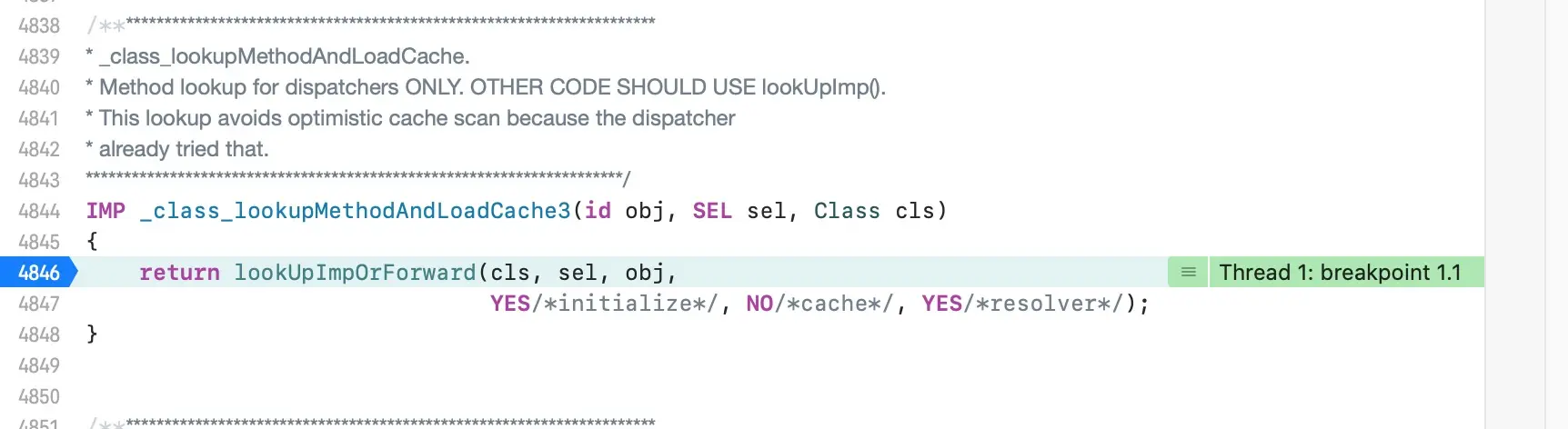

1.首先进入

其中cls是LGStudent,sel是sayHello

 我们看lookUpImpOrForward的实现：

/***********************************************************************
* lookUpImpOrForward.
* The standard IMP lookup.
* initialize==NO tries to avoid +initialize (but sometimes fails)
* cache==NO skips optimistic unlocked lookup (but uses cache elsewhere)
* Most callers should use initialize==YES and cache==YES.
* inst is an instance of cls or a subclass thereof, or nil if none is known.
*   If cls is an un-initialized metaclass then a non-nil inst is faster.
* May return _objc_msgForward_impcache. IMPs destined for external use
*   must be converted to _objc_msgForward or _objc_msgForward_stret.
*   If you don't want forwarding at all, use lookUpImpOrNil() instead.
**********************************************************************/
IMP lookUpImpOrForward(Class cls, SEL sel, id inst,
                       bool initialize, bool cache, bool resolver)
{
    IMP imp = nil;
    bool triedResolver = NO;

    runtimeLock.assertUnlocked();

    // Optimistic cache lookup
    if (cache) {
        imp = cache_getImp(cls, sel);
        if (imp) return imp;
    }

    // runtimeLock is held during isRealized and isInitialized checking
    // to prevent races against concurrent realization.

    // runtimeLock is held during method search to make
    // method-lookup + cache-fill atomic with respect to method addition.
    // Otherwise, a category could be added but ignored indefinitely because
    // the cache was re-filled with the old value after the cache flush on
    // behalf of the category.

    runtimeLock.lock();
    checkIsKnownClass(cls);

    if (!cls->isRealized()) {
        realizeClass(cls);
    }

    if (initialize  &&  !cls->isInitialized()) {
        runtimeLock.unlock();
        _class_initialize (_class_getNonMetaClass(cls, inst));
        runtimeLock.lock();
        // If sel == initialize, _class_initialize will send +initialize and
        // then the messenger will send +initialize again after this
        // procedure finishes. Of course, if this is not being called
        // from the messenger then it won't happen. 2778172
    }


 retry:
    runtimeLock.assertLocked();

    // Try this class's cache.

    imp = cache_getImp(cls, sel);
    if (imp) goto done;

    // Try this class's method lists.
    {
        Method meth = getMethodNoSuper_nolock(cls, sel);
        if (meth) {
            log_and_fill_cache(cls, meth->imp, sel, inst, cls);
            imp = meth->imp;
            goto done;
        }
    }

    // Try superclass caches and method lists.
    {
        unsigned attempts = unreasonableClassCount();
        for (Class curClass = cls->superclass;
             curClass != nil;
             curClass = curClass->superclass)
        {
            // Halt if there is a cycle in the superclass chain.
            if (--attempts == 0) {
                _objc_fatal("Memory corruption in class list.");
            }

            // Superclass cache.
            imp = cache_getImp(curClass, sel);
            if (imp) {
                if (imp != (IMP)_objc_msgForward_impcache) {
                    // Found the method in a superclass. Cache it in this class.
                    log_and_fill_cache(cls, imp, sel, inst, curClass);
                    goto done;
                }
                else {
                    // Found a forward:: entry in a superclass.
                    // Stop searching, but don't cache yet; call method
                    // resolver for this class first.
                    break;
                }
            }

            // Superclass method list.
            Method meth = getMethodNoSuper_nolock(curClass, sel);
            if (meth) {
                log_and_fill_cache(cls, meth->imp, sel, inst, curClass);
                imp = meth->imp;
                goto done;
            }
        }
    }

    // No implementation found. Try method resolver once.

    if (resolver  &&  !triedResolver) {
        runtimeLock.unlock();
        _class_resolveMethod(cls, sel, inst);
        runtimeLock.lock();
        // Don't cache the result; we don't hold the lock so it may have
        // changed already. Re-do the search from scratch instead.
        triedResolver = YES;
        goto retry;
    }

    // No implementation found, and method resolver didn't help.
    // Use forwarding.

    imp = (IMP)_objc_msgForward_impcache;
    cache_fill(cls, sel, imp, inst);

 done:
    runtimeLock.unlock();

    return imp;
}

我们来一步一步来分析.

    IMP imp = nil;
    bool triedResolver = NO;
    runtimeLock.assertUnlocked();
    // Optimistic cache lookup
    if (cache) {
        imp = cache_getImp(cls, sel);
        if (imp) return imp;
    }

在上面cache传NO,其实也好理解正因为类里cache没有所以才会走到慢速方法查找流程.

if (!cls->isRealized()) {
        realizeClass(cls);
    }

    if (initialize  &&  !cls->isInitialized()) {
        runtimeLock.unlock();
        _class_initialize (_class_getNonMetaClass(cls, inst));
        runtimeLock.lock();
        // If sel == initialize, _class_initialize will send +initialize and
        // then the messenger will send +initialize again after this
        // procedure finishes. Of course, if this is not being called
        // from the messenger then it won't happen. 2778172
    }

在这里会进行一系列的判断,判断是不是类的initialize的方法.显然不是所以继续往下走：

 retry:
    runtimeLock.assertLocked();

    // Try this class's cache.

    imp = cache_getImp(cls, sel);
    if (imp) goto done;

    // Try this class's method lists.
    {
        Method meth = getMethodNoSuper_nolock(cls, sel);
        if (meth) {
            log_and_fill_cache(cls, meth->imp, sel, inst, cls);
            imp = meth->imp;
            goto done;
        }
    }

在这里会调用getMethodNoSuper_nolock(cls, sel)来找方法.我们来看下

static method_t *
getMethodNoSuper_nolock(Class cls, SEL sel)
{
    runtimeLock.assertLocked();


    assert(cls->isRealized());
    // fixme nil cls?
    // fixme nil sel?


    for (auto mlists = cls->data()->methods.beginLists(),
              end = cls->data()->methods.endLists();
         mlists != end;
         ++mlists)
    {
        method_t *m = search_method_list(*mlists, sel);
        if (m) return m;
    }


    return nil;
}

看到这我们就一目了然了,首先class里data()找到methods的beginLists和class里data()找到methods的endLists，然后遍历search_method_list 用sel当做索引去寻找,如果找到方法就返回.并且log_and_fill_cache 存一份存进缓存里 .

 log_and_fill_cache(cls, meth->imp, sel, inst, cls);
 imp = meth->imp;
 goto done;

再看下search_method_list的代码:

static method_t *search_method_list(const method_list_t *mlist, SEL sel)
{
    int methodListIsFixedUp = mlist->isFixedUp();
    int methodListHasExpectedSize = mlist->entsize() == sizeof(method_t);

    if (__builtin_expect(methodListIsFixedUp && methodListHasExpectedSize, 1)) {
        return findMethodInSortedMethodList(sel, mlist);
    } else {
        // Linear search of unsorted method list
        for (auto& meth : *mlist) {
            if (meth.name == sel) return &meth;
        }
    }

#if DEBUG
    // sanity-check negative results
    if (mlist->isFixedUp()) {
        for (auto& meth : *mlist) {
            if (meth.name == sel) {
                _objc_fatal("linear search worked when binary search did not");
            }
        }
    }
#endif

    return nil;
}

上面的这种情况即是最理想的情况即方法存在本类里(对象调用自己的方法)

但是要是本类里没有自己要实现的方法呢.那么代码要继续往下去执行:

{
        unsigned attempts = unreasonableClassCount();
        for (Class curClass = cls->superclass;
             curClass != nil;
             curClass = curClass->superclass)
        {
            // Halt if there is a cycle in the superclass chain.
            if (--attempts == 0) {
                _objc_fatal("Memory corruption in class list.");
            }

            // Superclass cache.
            imp = cache_getImp(curClass, sel);
            if (imp) {
                if (imp != (IMP)_objc_msgForward_impcache) {
                    // Found the method in a superclass. Cache it in this class.
                    log_and_fill_cache(cls, imp, sel, inst, curClass);
                    goto done;
                }
                else {
                    // Found a forward:: entry in a superclass.
                    // Stop searching, but don't cache yet; call method
                    // resolver for this class first.
                    break;
                }
            }

            // Superclass method list.
            Method meth = getMethodNoSuper_nolock(curClass, sel);
            if (meth) {
                log_and_fill_cache(cls, meth->imp, sel, inst, curClass);
                imp = meth->imp;
                goto done;
            }
        }
    }

首先

 for (Class curClass = cls->superclass;
             curClass != nil;
             curClass = curClass->superclass)

找到当前类的superclass，在superclass里 调用 getMethodNoSuper_nolock(curClass, sel);

在superclass的方法列表里去search，找到的话 log_and_fill_cache(cls, meth->imp, sel, inst, curClass); 进行存储方便下次寻找，如果superclass没找到继续往上找，即最后是NSObject.这就解释了2.2 对象调用父类的方法、2.3 对象调用父类的父类方法.

但是接着上面所说继续下去找到NSObject在它的方法列表里依然没有找到相应的imp会怎么样？

if (resolver  &&  !triedResolver) {
        runtimeLock.unlock();
        _class_resolveMethod(cls, sel, inst);
        runtimeLock.lock();
        // Don't cache the result; we don't hold the lock so it may have
        // changed already. Re-do the search from scratch instead.
        triedResolver = YES;
        goto retry;
    }

其实这里的流程就到下篇要讲的内容消息转发机制.我们可以稍微的看一下：

void _class_resolveMethod(Class cls, SEL sel, id inst)
{
    if (! cls->isMetaClass()) {
        // try [cls resolveInstanceMethod:sel]

        _class_resolveInstanceMethod(cls, sel, inst);
    }
    else {
        // try [nonMetaClass resolveClassMethod:sel]
        // and [cls resolveInstanceMethod:sel]
        _class_resolveClassMethod(cls, sel, inst);
        if (!lookUpImpOrNil(cls, sel, inst,
                            NO/*initialize*/, YES/*cache*/, NO/*resolver*/))
        {
            _class_resolveInstanceMethod(cls, sel, inst);
        }
    }
}

在这里有个判断cls->isMetaClass()，判断当前的类是不是元类，因为现在是对象方法不是元类，所以为false，会进入 _class_resolveInstanceMethod(cls, sel, inst);

static void _class_resolveInstanceMethod(Class cls, SEL sel, id inst)
{
    if (! lookUpImpOrNil(cls->ISA(), SEL_resolveInstanceMethod, cls,
                         NO/*initialize*/, YES/*cache*/, NO/*resolver*/))
    {
        // Resolver not implemented.
        return;
    }


    BOOL (*msg)(Class, SEL, SEL) = (typeof(msg))objc_msgSend;
    bool resolved = msg(cls, SEL_resolveInstanceMethod, sel);


    // Cache the result (good or bad) so the resolver doesn't fire next time.
    // +resolveInstanceMethod adds to self a.k.a. cls
    IMP imp = lookUpImpOrNil(cls, sel, inst,
                             NO/*initialize*/, YES/*cache*/, NO/*resolver*/);


    if (resolved  &&  PrintResolving) {
        if (imp) {
            _objc_inform("RESOLVE: method %c[%s %s] "
                         "dynamically resolved to %p",
                         cls->isMetaClass() ? '+' : '-',
                         cls->nameForLogging(), sel_getName(sel), imp);
        }
        else {
            // Method resolver didn't add anything?
            _objc_inform("RESOLVE: +[%s resolveInstanceMethod:%s] returned YES"
                         ", but no new implementation of %c[%s %s] was found",
                         cls->nameForLogging(), sel_getName(sel),
                         cls->isMetaClass() ? '+' : '-',
                         cls->nameForLogging(), sel_getName(sel));
        }
    }
}




/***********************************************************************
* _class_resolveMethod
* Call +resolveClassMethod or +resolveInstanceMethod.
* Returns nothing; any result would be potentially out-of-date already.
* Does not check if the method already exists.
**********************************************************************/
void _class_resolveMethod(Class cls, SEL sel, id inst)
{
    if (! cls->isMetaClass()) {
        // try [cls resolveInstanceMethod:sel]


        _class_resolveInstanceMethod(cls, sel, inst);
    }
    else {
        // try [nonMetaClass resolveClassMethod:sel]
        // and [cls resolveInstanceMethod:sel]
        _class_resolveClassMethod(cls, sel, inst);
        if (!lookUpImpOrNil(cls, sel, inst,
                            NO/*initialize*/, YES/*cache*/, NO/*resolver*/))
        {
            _class_resolveInstanceMethod(cls, sel, inst);
        }
    }
}


走到下面：

imp = (IMP)_objc_msgForward_impcache;

 cache_fill(cls, sel, imp, inst);

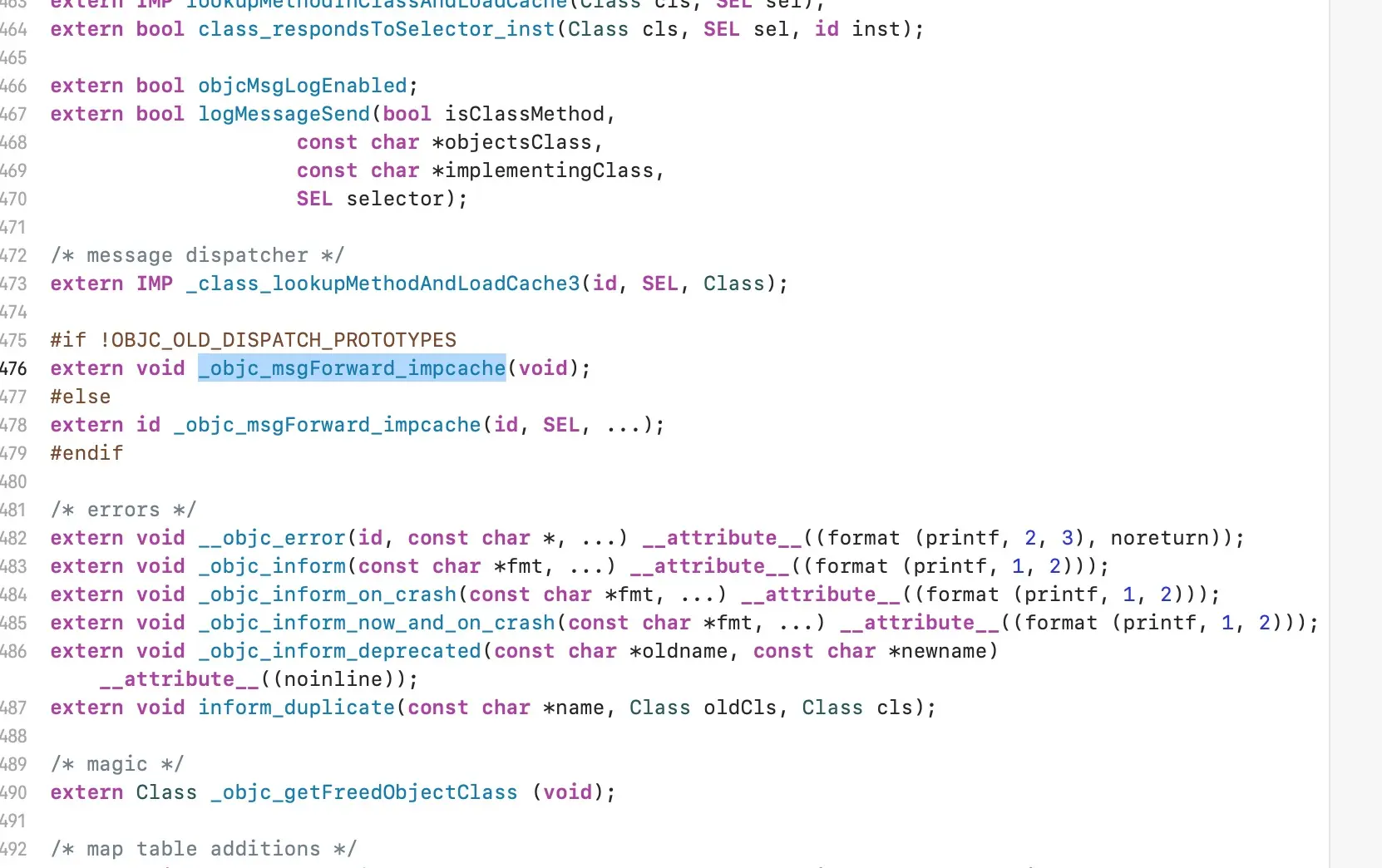

发现看不到，工程全局搜索_objc_msgForward_impcache，发现很多地方都引用它了，但是基本都是调用，而真正实现的地方在汇编里

看到进入_objc_msgForward_impcache 会执行 b __objc_msgForward (b代表跳转)

看下__objc_msgForward

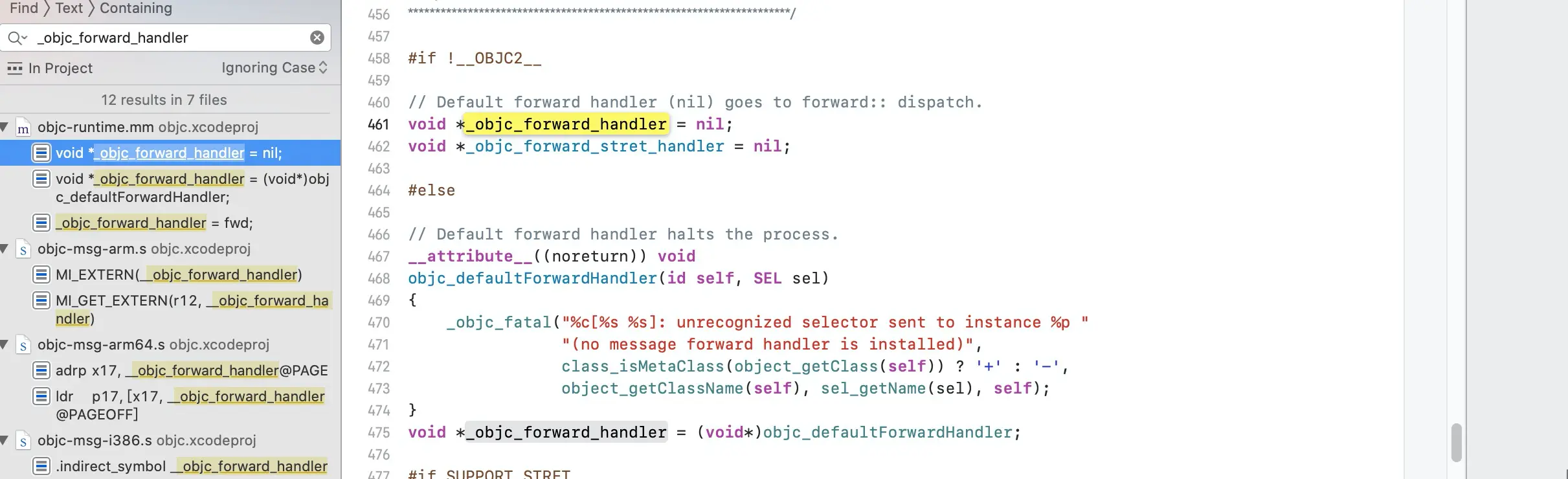

看到个__objc_forward_handler 我们来搜索__objc_forward_handler，发现搜不出什么信息，在这要说下一般汇编中带两个下划线__ 底层一般是以C函数来实现的，我们一般去掉一个下划线搜索

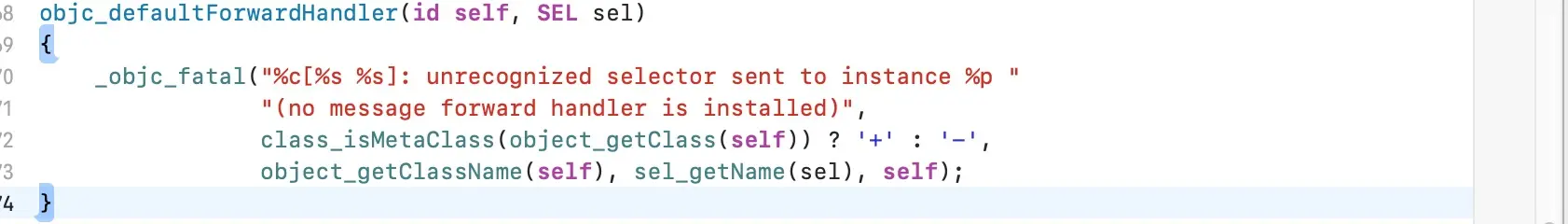

发现 void *_objc_forward_handler = (void*)objc_defaultForwardHandler;而  (void*)objc_defaultForwardHandler;的实现就在上面

看在这里是不是很熟悉了,看到了熟悉的系统报错 unrecognized selector sent to instance

 所以方法找不到时，控制台报的 unrecognized selector sent to instance 0x100583970，

就是在这里调用的.

所有的一切一切是不是都得到了验证.

类方法的查找其实和上面是一样的，只不过class传的就是metaClass 元类了.不过在这里有个容易出错的地方：

假如 LGStudent 、LGPerson 没有实现 +(void)sayNice 的类方法，而NSObject里实现了 - (void)sayNice,

请问 用LGStudent 和 LGPerson 调用 结果如何？

[LGStudent sayNice]; [LGPerson sayNice]; 其实感兴趣的盆友可以试一下，其实结果都不会崩溃，因为就如同我探索前所说的类方法存在元类里，想当于元类调用sayNice 的实例方法，如果元类找不到就会找元类的父类最后到根元类 最后到NSObject.下面把那对象之间的关系以及ISA的走位图给大家.

四 .总结
