Dom应用(四)——滑动轮播图&淡入淡出轮播图

EtAiors
732 阅读4分钟

滑动轮播图(width)

  1. 需要设置container的width为图片width，必须有溢出隐藏
  2. picture的width要求是5*imgwidth，左浮动
  3. 之后会再js里面对picture的left做修改，所以这里必须给picture进行定位
  4. 因为要达到滑动轮播图的效果这里使用transition: left 1s ease
  5. 另外需要注意定时器,打开页面时自动开启定时器，划入container定时器停止，划出启动

代码如下

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
    <style>
        *{
            margin: 0px;
            padding: 0px;
        }
        body{
            height: 3000px;
        }
        #container{
            height: 280px;
            width: 520px;
            margin: 100px auto;
            overflow: hidden;
            position: relative;

        }
        #container>#picture{
            height:100%;
            width: 2600px;
            position: absolute;
            top: 0;
            left: 0;
            /* 因为后面要改变left的值所以这里做好标明一下left top 的位置 */
            transition: left 1s ease;
        }
        #picture>img{
            height: 100%;
            width: 520px;
            float: left;

        }
        #container>#pointer{
            height: 20px;
            width:150px;
            position: absolute;
            bottom: 30px;
            right: 30px;
        }
        #pointer>li{
            background: rgba(0, 0, 0, 0.5);
            color: white;
            height: 100%;
            width:20px;
            list-style: none;
            float: left;
            text-align: center;
            line-height: 20px;
            position: relative;
            margin-right:5px;



        }
        #pointer> .show{
            background: red;
        }
        #right,
        #left{
            display: inline-block;
            height: 50px;
            width: 50px;
            background: rgba(0, 0, 0, 0.5);
            position: absolute;
            top: 50%;

        }
        #right{
           right: 0px;
        }
        #left{
            left: 0px;
        }
        #left::after{
            content: "";
            display:inline-block;
            height: 20px;
            width: 20px;
            border-left:5px solid white ;
            border-bottom:5px solid white ;
            transform: rotate(45deg);
            position: absolute;
            right:6px;
            top: 12px;
        }
        #right::after{
            content: "";
            display: inline-block;
            height: 20px;
            width: 20px;
            border-right:5px solid white;
            border-bottom: 5px solid white;
            transform: rotate(-45deg);
            position: absolute;
            top: 12px;
            left: 6px;
        }
    </style>
</head>
<body>
    <div id="container">
        <div id="picture">
            <img src="https://img.alicdn.com/tfs/TB1wQANr7Y2gK0jSZFgXXc5OFXa-1130-500.jpg_q100.jpg_.webp" alt="" >
            <img src="https://img.alicdn.com/simba/img/TB1nOBCnSf2gK0jSZFPSutsopXa.jpg" alt="">
            <img src="https://img.alicdn.com/tfs/TB1vbTkna61gK0jSZFlXXXDKFXa-520-280.jpg_q90_.webp" alt="">
            <img src="https://img.alicdn.com/simba/img/TB1CHOYn4D1gK0jSZFsSuvldVXa.jpg" alt="">
            <img src="https://img.alicdn.com/tfs/TB170_fnoD1gK0jSZFGXXbd3FXa-520-280.jpg_q90_.webp" alt="">
        </div>
        <ul id="pointer">
            <li class="show">1</li>
            <li>2</li>
            <li>3</li>
            <li>4</li>
            <li>5</li>
        </ul>
        <sapn id = "left"></sapn>
        <sapn id = "right"></sapn>
    </div>
    <script>
    var oPicture = document.getElementById("picture");
    var ali = document.getElementsByTagName("li");
    var oRight = document.getElementById("right");
    var oLeft = document.getElementById("left");
    var oCon = document.getElementById("container")
    var tag = 0;
    var Timer;


    var tag;
    // 给 li 绑定点击事件
    for(var i = 0;i<ali.length;i++){
        ali[i].index = i;
        ali[i].onclick = function(){
            tag = this.index;
            changeslider();
        }
    }
    function changeslider(){
        for(var j = 0;j<ali.length;j++){
            ali[j].className = ""
        }
        ali[tag].className = "show";
        oPicture.style.left = -520 * tag + "px";
    }
    oRight.onclick = function(){
        tag ++;
        tag = tag > ali.length ? 0:tag
        changeslider();
    }

    oLeft.onclick = function(){
        tag --;
        tag = tag < 0? ali.length - 1:tag;
        changeslider();
    }
    goTimer();

    oCon.onmouseover = function(){
        clearInterval(Timer);
    }

    oCon.onmouseout = function(){
        goTimer();
    }

    function goTimer(){
        Timer = setInterval(function(){
            oRight.onclick();
        },1500)
    }

    </script>



</body>
</html>

淡入淡出轮播图（opacity）

  1. 注意这里不是用加大picture的width的方法，这里采用的是透明度的方法
  2. 在img中 position：opacity 1s ease
  3. 在js中，对img的opacit进行修改，opacity= 1(block),opacity = 0(none)

代码如下

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>Document</title>
    <style>
    *{
      margin: 0;
      padding: 0;
    }

    #container{
      width: 750px;
      height: 291px;
      margin: 100px auto 0;
      position: relative;
    }
    #swiper{
      width: 100%;
      height: 100%;
      position: relative;
    }
    #swiper>img{
      width: 750px;
      position: absolute;
      top: 0;
      left: 0;
      transition: opacity 1s ease;
      /* 利用透明度opacity完成变换 */
    }

    #pointer{
      width: 300px;
      margin-left: -150px;
      position: absolute;
      left: 50%;
      bottom: 30px;
    }
    #pointer>li{
      float: left;
      width: 50px;
      height: 10px;
      margin: 0 5px;
      list-style: none;
      text-align: center;
      background: rgba(0,0,0,0.6);
      cursor: pointer;
      /* 划入变成小手 */
    }
    #pointer>.select{
      background: #fff;
    }
    </style>
</head>
<body>
    <div id="container">
        <div id="swiper">
          <img src="./img/1.jpg" alt="">
          <img src="./img/2.jpg" alt="">
          <img src="./img/3.jpg" alt="">
          <img src="./img/4.jpg" alt="">
          <img src="./img/5.jpg" alt="">
        </div>

        <ul id="pointer">
          <li class="select"></li>
          <li></li>
          <li></li>
          <li></li>
          <li></li>
        </ul>

    </div>
    <script>
    var ali = document.getElementsByTagName("li");
    var aImg = document.getElementsByTagName("img");
    var oCon = document.getElementById("container");
    var tag = 0;
    var Timer

    for( var i = 0;i <ali.length;i++){
        ali[i].index = i;
        ali[i].onmouseover = function(){
            tag = this.index;
            changeslider();

        }
    }

    function changeslider(){
        for(var j = 0;j<ali.length;j++){
            ali[j].className ='';
            aImg[j].style.opacity = 0;

        }
        ali[tag].className = "select";
        aImg[tag].style.opacity = 1;

    }

    function goTimer(){
        Timer = setInterval(function(){
           tag ++;
           if(tag > ali.length){
               tag = 0
           }
           changeslider();

        },1000)
    }
    goTimer();
    // 进入页面自动启动定时器

    //划入container终止定时器
   oCon.onmouseover = function(){
    clearInterval(Timer)
   }
   //划出container区域开启定时器
   oCon.onmouseout = function(){
       goTimer();
   }



    </script>


</body>
</html>

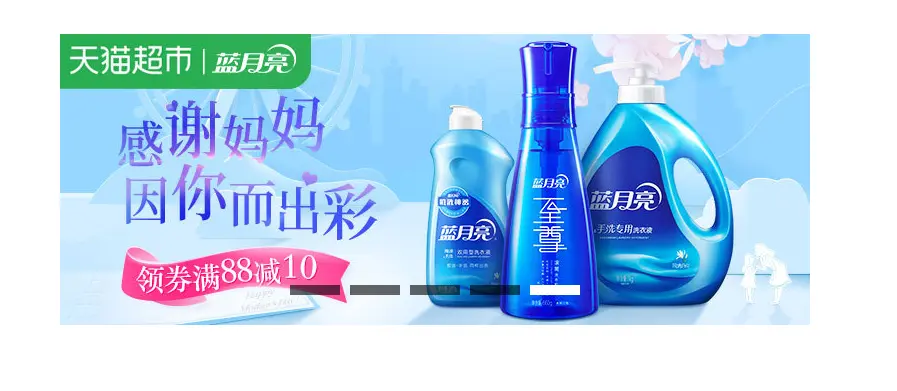

效果如下
