Spring AOP

AOP 术语

项	描述
切面(Aspect)	一个关注点的模块化，这个关注点可能会横切多个对象
连接点(Joinpoint)	程序执行过程中的某一行为
切入点(Pointcut)	匹配连接点的断言，在AOP 中通知和一个切入点表达式关联
通知(Advice)	“切面”对于某个“连接点”所产生的动作。其中，一个“切面”可以包含多个“Advice”
目标对象(Target Object)	被一个或者多个切面所通知的对象，被代理对象或者被通知对象
AOP 代理(AOP Proxy)	有两种代理方式，JDK 动态代理和CGLib 代理

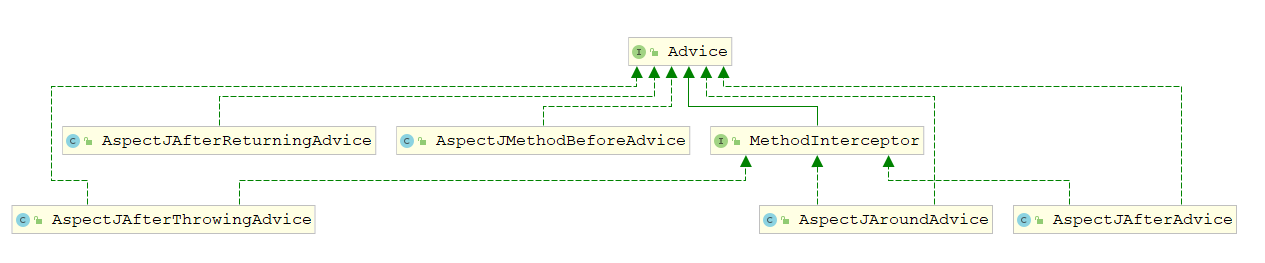

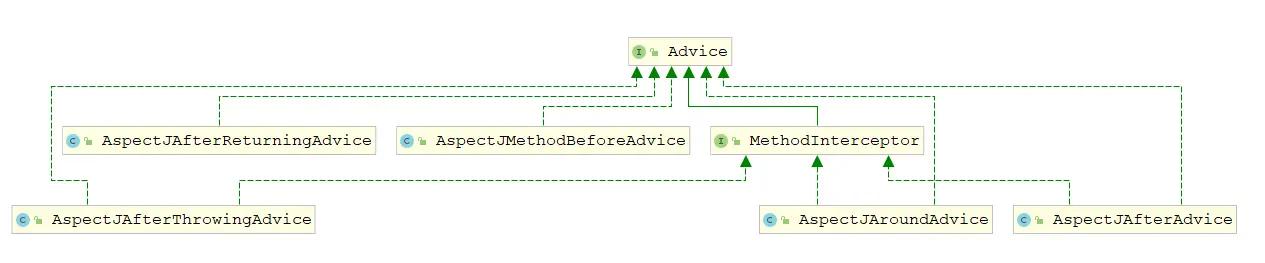

通知的类型

通知	描述
前置通知	方法执行之前，执行通知。
后置通知	方法执行之后，不管正常返回还是异常退出，执行通知。
返回后通知	方法执行之后，只有正常完成后执行通知。（抛出异常不考虑）
抛出异常后通知	方法执行抛出异常退出时，执行通知
环绕通知	在方法调用之前和之后，执行通知。

Spring 解析扩展元素解析BeanDefinition时，会解析到AOP相关的标签，AopNamespaceHandler基于Spring实现命名空间处理的扩展

public class AopNamespaceHandler extends NamespaceHandlerSupport {
    @Override
    public void init() {
        // In 2.0 XSD as well as in 2.1 XSD.
        // aop:config 用来配置pointcut, advisor, aspect
        registerBeanDefinitionParser("config", new ConfigBeanDefinitionParser());
        // aop:aspectj-autoproxy  开启对于@AspectJ注解风格AOP的支持
        registerBeanDefinitionParser("aspectj-autoproxy", new AspectJAutoProxyBeanDefinitionParser());
        // aop:scoped-proxy 通过代理引用该对象,对已注入的依赖bean的scope进行正确的代理
        // 单例bean引用一个beanB(prototype bean);通过依赖注入之后调用的beanB是同一个不变的,不符合预想
        // 添加<aop:scoped-proxy/> 之后每次调用beanB会生成新的，符合定义的scope
        registerBeanDefinitionDecorator("scoped-proxy", new ScopedProxyBeanDefinitionDecorator());

        // Only in 2.0 XSD: moved to context namespace as of 2.1
        registerBeanDefinitionParser("spring-configured", new SpringConfiguredBeanDefinitionParser());
    }
}

aop:config

class ConfigBeanDefinitionParser implements BeanDefinitionParser {

    public BeanDefinition parse(Element element, ParserContext parserContext) {
        CompositeComponentDefinition compositeDef =
        		new CompositeComponentDefinition(element.getTagName(), parserContext.extractSource(element));
        parserContext.pushContainingComponent(compositeDef);
         // 注册自动代理模式BeanDefinition,其作用于<aop:config>
        configureAutoProxyCreator(parserContext, element);

        List<Element> childElts = DomUtils.getChildElements(element);
        // 解析其aop:config子节点下的aop:pointcut/aop:advisor/aop:aspect
        for (Element elt: childElts) {
            String localName = parserContext.getDelegate().getLocalName(elt);
            if (POINTCUT.equals(localName)) {
                parsePointcut(elt, parserContext);
            }
            else if (ADVISOR.equals(localName)) {
                parseAdvisor(elt, parserContext);
            }
            else if (ASPECT.equals(localName)) {
                parseAspect(elt, parserContext);
            }
        }

        parserContext.popAndRegisterContainingComponent();
        return null;
    }
}

AspectJAwareAdvisorAutoProxyCreator

配置注册自动代理创建器的BeanDefinition

configureAutoProxyCreator最终会调用AopConfigUtils#registerAspectJAnnotationAutoProxyCreatorIfNecessary方法

public abstract class AopConfigUtils {
    public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry,@Nullable Object source) {
    	// 选择AnnotationAwareAspectJAutoProxyCreator.class作为beanClass
    	return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
    }
    private static BeanDefinition registerOrEscalateApcAsRequired(Class<?> cls, BeanDefinitionRegistry registry,@Nullable Object source) {

        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");

        if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
            BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
            if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
                int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
                int requiredPriority = findPriorityForClass(cls);
                if (currentPriority < requiredPriority) {
                    apcDefinition.setBeanClassName(cls.getName());
                }
            }
            return null;
        }
        // 创建 BeanDefinition beanClass = AnnotationAwareAspectJAutoProxyCreator.class
        RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
        beanDefinition.setSource(source);
        beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
        beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        // 向容器注册 beanDefinition
        registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
        return beanDefinition;
    }
}

解析配置

proxy-target-class & expose-proxy

proxy-target-class代表是否为被代理这生成CGLIB子类，默认false，采用JDK动态代理

expose-proxy代表是否将代理bean暴露给用户，如果暴露，可以通过Spring AopContext类获得，默认不暴露

configureAutoProxyCreator方法会调用AopNamespaceUtils#useClassProxyingIfNecessary方法，

public abstract class AopNamespaceUtils {
    private static void useClassProxyingIfNecessary(BeanDefinitionRegistry registry, Element sourceElement) {
        if (sourceElement != null) {
            // proxy-target-class
            boolean proxyTargetClass = Boolean.valueOf(sourceElement.getAttribute(PROXY_TARGET_CLASS_ATTRIBUTE));
            if (proxyTargetClass) {
                // 向自动代理的BeanDefinition添加proxy-target-class属性
                AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
            }
            // expose-proxy
            boolean exposeProxy = Boolean.valueOf(sourceElement.getAttribute(EXPOSE_PROXY_ATTRIBUTE));
            if (exposeProxy) {
                // 向自动代理的BeanDefinition添加expose-proxy属性
                AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
            }
        }
    }
}

aop:pointcut

解析切入点，切入点无法单独工作，必须配合advisor或者aspect完成AOP功能

private AbstractBeanDefinition parsePointcut(Element pointcutElement, ParserContext parserContext) {
    // 切入点的唯一标识 <aop:pointcut> id是必须设置的
    String id = pointcutElement.getAttribute(ID);
    // 获取切入点的表达式
    String expression = pointcutElement.getAttribute(EXPRESSION);
    AbstractBeanDefinition pointcutDefinition = null;
    try {
        // 切入点入栈
        this.parseState.push(new PointcutEntry(id));
        // 创建切入点BeanDefinition  beanClass为AspectJExpressionPointcut.class;并且设置属性expression
        // 之后Spring可以通过BeanDefinition 创建 bean
        pointcutDefinition = createPointcutDefinition(expression);
        pointcutDefinition.setSource(parserContext.extractSource(pointcutElement));

        String pointcutBeanName = id;
        if (StringUtils.hasText(pointcutBeanName)) {
            // 注册BeanDefinition
            parserContext.getRegistry().registerBeanDefinition(pointcutBeanName, pointcutDefinition);
        } else {
            // id 为空,注册BeanDefinition并生成一个name
            pointcutBeanName = parserContext.getReaderContext()
                .registerWithGeneratedName(pointcutDefinition);
        }

        parserContext.registerComponent(
            new PointcutComponentDefinition(pointcutBeanName, pointcutDefinition, expression));
    } finally {
        // 创建完成后出栈
        this.parseState.pop();
    }
    return pointcutDefinition;
}
// 创建BeanDefinition
protected AbstractBeanDefinition createPointcutDefinition(String expression) {
    // AspectJExpressionPointcut
    RootBeanDefinition beanDefinition = new RootBeanDefinition(AspectJExpressionPointcut.class);
    beanDefinition.setScope(BeanDefinition.SCOPE_PROTOTYPE);
    // synthetic 设置为true,表示由程序生成
    beanDefinition.setSynthetic(true);
    beanDefinition.getPropertyValues().add(EXPRESSION, expression);
    return beanDefinition;
}

aop:advisor

配置

<!--advisor advice-ref必填-->
<aop:advisor id="" order="" advice-ref="aopAdvice" pointcut="" pointcut-ref="" />
<!--advice 必须试下 advice 接口-->
<bean id = "testAdvisor" class="com.qinfengsa.spring.aop.TestAdvice"/>

解析通知器

private void parseAdvisor(Element advisorElement, ParserContext parserContext) {
    // 创建通知器BeanDefinition,beanClass为`DefaultBeanFactoryPointcutAdvisor`
    // advice-ref属性必须定义,通过advice接口实现通知机制，MethodBeforeAdvice, AfterReturningAdvice
    // 可以自定义pointcut切入点表达式,也可以配合<aop:pointcut>使用,定义pointcut-ref
    AbstractBeanDefinition advisorDef = createAdvisorBeanDefinition(advisorElement, parserContext);
    // 获取id属性
    String id = advisorElement.getAttribute(ID);

    try {
        // 入栈
        this.parseState.push(new AdvisorEntry(id));
        String advisorBeanName = id;
        if (StringUtils.hasText(advisorBeanName)) {
            // 注册BeanDefinition
            parserContext.getRegistry().registerBeanDefinition(advisorBeanName, advisorDef);
        } else {
            // id 为空,注册BeanDefinition并生成一个name
            advisorBeanName = parserContext.getReaderContext().registerWithGeneratedName(advisorDef);
        }
 		// 解析point-cut属性并赋值到DefaultBeanFactoryPointcutAdvisor#pointcut内部属性
        Object pointcut = parsePointcutProperty(advisorElement, parserContext);
        // 表示定义了point-cut属性,表达式转成BeanDefinition
        if (pointcut instanceof BeanDefinition) {
            advisorDef.getPropertyValues().add(POINTCUT, pointcut);
            parserContext.registerComponent(
                new AdvisorComponentDefinition(advisorBeanName, advisorDef, (BeanDefinition) pointcut));
        }
        // 表示定义了pointcut-ref属性
        else if (pointcut instanceof String) {
            // 添加Bean引用
            advisorDef.getPropertyValues().add(POINTCUT, new RuntimeBeanReference((String) pointcut));
            parserContext.registerComponent(
                new AdvisorComponentDefinition(advisorBeanName, advisorDef));
        }
    } finally {
        // 出栈
        this.parseState.pop();
    }
}
// 创建通知器BeanDefinition
private AbstractBeanDefinition createAdvisorBeanDefinition(Element advisorElement,
                                                           ParserContext parserContext) {
    // DefaultBeanFactoryPointcutAdvisor
    RootBeanDefinition advisorDefinition = new RootBeanDefinition(DefaultBeanFactoryPointcutAdvisor.class);
    advisorDefinition.setSource(parserContext.extractSource(advisorElement));

    String adviceRef = advisorElement.getAttribute(ADVICE_REF);
    if (!StringUtils.hasText(adviceRef)) {
        parserContext.getReaderContext().error(
            "'advice-ref' attribute contains empty value.", advisorElement, this.parseState.snapshot());
    } else {
        // 记录 advice-ref 定义的bean
        advisorDefinition.getPropertyValues().add(
            ADVICE_BEAN_NAME, new RuntimeBeanNameReference(adviceRef));
    }

    if (advisorElement.hasAttribute(ORDER_PROPERTY)) {
        advisorDefinition.getPropertyValues().add(
            ORDER_PROPERTY, advisorElement.getAttribute(ORDER_PROPERTY));
    }

    return advisorDefinition;
}

解析pointcut

解析通知器的pointcut和pointcut-ref属性

// 切入点表达式
private static final String POINTCUT = "pointcut";
// 切入点aop:pointcut的id,通过id引用对应的切入点
private static final String POINTCUT_REF = "pointcut-ref";

// 开始解析
private Object parsePointcutProperty(Element element, ParserContext parserContext) {
    // 如果两个都定义,错误;所以pointcut和pointcut-ref只能使用一个
    if (element.hasAttribute(POINTCUT) && element.hasAttribute(POINTCUT_REF)) {
        parserContext.getReaderContext().error(
            "Cannot define both 'pointcut' and 'pointcut-ref' on <advisor> tag.",
            element, this.parseState.snapshot());
        return null;
    }
    // 解析pointcut切入点表达式
    else if (element.hasAttribute(POINTCUT)) {
        // Create a pointcut for the anonymous pc and register it.
        String expression = element.getAttribute(POINTCUT);
        // 根据切入点表达式创建一个切入点BeanDefinition
        AbstractBeanDefinition pointcutDefinition = createPointcutDefinition(expression);
        pointcutDefinition.setSource(parserContext.extractSource(element));
        return pointcutDefinition;
    }
    // 解析切入点aop:pointcut
    else if (element.hasAttribute(POINTCUT_REF)) {
        // 直接返回切入点的id
        String pointcutRef = element.getAttribute(POINTCUT_REF);
        if (!StringUtils.hasText(pointcutRef)) {
            parserContext.getReaderContext().error(
                "'pointcut-ref' attribute contains empty value.", element, this.parseState.snapshot());
            return null;
        }
        return pointcutRef;
    }
    else {
        parserContext.getReaderContext().error(
            "Must define one of 'pointcut' or 'pointcut-ref' on <advisor> tag.",
            element, this.parseState.snapshot());
        return null;
    }
}

aop:aspect

配置

<!-- aop -->
<aop:config >
    <!--配置一个切入点,相当于@Pointcut -->
    <aop:pointcut expression="execution(* com.qinfengsa.spring.service..*(..))" id="simplePointcut"/>

    <aop:aspect id="myAspect" ref="xmlAspect">
        <!--配置通知,相当于@Before、@After、@AfterReturn、@Around、@AfterThrowing -->
        <aop:before pointcut-ref="simplePointcut" method="before"/>
        <aop:after pointcut-ref="simplePointcut" method="after"/>
        <aop:after-returning pointcut-ref="simplePointcut" method="afterReturn"/>
        <aop:after-throwing pointcut-ref="simplePointcut" method="afterThrow" throwing="ex"/>
        <aop:around pointcut-ref="simplePointcut"  method="around"/>
    </aop:aspect>
</aop:config>

解析切面

private void parseAspect(Element aspectElement, ParserContext parserContext) {
    // <aop:aspect> id属性
    String aspectId = aspectElement.getAttribute(ID);
    // <aop:aspect> ref属性,必须配置,代表切面执行的bean
    String aspectName = aspectElement.getAttribute(REF);

    try {
        // 入栈
        this.parseState.push(new AspectEntry(aspectId, aspectName));
        List<BeanDefinition> beanDefinitions = new ArrayList<>();
        List<BeanReference> beanReferences = new ArrayList<>();
		// 解析<aop:aspect>下的declare-parents节点
        List<Element> declareParents = DomUtils.getChildElementsByTagName(aspectElement, DECLARE_PARENTS);
        for (int i = METHOD_INDEX; i < declareParents.size(); i++) {
            Element declareParentsElement = declareParents.get(i);
            // 创建切入点BeanDefinition  beanClass为DeclareParentsAdvisor.class;
            beanDefinitions.add(parseDeclareParents(declareParentsElement, parserContext));
        }

        // We have to parse "advice" and all the advice kinds in one loop, to get the
        // ordering semantics right.
        // 解析剩下的advice节点
        NodeList nodeList = aspectElement.getChildNodes();
        boolean adviceFoundAlready = false;
        for (int i = 0; i < nodeList.getLength(); i++) {
            Node node = nodeList.item(i);
            // 是否为advice:before;advice:after;advice:after-returning;advice:after-throwing;advice:around节点
            if (isAdviceNode(node, parserContext)) {
                if (!adviceFoundAlready) {
                    adviceFoundAlready = true;
                     // 校验aop:aspect必须有ref属性，否则无法对切入点 进行功能增强
                    if (!StringUtils.hasText(aspectName)) {
                        parserContext.getReaderContext().error(
                        "<aspect> tag needs aspect bean reference via 'ref' attribute when declaring advices"
                            ,aspectElement, this.parseState.snapshot());
                        return;
                    }
                    beanReferences.add(new RuntimeBeanReference(aspectName));
                }
                // 解析advice节点并注册到bean工厂中
                AbstractBeanDefinition advisorDefinition = parseAdvice(aspectName, i, aspectElement,
                    (Element) node, parserContext, beanDefinitions, beanReferences);
                beanDefinitions.add(advisorDefinition);
            }
        }

        AspectComponentDefinition aspectComponentDefinition = createAspectComponentDefinition(
            aspectElement, aspectId, beanDefinitions, beanReferences, parserContext);
        parserContext.pushContainingComponent(aspectComponentDefinition);
 		// 解析aop:point-cut节点并注册到bean工厂
        List<Element> pointcuts = DomUtils.getChildElementsByTagName(aspectElement, POINTCUT);
        for (Element pointcutElement : pointcuts) {
            parsePointcut(pointcutElement, parserContext);
        }

        parserContext.popAndRegisterContainingComponent();
    } finally {
        // 出栈
        this.parseState.pop();
    }
}

aop:declare-parents

DeclareParents可以用来给被代理对象添加一些方法

<aop:config>
    <aop:aspect>
        <aop:declare-parents implement-interface="com.qinfengsa.spring.service.HelloWorldService"
            types-matching="com.qinfengsa.spring.service.HelloServiceImpl+"
            default-impl="com.qinfengsa.spring.service.HelloWorldServiceImpl"
        />
    </aop:aspect>
</aop:config>

解析

private AbstractBeanDefinition parseDeclareParents(Element declareParentsElement, ParserContext parserContext) {
    // beanClass = DeclareParentsAdvisor.class
    BeanDefinitionBuilder builder = BeanDefinitionBuilder.rootBeanDefinition(DeclareParentsAdvisor.class);
    builder.addConstructorArgValue(declareParentsElement.getAttribute(IMPLEMENT_INTERFACE));
    builder.addConstructorArgValue(declareParentsElement.getAttribute(TYPE_PATTERN));
    // default-impl 和 delegate-ref
    String defaultImpl = declareParentsElement.getAttribute(DEFAULT_IMPL);
    String delegateRef = declareParentsElement.getAttribute(DELEGATE_REF);
    // default-impl 和 delegate-ref 只能二选一
    if (StringUtils.hasText(defaultImpl) && !StringUtils.hasText(delegateRef)) {
        builder.addConstructorArgValue(defaultImpl);
    } else if (StringUtils.hasText(delegateRef) && !StringUtils.hasText(defaultImpl)) {
        builder.addConstructorArgReference(delegateRef);
    } else {
        parserContext.getReaderContext().error(
            "Exactly one of the " + DEFAULT_IMPL + " or " + DELEGATE_REF + " attributes must be specified",
            declareParentsElement, this.parseState.snapshot());
    }
    // 通过builder 创建 BeanDefinition
    AbstractBeanDefinition definition = builder.getBeanDefinition();
    definition.setSource(parserContext.extractSource(declareParentsElement));
    parserContext.getReaderContext().registerWithGeneratedName(definition);
    return definition;
}

其他Advice

advice:before，advice:after等advice节点

rivate AbstractBeanDefinition parseAdvice(
    String aspectName, int order, Element aspectElement, Element adviceElement, ParserContext parserContext,
    List<BeanDefinition> beanDefinitions, List<BeanReference> beanReferences) {

    try {
        this.parseState.push(new AdviceEntry(parserContext.getDelegate().getLocalName(adviceElement)));
        // 创建method工厂BeanDefinition,beanClass为MethodLocatingFactoryBean.class;
        RootBeanDefinition methodDefinition = new RootBeanDefinition(MethodLocatingFactoryBean.class);
        methodDefinition.getPropertyValues().add("targetBeanName", aspectName);
        methodDefinition.getPropertyValues().add("methodName", adviceElement.getAttribute("method"));
        // synthetic 设置为true,表示由程序生成
        methodDefinition.setSynthetic(true);

        // 创建实例工厂BeanDefinition,beanClass为 SimpleBeanFactoryAwareAspectInstanceFactory.class;
        RootBeanDefinition aspectFactoryDef = new RootBeanDefinition(SimpleBeanFactoryAwareAspectInstanceFactory.class);
        aspectFactoryDef.getPropertyValues().add("aspectBeanName", aspectName);
        // synthetic 设置为true,表示由程序生成
        aspectFactoryDef.setSynthetic(true);

        // register the pointcut
        AbstractBeanDefinition adviceDef = createAdviceDefinition(adviceElement, parserContext, aspectName, order, methodDefinition, aspectFactoryDef, beanDefinitions, beanReferences);

        // 为adviceDef 配置通知(前置,后置通知)
        RootBeanDefinition advisorDefinition = new RootBeanDefinition(AspectJPointcutAdvisor.class);
        advisorDefinition.setSource(parserContext.extractSource(adviceElement));
        advisorDefinition.getConstructorArgumentValues().addGenericArgumentValue(adviceDef);
        if (aspectElement.hasAttribute(ORDER_PROPERTY)) {
            advisorDefinition.getPropertyValues().add(
                ORDER_PROPERTY, aspectElement.getAttribute(ORDER_PROPERTY));
        }

        // register the final advisor
        parserContext.getReaderContext().registerWithGeneratedName(advisorDefinition);

        return advisorDefinition;
    }
    finally {
        this.parseState.pop();
    }
}

创建通知器

private AbstractBeanDefinition createAdviceDefinition(
    Element adviceElement, ParserContext parserContext, String aspectName, int order,
    RootBeanDefinition methodDef, RootBeanDefinition aspectFactoryDef,
    List<BeanDefinition> beanDefinitions, List<BeanReference> beanReferences) {
	// 根据元素的类型(advice:before;advice:after;advice:after-returning;advice:after-throwing;advice:around)
    // 创建不同的BeanDefinition
    RootBeanDefinition adviceDefinition = new RootBeanDefinition(
        getAdviceClass(adviceElement, parserContext));
    adviceDefinition.setSource(parserContext.extractSource(adviceElement));

    adviceDefinition.getPropertyValues().add(ASPECT_NAME_PROPERTY, aspectName);
    adviceDefinition.getPropertyValues().add(DECLARATION_ORDER_PROPERTY, order);

    if (adviceElement.hasAttribute(RETURNING)) {
        adviceDefinition.getPropertyValues().add(RETURNING_PROPERTY, adviceElement.getAttribute(RETURNING));
    }
    if (adviceElement.hasAttribute(THROWING)) {
        adviceDefinition.getPropertyValues().add(THROWING_PROPERTY, adviceElement.getAttribute(THROWING));
    }
    if (adviceElement.hasAttribute(ARG_NAMES)) {
        adviceDefinition.getPropertyValues().add(ARG_NAMES_PROPERTY, adviceElement.getAttribute(ARG_NAMES));
    }

    ConstructorArgumentValues cav = adviceDefinition.getConstructorArgumentValues();
    cav.addIndexedArgumentValue(METHOD_INDEX, methodDef);

	// 解析point-cut和pointcut-ref属性并赋值到DefaultBeanFactoryPointcutAdvisor#pointcut内部属性
    // point-cut和pointcut-ref 二选一
    Object pointcut = parsePointcutProperty(adviceElement, parserContext);
    // 表示定义了point-cut属性,表达式转成BeanDefinition
    if (pointcut instanceof BeanDefinition) {
        cav.addIndexedArgumentValue(POINTCUT_INDEX, pointcut);
        beanDefinitions.add((BeanDefinition) pointcut);
    }
    // 表示定义了pointcut-ref属性
    else if (pointcut instanceof String) {
        // 添加Bean引用
        RuntimeBeanReference pointcutRef = new RuntimeBeanReference((String) pointcut);
        cav.addIndexedArgumentValue(POINTCUT_INDEX, pointcutRef);
        beanReferences.add(pointcutRef);
    }

    cav.addIndexedArgumentValue(ASPECT_INSTANCE_FACTORY_INDEX, aspectFactoryDef);

    return adviceDefinition;
}
// 根据元素的类型返回不同的Class,
private Class<?> getAdviceClass(Element adviceElement, ParserContext parserContext) {
    String elementName = parserContext.getDelegate().getLocalName(adviceElement);
    if (BEFORE.equals(elementName)) {
        return AspectJMethodBeforeAdvice.class;
    }
    else if (AFTER.equals(elementName)) {
        return AspectJAfterAdvice.class;
    }
    else if (AFTER_RETURNING_ELEMENT.equals(elementName)) {
        return AspectJAfterReturningAdvice.class;
    }
    else if (AFTER_THROWING_ELEMENT.equals(elementName)) {
        return AspectJAfterThrowingAdvice.class;
    }
    else if (AROUND.equals(elementName)) {
        return AspectJAroundAdvice.class;
    }
    else {
        throw new IllegalArgumentException("Unknown advice kind [" + elementName + "].");
    }
}

代理子类生成

解析配置阶段，容器中注入了自动代理模式创建器的BeanDefinition；类型为AnnotationAwareAspectJAutoProxyCreator

AnnotationAwareAspectJAutoProxyCreator实现了InstantiationAwareBeanPostProcessor和BeanPostProcessor两大接口，分别在实例化前后和初始化前后调用接口的方法

最终我们发现，AbstractAutoProxyCreator重写了postProcessBeforeInstantiation和postProcessAfterInitialization方法，对bean实例化前和初始化后做了处理

InstantiationAwareBeanPostProcessor

这里targetSource在Spring中是空的，只能通过自定义扩展实现

public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {
    @Override
    public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
        Object cacheKey = getCacheKey(beanClass, beanName);
        // 无需代理的场景，返回null则表示未对bean进行修改
        if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
            if (this.advisedBeans.containsKey(cacheKey)) {
                return null;
            }
            // 用于实现AOP的Spring基础类 Advice,Pointcut,Advisor,AopInfrastructureBean不需要代理
            // 跳过AspectJPointcutAdvisor类
            // 在解析过程中,advice:before，advice:after等advice节点会被解析为AspectJPointcutAdvisor
            if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
                this.advisedBeans.put(cacheKey, Boolean.FALSE);
                return null;
            }
        }

        // Create proxy here if we have a custom TargetSource.
        // Suppresses unnecessary default instantiation of the target bean:
        // The TargetSource will handle target instances in a custom fashion.
        // 自定义TargetSource,只能扩展
        TargetSource targetSource = getCustomTargetSource(beanClass, beanName);
        // 对于自定义的TargetSource,Spring会立即执行代理子类的创建
        if (targetSource != null) {
            if (StringUtils.hasLength(beanName)) {
                this.targetSourcedBeans.add(beanName);
            }
            // 获取匹配的拦截器通知数组,空方法 交给子类
            Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
            // 创建代理
            Object proxy = createProxy(beanClass, beanName, specificInterceptors, targetSource);
            this.proxyTypes.put(cacheKey, proxy.getClass());
            return proxy;
        }

        return null;
    }
    // 实例化后调用,没有重写
    @Override
    public boolean postProcessAfterInstantiation(Object bean, String beanName) {
        return true;
    }

    // customTargetSourceCreators是没有赋值的,总是返回null,需要自定义赋值
    protected TargetSource getCustomTargetSource(Class<?> beanClass, String beanName) {
        // We can't create fancy target sources for directly registered singletons.
        if (this.customTargetSourceCreators != null &&
        		this.beanFactory != null && this.beanFactory.containsBean(beanName)) {
            for (TargetSourceCreator tsc : this.customTargetSourceCreators) {
                TargetSource ts = tsc.getTargetSource(beanClass, beanName);
                if (ts != null) {
                    return ts;
                }
            }
        }

        // No custom TargetSource found.
        return null;
    }
}

创建代理

BeanPostProcessor

public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {
    // 初始化前调用,没有重写
    @Override
    public Object postProcessBeforeInitialization(Object bean, String beanName) {
    	return bean;
    }
    // 初始化后调用
    @Override
    public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {
        if (bean != null) {
            Object cacheKey = getCacheKey(bean.getClass(), beanName);
            // 判断是否已经提前暴露
            if (this.earlyProxyReferences.remove(cacheKey) != bean) {
                // 如果没有被代理过则代理
                return wrapIfNecessary(bean, beanName, cacheKey);
            }
        }
        return bean;
    }
}

public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {
	protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
        // targetSourcedBeans包含beanName，说明前面创建过
        if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
            return bean;
        }
        if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
            return bean;
        }
        if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
            this.advisedBeans.put(cacheKey, Boolean.FALSE);
            return bean;
        }

        // 获取这个bean 的advice通知器
        Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
        if (specificInterceptors != DO_NOT_PROXY) {
        	this.advisedBeans.put(cacheKey, Boolean.TRUE);
            // 创建代理对象
            Object proxy = createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
            this.proxyTypes.put(cacheKey, proxy.getClass());
            return proxy;
        }

        this.advisedBeans.put(cacheKey, Boolean.FALSE);
        return bean;
    }
    // 创建代理对象
    protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
    	@Nullable Object[] specificInterceptors, TargetSource targetSource) {

        if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
            AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
        }
        // 创建代理工厂,通过工厂生产代理对象
        ProxyFactory proxyFactory = new ProxyFactory();
        // 把配置copy过来
        proxyFactory.copyFrom(this);
        // 是否代理目标类,也就是对<aop:config>节点的proxy-target-class属性进行判断
        if (!proxyFactory.isProxyTargetClass()) {
            // 为true时表示通过CGLIB进行代理
            if (shouldProxyTargetClass(beanClass, beanName)) {
                proxyFactory.setProxyTargetClass(true);
            }
            // 为false时表示通过JDK进行代理，需要实现接口
            else {
                evaluateProxyInterfaces(beanClass, proxyFactory);
            }
        }
        // 创建通知数组
        Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
        proxyFactory.addAdvisors(advisors);
        proxyFactory.setTargetSource(targetSource);
        customizeProxyFactory(proxyFactory);

        proxyFactory.setFrozen(this.freezeProxy);
        if (advisorsPreFiltered()) {
            proxyFactory.setPreFiltered(true);
        }
        // 创建并返回代理对象 根据配置或由Spring自动决定使用JDK或CGLIB方式生成代理对象
        // 最终实现在DefaultAopProxyFactory类中
        return proxyFactory.getProxy(getProxyClassLoader());
    }
}

获取匹配的拦截器

public abstract class AbstractAdvisorAutoProxyCreator extends AbstractAutoProxyCreator {
    protected Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {
        List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
        if (advisors.isEmpty()) {
            return DO_NOT_PROXY;
        }
        return advisors.toArray();
    }

    protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
        // 获取全部拦截器
        List<Advisor> candidateAdvisors = findCandidateAdvisors();
        // 过滤
        List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
        extendAdvisors(eligibleAdvisors);
        if (!eligibleAdvisors.isEmpty()) {
            //排序
            eligibleAdvisors = sortAdvisors(eligibleAdvisors);
        }
        return eligibleAdvisors;
    }

}

获取所有拦截器

protected List<Advisor> findCandidateAdvisors() {
    Assert.state(this.advisorRetrievalHelper != null, "No BeanFactoryAdvisorRetrievalHelper available");
    return this.advisorRetrievalHelper.findAdvisorBeans();
}
// 子类AnnotationAwareAspectJAutoProxyCreator有重写findCandidateAdvisors方法
@Override
protected List<Advisor> findCandidateAdvisors() {
    // Add all the Spring advisors found according to superclass rules.
    List<Advisor> advisors = super.findCandidateAdvisors();
    // 添加AspectJ注解的Advisor拦截器
    if (this.aspectJAdvisorsBuilder != null) {
        advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
    }
    return advisors;
}
public class BeanFactoryAdvisorRetrievalHelper {
    // 缓存的AdvisorBean的名称数组
    private String[] cachedAdvisorBeanNames;

    public List<Advisor> findAdvisorBeans() {
        // Determine list of advisor bean names, if not cached already.
        String[] advisorNames = null;
        synchronized (this) {
            advisorNames = this.cachedAdvisorBeanNames;
            if (advisorNames == null) {
            	// 根据类型 Advisor.class获取bean容器及其父容器中所有试下Advisor接口的 bean的名称
                // 使用数组保存
            	advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Advisor.class, true, false);
            	this.cachedAdvisorBeanNames = advisorNames;
            }
        }
        if (advisorNames.length == 0) {
            return new LinkedList<>();
        }
    	// 创建Advisor 集合
    	List<Advisor> advisors = new LinkedList<>();
        // 遍历所有Advisor bean
        for (String name : advisorNames) {
        // isEligibleBean方法没有子类AspectJAwareAdvisorAutoProxyCreator被重写,返回true
            if (isEligibleBean(name)) {
                if (this.beanFactory.isCurrentlyInCreation(name)) {
                } else {
                    try {
                        // 通过getBean获取Advisor的实例,放入advisors集合
                        advisors.add(this.beanFactory.getBean(name, Advisor.class));
                    }
                    // ... catch (BeanCreationException ex)
                }
            }
        }
        return advisors;
    }
}

规则过滤

前面已经获取到所有的Advisor实例的集合，然后过滤获取符合规则的Advisor

protected List<Advisor> findAdvisorsThatCanApply( List<Advisor> candidateAdvisors,
    Class<?> beanClass, String beanName) {
    ProxyCreationContext.setCurrentProxiedBeanName(beanName);
    try {
        return AopUtils.findAdvisorsThatCanApply(candidateAdvisors, beanClass);
    }
    finally {
        ProxyCreationContext.setCurrentProxiedBeanName(null);
    }
}
public abstract class AopUtils {
    public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {
        if (candidateAdvisors.isEmpty()) {
            return candidateAdvisors;
        }
        List<Advisor> eligibleAdvisors = new LinkedList<>();
        // 循环处理IntroductionAdvisor类型的Advisor
        for (Advisor candidate : candidateAdvisors) {
            if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {
                eligibleAdvisors.add(candidate);
            }
        }
        boolean hasIntroductions = !eligibleAdvisors.isEmpty();
        // 循环处理非IntroductionAdvisor类型的Advisor
        for (Advisor candidate : candidateAdvisors) {
            if (candidate instanceof IntroductionAdvisor) {
                // already processed
                continue;
            }
            if (canApply(candidate, clazz, hasIntroductions)) {
                eligibleAdvisors.add(candidate);
            }
        }
        return eligibleAdvisors;
    }
}

是否符合规则

public abstract class AopUtils {

    // 判断 advisor 能否匹配targetClass, hasIntroductions = false
    public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {
        if (advisor instanceof IntroductionAdvisor) {
            // 匹配targetClass
            return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);
        } else if (advisor instanceof PointcutAdvisor) {
            PointcutAdvisor pca = (PointcutAdvisor) advisor;
            return canApply(pca.getPointcut(), targetClass, hasIntroductions);
        } else {
            // It doesn't have a pointcut so we assume it applies.
            return true;
        }
    }
    // 判断一个切点能否匹配targetClass,是否支持引入匹配
    public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
        Assert.notNull(pc, "Pointcut must not be null");
        // 匹配targetClass
        if (!pc.getClassFilter().matches(targetClass)) {
            return false;
        }
        // 匹配方法
        MethodMatcher methodMatcher = pc.getMethodMatcher();
        if (methodMatcher == MethodMatcher.TRUE) {
            // No need to iterate the methods if we're matching any method anyway...
            return true;
        }

        IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;
        if (methodMatcher instanceof IntroductionAwareMethodMatcher) {
            introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;
        }

        Set<Class<?>> classes = new LinkedHashSet<>(ClassUtils.getAllInterfacesForClassAsSet(targetClass));
        classes.add(targetClass);
        for (Class<?> clazz : classes) {
            // 通过反射获得所有的方法
            Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
            // 遍历所有方法，找到匹配的方法就返回
            for (Method method : methods) {
                if ((introductionAwareMethodMatcher != null && introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions)) || methodMatcher.matches(method, targetClass)) {
                    return true;
                }
            }
        }

        return false;
    }
}

创建代理

public class DefaultAopProxyFactory implements AopProxyFactory, Serializable {
    @Override
    public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
        // config aop参数
        if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
            Class<?> targetClass = config.getTargetClass();
            if (targetClass == null) {
        		throw new AopConfigException( );
            }
            // 目标Class是接口，或者是代理类 JDK动态代理
            if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
                return new JdkDynamicAopProxy(config);
            }
            return new ObjenesisCglibAopProxy(config);
        } else {
            return new JdkDynamicAopProxy(config);
        }
    }
}

JDK动态代理

final class JdkDynamicAopProxy implements AopProxy, InvocationHandler, Serializable {
    @Override
    public Object getProxy(@Nullable ClassLoader classLoader) {
        // 找到可以用来进行代理的接口
        Class<?>[] proxiedInterfaces = AopProxyUtils.completeProxiedInterfaces(this.advised, true);
        // 用来代理的接口中是否定义了equals或者是hashCode方法
        findDefinedEqualsAndHashCodeMethods(proxiedInterfaces);
        // JDK动态代理对象
        return Proxy.newProxyInstance(classLoader, proxiedInterfaces, this);
    }
}

方法调用

以JDK动态代理JdkDynamicAopProxy为例调用

final class JdkDynamicAopProxy implements AopProxy, InvocationHandler, Serializable {
    // 代理配置信息
    private final AdvisedSupport advised;

    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        MethodInvocation invocation;
        Object oldProxy = null;
        boolean setProxyContext = false;
        TargetSource targetSource = this.advised.targetSource;
        Object target = null;
        try {
            // eqauls()方法
            if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
                return equals(args[0]);
            }
            // hashCode()方法
            else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
                return hashCode();
            } else if (method.getDeclaringClass() == DecoratingProxy.class) {
                return AopProxyUtils.ultimateTargetClass(this.advised);
            }
            // Advised接口或者其父接口中定义的方法,直接反射调用,不应用通知
            else if (!this.advised.opaque && method.getDeclaringClass().isInterface() && method.getDeclaringClass().isAssignableFrom(Advised.class)) {
                return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
            }

            Object retVal;

            if (this.advised.exposeProxy) {
                oldProxy = AopContext.setCurrentProxy(proxy);
                setProxyContext = true;
            }
            // 获得目标对象的类
            target = targetSource.getTarget();
            Class<?> targetClass = (target != null ? target.getClass() : null);

            // 获取目标方法对应的拦截器链
            List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

            // 如果没有可以应用到此方法的通知(Interceptor)，此直接反射调用 method.invoke(target, args)
            if (chain.isEmpty()) {
                Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
                retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
            } else {
                // 拦截器链不为空，创建一个调用
                invocation = new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
                // 开始调用拦截器链和目标方法.
                retVal = invocation.proceed();
            }

            // Massage return value if necessary.
            Class<?> returnType = method.getReturnType();
            if (retVal != null && retVal == target && returnType != Object.class && returnType.isInstance(proxy) && !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
                retVal = proxy;
            }
            else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
                throw new AopInvocationException( );
            }
            return retVal;
        } finally {
            if (target != null && !targetSource.isStatic()) {
                // Must have come from TargetSource.
                targetSource.releaseTarget(target);
            }
            if (setProxyContext) {
                // Restore old proxy.
                AopContext.setCurrentProxy(oldProxy);
            }
        }
    }
}

获取拦截器链

拦截器链是怎么来的，在AbstractAutoProxyCreator#createProxy方法中

// 创建通知数组, 生成代理类过程中匹配的拦截器被赋值给proxyFactory
Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
proxyFactory.addAdvisors(advisors);

proxyFactory.getProxy(getProxyClassLoader());

public Object getProxy(@Nullable ClassLoader classLoader) {
    return createAopProxy().getProxy(classLoader);
}

protected final synchronized AopProxy createAopProxy() {
    return getAopProxyFactory().createAopProxy(this);
}
// 最终proxyFactory转换为AdvisedSupport 配置
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
    // config 被赋值给JdkDynamicAopProxy, 所有代理对象内部可以通过config直接获取拦截器
    return new JdkDynamicAopProxy(config);
}

// this.advised 就是 前面的创建代理时的config,内置了拦截器数组advisors
List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);


public class AdvisedSupport extends ProxyConfig implements Advised {
    // method缓存
    private transient Map<MethodCacheKey, List<Object>> methodCache;

	public List<Object> getInterceptorsAndDynamicInterceptionAdvice(Method method, @Nullable Class<?> targetClass) {
        MethodCacheKey cacheKey = new MethodCacheKey(method);
        List<Object> cached = this.methodCache.get(cacheKey);
        if (cached == null) {
            // 获取拦截器和动态通知, this内置了拦截器数组advisors
            cached = this.advisorChainFactory.getInterceptorsAndDynamicInterceptionAdvice(this, method, targetClass);
            this.methodCache.put(cacheKey, cached);
        }
        return cached;
    }
}
public class DefaultAdvisorChainFactory implements AdvisorChainFactory, Serializable {

    @Override
    public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
    	Advised config, Method method, @Nullable Class<?> targetClass) {

        // This is somewhat tricky... We have to process introductions first,
        // but we need to preserve order in the ultimate list.
        List<Object> interceptorList = new ArrayList<>(config.getAdvisors().length);
        Class<?> actualClass = (targetClass != null ? targetClass : method.getDeclaringClass());

        boolean hasIntroductions = hasMatchingIntroductions(config, actualClass);
        // 创建注册器,用来注册AdvisorAdapter
        AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();
        // 遍历config内置的拦截器数组advisors
        for (Advisor advisor : config.getAdvisors()) {
            if (advisor instanceof PointcutAdvisor) {
                // Add it conditionally.
                PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor;
                if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {

                    // 将Advisor转化成Interceptor
                    MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
                    // 检查当前advisor的pointcut是否可以匹配当前方法
                    MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
                    if (MethodMatchers.matches(mm, method, actualClass, hasIntroductions)) {
                        if (mm.isRuntime()) {
                            // Creating a new object instance in the getInterceptors() method
                            // isn't a problem as we normally cache created chains.
                            for (MethodInterceptor interceptor : interceptors) {
                                interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
                            }
                        }
                        else {
                            interceptorList.addAll(Arrays.asList(interceptors));
                        }
                    }
                }
            }
            else if (advisor instanceof IntroductionAdvisor) {
                IntroductionAdvisor ia = (IntroductionAdvisor) advisor;
                if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
                    Interceptor[] interceptors = registry.getInterceptors(advisor);
                    interceptorList.addAll(Arrays.asList(interceptors));
                }
            }
            else {
                Interceptor[] interceptors = registry.getInterceptors(advisor);
                interceptorList.addAll(Arrays.asList(interceptors));
            }
        }

        return interceptorList;
    }

}

将Advisor转化成Interceptor

可以看出，在解析过程中注册的5种Advice中，After，Around，AfterThrowing实现了MethodInterceptor接口，Before和AfterReturn没有实现，Before和AfterReturn需要转换

public MethodInterceptor[] getInterceptors(Advisor advisor) throws UnknownAdviceTypeException {
    List<MethodInterceptor> interceptors = new ArrayList<>(3);
    Advice advice = advisor.getAdvice();
    // 如果实现了MethodInterceptor接口直接添加
    if (advice instanceof MethodInterceptor) {
        interceptors.add((MethodInterceptor) advice);
    }
    for (AdvisorAdapter adapter : this.adapters) {
        // 适配器模式,转换类型
        if (adapter.supportsAdvice(advice)) {
            // 其他通过adapter做转换 Before和AfterReturn
            interceptors.add(adapter.getInterceptor(advisor));
        }
    }
    if (interceptors.isEmpty()) {
        throw new UnknownAdviceTypeException(advisor.getAdvice());
    }
    return interceptors.toArray(new MethodInterceptor[interceptors.size()]);
}
// BeforeAdvice适配器
class MethodBeforeAdviceAdapter implements AdvisorAdapter, Serializable {
    @Override
    public boolean supportsAdvice(Advice advice) {
        return (advice instanceof MethodBeforeAdvice);
    }
    @Override
    public MethodInterceptor getInterceptor(Advisor advisor) {
        MethodBeforeAdvice advice = (MethodBeforeAdvice) advisor.getAdvice();
        return new MethodBeforeAdviceInterceptor(advice);
    }
}
// AfterReturningAdvice适配器
class AfterReturningAdviceAdapter implements AdvisorAdapter, Serializable {
    @Override
    public boolean supportsAdvice(Advice advice) {
        return (advice instanceof AfterReturningAdvice);
    }
    @Override
    public MethodInterceptor getInterceptor(Advisor advisor) {
        AfterReturningAdvice advice = (AfterReturningAdvice) advisor.getAdvice();
        return new AfterReturningAdviceInterceptor(advice);
    }
}

调用方法

public class ReflectiveMethodInvocation implements ProxyMethodInvocation, Cloneable {
    // 拦截器链 在构造方法里被赋值
    protected final List<?> interceptorsAndDynamicMethodMatchers;
    // 当前执行的文章
    private int currentInterceptorIndex = -1;

    public Object proceed() throws Throwable {
        // 如果Interceptor执行完了，则执行joinPoint
        if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
            return invokeJoinpoint();
        }
        // 获取当前执行的Advice
        Object interceptorOrInterceptionAdvice = this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);

        if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
            // Evaluate dynamic method matcher here: static part will already have
            // been evaluated and found to match.
            InterceptorAndDynamicMethodMatcher dm = (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
            // 动态匹配 运行时参数是否满足匹配条件
            if (dm.methodMatcher.matches(this.method, this.targetClass, this.arguments)) {
                // 调用的时候会把this传过去
                return dm.interceptor.invoke(this);
            } else {
                // 动态匹配失败时,递归,调用下一个Interceptor(currentInterceptorIndex会自增)
                return proceed();
            }
        } else {
            // It's an interceptor, so we just invoke it: The pointcut will have
            // been evaluated statically before this object was constructed.
            // 执行当前Intercetpor
            return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
        }
    }
}

调用Advice

before

public class MethodBeforeAdviceInterceptor implements MethodInterceptor, Serializable {
    private MethodBeforeAdvice advice;
    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        // 前置方法
        this.advice.before(mi.getMethod(), mi.getArguments(), mi.getThis() );
        // 这里的mi对应上文中的this,会回调ReflectiveMethodInvocation.proceed()
        return mi.proceed();
    }
}

After

public class AspectJAfterAdvice extends AbstractAspectJAdvice implements MethodInterceptor, AfterAdvice, Serializable {
    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        try {
            return mi.proceed();
        } finally {
            // 后置方法
            invokeAdviceMethod(getJoinPointMatch(), null, null);
        }
    }
}

Around

public class AspectJAroundAdvice extends AbstractAspectJAdvice implements MethodInterceptor, Serializable {
    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        if (!(mi instanceof ProxyMethodInvocation)) {
            throw new IllegalStateException("MethodInvocation is not a Spring ProxyMethodInvocation: " + mi);
        }
        ProxyMethodInvocation pmi = (ProxyMethodInvocation) mi;
        ProceedingJoinPoint pjp = lazyGetProceedingJoinPoint(pmi);
        JoinPointMatch jpm = getJoinPointMatch(pmi);
        return invokeAdviceMethod(pjp, jpm, null, null);
    }
}

AfterReturn

public class AfterReturningAdviceInterceptor implements MethodInterceptor, AfterAdvice, Serializable {
    private final AfterReturningAdvice advice;
    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        // 先执行，retVal保存返回结果
        Object retVal = mi.proceed();
        // 然后调用
        this.advice.afterReturning(retVal, mi.getMethod(), mi.getArguments(), mi.getThis());
        // 返回结果
        return retVal;
    }
}

AfterThrowing

public class AspectJAfterThrowingAdvice extends AbstractAspectJAdvice implements MethodInterceptor, AfterAdvice, Serializable {
    @Override
    public Object invoke(MethodInvocation mi) throws Throwable {
        try {
            return mi.proceed();
        } catch (Throwable ex) {
            if (shouldInvokeOnThrowing(ex)) {
                // 异常调用
                invokeAdviceMethod(getJoinPointMatch(), null, ex);
            }
            throw ex;
        }
    }

}

aop:aspectj-autoproxy

开启对于@AspectJ注解风格AOP的支持，解析AspectJAutoProxyBeanDefinitionParser

class AspectJAutoProxyBeanDefinitionParser implements BeanDefinitionParser {
    @Override
    @Nullable
    public BeanDefinition parse(Element element, ParserContext parserContext) {
        // 配置注册自动代理创建器的BeanDefinition
        // 调用AopConfigUtils#registerAspectJAnnotationAutoProxyCreatorIfNecessary方法
        AopNamespaceUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(parserContext, element);
        // 对注解的子类处理，扩展操作
        extendBeanDefinition(element, parserContext);
        return null;
    }
}

内部实现依然通过AnnotationAwareAspectJAutoProxyCreator实现，和XML相比代码没有变化

扩展

class AspectJAutoProxyBeanDefinitionParser implements BeanDefinitionParser {

    private void extendBeanDefinition(Element element, ParserContext parserContext) {
        BeanDefinition beanDef =
    		parserContext.getRegistry().getBeanDefinition(AopConfigUtils.AUTO_PROXY_CREATOR_BEAN_NAME);
        if (element.hasChildNodes()) {
            // 添加匹配表达式
            addIncludePatterns(element, parserContext, beanDef);
        }
    }
    // 添加匹配表达式
    private void addIncludePatterns(Element element, ParserContext parserContext, BeanDefinition beanDef) {
        ManagedList<TypedStringValue> includePatterns = new ManagedList<>();
        NodeList childNodes = element.getChildNodes();
        for (int i = 0; i < childNodes.getLength(); i++) {
            Node node = childNodes.item(i);
            if (node instanceof Element) {
                Element includeElement = (Element) node;
                TypedStringValue valueHolder = new TypedStringValue(includeElement.getAttribute("name"));
                valueHolder.setSource(parserContext.extractSource(includeElement));
                includePatterns.add(valueHolder);
            }
        }
        if (!includePatterns.isEmpty()) {
            includePatterns.setSource(parserContext.extractSource(element));
            beanDef.getPropertyValues().add("includePatterns", includePatterns);
        }
    }
}

@EnableAspectJAutoProxy

使用注解@EnableAspectJAutoProxy同样可以实现对于@AspectJ注解风格AOP的支持，实现注解驱动；

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
// 这里导入了一个类,相当于XML配置的<import>标签
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {
    boolean proxyTargetClass() default false;
    boolean exposeProxy() default false;
}


// 注入AspectJAutoProxyRegistrar
class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {
    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        // 最终会调用AopConfigUtils#registerAspectJAnnotationAutoProxyCreatorIfNecessary方法
        AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
        // 解析注解中的两个参数 "proxyTargetClass" 和 "exposeProxy"
        AnnotationAttributes enableAspectJAutoProxy = AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);
        if (enableAspectJAutoProxy != null) {
            if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {
                AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);
            }
            if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {
                AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);
            }
        }
    }

}

调用AopConfigUtils#registerAspectJAnnotationAutoProxyCreatorIfNecessary，实现方式和XML配置是一样的

public abstract class AopConfigUtils {
    // 调用
    public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry) {
    	return registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, null);
    }
    public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry, @Nullable Object source) {
    	// 选择AnnotationAwareAspectJAutoProxyCreator.class作为beanClass
    	return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
    }
    private static BeanDefinition registerOrEscalateApcAsRequired(Class<?> cls, BeanDefinitionRegistry registry,@Nullable Object source) {

        Assert.notNull(registry, "BeanDefinitionRegistry must not be null");

        if (registry.containsBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME)) {
            BeanDefinition apcDefinition = registry.getBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME);
            if (!cls.getName().equals(apcDefinition.getBeanClassName())) {
                int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());
                int requiredPriority = findPriorityForClass(cls);
                if (currentPriority < requiredPriority) {
                    apcDefinition.setBeanClassName(cls.getName());
                }
            }
            return null;
        }
        // 创建 BeanDefinition beanClass = AnnotationAwareAspectJAutoProxyCreator.class
        RootBeanDefinition beanDefinition = new RootBeanDefinition(cls);
        beanDefinition.setSource(source);
        beanDefinition.getPropertyValues().add("order", Ordered.HIGHEST_PRECEDENCE);
        beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        // 向容器注册 beanDefinition
        registry.registerBeanDefinition(AUTO_PROXY_CREATOR_BEAN_NAME, beanDefinition);
        return beanDefinition;
    }
}

aop:scoped-proxy

aop:scoped-proxy 通过代理引用该对象,对已注入的依赖bean的scope进行正确的代理

<!-- 单例bean引用一个helloService; -->
<bean class="com.qinfengsa.spring.bean.IocUser"  >
    <!-- 通过依赖注入之后,调用的helloService是同一个不变的,不符合预器 -->
    <constructor-arg ref="helloService" />
    <constructor-arg type="int" value="1"/>
    <constructor-arg index="1" type="java.lang.String" value="qin"/>
</bean>
<!-- helloService 是 prototype，每次调用都应该创建新的bean -->
<bean id = "helloService" class="com.qinfengsa.spring.service.HelloServiceImpl" scope="prototype">
    <!-- 添加<aop:scoped-proxy/> 之后每次调用会生成新的，符合定义的scope  -->
    <aop:scoped-proxy/>
</bean>
