特点
- 登高的柱状图总体，用实心的的柱状图渲染所占的比例
- legend的菜单与y轴的下标成 一对多的关系(类似分类，一个类控制多个具体类目)
- 时间刻度（平均线的巧妙用法）

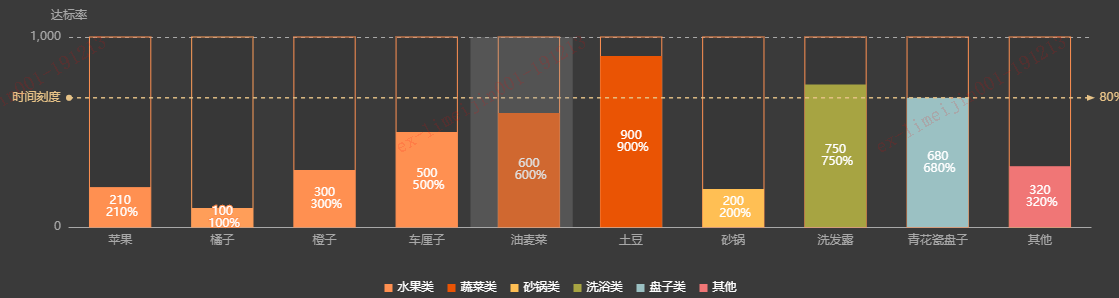

先看下效果
代码
let data = [100, 52, 200, 334, 390, 330, 220, 100, 230, 450];
let yMax = 1000;
let dataShadow = new Array(data.length).fill(1000, 0, data.length);
let labelOption = {
normal: {
show: true,
align: 'middle',
formatter: (obj) => obj.value > 0 ? `${obj.value}\n ${obj.value}%` : '',
fontSize: 12,
}
};
let option = {
color: [
'#FF9051', '#FF9051', '#FF9051', '#FF9051', '#FF9051',
'#EA5404', '#EA5404', '#EA5404',
"#FFBF54", "#FFBF54",
'#A7A442', '#A7A442',
'#9BC1C3', '#9BC1C3',
'#F07676'
],
tooltip: {
trigger: 'axis',
axisPointer: { // 坐标轴指示器，坐标轴触发有效
type: 'shadow' // 默认为直线，可选为：'line' | 'shadow'
},
formatter: '',
},
grid: {
left: 50,
top: 30,
bottom: 60,
right: 50,
containLabel: true
},
legend: {
icon: "square",
orient: 'horizontal',//horizontal 横向排列 vertical 纵向排列
x: 'center',
y: '270',
itemGap: 14,// 各个item之间的间隔，默认为10px /横向布局时为水平间隔，纵向布局时为纵向间隔
itemWidth: 8,// 图例图形宽度
itemHeight: 8,// 图例图形高度
data: ['水果类', '蔬菜类', '配料类', '砂锅类', '洗浴类', '盘子类', '其他'],
textStyle: { color: '#FFFFFF', fontsize: '14px'}
},
xAxis: {
type: 'category',
axisLabel: {
show: true,
textStyle: {color: '#A8A8A8',fontSize: '12'}
},
axisLine: { //x坐标轴的设置
lineStyle: {
color: '#A8A8A8',
width: 1, //这里是坐标轴的宽度
}
},
axisTick: { show: false, alignWithLabel: true},
data: ['苹果', "橘子", "橙子", "车厘子", "油麦菜", "土豆", "砂锅", "洗发露", "青花瓷盘子", '其他']
},
yAxis: [
{
name: '达标率',
max: 1000,
splitNumber: 1,
splitLine: { //分割线
show: true,
lineStyle: { type: 'dashed', color: '#A8A8A8'}
},
axisLine: {//坐标轴
show: false,
lineStyle: {
color: '#A8A8A8',
width: 1, //这里是坐标轴的宽度
}
},
axisTick: { show: false},
}
],
series: [
{ // 最外层的边框
type: 'bar',
itemStyle: {
normal: {
color: 'rgba(0,0,0,0.05)',
borderColor: '#FF9051',
borderWidth: 1,
borderType: 'solid',
}
},
barGap: '-100%',
barCategoryGap: '40%',
data: dataShadow,
animation: false
},
{
name: '水果类',
type: 'bar',
stack: '水果类',
label: labelOption,
data: [210, 100, 300, 500, 0, 0, 0, 0, 0, 0]
},
{
name: '苹果',
type: 'bar',
stack: '水果类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '橘子',
type: 'bar',
stack: '水果类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '橙子',
type: 'bar',
stack: '水果类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '车厘子',
type: 'bar',
stack: '水果类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '蔬菜类',
type: 'bar',
stack: '蔬菜类',
label: labelOption,
data: [0, 0, 0, 0, 600, 900, 0, 0, 0, 0]
},
{
name: '土豆',
type: 'bar',
stack: '蔬菜类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '油麦菜',
type: 'bar',
stack: '蔬菜类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '砂锅类',
type: 'bar',
stack: '砂锅类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 200, 0, 0, 0, 0]
},
{
name: '砂锅',
type: 'bar',
stack: '砂锅类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '洗浴类',
type: 'bar',
stack: '洗浴类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 750, 0, 0, 0]
},
{
name: '洗发露',
type: 'bar',
stack: '洗浴类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '盘子类',
type: 'bar',
stack: '盘子类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 680, 0, 0]
},
{
name: '青花瓷盘子',
type: 'bar',
stack: '盘子类',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0]
},
{
name: '其他',
type: 'bar',
label: labelOption,
data: [0, 0, 0, 0, 0, 0, 0, 0, 0, 320, 0]
},
{ //中间的虚线
type: 'line',
symbol: 'none',
data: [500, 600, 700, 800, 800, 600, 500, 700., 800, 800],
animation: false,
lineStyle: {
color: 'rgba(58, 58, 58, 0)',
},
markLine: {
symbol: ['circle', 'triangle'],
symbolSize: [6, 8],
precision: 0,
label: {
position: 'end',
formatter: ' 80%'
},
lineStyle: {
normal: {
type: 'dashed',
color: '#E7C387'
}
},
data: [{ type: 'average', name: '平均值' }],
}
},
{
type: 'line',
symbol: 'none',
data: [500, 600, 700, 800, 800, 600, 500, 700., 800, 800],
animation: false,
lineStyle: { color: 'rgba(58, 58, 58, 0)'},
markLine: {
symbol: ['none', 'none'],
label: {
position: 'start',
formatter: '时间刻度 ',
},
lineStyle: {
normal: {
type: 'dashed',
color: '#E7C387'
}
},
data: [{ type: 'average', name: '平均值' }],
}
}
]
};
